4-01 — PROPELLER SHAFT (#79661) — 115 parça

300 125 9 103 17 9 8 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97943-048-0	01	1	1203-1407	●	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97948-771-0	01	1	1408-	●	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97942-850-0	02	1	1203-1407			●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97948-772-0	02	1	1408-			●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (C)	8-97947-643-0	03	1	1203-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-645-0	02	1	1203-			●		●
9	05.548 JOURNAL ASM; PROP SHAFT M/T AISIN 6 SPEED(RNU) (A)	8-97947-645-0	03	1	1203-			●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-97947-582-0	02	1	1203-			●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	02	1	1203-			●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) M6 STRAIGHT	0-90301-406-0	02	1	1203-			●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T AISIN 6 SPEED(RNU) M6 STRAIGHT	0-90301-406-0	03	1	1203-			●	●	●
103	05.544 BOOT; PROP SHAFT (A)	8-97947-640-0	01	1	1203-	●	●
103	05.544 BOOT; PROP SHAFT 05.560 (A)	8-97940-114-0	01	1	1203-			●	●	●
103	05.544 BOOT; PROP SHAFT (B)	8-97943-053-0	01	1	1203-			●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT (A)	8-97947-633-0	01	1	1203-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT (B)	8-97947-664-0	01	1	1203-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97947-664-0	01	1	1203-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT (A)	8-97947-630-0	01	1	1203-			●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT HIGH RIDE SUSPENSION(7YC) (B)	8-97947-732-0	01	1	1203-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT (B)	8-97947-732-0	01	1	1203-			●	●	●
300	05.544 SHAFT ASM; PROP,RR (A) L=1815.5	8-97947-488-0	01	1	1203-1407	●
300	05.544 SHAFT ASM; PROP,RR EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1815.5	8-97947-488-0	01	1	1203-1407		●
300	05.544 SHAFT ASM; PROP,RR (A) L=1815.5	8-97948-754-0	01	1	1408-	●
300	05.544 SHAFT ASM; PROP,RR EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1815.5	8-97948-754-0	01	1	1408-		●
300	05.544 SHAFT ASM; PROP,RR HIGH RIDE SUSPENSION(7YC) (A) L=1820	8-97947-729-0	01	1	1203-1407		●
300	05.544 SHAFT ASM; PROP,RR HIGH RIDE SUSPENSION(7YC) (A) L=1820	8-97948-753-0	01	1	1408-		●
300	05.544 SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (B) L=1384	8-97947-258-1	01	1	1203-1407			●		●
300	05.544 SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (B) L=1384	8-97948-764-0	01	1	1408-			●		●
300	05.544 SHAFT ASM; PROP,RR M/T AISIN 6 SPEED(RNU) (A) L=1472	8-97947-730-0	01	1	1203-1407			●	●	●
300	05.544 SHAFT ASM; PROP,RR M/T AISIN 6 SPEED(RNU) (A) L=1472	8-97948-755-0	01	1	1408-			●	●	●

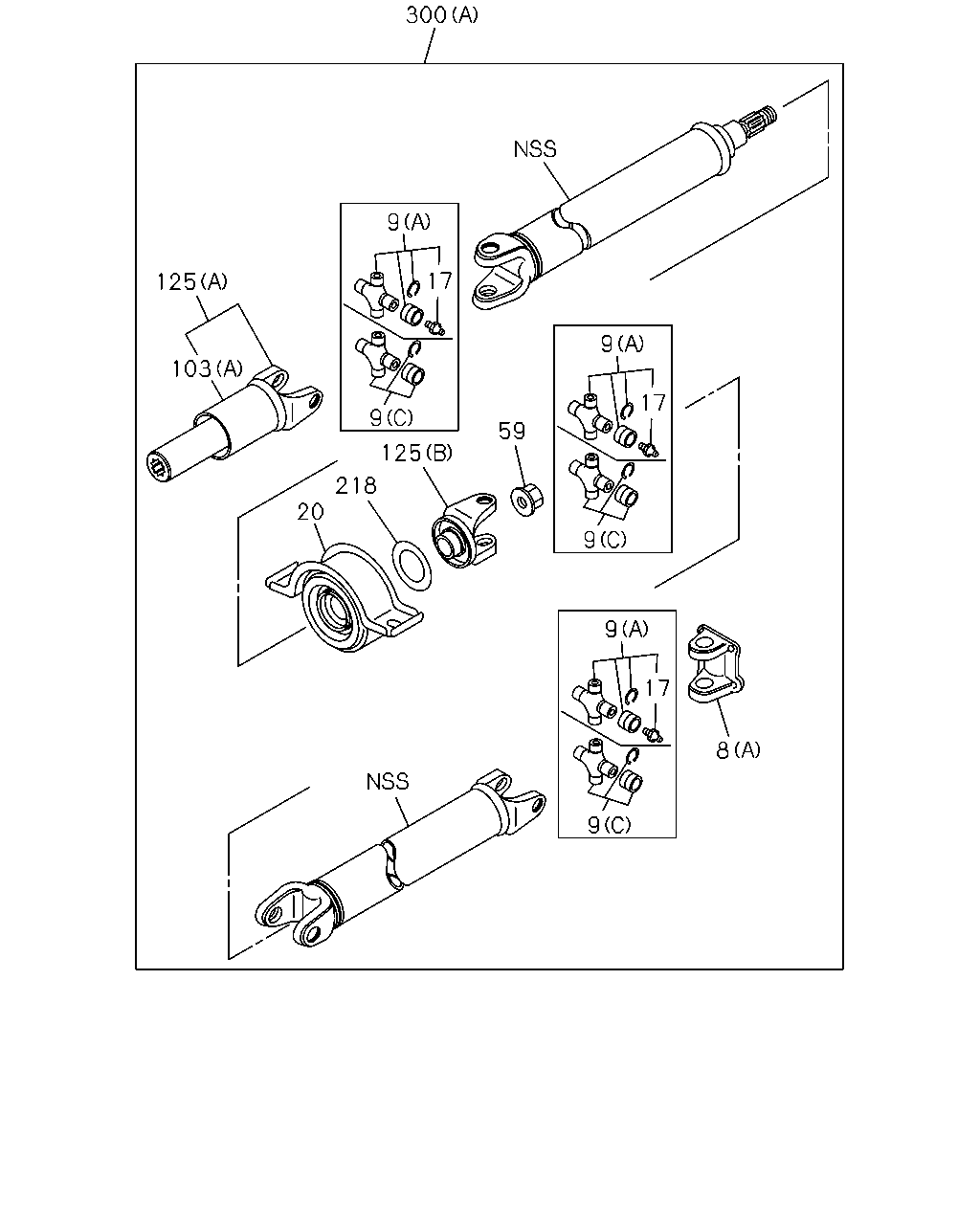

300 9 17 125 9 103 17 9 59 125 218 20 9 9 17 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97943-048-0	01	1	1203-1407	●	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97948-771-0	01	1	1408-	●	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97942-850-0	02	1	1203-1407			●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97948-772-0	02	1	1408-			●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (C)	8-97947-643-0	03	1	1203-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-645-0	02	1	1203-			●		●
9	05.548 JOURNAL ASM; PROP SHAFT M/T AISIN 6 SPEED(RNU) (A)	8-97947-645-0	03	1	1203-			●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-97947-582-0	02	1	1203-			●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	02	1	1203-			●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) M6 STRAIGHT	0-90301-406-0	02	1	1203-			●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T AISIN 6 SPEED(RNU) M6 STRAIGHT	0-90301-406-0	03	1	1203-			●	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT NSK	8-97947-655-0	01	1	1203-	●
20	05.600 BEARING ASM; CTR,PROP SHAFT EXC. HIGH RIDE SUSPENSION(7YC) NSK	8-97947-655-0	01	1	1203-		●
20	05.600 BEARING ASM; CTR,PROP SHAFT NTN	8-97947-656-0	01	1	1203-	●
20	05.600 BEARING ASM; CTR,PROP SHAFT EXC. HIGH RIDE SUSPENSION(7YC) NTN	8-97947-656-0	01	1	1203-		●
20	05.600 BEARING ASM; CTR,PROP SHAFT HIGH RIDE SUSPENSION(7YC) NSK	8-97947-659-0	01	1	1203-		●
20	05.600 BEARING ASM; CTR,PROP SHAFT HIGH RIDE SUSPENSION(7YC) NTN	8-97947-660-0	01	1	1203-		●
20	05.600 BEARING ASM; CTR,PROP SHAFT M/T AISIN 6 SPEED(RNU) NSK	8-97947-657-0	01	1	1203-			●	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT M/T AISIN 6 SPEED(RNU) NTN	8-97947-658-0	01	1	1203-			●	●	●
59	05.586 NUT; RET TO SUPPORT	8-97947-557-0	01	1	1203-	●	●		●
59	05.586 NUT; RET TO SUPPORT M/T AISIN 6 SPEED(RNU)	8-97947-557-0	01	1	1203-			●		●
103	05.544 BOOT; PROP SHAFT (A)	8-97947-640-0	01	1	1203-	●	●
103	05.544 BOOT; PROP SHAFT 05.560 (A)	8-97940-114-0	01	1	1203-			●	●	●
103	05.544 BOOT; PROP SHAFT (B)	8-97943-053-0	01	1	1203-			●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT (A)	8-97947-633-0	01	1	1203-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT (B)	8-97947-664-0	01	1	1203-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97947-664-0	01	1	1203-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT (A)	8-97947-630-0	01	1	1203-			●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT HIGH RIDE SUSPENSION(7YC) (B)	8-97947-732-0	01	1	1203-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT (B)	8-97947-732-0	01	1	1203-			●	●	●
218	05.586 WASHER; PL,PROP SHAFT ID=30 H=40 L=35	8-97192-641-0	01	1	1203-	●	●		●
218	05.586 WASHER; PL,PROP SHAFT M/T AISIN 6 SPEED(RNU) ID=30 H=40 L=35	8-97192-641-0	01	1	1203-			●		●
300	05.544 SHAFT ASM; PROP,RR (A) L=1815.5	8-97947-488-0	01	1	1203-1407	●
300	05.544 SHAFT ASM; PROP,RR EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1815.5	8-97947-488-0	01	1	1203-1407		●
300	05.544 SHAFT ASM; PROP,RR (A) L=1815.5	8-97948-754-0	01	1	1408-	●
300	05.544 SHAFT ASM; PROP,RR EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1815.5	8-97948-754-0	01	1	1408-		●
300	05.544 SHAFT ASM; PROP,RR HIGH RIDE SUSPENSION(7YC) (A) L=1820	8-97947-729-0	01	1	1203-1407		●
300	05.544 SHAFT ASM; PROP,RR HIGH RIDE SUSPENSION(7YC) (A) L=1820	8-97948-753-0	01	1	1408-		●
300	05.544 SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (B) L=1384	8-97947-258-1	01	1	1203-1407			●		●
300	05.544 SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (B) L=1384	8-97948-764-0	01	1	1408-			●		●
300	05.544 SHAFT ASM; PROP,RR M/T AISIN 6 SPEED(RNU) (A) L=1472	8-97947-730-0	01	1	1203-1407			●	●	●
300	05.544 SHAFT ASM; PROP,RR M/T AISIN 6 SPEED(RNU) (A) L=1472	8-97948-755-0	01	1	1408-			●	●	●

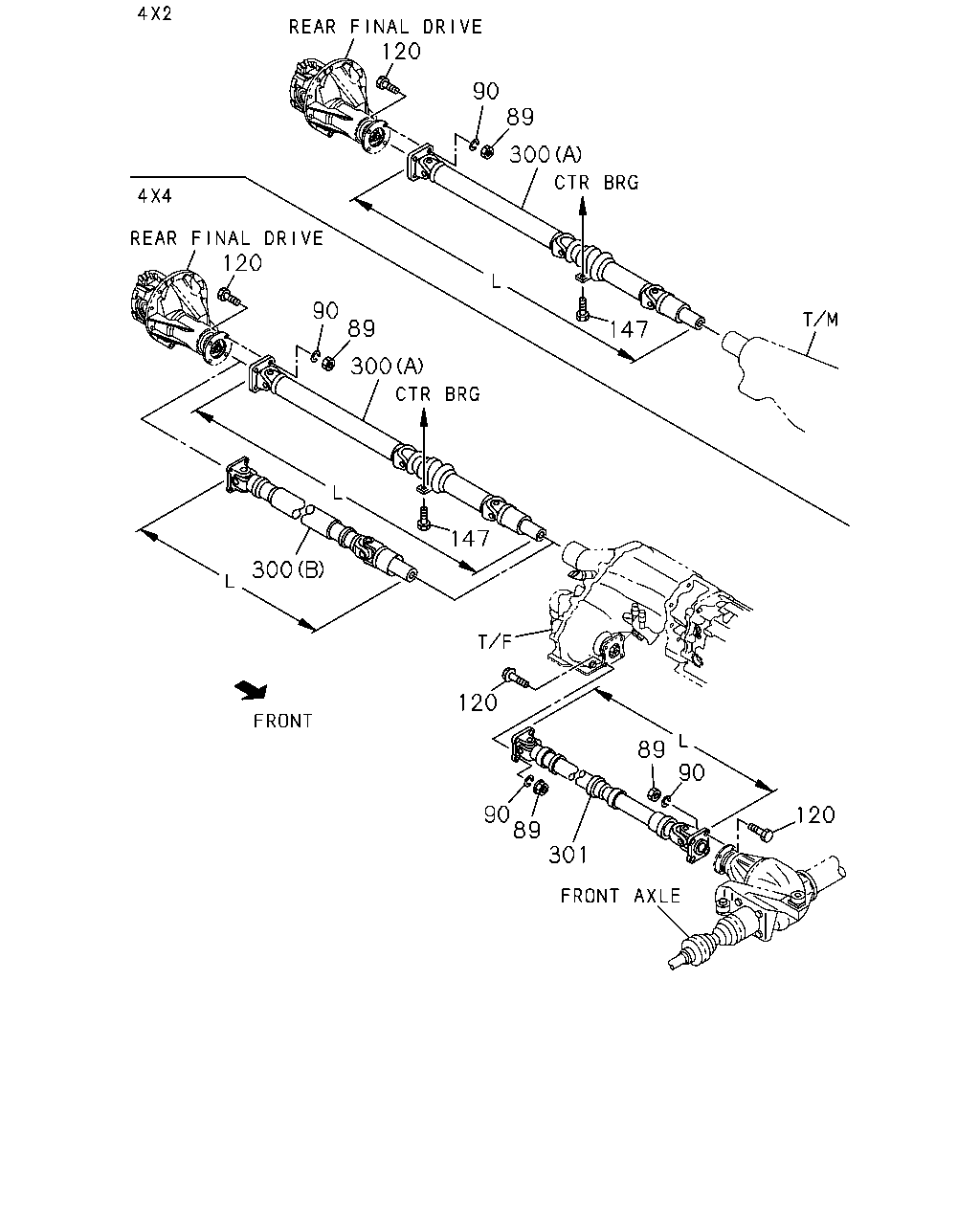

120 90 89 300 120 90 89 147 300 147 300 120 89 90 90 89 301 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
89	05.586 NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	04	1	1203-	●	●	●	●	●
89	05.586 NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	08	1	1203-			●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	04	1	1203-	●	●	●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	08	1	1203-			●	●	●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	04	1	1203-	●	●	●	●	●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	08	1	1203-			●	●	●
147	05.586 BOLT; CENTER BRG MTG 17.447 M12X25 FLANGE	0-28661-225-0	02	1	1203-	●	●		●
147	05.586 BOLT; CENTER BRG MTG M/T AISIN 6 SPEED(RNU) 17.447 M12X25 FLANGE	0-28661-225-0	02	1	1203-			●		●
300	05.544 SHAFT ASM; PROP,RR (A) L=1815.5	8-97947-488-0	01	1	1203-1407	●
300	05.544 SHAFT ASM; PROP,RR EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1815.5	8-97947-488-0	01	1	1203-1407		●
300	05.544 SHAFT ASM; PROP,RR (A) L=1815.5	8-97948-754-0	01	1	1408-	●
300	05.544 SHAFT ASM; PROP,RR EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1815.5	8-97948-754-0	01	1	1408-		●
300	05.544 SHAFT ASM; PROP,RR HIGH RIDE SUSPENSION(7YC) (A) L=1820	8-97947-729-0	01	1	1203-1407		●
300	05.544 SHAFT ASM; PROP,RR HIGH RIDE SUSPENSION(7YC) (A) L=1820	8-97948-753-0	01	1	1408-		●
300	05.544 SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (B) L=1384	8-97947-258-1	01	1	1203-1407			●		●
300	05.544 SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (B) L=1384	8-97948-764-0	01	1	1408-			●		●
300	05.544 SHAFT ASM; PROP,RR M/T AISIN 6 SPEED(RNU) (A) L=1472	8-97947-730-0	01	1	1203-1407			●	●	●
300	05.544 SHAFT ASM; PROP,RR M/T AISIN 6 SPEED(RNU) (A) L=1472	8-97948-755-0	01	1	1408-			●	●	●
301	05.544 SHAFT ASM; PROP,FRT A/T 5 SPEED-AISIN(MA1) L=789	8-97946-601-0	01	1	1203-1407			●		●
301	05.544 SHAFT ASM; PROP,FRT A/T 5 SPEED-AISIN(MA1) L=789	8-97948-762-0	01	1	1408-			●		●
301	05.544 SHAFT ASM; PROP,FRT M/T AISIN 6 SPEED(RNU) L=710	8-97947-415-0	01	1	1203-1407			●	●	●
301	05.544 SHAFT ASM; PROP,FRT M/T AISIN 6 SPEED(RNU) L=710	8-97948-761-0	01	1	1408-			●	●	●

301 103 220 9 106 8 17 8 9 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97943-048-0	01	1	1203-1407	●	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97948-771-0	01	1	1408-	●	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97942-850-0	02	1	1203-1407			●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97948-772-0	02	1	1408-			●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (C)	8-97947-643-0	03	1	1203-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-645-0	02	1	1203-			●		●
9	05.548 JOURNAL ASM; PROP SHAFT M/T AISIN 6 SPEED(RNU) (A)	8-97947-645-0	03	1	1203-			●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-97947-582-0	02	1	1203-			●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	02	1	1203-			●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) M6 STRAIGHT	0-90301-406-0	02	1	1203-			●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T AISIN 6 SPEED(RNU) M6 STRAIGHT	0-90301-406-0	03	1	1203-			●	●	●
103	05.544 BOOT; PROP SHAFT (A)	8-97947-640-0	01	1	1203-	●	●
103	05.544 BOOT; PROP SHAFT 05.560 (A)	8-97940-114-0	01	1	1203-			●	●	●
103	05.544 BOOT; PROP SHAFT (B)	8-97943-053-0	01	1	1203-			●	●	●
106	05.586 NIPPLE; GREASE,YOKE,PROP SHAFT 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1203-			●	●	●
220	05.544 YOKE; SPLINED A/T 5 SPEED-AISIN(MA1)	8-97945-105-0	01	1	1203-			●		●
220	05.544 YOKE; SPLINED M/T AISIN 6 SPEED(RNU)	8-97943-050-0	01	1	1203-			●	●	●
301	05.544 SHAFT ASM; PROP,FRT A/T 5 SPEED-AISIN(MA1) L=789	8-97946-601-0	01	1	1203-1407			●		●
301	05.544 SHAFT ASM; PROP,FRT A/T 5 SPEED-AISIN(MA1) L=789	8-97948-762-0	01	1	1408-			●		●
301	05.544 SHAFT ASM; PROP,FRT M/T AISIN 6 SPEED(RNU) L=710	8-97947-415-0	01	1	1203-1407			●	●	●
301	05.544 SHAFT ASM; PROP,FRT M/T AISIN 6 SPEED(RNU) L=710	8-97948-761-0	01	1	1408-			●	●	●
