◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10818 - LV123/150/423-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-65 - STARTER ▶
0-65 — STARTER (#7966) — 86 parça

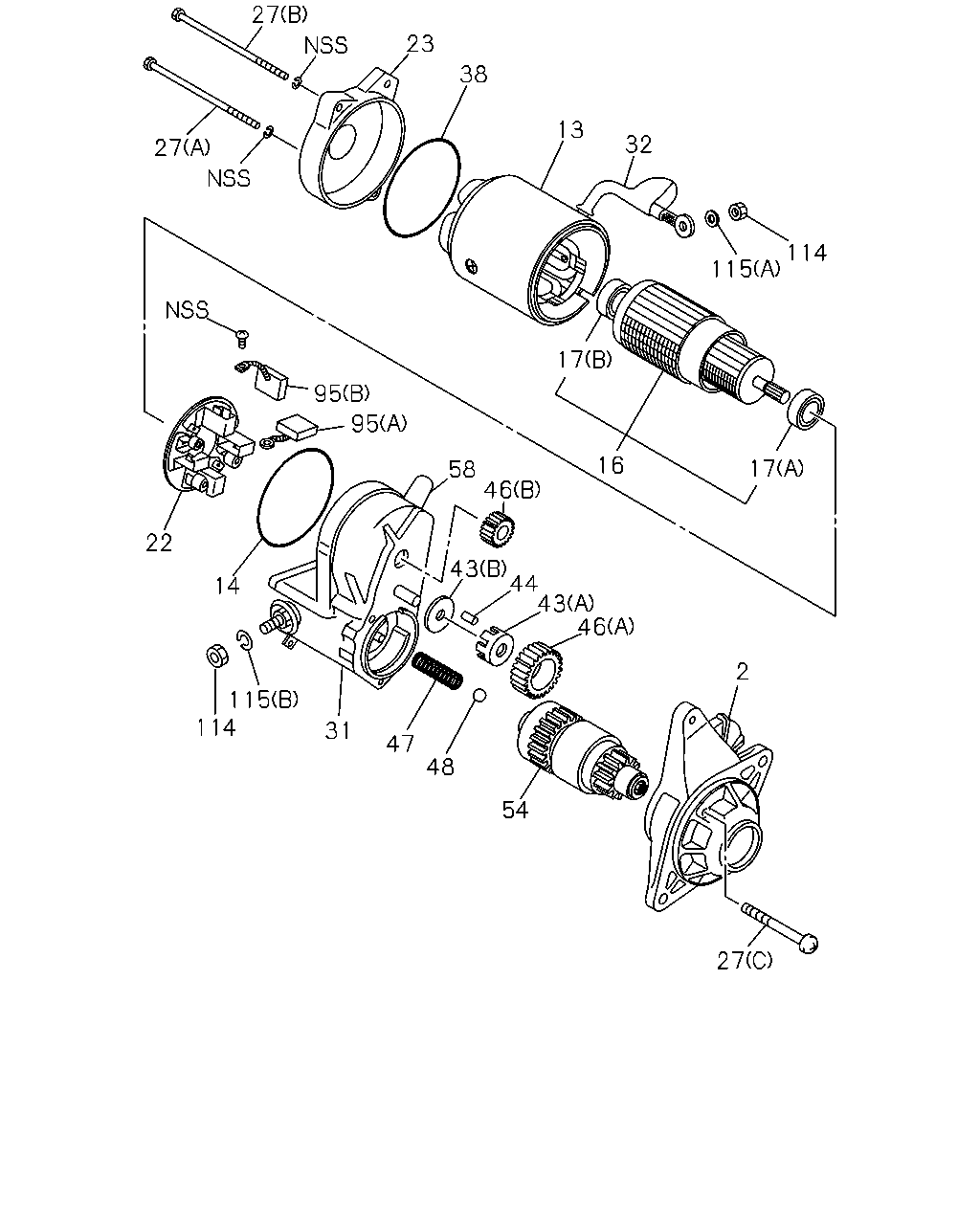

çizim 43568
27 23 38 13 32 27 114 115 17 95 95 16 17 58 46 22 43 44 43 46 14 2 115 114 31 47 48 54 27
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
DENSO ASM PART: A = 1-81100-246-3 		1-81114-035-0 01 1 -
2 CASE; PINION,STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81123-065-0 01 1 -
13 YOKE; STARTER
DENSO ASM PART: A = 1-81100-246-3 		1-81111-004-0 01 1 -
13 YOKE; STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81129-840-1 01 1 -
14 GASKET; YOKE,STARTER
DENSO ASM PART: A = 1-81100-246-3 		1-81129-502-0 01 1 -
16 ARMATURE; STARTER
DENSO ASM PART: A = 1-81100-246-3 		1-81121-044-0 01 1 -
16 ARMATURE; STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81121-067-0 01 1 -
17 BEARING; ARMATURE,STARTER
(A) DENSO ASM PART: A = 1-81100-246-3 		1-81129-495-0 01 1 -
17 BEARING; ARMATURE,STARTER
(C) MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81129-790-0 01 1 -0206
17 BEARING; ARMATURE,STARTER
(C) MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81129-952-0 01 1 0207-
17 BEARING; ARMATURE,STARTER
(B) DENSO ASM PART: A = 1-81100-246-3 		5-09800-081-0 01 1 -
22 HOLDER; BRUSH STARTER
DENSO ASM PART: A = 1-81100-246-3 		1-81118-043-0 01 1 -
22 HOLDER; BRUSH STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81121-071-0 01 1 -
23 COVER; RR COVER STARTER
DENSO ASM PART: A = 1-81100-246-3 		1-81115-198-0 01 1 -
23 COVER; RR COVER STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81115-233-0 01 1 -
27 BOLT; THROUGH,STARTER
(C) DENSO ASM PART: A = 1-81100-246-3 		1-81129-483-0 03 1 -
27 BOLT; THROUGH,STARTER
(B) DENSO ASM PART: A = 1-81100-246-3 		1-81129-675-0 01 1 -
27 BOLT; THROUGH,STARTER
(A) DENSO ASM PART: A = 1-81100-246-3 		1-81129-676-0 01 1 -
27 BOLT; THROUGH,STARTER
(D) MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81129-769-0 01 1 -
31 SWITCH; ENGAGE STARTER
DENSO ASM PART: A = 1-81100-246-3 		1-81151-079-0 01 1 -
31 SWITCH; ENGAGE STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81151-115-0 01 1 -0206
31 SWITCH; ENGAGE STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81151-129-0 01 1 0207-
32 COVER; RUBBER,STARTER
DENSO ASM PART: A = 1-81100-246-3 		1-81129-504-0 01 1 -
38 GASKET; RR COVER,STARTER
DENSO ASM PART: A = 1-81100-246-3 		1-81129-502-0 01 1 -
43 RETAINER; PINION STARTER
(A) DENSO ASM PART: A = 1-81100-246-3 		5-81129-121-0 01 1 -
43 RETAINER; PINION STARTER
(B) DENSO ASM PART: A = 1-81100-246-3 		5-81129-127-0 01 1 -
44 ROLLER; PINION STARTER
DENSO ASM PART: A = 1-81100-246-3 		5-81129-120-0 05 1 -
46 GEAR; CLU STARTER
(A) DENSO ASM PART: A = 1-81100-246-3 		1-81123-034-0 01 1 -
46 GEAR; CLU STARTER
(B) DENSO ASM PART: A = 1-81100-246-3 		1-81123-035-0 01 1 -
46 GEAR; CLU STARTER
(C) MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81123-061-0 01 1 -
47 SPRING; PINION STARTER
DENSO ASM PART: A = 1-81100-246-3 		5-81129-119-0 01 1 -
48 BALL; PINION,STARTER
DENSO ASM PART: A = 1-81100-246-3 		5-81129-092-0 01 1 -
48 BALL; PINION,STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		8-97116-515-0 01 1 -
54 CLUTCH; PINION,STARTER
DENSO ASM PART: A = 1-81100-246-3 		1-81122-049-0 01 1 -
54 CLUTCH; PINION,STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81129-782-0 01 1 -
58 PIPE; DRAIN RR COVER STARTER
DENSO ASM PART: A = 1-81100-246-3 		1-81129-479-0 01 1 -0203
58 PIPE; DRAIN RR COVER STARTER
DENSO ASM PART: A = 1-81100-246-3 		1-81129-668-0 01 1 0204-
95 BRUSH ASM; STARTER
(A) DENSO ASM PART: A = 1-81100-246-3 		1-81116-048-0 02 1 -
95 BRUSH ASM; STARTER
(B) DENSO ASM PART: A = 1-81100-246-3 		1-81116-049-0 02 1 -
95 BRUSH ASM; STARTER
(C) MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81116-067-0 01 1 -
114 NUT; TERMINAL
DENSO ASM PART: A = 1-81100-246-3 		5-81129-126-0 02 1 -
115 WASHER; TERMINAL
(A) DENSO ASM PART: A = 1-81100-246-3 		5-81129-129-0 01 1 -
115 WASHER; TERMINAL
(B) DENSO ASM PART: A = 1-81100-246-3 		5-81129-134-0 01 1 -

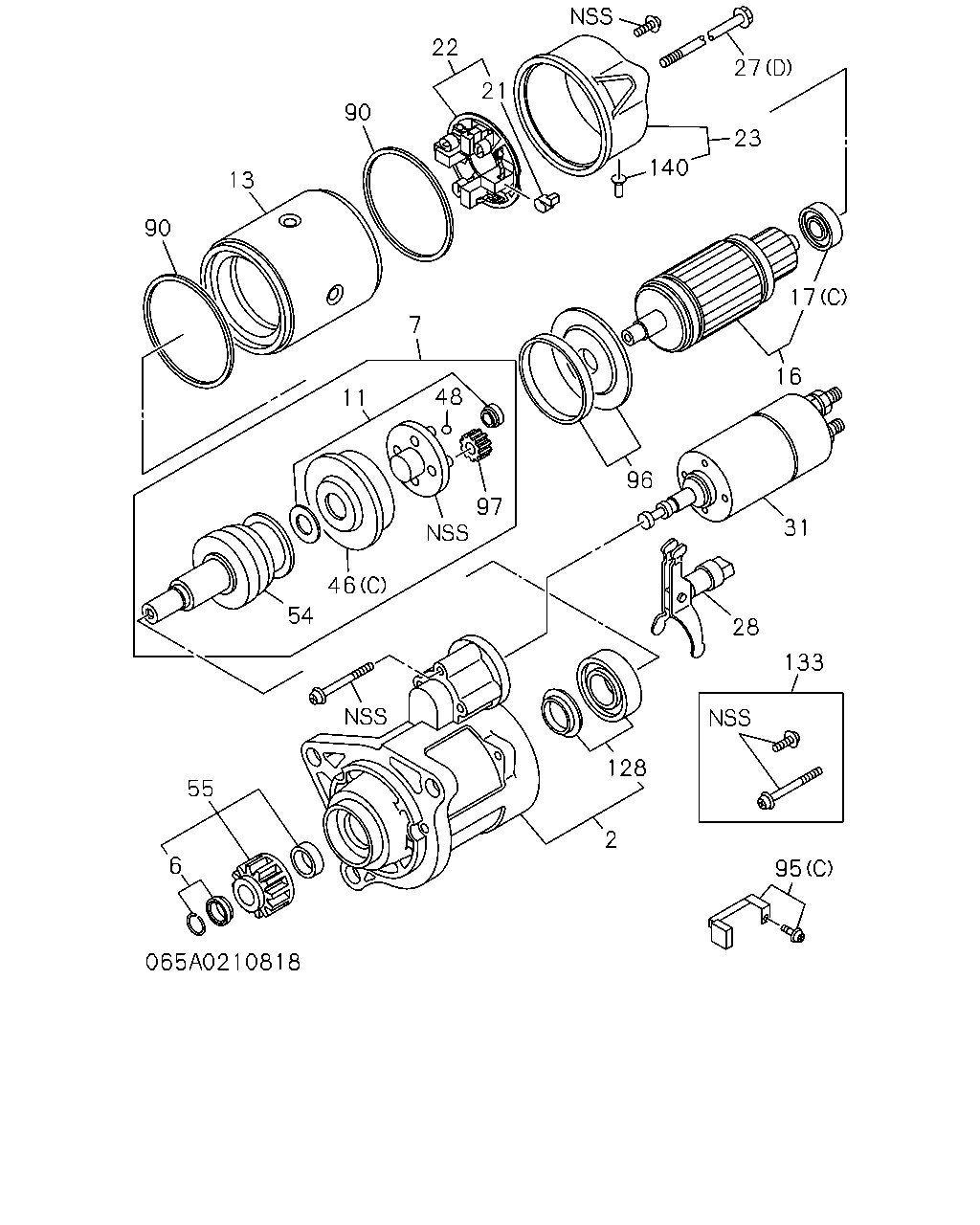

çizim 44932
22 27 21 90 23 140 13 90 17 7 16 48 11 96 97 31 46 54 28 133 128 55 2 6 95
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
DENSO ASM PART: A = 1-81100-246-3 		1-81114-035-0 01 1 -
2 CASE; PINION,STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81123-065-0 01 1 -
6 STOPPER; PINION STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81129-785-0 01 1 -
7 CLUTCH ASM; PINION,STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81129-794-0 01 1 -
11 WASHER; GEAR SHAFT STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81129-781-0 01 1 -
13 YOKE; STARTER
DENSO ASM PART: A = 1-81100-246-3 		1-81111-004-0 01 1 -
13 YOKE; STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81129-840-1 01 1 -
16 ARMATURE; STARTER
DENSO ASM PART: A = 1-81100-246-3 		1-81121-044-0 01 1 -
16 ARMATURE; STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81121-067-0 01 1 -
17 BEARING; ARMATURE,STARTER
(A) DENSO ASM PART: A = 1-81100-246-3 		1-81129-495-0 01 1 -
17 BEARING; ARMATURE,STARTER
(C) MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81129-790-0 01 1 -0206
17 BEARING; ARMATURE,STARTER
(C) MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81129-952-0 01 1 0207-
17 BEARING; ARMATURE,STARTER
(B) DENSO ASM PART: A = 1-81100-246-3 		5-09800-081-0 01 1 -
21 SPRING; BRUSH HOLDER STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81129-828-0 04 1 -
22 HOLDER; BRUSH STARTER
DENSO ASM PART: A = 1-81100-246-3 		1-81118-043-0 01 1 -
22 HOLDER; BRUSH STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81121-071-0 01 1 -
23 COVER; RR COVER STARTER
DENSO ASM PART: A = 1-81100-246-3 		1-81115-198-0 01 1 -
23 COVER; RR COVER STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81115-233-0 01 1 -
27 BOLT; THROUGH,STARTER
(C) DENSO ASM PART: A = 1-81100-246-3 		1-81129-483-0 03 1 -
27 BOLT; THROUGH,STARTER
(B) DENSO ASM PART: A = 1-81100-246-3 		1-81129-675-0 01 1 -
27 BOLT; THROUGH,STARTER
(A) DENSO ASM PART: A = 1-81100-246-3 		1-81129-676-0 01 1 -
27 BOLT; THROUGH,STARTER
(D) MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81129-769-0 01 1 -
28 LEVER; SHIFT,STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81129-783-0 01 1 -
31 SWITCH; ENGAGE STARTER
DENSO ASM PART: A = 1-81100-246-3 		1-81151-079-0 01 1 -
31 SWITCH; ENGAGE STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81151-115-0 01 1 -0206
31 SWITCH; ENGAGE STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81151-129-0 01 1 0207-
46 GEAR; CLU STARTER
(A) DENSO ASM PART: A = 1-81100-246-3 		1-81123-034-0 01 1 -
46 GEAR; CLU STARTER
(B) DENSO ASM PART: A = 1-81100-246-3 		1-81123-035-0 01 1 -
46 GEAR; CLU STARTER
(C) MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81123-061-0 01 1 -
48 BALL; PINION,STARTER
DENSO ASM PART: A = 1-81100-246-3 		5-81129-092-0 01 1 -
48 BALL; PINION,STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		8-97116-515-0 01 1 -
54 CLUTCH; PINION,STARTER
DENSO ASM PART: A = 1-81100-246-3 		1-81122-049-0 01 1 -
54 CLUTCH; PINION,STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81129-782-0 01 1 -
55 PINION; CLU,STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81129-784-0 01 1 -
90 GASKET; ARMATURE
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81129-827-0 02 1 -
95 BRUSH ASM; STARTER
(A) DENSO ASM PART: A = 1-81100-246-3 		1-81116-048-0 02 1 -
95 BRUSH ASM; STARTER
(B) DENSO ASM PART: A = 1-81100-246-3 		1-81116-049-0 02 1 -
95 BRUSH ASM; STARTER
(C) MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81116-067-0 01 1 -
96 GASKET; FRT CASE
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81129-796-0 01 1 -
97 GEAR; STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81123-056-0 04 1 -
128 BEARING; STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81129-780-0 01 1 -
133 SCREW SET; STARTER
MITSUBISHI ASM PART: B = 1-81100-341-4 		1-81129-787-0 01 1 -
140 GROMMET; RR COVER
MITSUBISHI ASM PART: B = 1-81100-341-4 		8-97376-389-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
