3-55 — BRAKE PIPING; OIL,REAR (#79658) — 29 parça

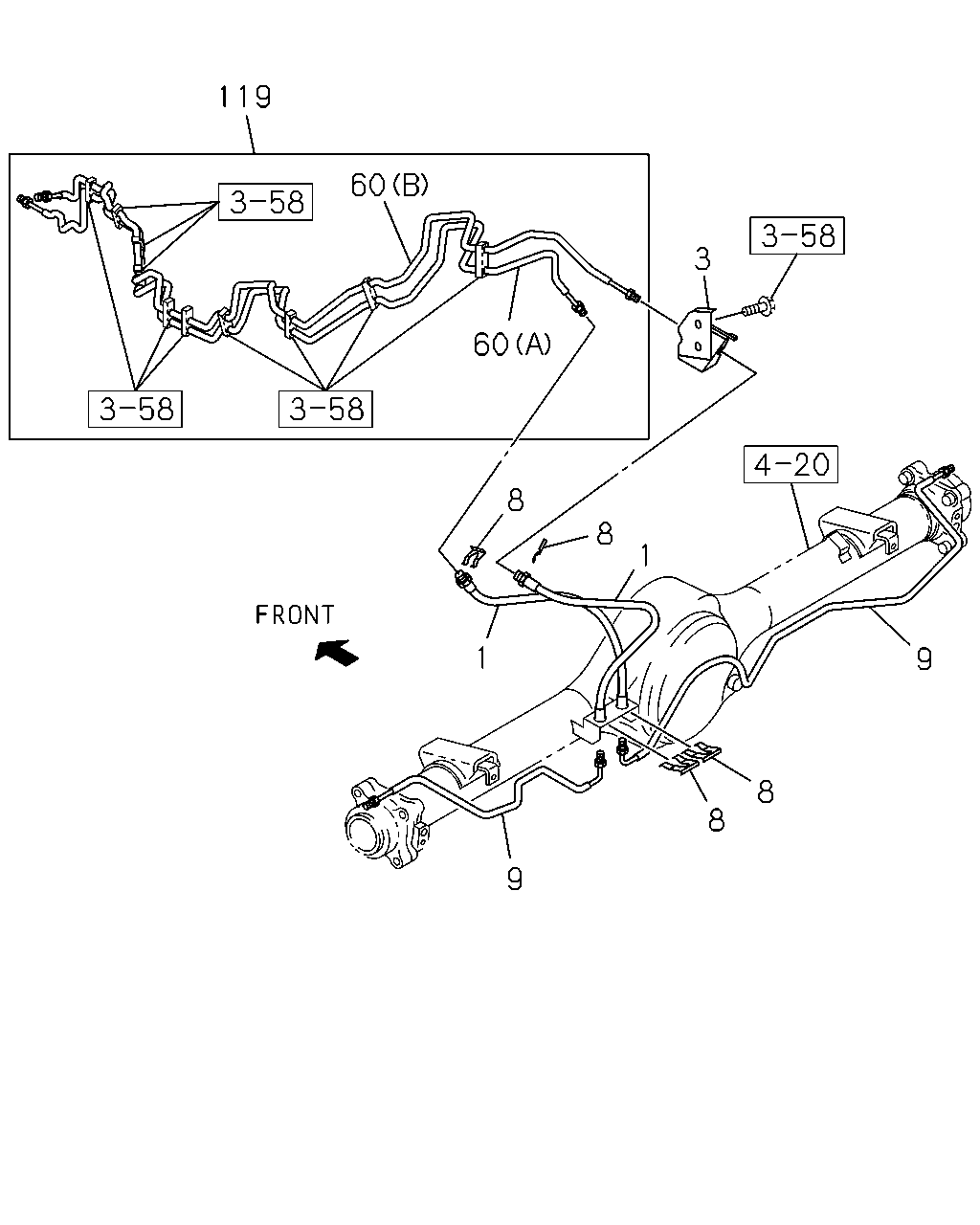

çizim 119827
119 60 3 60 8 8 1 1 9 8 8 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.680 HOSE; FLEX,RR BRK 8-97947-133-1 01 1 1203- ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK 8-98067-085-1 01 1 1203- ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK 8-98102-358-1 01 1 1203- ● ● ● ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1203- ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-98151-580-0 01 1 1203- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98151-580-0 01 1 1203- ●
9 04.685 PIPE; BRK,RR AXLE 8-98151-581-0 01 1 1203- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98151-581-0 01 1 1203- ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-98103-455-1 01 1 1203- ●
9 04.685 PIPE; BRK,RR AXLE 8-98103-455-1 01 1 1203- ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-98103-456-1 01 1 1203- ●
9 04.685 PIPE; BRK,RR AXLE 8-98103-456-1 01 1 1203- ● ● ●
60 04.685 PIPE ASM; BRK
(B) 		8-98155-587-2 01 1 1203- ●
60 04.685 PIPE ASM; BRK
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98155-587-2 01 1 1203- ●
60 04.685 PIPE ASM; BRK
(A) 		8-98155-588-2 01 1 1203- ●
60 04.685 PIPE ASM; BRK
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98155-588-2 01 1 1203- ●
60 04.685 PIPE ASM; BRK
HIGH RIDE SUSPENSION(7YC) (A) 		8-98099-741-4 01 1 1203- ●
60 04.685 PIPE ASM; BRK
(A) 		8-98099-741-4 01 1 1203- ● ● ●
60 04.685 PIPE ASM; BRK
HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-742-4 01 1 1203- ●
60 04.685 PIPE ASM; BRK
(B) 		8-98099-742-4 01 1 1203- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR 8-98155-586-2 01 1 1203- ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98155-586-2 01 1 1203- ●
119 04.685 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION(7YC) 		8-98099-740-4 01 1 1203- ●
119 04.685 PIPE; BRK,2WAY TO RR 8-98099-740-4 01 1 1203- ● ● ●

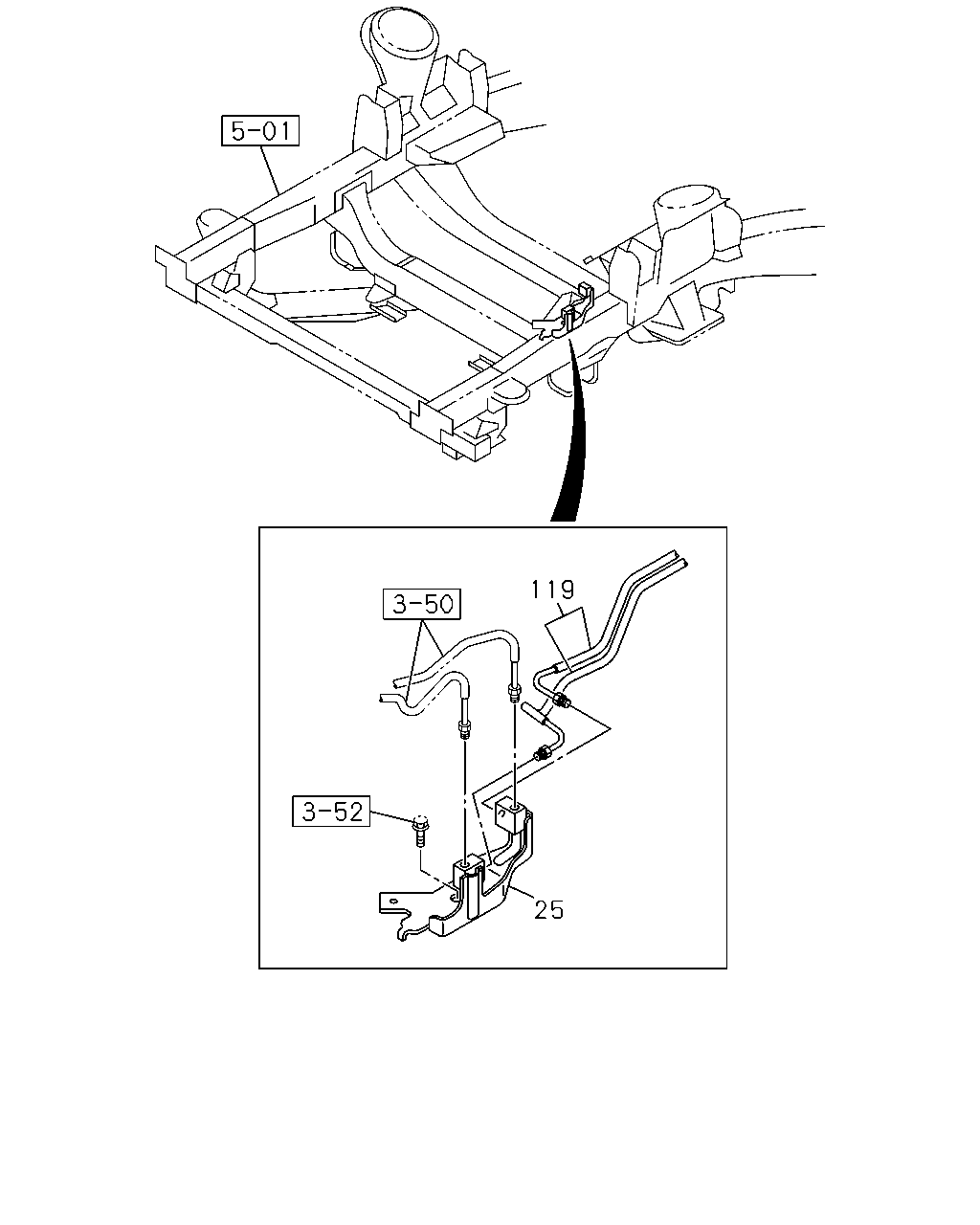

çizim 121115
119 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E
25 04.686 CONNECTOR 8-98099-785-1 01 1 1203- ● ● ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR 8-98155-586-2 01 1 1203- ●
119 04.685 PIPE; BRK,2WAY TO RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98155-586-2 01 1 1203- ●
119 04.685 PIPE; BRK,2WAY TO RR
HIGH RIDE SUSPENSION(7YC) 		8-98099-740-4 01 1 1203- ●
119 04.685 PIPE; BRK,2WAY TO RR 8-98099-740-4 01 1 1203- ● ● ●
