3-11 — PARKING BRAKE CONTROL (#79653) — 25 parça

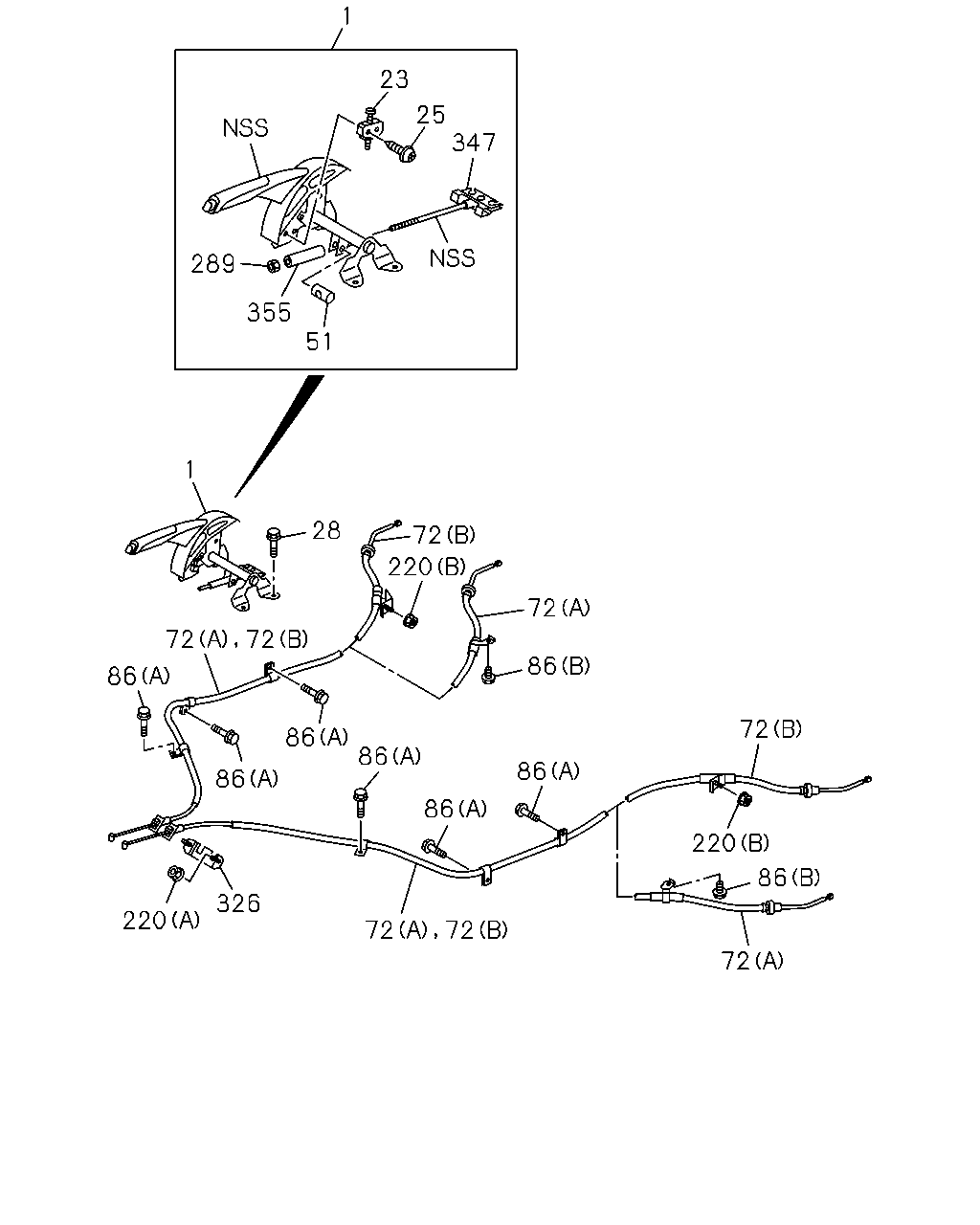

çizim 115716
1 23 25 347 289 355 51 1 28 72 220 72 72 72 86 86 72 86 86 86 86 86 220 86 326 220 72 72 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.592 STEM ASM; PARKING BRK 8-98061-827-0 01 1 1203- ● ● ● ● ●
23 04.589 SWITCH; PARKING BRK 8-97947-494-0 01 1 1203- ● ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-97103-556-0 01 1 1203- ● ● ● ● ●
28 04.594 BOLT; HAND BRK LEVER
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1203- ● ● ● ● ●
51 04.785 PIN; JOINT,RELAY LEVER 8-97947-496-0 01 1 1203- ● ● ● ● ●
72 04.779 CABLE; PARKING BRK
(B) 		8-98102-140-1 01 1 1203- ●
72 04.779 CABLE; PARKING BRK
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98102-140-1 01 1 1203- ●
72 04.779 CABLE; PARKING BRK
(B) 		8-98102-141-1 01 1 1203- ●
72 04.779 CABLE; PARKING BRK
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98102-141-1 01 1 1203- ●
72 04.779 CABLE; PARKING BRK
REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) (A) 		8-98102-148-1 01 1 1203- ●
72 04.779 CABLE; PARKING BRK
REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) (A) 		8-98102-149-1 01 1 1203- ●
72 04.779 CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) (A) 		8-98067-048-1 01 1 1203- ●
72 04.779 CABLE; PARKING BRK
(A) 		8-98067-048-1 01 1 1203- ● ● ●
72 04.779 CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) (A) 		8-98067-049-1 01 1 1203- ●
72 04.779 CABLE; PARKING BRK
(A) 		8-98067-049-1 01 1 1203- ● ● ●
86 04.785 BOLT
03.162 (A) M6X20 FLANGE 		0-28650-620-0 06 1 1203- ● ● ● ● ●
86 04.785 BOLT
HIGH RIDE SUSPENSION(7YC) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1203- ●
86 04.785 BOLT
02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1203- ● ● ●
220 04.785 NUT; CLIP,PARKING CONT CABLE
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1203- ● ● ● ● ●
220 04.785 NUT; CLIP,PARKING CONT CABLE
01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 1203- ●
220 04.785 NUT; CLIP,PARKING CONT CABLE
EXC. HIGH RIDE SUSPENSION(7YC) 01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 1203- ●
289 04.594 NUT; PARKING BRK
04.785 		8-98017-654-0 01 1 1203- ● ● ● ● ●
326 04.785 RETAINER; PARK CABLE 8-98134-214-1 01 1 1203- ● ● ● ● ●
347 04.675 EQUALIZER; HAND BRK 8-97947-495-0 01 1 1203- ● ● ● ● ●
355 04.594 SPACER; HAND BRK LEVER 8-97947-497-0 01 1 1203- ● ● ● ● ●
