Isuzu WW
▶
PICKUP
▶
TFR
▶
51375 - TFR/TFS(EUROPE)-RHD
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

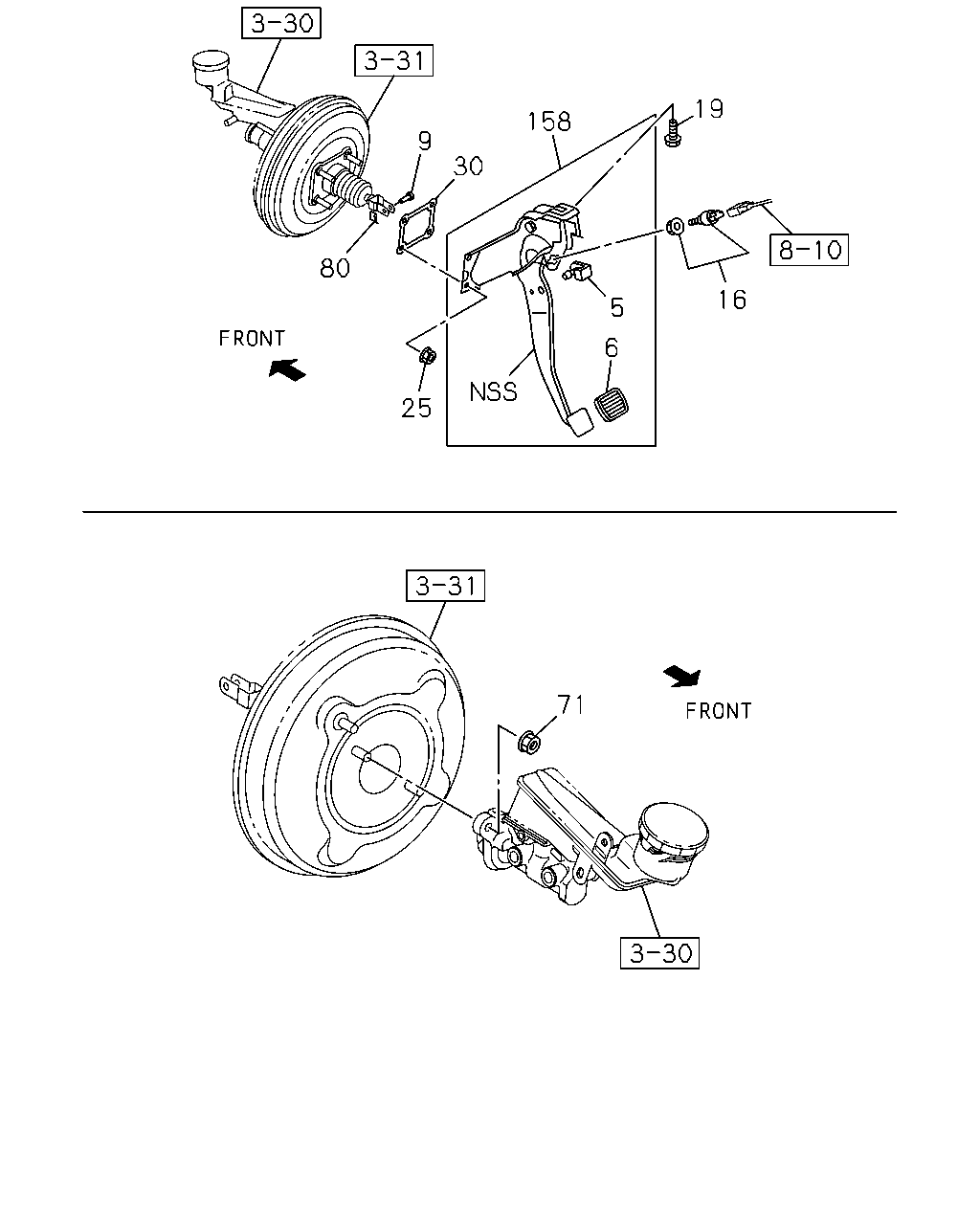

3-10 — BRAKE PEDAL AND CONTROL
(#79652) — 15 parça
Tümü
A - TFB5SF
B - TFB5WF
C - TFS5CF
D - TFS5SF
E - TFS5WF
19
158
9
30
80
16
5
6
25
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
5
04.634 STOPPER; BRK PEDAL
1-73996-231-1
01
1
1203-
●
●
●
●
●
6
04.630 COVER; BRK PEDAL
M/T AISIN 6 SPEED(RNU)
8-97318-799-0
01
1
1203-
●
●
●
●
●
6
04.630 COVER; BRK PEDAL
A/T 5 SPEED-AISIN(MA1)
8-97263-035-0
01
1
1203-
●
●
9
04.634 PIN; JAW JOINT
8-97311-602-0
01
1
1203-
●
●
●
●
●
16
02.447 SWITCH; STOP LAMP
M/T AISIN 6 SPEED(RNU)
8-98140-487-0
01
1
1203-
●
●
●
16
02.447 SWITCH; STOP LAMP
M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30>
8-98140-487-0
01
1
1203-
●
●
16
02.447 SWITCH; STOP LAMP
AUTO CRUISE CONT<K30>
8-98140-487-0
01
1
1203-
●
●
16
02.447 SWITCH; STOP LAMP
A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30>
8-98140-486-0
01
1
1203-
●
●
19
04.634 BOLT; BRKT
M8X22.5 W/PL WASHER
8-97947-104-1
01
1
1203-
●
●
●
●
●
25
04.634 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE
8-97581-233-0
04
1
1203-
●
●
●
●
●
30
04.910 GASKET; M/VAC TO BODY
8-97943-457-0
01
1
1203-
●
●
●
●
●
71
04.650 NUT; BRK M/CYL
8-98031-675-0
02
1
1203-
●
●
●
●
●
80
04.634 PIN; SNAP,BRK PEDAL
00.833
8-98007-161-0
01
1
1203-
●
●
●
●
●
158
04.625 PEDAL ASM; BRK
M/T AISIN 6 SPEED(RNU)
8-98061-817-1
01
1
1203-
●
●
●
●
●
158
04.625 PEDAL ASM; BRK
A/T 5 SPEED-AISIN(MA1)
8-98061-818-1
01
1
1203-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
