Sayfa 0-61 - Isuzu EPC

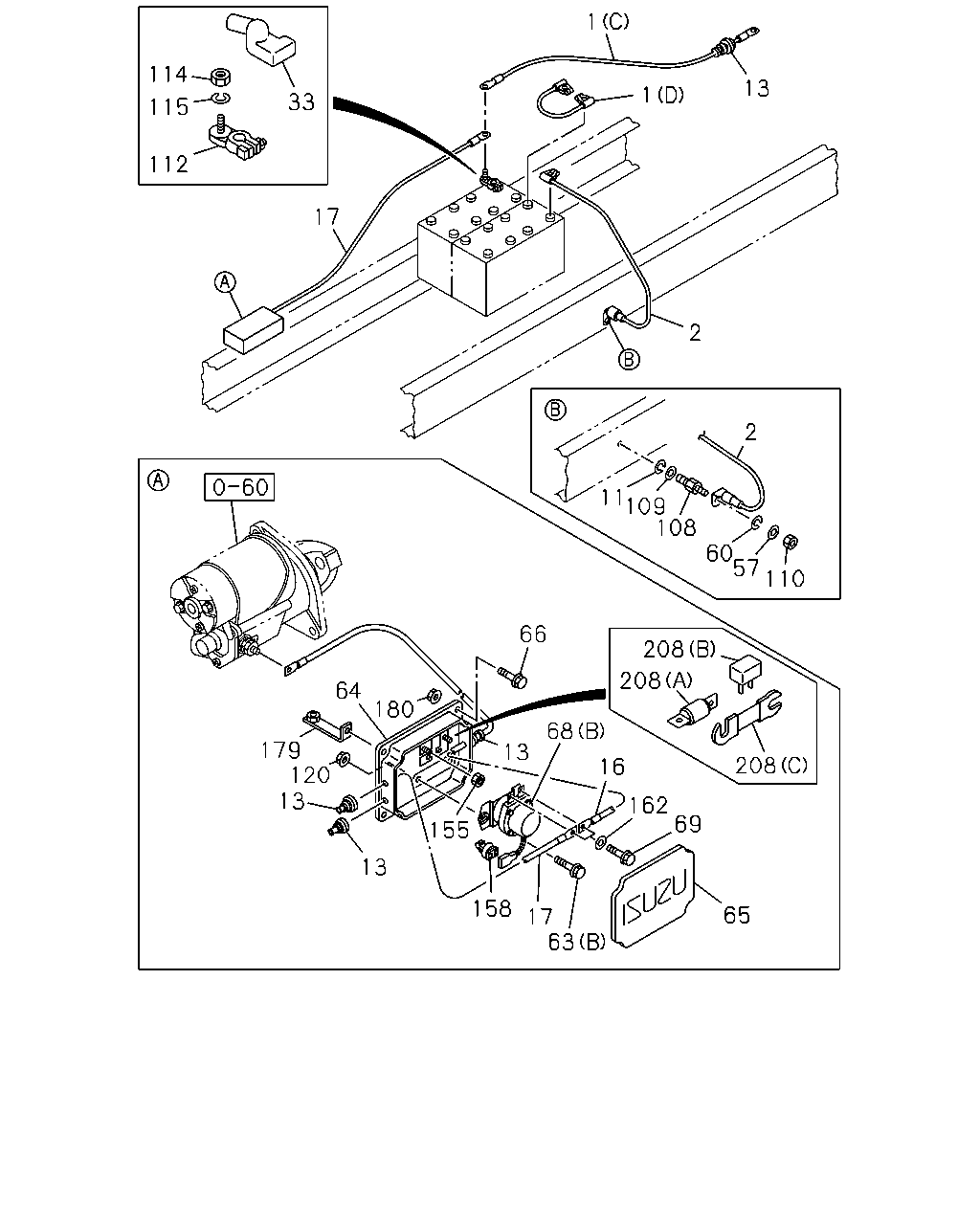

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#7965) — 338 parça

1 114 13 1 33 115 112 17 2 2 11 109 108 60 57 110 66 208 208 64 180 68 179 120 13 13 208 16 162 69 155 13 158 65 17 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; BATTERY (D) L=450	1-82650-281-2	01	1	0012-0203	●
1	CABLE; BATTERY (D) L=450	1-82650-281-2	01	1	0204-0711	●	●	●
1	CABLE; BATTERY (D) L=500	8-97623-077-0	01	1	0712-	●
1	CABLE; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=350	1-82650-275-1	01	1	0012-0203	●
1	CABLE; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=350	1-82650-275-1	01	1	0204-	●	●	●
1	CABLE; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) L=550	1-82650-276-1	01	1	0012-0203	●
1	CABLE; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) L=550	1-82650-276-1	01	1	0204-	●	●	●
1	CABLE; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) L=4100	1-82650-372-0	01	1	0012-0203	●
1	CABLE; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) L=4100	1-82650-372-0	01	1	0204-	●	●	●
2	CABLE; BATTERY L=1400	1-82650-273-0	01	1	0012-0203	●
2	CABLE; BATTERY L=1400	1-82650-273-0	01	1	0204-0711	●	●	●
2	CABLE; BATTERY L=1400	1-82650-408-0	01	1	0712-	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	0012-0203	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	0204-0605	●	●	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0606-	●
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	0012-0203	●
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	0204-	●	●	●
13	GROMMET; BATTERY CABLE ELECTRIC SWITCH BOX ENGINE ROOM<TEK> ID=26	1-09333-140-0	02	1	0012-0203	●
13	GROMMET; BATTERY CABLE ELECTRIC SWITCH BOX ENGINE ROOM<TEK> ID=26	1-09333-140-0	02	1	0204-	●	●	●
16	CABLE; STARTER TO RELAY L=5290	1-82650-370-1	01	1	0012-0106	●
16	CABLE; STARTER TO RELAY EXC. EURO3 SPECIFICATION(NJX) L=5290	1-82650-370-1	01	1	0107-0108	●
16	CABLE; STARTER TO RELAY RR ENG AIR SUSP(LVD5FB) EXC. EURO3 SPECIFICATION(NJX) L=5290	1-82650-370-1	01	1	0109-	●
16	CABLE; STARTER TO RELAY EURO3 SPECIFICATION(NJX) L=6000	1-82650-374-1	01	1	0107-0210	●
16	CABLE; STARTER TO RELAY EURO3 SPECIFICATION(NJX) L=6000	1-82650-374-1	01	1	0211-	●
16	CABLE; STARTER TO RELAY L=6000	1-82650-374-1	01	1	0211-			●
16	CABLE; STARTER TO RELAY RR ENG LEAF SUSP(LVR5FB) L=5080	1-82652-768-0	01	1	0109-	●
16	CABLE; STARTER TO RELAY L=4640	1-82650-371-0	01	1	0204-		●
17	CABLE; BATTERY (+) TO RELAY L=1700	1-82650-366-1	01	1	0012-0203	●
17	CABLE; BATTERY (+) TO RELAY L=1700	1-82650-366-1	01	1	0204-	●	●	●
33	CAP; INSULATOR BLACK	1-82699-106-0	01	1	0012-0203	●
33	CAP; INSULATOR BLACK	1-82699-106-0	01	1	0204-	●	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0106-0203	●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0204-	●	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	9-09150-606-0	01	1	0106-0203	●
60	WASHER; LK,BATTERY CABLE ID=6.1	9-09150-606-0	01	1	0204-0603	●	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0604-	●
63	BOLT; RELAY BATTERY (B) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0012-0203	●
63	BOLT; RELAY BATTERY (B) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0204-0512	●	●	●
63	BOLT; RELAY BATTERY (B) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-	●
63	BOLT; RELAY BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	0012-0203	●
63	BOLT; RELAY BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	0204-	●	●	●
64	BOX; BATTERY RELAY ELECTRIC SWITCH BOX ENGINE ROOM<TEK>	1-82510-565-1	01	1	0012-0203	●
64	BOX; BATTERY RELAY ELECTRIC SWITCH BOX ENGINE ROOM<TEK>	1-82510-565-1	01	1	0204-	●	●	●
64	BOX; BATTERY RELAY EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK>	1-82510-509-4	01	1	0012-0203	●
64	BOX; BATTERY RELAY EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK>	1-82510-509-4	01	1	0204-	●	●	●
65	COVER; BATTERY RELAY	1-82510-505-2	01	1	0012-0203	●
65	COVER; BATTERY RELAY	1-82510-505-2	01	1	0204-	●	●	●
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0012-0106	●
66	BOLT; COVER,BATTERY RELAY M8X35 W/LK&PL WASHER	0-50140-835-0	04	1	0107-0203	●
66	BOLT; COVER,BATTERY RELAY M8X35 W/LK&PL WASHER	0-50140-835-0	04	1	0204-0512	●	●	●
66	BOLT; COVER,BATTERY RELAY M8X35 W/LK&PL WASHER	0-50640-835-0	04	1	0601-	●
68	RELAY; BATTERY (B)	1-82550-313-0	01	1	0012-0203	●
68	RELAY; BATTERY (B)	1-82550-313-0	01	1	0204-	●	●	●
68	RELAY; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A)	1-82550-282-0	01	1	0012-0203	●
68	RELAY; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A)	1-82550-282-0	01	1	0204-	●	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0012-0203	●
69	BOLT; CABLE BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0012-0203	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0204-0512	●	●	●
69	BOLT; CABLE BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0204-0512	●	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-	●
69	BOLT; CABLE BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0012-0203	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0204-	●	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	0012-0203	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	0204-0603	●	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0604-	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0012-0203	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0204-	●	●	●
112	TERMINAL; BATTERY <+>	1-82695-069-1	01	1	0012-0203	●
112	TERMINAL; BATTERY <+>	1-82695-069-1	01	1	0204-0403	●	●	●
112	TERMINAL; BATTERY <+>	1-82695-175-0	01	1	0404-	●
114	NUT; CABLE,BATTERY TERMINAL M10	9-09110-510-0	01	1	0012-0203	●
114	NUT; CABLE,BATTERY TERMINAL M10	9-09110-510-0	01	1	0204-0512	●	●	●
114	NUT; CABLE,BATTERY TERMINAL M10	0-91110-510-0	01	1	0601-	●
115	WASHER; LK,CABLE,BATTERY ID=10.2	9-09150-510-0	01	1	0012-0203	●
115	WASHER; LK,CABLE,BATTERY ID=10.2	9-09150-510-0	01	1	0204-0603	●	●	●
115	WASHER; LK,CABLE,BATTERY ID=10.2	0-91510-510-0	01	1	0604-	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91150-108-0	02	1	0012-0203	●
120	NUT; RELAY BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	02	1	0012-0203	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91150-108-0	02	1	0204-0602	●	●	●
120	NUT; RELAY BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	02	1	0204-0602	●	●	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	0603-	●
120	NUT; RELAY BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	02	1	0603-	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91150-108-0	01	1	0012-0203	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91150-108-0	01	1	0204-0602	●	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	01	1	0012-0203	●
158	CLIP; RELAY EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> OD=7 H=1.2	8-94364-750-0	01	1	0012-0203	●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	01	1	0204-	●	●	●
158	CLIP; RELAY EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> OD=7 H=1.2	8-94364-750-0	01	1	0204-	●	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	0012-0203	●
162	WASHER; PL,CABLE,BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> ID=8.4 OD=18	9-09164-608-0	02	1	0012-0203	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	0204-0605	●	●	●
162	WASHER; PL,CABLE,BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> ID=8.4 OD=18	9-09164-608-0	02	1	0204-0605	●	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0606-	●
162	WASHER; PL,CABLE,BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> ID=8.4 OD=18	0-91614-608-0	02	1	0606-	●
179	BRACKET; COVER L=68	1-47475-525-0	02	1	0012-0203	●
179	BRACKET; COVER L=68	1-47475-525-0	02	1	0204-	●	●	●
180	NUT; COVER M8 FLANGE	0-91150-108-0	04	1	0012-0203	●
180	NUT; COVER M8 FLANGE	0-91150-108-0	04	1	0204-0602	●	●	●
180	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
208	FUSE (A) 80A	1-82516-031-0	01	1	0012-0203	●
208	FUSE (A) 80A	1-82516-031-0	01	1	0204-	●	●	●
208	FUSE (B) 40A GREEN	8-94468-662-0	05	1	0012-0203	●
208	FUSE (B) 40A GREEN	8-94468-662-0	05	1	0204-	●	●	●
208	FUSE (C) 125A	9-82941-130-1	01	1	0012-0203	●
208	FUSE (C) 125A	9-82941-130-1	01	1	0204-	●	●	●

10 23 28 9 9 23 24 28 12 12 10 24 9

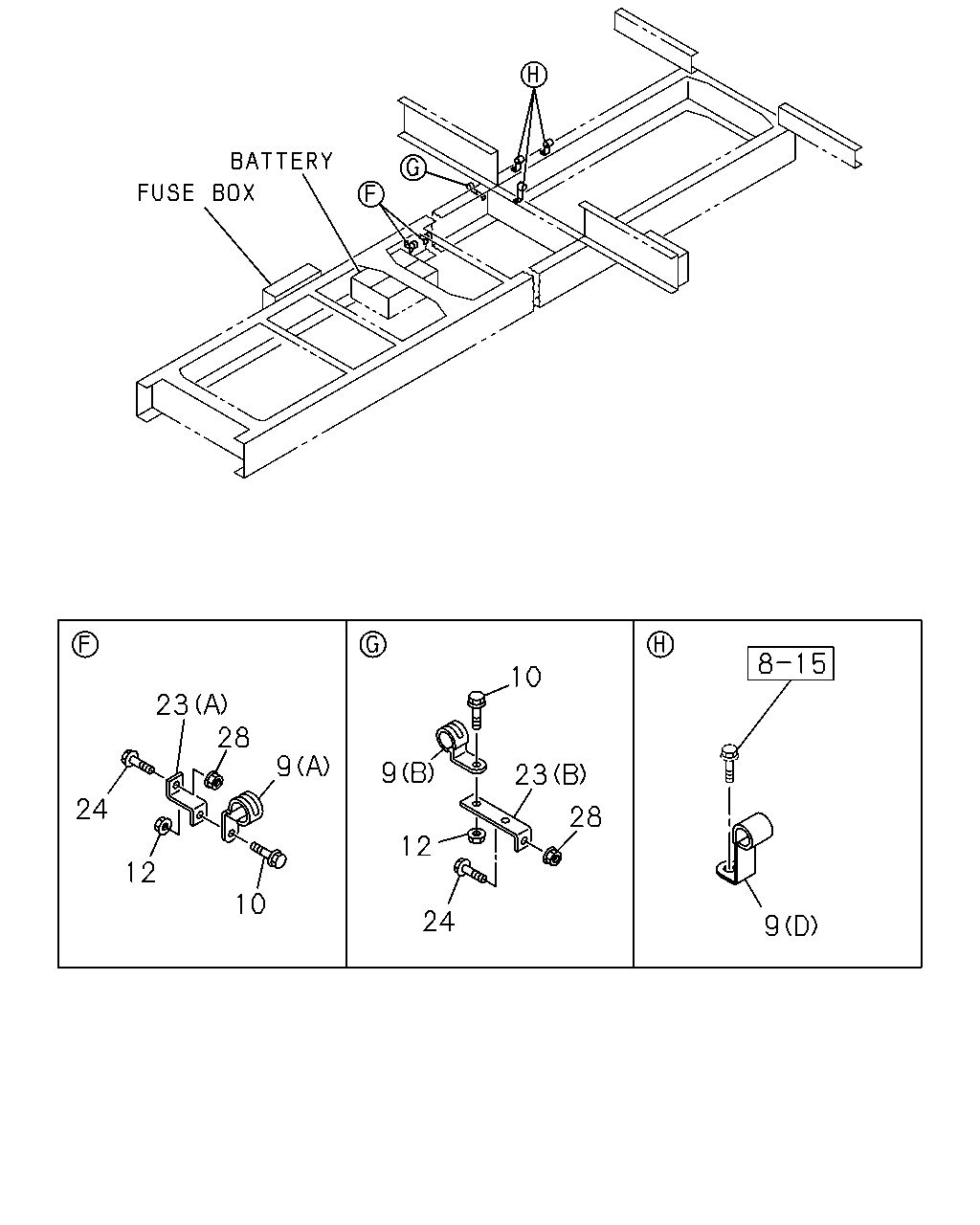

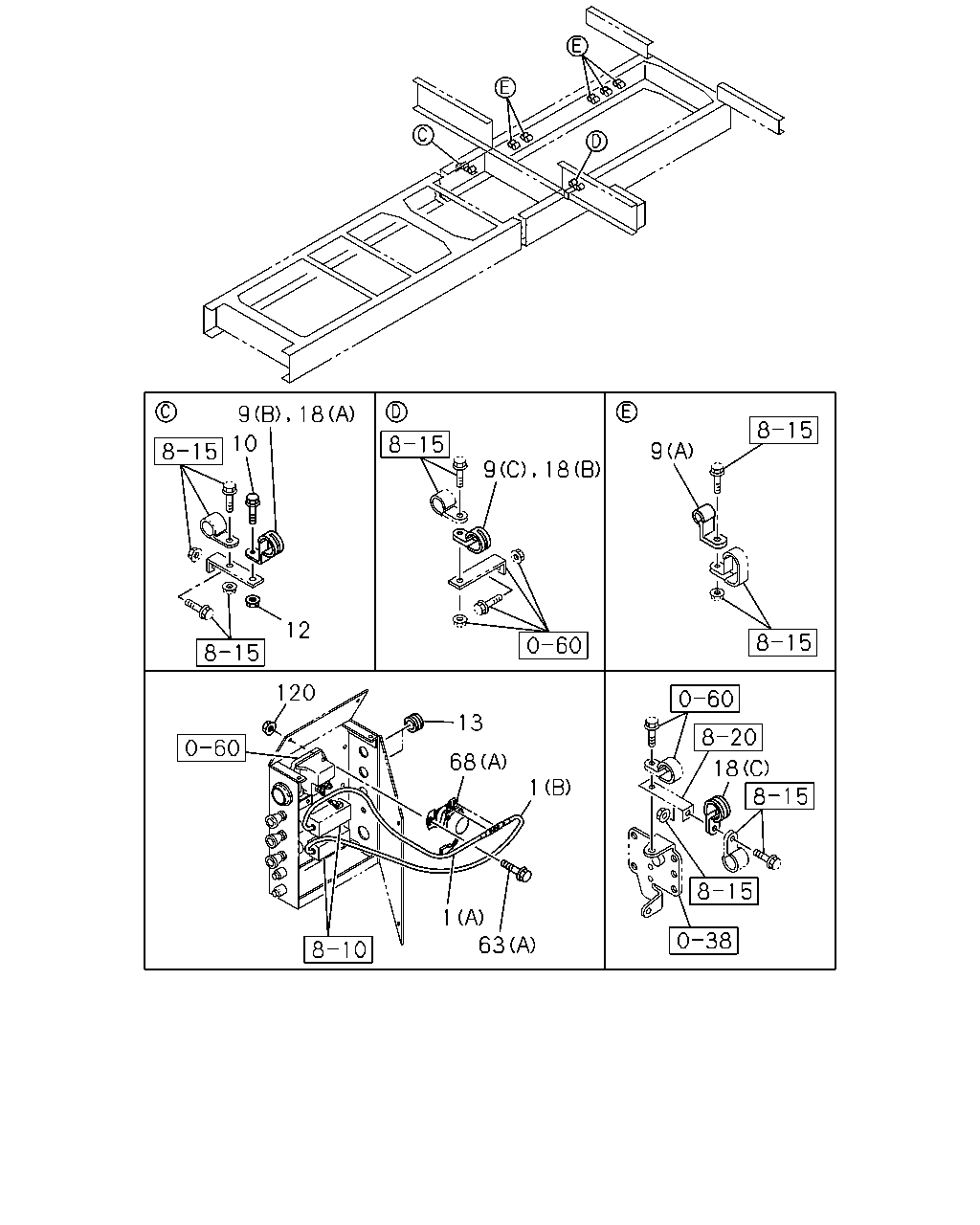

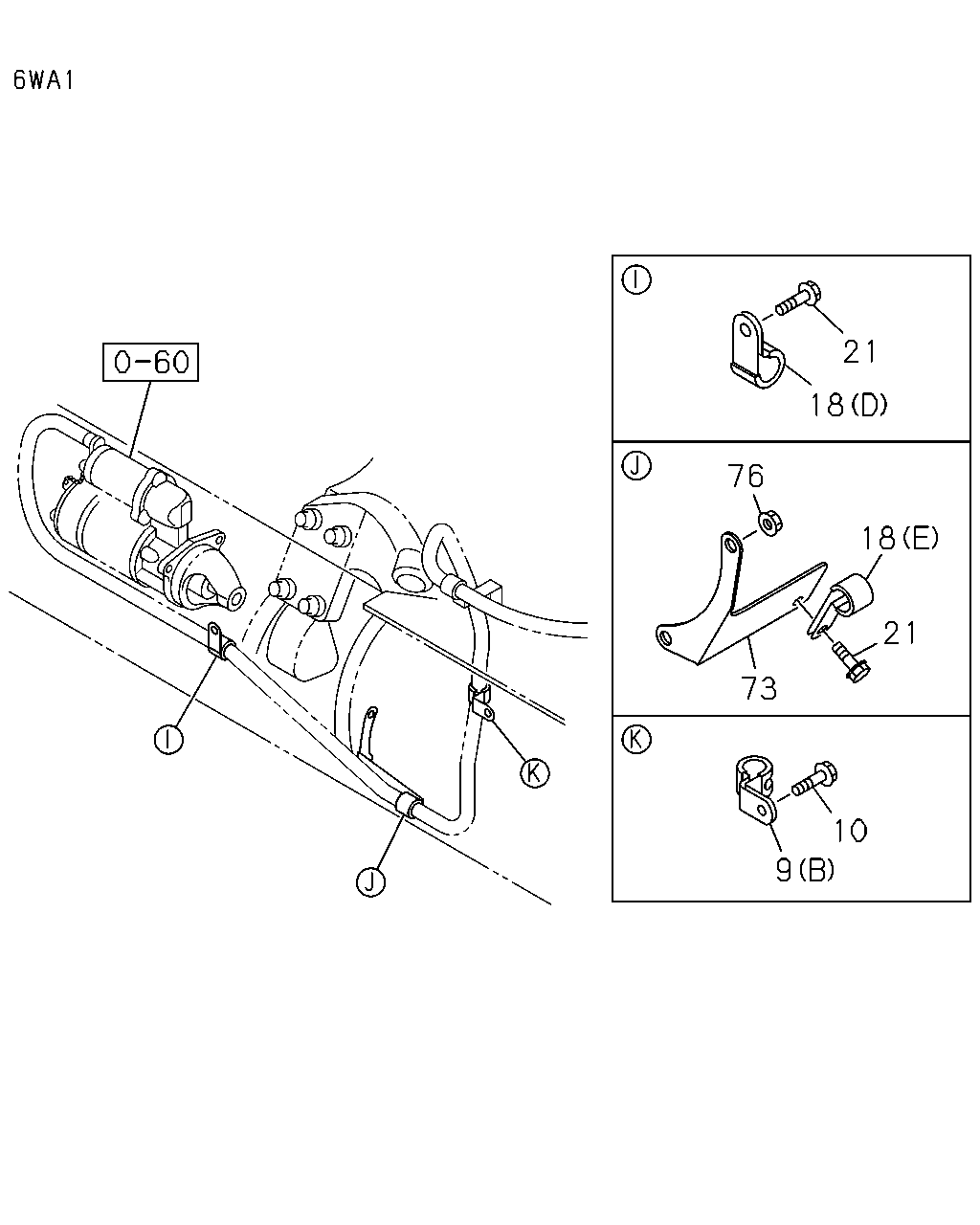

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	CLIP; BATTERY CABLE (C) ID=21 L=24	8-94176-807-1	01	1	0012-0107	●
9	CLIP; BATTERY CABLE EXC. EURO3 SPECIFICATION(NJX) (C) ID=21 L=24	8-94176-807-1	01	1	0108-	●
9	CLIP; BATTERY CABLE EURO3 SPECIFICATION(NJX) (D) ID=19 H=50 L=25	9-09916-622-0	03	1	0107-	●
9	CLIP; BATTERY CABLE RR ENG AIR SUSP(LVD5FB) (B) ID=20 H=23 L=27	1-09700-861-0	02	1	0012-0210	●
9	CLIP; BATTERY CABLE RR ENG AIR SUSP(LVD5FB) (B) ID=20 H=23 L=27	1-09700-861-0	02	1	0211-	●		●
9	CLIP; BATTERY CABLE RR ENG AIR SUSP(LVD5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=14.5 H=23 L=30	1-09700-859-0	13	1	0012-0203	●
9	CLIP; BATTERY CABLE RR ENG AIR SUSP(LVD5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=14.5 H=23 L=30	1-09700-859-0	13	1	0204-	●		●
9	CLIP; BATTERY CABLE RR ENG LEAF SUSP(LVR5FB) (B) ID=20 H=23 L=27	1-09700-861-0	05	1	0012-	●
9	CLIP; BATTERY CABLE RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=14.5 H=23 L=30	1-09700-859-0	11	1	0012-0203	●
9	CLIP; BATTERY CABLE RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=14.5 H=23 L=30	1-09700-859-0	11	1	0204-	●	●
9	CLIP; BATTERY CABLE RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) (B) ID=20 H=23 L=27	1-09700-861-0	03	1	0012-0203	●
9	CLIP; BATTERY CABLE RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) (B) ID=20 H=23 L=27	1-09700-861-0	03	1	0204-	●	●
9	CLIP; BATTERY CABLE (B) ID=20 H=23 L=27	1-09700-861-0	06	1	0204-		●
10	BOLT; BATTERY CABLE CLIP RR ENG AIR SUSP(LVD5FB) FRAME M8X35 FLANGE	0-28080-835-0	02	1	0012-0210	●
10	BOLT; BATTERY CABLE CLIP RR ENG AIR SUSP(LVD5FB) FRAME M8X35 FLANGE	0-28080-835-0	02	1	0211-0512	●		●
10	BOLT; BATTERY CABLE CLIP RR ENG AIR SUSP(LVD5FB) FRAME M8X35 FLANGE	0-28050-835-0	02	1	0601-	●		●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X25 FLANGE	0-28680-825-0	05	1	0012-0203	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X25 FLANGE	0-28680-825-0	05	1	0204-0512	●	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X25 FLANGE	0-28650-825-0	05	1	0601-	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) M8X25 FLANGE	0-28680-825-0	03	1	0012-0203	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) M8X25 FLANGE	0-28680-825-0	03	1	0204-0512	●	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
10	BOLT; BATTERY CABLE CLIP ELEC BOX M8X35 FLANGE	0-28680-835-0	03	1	0012-0106	●	●	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELEC BOX M8X35 FLANGE	0-28680-835-0	03	1	0012-0106	●	●	●
10	BOLT; BATTERY CABLE CLIP ELEC BOX M8X35 FLANGE	0-28680-835-0	03	1	0107-0203	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELEC BOX M8X35 FLANGE	0-28680-835-0	03	1	0107-0203	●
10	BOLT; BATTERY CABLE CLIP ELEC BOX M8X35 FLANGE	0-28680-835-0	03	1	0204-0512	●	●	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELEC BOX M8X35 FLANGE	0-28680-835-0	03	1	0204-0512	●	●
10	BOLT; BATTERY CABLE CLIP ELEC BOX M8X35 FLANGE	0-28650-835-0	03	1	0601-	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELEC BOX M8X35 FLANGE	0-28650-835-0	03	1	0601-	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28680-825-0	01	1	0012-0512	●	●	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) M8X30 FLANGE	0-28680-830-0	01	1	0012-0512	●	●	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91180-108-0	05	1	0603-0608	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	05	1	0603-0608	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91180-108-0	05	1	0609-	●	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	05	1	0609-	●	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	05	1	0609-	●
12	NUT; BATTERY CABLE CLIP EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
12	NUT; BATTERY CABLE CLIP EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	02	1	0603-	●
12	NUT; BATTERY CABLE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91150-108-0	01	1	0012-0210	●
12	NUT; BATTERY CABLE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91150-108-0	01	1	0211-0602	●		●
12	NUT; BATTERY CABLE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91180-108-0	01	1	0603-	●		●
12	NUT; BATTERY CABLE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91150-108-0	03	1	0107-0602	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	03	1	0107-0602	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) M8 FLANGE	0-91150-108-0	03	1	0107-0602	●
12	NUT; BATTERY CABLE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91180-108-0	03	1	0603-	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	03	1	0603-	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) M8 FLANGE	0-91180-108-0	03	1	0603-	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	05	1	0012-0203	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	05	1	0012-0203	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	05	1	0012-0203	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	05	1	0204-0602	●	●	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	05	1	0204-0602	●	●	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	05	1	0204-0602	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	05	1	0603-0608	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	03	1	0012-0106	●	●	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) M8 FLANGE	0-91150-108-0	03	1	0012-0106	●	●	●
23	BRACKET; CABLE CLIP TO FRAME RR ENG LEAF SUSP(LVR5FB) (B) L=82 B=20	1-47478-420-0	01	1	0012-	●
23	BRACKET; CABLE CLIP TO FRAME RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A)	1-47476-200-0	02	1	0012-0203	●
23	BRACKET; CABLE CLIP TO FRAME RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A)	1-47476-200-0	02	1	0204-	●	●
24	BOLT; BRKT TO FRAME RR ENG LEAF SUSP(LVR5FB) M8X35 FLANGE	0-28680-835-0	01	1	0012-0203	●
24	BOLT; BRKT TO FRAME RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X35 FLANGE	0-28680-835-0	01	1	0012-0203	●
24	BOLT; BRKT TO FRAME RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X35 FLANGE	0-28680-835-0	01	1	0204-0512	●	●	●
24	BOLT; BRKT TO FRAME RR ENG LEAF SUSP(LVR5FB) M8X35 FLANGE	0-28680-835-0	01	1	0204-0512	●
24	BOLT; BRKT TO FRAME RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X35 FLANGE	0-28650-835-0	01	1	0601-	●	●	●
24	BOLT; BRKT TO FRAME RR ENG LEAF SUSP(LVR5FB) M8X35 FLANGE	0-28650-835-0	01	1	0601-	●
28	NUT; BRKT TO FRAME RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	01	1	0012-0203	●
28	NUT; BRKT TO FRAME RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	01	1	0012-0203	●
28	NUT; BRKT TO FRAME RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	01	1	0204-0602	●	●	●
28	NUT; BRKT TO FRAME RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	01	1	0204-0602	●
28	NUT; BRKT TO FRAME RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
28	NUT; BRKT TO FRAME RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91180-108-0	01	1	0603-	●

9 18 10 9 9 18 12 120 13 68 18 1 1 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; BATTERY (D) L=450	1-82650-281-2	01	1	0012-0203	●
1	CABLE; BATTERY (D) L=450	1-82650-281-2	01	1	0204-0711	●	●	●
1	CABLE; BATTERY (D) L=500	8-97623-077-0	01	1	0712-	●
1	CABLE; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=350	1-82650-275-1	01	1	0012-0203	●
1	CABLE; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=350	1-82650-275-1	01	1	0204-	●	●	●
1	CABLE; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) L=550	1-82650-276-1	01	1	0012-0203	●
1	CABLE; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) L=550	1-82650-276-1	01	1	0204-	●	●	●
1	CABLE; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) L=4100	1-82650-372-0	01	1	0012-0203	●
1	CABLE; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) L=4100	1-82650-372-0	01	1	0204-	●	●	●
9	CLIP; BATTERY CABLE (C) ID=21 L=24	8-94176-807-1	01	1	0012-0107	●
9	CLIP; BATTERY CABLE EXC. EURO3 SPECIFICATION(NJX) (C) ID=21 L=24	8-94176-807-1	01	1	0108-	●
9	CLIP; BATTERY CABLE EURO3 SPECIFICATION(NJX) (D) ID=19 H=50 L=25	9-09916-622-0	03	1	0107-	●
9	CLIP; BATTERY CABLE RR ENG AIR SUSP(LVD5FB) (B) ID=20 H=23 L=27	1-09700-861-0	02	1	0012-0210	●
9	CLIP; BATTERY CABLE RR ENG AIR SUSP(LVD5FB) (B) ID=20 H=23 L=27	1-09700-861-0	02	1	0211-	●		●
9	CLIP; BATTERY CABLE RR ENG AIR SUSP(LVD5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=14.5 H=23 L=30	1-09700-859-0	13	1	0012-0203	●
9	CLIP; BATTERY CABLE RR ENG AIR SUSP(LVD5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=14.5 H=23 L=30	1-09700-859-0	13	1	0204-	●		●
9	CLIP; BATTERY CABLE RR ENG LEAF SUSP(LVR5FB) (B) ID=20 H=23 L=27	1-09700-861-0	05	1	0012-	●
9	CLIP; BATTERY CABLE RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=14.5 H=23 L=30	1-09700-859-0	11	1	0012-0203	●
9	CLIP; BATTERY CABLE RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=14.5 H=23 L=30	1-09700-859-0	11	1	0204-	●	●
9	CLIP; BATTERY CABLE RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) (B) ID=20 H=23 L=27	1-09700-861-0	03	1	0012-0203	●
9	CLIP; BATTERY CABLE RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) (B) ID=20 H=23 L=27	1-09700-861-0	03	1	0204-	●	●
9	CLIP; BATTERY CABLE (B) ID=20 H=23 L=27	1-09700-861-0	06	1	0204-		●
10	BOLT; BATTERY CABLE CLIP RR ENG AIR SUSP(LVD5FB) FRAME M8X35 FLANGE	0-28080-835-0	02	1	0012-0210	●
10	BOLT; BATTERY CABLE CLIP RR ENG AIR SUSP(LVD5FB) FRAME M8X35 FLANGE	0-28080-835-0	02	1	0211-0512	●		●
10	BOLT; BATTERY CABLE CLIP RR ENG AIR SUSP(LVD5FB) FRAME M8X35 FLANGE	0-28050-835-0	02	1	0601-	●		●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X25 FLANGE	0-28680-825-0	05	1	0012-0203	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X25 FLANGE	0-28680-825-0	05	1	0204-0512	●	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X25 FLANGE	0-28650-825-0	05	1	0601-	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) M8X25 FLANGE	0-28680-825-0	03	1	0012-0203	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) M8X25 FLANGE	0-28680-825-0	03	1	0204-0512	●	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
10	BOLT; BATTERY CABLE CLIP ELEC BOX M8X35 FLANGE	0-28680-835-0	03	1	0012-0106	●	●	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELEC BOX M8X35 FLANGE	0-28680-835-0	03	1	0012-0106	●	●	●
10	BOLT; BATTERY CABLE CLIP ELEC BOX M8X35 FLANGE	0-28680-835-0	03	1	0107-0203	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELEC BOX M8X35 FLANGE	0-28680-835-0	03	1	0107-0203	●
10	BOLT; BATTERY CABLE CLIP ELEC BOX M8X35 FLANGE	0-28680-835-0	03	1	0204-0512	●	●	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELEC BOX M8X35 FLANGE	0-28680-835-0	03	1	0204-0512	●	●
10	BOLT; BATTERY CABLE CLIP ELEC BOX M8X35 FLANGE	0-28650-835-0	03	1	0601-	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELEC BOX M8X35 FLANGE	0-28650-835-0	03	1	0601-	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28680-825-0	01	1	0012-0512	●	●	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) M8X30 FLANGE	0-28680-830-0	01	1	0012-0512	●	●	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91180-108-0	05	1	0603-0608	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	05	1	0603-0608	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91180-108-0	05	1	0609-	●	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	05	1	0609-	●	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	05	1	0609-	●
12	NUT; BATTERY CABLE CLIP EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
12	NUT; BATTERY CABLE CLIP EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	02	1	0603-	●
12	NUT; BATTERY CABLE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91150-108-0	01	1	0012-0210	●
12	NUT; BATTERY CABLE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91150-108-0	01	1	0211-0602	●		●
12	NUT; BATTERY CABLE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91180-108-0	01	1	0603-	●		●
12	NUT; BATTERY CABLE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91150-108-0	03	1	0107-0602	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	03	1	0107-0602	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) M8 FLANGE	0-91150-108-0	03	1	0107-0602	●
12	NUT; BATTERY CABLE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91180-108-0	03	1	0603-	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	03	1	0603-	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) M8 FLANGE	0-91180-108-0	03	1	0603-	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	05	1	0012-0203	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	05	1	0012-0203	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	05	1	0012-0203	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	05	1	0204-0602	●	●	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	05	1	0204-0602	●	●	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	05	1	0204-0602	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	05	1	0603-0608	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	03	1	0012-0106	●	●	●
12	NUT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) M8 FLANGE	0-91150-108-0	03	1	0012-0106	●	●	●
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	0012-0203	●
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	0204-	●	●	●
13	GROMMET; BATTERY CABLE ELECTRIC SWITCH BOX ENGINE ROOM<TEK> ID=26	1-09333-140-0	02	1	0012-0203	●
13	GROMMET; BATTERY CABLE ELECTRIC SWITCH BOX ENGINE ROOM<TEK> ID=26	1-09333-140-0	02	1	0204-	●	●	●
18	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0012-0102	●
18	CLIP; BATTERY CABLE (B) ID=21 L=24	8-94176-807-1	01	1	0103-0106	●
18	CLIP; BATTERY CABLE EXC. EURO3 SPECIFICATION(NJX) (B) ID=21 L=24	8-94176-807-1	01	1	0107-	●
18	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	03	1	0012-0106	●
18	CLIP; BATTERY CABLE EURO3 SPECIFICATION(NJX) (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0107-0210	●
18	CLIP; BATTERY CABLE EURO3 SPECIFICATION(NJX) (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0211-	●
18	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0211-			●
18	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	03	1	0107-0203	●
18	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	03	1	0204-	●	●	●
18	CLIP; BATTERY CABLE EURO3 SPECIFICATION(NJX) (C) ID=24 L=27	1-09700-809-0	02	1	0107-0210	●
18	CLIP; BATTERY CABLE EURO3 SPECIFICATION(NJX) (C) ID=24 L=27	1-09700-809-0	02	1	0211-	●
18	CLIP; BATTERY CABLE (C) ID=24 L=27	1-09700-809-0	02	1	0211-			●
18	CLIP; BATTERY CABLE (E) ID=22 L=32	1-09700-126-1	01	1	0204-		●
18	CLIP; BATTERY CABLE (D) ID=19 L=28	9-09525-856-0	01	1	0204-0606		●
18	CLIP; BATTERY CABLE (D) ID=19 L=28	0-95235-856-0	01	1	0607-		●
63	BOLT; RELAY BATTERY (B) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0012-0203	●
63	BOLT; RELAY BATTERY (B) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0204-0512	●	●	●
63	BOLT; RELAY BATTERY (B) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-	●
63	BOLT; RELAY BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	0012-0203	●
63	BOLT; RELAY BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	0204-	●	●	●
68	RELAY; BATTERY (B)	1-82550-313-0	01	1	0012-0203	●
68	RELAY; BATTERY (B)	1-82550-313-0	01	1	0204-	●	●	●
68	RELAY; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A)	1-82550-282-0	01	1	0012-0203	●
68	RELAY; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A)	1-82550-282-0	01	1	0204-	●	●	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91150-108-0	02	1	0012-0203	●
120	NUT; RELAY BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	02	1	0012-0203	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91150-108-0	02	1	0204-0602	●	●	●
120	NUT; RELAY BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	02	1	0204-0602	●	●	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	0603-	●
120	NUT; RELAY BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	02	1	0603-	●

21 18 76 18 21 73 10 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	CLIP; BATTERY CABLE (C) ID=21 L=24	8-94176-807-1	01	1	0012-0107	●
9	CLIP; BATTERY CABLE EXC. EURO3 SPECIFICATION(NJX) (C) ID=21 L=24	8-94176-807-1	01	1	0108-	●
9	CLIP; BATTERY CABLE EURO3 SPECIFICATION(NJX) (D) ID=19 H=50 L=25	9-09916-622-0	03	1	0107-	●
9	CLIP; BATTERY CABLE RR ENG AIR SUSP(LVD5FB) (B) ID=20 H=23 L=27	1-09700-861-0	02	1	0012-0210	●
9	CLIP; BATTERY CABLE RR ENG AIR SUSP(LVD5FB) (B) ID=20 H=23 L=27	1-09700-861-0	02	1	0211-	●		●
9	CLIP; BATTERY CABLE RR ENG AIR SUSP(LVD5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=14.5 H=23 L=30	1-09700-859-0	13	1	0012-0203	●
9	CLIP; BATTERY CABLE RR ENG AIR SUSP(LVD5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=14.5 H=23 L=30	1-09700-859-0	13	1	0204-	●		●
9	CLIP; BATTERY CABLE RR ENG LEAF SUSP(LVR5FB) (B) ID=20 H=23 L=27	1-09700-861-0	05	1	0012-	●
9	CLIP; BATTERY CABLE RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=14.5 H=23 L=30	1-09700-859-0	11	1	0012-0203	●
9	CLIP; BATTERY CABLE RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=14.5 H=23 L=30	1-09700-859-0	11	1	0204-	●	●
9	CLIP; BATTERY CABLE RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) (B) ID=20 H=23 L=27	1-09700-861-0	03	1	0012-0203	●
9	CLIP; BATTERY CABLE RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) (B) ID=20 H=23 L=27	1-09700-861-0	03	1	0204-	●	●
9	CLIP; BATTERY CABLE (B) ID=20 H=23 L=27	1-09700-861-0	06	1	0204-		●
10	BOLT; BATTERY CABLE CLIP RR ENG AIR SUSP(LVD5FB) FRAME M8X35 FLANGE	0-28080-835-0	02	1	0012-0210	●
10	BOLT; BATTERY CABLE CLIP RR ENG AIR SUSP(LVD5FB) FRAME M8X35 FLANGE	0-28080-835-0	02	1	0211-0512	●		●
10	BOLT; BATTERY CABLE CLIP RR ENG AIR SUSP(LVD5FB) FRAME M8X35 FLANGE	0-28050-835-0	02	1	0601-	●		●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X25 FLANGE	0-28680-825-0	05	1	0012-0203	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X25 FLANGE	0-28680-825-0	05	1	0204-0512	●	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X25 FLANGE	0-28650-825-0	05	1	0601-	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) M8X25 FLANGE	0-28680-825-0	03	1	0012-0203	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) M8X25 FLANGE	0-28680-825-0	03	1	0204-0512	●	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) EXC. EURO2 SPECIFICATION(THN) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
10	BOLT; BATTERY CABLE CLIP ELEC BOX M8X35 FLANGE	0-28680-835-0	03	1	0012-0106	●	●	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELEC BOX M8X35 FLANGE	0-28680-835-0	03	1	0012-0106	●	●	●
10	BOLT; BATTERY CABLE CLIP ELEC BOX M8X35 FLANGE	0-28680-835-0	03	1	0107-0203	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELEC BOX M8X35 FLANGE	0-28680-835-0	03	1	0107-0203	●
10	BOLT; BATTERY CABLE CLIP ELEC BOX M8X35 FLANGE	0-28680-835-0	03	1	0204-0512	●	●	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELEC BOX M8X35 FLANGE	0-28680-835-0	03	1	0204-0512	●	●
10	BOLT; BATTERY CABLE CLIP ELEC BOX M8X35 FLANGE	0-28650-835-0	03	1	0601-	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) ELEC BOX M8X35 FLANGE	0-28650-835-0	03	1	0601-	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28680-825-0	01	1	0012-0512	●	●	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) M8X30 FLANGE	0-28680-830-0	01	1	0012-0512	●	●	●
10	BOLT; BATTERY CABLE CLIP RR ENG LEAF SUSP(LVR5FB) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●
18	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0012-0102	●
18	CLIP; BATTERY CABLE (B) ID=21 L=24	8-94176-807-1	01	1	0103-0106	●
18	CLIP; BATTERY CABLE EXC. EURO3 SPECIFICATION(NJX) (B) ID=21 L=24	8-94176-807-1	01	1	0107-	●
18	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	03	1	0012-0106	●
18	CLIP; BATTERY CABLE EURO3 SPECIFICATION(NJX) (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0107-0210	●
18	CLIP; BATTERY CABLE EURO3 SPECIFICATION(NJX) (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0211-	●
18	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0211-			●
18	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	03	1	0107-0203	●
18	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	03	1	0204-	●	●	●
18	CLIP; BATTERY CABLE EURO3 SPECIFICATION(NJX) (C) ID=24 L=27	1-09700-809-0	02	1	0107-0210	●
18	CLIP; BATTERY CABLE EURO3 SPECIFICATION(NJX) (C) ID=24 L=27	1-09700-809-0	02	1	0211-	●
18	CLIP; BATTERY CABLE (C) ID=24 L=27	1-09700-809-0	02	1	0211-			●
18	CLIP; BATTERY CABLE (E) ID=22 L=32	1-09700-126-1	01	1	0204-		●
18	CLIP; BATTERY CABLE (D) ID=19 L=28	9-09525-856-0	01	1	0204-0606		●
18	CLIP; BATTERY CABLE (D) ID=19 L=28	0-95235-856-0	01	1	0607-		●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	02	1	0204-0210		●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●
73	BRACKET; BATTERY CABLE	1-82699-493-0	01	1	0204-		●
76	NUT; BATTERY CABLE M10 FLANGE	0-91150-210-0	02	1	0204-0602		●
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	02	1	0603-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
