2-53 — TRANSMISSION OIL COOLER SYSTEM (#79642) — 9 parça

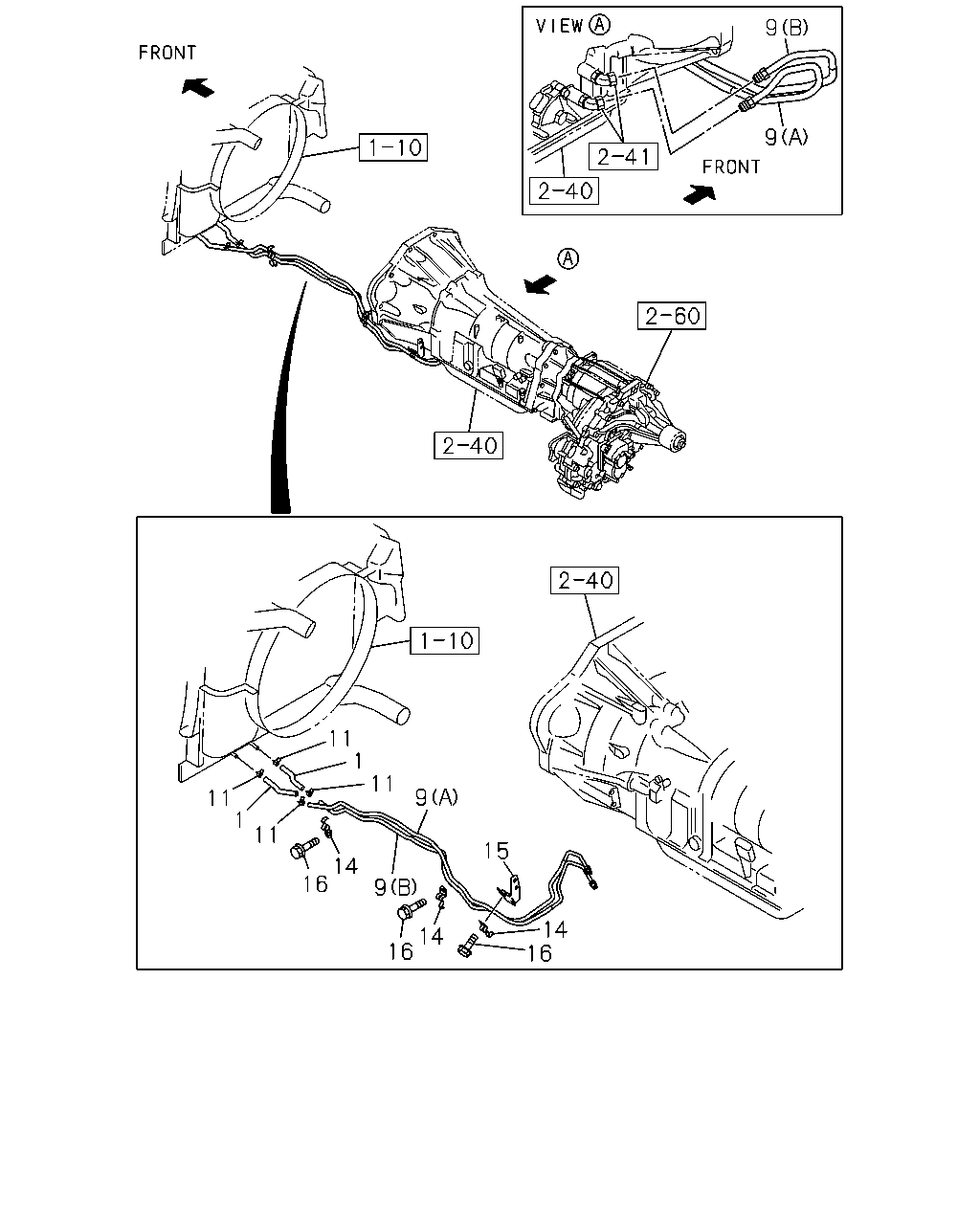

çizim 114670
9 9 11 1 11 1 1 11 16 14 9 9 15 14 16 16 14
BalonParca AdiParca NoAdetTipApplied Date
1 04.128 HOSE; ATF
L=180 SERVICED BY L=3000 		0-02259-300-0 02 1 1203-
9 04.128 PIPE; ATF,INL,A/T
(A) INLET 		8-98155-565-2 01 1 1203-1408
9 04.128 PIPE; ATF,INL,A/T
(A) INLET 		8-98289-240-1 01 1 1409-
9 04.128 PIPE; ATF,INL,A/T
(B) RETURN 		8-98155-567-2 01 1 1203-1408
9 04.128 PIPE; ATF,INL,A/T
(B) RETURN 		8-98289-243-1 01 1 1409-
11 04.128 CLIP; PIPE 8-98008-165-0 04 1 1203-
14 04.128 CLIP; PIPE TO ENG SIDE 8-98008-163-0 03 1 1203-
15 04.128 BRACKET; ATF PIPE 8-98100-277-0 01 1 1203-
16 04.128 BOLT; CLIP,ENG SIDE
02.343 M8X16 FLANGE 		0-28050-816-0 03 1 1203-
