2-46 — AUTO TRANS SUPPORT AND PLANETARY GEAR (#79638) — 62 parça

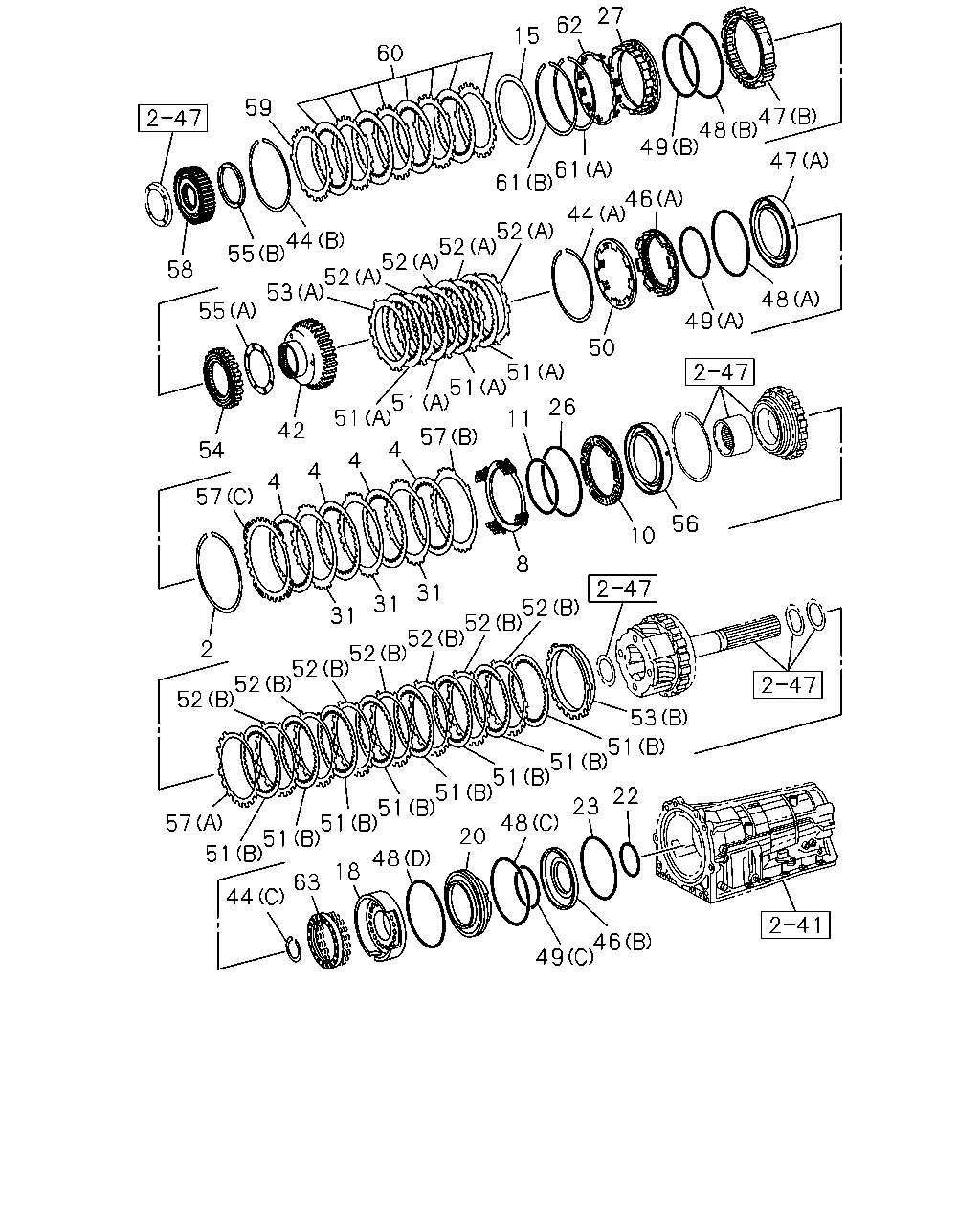

çizim 182903
27 62 15 60 59 47 48 49 47 61 61 46 44 52 44 55 52 52 58 52 53 48 55 49 50 51 51 51 26 51 11 42 57 4 54 4 4 4 57 56 10 8 31 31 52 52 52 52 52 52 52 31 2 53 51 51 51 51 51 51 51 51 22 23 48 57 20 48 18 63 44 46 49
BalonParca AdiParca NoAdetTipApplied Date
2 04.166 RING; RET,FRT BRK,2ND BRK,A/T
ID=148 		8-98189-627-0 01 1 1203-
4 04.163 DISC ASM; CLU & FACING,2ND BRK,A 8-98189-625-0 04 1 1203-
8 04.166 SPRING; RETURN,FRT BRK,A/T 8-98189-622-0 01 1 1203-
10 04.166 PISTON; BRK,FRT,2ND BRK,A/T 8-98189-618-0 01 1 1203-
11 04.166 GASKET; BRK PISTON,FRT,INNER,A/T
ID=117 		8-98189-621-0 01 1 1203-
15 04.166 PLATE; BRK CUSHION,A/T 8-98189-635-0 01 1 1203-
18 04.166 PISTON; LOW & REV BRK,A/T 8-98189-644-0 01 1 1203-
20 04.166 SLEEVE; BRK REACTION,A/T 8-98189-652-0 01 1 1203-
22 04.166 GASKET; BRK PISTON,RR,INNER,A/T
ID=67 		8-98189-645-0 01 1 1203-
23 04.166 GASKET; BRK PISTON,RR,OUTER,A/T
ID=116 		8-98189-646-0 01 1 1203-
26 04.166 GASKET; BRK PISTON,FRT,OUTER,A/T
ID=137 		8-98189-620-0 01 1 1203-
27 04.166 PISTON; BRK,RR,2ND BRK,A/T 8-98189-629-0 01 1 1203-
31 04.163 PLATE; CLU BACKING,2ND BRK,A/T
T=2.0 		8-98189-626-0 03 1 1203-
42 04.265 RACE; THRUST BRG,A/T 8-98189-614-0 01 1 1203-
44 04.265 RING; RET
04.485 (A) ID=160 		8-97184-521-0 01 1 1203-
44 04.265 RING; RET
(B) ID=162 		8-98189-637-0 01 1 1203-
44 04.265 RING; RET
(C) ID=61 		8-98189-655-0 01 1 1203-
46 04.166 PISTON; BRK
(A) 		8-98189-600-0 01 1 1203-
46 04.166 PISTON; BRK
(B) 		8-98189-643-0 01 1 1203-
47 04.166 CYLINDER; BRK
(A) 		8-98189-601-0 01 1 1203-
47 04.166 CYLINDER; BRK
(B) 		8-98189-630-0 01 1 1203-
48 04.166 GASKET; BRK
(A) ID=143 		8-98189-604-0 01 1 1203-
48 04.166 GASKET; BRK
(B) ID=149 		8-98189-631-0 01 1 1203-
48 04.166 GASKET; BRK
(C) ID=128 		8-98189-649-0 01 1 1203-
48 04.166 GASKET; BRK
(D) ID=132 		8-98189-650-0 01 1 1203-
49 04.166 GASKET; BRK PISTON
(A) ID=127 		8-98189-605-0 01 1 1203-
49 04.166 GASKET; BRK PISTON
(B) ID=137 		8-98189-620-0 01 1 1203-
49 04.166 GASKET; BRK PISTON
(C) ID=79 		8-98189-647-0 01 1 1203-
50 04.166 SPRING; BRK PISTON RETURN 8-98189-606-0 01 1 1203-
51 04.163 DISC; BRK
(A) OD=158 		8-98189-607-0 04 1 1203-
51 04.163 DISC; BRK
(B) OD=140 		8-98189-656-0 08 1 1203-
52 04.166 PLATE; BRAKE
(A) T=2.4 		8-98189-608-0 04 1 1203-
52 04.166 PLATE; BRAKE
(B) ID=125 		8-98189-657-0 07 1 1203-
53 04.166 FLANGE; BRAKE
(A) T=2.0 		8-98189-609-0 AR 1 1203-
53 04.166 FLANGE; BRAKE
(A) T=2.2 		8-98189-610-0 AR 1 1203-
53 04.166 FLANGE; BRAKE
(A) T=2.4 		8-98189-611-0 AR 1 1203-
53 04.166 FLANGE; BRAKE
(A) T=2.6 		8-98189-612-0 AR 1 1203-
53 04.166 FLANGE; BRAKE
(B) T=9.0 		8-98189-658-0 01 1 1203-
54 04.163 CLUTCH ASM; 1WAY 8-98189-613-0 01 1 1203-
55 04.162 WASHER; THRUST
(A) 		8-98189-615-0 01 1 1203-
55 04.162 WASHER; THRUST
(B) 		8-98189-640-0 01 1 1203-
56 04.166 CYLINDER; BRAKE 8-98189-619-0 01 1 1203-
57 04.166 FLANGE; BRAKE
(B) T=2.3 		8-98189-623-0 01 1 1203-
57 04.166 FLANGE; BRAKE
(C) T=4.6 		8-98189-624-0 01 1 1203-
57 04.166 FLANGE; BRAKE
(A) T=1.8 		8-98189-659-0 AR 1 1203-
57 04.166 FLANGE; BRAKE
(A) T=1.97 		8-98189-660-0 AR 1 1203-
57 04.166 FLANGE; BRAKE
(A) T=2.11 		8-98189-661-0 AR 1 1203-
57 04.166 FLANGE; BRAKE
(A) T=2.25 		8-98189-662-0 AR 1 1203-
57 04.166 FLANGE; BRAKE
(A) T=2.39 		8-98189-663-0 AR 1 1203-
57 04.166 FLANGE; BRAKE
(A) T=2.53 		8-98189-664-0 AR 1 1203-
57 04.166 FLANGE; BRAKE
(A) T=2.67 		8-98189-665-0 AR 1 1203-
57 04.166 FLANGE; BRAKE
(A) T=2.81 		8-98189-666-0 AR 1 1203-
57 04.166 FLANGE; BRAKE
(A) T=2.95 		8-98189-667-0 AR 1 1203-
57 04.166 FLANGE; BRAKE
(A) T=3.09 		8-98189-668-0 AR 1 1203-
57 04.166 FLANGE; BRAKE
(A) T=3.23 		8-98189-669-0 AR 1 1203-
58 04.163 CLUTCH ASM; 1WAY 8-98189-639-0 01 1 1203-
59 04.166 FLANGE; BRAKE NO3 8-98189-636-0 01 1 1203-
60 04.163 DISC ASM; BRAKE 8-98189-634-0 01 1 1203-
61 04.166 RING; SNAP,BRK
(A) ID=125 		8-98189-632-0 01 1 1203-
61 04.166 RING; SNAP,BRK
(B) ID=173 		8-98189-633-0 01 1 1203-
62 04.166 SPRING; BRK PISTON 8-98189-628-0 01 1 1203-
63 04.166 SPRING; 1ST & REVS BRAKE RETURN 8-98189-654-0 01 1 1203-
