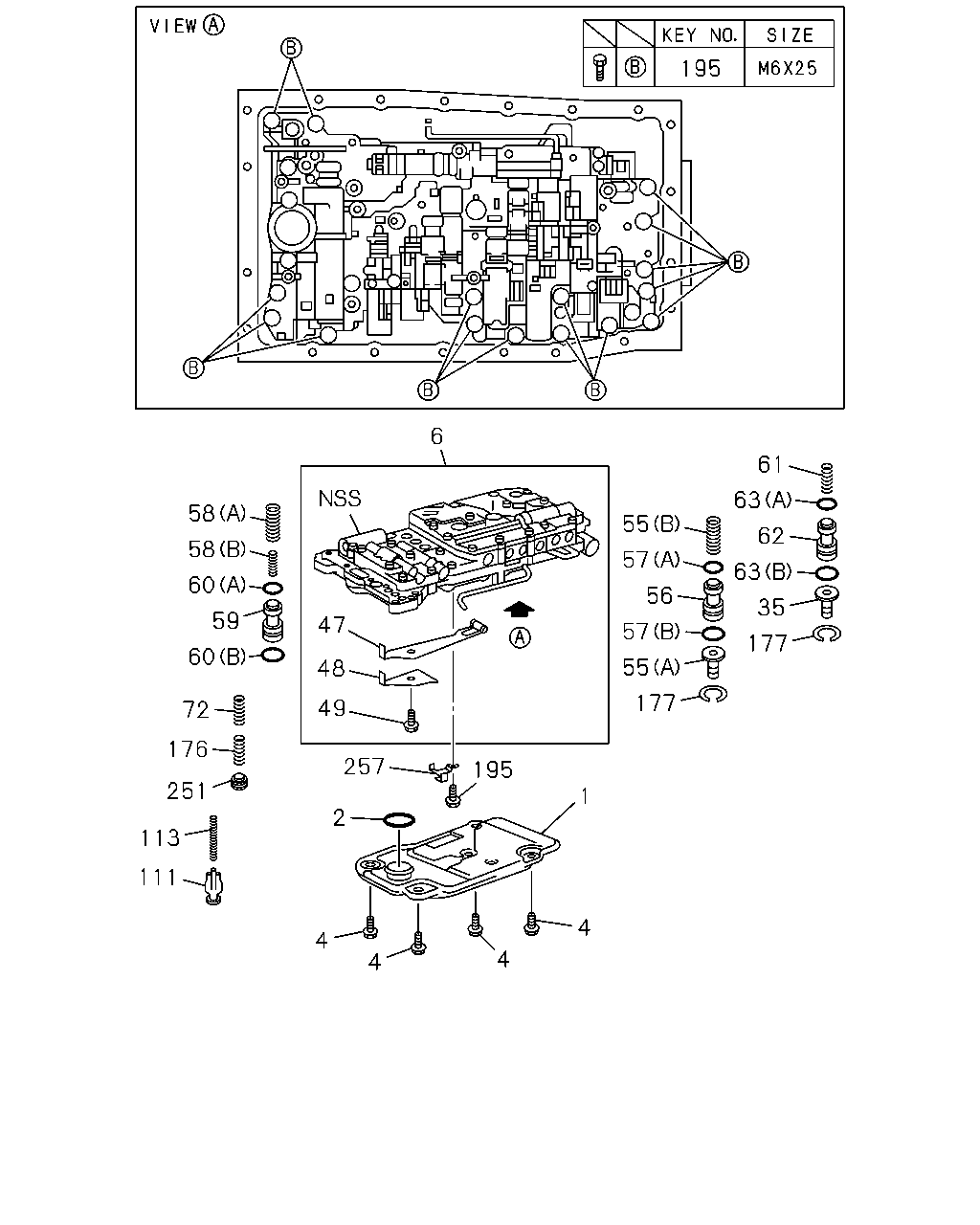

2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#79637) — 30 parça

195 6 61 63 58 55 62 58 57 63 60 56 35 59 47 57 177 60 55 48 177 49 72 176 257 195 251 1 2 113 111 4 4 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.197 STRAINER ASM; OIL,A/T	8-98189-731-0	01	1	1203-
2	04.197 GASKET; OIL STRAINER,A/T	8-98189-732-0	01	1	1203-
4	04.197 BOLT; OIL STRAINER,A/T 04.265 M6X12	8-94479-927-0	04	1	1203-
6	04.265 BODY ASM; VLV LWR,A/T	8-98189-497-0	01	1	1203-
35	04.265 SPRING; LWR VLV BODY	8-98189-477-0	01	1	1203-
47	04.050 SPRING; DETENT,A/T	8-98189-498-0	01	1	1203-
48	04.052 PLATE; DETENT SPR,A/T	8-98189-499-0	01	1	1203-
49	04.052 BOLT; DETENT SPR PLATE,A/T M6X14	8-98189-500-0	01	1	1203-
55	04.246 SPRING; ACCUMLATOR PISTON (A)	8-98189-480-0	01	1	1203-
55	04.246 SPRING; ACCUMLATOR PISTON (B)	8-98189-481-0	01	1	1203-
56	04.241 PISTON; ACCUMLATOR	8-98189-735-0	01	1	1203-
57	04.241 GASKET; 2ND SPD PISTON,A/T 04.167 (A) ID=24	8-97184-889-0	01	1	1203-
57	04.241 GASKET; 2ND SPD PISTON,A/T (B) ID=34	8-98189-737-0	01	1	1203-
58	04.164 SPRING; DIRECT CLU (C-2 ACCUM),A (A)	8-97184-330-0	01	1	1203-
58	04.164 SPRING; DIRECT CLU (C-2 ACCUM),A (B)	8-98189-479-0	01	1	1203-
59	04.166 PISTON; DIRECT CLU,A/T	8-98189-734-0	01	1	1203-
60	04.169 GASKET; DIRECT CLU PISTON,A/T 04.241 (A) ID=27	8-97184-886-0	01	1	1203-
60	04.169 GASKET; DIRECT CLU PISTON,A/T 04.241 (B) ID=34	8-98189-737-0	01	1	1203-
61	04.164 SPRING; FWD CLU,(C-1 ACUUM),A/T	8-98189-478-0	01	1	1203-
62	04.166 PISTON; FWD CLU,A/T	8-98189-733-0	01	1	1203-
63	04.167 GASKET; FWD CLU,A/T 04.241 (A) ID=20	8-97184-885-0	01	1	1203-
63	04.167 GASKET; FWD CLU,A/T (B) ID=29	8-98189-736-0	01	1	1203-
72	04.233 SPRING; ACCUMLATOR PISTON	8-98189-483-0	01	1	1203-
111	04.169 BODY; CHECK BALL	8-94479-931-0	01	1	1203-
113	04.164 SPRING; CHECK BALL	8-94479-930-0	01	1	1203-
176	04.265 SPRING; ACCUM INNER	8-98189-482-0	01	1	1203-
177	04.265 RING; SNAP ID=19	8-97025-821-0	02	1	1203-
195	04.265 BOLT; CLAMP M6X25	8-94473-624-0	16	1	1203-
251	04.265 VALVE; ACCUMULATOR	8-98189-739-0	01	1	1203-
257	04.265 CLAMP; HARNESS	8-98189-740-0	01	1	1203-
