Isuzu WW
▶
PICKUP
▶
TFR
▶
51375 - TFR/TFS(EUROPE)-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25 - SPEEDOMETER DRIVEN GEAR
▶
2-25 — SPEEDOMETER DRIVEN GEAR
(#79630) — 20 parça
Tümü

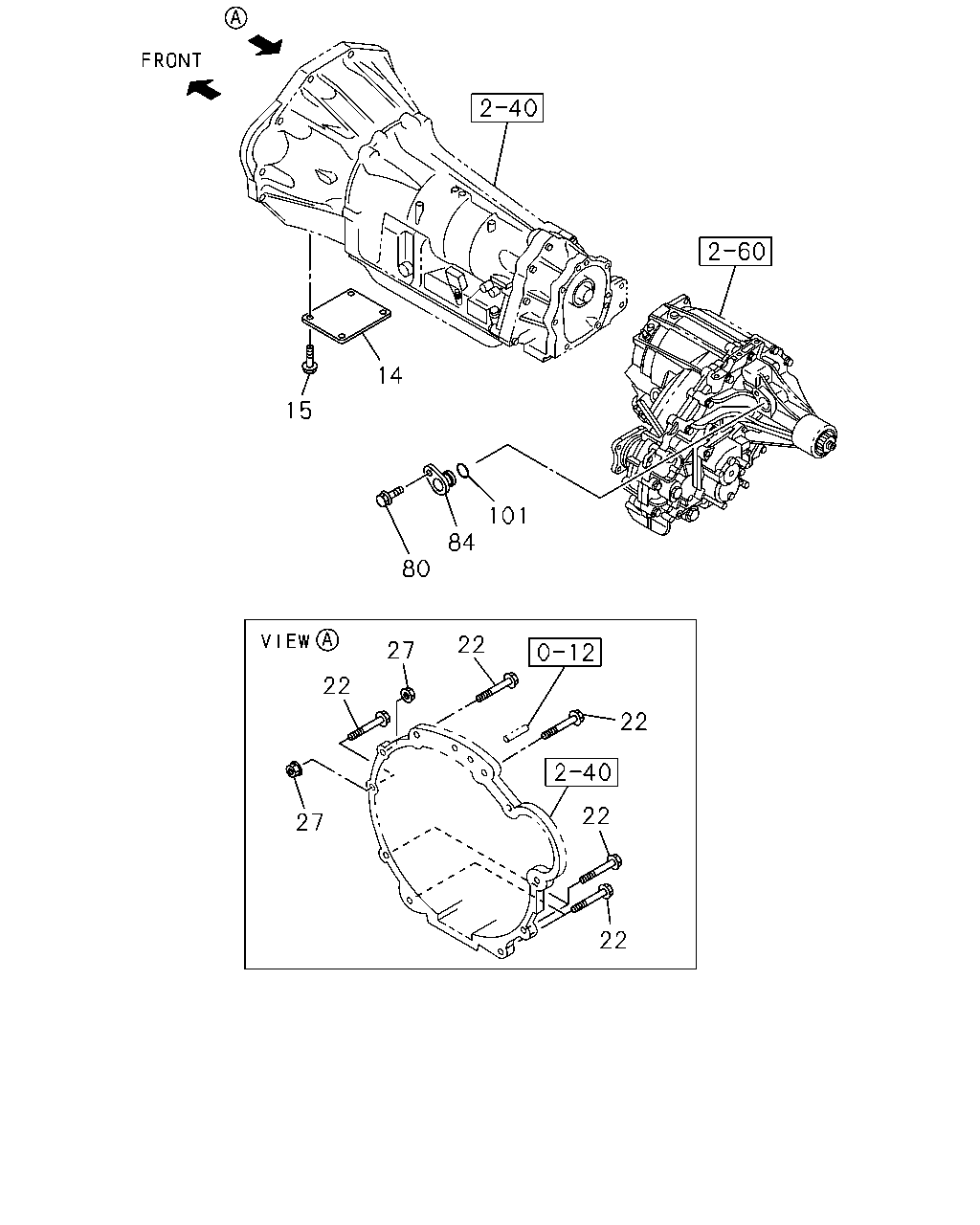

A - A/T 5 SPEED-AISIN

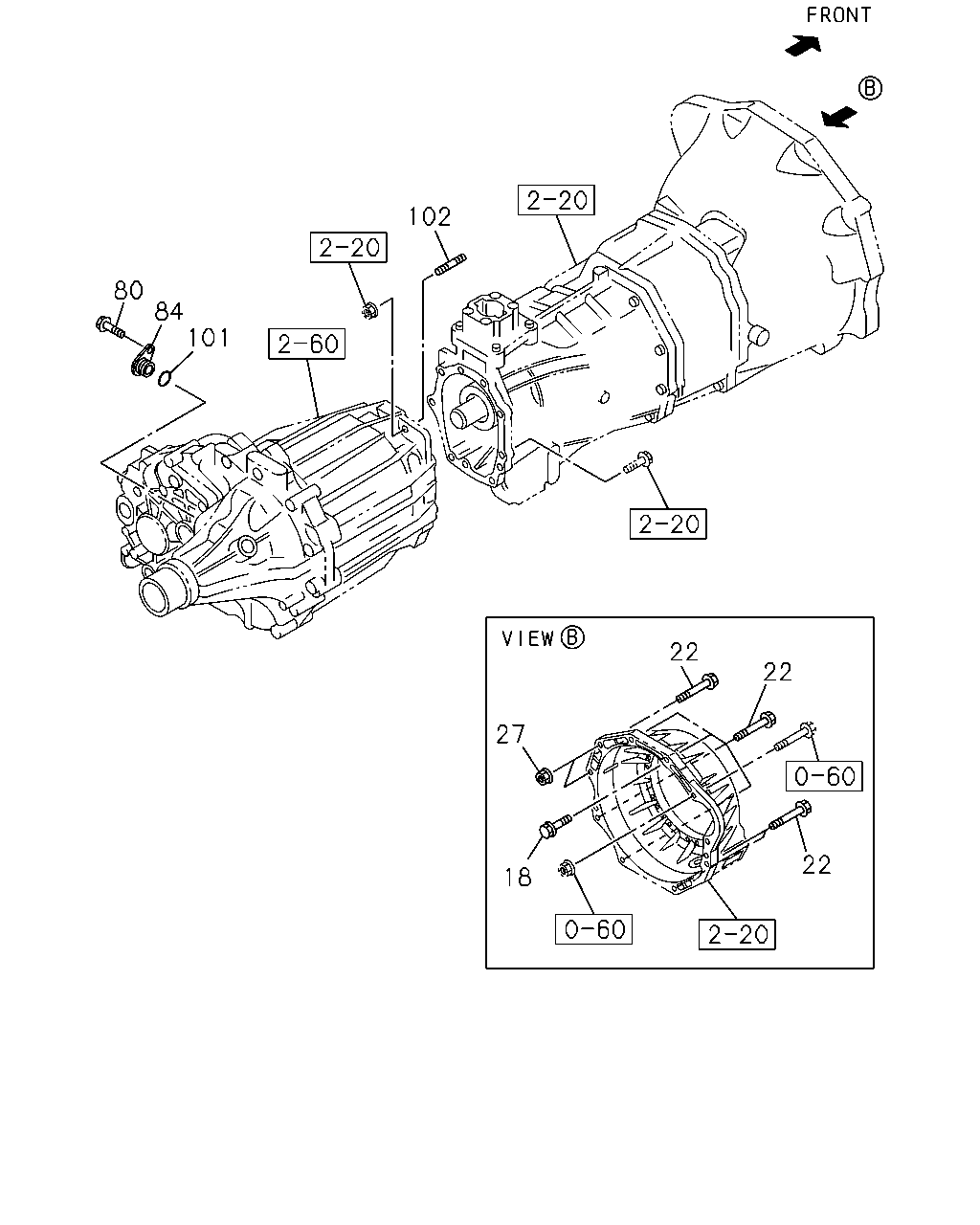

B - M/T AISIN 6 SPEED
◀
[225A] A/T (10 parça)
[225A] M/T (10 parça)
▶
15
14
80
84
101
22
27
22
27
22
22
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
14
00.679 COVER; UNDER,TRANS
8-98049-857-0
01
1
1203-
●
15
00.685 BOLT; UNDER COVER TO TRANS
02.343 M6X16 FLANGE
0-28650-616-0
04
1
1203-
●
22
00.685 BOLT; TRANS CASE TO ENG
00.724 M12X50 FLANGE
0-28051-250-0
08
1
1203-
●
●
27
00.685 NUT; CLU HSG TO TRANS
02.042 M12 FLANGE
0-91180-112-0
02
1
1203-
●
●
80
04.329 BOLT; SPD SENSOR
4X4(TFS***) 04.338 M8X20 FLANGE
0-28050-820-0
01
1
1203-
●
80
04.329 BOLT; SPD SENSOR
04.338 M8X20 FLANGE
0-28050-820-0
01
1
1203-
●
84
04.104 CAP; BUSH,SPEEDOMETER GEAR
4X4(TFS***)
8-98103-318-0
01
1
1203-
●
84
04.104 CAP; BUSH,SPEEDOMETER GEAR
8-98103-318-0
01
1
1203-
●
101
04.338 GASKET; CAP
4X4(TFS***) ID=21.7 OD=28.7
9-09921-100-0
01
1
1203-
●
101
04.338 GASKET; CAP
ID=21.7 OD=28.7
9-09921-100-0
01
1
1203-
●
102
80
84
101
27
22
22
22
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
18
00.685 BOLT; CLU HSG TO TRANS
8-98203-121-0
05
1
1203-
●
22
00.685 BOLT; TRANS CASE TO ENG
00.724 M12X50 FLANGE
0-28051-250-0
08
1
1203-
●
●
27
00.685 NUT; CLU HSG TO TRANS
02.042 M12 FLANGE
0-91180-112-0
02
1
1203-
●
●
80
04.329 BOLT; SPD SENSOR
4X4(TFS***) 04.338 M8X20 FLANGE
0-28050-820-0
01
1
1203-
●
80
04.329 BOLT; SPD SENSOR
04.338 M8X20 FLANGE
0-28050-820-0
01
1
1203-
●
84
04.104 CAP; BUSH,SPEEDOMETER GEAR
4X4(TFS***)
8-98103-318-0
01
1
1203-
●
84
04.104 CAP; BUSH,SPEEDOMETER GEAR
8-98103-318-0
01
1
1203-
●
101
04.338 GASKET; CAP
4X4(TFS***) ID=21.7 OD=28.7
9-09921-100-0
01
1
1203-
●
101
04.338 GASKET; CAP
ID=21.7 OD=28.7
9-09921-100-0
01
1
1203-
●
102
00.683 STUD; TRANS
4X4(TFS***) 04.510 M10X27 L=43.5
8-98035-677-0
01
1
1203-
●
