Sayfa 0-52 - Isuzu EPC

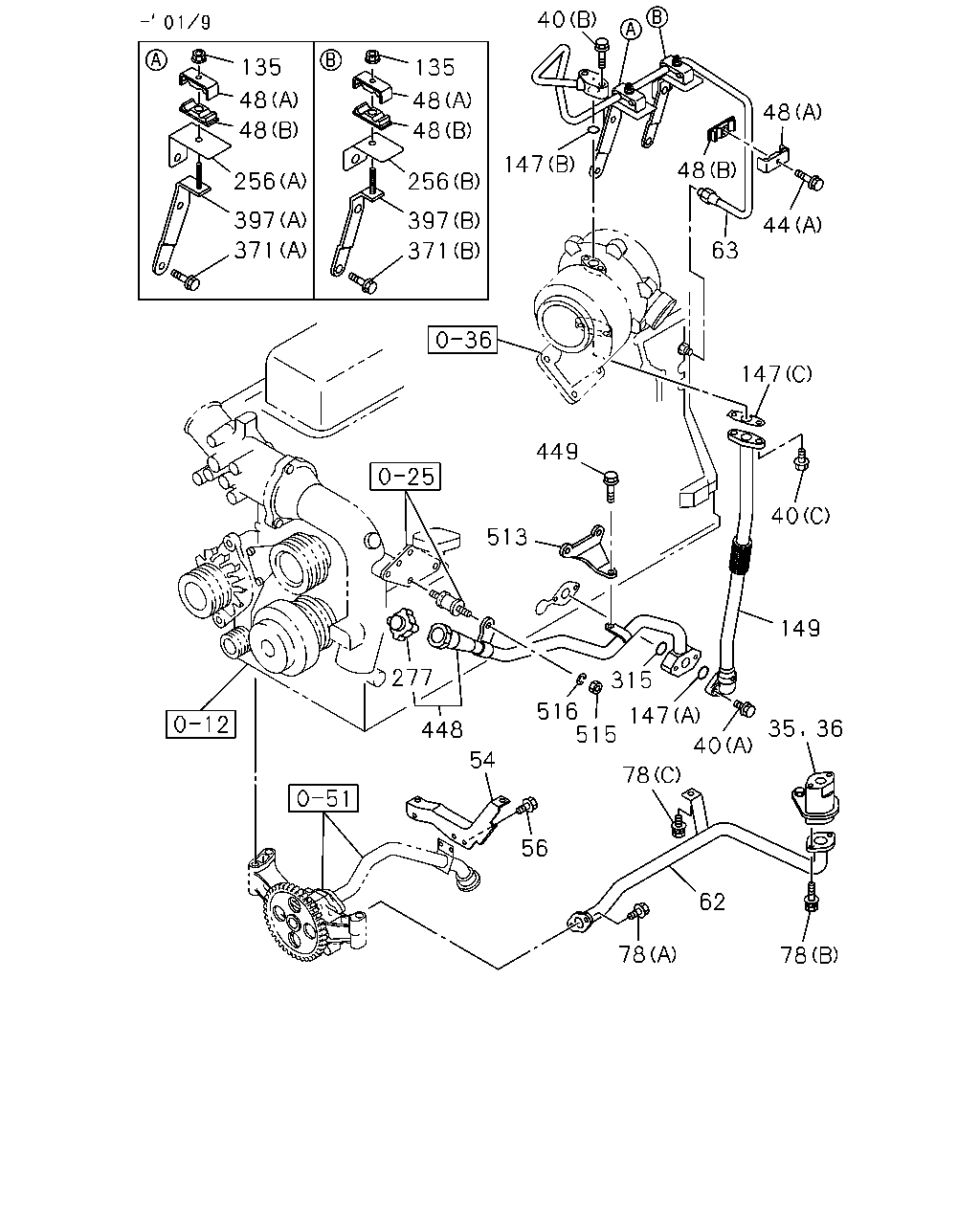

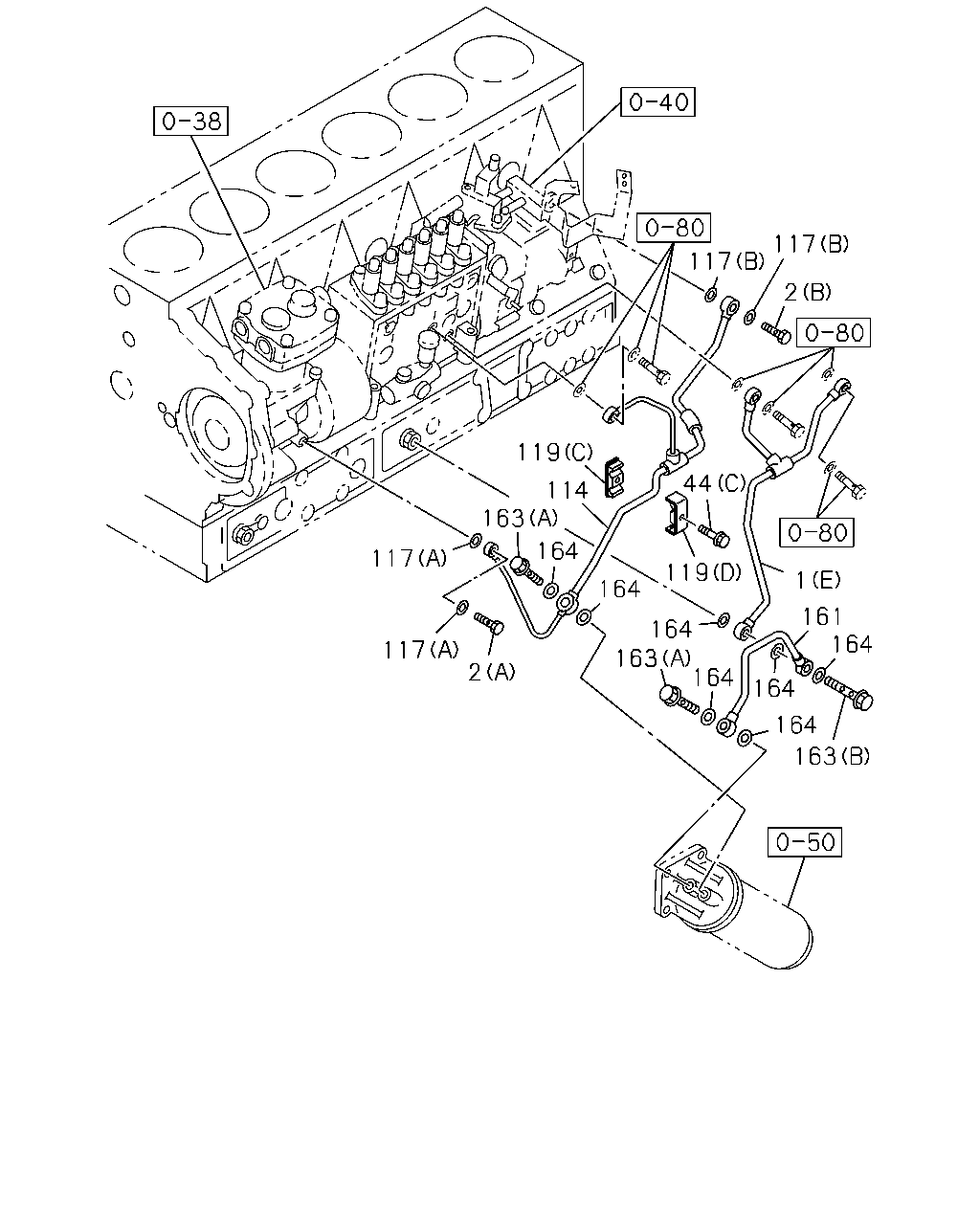

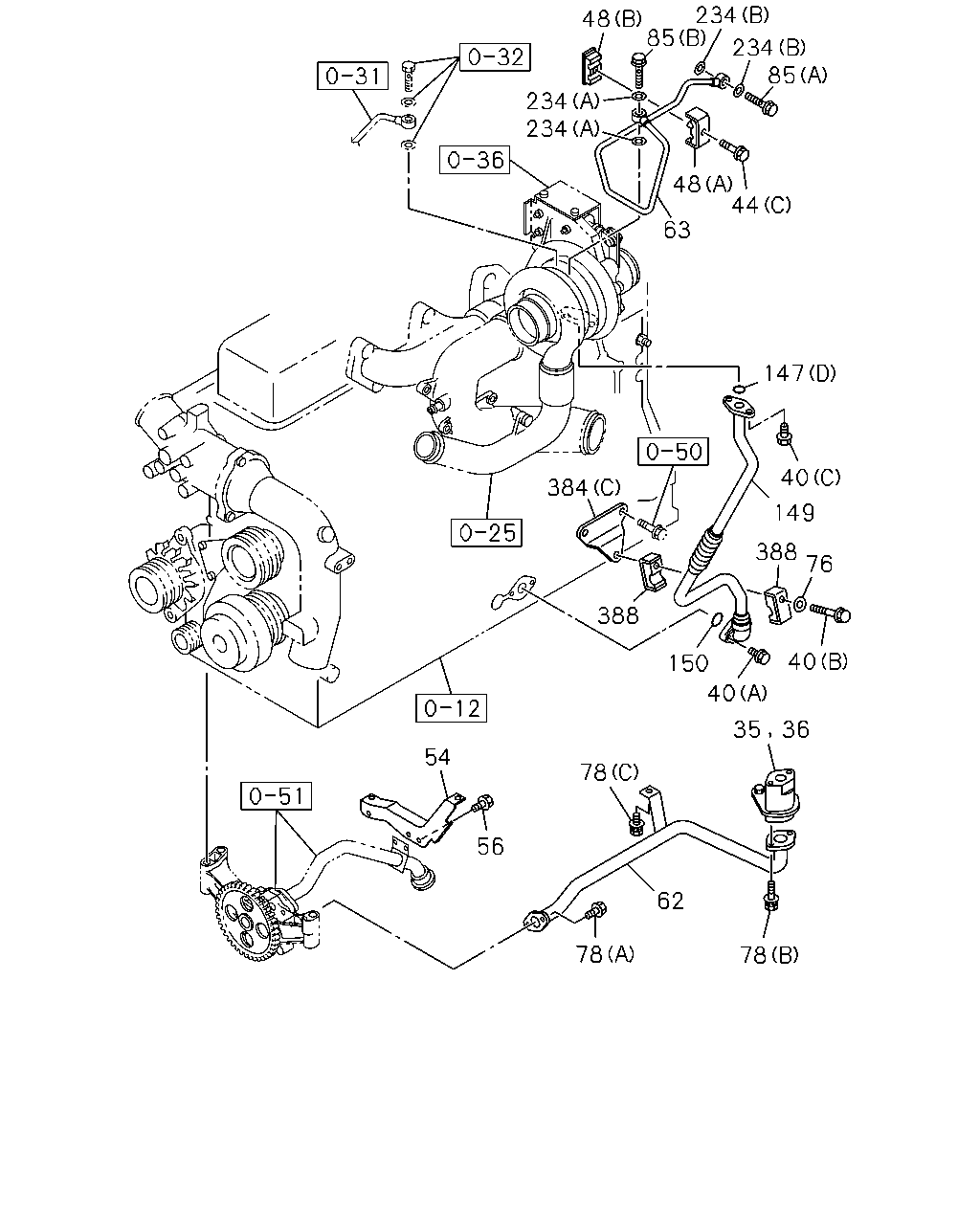

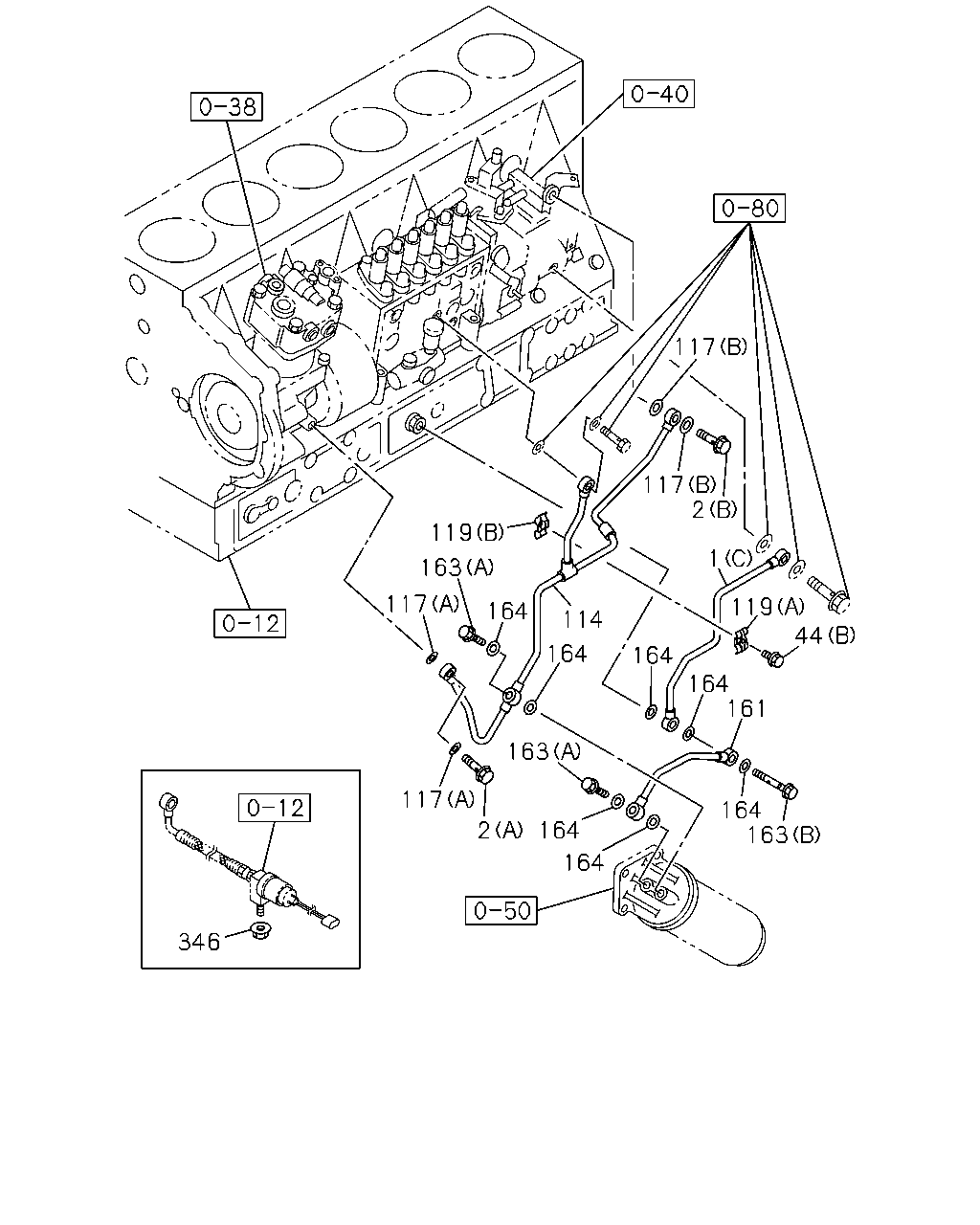

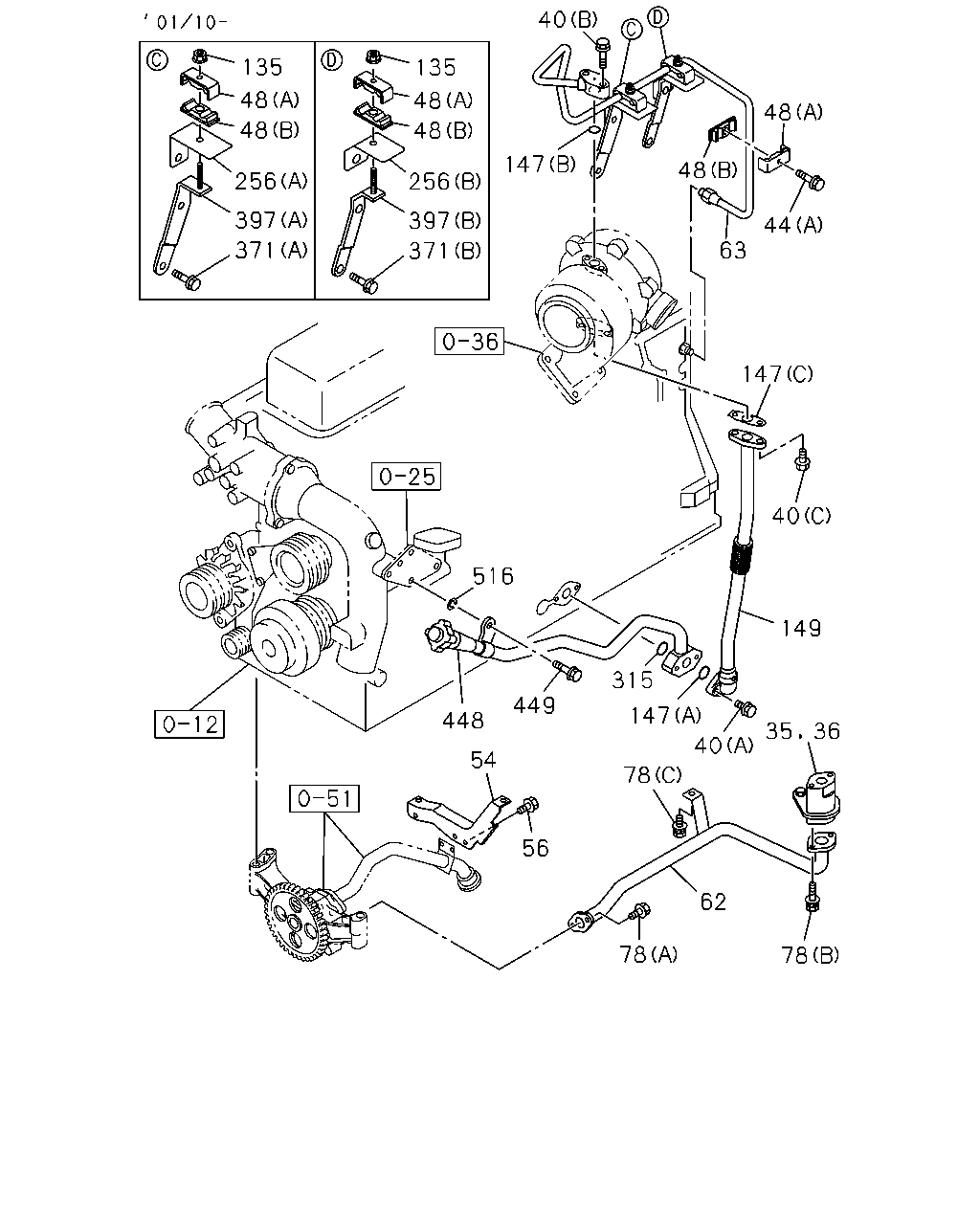

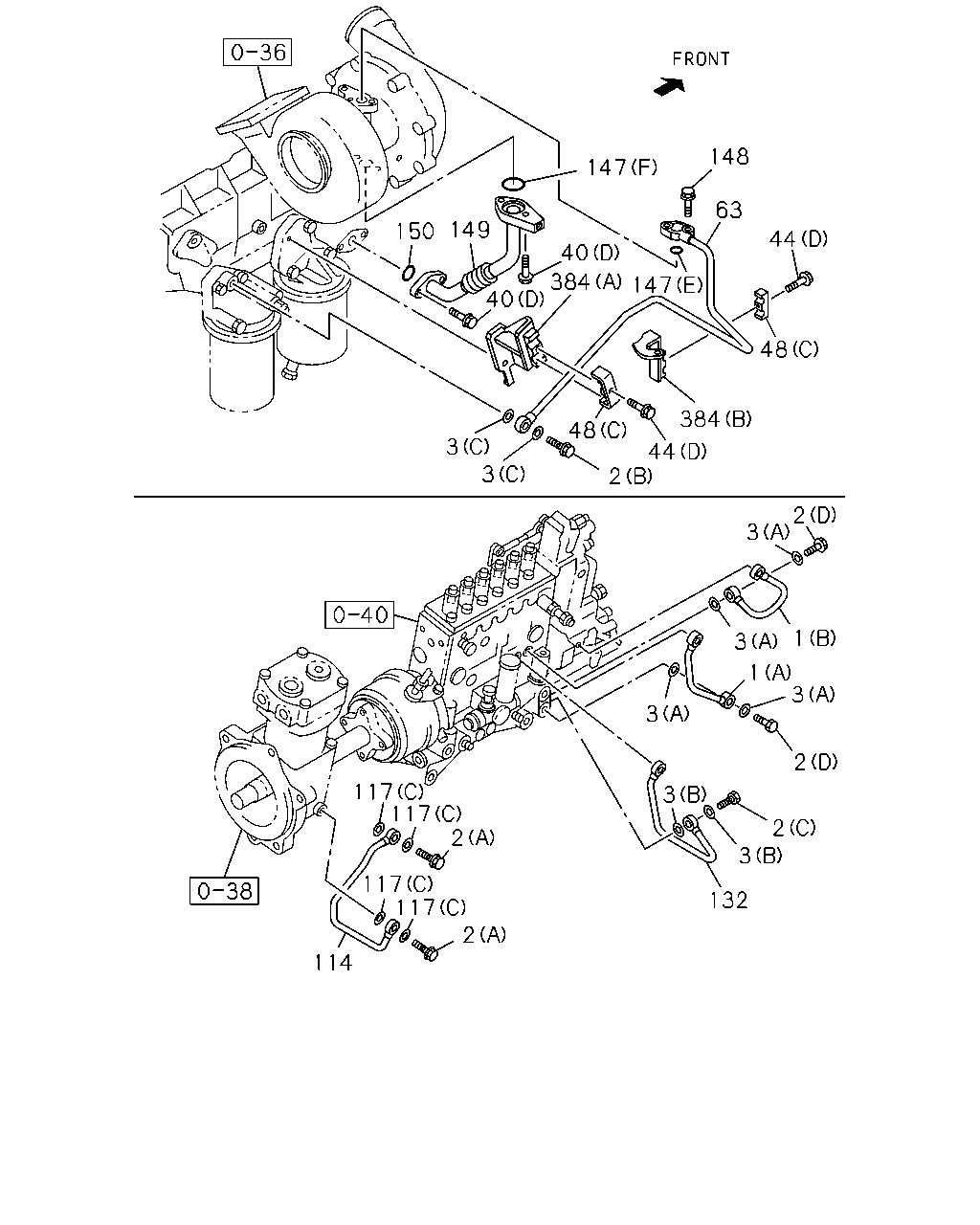

0-52 — OIL AND VACUUM PIPING; ENGINE (#7963) — 715 parça

40 135 135 48 48 48 48 48 147 48 256 256 397 397 44 371 63 371 147 449 40 513 149 277 315 516 515 147 35 36 448 40 54 78 56 62 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
35	VALVE ASM; DRAIN BACK EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION(NJX)	1-13260-086-0	01	1	0012-0106	●
35	VALVE ASM; DRAIN BACK EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION(NJX)	1-13260-086-0	01	1	0107-0210	●
35	VALVE ASM; DRAIN BACK EURO3 SPECIFICATION(NJX)	1-13260-086-0	01	1	0107-0210	●
35	VALVE ASM; DRAIN BACK EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13260-086-0	01	1	0211-	●	●
36	SPACER; DRAIN BACK OIL FILTER SETTING DOWNWARD<E7V> EURO2 SPECIFICATION(THN)	1-13260-108-0	01	1	0012-0210	●
36	SPACER; DRAIN BACK OIL FILTER SETTING DOWNWARD<E7V>	1-13260-108-0	01	1	0211-	●	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0012-0106	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M8X30 FLANGE	0-28080-830-0	02	1	0107-0512	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-	●
40	BOLT; OIL PIPE (A) M8X60 FLANGE	0-28080-860-0	02	1	0012-0106	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M8X60 FLANGE	0-28080-860-0	02	1	0107-0512	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M8X60 FLANGE	0-28050-860-0	02	1	0601-	●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	0012-0106	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (C) M10X22 FLANGE	0-28181-022-0	02	1	0107-	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0210	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (B) M6X50 FLANGE	0-28080-650-0	01	1	0211-0512	●
40	BOLT; OIL PIPE (B) M6X50 FLANGE	0-28080-650-0	01	1	0211-0512		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-	●
40	BOLT; OIL PIPE (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28080-825-0	02	1	0107-0210	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28080-825-0	02	1	0211-0512	●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28080-825-0	02	1	0211-0512		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28050-825-0	02	1	0601-		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (C) M10X30 FLANGE	0-28781-030-0	02	1	0107-0210	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (C) M10X30 FLANGE	0-28781-030-0	02	1	0211-0512	●
40	BOLT; OIL PIPE (C) M10X30 FLANGE	0-28781-030-0	02	1	0211-0512		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (C) M10X30 FLANGE	0-28751-030-0	02	1	0601-	●
40	BOLT; OIL PIPE (C) M10X30 FLANGE	0-28751-030-0	02	1	0601-		●
40	BOLT; OIL PIPE (D) M10X30 FLANGE	0-28181-030-0	04	1	0204-0512			●
40	BOLT; OIL PIPE (D) M10X30 FLANGE	0-28151-030-0	04	1	0601-			●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0012-0106	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M6X35 FLANGE	0-28080-635-0	01	1	0107-0512	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0012-0106	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0107-0906	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M6X25 W/LK WASHER	0-50540-625-0	01	1	0907-	●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION(NJX) (C) M6X35 FLANGE	0-28680-635-0	01	1	0107-0210	●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION(NJX) (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512	●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION(NJX) (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-		●
44	BOLT; CLIP,OIL PIPE (D) M6X30 FLANGE	0-28080-630-0	02	1	0204-0512			●
44	BOLT; CLIP,OIL PIPE (D) M6X30 FLANGE	0-28050-630-0	02	1	0601-			●
48	CLIP; OIL PIPE (A)	1-09701-228-0	03	1	0012-0106	●
48	CLIP; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A)	1-09701-228-2	03	1	0107-	●
48	CLIP; OIL PIPE (B)	1-09701-229-0	03	1	0012-0106	●
48	CLIP; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B)	1-09701-229-1	03	1	0107-	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION(NJX) (A)	1-09701-228-0	01	1	0107-0210	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION(NJX) (A)	1-09701-228-2	01	1	0211-	●
48	CLIP; OIL PIPE (A)	1-09701-228-2	01	1	0211-		●
48	CLIP; OIL PIPE EURO3 SPECIFICATION(NJX) (B)	1-09701-229-0	01	1	0107-0210	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION(NJX) (B)	1-09701-229-1	01	1	0211-	●
48	CLIP; OIL PIPE (B)	1-09701-229-1	01	1	0211-		●
48	CLIP; OIL PIPE (C) ID=9 & 9 L=25	1-09701-212-2	02	1	0204-			●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	0012-0210	●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	0211-	●	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	0012-0210	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	0012-0210	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	0211-	●	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-567-0	01	1	0012-0106	●
63	PIPE; OIL,TURBOCHARGER FEED EXC. EURO3 SPECIFICATION(NJX)	1-13313-567-0	01	1	0107-	●
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NJX)	1-13313-958-0	01	1	0107-0210	●
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NJX)	1-13313-958-0	01	1	0211-	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-958-0	01	1	0211-		●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-866-0	01	1	0204-			●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	0012-0210	●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	0211-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	0012-0210	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	0211-0906	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50640-800-0	02	1	0907-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	0012-0210	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	0211-0512	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50640-816-0	01	1	0601-	●	●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	0012-0106	●
135	NUT; CLIP EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91150-106-0	02	1	0107-0602	●
135	NUT; CLIP EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91180-106-0	02	1	0603-	●
135	NUT; CLIP EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91150-106-0	01	1	0107-0602	●
135	NUT; CLIP EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91180-106-0	01	1	0603-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-297-0	01	1	0012-0106	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION(NJX) (A)	1-09623-297-0	01	1	0107-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0012-0106	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION(NJX) (B) ID=12.3	1-09623-481-0	01	1	0107-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-09637-058-1	01	1	0012-0106	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION(NJX) (C)	1-09637-058-2	01	1	0107-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX) (D) ID=22.1	8-94399-399-0	01	1	0107-0210	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX). (D) ID=22.1	8-94399-399-0	01	1	0211-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=22.1	8-94399-399-0	01	1	0211-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=10.8	1-09623-274-0	01	1	0204-			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (F) ID=27.7	1-09623-450-0	01	1	0204-			●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-782-0	01	1	0012-0106	●
149	PIPE; OIL RETURN,TURBOCHARGER EXC. EURO3 SPECIFICATION(NJX)	1-13313-782-0	01	1	0107-	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION(NJX)	1-13313-959-0	01	1	0107-0210	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION(NJX)	1-13313-959-0	01	1	0211-	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-959-0	01	1	0211-		●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-1	01	1	0204-			●
256	PROTECTOR; HEAT,PIPE (A)	1-14181-293-0	01	1	0012-0106	●
256	PROTECTOR; HEAT,PIPE EXC. EURO3 SPECIFICATION(NJX) (A)	1-14181-293-0	01	1	0107-	●
256	PROTECTOR; HEAT,PIPE (B)	1-14181-294-0	01	1	0012-0106	●
256	PROTECTOR; HEAT,PIPE EXC. EURO3 SPECIFICATION(NJX) (B)	1-14181-294-0	01	1	0107-	●
277	CAP; OIL FILLER	1-11750-020-0	01	1	0010-0106	●
277	CAP; OIL FILLER EXC. EURO3 SPECIFICATION(NJX)	1-11750-020-0	01	1	0107-0109	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	0012-0106	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION(NJX)	1-09623-297-0	01	1	0107-	●
371	BOLT; STAY (A) M8X16 FLANGE	0-28080-816-0	02	1	0012-0106	●
371	BOLT; STAY EXC. EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28080-816-0	02	1	0107-0512	●
371	BOLT; STAY EXC. EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
371	BOLT; STAY (B) M10X16 FLANGE	0-28181-016-0	02	1	0012-0106	●
371	BOLT; STAY EXC. EURO3 SPECIFICATION(NJX) (B) M10X16 FLANGE	0-28181-016-0	02	1	0107-0512	●
371	BOLT; STAY EXC. EURO3 SPECIFICATION(NJX) (B) M10X16 FLANGE	0-28151-016-0	02	1	0601-	●
397	STAY; OIL PIPE (A)	1-13319-038-0	01	1	0012-0106	●
397	STAY; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A)	1-13319-038-0	01	1	0107-	●
397	STAY; OIL PIPE (B)	1-13319-039-0	01	1	0012-0106	●
397	STAY; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B)	1-13319-039-0	01	1	0107-	●
448	FILLER; OIL	1-11740-260-0	01	1	0012-0106	●
448	FILLER; OIL EXC. EURO3 SPECIFICATION(NJX)	1-11740-260-0	01	1	0107-0109	●
448	FILLER; OIL EXC. EURO3 SPECIFICATION(NJX)	1-11740-278-0	01	1	0110-	●
449	BOLT; OIL FILLER M8X16 FLANGE	0-28080-816-0	01	1	0012-0106	●
449	BOLT; OIL FILLER EXC. EURO3 SPECIFICATION(NJX) M8X16 FLANGE	0-28080-816-0	01	1	0107-0109	●
449	BOLT; OIL FILLER EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0110-0512	●
449	BOLT; OIL FILLER EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
513	BRACKET; OIL FILLER	1-11769-179-0	01	1	0012-0106	●
513	BRACKET; OIL FILLER EXC. EURO3 SPECIFICATION(NJX)	1-11769-179-0	01	1	0107-0109	●
515	NUT; MOUNT RUBBER M8 FLANGE	0-91150-108-0	01	1	0012-0106	●
515	NUT; MOUNT RUBBER EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	01	1	0107-0109	●
516	WASHER; PL,MOUNT RUBBER ID=8.4 OD=26	9-09164-808-0	01	1	0012-0106	●
516	WASHER; PL,MOUNT RUBBER EXC. EURO3 SPECIFICATION(NJX) ID=8.4 OD=26	9-09164-808-0	01	1	0107-0605	●
516	WASHER; PL,MOUNT RUBBER EXC. EURO3 SPECIFICATION(NJX) ID=8.4 OD=26	0-91614-808-0	01	1	0606-	●

148 147 63 149 150 44 40 384 40 147 48 384 48 3 3 44 2 2 3 1 3 1 3 3 2 117 117 2 3 2 3 117 117 2 132 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION(THN) (C)	1-13313-754-0	01	1	0012-	●
1	PIPE; OIL,INJ PUMP TO C/BL EURO3 SPECIFICATION(NJX) (D)	1-13313-717-0	01	1	0107-	●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C)	1-13313-965-0	01	1	0012-	●
1	PIPE; OIL,INJ PUMP TO C/BL (A)	1-13313-449-0	01	1	0204-			●
1	PIPE; OIL,INJ PUMP TO C/BL (B)	1-13313-450-0	01	1	0204-			●
1	PIPE; OIL,INJ PUMP TO C/BL (E)	1-13313-972-0	01	1	0211-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0012-0210	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0211-0805	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0012-0203	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0204-0210	●		●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0211-0805	●	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0204-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●
2	BOLT; EYE,OIL PIPE (D) M14X27 FLANGE	1-09675-086-0	02	1	0204-			●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	0204-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	0204-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0204-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	0204-			●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0012-0106	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M8X30 FLANGE	0-28080-830-0	02	1	0107-0512	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-	●
40	BOLT; OIL PIPE (A) M8X60 FLANGE	0-28080-860-0	02	1	0012-0106	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M8X60 FLANGE	0-28080-860-0	02	1	0107-0512	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M8X60 FLANGE	0-28050-860-0	02	1	0601-	●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	0012-0106	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (C) M10X22 FLANGE	0-28181-022-0	02	1	0107-	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0210	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (B) M6X50 FLANGE	0-28080-650-0	01	1	0211-0512	●
40	BOLT; OIL PIPE (B) M6X50 FLANGE	0-28080-650-0	01	1	0211-0512		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-	●
40	BOLT; OIL PIPE (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28080-825-0	02	1	0107-0210	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28080-825-0	02	1	0211-0512	●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28080-825-0	02	1	0211-0512		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28050-825-0	02	1	0601-		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (C) M10X30 FLANGE	0-28781-030-0	02	1	0107-0210	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (C) M10X30 FLANGE	0-28781-030-0	02	1	0211-0512	●
40	BOLT; OIL PIPE (C) M10X30 FLANGE	0-28781-030-0	02	1	0211-0512		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (C) M10X30 FLANGE	0-28751-030-0	02	1	0601-	●
40	BOLT; OIL PIPE (C) M10X30 FLANGE	0-28751-030-0	02	1	0601-		●
40	BOLT; OIL PIPE (D) M10X30 FLANGE	0-28181-030-0	04	1	0204-0512			●
40	BOLT; OIL PIPE (D) M10X30 FLANGE	0-28151-030-0	04	1	0601-			●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0012-0106	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M6X35 FLANGE	0-28080-635-0	01	1	0107-0512	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0012-0106	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0107-0906	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M6X25 W/LK WASHER	0-50540-625-0	01	1	0907-	●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION(NJX) (C) M6X35 FLANGE	0-28680-635-0	01	1	0107-0210	●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION(NJX) (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512	●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION(NJX) (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-		●
44	BOLT; CLIP,OIL PIPE (D) M6X30 FLANGE	0-28080-630-0	02	1	0204-0512			●
44	BOLT; CLIP,OIL PIPE (D) M6X30 FLANGE	0-28050-630-0	02	1	0601-			●
48	CLIP; OIL PIPE (A)	1-09701-228-0	03	1	0012-0106	●
48	CLIP; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A)	1-09701-228-2	03	1	0107-	●
48	CLIP; OIL PIPE (B)	1-09701-229-0	03	1	0012-0106	●
48	CLIP; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B)	1-09701-229-1	03	1	0107-	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION(NJX) (A)	1-09701-228-0	01	1	0107-0210	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION(NJX) (A)	1-09701-228-2	01	1	0211-	●
48	CLIP; OIL PIPE (A)	1-09701-228-2	01	1	0211-		●
48	CLIP; OIL PIPE EURO3 SPECIFICATION(NJX) (B)	1-09701-229-0	01	1	0107-0210	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION(NJX) (B)	1-09701-229-1	01	1	0211-	●
48	CLIP; OIL PIPE (B)	1-09701-229-1	01	1	0211-		●
48	CLIP; OIL PIPE (C) ID=9 & 9 L=25	1-09701-212-2	02	1	0204-			●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-567-0	01	1	0012-0106	●
63	PIPE; OIL,TURBOCHARGER FEED EXC. EURO3 SPECIFICATION(NJX)	1-13313-567-0	01	1	0107-	●
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NJX)	1-13313-958-0	01	1	0107-0210	●
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NJX)	1-13313-958-0	01	1	0211-	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-958-0	01	1	0211-		●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-866-0	01	1	0204-			●
114	PIPE ASM; OIL,BODY EURO2 SPECIFICATION(THN)	1-13313-891-0	01	1	0012-0207	●
114	PIPE ASM; OIL,BODY EURO2 SPECIFICATION(THN)	1-13314-030-1	01	1	0208-	●
114	PIPE ASM; OIL,BODY EURO3 SPECIFICATION(NJX)	1-13313-967-1	01	1	0107-	●
114	PIPE ASM; OIL,BODY EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN)	1-13313-892-0	01	1	0012-0207	●
114	PIPE ASM; OIL,BODY EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN)	1-13314-031-0	01	1	0208-	●
114	PIPE ASM; OIL,BODY	1-13313-642-0	01	1	0204-			●
114	PIPE ASM; OIL,BODY	1-13313-973-0	01	1	0211-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0012-0210	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0211-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0012-0210	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0211-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2	1-09630-083-0	04	1	0204-			●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-665-0	01	1	0204-			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-297-0	01	1	0012-0106	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION(NJX) (A)	1-09623-297-0	01	1	0107-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0012-0106	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION(NJX) (B) ID=12.3	1-09623-481-0	01	1	0107-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-09637-058-1	01	1	0012-0106	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION(NJX) (C)	1-09637-058-2	01	1	0107-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX) (D) ID=22.1	8-94399-399-0	01	1	0107-0210	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX). (D) ID=22.1	8-94399-399-0	01	1	0211-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=22.1	8-94399-399-0	01	1	0211-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=10.8	1-09623-274-0	01	1	0204-			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (F) ID=27.7	1-09623-450-0	01	1	0204-			●
148	BOLT; FLANGE & BRKT M10X35 FLANGE	0-28181-035-0	02	1	0204-0512			●
148	BOLT; FLANGE & BRKT M10X35 FLANGE	0-28151-035-0	02	1	0601-			●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-782-0	01	1	0012-0106	●
149	PIPE; OIL RETURN,TURBOCHARGER EXC. EURO3 SPECIFICATION(NJX)	1-13313-782-0	01	1	0107-	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION(NJX)	1-13313-959-0	01	1	0107-0210	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION(NJX)	1-13313-959-0	01	1	0211-	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-959-0	01	1	0211-		●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-1	01	1	0204-			●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX)	1-09623-297-0	01	1	0107-0210	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX).	1-09623-297-0	01	1	0211-	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	0211-		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	0204-			●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO3 SPECIFICATION(NJX) (C)	1-19199-315-0	02	1	0107-0210	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO3 SPECIFICATION(NJX) (C)	1-19199-315-0	02	1	0211-	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (C)	1-19199-315-0	02	1	0211-		●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	0204-			●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-192-0	01	1	0204-			●

40 135 135 48 48 48 48 48 147 48 256 256 397 397 44 371 63 371 147 40 516 149 315 449 147 448 35 36 40 54 78 56 62 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
35	VALVE ASM; DRAIN BACK EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION(NJX)	1-13260-086-0	01	1	0012-0106	●
35	VALVE ASM; DRAIN BACK EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION(NJX)	1-13260-086-0	01	1	0107-0210	●
35	VALVE ASM; DRAIN BACK EURO3 SPECIFICATION(NJX)	1-13260-086-0	01	1	0107-0210	●
35	VALVE ASM; DRAIN BACK EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13260-086-0	01	1	0211-	●	●
36	SPACER; DRAIN BACK OIL FILTER SETTING DOWNWARD<E7V> EURO2 SPECIFICATION(THN)	1-13260-108-0	01	1	0012-0210	●
36	SPACER; DRAIN BACK OIL FILTER SETTING DOWNWARD<E7V>	1-13260-108-0	01	1	0211-	●	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0012-0106	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M8X30 FLANGE	0-28080-830-0	02	1	0107-0512	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-	●
40	BOLT; OIL PIPE (A) M8X60 FLANGE	0-28080-860-0	02	1	0012-0106	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M8X60 FLANGE	0-28080-860-0	02	1	0107-0512	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M8X60 FLANGE	0-28050-860-0	02	1	0601-	●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	0012-0106	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (C) M10X22 FLANGE	0-28181-022-0	02	1	0107-	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0210	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (B) M6X50 FLANGE	0-28080-650-0	01	1	0211-0512	●
40	BOLT; OIL PIPE (B) M6X50 FLANGE	0-28080-650-0	01	1	0211-0512		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-	●
40	BOLT; OIL PIPE (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28080-825-0	02	1	0107-0210	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28080-825-0	02	1	0211-0512	●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28080-825-0	02	1	0211-0512		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28050-825-0	02	1	0601-		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (C) M10X30 FLANGE	0-28781-030-0	02	1	0107-0210	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (C) M10X30 FLANGE	0-28781-030-0	02	1	0211-0512	●
40	BOLT; OIL PIPE (C) M10X30 FLANGE	0-28781-030-0	02	1	0211-0512		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (C) M10X30 FLANGE	0-28751-030-0	02	1	0601-	●
40	BOLT; OIL PIPE (C) M10X30 FLANGE	0-28751-030-0	02	1	0601-		●
40	BOLT; OIL PIPE (D) M10X30 FLANGE	0-28181-030-0	04	1	0204-0512			●
40	BOLT; OIL PIPE (D) M10X30 FLANGE	0-28151-030-0	04	1	0601-			●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0012-0106	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M6X35 FLANGE	0-28080-635-0	01	1	0107-0512	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0012-0106	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0107-0906	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M6X25 W/LK WASHER	0-50540-625-0	01	1	0907-	●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION(NJX) (C) M6X35 FLANGE	0-28680-635-0	01	1	0107-0210	●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION(NJX) (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512	●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION(NJX) (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-		●
44	BOLT; CLIP,OIL PIPE (D) M6X30 FLANGE	0-28080-630-0	02	1	0204-0512			●
44	BOLT; CLIP,OIL PIPE (D) M6X30 FLANGE	0-28050-630-0	02	1	0601-			●
48	CLIP; OIL PIPE (A)	1-09701-228-0	03	1	0012-0106	●
48	CLIP; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A)	1-09701-228-2	03	1	0107-	●
48	CLIP; OIL PIPE (B)	1-09701-229-0	03	1	0012-0106	●
48	CLIP; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B)	1-09701-229-1	03	1	0107-	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION(NJX) (A)	1-09701-228-0	01	1	0107-0210	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION(NJX) (A)	1-09701-228-2	01	1	0211-	●
48	CLIP; OIL PIPE (A)	1-09701-228-2	01	1	0211-		●
48	CLIP; OIL PIPE EURO3 SPECIFICATION(NJX) (B)	1-09701-229-0	01	1	0107-0210	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION(NJX) (B)	1-09701-229-1	01	1	0211-	●
48	CLIP; OIL PIPE (B)	1-09701-229-1	01	1	0211-		●
48	CLIP; OIL PIPE (C) ID=9 & 9 L=25	1-09701-212-2	02	1	0204-			●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	0012-0210	●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	0211-	●	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	0012-0210	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	0012-0210	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	0211-	●	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-567-0	01	1	0012-0106	●
63	PIPE; OIL,TURBOCHARGER FEED EXC. EURO3 SPECIFICATION(NJX)	1-13313-567-0	01	1	0107-	●
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NJX)	1-13313-958-0	01	1	0107-0210	●
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NJX)	1-13313-958-0	01	1	0211-	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-958-0	01	1	0211-		●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-866-0	01	1	0204-			●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	0012-0210	●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	0211-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	0012-0210	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	0211-0906	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50640-800-0	02	1	0907-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	0012-0210	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	0211-0512	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50640-816-0	01	1	0601-	●	●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	0012-0106	●
135	NUT; CLIP EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91150-106-0	02	1	0107-0602	●
135	NUT; CLIP EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91180-106-0	02	1	0603-	●
135	NUT; CLIP EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91150-106-0	01	1	0107-0602	●
135	NUT; CLIP EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91180-106-0	01	1	0603-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-297-0	01	1	0012-0106	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION(NJX) (A)	1-09623-297-0	01	1	0107-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0012-0106	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION(NJX) (B) ID=12.3	1-09623-481-0	01	1	0107-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-09637-058-1	01	1	0012-0106	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION(NJX) (C)	1-09637-058-2	01	1	0107-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX) (D) ID=22.1	8-94399-399-0	01	1	0107-0210	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX). (D) ID=22.1	8-94399-399-0	01	1	0211-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=22.1	8-94399-399-0	01	1	0211-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=10.8	1-09623-274-0	01	1	0204-			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (F) ID=27.7	1-09623-450-0	01	1	0204-			●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-782-0	01	1	0012-0106	●
149	PIPE; OIL RETURN,TURBOCHARGER EXC. EURO3 SPECIFICATION(NJX)	1-13313-782-0	01	1	0107-	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION(NJX)	1-13313-959-0	01	1	0107-0210	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION(NJX)	1-13313-959-0	01	1	0211-	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-959-0	01	1	0211-		●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-1	01	1	0204-			●
256	PROTECTOR; HEAT,PIPE (A)	1-14181-293-0	01	1	0012-0106	●
256	PROTECTOR; HEAT,PIPE EXC. EURO3 SPECIFICATION(NJX) (A)	1-14181-293-0	01	1	0107-	●
256	PROTECTOR; HEAT,PIPE (B)	1-14181-294-0	01	1	0012-0106	●
256	PROTECTOR; HEAT,PIPE EXC. EURO3 SPECIFICATION(NJX) (B)	1-14181-294-0	01	1	0107-	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	0012-0106	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION(NJX)	1-09623-297-0	01	1	0107-	●
371	BOLT; STAY (A) M8X16 FLANGE	0-28080-816-0	02	1	0012-0106	●
371	BOLT; STAY EXC. EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28080-816-0	02	1	0107-0512	●
371	BOLT; STAY EXC. EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
371	BOLT; STAY (B) M10X16 FLANGE	0-28181-016-0	02	1	0012-0106	●
371	BOLT; STAY EXC. EURO3 SPECIFICATION(NJX) (B) M10X16 FLANGE	0-28181-016-0	02	1	0107-0512	●
371	BOLT; STAY EXC. EURO3 SPECIFICATION(NJX) (B) M10X16 FLANGE	0-28151-016-0	02	1	0601-	●
397	STAY; OIL PIPE (A)	1-13319-038-0	01	1	0012-0106	●
397	STAY; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A)	1-13319-038-0	01	1	0107-	●
397	STAY; OIL PIPE (B)	1-13319-039-0	01	1	0012-0106	●
397	STAY; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B)	1-13319-039-0	01	1	0107-	●
448	FILLER; OIL	1-11740-260-0	01	1	0012-0106	●
448	FILLER; OIL EXC. EURO3 SPECIFICATION(NJX)	1-11740-260-0	01	1	0107-0109	●
448	FILLER; OIL EXC. EURO3 SPECIFICATION(NJX)	1-11740-278-0	01	1	0110-	●
449	BOLT; OIL FILLER M8X16 FLANGE	0-28080-816-0	01	1	0012-0106	●
449	BOLT; OIL FILLER EXC. EURO3 SPECIFICATION(NJX) M8X16 FLANGE	0-28080-816-0	01	1	0107-0109	●
449	BOLT; OIL FILLER EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0110-0512	●
449	BOLT; OIL FILLER EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
516	WASHER; PL,MOUNT RUBBER ID=8.4 OD=26	9-09164-808-0	01	1	0012-0106	●
516	WASHER; PL,MOUNT RUBBER EXC. EURO3 SPECIFICATION(NJX) ID=8.4 OD=26	9-09164-808-0	01	1	0107-0605	●
516	WASHER; PL,MOUNT RUBBER EXC. EURO3 SPECIFICATION(NJX) ID=8.4 OD=26	0-91614-808-0	01	1	0606-	●

119 119 135 117 117 2 117 2 1 117 161 164 164 114 163 164 164 164 164 163 163 164 346

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION(THN) (C)	1-13313-754-0	01	1	0012-	●
1	PIPE; OIL,INJ PUMP TO C/BL EURO3 SPECIFICATION(NJX) (D)	1-13313-717-0	01	1	0107-	●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C)	1-13313-965-0	01	1	0012-	●
1	PIPE; OIL,INJ PUMP TO C/BL (A)	1-13313-449-0	01	1	0204-			●
1	PIPE; OIL,INJ PUMP TO C/BL (B)	1-13313-450-0	01	1	0204-			●
1	PIPE; OIL,INJ PUMP TO C/BL (E)	1-13313-972-0	01	1	0211-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0012-0210	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0211-0805	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0012-0203	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0204-0210	●		●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0211-0805	●	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0204-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●
2	BOLT; EYE,OIL PIPE (D) M14X27 FLANGE	1-09675-086-0	02	1	0204-			●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	0204-			●
114	PIPE ASM; OIL,BODY EURO2 SPECIFICATION(THN)	1-13313-891-0	01	1	0012-0207	●
114	PIPE ASM; OIL,BODY EURO2 SPECIFICATION(THN)	1-13314-030-1	01	1	0208-	●
114	PIPE ASM; OIL,BODY EURO3 SPECIFICATION(NJX)	1-13313-967-1	01	1	0107-	●
114	PIPE ASM; OIL,BODY EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN)	1-13313-892-0	01	1	0012-0207	●
114	PIPE ASM; OIL,BODY EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN)	1-13314-031-0	01	1	0208-	●
114	PIPE ASM; OIL,BODY	1-13313-642-0	01	1	0204-			●
114	PIPE ASM; OIL,BODY	1-13313-973-0	01	1	0211-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0012-0210	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0211-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0012-0210	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0211-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2	1-09630-083-0	04	1	0204-			●
119	CLIP; OIL PIPE,BODY TO CMPR (A) WO/NUT	1-09700-079-0	01	1	0012-0106	●
119	CLIP; OIL PIPE,BODY TO CMPR EXC. EURO3 SPECIFICATION(NJX) (A) WO/NUT	1-09700-079-0	01	1	0107-	●
119	CLIP; OIL PIPE,BODY TO CMPR (B) W/NUT	1-09700-080-0	01	1	0012-0106	●
119	CLIP; OIL PIPE,BODY TO CMPR EXC. EURO3 SPECIFICATION(NJX) (B) W/NUT	1-09700-080-0	01	1	0107-	●
119	CLIP; OIL PIPE,BODY TO CMPR EURO3 SPECIFICATION(NJX) (C)	1-09701-180-0	01	1	0107-0210	●
119	CLIP; OIL PIPE,BODY TO CMPR EURO3 SPECIFICATION(NJX) (C)	1-09701-180-0	01	1	0211-	●
119	CLIP; OIL PIPE,BODY TO CMPR (C)	1-09701-180-0	01	1	0211-		●
119	CLIP; OIL PIPE,BODY TO CMPR EURO3 SPECIFICATION(NJX) (D) ID=10 & 10 L=25	8-94393-280-1	01	1	0107-0210	●
119	CLIP; OIL PIPE,BODY TO CMPR EURO3 SPECIFICATION(NJX) (D) ID=10 & 10 L=25	8-94393-280-3	01	1	0211-	●
119	CLIP; OIL PIPE,BODY TO CMPR (D) ID=10 & 10 L=25	8-94393-280-3	01	1	0211-		●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	0012-0106	●
135	NUT; CLIP EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91150-106-0	02	1	0107-0602	●
135	NUT; CLIP EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91180-106-0	02	1	0603-	●
135	NUT; CLIP EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91150-106-0	01	1	0107-0602	●
135	NUT; CLIP EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91180-106-0	01	1	0603-	●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-753-0	01	1	0012-0106	●
161	PIPE; OIL,PARTIAL FILTER RETURN EXC. EURO3 SPECIFICATION(NJX)	1-13313-753-0	01	1	0107-	●
161	PIPE; OIL,PARTIAL FILTER RETURN EURO3 SPECIFICATION(NJX)	1-13313-966-0	01	1	0107-0210	●
161	PIPE; OIL,PARTIAL FILTER RETURN EURO3 SPECIFICATION(NJX)	1-13313-966-0	01	1	0211-	●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-966-0	01	1	0211-		●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (A) M14X27 FLANGE	1-09675-086-0	02	1	0012-0106	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER EXC. EURO3 SPECIFICATION(NJX) (A) M14X27 FLANGE	1-09675-086-0	02	1	0107-0203	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER EXC. EURO3 SPECIFICATION(NJX) (A) M14X27 FLANGE	1-09675-086-0	01	1	0204-	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (B) M14X42	1-09675-090-0	01	1	0012-0210	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (B) M14X42	1-09675-090-0	01	1	0211-0805	●	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (B) M14X43	8-98037-829-0	01	1	0806-	●	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER EURO3 SPECIFICATION(NJX) (A) M14X27 FLANGE	1-09675-086-0	02	1	0107-0210	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER EURO3 SPECIFICATION(NJX) (A) M14X27 FLANGE	1-09675-086-0	02	1	0211-	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (A) M14X27 FLANGE	1-09675-086-0	02	1	0211-		●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	05	1	0012-0106	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	05	1	0107-	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	07	1	0107-0210	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX). ID=14.2 OD=19.2	1-09630-085-0	07	1	0211-	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	07	1	0211-		●
346	NUT; CONNECTOR M10 FLANGE	0-91150-110-0	01	1	0012-0210	●
346	NUT; CONNECTOR M10 FLANGE	0-91150-110-0	01	1	0211-0602	●	●
346	NUT; CONNECTOR M10 FLANGE	0-91180-110-0	01	1	0603-	●	●

117 117 2 119 1 163 117 119 44 164 114 164 164 164 161 163 117 164 163 2 164 164 346

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION(THN) (C)	1-13313-754-0	01	1	0012-	●
1	PIPE; OIL,INJ PUMP TO C/BL EURO3 SPECIFICATION(NJX) (D)	1-13313-717-0	01	1	0107-	●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C)	1-13313-965-0	01	1	0012-	●
1	PIPE; OIL,INJ PUMP TO C/BL (A)	1-13313-449-0	01	1	0204-			●
1	PIPE; OIL,INJ PUMP TO C/BL (B)	1-13313-450-0	01	1	0204-			●
1	PIPE; OIL,INJ PUMP TO C/BL (E)	1-13313-972-0	01	1	0211-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0012-0210	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0211-0805	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0012-0203	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0204-0210	●		●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0211-0805	●	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0204-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●
2	BOLT; EYE,OIL PIPE (D) M14X27 FLANGE	1-09675-086-0	02	1	0204-			●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	0204-			●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0012-0106	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M6X35 FLANGE	0-28080-635-0	01	1	0107-0512	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0012-0106	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0107-0906	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M6X25 W/LK WASHER	0-50540-625-0	01	1	0907-	●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION(NJX) (C) M6X35 FLANGE	0-28680-635-0	01	1	0107-0210	●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION(NJX) (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512	●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION(NJX) (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-		●
44	BOLT; CLIP,OIL PIPE (D) M6X30 FLANGE	0-28080-630-0	02	1	0204-0512			●
44	BOLT; CLIP,OIL PIPE (D) M6X30 FLANGE	0-28050-630-0	02	1	0601-			●
114	PIPE ASM; OIL,BODY EURO2 SPECIFICATION(THN)	1-13313-891-0	01	1	0012-0207	●
114	PIPE ASM; OIL,BODY EURO2 SPECIFICATION(THN)	1-13314-030-1	01	1	0208-	●
114	PIPE ASM; OIL,BODY EURO3 SPECIFICATION(NJX)	1-13313-967-1	01	1	0107-	●
114	PIPE ASM; OIL,BODY EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN)	1-13313-892-0	01	1	0012-0207	●
114	PIPE ASM; OIL,BODY EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN)	1-13314-031-0	01	1	0208-	●
114	PIPE ASM; OIL,BODY	1-13313-642-0	01	1	0204-			●
114	PIPE ASM; OIL,BODY	1-13313-973-0	01	1	0211-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0012-0210	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0211-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0012-0210	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0211-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2	1-09630-083-0	04	1	0204-			●
119	CLIP; OIL PIPE,BODY TO CMPR (A) WO/NUT	1-09700-079-0	01	1	0012-0106	●
119	CLIP; OIL PIPE,BODY TO CMPR EXC. EURO3 SPECIFICATION(NJX) (A) WO/NUT	1-09700-079-0	01	1	0107-	●
119	CLIP; OIL PIPE,BODY TO CMPR (B) W/NUT	1-09700-080-0	01	1	0012-0106	●
119	CLIP; OIL PIPE,BODY TO CMPR EXC. EURO3 SPECIFICATION(NJX) (B) W/NUT	1-09700-080-0	01	1	0107-	●
119	CLIP; OIL PIPE,BODY TO CMPR EURO3 SPECIFICATION(NJX) (C)	1-09701-180-0	01	1	0107-0210	●
119	CLIP; OIL PIPE,BODY TO CMPR EURO3 SPECIFICATION(NJX) (C)	1-09701-180-0	01	1	0211-	●
119	CLIP; OIL PIPE,BODY TO CMPR (C)	1-09701-180-0	01	1	0211-		●
119	CLIP; OIL PIPE,BODY TO CMPR EURO3 SPECIFICATION(NJX) (D) ID=10 & 10 L=25	8-94393-280-1	01	1	0107-0210	●
119	CLIP; OIL PIPE,BODY TO CMPR EURO3 SPECIFICATION(NJX) (D) ID=10 & 10 L=25	8-94393-280-3	01	1	0211-	●
119	CLIP; OIL PIPE,BODY TO CMPR (D) ID=10 & 10 L=25	8-94393-280-3	01	1	0211-		●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-753-0	01	1	0012-0106	●
161	PIPE; OIL,PARTIAL FILTER RETURN EXC. EURO3 SPECIFICATION(NJX)	1-13313-753-0	01	1	0107-	●
161	PIPE; OIL,PARTIAL FILTER RETURN EURO3 SPECIFICATION(NJX)	1-13313-966-0	01	1	0107-0210	●
161	PIPE; OIL,PARTIAL FILTER RETURN EURO3 SPECIFICATION(NJX)	1-13313-966-0	01	1	0211-	●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-966-0	01	1	0211-		●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (A) M14X27 FLANGE	1-09675-086-0	02	1	0012-0106	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER EXC. EURO3 SPECIFICATION(NJX) (A) M14X27 FLANGE	1-09675-086-0	02	1	0107-0203	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER EXC. EURO3 SPECIFICATION(NJX) (A) M14X27 FLANGE	1-09675-086-0	01	1	0204-	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (B) M14X42	1-09675-090-0	01	1	0012-0210	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (B) M14X42	1-09675-090-0	01	1	0211-0805	●	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (B) M14X43	8-98037-829-0	01	1	0806-	●	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER EURO3 SPECIFICATION(NJX) (A) M14X27 FLANGE	1-09675-086-0	02	1	0107-0210	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER EURO3 SPECIFICATION(NJX) (A) M14X27 FLANGE	1-09675-086-0	02	1	0211-	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (A) M14X27 FLANGE	1-09675-086-0	02	1	0211-		●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	05	1	0012-0106	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	05	1	0107-	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	07	1	0107-0210	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX). ID=14.2 OD=19.2	1-09630-085-0	07	1	0211-	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	07	1	0211-		●
346	NUT; CONNECTOR M10 FLANGE	0-91150-110-0	01	1	0012-0210	●
346	NUT; CONNECTOR M10 FLANGE	0-91150-110-0	01	1	0211-0602	●	●
346	NUT; CONNECTOR M10 FLANGE	0-91180-110-0	01	1	0603-	●	●

117 117 2 119 44 114 163 164 117 119 1 164 161 164 164 163 164 117 2 164 164 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION(THN) (C)	1-13313-754-0	01	1	0012-	●
1	PIPE; OIL,INJ PUMP TO C/BL EURO3 SPECIFICATION(NJX) (D)	1-13313-717-0	01	1	0107-	●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C)	1-13313-965-0	01	1	0012-	●
1	PIPE; OIL,INJ PUMP TO C/BL (A)	1-13313-449-0	01	1	0204-			●
1	PIPE; OIL,INJ PUMP TO C/BL (B)	1-13313-450-0	01	1	0204-			●
1	PIPE; OIL,INJ PUMP TO C/BL (E)	1-13313-972-0	01	1	0211-		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0012-0210	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0211-0805	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0012-0203	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0204-0210	●		●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0211-0805	●	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0204-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●
2	BOLT; EYE,OIL PIPE (D) M14X27 FLANGE	1-09675-086-0	02	1	0204-			●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	0204-			●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0012-0106	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M6X35 FLANGE	0-28080-635-0	01	1	0107-0512	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0012-0106	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0107-0906	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M6X25 W/LK WASHER	0-50540-625-0	01	1	0907-	●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION(NJX) (C) M6X35 FLANGE	0-28680-635-0	01	1	0107-0210	●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION(NJX) (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512	●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION(NJX) (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-		●
44	BOLT; CLIP,OIL PIPE (D) M6X30 FLANGE	0-28080-630-0	02	1	0204-0512			●
44	BOLT; CLIP,OIL PIPE (D) M6X30 FLANGE	0-28050-630-0	02	1	0601-			●
114	PIPE ASM; OIL,BODY EURO2 SPECIFICATION(THN)	1-13313-891-0	01	1	0012-0207	●
114	PIPE ASM; OIL,BODY EURO2 SPECIFICATION(THN)	1-13314-030-1	01	1	0208-	●
114	PIPE ASM; OIL,BODY EURO3 SPECIFICATION(NJX)	1-13313-967-1	01	1	0107-	●
114	PIPE ASM; OIL,BODY EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN)	1-13313-892-0	01	1	0012-0207	●
114	PIPE ASM; OIL,BODY EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN)	1-13314-031-0	01	1	0208-	●
114	PIPE ASM; OIL,BODY	1-13313-642-0	01	1	0204-			●
114	PIPE ASM; OIL,BODY	1-13313-973-0	01	1	0211-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0012-0210	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0211-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0012-0210	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0211-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2	1-09630-083-0	04	1	0204-			●
119	CLIP; OIL PIPE,BODY TO CMPR (A) WO/NUT	1-09700-079-0	01	1	0012-0106	●
119	CLIP; OIL PIPE,BODY TO CMPR EXC. EURO3 SPECIFICATION(NJX) (A) WO/NUT	1-09700-079-0	01	1	0107-	●
119	CLIP; OIL PIPE,BODY TO CMPR (B) W/NUT	1-09700-080-0	01	1	0012-0106	●
119	CLIP; OIL PIPE,BODY TO CMPR EXC. EURO3 SPECIFICATION(NJX) (B) W/NUT	1-09700-080-0	01	1	0107-	●
119	CLIP; OIL PIPE,BODY TO CMPR EURO3 SPECIFICATION(NJX) (C)	1-09701-180-0	01	1	0107-0210	●
119	CLIP; OIL PIPE,BODY TO CMPR EURO3 SPECIFICATION(NJX) (C)	1-09701-180-0	01	1	0211-	●
119	CLIP; OIL PIPE,BODY TO CMPR (C)	1-09701-180-0	01	1	0211-		●
119	CLIP; OIL PIPE,BODY TO CMPR EURO3 SPECIFICATION(NJX) (D) ID=10 & 10 L=25	8-94393-280-1	01	1	0107-0210	●
119	CLIP; OIL PIPE,BODY TO CMPR EURO3 SPECIFICATION(NJX) (D) ID=10 & 10 L=25	8-94393-280-3	01	1	0211-	●
119	CLIP; OIL PIPE,BODY TO CMPR (D) ID=10 & 10 L=25	8-94393-280-3	01	1	0211-		●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-753-0	01	1	0012-0106	●
161	PIPE; OIL,PARTIAL FILTER RETURN EXC. EURO3 SPECIFICATION(NJX)	1-13313-753-0	01	1	0107-	●
161	PIPE; OIL,PARTIAL FILTER RETURN EURO3 SPECIFICATION(NJX)	1-13313-966-0	01	1	0107-0210	●
161	PIPE; OIL,PARTIAL FILTER RETURN EURO3 SPECIFICATION(NJX)	1-13313-966-0	01	1	0211-	●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-966-0	01	1	0211-		●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (A) M14X27 FLANGE	1-09675-086-0	02	1	0012-0106	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER EXC. EURO3 SPECIFICATION(NJX) (A) M14X27 FLANGE	1-09675-086-0	02	1	0107-0203	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER EXC. EURO3 SPECIFICATION(NJX) (A) M14X27 FLANGE	1-09675-086-0	01	1	0204-	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (B) M14X42	1-09675-090-0	01	1	0012-0210	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (B) M14X42	1-09675-090-0	01	1	0211-0805	●	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (B) M14X43	8-98037-829-0	01	1	0806-	●	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER EURO3 SPECIFICATION(NJX) (A) M14X27 FLANGE	1-09675-086-0	02	1	0107-0210	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER EURO3 SPECIFICATION(NJX) (A) M14X27 FLANGE	1-09675-086-0	02	1	0211-	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER (A) M14X27 FLANGE	1-09675-086-0	02	1	0211-		●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	05	1	0012-0106	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	05	1	0107-	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	07	1	0107-0210	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX). ID=14.2 OD=19.2	1-09630-085-0	07	1	0211-	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	07	1	0211-		●

48 234 85 234 85 234 234 48 44 63 147 40 384 149 388 76 388 40 150 40 54 78 56 62 78 78 35 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
35	VALVE ASM; DRAIN BACK EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION(NJX)	1-13260-086-0	01	1	0012-0106	●
35	VALVE ASM; DRAIN BACK EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION(NJX)	1-13260-086-0	01	1	0107-0210	●
35	VALVE ASM; DRAIN BACK EURO3 SPECIFICATION(NJX)	1-13260-086-0	01	1	0107-0210	●
35	VALVE ASM; DRAIN BACK EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13260-086-0	01	1	0211-	●	●
36	SPACER; DRAIN BACK OIL FILTER SETTING DOWNWARD<E7V> EURO2 SPECIFICATION(THN)	1-13260-108-0	01	1	0012-0210	●
36	SPACER; DRAIN BACK OIL FILTER SETTING DOWNWARD<E7V>	1-13260-108-0	01	1	0211-	●	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0012-0106	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M8X30 FLANGE	0-28080-830-0	02	1	0107-0512	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-	●
40	BOLT; OIL PIPE (A) M8X60 FLANGE	0-28080-860-0	02	1	0012-0106	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M8X60 FLANGE	0-28080-860-0	02	1	0107-0512	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M8X60 FLANGE	0-28050-860-0	02	1	0601-	●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	0012-0106	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (C) M10X22 FLANGE	0-28181-022-0	02	1	0107-	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0210	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (B) M6X50 FLANGE	0-28080-650-0	01	1	0211-0512	●
40	BOLT; OIL PIPE (B) M6X50 FLANGE	0-28080-650-0	01	1	0211-0512		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-	●
40	BOLT; OIL PIPE (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28080-825-0	02	1	0107-0210	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28080-825-0	02	1	0211-0512	●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28080-825-0	02	1	0211-0512		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28050-825-0	02	1	0601-		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (C) M10X30 FLANGE	0-28781-030-0	02	1	0107-0210	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (C) M10X30 FLANGE	0-28781-030-0	02	1	0211-0512	●
40	BOLT; OIL PIPE (C) M10X30 FLANGE	0-28781-030-0	02	1	0211-0512		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NJX) (C) M10X30 FLANGE	0-28751-030-0	02	1	0601-	●
40	BOLT; OIL PIPE (C) M10X30 FLANGE	0-28751-030-0	02	1	0601-		●
40	BOLT; OIL PIPE (D) M10X30 FLANGE	0-28181-030-0	04	1	0204-0512			●
40	BOLT; OIL PIPE (D) M10X30 FLANGE	0-28151-030-0	04	1	0601-			●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0012-0106	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M6X35 FLANGE	0-28080-635-0	01	1	0107-0512	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0012-0106	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0107-0906	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M6X25 W/LK WASHER	0-50540-625-0	01	1	0907-	●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION(NJX) (C) M6X35 FLANGE	0-28680-635-0	01	1	0107-0210	●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION(NJX) (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512	●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION(NJX) (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-		●
44	BOLT; CLIP,OIL PIPE (C) M6X35 FLANGE	0-28650-635-0	01	1	0601-		●
44	BOLT; CLIP,OIL PIPE (D) M6X30 FLANGE	0-28080-630-0	02	1	0204-0512			●
44	BOLT; CLIP,OIL PIPE (D) M6X30 FLANGE	0-28050-630-0	02	1	0601-			●
48	CLIP; OIL PIPE (A)	1-09701-228-0	03	1	0012-0106	●
48	CLIP; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (A)	1-09701-228-2	03	1	0107-	●
48	CLIP; OIL PIPE (B)	1-09701-229-0	03	1	0012-0106	●
48	CLIP; OIL PIPE EXC. EURO3 SPECIFICATION(NJX) (B)	1-09701-229-1	03	1	0107-	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION(NJX) (A)	1-09701-228-0	01	1	0107-0210	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION(NJX) (A)	1-09701-228-2	01	1	0211-	●
48	CLIP; OIL PIPE (A)	1-09701-228-2	01	1	0211-		●
48	CLIP; OIL PIPE EURO3 SPECIFICATION(NJX) (B)	1-09701-229-0	01	1	0107-0210	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION(NJX) (B)	1-09701-229-1	01	1	0211-	●
48	CLIP; OIL PIPE (B)	1-09701-229-1	01	1	0211-		●
48	CLIP; OIL PIPE (C) ID=9 & 9 L=25	1-09701-212-2	02	1	0204-			●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	0012-0210	●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	0211-	●	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	0012-0210	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	0012-0210	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	0211-	●	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-567-0	01	1	0012-0106	●
63	PIPE; OIL,TURBOCHARGER FEED EXC. EURO3 SPECIFICATION(NJX)	1-13313-567-0	01	1	0107-	●
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NJX)	1-13313-958-0	01	1	0107-0210	●
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NJX)	1-13313-958-0	01	1	0211-	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-958-0	01	1	0211-		●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-866-0	01	1	0204-			●
76	WASHER; CLIP EURO3 SPECIFICATION(NJX) ID=6.4 OD=18	9-09160-706-0	01	1	0107-0210	●
76	WASHER; CLIP EURO3 SPECIFICATION(NJX) ID=6.4 OD=18	9-09160-706-0	01	1	0211-0605	●
76	WASHER; CLIP ID=6.4 OD=18	9-09160-706-0	01	1	0211-0605		●
76	WASHER; CLIP EURO3 SPECIFICATION(NJX) ID=6.4 OD=18	0-91610-706-0	01	1	0606-	●
76	WASHER; CLIP ID=6.4 OD=18	0-91610-706-0	01	1	0606-		●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	0012-0210	●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	0211-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	0012-0210	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	0211-0906	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50640-800-0	02	1	0907-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	0012-0210	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	0211-0512	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50640-816-0	01	1	0601-	●	●
85	BOLT; EYE,OIL PIPE FIX EURO3 SPECIFICATION(NJX) (A) M14X27 FLANGE	1-09675-086-0	01	1	0107-0210	●
85	BOLT; EYE,OIL PIPE FIX EURO3 SPECIFICATION(NJX) (A) M14X27 FLANGE	1-09675-086-0	01	1	0211-	●
85	BOLT; EYE,OIL PIPE FIX (A) M14X27 FLANGE	1-09675-086-0	01	1	0211-		●
85	BOLT; EYE,OIL PIPE FIX EURO3 SPECIFICATION(NJX) (B) M10X24	9-09906-205-1	01	1	0107-0210	●
85	BOLT; EYE,OIL PIPE FIX EURO3 SPECIFICATION(NJX) (B) M10X24	9-09906-205-1	01	1	0211-	●
85	BOLT; EYE,OIL PIPE FIX (B) M10X24	9-09906-205-1	01	1	0211-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-297-0	01	1	0012-0106	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION(NJX) (A)	1-09623-297-0	01	1	0107-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0012-0106	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION(NJX) (B) ID=12.3	1-09623-481-0	01	1	0107-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-09637-058-1	01	1	0012-0106	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION(NJX) (C)	1-09637-058-2	01	1	0107-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX) (D) ID=22.1	8-94399-399-0	01	1	0107-0210	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX). (D) ID=22.1	8-94399-399-0	01	1	0211-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=22.1	8-94399-399-0	01	1	0211-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=10.8	1-09623-274-0	01	1	0204-			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (F) ID=27.7	1-09623-450-0	01	1	0204-			●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-782-0	01	1	0012-0106	●
149	PIPE; OIL RETURN,TURBOCHARGER EXC. EURO3 SPECIFICATION(NJX)	1-13313-782-0	01	1	0107-	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION(NJX)	1-13313-959-0	01	1	0107-0210	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION(NJX)	1-13313-959-0	01	1	0211-	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-959-0	01	1	0211-		●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-1	01	1	0204-			●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX)	1-09623-297-0	01	1	0107-0210	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX).	1-09623-297-0	01	1	0211-	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	0211-		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	0204-			●
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0107-0210	●
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0211-	●
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0211-		●
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-0210	●
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-		●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO3 SPECIFICATION(NJX) (C)	1-19199-315-0	02	1	0107-0210	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO3 SPECIFICATION(NJX) (C)	1-19199-315-0	02	1	0211-	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (C)	1-19199-315-0	02	1	0211-		●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	0204-			●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-192-0	01	1	0204-			●
388	CLIP; TURBOCHARGER RETURN PIPE EURO3 SPECIFICATION(NJX)	1-09701-281-0	02	1	0107-0210	●
388	CLIP; TURBOCHARGER RETURN PIPE EURO3 SPECIFICATION(NJX)	1-09701-281-1	02	1	0211-	●
388	CLIP; TURBOCHARGER RETURN PIPE	1-09701-281-1	02	1	0211-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
