2-05 — CLUTCH PIPING (#79626) — 12 parça

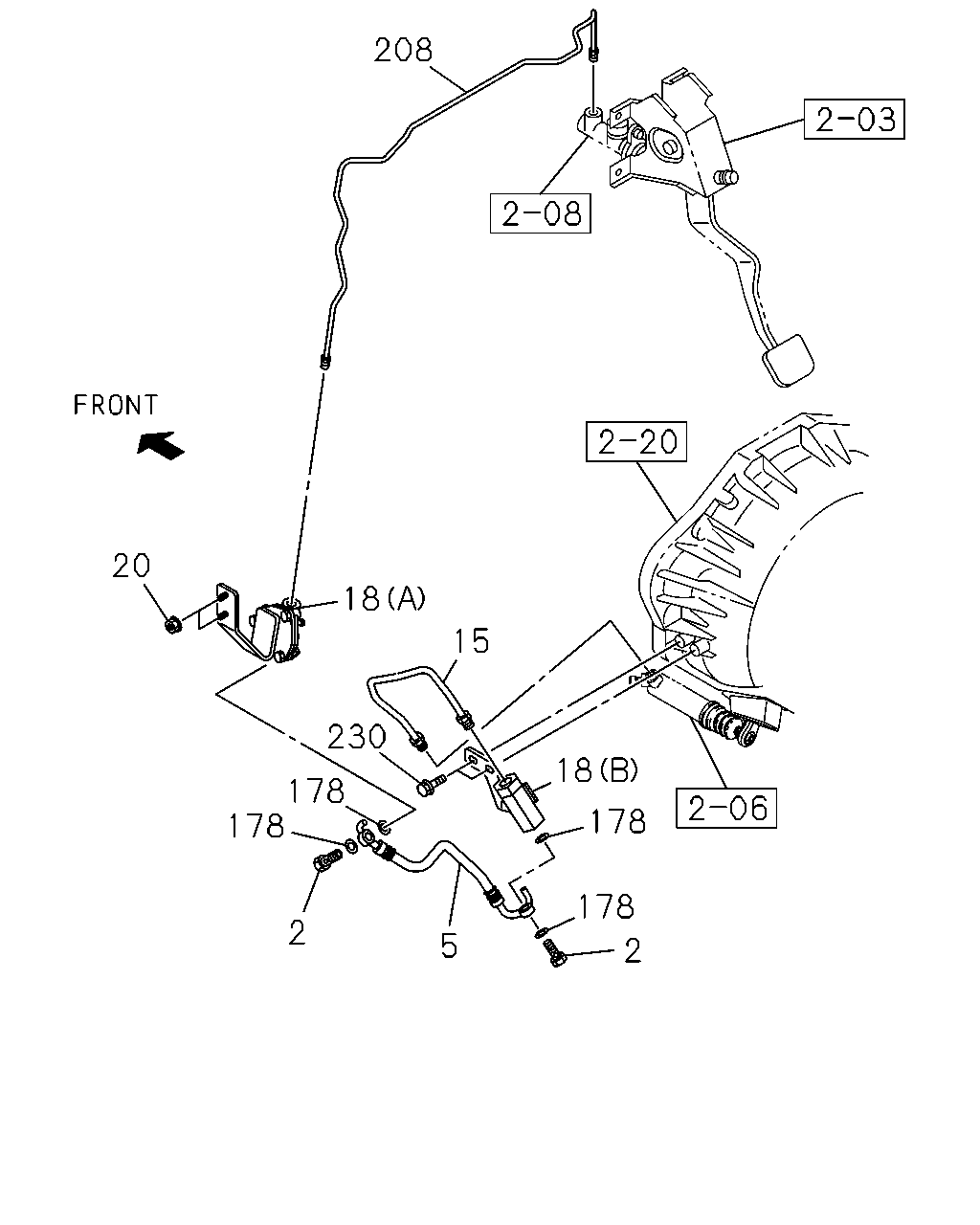

çizim 102382
208 20 18 15 230 18 178 178 178 178 2 5 2
BalonParca AdiParca NoAdetTipApplied Date
2 00.782 BOLT; EYE,SLAVE CYL
04.681 M10X22 		8-97359-818-0 02 1 1203-
5 00.785 HOSE; FLEX,CLU PIPE 8-98098-315-1 01 1 1203-
15 00.785 PIPE; CLU,FLEX HOSE 8-98097-509-0 01 1 1203-
18 00.830 DAMPER ASM; CLU OIL
(A) 		8-97946-616-1 01 1 1203-
18 00.830 DAMPER ASM; CLU OIL
(B) 		8-97946-623-1 01 1 1203-
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 1203-
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1203-
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-98100-268-1 01 1 1203-
230 00.785 BOLT; ACTUATOR
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1203-

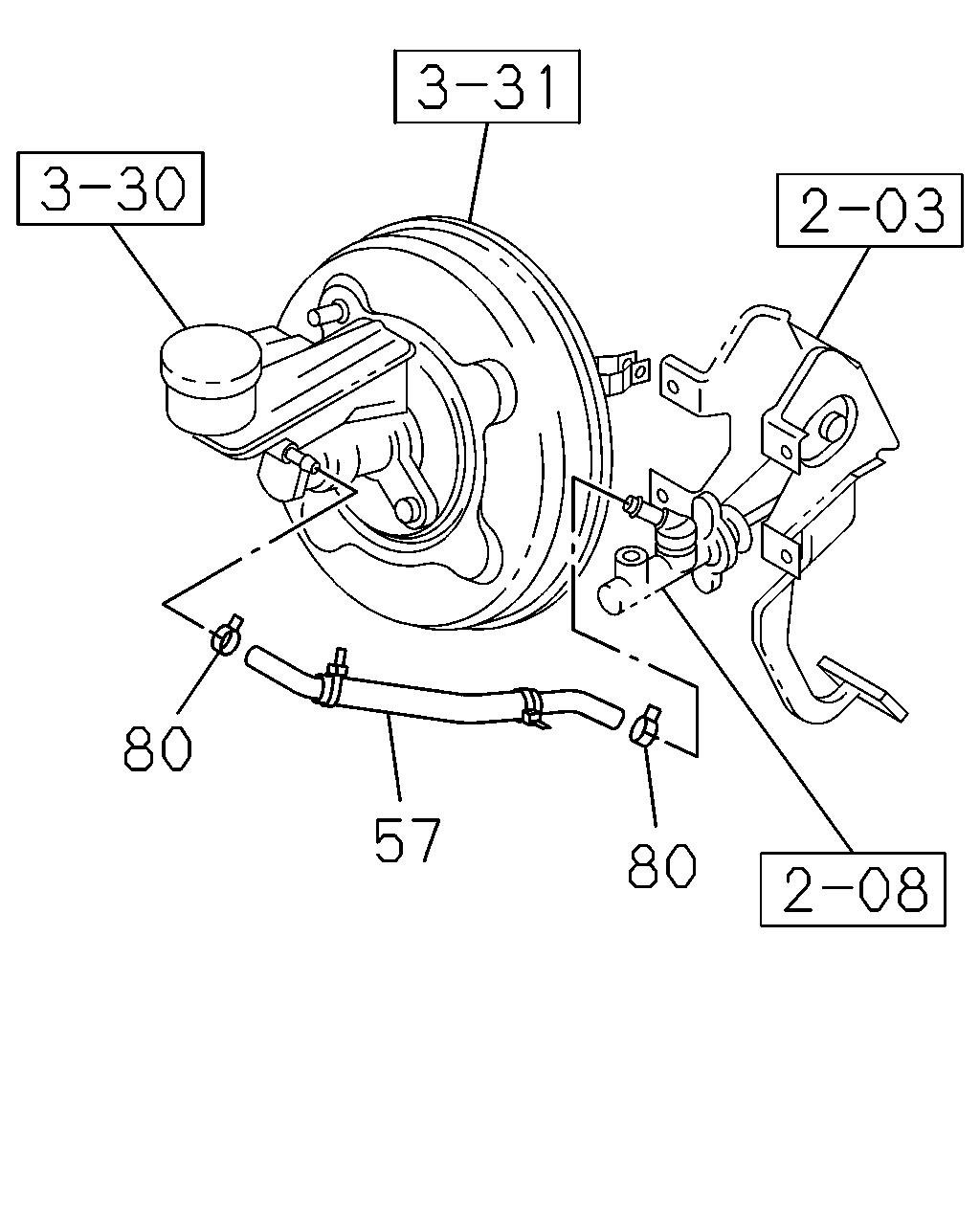

çizim 182893
80 57 80
BalonParca AdiParca NoAdetTipApplied Date
57 00.785 HOSE; CLU M/CYL TO OIL TANK 8-98119-218-2 01 1 1203-
80 00.785 CLIP; HOSE
00.034 ID=12 WO/PVC COATING 		8-94123-526-1 02 1 1203-1203
80 00.785 CLIP; HOSE
ID=12 WO/PVC COATING 		8-97947-824-0 02 1 1204-
