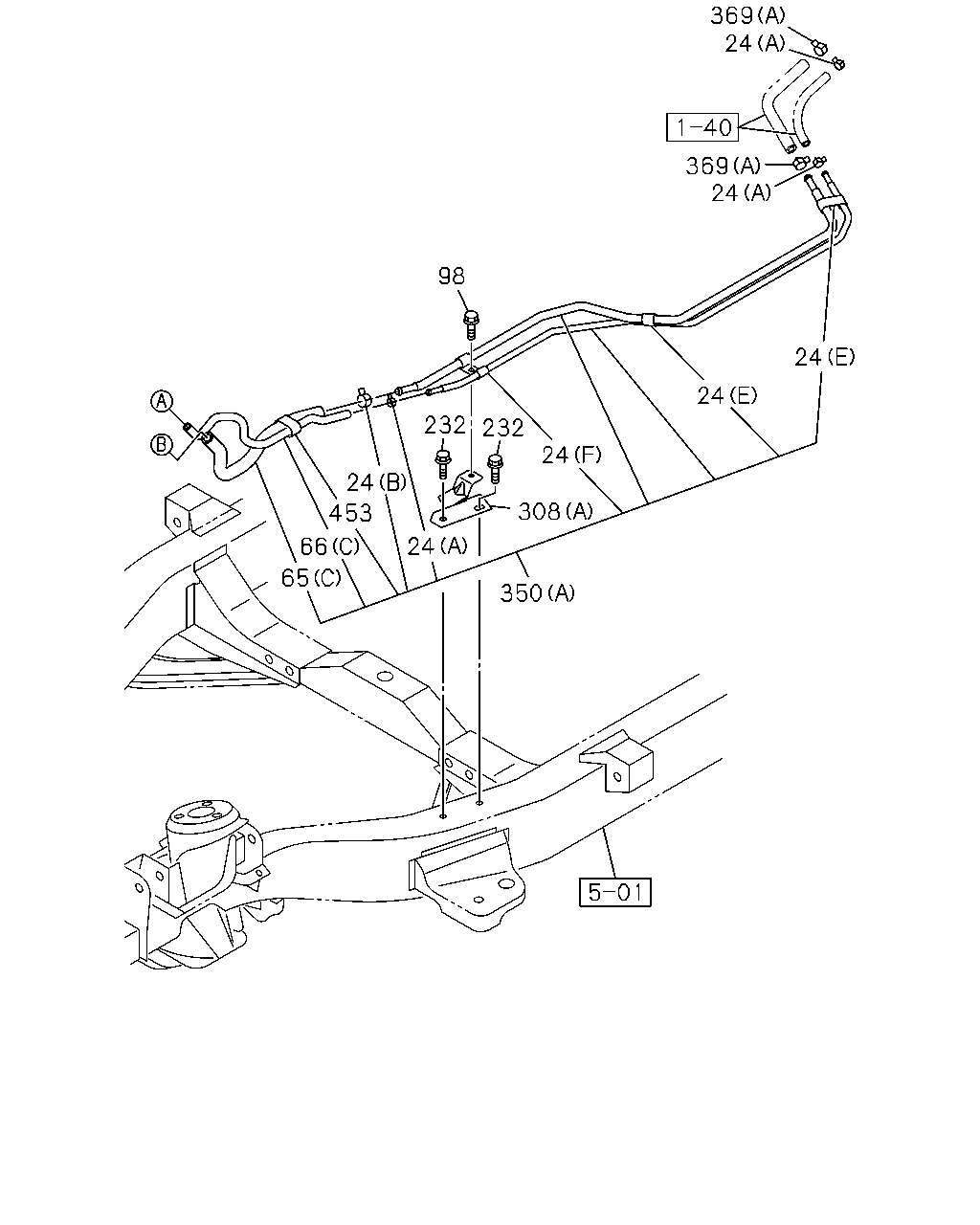

1-41 — FUEL PIPING; CHASSIS (#79621) — 57 parça

369 24 369 24 24 24 24 308 232 232 98 66 65 453 24 24 350

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	03.162 CLIP; FUEL HOSE (E)	8-98233-886-0	02	1	1301-
24	03.162 CLIP; FUEL HOSE (F)	8-98233-887-0	01	1	1301-
24	03.162 CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (D) ID=13	8-98150-357-0	02	1	1203-1303
24	03.162 CLIP; FUEL HOSE (D) ID=13	8-98150-357-0	02	1	1304-
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1203-
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	1203-
24	03.162 CLIP; FUEL HOSE 01.762 (C) ID=16	8-98030-682-0	01	1	1203-
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	06	1	1203-
65	03.163 HOSE; FUEL,DELIVERY PIPE (C)	8-98206-278-0	01	1	1203-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98206-281-1	01	1	1203-
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98206-283-1	01	1	1203-
66	03.163 HOSE; FUEL,RETURN PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (B)	8-98206-269-1	01	1	1203-1303
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98206-269-1	01	1	1304-
66	03.163 HOSE; FUEL,RETURN PIPE (C)	8-98206-279-0	01	1	1203-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98206-284-1	01	1	1203-1303
98	03.162 BOLT; BRKT,FUEL PIPE 02.343 M6X16 FLANGE	0-28650-616-0	01	1	1203-
232	03.162 BOLT; CLIP,PIPE 06.509 M10X25 FLANGE	0-28061-025-0	02	1	1203-
308	03.162 BRACKET; FUEL PIPE (B)	8-98233-889-0	01	1	1301-
308	03.162 BRACKET; FUEL PIPE (C)	8-98233-890-0	01	1	1301-
308	03.162 BRACKET; FUEL PIPE (A)	8-98128-259-0	01	1	1203-
350	03.163 PIPE; FUEL,DEL & RET (D)	8-98206-138-1	01	1	1203-
350	03.163 PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (C)	8-98206-146-3	01	1	1203-1303
350	03.163 PIPE; FUEL,DEL & RET (C)	8-98206-146-3	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET (A)	8-98206-132-1	01	1	1203-
350	03.163 PIPE; FUEL,DEL & RET EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98206-142-3	01	1	1203-1303
369	03.162 CLAMP; HOSE,FUEL 01.762 (B) ID=16	8-98030-682-0	01	1	1203-
369	03.162 CLAMP; HOSE,FUEL 03.145 (A) ID=17.2	8-98052-395-0	06	1	1203-
453	03.162 BAND; FLEX HOSE	8-98233-888-0	01	1	1301-

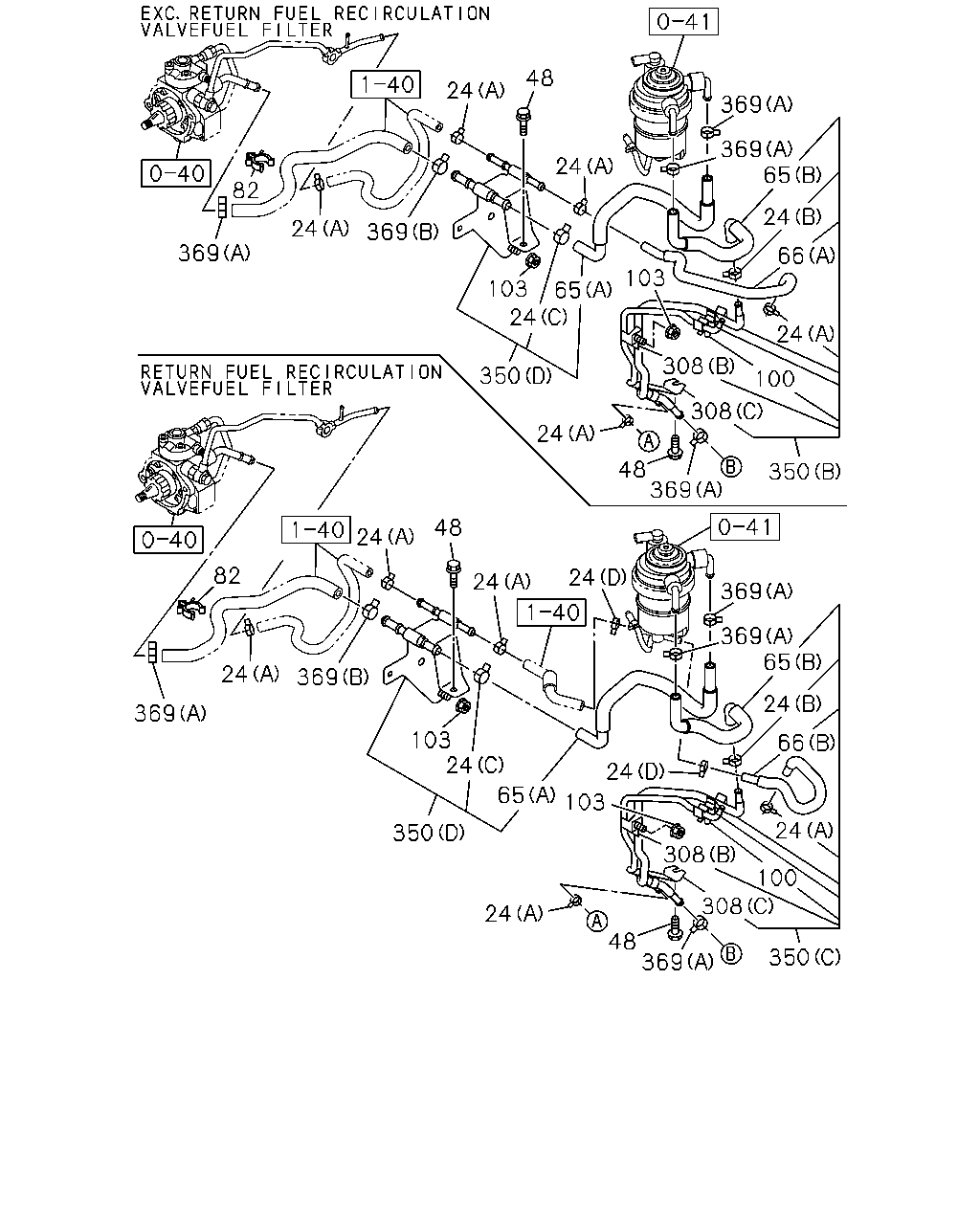

369 48 24 350 308 308 24 100 66 24 369 65 369 24 24 103 24 350 103 65 48 24 369 24 369 82 24 369 350 48 24 350 308 100 308 24 66 24 65 369 369 24 48 24 103 65 103 369 24 369 24 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	03.162 CLIP; FUEL HOSE (E)	8-98233-886-0	02	1	1301-
24	03.162 CLIP; FUEL HOSE (F)	8-98233-887-0	01	1	1301-
24	03.162 CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (D) ID=13	8-98150-357-0	02	1	1203-1303
24	03.162 CLIP; FUEL HOSE (D) ID=13	8-98150-357-0	02	1	1304-
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1203-
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	1203-
24	03.162 CLIP; FUEL HOSE 01.762 (C) ID=16	8-98030-682-0	01	1	1203-
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	06	1	1203-
48	03.162 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1203-
65	03.163 HOSE; FUEL,DELIVERY PIPE (C)	8-98206-278-0	01	1	1203-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98206-281-1	01	1	1203-
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98206-283-1	01	1	1203-
66	03.163 HOSE; FUEL,RETURN PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (B)	8-98206-269-1	01	1	1203-1303
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98206-269-1	01	1	1304-
66	03.163 HOSE; FUEL,RETURN PIPE (C)	8-98206-279-0	01	1	1203-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98206-284-1	01	1	1203-1303
82	03.163 CLIP; FUEL HOSE 06.672 ID=17	8-94382-792-1	01	1	1203-
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1203-
103	03.130 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1203-
308	03.162 BRACKET; FUEL PIPE (B)	8-98233-889-0	01	1	1301-
308	03.162 BRACKET; FUEL PIPE (C)	8-98233-890-0	01	1	1301-
308	03.162 BRACKET; FUEL PIPE (A)	8-98128-259-0	01	1	1203-
350	03.163 PIPE; FUEL,DEL & RET (D)	8-98206-138-1	01	1	1203-
350	03.163 PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (C)	8-98206-146-3	01	1	1203-1303
350	03.163 PIPE; FUEL,DEL & RET (C)	8-98206-146-3	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET (A)	8-98206-132-1	01	1	1203-
350	03.163 PIPE; FUEL,DEL & RET EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98206-142-3	01	1	1203-1303
369	03.162 CLAMP; HOSE,FUEL 01.762 (B) ID=16	8-98030-682-0	01	1	1203-
369	03.162 CLAMP; HOSE,FUEL 03.145 (A) ID=17.2	8-98052-395-0	06	1	1203-
