0-51 — OIL PUMP AND OIL STRAINER (#7962) — 104 parça

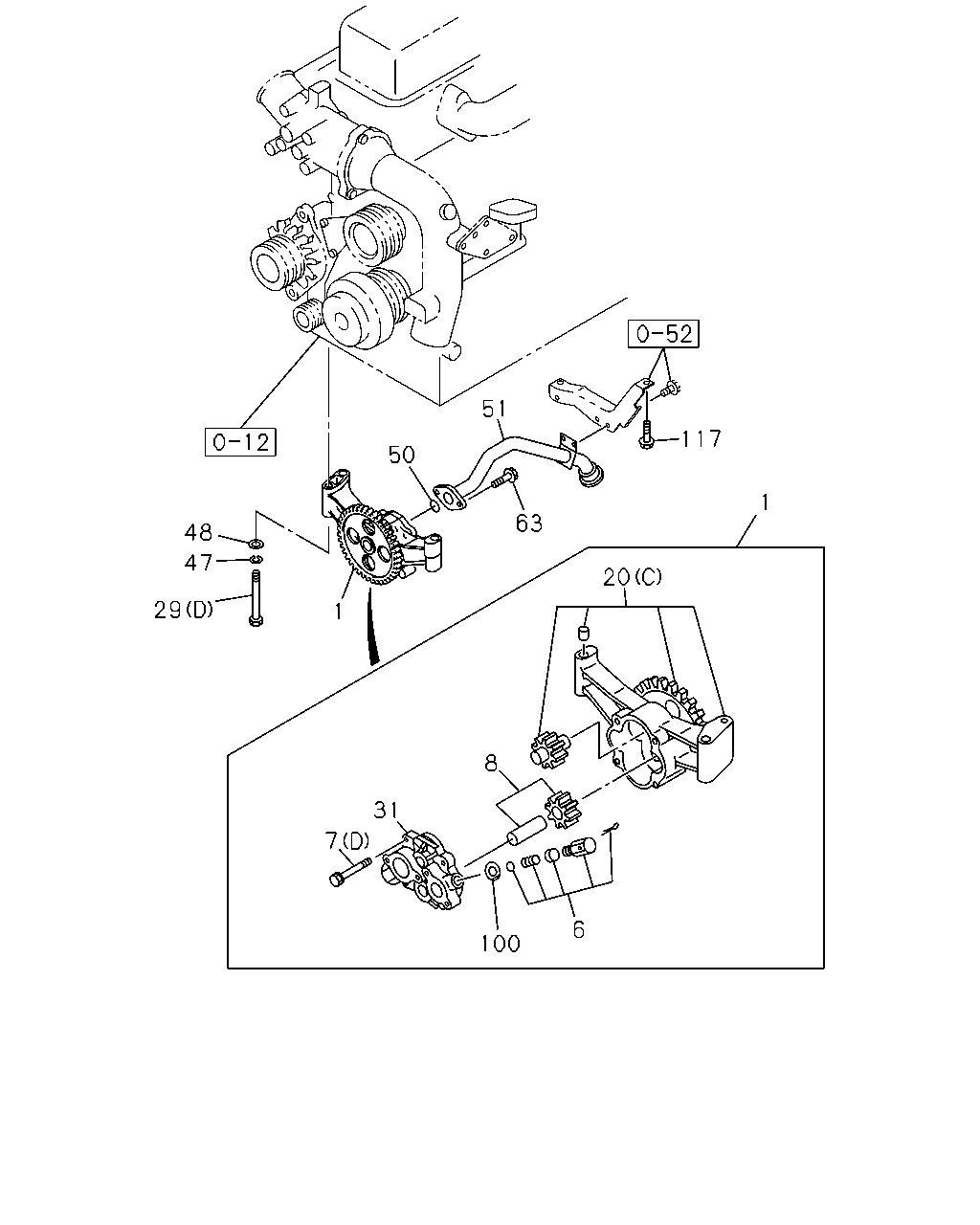

51 117 50 1 63 48 47 20 29 1 8 31 7 6 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; OIL	1-13100-219-1	01	1	0012-0109	●
1	PUMP ASM; OIL	1-13100-191-2	01	1	0110-0210	●
1	PUMP ASM; OIL	1-13100-191-2	01	1	0211-	●	●
1	PUMP ASM; OIL	1-13100-307-1	01	1	0204-0401			●
1	PUMP ASM; OIL	1-13100-311-0	01	1	0402-1005			●
1	PUMP ASM; OIL	1-13100-312-1	01	1	1006-			●
6	VALVE ASM; RELIEF,OIL PUMP	1-13160-021-1	01	1	0012-0109	●
6	VALVE ASM; RELIEF,OIL PUMP	1-13160-018-0	01	1	0110-0210	●
6	VALVE ASM; RELIEF,OIL PUMP	1-13160-018-0	01	1	0211-	●	●
7	BOLT; COVER,OIL PUMP (D) M8X35 W/LK WASHER	0-50040-835-0	04	1	0012-0210	●
7	BOLT; COVER,OIL PUMP (D) M8X35 W/LK WASHER	0-50040-835-0	04	1	0211-0512	●	●
7	BOLT; COVER,OIL PUMP (D) M8X35 W/LK WASHER	0-50540-835-0	04	1	0601-	●	●
7	BOLT; COVER,OIL PUMP (A) M8X18 FLANGE	0-28080-818-0	03	1	0204-			●
7	BOLT; COVER,OIL PUMP (B) M10X60 FLANGE	0-28181-060-0	01	1	0204-0512			●
7	BOLT; COVER,OIL PUMP (B) M10X60 FLANGE	0-28151-060-0	01	1	0601-			●
7	BOLT; COVER,OIL PUMP (C) M8X35 HEX SOCKET	9-05820-835-0	02	1	0204-0211			●
7	BOLT; COVER,OIL PUMP (C) M8X35 HEX SOCKET	0-58310-835-0	02	1	0212-0805			●
7	BOLT; COVER,OIL PUMP (C) M8X35 HEX SOCKET	0-58330-835-0	02	1	0806-			●
8	GEAR; DRIVEN,OIL PUMP	1-13120-059-0	01	1	0012-0210	●
8	GEAR; DRIVEN,OIL PUMP	1-13120-059-0	01	1	0211-	●	●
20	GEAR; DRIVE,OIL PUMP (C)	1-13120-063-0	01	1	0012-0210	●
20	GEAR; DRIVE,OIL PUMP (C)	1-13120-063-0	01	1	0211-	●	●
20	GEAR; DRIVE,OIL PUMP (A)	1-13120-080-0	01	1	0204-			●
20	GEAR; DRIVE,OIL PUMP (B)	1-13120-088-0	01	1	0204-1005			●
20	GEAR; DRIVE,OIL PUMP (B)	1-13120-089-0	01	1	1006-			●
29	BOLT; OIL PUMP (D) M10X80	0-16806-080-0	03	1	0012-0210	●
29	BOLT; OIL PUMP (D) M10X80	0-16806-080-0	03	1	0211-0512	●	●
29	BOLT; OIL PUMP (D) M10X80	0-16856-080-0	03	1	0601-	●	●
29	BOLT; OIL PUMP (C)	0-59311-080-0	01	1	0204-0512			●
29	BOLT; OIL PUMP (C) M10X80 HEX SOCKET	0-59331-080-0	01	1	0601-			●
29	BOLT; OIL PUMP (A) M10X85 FLANGE	8-94397-359-1	01	1	0204-			●
29	BOLT; OIL PUMP (B) M10X107 FLANGE	8-94399-488-1	02	1	0204-			●
31	COVER; OIL PUMP	1-13113-057-0	01	1	0012-0109	●
31	COVER; OIL PUMP	1-13113-058-0	01	1	0110-0210	●
31	COVER; OIL PUMP	1-13113-058-0	01	1	0211-	●	●
47	WASHER; LK,OIL PUMP ID=10.2	9-09150-810-0	03	1	0012-0210	●
47	WASHER; LK,OIL PUMP ID=10.2	9-09150-810-0	03	1	0211-0603	●	●
47	WASHER; LK,OIL PUMP ID=10.2	0-91510-810-0	03	1	0604-	●	●
48	WASHER; PL,OIL PUMP ID=10.5 OD=22	9-09164-610-0	03	1	0012-0210	●
48	WASHER; PL,OIL PUMP ID=10.5 OD=22	9-09164-610-0	03	1	0211-0605	●	●
48	WASHER; PL,OIL PUMP ID=10.5 OD=22	0-91614-610-0	03	1	0606-	●	●
50	GASKET; OIL PIPE,STRAINER TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2	1-09623-220-0	01	1	0012-0210	●
50	GASKET; OIL PIPE,STRAINER TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2	1-09623-220-0	01	1	0211-	●	●
50	GASKET; OIL PIPE,STRAINER TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7	1-09623-529-0	01	1	0204-			●
51	STRAINER & PIPE ASM; OIL	1-13312-512-1	01	1	0012-0210	●
51	STRAINER & PIPE ASM; OIL	1-13312-512-1	01	1	0211-	●	●
51	STRAINER & PIPE ASM; OIL	1-13313-207-1	01	1	0204-			●
63	BOLT; OIL PIPE,STRAINER TO PUMP M8X20 FLANGE	0-28080-820-0	02	1	0012-0210	●
63	BOLT; OIL PIPE,STRAINER TO PUMP M8X20 FLANGE	0-28080-820-0	02	1	0211-0512	●	●
63	BOLT; OIL PIPE,STRAINER TO PUMP M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●
100	WASHER; LK,RELIEF VLV,OIL PUMP	1-09530-003-0	01	1	0012-0109	●
100	WASHER; LK,RELIEF VLV,OIL PUMP OD=34	1-09530-004-0	01	1	0110-0210	●
100	WASHER; LK,RELIEF VLV,OIL PUMP OD=34	1-09530-004-0	01	1	0211-	●	●
117	BOLT; STAY TO CRANKCASE M8X16 FLANGE	0-28080-816-0	01	1	0012-0210	●
117	BOLT; STAY TO CRANKCASE M8X16 FLANGE	0-28080-816-0	01	1	0211-0512	●	●
117	BOLT; STAY TO CRANKCASE M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●

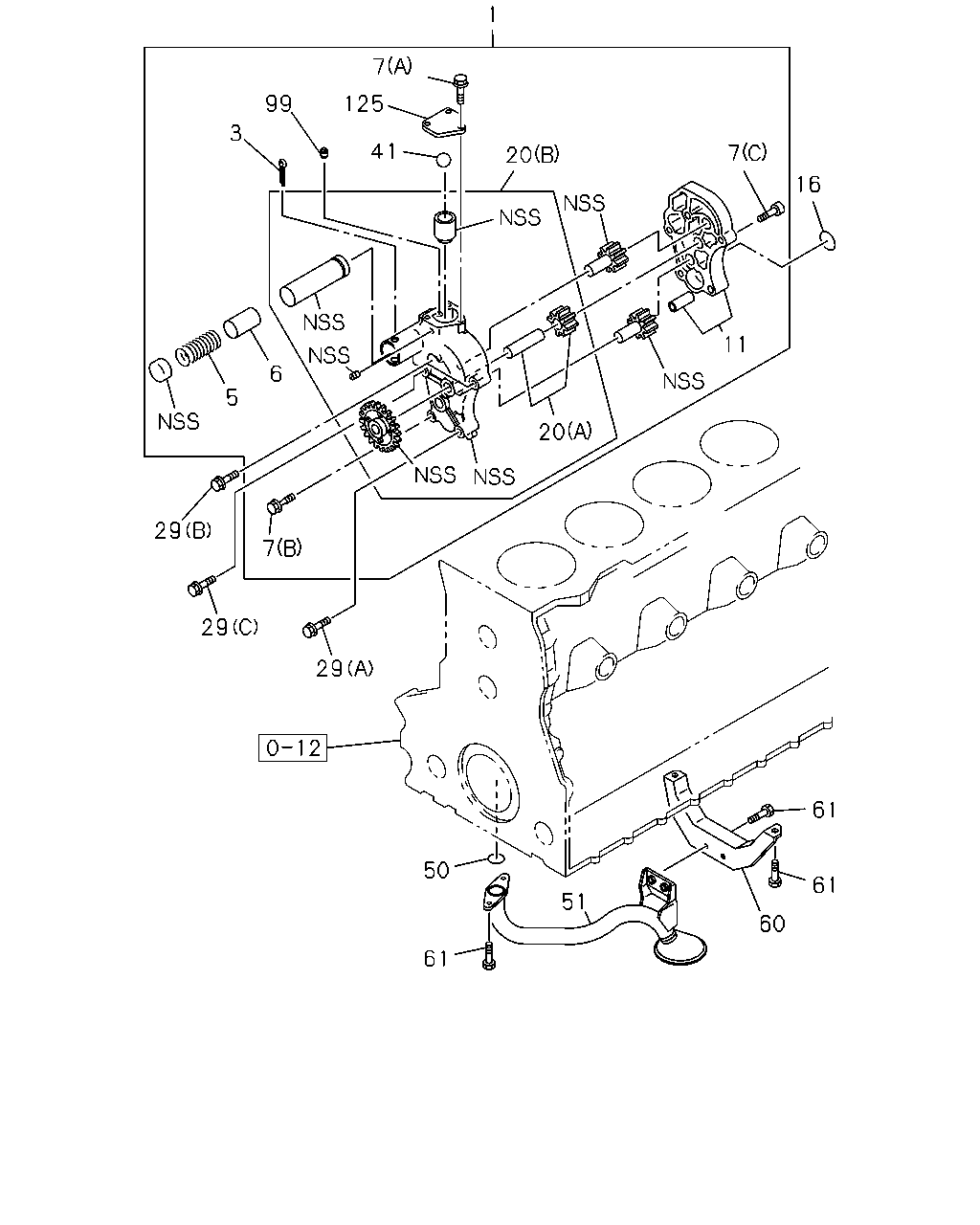

1 7 99 125 3 41 7 20 16 11 6 5 20 29 7 29 29 61 50 61 51 60 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; OIL	1-13100-219-1	01	1	0012-0109	●
1	PUMP ASM; OIL	1-13100-191-2	01	1	0110-0210	●
1	PUMP ASM; OIL	1-13100-191-2	01	1	0211-	●	●
1	PUMP ASM; OIL	1-13100-307-1	01	1	0204-0401			●
1	PUMP ASM; OIL	1-13100-311-0	01	1	0402-1005			●
1	PUMP ASM; OIL	1-13100-312-1	01	1	1006-			●
3	PIN; SPLIT L=60	9-08114-060-0	01	1	0204-			●
5	SPRING; COIL	1-09580-511-1	01	1	0204-1005			●
5	SPRING; COIL	1-09580-534-0	01	1	1006-			●
6	VALVE ASM; RELIEF,OIL PUMP	1-13160-021-1	01	1	0012-0109	●
6	VALVE ASM; RELIEF,OIL PUMP	1-13160-018-0	01	1	0110-0210	●
6	VALVE ASM; RELIEF,OIL PUMP	1-13160-018-0	01	1	0211-	●	●
7	BOLT; COVER,OIL PUMP (D) M8X35 W/LK WASHER	0-50040-835-0	04	1	0012-0210	●
7	BOLT; COVER,OIL PUMP (D) M8X35 W/LK WASHER	0-50040-835-0	04	1	0211-0512	●	●
7	BOLT; COVER,OIL PUMP (D) M8X35 W/LK WASHER	0-50540-835-0	04	1	0601-	●	●
7	BOLT; COVER,OIL PUMP (A) M8X18 FLANGE	0-28080-818-0	03	1	0204-			●
7	BOLT; COVER,OIL PUMP (B) M10X60 FLANGE	0-28181-060-0	01	1	0204-0512			●
7	BOLT; COVER,OIL PUMP (B) M10X60 FLANGE	0-28151-060-0	01	1	0601-			●
7	BOLT; COVER,OIL PUMP (C) M8X35 HEX SOCKET	9-05820-835-0	02	1	0204-0211			●
7	BOLT; COVER,OIL PUMP (C) M8X35 HEX SOCKET	0-58310-835-0	02	1	0212-0805			●
7	BOLT; COVER,OIL PUMP (C) M8X35 HEX SOCKET	0-58330-835-0	02	1	0806-			●
11	COVER ASM; OIL PUMP	1-13113-068-0	01	1	0204-			●
16	GASKET; OIL PUMP,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7	1-09623-529-0	01	1	0204-			●
20	GEAR; DRIVE,OIL PUMP (C)	1-13120-063-0	01	1	0012-0210	●
20	GEAR; DRIVE,OIL PUMP (C)	1-13120-063-0	01	1	0211-	●	●
20	GEAR; DRIVE,OIL PUMP (A)	1-13120-080-0	01	1	0204-			●
20	GEAR; DRIVE,OIL PUMP (B)	1-13120-088-0	01	1	0204-1005			●
20	GEAR; DRIVE,OIL PUMP (B)	1-13120-089-0	01	1	1006-			●
29	BOLT; OIL PUMP (D) M10X80	0-16806-080-0	03	1	0012-0210	●
29	BOLT; OIL PUMP (D) M10X80	0-16806-080-0	03	1	0211-0512	●	●
29	BOLT; OIL PUMP (D) M10X80	0-16856-080-0	03	1	0601-	●	●
29	BOLT; OIL PUMP (C)	0-59311-080-0	01	1	0204-0512			●
29	BOLT; OIL PUMP (C) M10X80 HEX SOCKET	0-59331-080-0	01	1	0601-			●
29	BOLT; OIL PUMP (A) M10X85 FLANGE	8-94397-359-1	01	1	0204-			●
29	BOLT; OIL PUMP (B) M10X107 FLANGE	8-94399-488-1	02	1	0204-			●
41	BALL; OIL RELIEF VLV	1-13161-021-0	01	1	0204-			●
50	GASKET; OIL PIPE,STRAINER TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2	1-09623-220-0	01	1	0012-0210	●
50	GASKET; OIL PIPE,STRAINER TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2	1-09623-220-0	01	1	0211-	●	●
50	GASKET; OIL PIPE,STRAINER TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7	1-09623-529-0	01	1	0204-			●
51	STRAINER & PIPE ASM; OIL	1-13312-512-1	01	1	0012-0210	●
51	STRAINER & PIPE ASM; OIL	1-13312-512-1	01	1	0211-	●	●
51	STRAINER & PIPE ASM; OIL	1-13313-207-1	01	1	0204-			●
60	BRACKET; OIL STRAINER	1-13345-180-1	01	1	0204-			●
61	BOLT; OIL STRAINER M10X20 FLANGE	0-28181-020-0	06	1	0204-0512			●
61	BOLT; OIL STRAINER M10X20 FLANGE	0-28151-020-0	06	1	0601-			●
99	PLUG; OIL PUMP	1-13163-002-0	01	1	0204-			●
125	COVER; BALL	1-13163-003-0	01	1	0204-0211			●
125	COVER; BALL	1-13163-004-0	01	1	0212-			●
