Sayfa 0-61 - Isuzu EPC

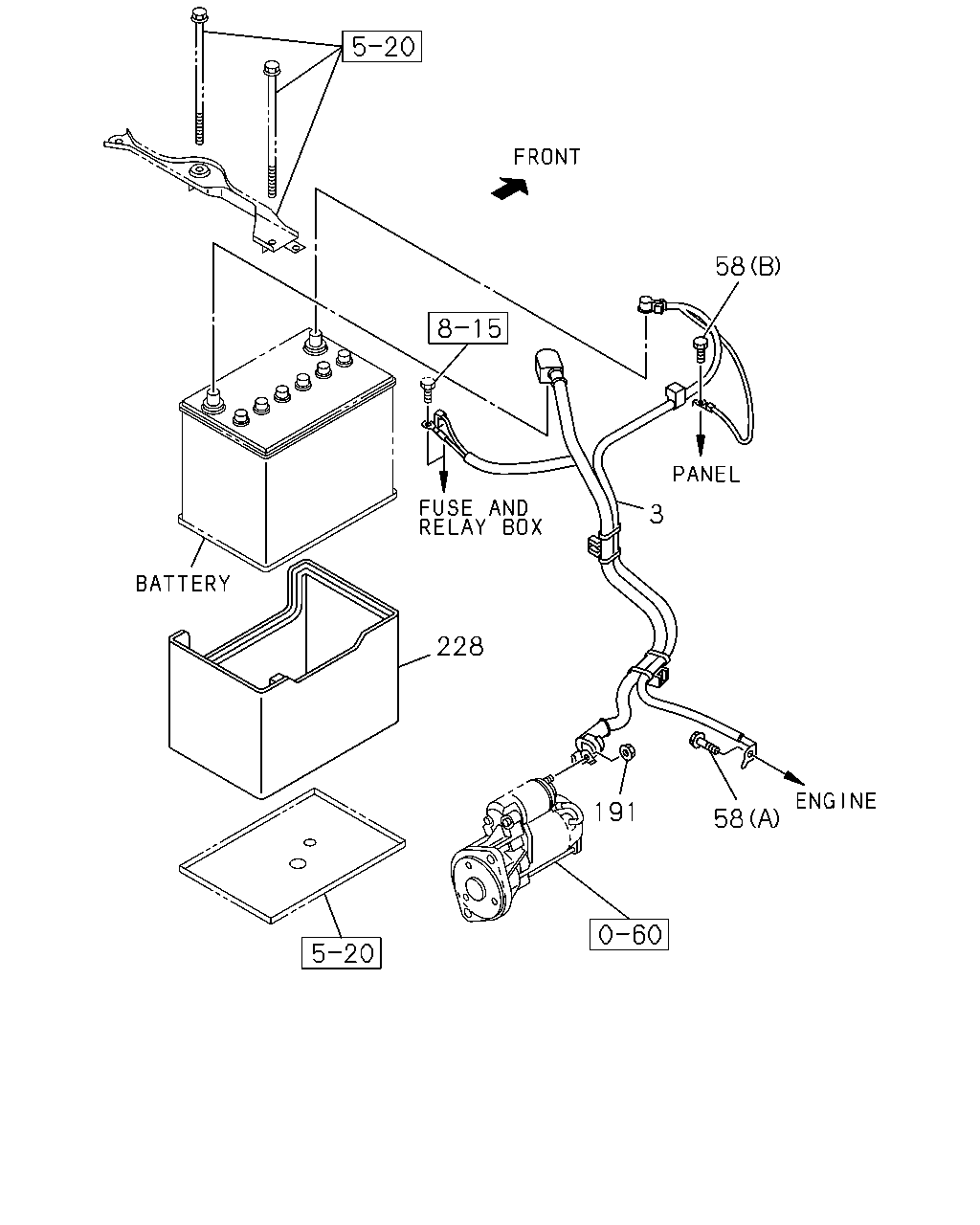

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#79611) — 7 parça

3 228 191 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8)	8-98160-809-3	01	1	1203-
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) M10X20 FLANGE	0-28651-020-0	01	1	1203-
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1203-1501
58	02.343 BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.559 (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-
191	08.155 NUT; STARTER BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M8 FLANGE	0-91180-108-0	01	1	1203-
228	03.602 SHIELD; BATTERY BATTERY 80D26L(TM1)	8-98154-328-0	01	1	1203-
228	03.602 SHIELD; BATTERY BATTERY 95D31L(TQ8)	8-98154-327-0	01	1	1203-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
