0-60 — ENGINE ELECTRICAL CONTROL PARTS (#79610) — 60 parça

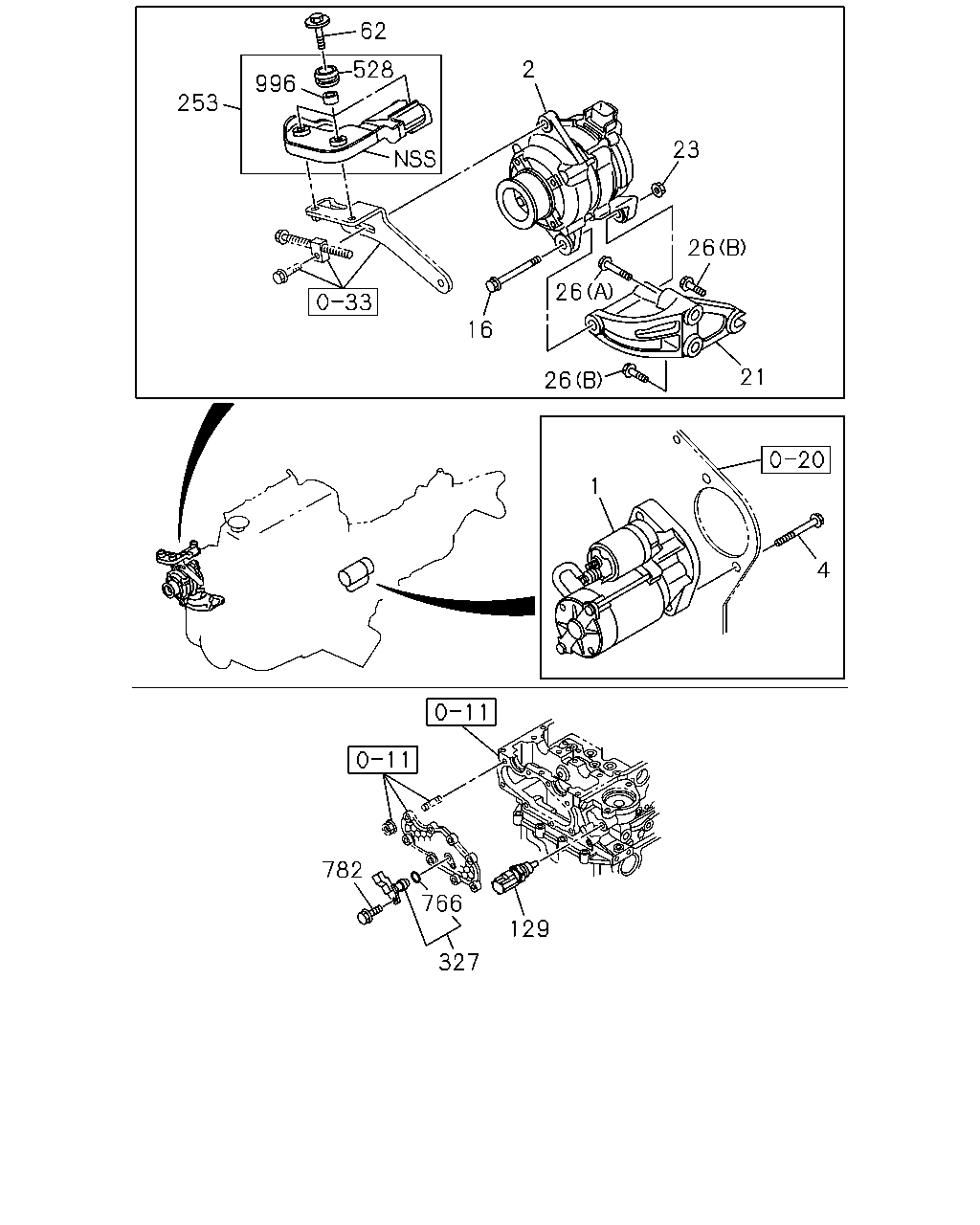

çizim 72566
62 2 528 996 253 23 26 26 16 21 26 1 4 782 766 129 327
BalonParca AdiParca NoAdetTipApplied Date
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98183-655-0 01 1 1203-
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1203-1211
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1212-
4 02.042 BOLT; STARTER
M12X70 FLANGE 		8-98183-142-0 02 1 1203-
16 02.277 BOLT; GEN
M10X125 FLANGE 		8-97226-470-1 01 1 1203-
21 02.277 BRACKET; GEN 8-98169-084-0 01 1 1203-
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1203-
26 02.277 BOLT; GEN BRKT
00.685 (A) M10X60 FLANGE 		0-28051-060-0 01 1 1203-
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1203-
62 02.277 BOLT; PROTECTOR 8-97383-407-0 03 1 1203-
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1203-1412
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1501-
253 02.277 PROTECTOR; HEAT,GEN 8-98157-835-2 01 1 1203-
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1203-
528 02.270 BUSHING 8-98158-298-0 03 1 1203-
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1203-
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1203-
996 02.042 MOUNT; PROTECTOR 8-98158-299-0 03 1 1203-

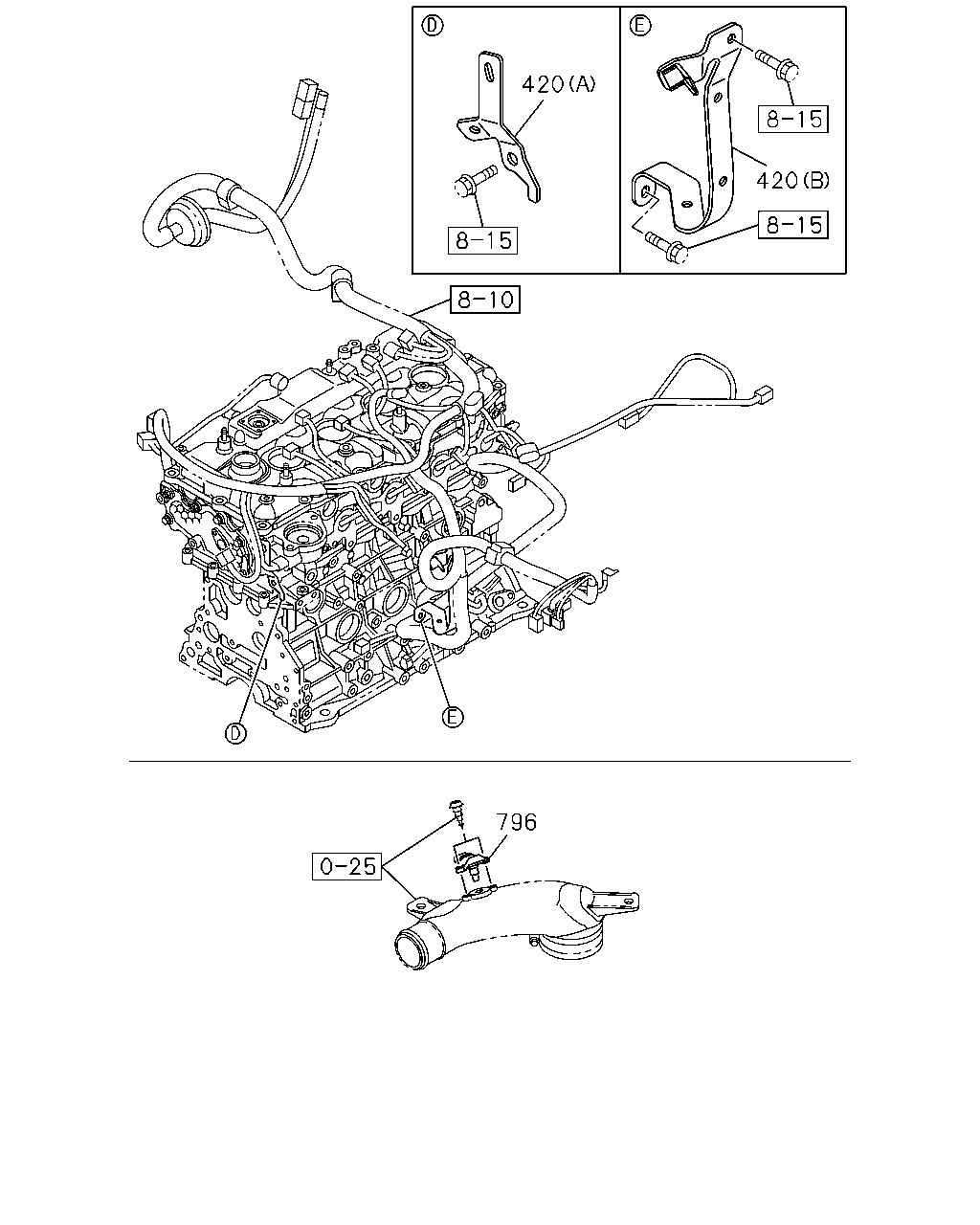

çizim 72908
420 420 796
BalonParca AdiParca NoAdetTipApplied Date
420 02.183 BRACKET; HARNESS
(A) 		8-98132-062-1 01 1 1203-
420 02.183 BRACKET; HARNESS
(B) 		8-98166-379-0 01 1 1203-
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1203-

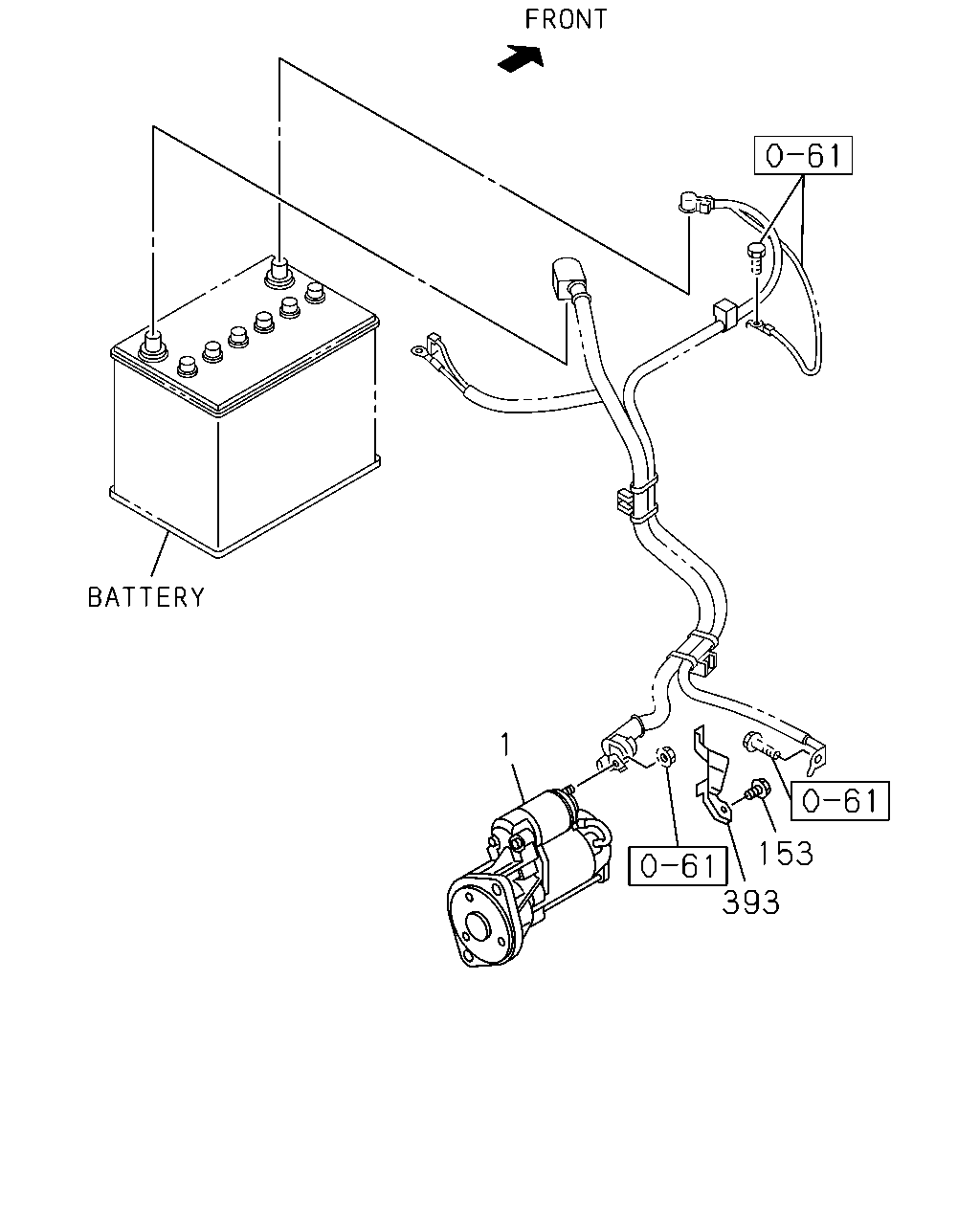

çizim 73287
1 153 393
BalonParca AdiParca NoAdetTipApplied Date
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98183-655-0 01 1 1203-
153 02.510 BOLT; BRKT FIX
03.604 M6X10 FLANGE 		8-98043-527-0 01 1 1203-
393 02.343 BRACKET; HARNESS TO BODY 8-98102-992-4 01 1 1203-

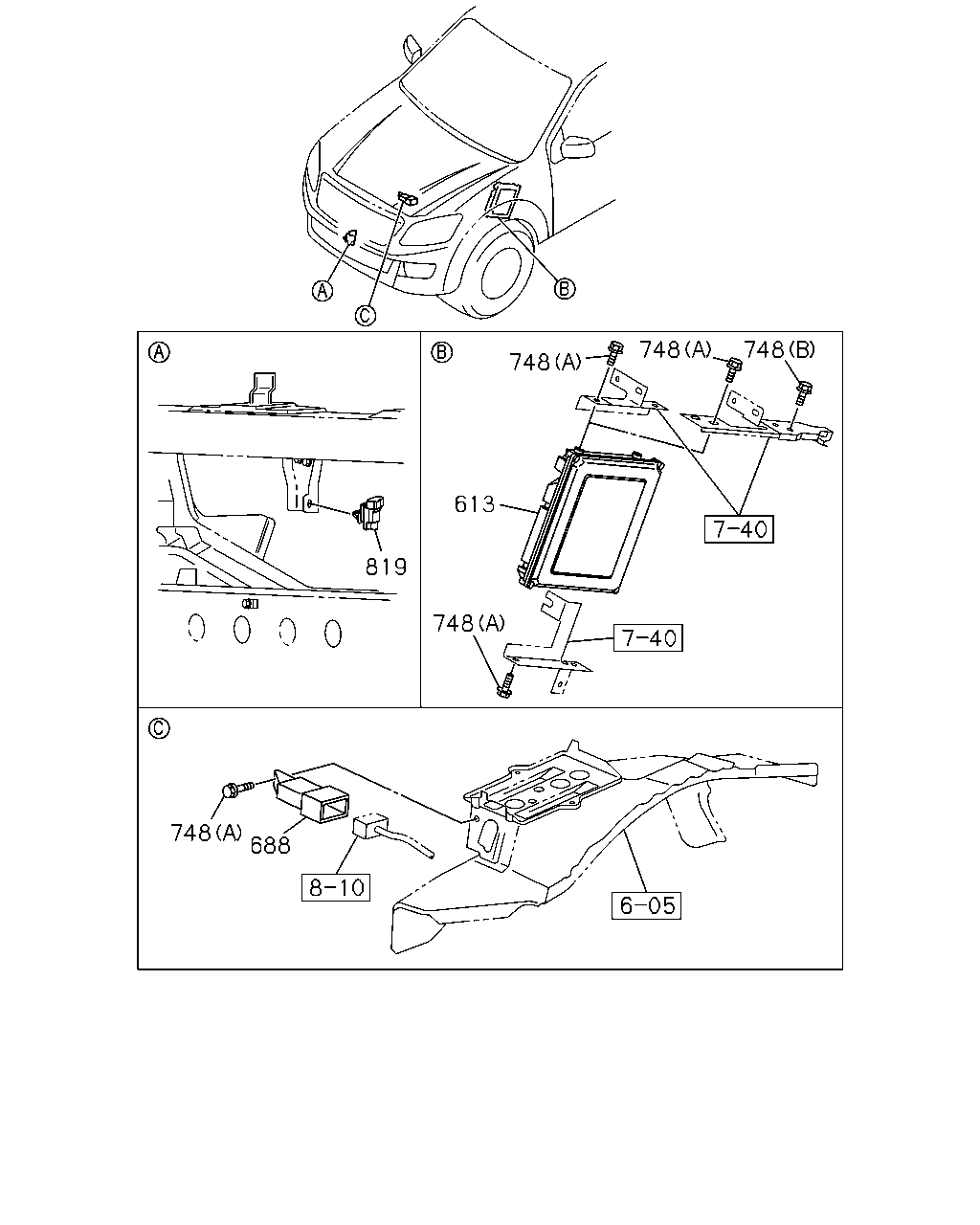

çizim 182884
748 748 748 613 819 748 748 688
BalonParca AdiParca NoAdetTipApplied Date
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC) 		8-98171-347-7 01 1 1203-1212
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC) 		8-98234-568-1 01 1 1301-1310
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC) 		8-98250-654-1 01 1 1311-
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) 		8-98171-350-7 01 1 1203-1212
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> 		8-98171-350-7 01 1 1203-1212
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) 		8-98234-570-1 01 1 1301-1310
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> 		8-98234-570-1 01 1 1301-1310
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) 		8-98250-656-1 01 1 1311-
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> 		8-98250-656-1 01 1 1311-
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98171-348-7 01 1 1203-1212
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30> 		8-98171-348-7 01 1 1203-1212
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98234-569-1 01 1 1301-1310
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30> 		8-98234-569-1 01 1 1301-1310
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98250-655-1 01 1 1311-
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30> 		8-98250-655-1 01 1 1311-
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) 		8-98171-354-7 01 1 1203-1212
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> 		8-98171-354-7 01 1 1203-1212
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) 		8-98234-572-1 01 1 1301-1310
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> 		8-98234-572-1 01 1 1301-1310
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) 		8-98250-658-2 01 1 1311-
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> 		8-98250-658-2 01 1 1311-
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98171-352-7 01 1 1203-1212
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30> 		8-98171-352-7 01 1 1203-1212
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98234-571-1 01 1 1301-1310
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30> 		8-98234-571-1 01 1 1301-1310
613 03.670 CONTROL UNIT; ENG
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30> 		8-98250-657-2 01 1 1311-
613 03.670 CONTROL UNIT; ENG
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30> 		8-98250-657-2 01 1 1311-
688 02.510 CONTROLLER; GLOW PLUG 8-98176-474-0 01 1 1203-
748 02.500 BOLT; CONT UNIT
SPEEDOMETER KILO&MILES<U19> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.343 (A) M6X16 FLANGE 		0-28650-616-0 03 1 1203-1208
748 02.500 BOLT; CONT UNIT
SPEEDOMETER KILO&MILES<U19> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 06.500 (B) M6X15 		8-94128-317-0 01 1 1203-1208
748 02.500 BOLT; CONT UNIT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1203-
748 02.500 BOLT; CONT UNIT
REGULAR CAB(TF**S*) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 04 1 1203-1208
748 02.500 BOLT; CONT UNIT
4X2 CREW CAB LONG(TFB5WF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF) EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.343 (A) M6X16 FLANGE 		0-28650-616-0 04 1 1203-1208
748 02.500 BOLT; CONT UNIT
4X2 CREW CAB LONG(TFB5WF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 CREW CAB LONG(TFS5WF) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. SPEEDOMETER KILO&MILES<U19> 02.343 (A) M6X16 FLANGE 		0-28650-616-0 04 1 1203-1208
748 02.500 BOLT; CONT UNIT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 04 1 1209-
819 01.150 SENSOR; MASS AIR FLOW (MAF)
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA> 		8-98008-687-0 01 1 1203-
