◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51375 - TFR/TFS(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#79606) — 9 parça

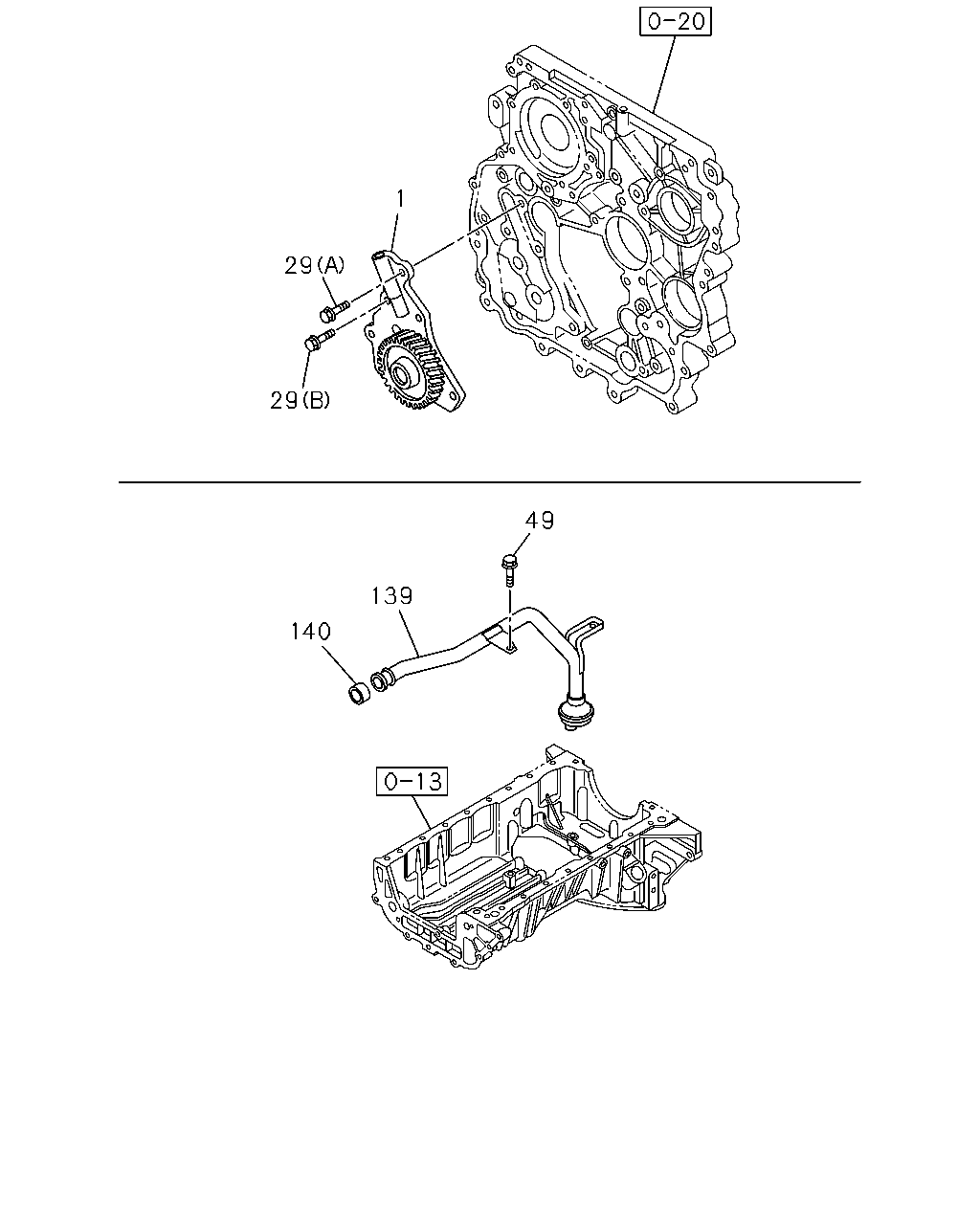

çizim 64474
1 29 29 49 139 140
BalonParca AdiParca NoAdetTipApplied Date
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 1203-1303
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1304-
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 1203-
29 01.652 BOLT; OIL PUMP
09.173 (A) M8X45 FLANGE 		0-28050-845-0 02 1 1203-
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1203-1405
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1406-
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) M/T AISIN 6 SPEED(RNU) 		8-98127-247-0 01 1 1203-
139 01.639 PIPE; OIL STRAINER
4X4(TFS***) M/T AISIN 6 SPEED(RNU) 		8-98132-012-0 01 1 1203-
140 01.639 GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-150-0 01 1 1203-
