Sayfa 0-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51375 - TFR/TFS(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶

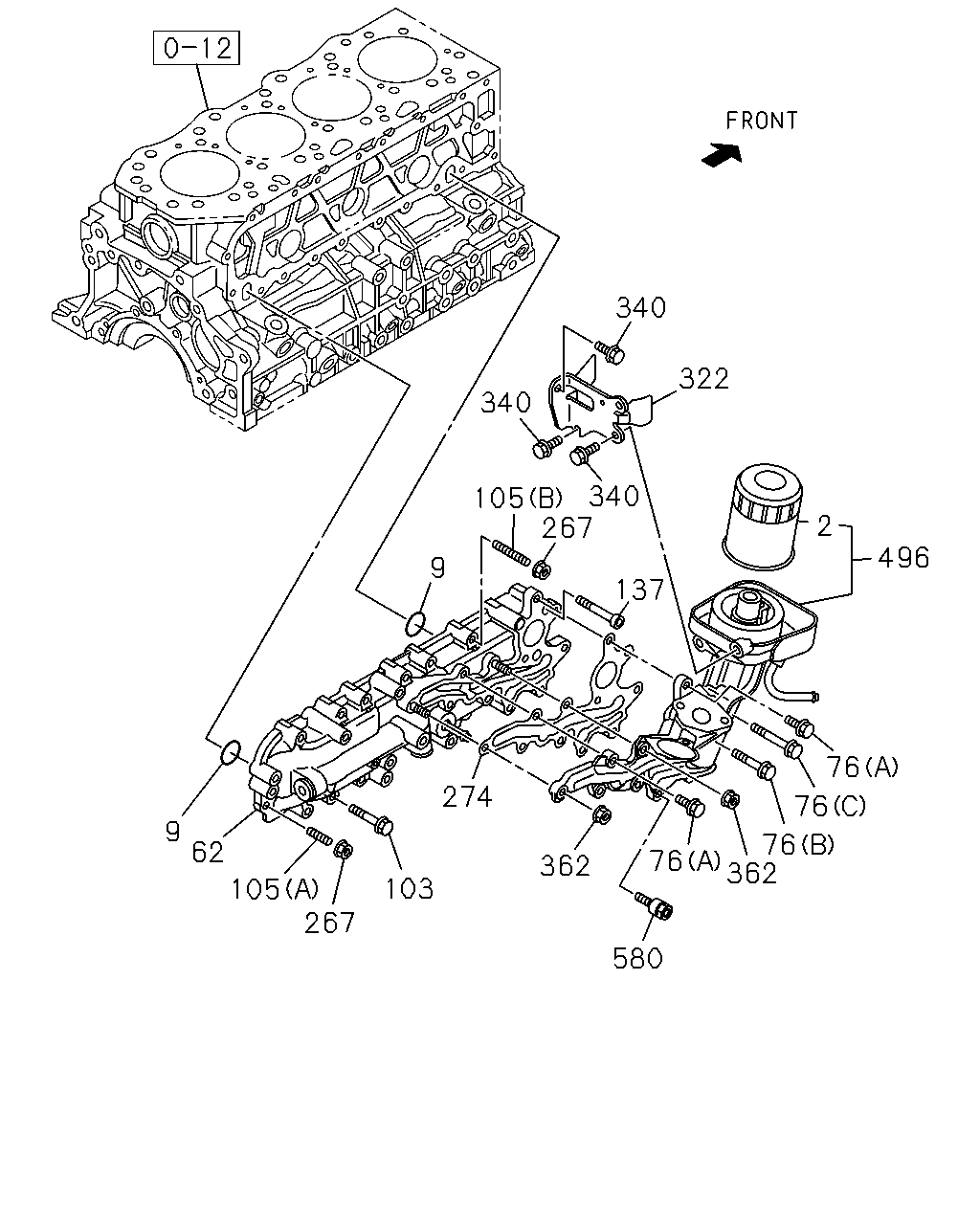

0-50 — OIL COOLER AND OIL FILTER (#79605) — 18 parça

340 322 340 267 2 496 9 137 76 274 76 9 62 76 362 76 362 103 105 267 580 105 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	01.836 ELEMENT; OIL FILTER	8-98165-071-0	01	1	1203-
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2	9-09566-226-0	02	1	1203-
62	01.540 COOLER ASM; OIL	8-98185-691-0	01	1	1203-
76	01.840 BOLT; OIL FILTER 03.275 (A) M8X25 FLANGE	0-28050-825-0	06	1	1203-
76	01.840 BOLT; OIL FILTER 09.173 (B) M8X45 FLANGE	0-28050-845-0	01	1	1203-
76	01.840 BOLT; OIL FILTER 04.686 (C) M8X60 FLANGE	0-28050-860-0	01	1	1203-
103	01.540 BOLT; OIL COOLER 09.173 M8X45 FLANGE	0-28050-845-0	15	1	1203-
105	01.540 STUD; OIL COOLER 02.510 (A) M8X20 L=32	0-41010-820-0	01	1	1203-
105	01.540 STUD; OIL COOLER 01.252 (B) M8X45 L=57	0-41010-845-0	01	1	1203-
137	01.840 BOLT 00.206 M8X60 HEX SOCKET	0-58330-860-0	03	1	1203-
267	01.840 NUT; OIL COOLER 01.540 M8 FLANGE	0-91180-208-0	02	1	1203-
274	01.844 GASKET; OIL FILTER	8-98124-080-1	01	1	1203-
322	01.840 BRACKET; OIL FILTER	8-98132-020-1	01	1	1203-
340	01.840 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1203-
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1203-
496	01.835 FILTER ASM; OIL	8-98186-452-1	01	1	1203-
580	01.540 ADAPTER	8-98181-435-0	01	1	1203-

496 343 342 343 343 343 278 201 278 342 462

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	496	01.835 FILTER ASM; OIL	8-98186-452-1	01	1	1203-
