Sayfa 0-42 - Isuzu EPC

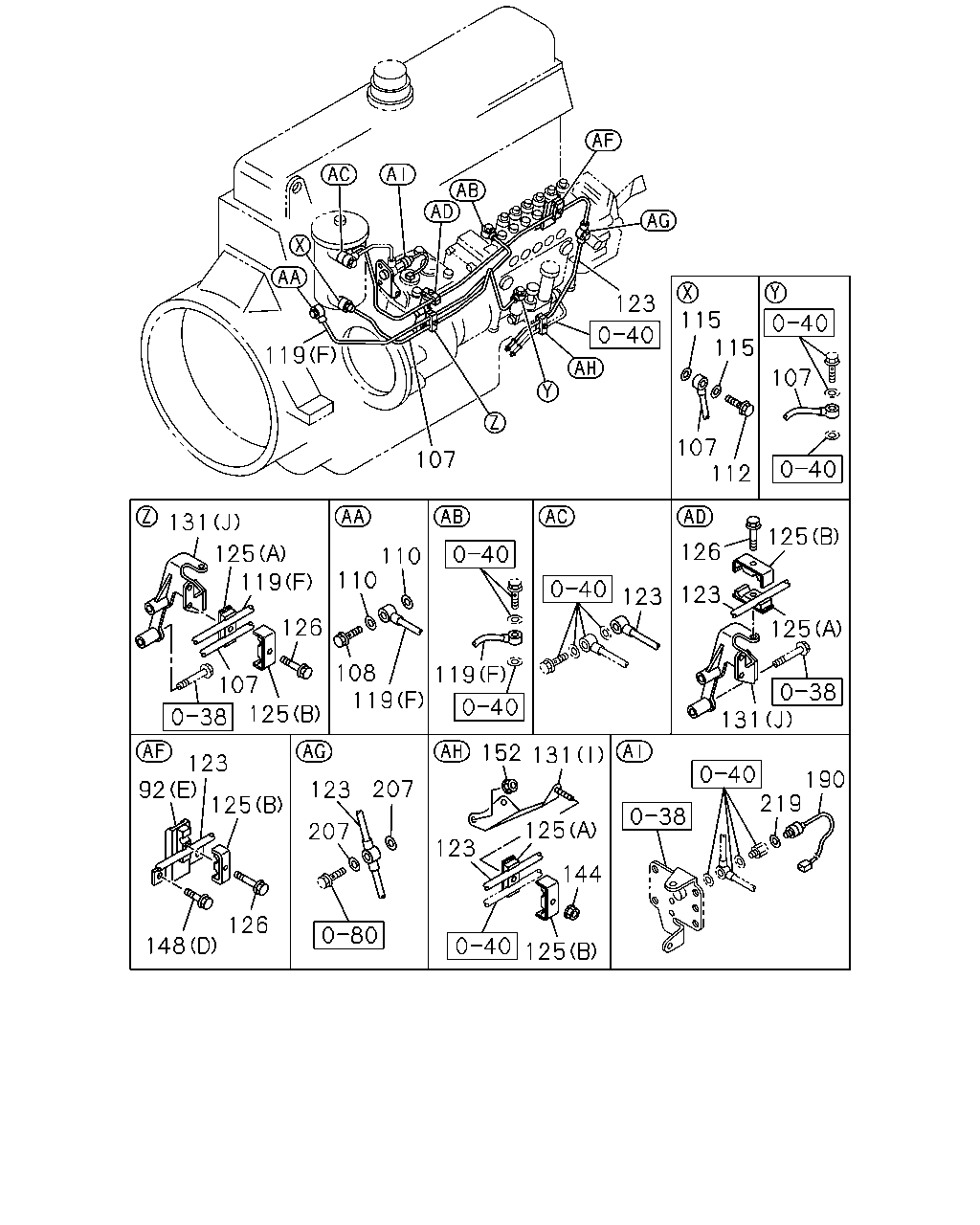

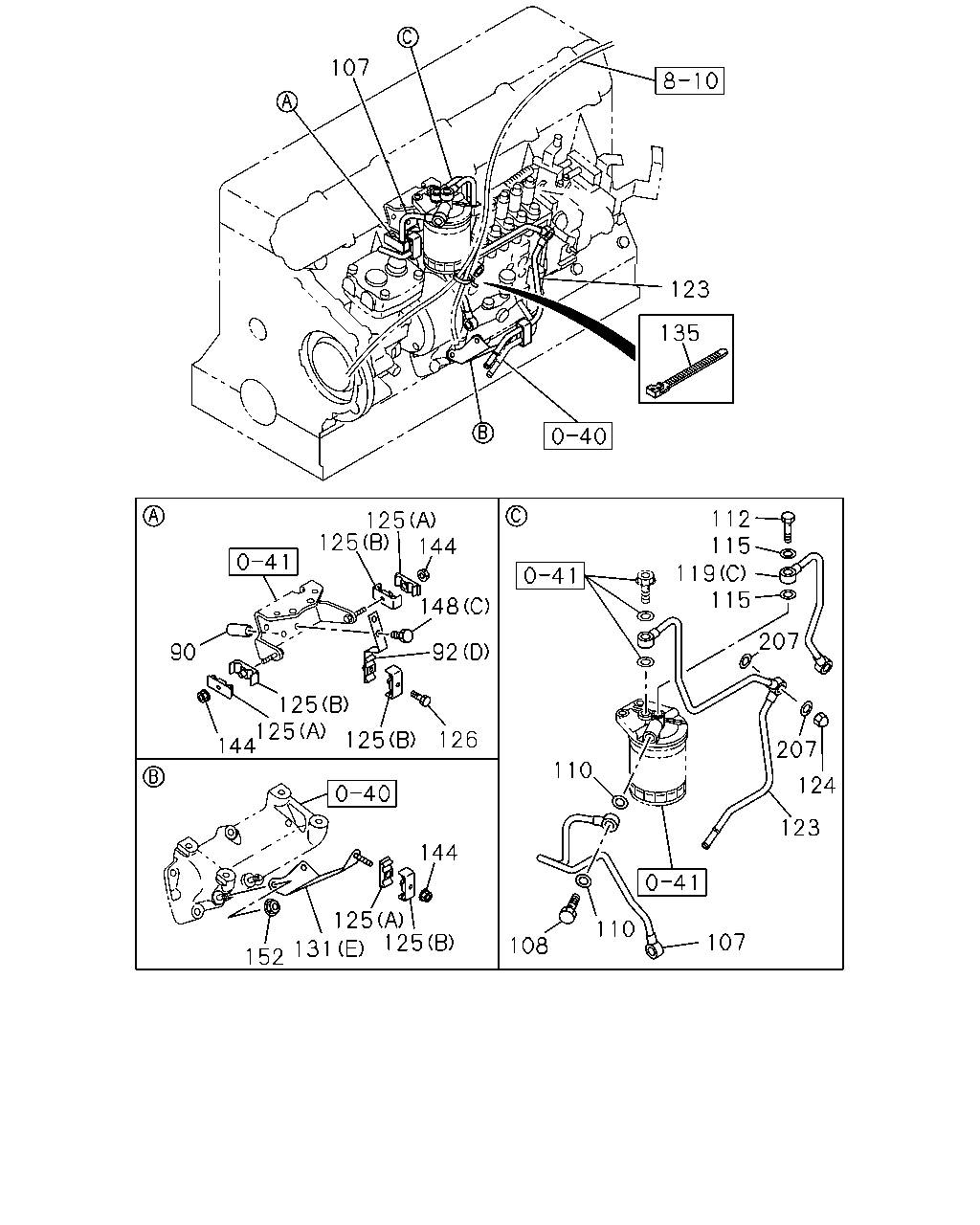

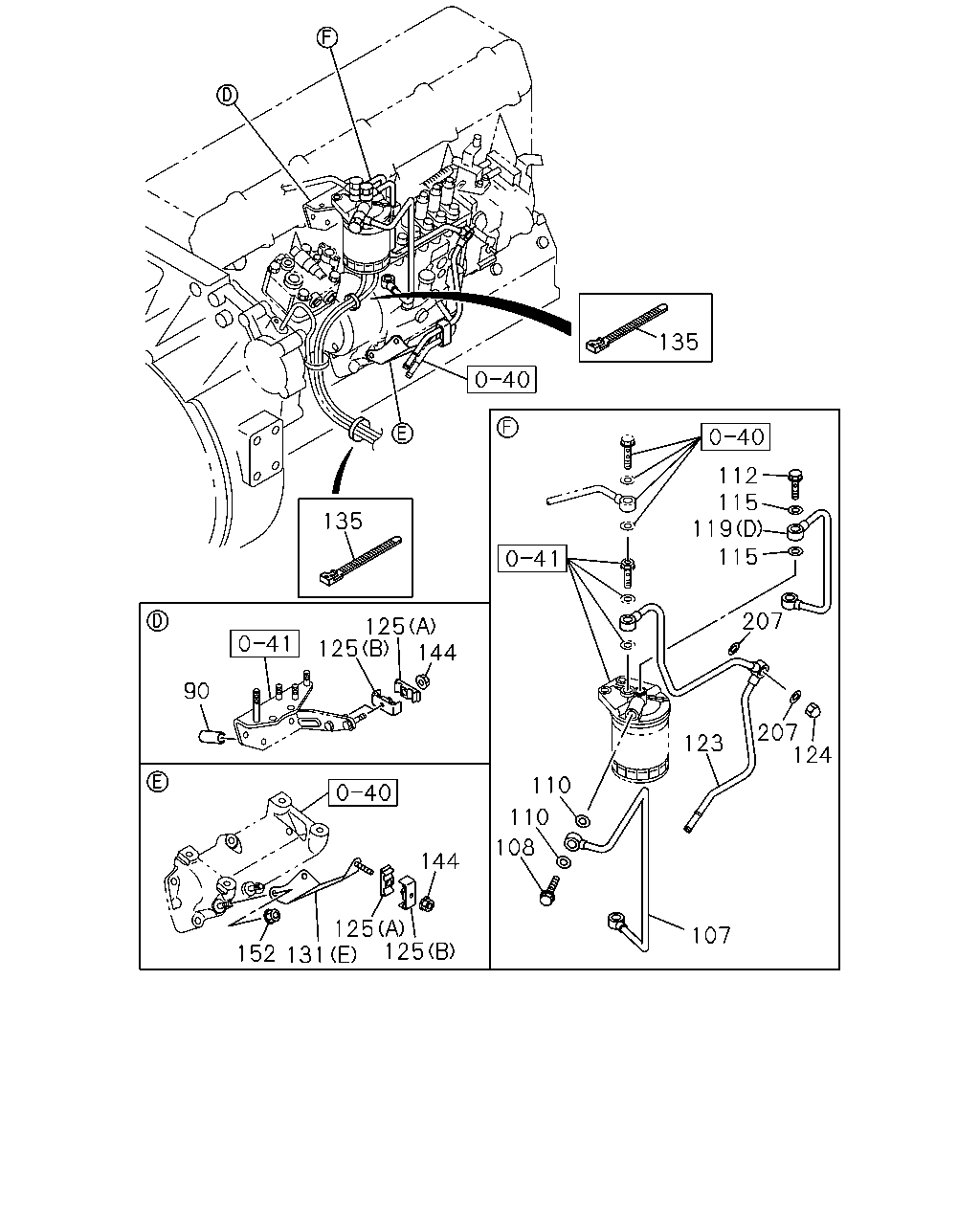

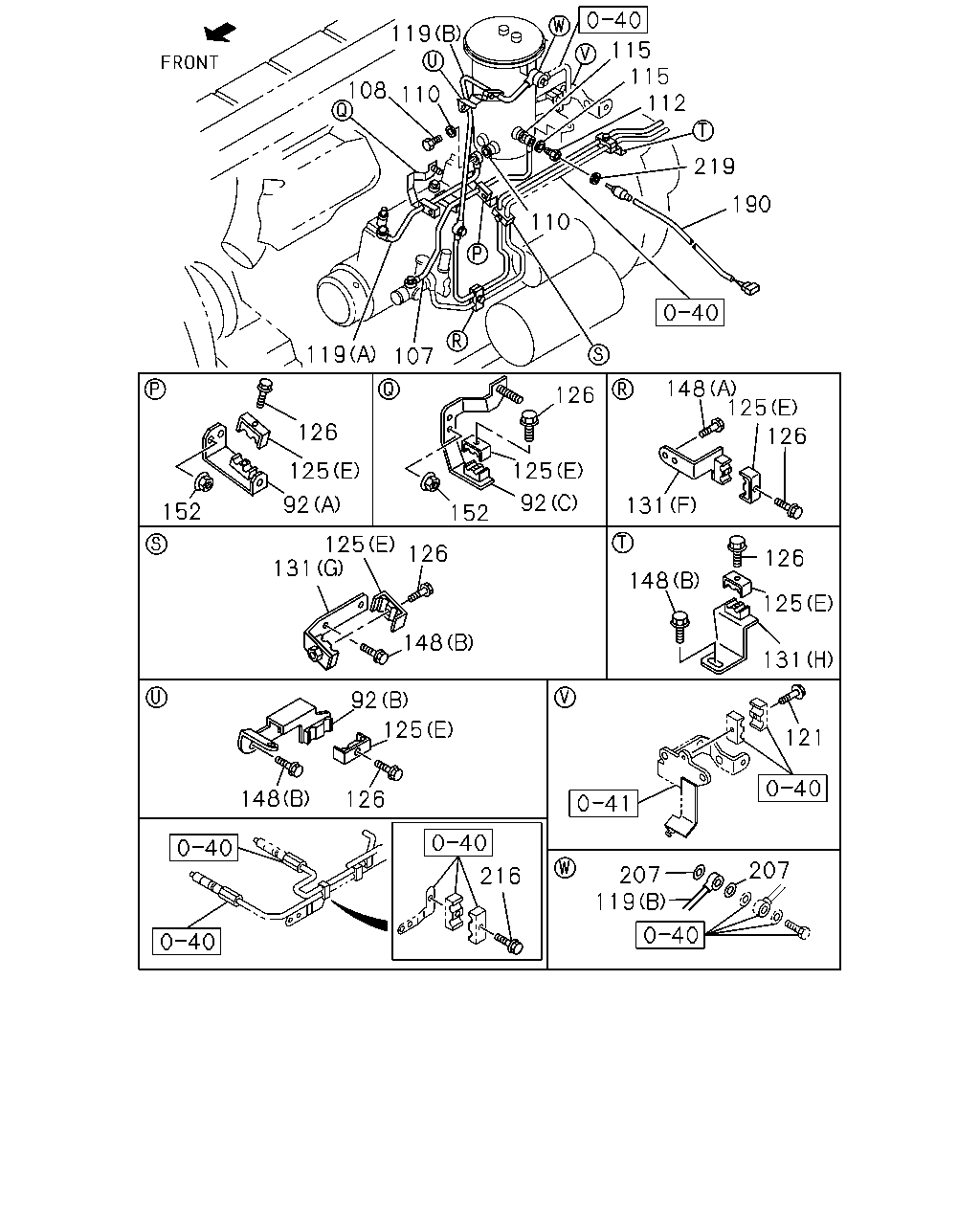

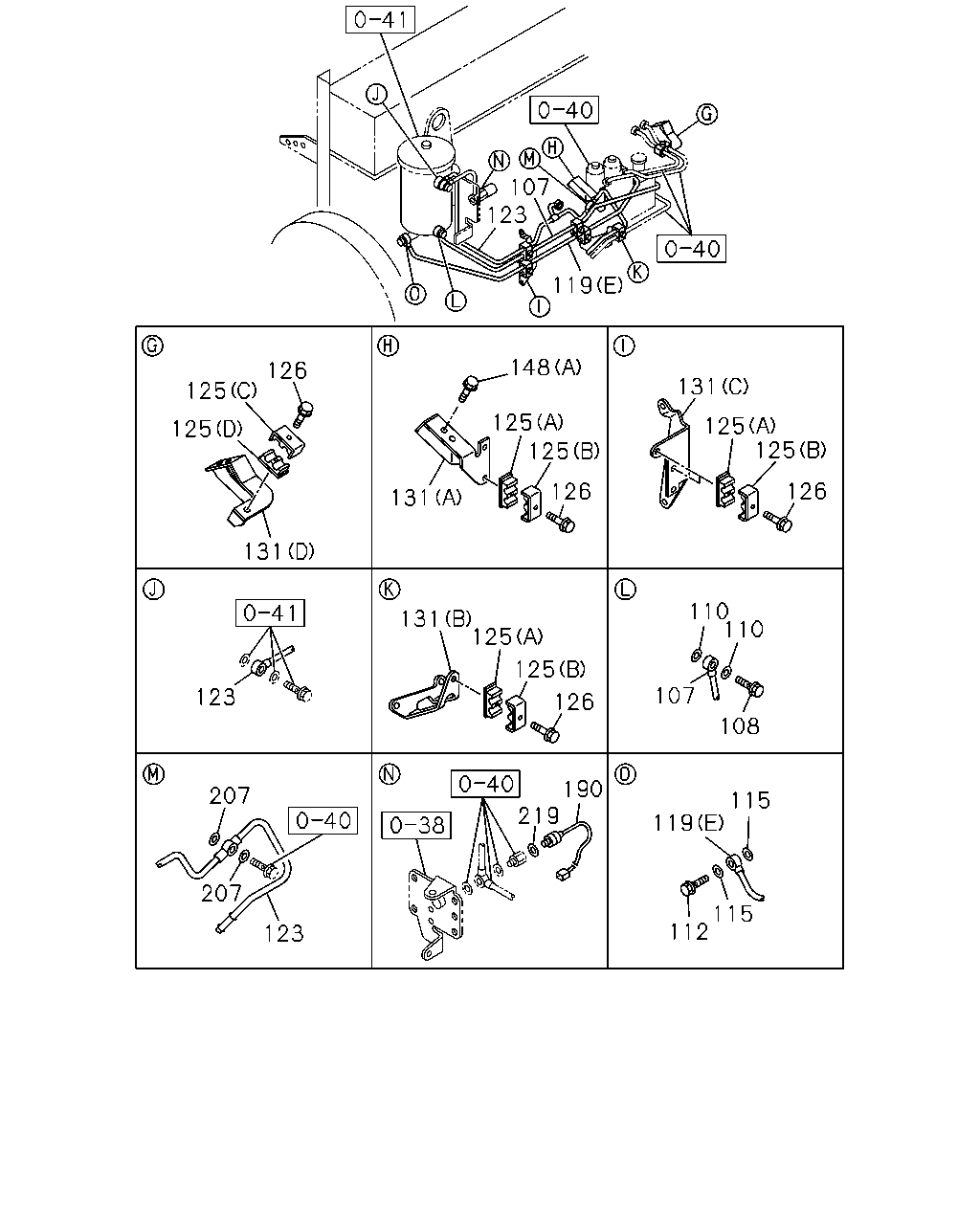

0-42 — FUEL PUMP AND PIPE (#7960) — 475 parça

119 115 115 112 108 110 219 190 110 119 107 148 125 126 126 126 125 125 92 92 131 152 152 125 131 126 126 148 125 148 131 92 125 121 148 126 207 207 119 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
92	BRACKET; FUEL PIPE EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (D)	1-15419-433-0	01	1	0012-	●
92	BRACKET; FUEL PIPE (A)	1-15419-425-0	01	1	0204-		●
92	BRACKET; FUEL PIPE (C)	1-15419-427-0	01	1	0204-		●
92	BRACKET; FUEL PIPE (B)	1-15419-474-1	01	1	0204-		●
92	BRACKET; FUEL PIPE (E)	1-15419-432-0	01	1	0211-			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION(THN)	1-15415-950-0	01	1	0012-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO3 SPECIFICATION(NJX)	1-15416-708-0	01	1	0107-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN)	1-15415-779-0	01	1	0012-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-731-0	01	1	0204-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-764-0	01	1	0211-			●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0012-0203	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0204-0210	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0211-	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0012-0203	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0012-0210	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0211-	●		●
112	BOLT; JOINT,FUEL FILTER	1-09675-156-1	01	1	0204-		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0012-0203	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION(THN) (D)	1-15415-951-0	01	1	0012-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO3 SPECIFICATION(NJX) (E)	1-15416-542-0	01	1	0107-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C)	1-15415-776-0	01	1	0012-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (A)	1-15415-539-1	01	1	0204-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15416-090-0	01	1	0204-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (F)	1-15416-765-0	01	1	0211-			●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	0204-0512		●
121	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	0601-		●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	0012-0106	●
125	CLIP; FUEL PIPE EXC. EURO3 SPECIFICATION(NJX) (A)	1-09701-180-0	03	1	0107-	●
125	CLIP; FUEL PIPE EURO2 SPECIFICATION(THN) (B) ID=10 & 10 L=25	8-94393-280-1	03	1	0012-0106	●
125	CLIP; FUEL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) ID=10 & 10 L=25	8-94393-280-3	03	1	0107-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (C)	1-09701-172-3	01	1	0107-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (D)	1-09701-173-2	01	1	0107-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (A)	1-09701-180-0	05	1	0107-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (B) ID=10 & 10 L=25	8-94393-280-1	05	1	0107-0210	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (B) ID=10 & 10 L=25	8-94393-280-3	05	1	0211-	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-3	05	1	0211-			●
125	CLIP; FUEL PIPE EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (B) ID=10 & 10 L=25	8-94393-280-3	04	1	0012-	●
125	CLIP; FUEL PIPE (E) ID=10 & 10 L=25	8-94393-280-3	06	1	0204-		●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	04	1	0211-			●
126	BOLT; CLIP,FUEL PIPE EURO3 SPECIFICATION(NJX) M6X35 FLANGE	0-28680-635-0	06	1	0107-0512	●
126	BOLT; CLIP,FUEL PIPE EURO3 SPECIFICATION(NJX) M6X35 FLANGE	0-28650-635-0	06	1	0601-	●
126	BOLT; CLIP,FUEL PIPE EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M6X35 FLANGE	0-28080-635-0	01	1	0012-0512	●
126	BOLT; CLIP,FUEL PIPE EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	06	1	0204-0512		●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28050-630-0	06	1	0601-		●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28680-635-0	04	1	0211-0512			●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28650-635-0	04	1	0601-			●
131	BRACKET; FUEL PIPE CLIP (E)	1-82698-047-0	01	1	0012-0106	●
131	BRACKET; FUEL PIPE CLIP EXC. EURO3 SPECIFICATION(NJX) (E)	1-82698-047-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION(NJX) (A)	1-15419-605-1	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION(NJX) (C)	1-15419-607-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION(NJX) (B)	1-15419-668-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION(NJX) (D)	1-15419-698-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (F)	1-15419-336-0	01	1	0204-		●
131	BRACKET; FUEL PIPE CLIP (G)	1-15419-372-0	01	1	0204-		●
131	BRACKET; FUEL PIPE CLIP (H)	1-15419-423-1	01	1	0204-		●
131	BRACKET; FUEL PIPE CLIP (I)	1-15419-683-0	01	1	0211-			●
131	BRACKET; FUEL PIPE CLIP (J)	1-15419-695-0	01	1	0211-			●
148	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28080-816-0	02	1	0107-0203	●
148	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28080-816-0	02	1	0204-0512	●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	0204-0512		●
148	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
148	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C) M8X25 FLANGE	0-28080-825-0	02	1	0012-0512	●
148	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C) M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28181-020-0	05	1	0204-0512		●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28151-020-0	05	1	0601-		●
148	BOLT; BRKT (D) M10X16 FLANGE	0-28181-016-0	02	1	0211-0512			●
148	BOLT; BRKT (D) M10X16 FLANGE	0-28151-016-0	02	1	0601-			●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0012-0106	●
152	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	02	1	0107-0210	●
152	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0211-0602			●
152	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	02	1	0603-	●
152	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-			●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0204-0602		●
152	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-		●
190	SENSOR; FUEL TEMP EURO3 SPECIFICATION(NJX)	1-81535-040-2	01	1	0107-0108	●
190	SENSOR; FUEL TEMP EURO3 SPECIFICATION(NJX)	1-81535-036-6	01	1	0109-0203	●
190	SENSOR; FUEL TEMP EURO3 SPECIFICATION(NJX)	1-81535-036-6	01	1	0204-0210	●
190	SENSOR; FUEL TEMP	1-81535-036-6	01	1	0204-0210		●
190	SENSOR; FUEL TEMP EURO3 SPECIFICATION(NJX)	1-81535-036-6	01	1	0211-0304	●
190	SENSOR; FUEL TEMP	1-81535-036-6	01	1	0211-0304		●	●
190	SENSOR; FUEL TEMP	1-81535-036-7	01	1	0305-		●	●
207	GASKET; EYE BOLT EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-0203	●
207	GASKET; EYE BOLT EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210		●
207	GASKET; EYE BOLT EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-		●	●
207	GASKET; EYE BOLT EXC. EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	03	1	0107-	●
216	BOLT; CLIP,FUEL PIPE M6X40 FLANGE	0-28080-640-0	01	1	0204-0512		●
216	BOLT; CLIP,FUEL PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-		●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ID=12.2	1-09630-084-0	01	1	0107-0210	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0211-0304	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0211-0304			●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0305-			●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0204-		●

107 123 119 148 126 131 125 125 125 125 125 125 126 126 131 131 110 110 131 125 125 107 123 126 108 190 207 115 119 207 115 112 123 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION(THN)	1-15415-950-0	01	1	0012-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO3 SPECIFICATION(NJX)	1-15416-708-0	01	1	0107-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN)	1-15415-779-0	01	1	0012-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-731-0	01	1	0204-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-764-0	01	1	0211-			●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0012-0203	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0204-0210	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0211-	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0012-0203	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0012-0210	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0211-	●		●
112	BOLT; JOINT,FUEL FILTER	1-09675-156-1	01	1	0204-		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0012-0203	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION(THN) (D)	1-15415-951-0	01	1	0012-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO3 SPECIFICATION(NJX) (E)	1-15416-542-0	01	1	0107-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C)	1-15415-776-0	01	1	0012-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (A)	1-15415-539-1	01	1	0204-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15416-090-0	01	1	0204-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (F)	1-15416-765-0	01	1	0211-			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION(THN)	1-15415-952-1	01	1	0012-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO3 SPECIFICATION(NJX)	1-15416-709-0	01	1	0107-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN)	1-15415-775-1	01	1	0012-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15416-769-0	01	1	0211-			●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	0012-0106	●
125	CLIP; FUEL PIPE EXC. EURO3 SPECIFICATION(NJX) (A)	1-09701-180-0	03	1	0107-	●
125	CLIP; FUEL PIPE EURO2 SPECIFICATION(THN) (B) ID=10 & 10 L=25	8-94393-280-1	03	1	0012-0106	●
125	CLIP; FUEL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) ID=10 & 10 L=25	8-94393-280-3	03	1	0107-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (C)	1-09701-172-3	01	1	0107-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (D)	1-09701-173-2	01	1	0107-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (A)	1-09701-180-0	05	1	0107-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (B) ID=10 & 10 L=25	8-94393-280-1	05	1	0107-0210	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (B) ID=10 & 10 L=25	8-94393-280-3	05	1	0211-	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-3	05	1	0211-			●
125	CLIP; FUEL PIPE EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (B) ID=10 & 10 L=25	8-94393-280-3	04	1	0012-	●
125	CLIP; FUEL PIPE (E) ID=10 & 10 L=25	8-94393-280-3	06	1	0204-		●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	04	1	0211-			●
126	BOLT; CLIP,FUEL PIPE EURO3 SPECIFICATION(NJX) M6X35 FLANGE	0-28680-635-0	06	1	0107-0512	●
126	BOLT; CLIP,FUEL PIPE EURO3 SPECIFICATION(NJX) M6X35 FLANGE	0-28650-635-0	06	1	0601-	●
126	BOLT; CLIP,FUEL PIPE EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M6X35 FLANGE	0-28080-635-0	01	1	0012-0512	●
126	BOLT; CLIP,FUEL PIPE EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	06	1	0204-0512		●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28050-630-0	06	1	0601-		●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28680-635-0	04	1	0211-0512			●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28650-635-0	04	1	0601-			●
131	BRACKET; FUEL PIPE CLIP (E)	1-82698-047-0	01	1	0012-0106	●
131	BRACKET; FUEL PIPE CLIP EXC. EURO3 SPECIFICATION(NJX) (E)	1-82698-047-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION(NJX) (A)	1-15419-605-1	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION(NJX) (C)	1-15419-607-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION(NJX) (B)	1-15419-668-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION(NJX) (D)	1-15419-698-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (F)	1-15419-336-0	01	1	0204-		●
131	BRACKET; FUEL PIPE CLIP (G)	1-15419-372-0	01	1	0204-		●
131	BRACKET; FUEL PIPE CLIP (H)	1-15419-423-1	01	1	0204-		●
131	BRACKET; FUEL PIPE CLIP (I)	1-15419-683-0	01	1	0211-			●
131	BRACKET; FUEL PIPE CLIP (J)	1-15419-695-0	01	1	0211-			●
148	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28080-816-0	02	1	0107-0203	●
148	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28080-816-0	02	1	0204-0512	●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	0204-0512		●
148	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
148	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C) M8X25 FLANGE	0-28080-825-0	02	1	0012-0512	●
148	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C) M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28181-020-0	05	1	0204-0512		●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28151-020-0	05	1	0601-		●
148	BOLT; BRKT (D) M10X16 FLANGE	0-28181-016-0	02	1	0211-0512			●
148	BOLT; BRKT (D) M10X16 FLANGE	0-28151-016-0	02	1	0601-			●
190	SENSOR; FUEL TEMP EURO3 SPECIFICATION(NJX)	1-81535-040-2	01	1	0107-0108	●
190	SENSOR; FUEL TEMP EURO3 SPECIFICATION(NJX)	1-81535-036-6	01	1	0109-0203	●
190	SENSOR; FUEL TEMP EURO3 SPECIFICATION(NJX)	1-81535-036-6	01	1	0204-0210	●
190	SENSOR; FUEL TEMP	1-81535-036-6	01	1	0204-0210		●
190	SENSOR; FUEL TEMP EURO3 SPECIFICATION(NJX)	1-81535-036-6	01	1	0211-0304	●
190	SENSOR; FUEL TEMP	1-81535-036-6	01	1	0211-0304		●	●
190	SENSOR; FUEL TEMP	1-81535-036-7	01	1	0305-		●	●
207	GASKET; EYE BOLT EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-0203	●
207	GASKET; EYE BOLT EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210		●
207	GASKET; EYE BOLT EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-		●	●
207	GASKET; EYE BOLT EXC. EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	03	1	0107-	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ID=12.2	1-09630-084-0	01	1	0107-0210	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0211-0304	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0211-0304			●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0305-			●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0204-		●

123 115 115 119 107 107 112 107 131 125 126 125 119 110 110 123 123 126 125 119 108 119 107 131 125 152 131 123 92 190 219 207 123 125 125 207 123 144 126 148 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
92	BRACKET; FUEL PIPE EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (D)	1-15419-433-0	01	1	0012-	●
92	BRACKET; FUEL PIPE (A)	1-15419-425-0	01	1	0204-		●
92	BRACKET; FUEL PIPE (C)	1-15419-427-0	01	1	0204-		●
92	BRACKET; FUEL PIPE (B)	1-15419-474-1	01	1	0204-		●
92	BRACKET; FUEL PIPE (E)	1-15419-432-0	01	1	0211-			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION(THN)	1-15415-950-0	01	1	0012-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO3 SPECIFICATION(NJX)	1-15416-708-0	01	1	0107-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN)	1-15415-779-0	01	1	0012-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-731-0	01	1	0204-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-764-0	01	1	0211-			●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0012-0203	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0204-0210	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0211-	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0012-0203	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0012-0210	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0211-	●		●
112	BOLT; JOINT,FUEL FILTER	1-09675-156-1	01	1	0204-		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0012-0203	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION(THN) (D)	1-15415-951-0	01	1	0012-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO3 SPECIFICATION(NJX) (E)	1-15416-542-0	01	1	0107-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C)	1-15415-776-0	01	1	0012-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (A)	1-15415-539-1	01	1	0204-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15416-090-0	01	1	0204-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (F)	1-15416-765-0	01	1	0211-			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION(THN)	1-15415-952-1	01	1	0012-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO3 SPECIFICATION(NJX)	1-15416-709-0	01	1	0107-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN)	1-15415-775-1	01	1	0012-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15416-769-0	01	1	0211-			●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	0012-0106	●
125	CLIP; FUEL PIPE EXC. EURO3 SPECIFICATION(NJX) (A)	1-09701-180-0	03	1	0107-	●
125	CLIP; FUEL PIPE EURO2 SPECIFICATION(THN) (B) ID=10 & 10 L=25	8-94393-280-1	03	1	0012-0106	●
125	CLIP; FUEL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) ID=10 & 10 L=25	8-94393-280-3	03	1	0107-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (C)	1-09701-172-3	01	1	0107-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (D)	1-09701-173-2	01	1	0107-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (A)	1-09701-180-0	05	1	0107-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (B) ID=10 & 10 L=25	8-94393-280-1	05	1	0107-0210	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (B) ID=10 & 10 L=25	8-94393-280-3	05	1	0211-	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-3	05	1	0211-			●
125	CLIP; FUEL PIPE EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (B) ID=10 & 10 L=25	8-94393-280-3	04	1	0012-	●
125	CLIP; FUEL PIPE (E) ID=10 & 10 L=25	8-94393-280-3	06	1	0204-		●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	04	1	0211-			●
126	BOLT; CLIP,FUEL PIPE EURO3 SPECIFICATION(NJX) M6X35 FLANGE	0-28680-635-0	06	1	0107-0512	●
126	BOLT; CLIP,FUEL PIPE EURO3 SPECIFICATION(NJX) M6X35 FLANGE	0-28650-635-0	06	1	0601-	●
126	BOLT; CLIP,FUEL PIPE EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M6X35 FLANGE	0-28080-635-0	01	1	0012-0512	●
126	BOLT; CLIP,FUEL PIPE EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	06	1	0204-0512		●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28050-630-0	06	1	0601-		●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28680-635-0	04	1	0211-0512			●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28650-635-0	04	1	0601-			●
131	BRACKET; FUEL PIPE CLIP (E)	1-82698-047-0	01	1	0012-0106	●
131	BRACKET; FUEL PIPE CLIP EXC. EURO3 SPECIFICATION(NJX) (E)	1-82698-047-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION(NJX) (A)	1-15419-605-1	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION(NJX) (C)	1-15419-607-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION(NJX) (B)	1-15419-668-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION(NJX) (D)	1-15419-698-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (F)	1-15419-336-0	01	1	0204-		●
131	BRACKET; FUEL PIPE CLIP (G)	1-15419-372-0	01	1	0204-		●
131	BRACKET; FUEL PIPE CLIP (H)	1-15419-423-1	01	1	0204-		●
131	BRACKET; FUEL PIPE CLIP (I)	1-15419-683-0	01	1	0211-			●
131	BRACKET; FUEL PIPE CLIP (J)	1-15419-695-0	01	1	0211-			●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	0012-0106	●
144	NUT; CLIP EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91150-106-0	03	1	0107-0602	●
144	NUT; CLIP EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91180-106-0	03	1	0603-	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0211-0602			●
144	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-			●
148	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28080-816-0	02	1	0107-0203	●
148	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28080-816-0	02	1	0204-0512	●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	0204-0512		●
148	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
148	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C) M8X25 FLANGE	0-28080-825-0	02	1	0012-0512	●
148	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C) M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28181-020-0	05	1	0204-0512		●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28151-020-0	05	1	0601-		●
148	BOLT; BRKT (D) M10X16 FLANGE	0-28181-016-0	02	1	0211-0512			●
148	BOLT; BRKT (D) M10X16 FLANGE	0-28151-016-0	02	1	0601-			●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0012-0106	●
152	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	02	1	0107-0210	●
152	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0211-0602			●
152	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	02	1	0603-	●
152	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-			●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0204-0602		●
152	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-		●
190	SENSOR; FUEL TEMP EURO3 SPECIFICATION(NJX)	1-81535-040-2	01	1	0107-0108	●
190	SENSOR; FUEL TEMP EURO3 SPECIFICATION(NJX)	1-81535-036-6	01	1	0109-0203	●
190	SENSOR; FUEL TEMP EURO3 SPECIFICATION(NJX)	1-81535-036-6	01	1	0204-0210	●
190	SENSOR; FUEL TEMP	1-81535-036-6	01	1	0204-0210		●
190	SENSOR; FUEL TEMP EURO3 SPECIFICATION(NJX)	1-81535-036-6	01	1	0211-0304	●
190	SENSOR; FUEL TEMP	1-81535-036-6	01	1	0211-0304		●	●
190	SENSOR; FUEL TEMP	1-81535-036-7	01	1	0305-		●	●
207	GASKET; EYE BOLT EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-0203	●
207	GASKET; EYE BOLT EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210		●
207	GASKET; EYE BOLT EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-		●	●
207	GASKET; EYE BOLT EXC. EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	03	1	0107-	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ID=12.2	1-09630-084-0	01	1	0107-0210	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0211-0304	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0211-0304			●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0305-			●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0204-		●

107 123 135 112 115 119 115 125 125 144 148 207 92 90 125 125 144 126 125 207 110 124 123 144 125 125 110 107 108 131 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
90	TUBE; DIST L=43	1-14149-048-1	01	1	0012-0106	●
90	TUBE; DIST EXC. EURO3 SPECIFICATION(NJX) L=43	1-14149-048-1	01	1	0107-	●
92	BRACKET; FUEL PIPE EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (D)	1-15419-433-0	01	1	0012-	●
92	BRACKET; FUEL PIPE (A)	1-15419-425-0	01	1	0204-		●
92	BRACKET; FUEL PIPE (C)	1-15419-427-0	01	1	0204-		●
92	BRACKET; FUEL PIPE (B)	1-15419-474-1	01	1	0204-		●
92	BRACKET; FUEL PIPE (E)	1-15419-432-0	01	1	0211-			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION(THN)	1-15415-950-0	01	1	0012-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO3 SPECIFICATION(NJX)	1-15416-708-0	01	1	0107-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN)	1-15415-779-0	01	1	0012-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-731-0	01	1	0204-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-764-0	01	1	0211-			●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0012-0203	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0204-0210	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0211-	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0012-0203	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0012-0210	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0211-	●		●
112	BOLT; JOINT,FUEL FILTER	1-09675-156-1	01	1	0204-		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0012-0203	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION(THN) (D)	1-15415-951-0	01	1	0012-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO3 SPECIFICATION(NJX) (E)	1-15416-542-0	01	1	0107-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C)	1-15415-776-0	01	1	0012-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (A)	1-15415-539-1	01	1	0204-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15416-090-0	01	1	0204-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (F)	1-15416-765-0	01	1	0211-			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION(THN)	1-15415-952-1	01	1	0012-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO3 SPECIFICATION(NJX)	1-15416-709-0	01	1	0107-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN)	1-15415-775-1	01	1	0012-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15416-769-0	01	1	0211-			●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0012-0106	●
124	NUT; CAP,FUEL PIPE EXC. EURO3 SPECIFICATION(NJX) M14	1-09468-002-1	01	1	0107-	●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	0012-0106	●
125	CLIP; FUEL PIPE EXC. EURO3 SPECIFICATION(NJX) (A)	1-09701-180-0	03	1	0107-	●
125	CLIP; FUEL PIPE EURO2 SPECIFICATION(THN) (B) ID=10 & 10 L=25	8-94393-280-1	03	1	0012-0106	●
125	CLIP; FUEL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) ID=10 & 10 L=25	8-94393-280-3	03	1	0107-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (C)	1-09701-172-3	01	1	0107-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (D)	1-09701-173-2	01	1	0107-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (A)	1-09701-180-0	05	1	0107-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (B) ID=10 & 10 L=25	8-94393-280-1	05	1	0107-0210	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (B) ID=10 & 10 L=25	8-94393-280-3	05	1	0211-	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-3	05	1	0211-			●
125	CLIP; FUEL PIPE EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (B) ID=10 & 10 L=25	8-94393-280-3	04	1	0012-	●
125	CLIP; FUEL PIPE (E) ID=10 & 10 L=25	8-94393-280-3	06	1	0204-		●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	04	1	0211-			●
126	BOLT; CLIP,FUEL PIPE EURO3 SPECIFICATION(NJX) M6X35 FLANGE	0-28680-635-0	06	1	0107-0512	●
126	BOLT; CLIP,FUEL PIPE EURO3 SPECIFICATION(NJX) M6X35 FLANGE	0-28650-635-0	06	1	0601-	●
126	BOLT; CLIP,FUEL PIPE EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M6X35 FLANGE	0-28080-635-0	01	1	0012-0512	●
126	BOLT; CLIP,FUEL PIPE EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	06	1	0204-0512		●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28050-630-0	06	1	0601-		●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28680-635-0	04	1	0211-0512			●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28650-635-0	04	1	0601-			●
131	BRACKET; FUEL PIPE CLIP (E)	1-82698-047-0	01	1	0012-0106	●
131	BRACKET; FUEL PIPE CLIP EXC. EURO3 SPECIFICATION(NJX) (E)	1-82698-047-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION(NJX) (A)	1-15419-605-1	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION(NJX) (C)	1-15419-607-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION(NJX) (B)	1-15419-668-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION(NJX) (D)	1-15419-698-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (F)	1-15419-336-0	01	1	0204-		●
131	BRACKET; FUEL PIPE CLIP (G)	1-15419-372-0	01	1	0204-		●
131	BRACKET; FUEL PIPE CLIP (H)	1-15419-423-1	01	1	0204-		●
131	BRACKET; FUEL PIPE CLIP (I)	1-15419-683-0	01	1	0211-			●
131	BRACKET; FUEL PIPE CLIP (J)	1-15419-695-0	01	1	0211-			●
135	CLIP; HARNESS L=250	5-09707-030-1	01	1	0012-0106	●
135	CLIP; HARNESS EXC. EURO3 SPECIFICATION(NJX) L=250	5-09707-030-1	01	1	0107-	●
135	CLIP; HARNESS L=140	5-09707-031-1	01	1	0012-0106	●
135	CLIP; HARNESS EXC. EURO3 SPECIFICATION(NJX) L=140	5-09707-031-1	01	1	0107-	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	0012-0106	●
144	NUT; CLIP EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91150-106-0	03	1	0107-0602	●
144	NUT; CLIP EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91180-106-0	03	1	0603-	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0211-0602			●
144	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-			●
148	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28080-816-0	02	1	0107-0203	●
148	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28080-816-0	02	1	0204-0512	●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	0204-0512		●
148	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
148	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C) M8X25 FLANGE	0-28080-825-0	02	1	0012-0512	●
148	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C) M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28181-020-0	05	1	0204-0512		●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28151-020-0	05	1	0601-		●
148	BOLT; BRKT (D) M10X16 FLANGE	0-28181-016-0	02	1	0211-0512			●
148	BOLT; BRKT (D) M10X16 FLANGE	0-28151-016-0	02	1	0601-			●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0012-0106	●
152	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	02	1	0107-0210	●
152	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0211-0602			●
152	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	02	1	0603-	●
152	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-			●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0204-0602		●
152	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-		●
207	GASKET; EYE BOLT EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-0203	●
207	GASKET; EYE BOLT EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210		●
207	GASKET; EYE BOLT EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-		●	●
207	GASKET; EYE BOLT EXC. EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	03	1	0107-	●

135 112 115 119 115 135 207 125 125 144 90 207 124 123 110 110 108 144 125 131 125 107 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
90	TUBE; DIST L=43	1-14149-048-1	01	1	0012-0106	●
90	TUBE; DIST EXC. EURO3 SPECIFICATION(NJX) L=43	1-14149-048-1	01	1	0107-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION(THN)	1-15415-950-0	01	1	0012-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO3 SPECIFICATION(NJX)	1-15416-708-0	01	1	0107-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN)	1-15415-779-0	01	1	0012-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-731-0	01	1	0204-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-764-0	01	1	0211-			●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0012-0203	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0204-0210	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0211-	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0012-0203	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0012-0210	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0211-	●		●
112	BOLT; JOINT,FUEL FILTER	1-09675-156-1	01	1	0204-		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0012-0203	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION(THN) (D)	1-15415-951-0	01	1	0012-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO3 SPECIFICATION(NJX) (E)	1-15416-542-0	01	1	0107-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C)	1-15415-776-0	01	1	0012-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (A)	1-15415-539-1	01	1	0204-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15416-090-0	01	1	0204-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (F)	1-15416-765-0	01	1	0211-			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION(THN)	1-15415-952-1	01	1	0012-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO3 SPECIFICATION(NJX)	1-15416-709-0	01	1	0107-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN)	1-15415-775-1	01	1	0012-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15416-769-0	01	1	0211-			●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0012-0106	●
124	NUT; CAP,FUEL PIPE EXC. EURO3 SPECIFICATION(NJX) M14	1-09468-002-1	01	1	0107-	●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	0012-0106	●
125	CLIP; FUEL PIPE EXC. EURO3 SPECIFICATION(NJX) (A)	1-09701-180-0	03	1	0107-	●
125	CLIP; FUEL PIPE EURO2 SPECIFICATION(THN) (B) ID=10 & 10 L=25	8-94393-280-1	03	1	0012-0106	●
125	CLIP; FUEL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) ID=10 & 10 L=25	8-94393-280-3	03	1	0107-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (C)	1-09701-172-3	01	1	0107-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (D)	1-09701-173-2	01	1	0107-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (A)	1-09701-180-0	05	1	0107-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (B) ID=10 & 10 L=25	8-94393-280-1	05	1	0107-0210	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION(NJX) (B) ID=10 & 10 L=25	8-94393-280-3	05	1	0211-	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-3	05	1	0211-			●
125	CLIP; FUEL PIPE EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (B) ID=10 & 10 L=25	8-94393-280-3	04	1	0012-	●
125	CLIP; FUEL PIPE (E) ID=10 & 10 L=25	8-94393-280-3	06	1	0204-		●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	04	1	0211-			●
131	BRACKET; FUEL PIPE CLIP (E)	1-82698-047-0	01	1	0012-0106	●
131	BRACKET; FUEL PIPE CLIP EXC. EURO3 SPECIFICATION(NJX) (E)	1-82698-047-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION(NJX) (A)	1-15419-605-1	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION(NJX) (C)	1-15419-607-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION(NJX) (B)	1-15419-668-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION(NJX) (D)	1-15419-698-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (F)	1-15419-336-0	01	1	0204-		●
131	BRACKET; FUEL PIPE CLIP (G)	1-15419-372-0	01	1	0204-		●
131	BRACKET; FUEL PIPE CLIP (H)	1-15419-423-1	01	1	0204-		●
131	BRACKET; FUEL PIPE CLIP (I)	1-15419-683-0	01	1	0211-			●
131	BRACKET; FUEL PIPE CLIP (J)	1-15419-695-0	01	1	0211-			●
135	CLIP; HARNESS L=250	5-09707-030-1	01	1	0012-0106	●
135	CLIP; HARNESS EXC. EURO3 SPECIFICATION(NJX) L=250	5-09707-030-1	01	1	0107-	●
135	CLIP; HARNESS L=140	5-09707-031-1	01	1	0012-0106	●
135	CLIP; HARNESS EXC. EURO3 SPECIFICATION(NJX) L=140	5-09707-031-1	01	1	0107-	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	0012-0106	●
144	NUT; CLIP EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91150-106-0	03	1	0107-0602	●
144	NUT; CLIP EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91180-106-0	03	1	0603-	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0211-0602			●
144	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-			●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0012-0106	●
152	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	02	1	0107-0210	●
152	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0211-0602			●
152	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	02	1	0603-	●
152	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-			●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0204-0602		●
152	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-		●
207	GASKET; EYE BOLT EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-0203	●
207	GASKET; EYE BOLT EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210		●
207	GASKET; EYE BOLT EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-		●	●
207	GASKET; EYE BOLT EXC. EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	03	1	0107-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
