◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10626 - FTR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-04 - CAB ASM ▶
6-04 — CAB ASM (#796) — 7 parça

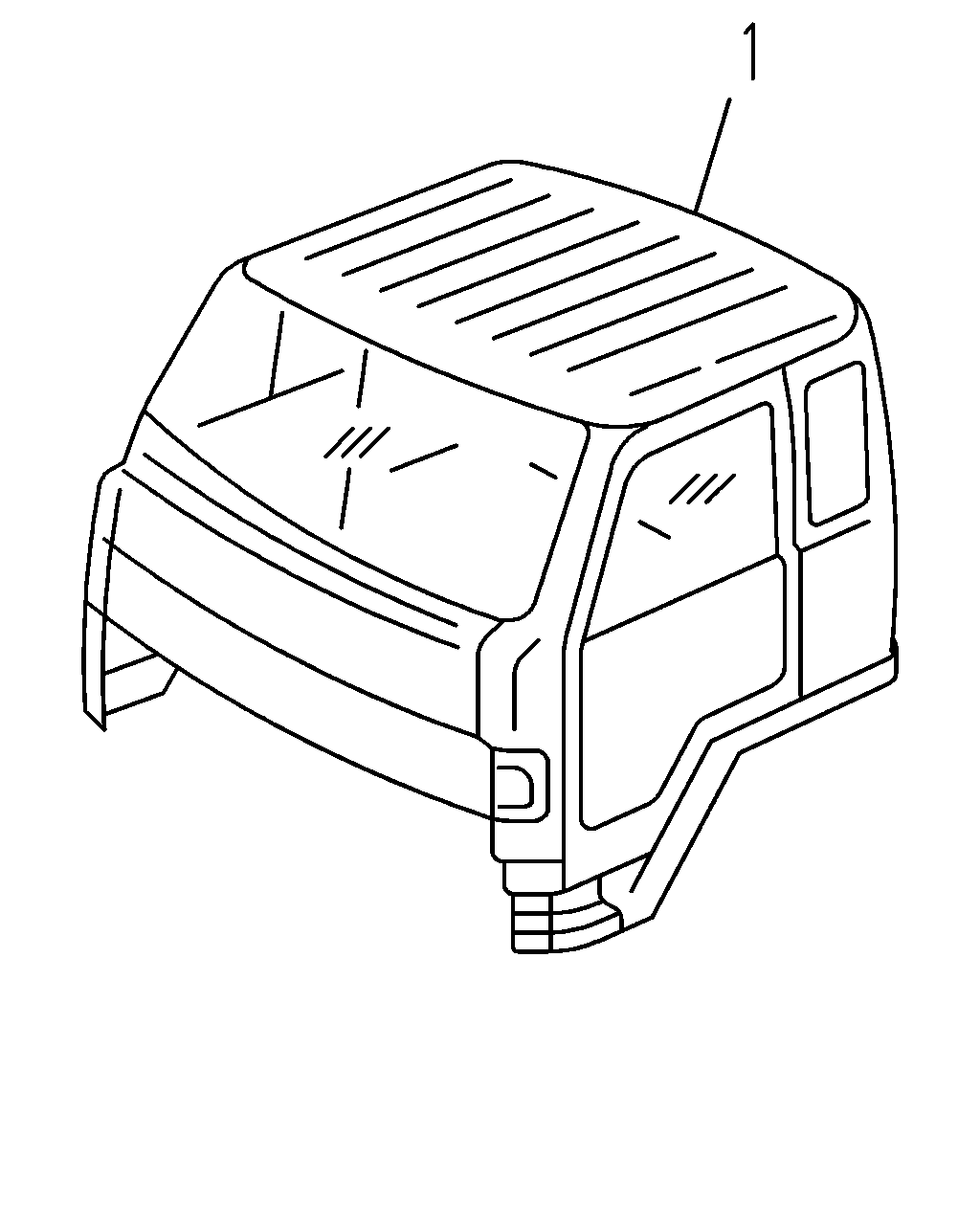

çizim 27753
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAB ASM; SERVICE,WO/ELEC
DELUXE CAB(W14) EXC. POWER WINDOW<A30>,MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32>,VERTICAL AIR CLEANER SNORKEL<PP3>,BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-61082-929-0 01 1 9202- ● ●
1 CAB ASM; SERVICE,WO/ELEC
MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> DELUXE CAB(W14) EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-61082-930-0 01 1 9202- ● ●
1 CAB ASM; SERVICE,WO/ELEC
MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> EXC. VERTICAL AIR CLEANER SNORKEL<PP3>,BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> ,DELUXE CAB(W14) 		1-61082-931-0 01 1 9202- ● ●
1 CAB ASM; SERVICE,WO/ELEC
EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> ,VERTICAL AIR CLEANER SNORKEL<PP3>,BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,DEL UXE CAB(W14) 		1-61082-927-0 01 1 9202- ● ●
1 CAB ASM; SERVICE,WO/ELEC
POWER WINDOW<A30> DELUXE CAB(W14) EXC. MIRROR O/S REARVIEW DOOR MOUNTED DR SIDE<D32> ,VERTICAL AIR CLEANER SNORKEL<PP3>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-61083-339-0 01 1 9202- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BUMPER W/HEADLAMPS<SLB> EXC. VERTICAL AIR CLEANER SNORKEL<PP3> 		1-61082-928-0 01 1 9202- ●
1 CAB ASM; SERVICE,WO/ELEC
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. VERTICAL AIR CLEANER SNORKEL<PP3> 		1-61083-338-0 01 1 9202- ●
