Sayfa 0-41 - Isuzu EPC

0-41 — FUEL FILTER AND BRACKET (#7959) — 275 parça

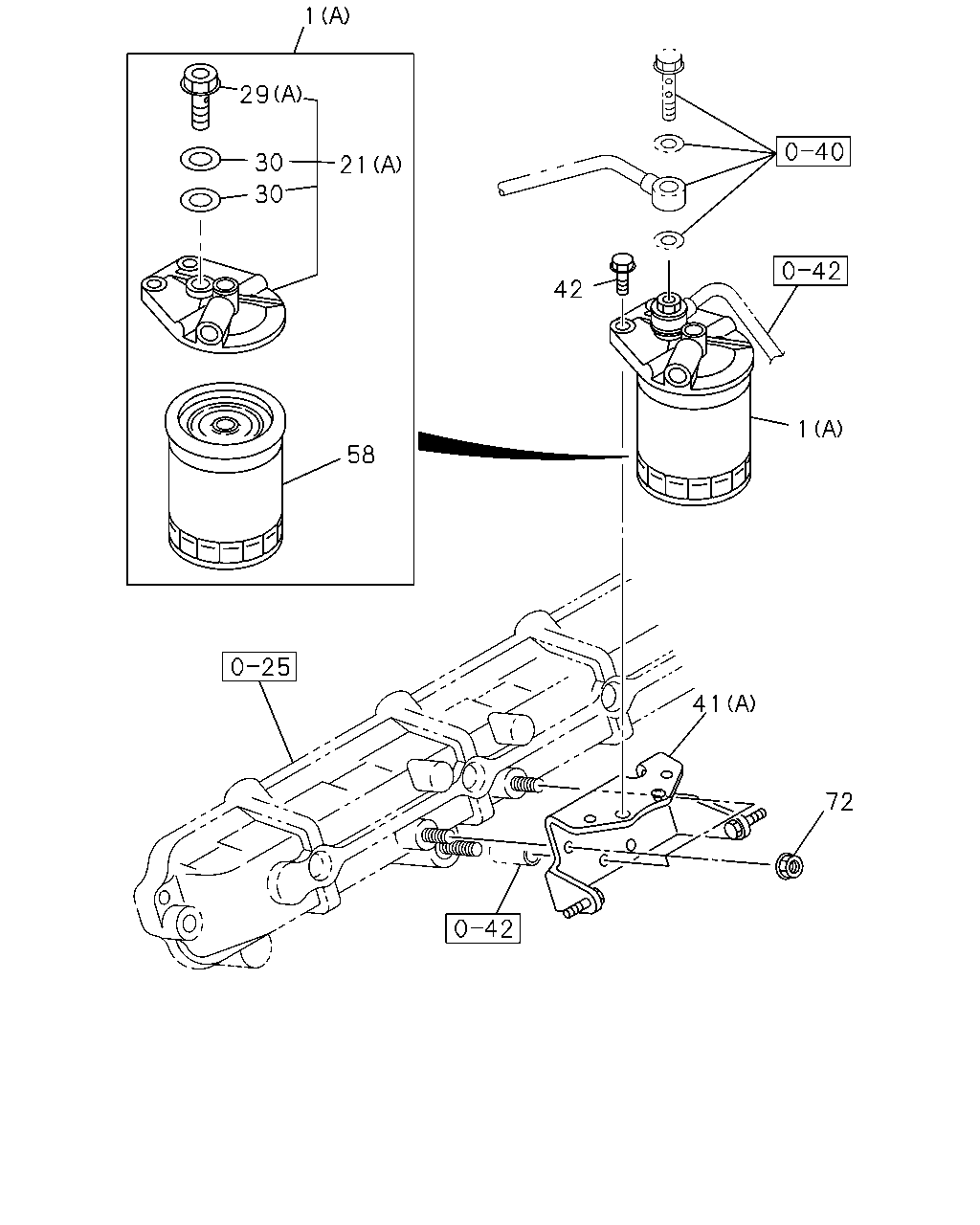

1 29 30 30 42 21 1 58 41 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER ASM; FUEL EURO2 SPECIFICATION(THN) (B)	1-13200-973-3	01	1	0012-	●
1	FILTER ASM; FUEL EURO3 SPECIFICATION(NJX) (C)	1-13200-996-0	01	1	0107-0210	●
1	FILTER ASM; FUEL EURO3 SPECIFICATION(NJX) (C)	1-13200-996-1	01	1	0211-	●
1	FILTER ASM; FUEL (C)	1-13200-996-1	01	1	0211-		●
1	FILTER ASM; FUEL EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A)	1-13200-706-1	01	1	0012-0302	●
1	FILTER ASM; FUEL EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A)	1-13200-701-4	01	1	0303-	●
1	FILTER ASM; FUEL (D)	1-13200-871-3	01	1	0204-			●
21	COVER; UPR,FUEL FILTER EURO2 SPECIFICATION(THN) (B)	1-13212-108-1	01	1	0012-0710	●
21	COVER; UPR,FUEL FILTER EXC. EURO3 SPECIFICATION(NJX) (B)	1-13212-108-1	01	1	0711-	●
21	COVER; UPR,FUEL FILTER EURO3 SPECIFICATION(NJX) (C)	1-13212-049-1	01	1	0107-0203	●
21	COVER; UPR,FUEL FILTER EURO3 SPECIFICATION(NJX) (C)	1-13212-049-1	01	1	0204-0210	●
21	COVER; UPR,FUEL FILTER (C)	1-13212-049-1	01	1	0204-0210			●
21	COVER; UPR,FUEL FILTER EURO3 SPECIFICATION(NJX) (C)	1-13212-049-1	01	1	0211-	●
21	COVER; UPR,FUEL FILTER (C)	1-13212-049-1	01	1	0211-		●	●
21	COVER; UPR,FUEL FILTER EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A)	1-13212-087-2	01	1	0012-	●
29	VALVE; OVERFLOW EURO2 SPECIFICATION(THN) (B)	8-94399-170-0	01	1	0012-	●
29	VALVE; OVERFLOW EURO3 SPECIFICATION(NJX) (C)	1-13260-115-0	01	1	0107-0210	●
29	VALVE; OVERFLOW EURO3 SPECIFICATION(NJX) (C)	1-13260-115-0	01	1	0211-	●
29	VALVE; OVERFLOW (C)	1-13260-115-0	01	1	0211-		●
29	VALVE; OVERFLOW EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A)	1-13260-047-0	01	1	0012-	●
29	VALVE; OVERFLOW (D)	1-13260-074-0	01	1	0204-			●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0012-0203	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●	●	●
41	BRACKET; FUEL FILTER EURO2 SPECIFICATION(THN) (B)	1-13219-330-0	01	1	0012-	●
41	BRACKET; FUEL FILTER EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A)	1-13219-312-2	01	1	0012-	●
41	BRACKET; FUEL FILTER (C)	1-13219-282-0	01	1	0204-			●
41	BRACKET; FUEL FILTER (D)	1-13219-301-2	01	1	0204-			●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0012-0106	●
42	BOLT; FUEL FILTER EXC. EURO3 SPECIFICATION(NJX) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0107-0512	●
42	BOLT; FUEL FILTER EXC. EURO3 SPECIFICATION(NJX) M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0601-	●
42	BOLT; FUEL FILTER EURO3 SPECIFICATION(NJX) M10X35 FLANGE	0-28681-035-0	04	1	0107-0210	●
42	BOLT; FUEL FILTER EURO3 SPECIFICATION(NJX) M10X35 FLANGE	0-28681-035-0	04	1	0211-0512	●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	04	1	0211-0512		●
42	BOLT; FUEL FILTER EURO3 SPECIFICATION(NJX) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	04	1	0601-		●
42	BOLT; FUEL FILTER M10X20 FLANGE	0-28081-020-0	04	1	0204-0512			●
42	BOLT; FUEL FILTER M10X20 FLANGE	0-28051-020-0	04	1	0601-			●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	0012-0106	●
58	ELEMENT; FUEL FILTER EXC. EURO3 SPECIFICATION(NJX)	1-13240-079-1	01	1	0107-0711	●
58	ELEMENT; FUEL FILTER EXC. EURO3 SPECIFICATION(NJX)	8-98036-654-0	01	1	0712-	●
72	NUT; BRKT,FUEL FILTER M8 FLANGE	0-91150-108-0	03	1	0012-0106	●
72	NUT; BRKT,FUEL FILTER EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	03	1	0107-0602	●
72	NUT; BRKT,FUEL FILTER EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	03	1	0603-	●

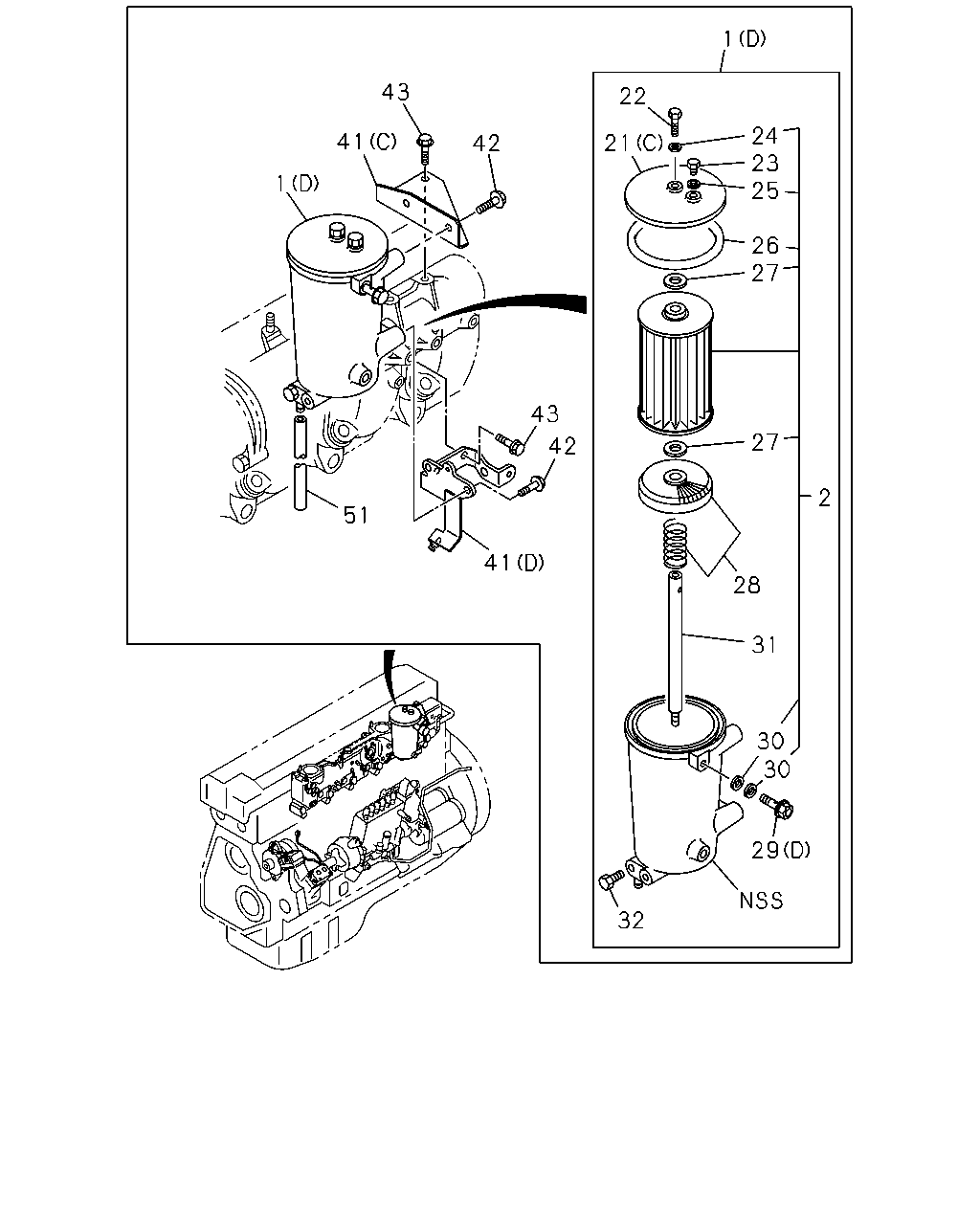

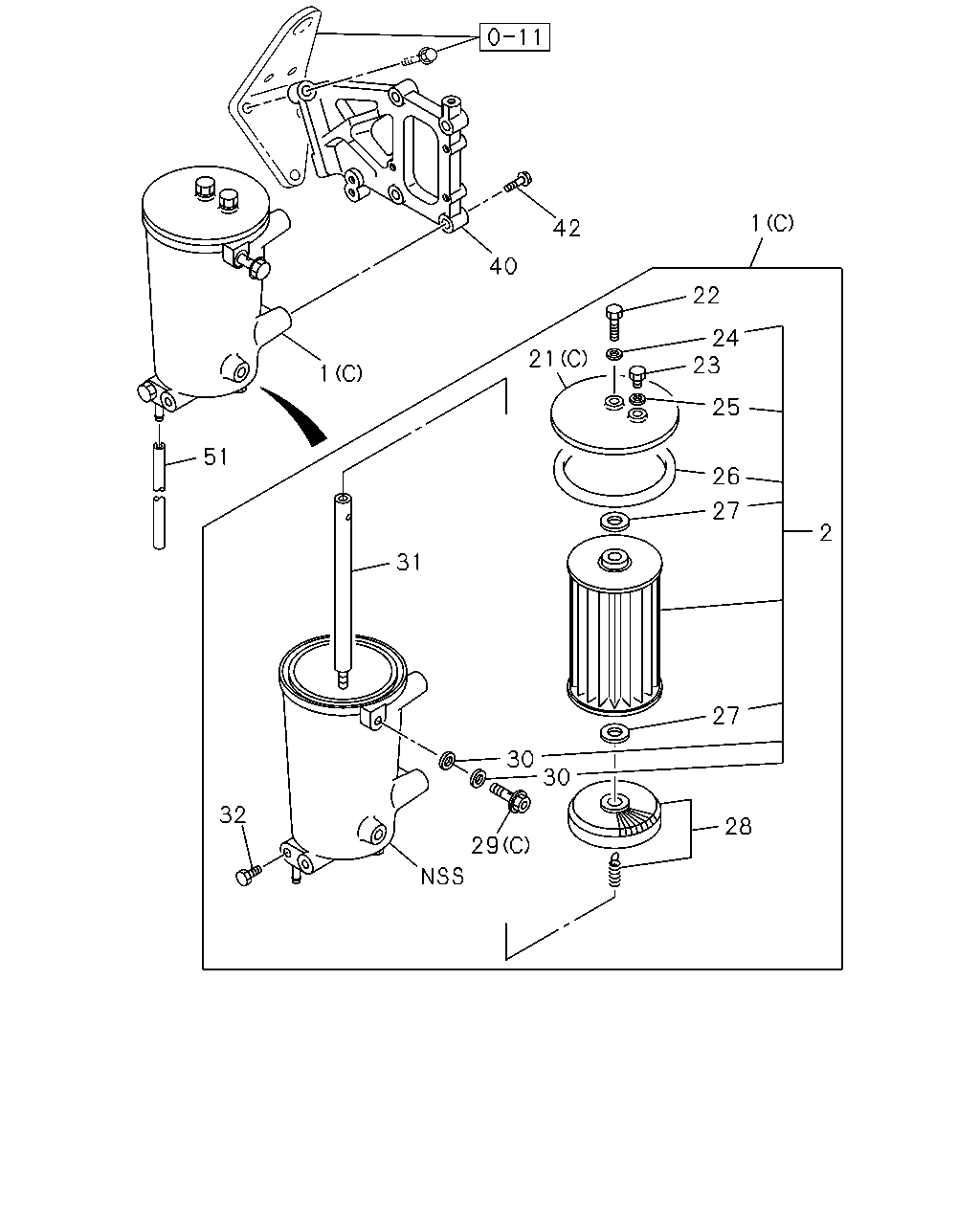

1 42 40 22 24 23 21 1 25 51 26 27 2 31 27 30 30 32 28 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER ASM; FUEL EURO2 SPECIFICATION(THN) (B)	1-13200-973-3	01	1	0012-	●
1	FILTER ASM; FUEL EURO3 SPECIFICATION(NJX) (C)	1-13200-996-0	01	1	0107-0210	●
1	FILTER ASM; FUEL EURO3 SPECIFICATION(NJX) (C)	1-13200-996-1	01	1	0211-	●
1	FILTER ASM; FUEL (C)	1-13200-996-1	01	1	0211-		●
1	FILTER ASM; FUEL EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A)	1-13200-706-1	01	1	0012-0302	●
1	FILTER ASM; FUEL EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A)	1-13200-701-4	01	1	0303-	●
1	FILTER ASM; FUEL (D)	1-13200-871-3	01	1	0204-			●
2	ELEMENT KIT; FUEL FILTER EURO3 SPECIFICATION(NJX)	1-87810-976-0	01	1	0107-0203	●
2	ELEMENT KIT; FUEL FILTER EURO3 SPECIFICATION(NJX)	1-87810-976-0	01	1	0204-0210	●
2	ELEMENT KIT; FUEL FILTER	1-87810-976-0	01	1	0204-0210			●
2	ELEMENT KIT; FUEL FILTER EURO3 SPECIFICATION(NJX)	1-87810-976-0	01	1	0211-	●
2	ELEMENT KIT; FUEL FILTER	1-87810-976-0	01	1	0211-		●	●
21	COVER; UPR,FUEL FILTER EURO2 SPECIFICATION(THN) (B)	1-13212-108-1	01	1	0012-0710	●
21	COVER; UPR,FUEL FILTER EXC. EURO3 SPECIFICATION(NJX) (B)	1-13212-108-1	01	1	0711-	●
21	COVER; UPR,FUEL FILTER EURO3 SPECIFICATION(NJX) (C)	1-13212-049-1	01	1	0107-0203	●
21	COVER; UPR,FUEL FILTER EURO3 SPECIFICATION(NJX) (C)	1-13212-049-1	01	1	0204-0210	●
21	COVER; UPR,FUEL FILTER (C)	1-13212-049-1	01	1	0204-0210			●
21	COVER; UPR,FUEL FILTER EURO3 SPECIFICATION(NJX) (C)	1-13212-049-1	01	1	0211-	●
21	COVER; UPR,FUEL FILTER (C)	1-13212-049-1	01	1	0211-		●	●
21	COVER; UPR,FUEL FILTER EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A)	1-13212-087-2	01	1	0012-	●
22	BOLT; CENTER TUBE,COVER EURO3 SPECIFICATION(NJX)	1-13219-045-0	01	1	0107-0203	●
22	BOLT; CENTER TUBE,COVER EURO3 SPECIFICATION(NJX)	1-13219-045-0	01	1	0204-0210	●
22	BOLT; CENTER TUBE,COVER	1-13219-045-0	01	1	0204-0210			●
22	BOLT; CENTER TUBE,COVER EURO3 SPECIFICATION(NJX)	1-13219-045-0	01	1	0211-	●
22	BOLT; CENTER TUBE,COVER	1-13219-045-0	01	1	0211-		●	●
23	PLUG; COVER EURO3 SPECIFICATION(NJX)	1-13219-074-0	01	1	0107-0203	●
23	PLUG; COVER EURO3 SPECIFICATION(NJX)	1-13219-074-0	01	1	0204-0210	●
23	PLUG; COVER	1-13219-074-0	01	1	0204-0210			●
23	PLUG; COVER EURO3 SPECIFICATION(NJX)	1-13219-074-0	01	1	0211-	●
23	PLUG; COVER	1-13219-074-0	01	1	0211-		●	●
24	GASKET; CENTER TUBE BOLT EURO3 SPECIFICATION(NJX) ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-0203	●
24	GASKET; CENTER TUBE BOLT EURO3 SPECIFICATION(NJX) ID=10.2 OD=15.2	1-09630-083-0	01	1	0204-0210	●
24	GASKET; CENTER TUBE BOLT ID=10.2 OD=15.2	1-09630-083-0	01	1	0204-0210			●
24	GASKET; CENTER TUBE BOLT EURO3 SPECIFICATION(NJX) ID=10.2 OD=15.2	1-09630-083-0	01	1	0211-	●
24	GASKET; CENTER TUBE BOLT ID=10.2 OD=15.2	1-09630-083-0	01	1	0211-		●	●
25	GASKET; AIR DRAIN PLUG EURO3 SPECIFICATION(NJX) ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-0203	●
25	GASKET; AIR DRAIN PLUG EURO3 SPECIFICATION(NJX) ID=10.2 OD=15.2	1-09630-083-0	01	1	0204-0210	●
25	GASKET; AIR DRAIN PLUG ID=10.2 OD=15.2	1-09630-083-0	01	1	0204-0210			●
25	GASKET; AIR DRAIN PLUG EURO3 SPECIFICATION(NJX) ID=10.2 OD=15.2	1-09630-083-0	01	1	0211-	●
25	GASKET; AIR DRAIN PLUG ID=10.2 OD=15.2	1-09630-083-0	01	1	0211-		●	●
26	GASKET; COVER TO BODY EURO3 SPECIFICATION(NJX)	9-09720-797-0	01	1	0107-0203	●
26	GASKET; COVER TO BODY EURO3 SPECIFICATION(NJX)	9-09720-797-0	01	1	0204-0210	●
26	GASKET; COVER TO BODY	9-09720-797-0	01	1	0204-0210			●
26	GASKET; COVER TO BODY EURO3 SPECIFICATION(NJX)	9-09720-797-0	01	1	0211-	●
26	GASKET; COVER TO BODY	9-09720-797-0	01	1	0211-		●	●
27	GASKET; ELEMENT EURO3 SPECIFICATION(NJX)	1-09630-007-0	02	1	0107-0210	●
27	GASKET; ELEMENT EURO3 SPECIFICATION(NJX)	1-09630-007-0	02	1	0211-0301	●
27	GASKET; ELEMENT	1-09630-007-0	02	1	0211-0301		●
27	GASKET; ELEMENT EURO3 SPECIFICATION(NJX)	1-09630-007-0	02	1	0302-	●
27	GASKET; ELEMENT	1-09630-007-0	02	1	0302-		●	●
27	GASKET; ELEMENT	1-09630-007-0	02	1	0204-0301			●
28	STRAINER; WATER,FUEL FILTER EURO3 SPECIFICATION(NJX)	1-13251-001-0	01	1	0107-0203	●
28	STRAINER; WATER,FUEL FILTER EURO3 SPECIFICATION(NJX)	1-13251-001-0	01	1	0204-0210	●
28	STRAINER; WATER,FUEL FILTER	1-13251-001-0	01	1	0204-0210			●
28	STRAINER; WATER,FUEL FILTER EURO3 SPECIFICATION(NJX)	1-13251-001-0	01	1	0211-	●
28	STRAINER; WATER,FUEL FILTER	1-13251-001-0	01	1	0211-		●	●
29	VALVE; OVERFLOW EURO2 SPECIFICATION(THN) (B)	8-94399-170-0	01	1	0012-	●
29	VALVE; OVERFLOW EURO3 SPECIFICATION(NJX) (C)	1-13260-115-0	01	1	0107-0210	●
29	VALVE; OVERFLOW EURO3 SPECIFICATION(NJX) (C)	1-13260-115-0	01	1	0211-	●
29	VALVE; OVERFLOW (C)	1-13260-115-0	01	1	0211-		●
29	VALVE; OVERFLOW EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A)	1-13260-047-0	01	1	0012-	●
29	VALVE; OVERFLOW (D)	1-13260-074-0	01	1	0204-			●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0012-0203	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●	●	●
31	TUBE; CENTER BOLT EURO3 SPECIFICATION(NJX)	1-13231-026-0	01	1	0107-0203	●
31	TUBE; CENTER BOLT EURO3 SPECIFICATION(NJX)	1-13231-026-0	01	1	0204-0210	●
31	TUBE; CENTER BOLT	1-13231-026-0	01	1	0204-0210			●
31	TUBE; CENTER BOLT EURO3 SPECIFICATION(NJX)	1-13231-026-0	01	1	0211-	●
31	TUBE; CENTER BOLT	1-13231-026-0	01	1	0211-		●	●
32	BOLT; DRAIN,FUEL FILTER EURO3 SPECIFICATION(NJX)	1-13219-030-0	01	1	0107-0203	●
32	BOLT; DRAIN,FUEL FILTER EURO3 SPECIFICATION(NJX)	1-13219-030-0	01	1	0204-0210	●
32	BOLT; DRAIN,FUEL FILTER	1-13219-030-0	01	1	0204-0210			●
32	BOLT; DRAIN,FUEL FILTER EURO3 SPECIFICATION(NJX)	1-13219-030-0	01	1	0211-	●
32	BOLT; DRAIN,FUEL FILTER	1-13219-030-0	01	1	0211-		●	●
40	BRACKET; FUEL FILTER EURO3 SPECIFICATION(NJX)	1-13219-352-1	01	1	0107-0210	●
40	BRACKET; FUEL FILTER EURO3 SPECIFICATION(NJX)	1-13219-352-1	01	1	0211-	●
40	BRACKET; FUEL FILTER	1-13219-352-1	01	1	0211-		●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0012-0106	●
42	BOLT; FUEL FILTER EXC. EURO3 SPECIFICATION(NJX) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0107-0512	●
42	BOLT; FUEL FILTER EXC. EURO3 SPECIFICATION(NJX) M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0601-	●
42	BOLT; FUEL FILTER EURO3 SPECIFICATION(NJX) M10X35 FLANGE	0-28681-035-0	04	1	0107-0210	●
42	BOLT; FUEL FILTER EURO3 SPECIFICATION(NJX) M10X35 FLANGE	0-28681-035-0	04	1	0211-0512	●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	04	1	0211-0512		●
42	BOLT; FUEL FILTER EURO3 SPECIFICATION(NJX) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	04	1	0601-		●
42	BOLT; FUEL FILTER M10X20 FLANGE	0-28081-020-0	04	1	0204-0512			●
42	BOLT; FUEL FILTER M10X20 FLANGE	0-28051-020-0	04	1	0601-			●
51	PIPE; VINYL EURO3 SPECIFICATION(NJX) L=1000 SERVICED BY L=10000	9-09914-909-0	01	1	0107-0210	●
51	PIPE; VINYL EURO3 SPECIFICATION(NJX) L=1000 SERVICED BY L=10000	9-09914-909-0	01	1	0211-	●
51	PIPE; VINYL L=1000 SERVICED BY L=10000	9-09914-909-0	01	1	0211-		●
51	PIPE; VINYL L=750 SERVICED BY L=10000	9-09914-909-0	01	1	0204-			●

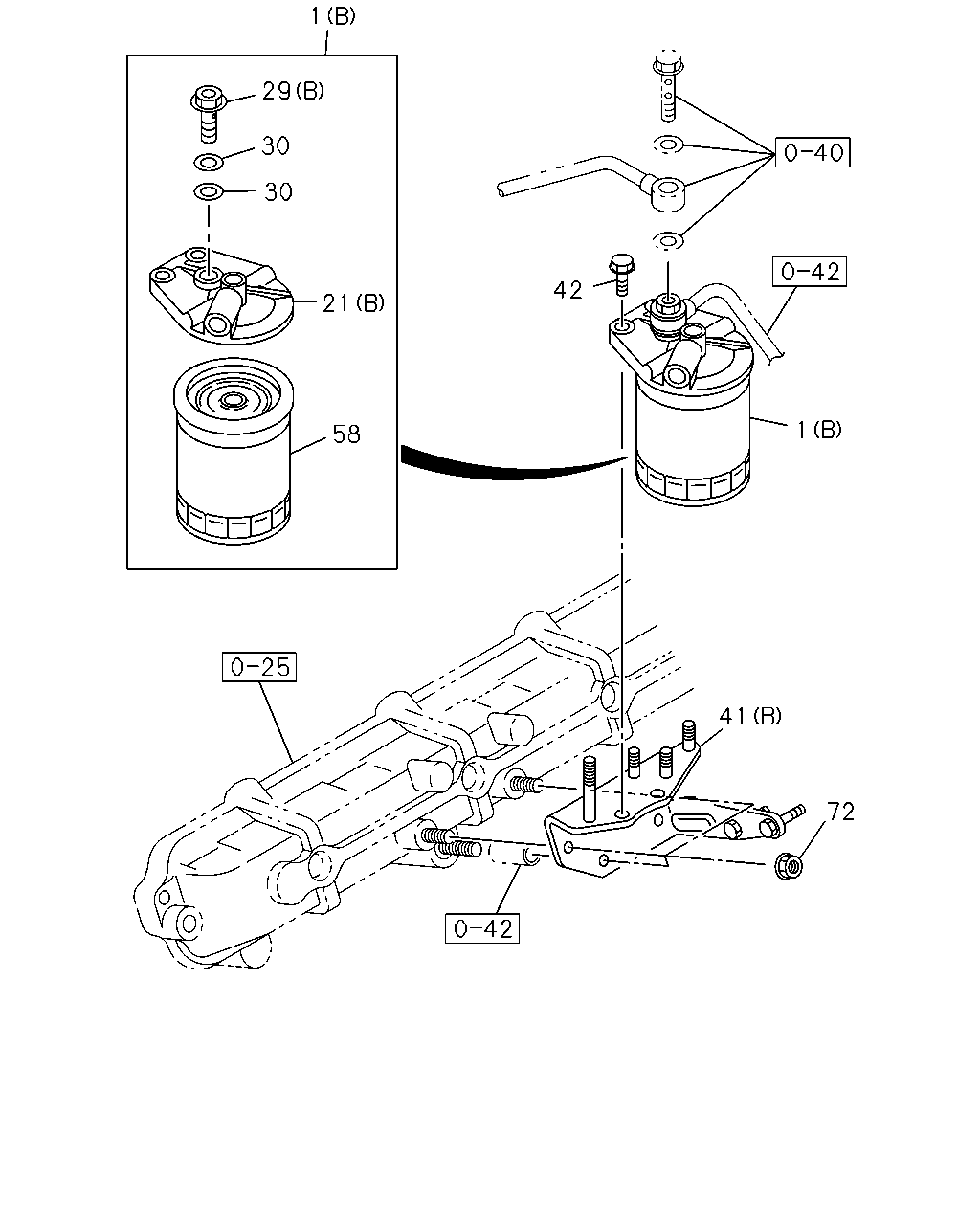

1 29 30 21 30 42 1 58 41 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER ASM; FUEL EURO2 SPECIFICATION(THN) (B)	1-13200-973-3	01	1	0012-	●
1	FILTER ASM; FUEL EURO3 SPECIFICATION(NJX) (C)	1-13200-996-0	01	1	0107-0210	●
1	FILTER ASM; FUEL EURO3 SPECIFICATION(NJX) (C)	1-13200-996-1	01	1	0211-	●
1	FILTER ASM; FUEL (C)	1-13200-996-1	01	1	0211-		●
1	FILTER ASM; FUEL EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A)	1-13200-706-1	01	1	0012-0302	●
1	FILTER ASM; FUEL EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A)	1-13200-701-4	01	1	0303-	●
1	FILTER ASM; FUEL (D)	1-13200-871-3	01	1	0204-			●
21	COVER; UPR,FUEL FILTER EURO2 SPECIFICATION(THN) (B)	1-13212-108-1	01	1	0012-0710	●
21	COVER; UPR,FUEL FILTER EXC. EURO3 SPECIFICATION(NJX) (B)	1-13212-108-1	01	1	0711-	●
21	COVER; UPR,FUEL FILTER EURO3 SPECIFICATION(NJX) (C)	1-13212-049-1	01	1	0107-0203	●
21	COVER; UPR,FUEL FILTER EURO3 SPECIFICATION(NJX) (C)	1-13212-049-1	01	1	0204-0210	●
21	COVER; UPR,FUEL FILTER (C)	1-13212-049-1	01	1	0204-0210			●
21	COVER; UPR,FUEL FILTER EURO3 SPECIFICATION(NJX) (C)	1-13212-049-1	01	1	0211-	●
21	COVER; UPR,FUEL FILTER (C)	1-13212-049-1	01	1	0211-		●	●
21	COVER; UPR,FUEL FILTER EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A)	1-13212-087-2	01	1	0012-	●
29	VALVE; OVERFLOW EURO2 SPECIFICATION(THN) (B)	8-94399-170-0	01	1	0012-	●
29	VALVE; OVERFLOW EURO3 SPECIFICATION(NJX) (C)	1-13260-115-0	01	1	0107-0210	●
29	VALVE; OVERFLOW EURO3 SPECIFICATION(NJX) (C)	1-13260-115-0	01	1	0211-	●
29	VALVE; OVERFLOW (C)	1-13260-115-0	01	1	0211-		●
29	VALVE; OVERFLOW EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A)	1-13260-047-0	01	1	0012-	●
29	VALVE; OVERFLOW (D)	1-13260-074-0	01	1	0204-			●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0012-0203	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●	●	●
41	BRACKET; FUEL FILTER EURO2 SPECIFICATION(THN) (B)	1-13219-330-0	01	1	0012-	●
41	BRACKET; FUEL FILTER EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A)	1-13219-312-2	01	1	0012-	●
41	BRACKET; FUEL FILTER (C)	1-13219-282-0	01	1	0204-			●
41	BRACKET; FUEL FILTER (D)	1-13219-301-2	01	1	0204-			●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0012-0106	●
42	BOLT; FUEL FILTER EXC. EURO3 SPECIFICATION(NJX) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0107-0512	●
42	BOLT; FUEL FILTER EXC. EURO3 SPECIFICATION(NJX) M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0601-	●
42	BOLT; FUEL FILTER EURO3 SPECIFICATION(NJX) M10X35 FLANGE	0-28681-035-0	04	1	0107-0210	●
42	BOLT; FUEL FILTER EURO3 SPECIFICATION(NJX) M10X35 FLANGE	0-28681-035-0	04	1	0211-0512	●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	04	1	0211-0512		●
42	BOLT; FUEL FILTER EURO3 SPECIFICATION(NJX) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	04	1	0601-		●
42	BOLT; FUEL FILTER M10X20 FLANGE	0-28081-020-0	04	1	0204-0512			●
42	BOLT; FUEL FILTER M10X20 FLANGE	0-28051-020-0	04	1	0601-			●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	0012-0106	●
58	ELEMENT; FUEL FILTER EXC. EURO3 SPECIFICATION(NJX)	1-13240-079-1	01	1	0107-0711	●
58	ELEMENT; FUEL FILTER EXC. EURO3 SPECIFICATION(NJX)	8-98036-654-0	01	1	0712-	●
72	NUT; BRKT,FUEL FILTER M8 FLANGE	0-91150-108-0	03	1	0012-0106	●
72	NUT; BRKT,FUEL FILTER EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	03	1	0107-0602	●
72	NUT; BRKT,FUEL FILTER EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	03	1	0603-	●

1 43 22 24 23 25 41 21 42 1 26 27 43 27 42 2 51 41 28 31 30 30 29 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER ASM; FUEL EURO2 SPECIFICATION(THN) (B)	1-13200-973-3	01	1	0012-	●
1	FILTER ASM; FUEL EURO3 SPECIFICATION(NJX) (C)	1-13200-996-0	01	1	0107-0210	●
1	FILTER ASM; FUEL EURO3 SPECIFICATION(NJX) (C)	1-13200-996-1	01	1	0211-	●
1	FILTER ASM; FUEL (C)	1-13200-996-1	01	1	0211-		●
1	FILTER ASM; FUEL EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A)	1-13200-706-1	01	1	0012-0302	●
1	FILTER ASM; FUEL EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A)	1-13200-701-4	01	1	0303-	●
1	FILTER ASM; FUEL (D)	1-13200-871-3	01	1	0204-			●
2	ELEMENT KIT; FUEL FILTER EURO3 SPECIFICATION(NJX)	1-87810-976-0	01	1	0107-0203	●
2	ELEMENT KIT; FUEL FILTER EURO3 SPECIFICATION(NJX)	1-87810-976-0	01	1	0204-0210	●
2	ELEMENT KIT; FUEL FILTER	1-87810-976-0	01	1	0204-0210			●
2	ELEMENT KIT; FUEL FILTER EURO3 SPECIFICATION(NJX)	1-87810-976-0	01	1	0211-	●
2	ELEMENT KIT; FUEL FILTER	1-87810-976-0	01	1	0211-		●	●
21	COVER; UPR,FUEL FILTER EURO2 SPECIFICATION(THN) (B)	1-13212-108-1	01	1	0012-0710	●
21	COVER; UPR,FUEL FILTER EXC. EURO3 SPECIFICATION(NJX) (B)	1-13212-108-1	01	1	0711-	●
21	COVER; UPR,FUEL FILTER EURO3 SPECIFICATION(NJX) (C)	1-13212-049-1	01	1	0107-0203	●
21	COVER; UPR,FUEL FILTER EURO3 SPECIFICATION(NJX) (C)	1-13212-049-1	01	1	0204-0210	●
21	COVER; UPR,FUEL FILTER (C)	1-13212-049-1	01	1	0204-0210			●
21	COVER; UPR,FUEL FILTER EURO3 SPECIFICATION(NJX) (C)	1-13212-049-1	01	1	0211-	●
21	COVER; UPR,FUEL FILTER (C)	1-13212-049-1	01	1	0211-		●	●
21	COVER; UPR,FUEL FILTER EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A)	1-13212-087-2	01	1	0012-	●
22	BOLT; CENTER TUBE,COVER EURO3 SPECIFICATION(NJX)	1-13219-045-0	01	1	0107-0203	●
22	BOLT; CENTER TUBE,COVER EURO3 SPECIFICATION(NJX)	1-13219-045-0	01	1	0204-0210	●
22	BOLT; CENTER TUBE,COVER	1-13219-045-0	01	1	0204-0210			●
22	BOLT; CENTER TUBE,COVER EURO3 SPECIFICATION(NJX)	1-13219-045-0	01	1	0211-	●
22	BOLT; CENTER TUBE,COVER	1-13219-045-0	01	1	0211-		●	●
23	PLUG; COVER EURO3 SPECIFICATION(NJX)	1-13219-074-0	01	1	0107-0203	●
23	PLUG; COVER EURO3 SPECIFICATION(NJX)	1-13219-074-0	01	1	0204-0210	●
23	PLUG; COVER	1-13219-074-0	01	1	0204-0210			●
23	PLUG; COVER EURO3 SPECIFICATION(NJX)	1-13219-074-0	01	1	0211-	●
23	PLUG; COVER	1-13219-074-0	01	1	0211-		●	●
24	GASKET; CENTER TUBE BOLT EURO3 SPECIFICATION(NJX) ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-0203	●
24	GASKET; CENTER TUBE BOLT EURO3 SPECIFICATION(NJX) ID=10.2 OD=15.2	1-09630-083-0	01	1	0204-0210	●
24	GASKET; CENTER TUBE BOLT ID=10.2 OD=15.2	1-09630-083-0	01	1	0204-0210			●
24	GASKET; CENTER TUBE BOLT EURO3 SPECIFICATION(NJX) ID=10.2 OD=15.2	1-09630-083-0	01	1	0211-	●
24	GASKET; CENTER TUBE BOLT ID=10.2 OD=15.2	1-09630-083-0	01	1	0211-		●	●
25	GASKET; AIR DRAIN PLUG EURO3 SPECIFICATION(NJX) ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-0203	●
25	GASKET; AIR DRAIN PLUG EURO3 SPECIFICATION(NJX) ID=10.2 OD=15.2	1-09630-083-0	01	1	0204-0210	●
25	GASKET; AIR DRAIN PLUG ID=10.2 OD=15.2	1-09630-083-0	01	1	0204-0210			●
25	GASKET; AIR DRAIN PLUG EURO3 SPECIFICATION(NJX) ID=10.2 OD=15.2	1-09630-083-0	01	1	0211-	●
25	GASKET; AIR DRAIN PLUG ID=10.2 OD=15.2	1-09630-083-0	01	1	0211-		●	●
26	GASKET; COVER TO BODY EURO3 SPECIFICATION(NJX)	9-09720-797-0	01	1	0107-0203	●
26	GASKET; COVER TO BODY EURO3 SPECIFICATION(NJX)	9-09720-797-0	01	1	0204-0210	●
26	GASKET; COVER TO BODY	9-09720-797-0	01	1	0204-0210			●
26	GASKET; COVER TO BODY EURO3 SPECIFICATION(NJX)	9-09720-797-0	01	1	0211-	●
26	GASKET; COVER TO BODY	9-09720-797-0	01	1	0211-		●	●
27	GASKET; ELEMENT EURO3 SPECIFICATION(NJX)	1-09630-007-0	02	1	0107-0210	●
27	GASKET; ELEMENT EURO3 SPECIFICATION(NJX)	1-09630-007-0	02	1	0211-0301	●
27	GASKET; ELEMENT	1-09630-007-0	02	1	0211-0301		●
27	GASKET; ELEMENT EURO3 SPECIFICATION(NJX)	1-09630-007-0	02	1	0302-	●
27	GASKET; ELEMENT	1-09630-007-0	02	1	0302-		●	●
27	GASKET; ELEMENT	1-09630-007-0	02	1	0204-0301			●
28	STRAINER; WATER,FUEL FILTER EURO3 SPECIFICATION(NJX)	1-13251-001-0	01	1	0107-0203	●
28	STRAINER; WATER,FUEL FILTER EURO3 SPECIFICATION(NJX)	1-13251-001-0	01	1	0204-0210	●
28	STRAINER; WATER,FUEL FILTER	1-13251-001-0	01	1	0204-0210			●
28	STRAINER; WATER,FUEL FILTER EURO3 SPECIFICATION(NJX)	1-13251-001-0	01	1	0211-	●
28	STRAINER; WATER,FUEL FILTER	1-13251-001-0	01	1	0211-		●	●
29	VALVE; OVERFLOW EURO2 SPECIFICATION(THN) (B)	8-94399-170-0	01	1	0012-	●
29	VALVE; OVERFLOW EURO3 SPECIFICATION(NJX) (C)	1-13260-115-0	01	1	0107-0210	●
29	VALVE; OVERFLOW EURO3 SPECIFICATION(NJX) (C)	1-13260-115-0	01	1	0211-	●
29	VALVE; OVERFLOW (C)	1-13260-115-0	01	1	0211-		●
29	VALVE; OVERFLOW EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A)	1-13260-047-0	01	1	0012-	●
29	VALVE; OVERFLOW (D)	1-13260-074-0	01	1	0204-			●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0012-0203	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●	●	●
31	TUBE; CENTER BOLT EURO3 SPECIFICATION(NJX)	1-13231-026-0	01	1	0107-0203	●
31	TUBE; CENTER BOLT EURO3 SPECIFICATION(NJX)	1-13231-026-0	01	1	0204-0210	●
31	TUBE; CENTER BOLT	1-13231-026-0	01	1	0204-0210			●
31	TUBE; CENTER BOLT EURO3 SPECIFICATION(NJX)	1-13231-026-0	01	1	0211-	●
31	TUBE; CENTER BOLT	1-13231-026-0	01	1	0211-		●	●
32	BOLT; DRAIN,FUEL FILTER EURO3 SPECIFICATION(NJX)	1-13219-030-0	01	1	0107-0203	●
32	BOLT; DRAIN,FUEL FILTER EURO3 SPECIFICATION(NJX)	1-13219-030-0	01	1	0204-0210	●
32	BOLT; DRAIN,FUEL FILTER	1-13219-030-0	01	1	0204-0210			●
32	BOLT; DRAIN,FUEL FILTER EURO3 SPECIFICATION(NJX)	1-13219-030-0	01	1	0211-	●
32	BOLT; DRAIN,FUEL FILTER	1-13219-030-0	01	1	0211-		●	●
41	BRACKET; FUEL FILTER EURO2 SPECIFICATION(THN) (B)	1-13219-330-0	01	1	0012-	●
41	BRACKET; FUEL FILTER EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A)	1-13219-312-2	01	1	0012-	●
41	BRACKET; FUEL FILTER (C)	1-13219-282-0	01	1	0204-			●
41	BRACKET; FUEL FILTER (D)	1-13219-301-2	01	1	0204-			●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0012-0106	●
42	BOLT; FUEL FILTER EXC. EURO3 SPECIFICATION(NJX) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0107-0512	●
42	BOLT; FUEL FILTER EXC. EURO3 SPECIFICATION(NJX) M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0601-	●
42	BOLT; FUEL FILTER EURO3 SPECIFICATION(NJX) M10X35 FLANGE	0-28681-035-0	04	1	0107-0210	●
42	BOLT; FUEL FILTER EURO3 SPECIFICATION(NJX) M10X35 FLANGE	0-28681-035-0	04	1	0211-0512	●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	04	1	0211-0512		●
42	BOLT; FUEL FILTER EURO3 SPECIFICATION(NJX) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	04	1	0601-		●
42	BOLT; FUEL FILTER M10X20 FLANGE	0-28081-020-0	04	1	0204-0512			●
42	BOLT; FUEL FILTER M10X20 FLANGE	0-28051-020-0	04	1	0601-			●
43	BOLT; BRKT M10X20 FLANGE	0-28181-020-0	04	1	0204-0512			●
43	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	04	1	0601-			●
51	PIPE; VINYL EURO3 SPECIFICATION(NJX) L=1000 SERVICED BY L=10000	9-09914-909-0	01	1	0107-0210	●
51	PIPE; VINYL EURO3 SPECIFICATION(NJX) L=1000 SERVICED BY L=10000	9-09914-909-0	01	1	0211-	●
51	PIPE; VINYL L=1000 SERVICED BY L=10000	9-09914-909-0	01	1	0211-		●
51	PIPE; VINYL L=750 SERVICED BY L=10000	9-09914-909-0	01	1	0204-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
