◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51375 - TFR/TFS(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#79586) — 12 parça

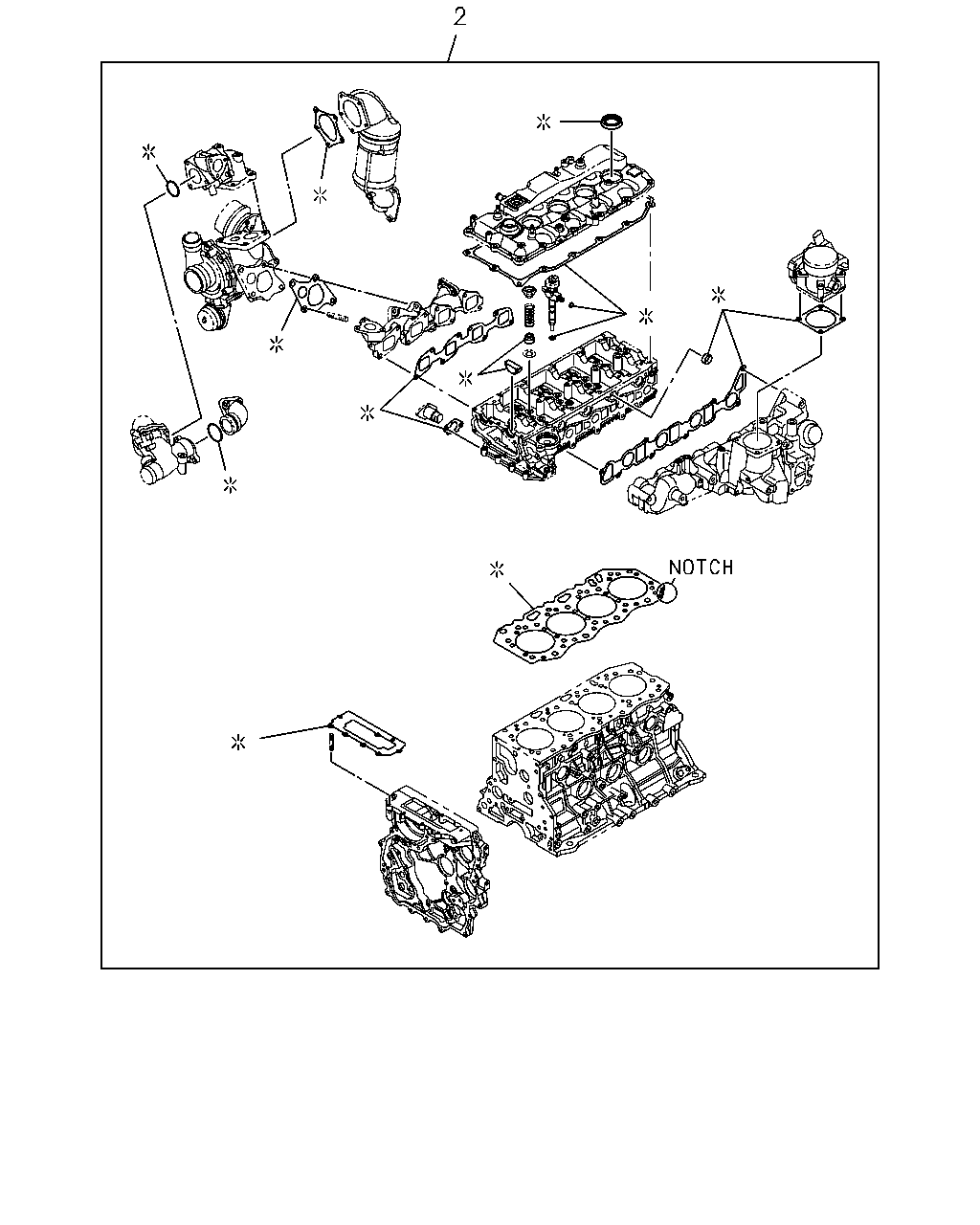

çizim 15656
2
BalonParca AdiParca NoAdetTipApplied Date
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-224-0 01 1 1203-1309
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-990-0 01 1 1310-
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-225-0 01 1 1203-1309
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-991-0 01 1 1310-
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-226-0 01 1 1203-1309
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-992-0 01 1 1310-

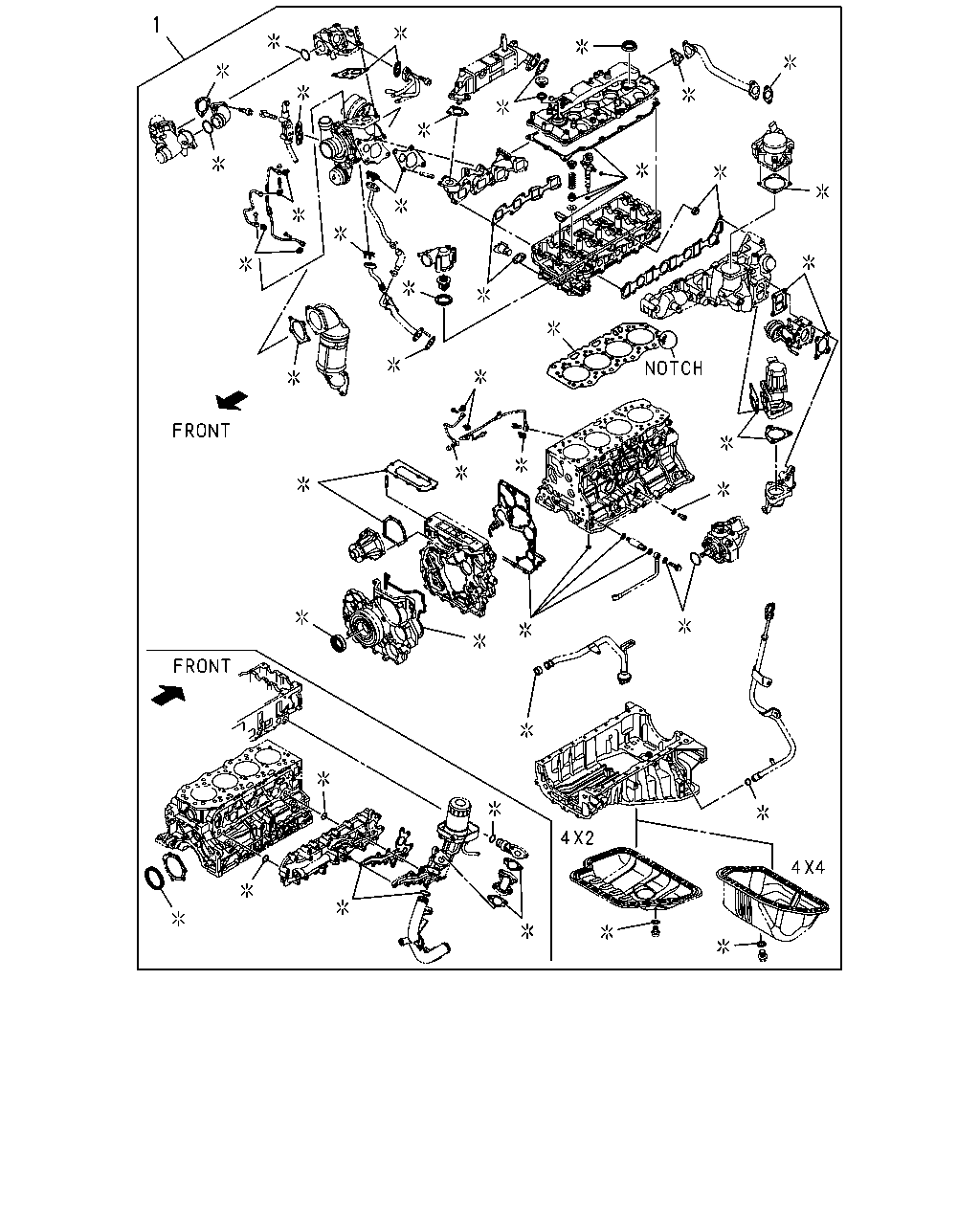

çizim 182877
1
BalonParca AdiParca NoAdetTipApplied Date
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-215-0 01 1 1203-1309
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-862-0 01 1 1310-
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-216-0 01 1 1203-1309
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-863-0 01 1 1310-
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-217-0 01 1 1203-1309
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-864-0 01 1 1310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
