Sayfa 8-73 - Isuzu EPC

8-73 — BLOWER UNIT (#79577) — 170 parça

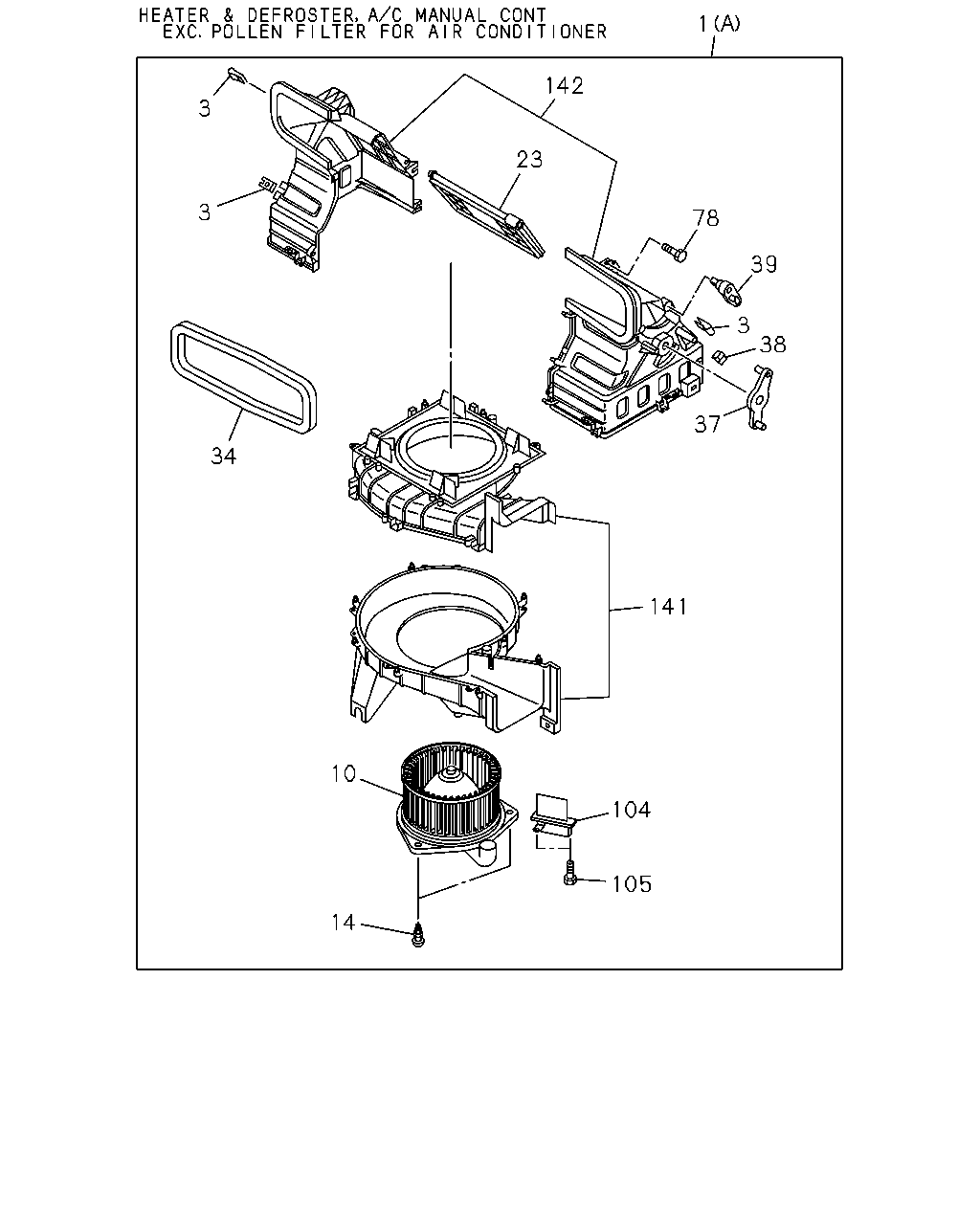

1 142 23 3 3 34 78 39 3 38 37 141 10 14 104 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98181-066-0	01	1	1203-1212	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98233-052-1	01	1	1301-	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (A)	8-98181-067-0	01	1	1203-1212	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (A)	8-98233-053-1	01	1	1301-	●	●	●	●	●	●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D)	8-98108-177-2	01	1	1203-1212	●		●	●		●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D)	8-98233-048-1	01	1	1301-	●		●	●		●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (C)	8-98052-633-2	01	1	1203-1212	●		●	●		●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (C)	8-98233-043-1	01	1	1301-	●		●	●		●
3	08.855 NUT; CASE 08.845	8-98139-394-1	03	1	1203-	●		●	●		●
3	08.855 NUT; CASE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.845	8-98139-394-1	03	1	1203-		●			●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT	8-98165-412-0	01	1	1203-	●		●	●		●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98165-412-0	01	1	1203-		●			●
14	08.857 SCREW; COVER TO CASE 08.852	8-98139-395-1	03	1	1203-	●		●	●		●
14	08.857 SCREW; COVER TO CASE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98139-395-1	03	1	1203-		●			●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98196-273-0	01	1	1203-1410	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98294-588-0	01	1	1411-	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-413-0	01	1	1203-1410	●		●	●		●
23	08.857 SHUTTER; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98295-682-0	01	1	1411-	●		●	●		●
34	08.856 LINING; BLOWER UNIT	8-98139-426-1	01	1	1203-	●		●	●		●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98139-426-1	01	1	1203-		●			●
37	09.786 LEVER; MODE LEVER HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98165-410-0	01	1	1203-	●	●	●	●	●	●
38	09.787 CLIP; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98139-422-1	01	1	1203-	●	●	●	●	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT	8-98165-409-0	01	1	1203-	●	●	●	●	●	●
78	08.857 SCREW; CASE TO CASE 08.852	8-98139-395-1	01	1	1203-	●		●	●		●
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98139-395-1	01	1	1203-		●			●
104	08.855 RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98183-234-0	01	1	1203-	●	●	●	●	●	●
105	08.855 SCREW; RESISTOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98139-395-1	02	1	1203-	●	●	●	●	●	●
141	08.857 CASE ASM; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98193-560-0	01	1	1203-1212	●	●	●	●	●	●
141	08.857 CASE ASM; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98233-651-0	01	1	1301-	●	●	●	●	●	●
141	08.857 CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98193-561-0	01	1	1203-1212	●		●	●		●
141	08.857 CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-652-0	01	1	1301-	●		●	●		●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98193-574-0	01	1	1203-1212	●	●	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-657-0	01	1	1301-	●	●	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM>	8-98193-575-0	01	1	1203-1212	●	●	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM>	8-98233-658-0	01	1	1301-	●	●	●	●	●	●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98193-573-0	01	1	1203-1212	●		●	●		●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-656-0	01	1	1301-	●		●	●		●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM>	8-98193-571-0	01	1	1203-1212	●		●	●		●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM>	8-98233-654-0	01	1	1301-	●		●	●		●

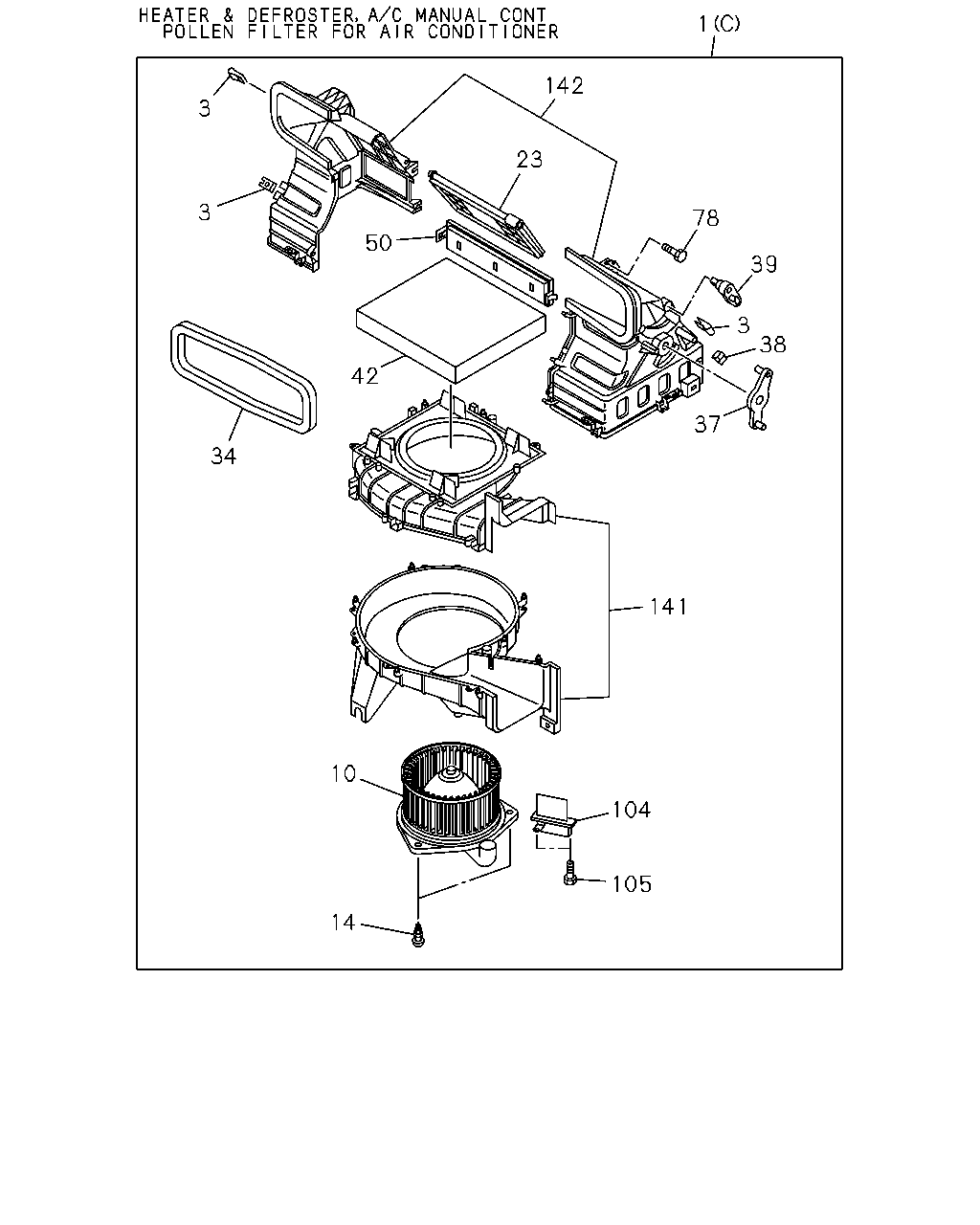

1 142 3 3 50 23 34 42 37 38 3 39 78 141 10 104 105 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98181-066-0	01	1	1203-1212	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98233-052-1	01	1	1301-	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (A)	8-98181-067-0	01	1	1203-1212	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (A)	8-98233-053-1	01	1	1301-	●	●	●	●	●	●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D)	8-98108-177-2	01	1	1203-1212	●		●	●		●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D)	8-98233-048-1	01	1	1301-	●		●	●		●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (C)	8-98052-633-2	01	1	1203-1212	●		●	●		●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (C)	8-98233-043-1	01	1	1301-	●		●	●		●
3	08.855 NUT; CASE 08.845	8-98139-394-1	03	1	1203-	●		●	●		●
3	08.855 NUT; CASE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.845	8-98139-394-1	03	1	1203-		●			●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT	8-98165-412-0	01	1	1203-	●		●	●		●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98165-412-0	01	1	1203-		●			●
14	08.857 SCREW; COVER TO CASE 08.852	8-98139-395-1	03	1	1203-	●		●	●		●
14	08.857 SCREW; COVER TO CASE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98139-395-1	03	1	1203-		●			●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98196-273-0	01	1	1203-1410	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98294-588-0	01	1	1411-	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-413-0	01	1	1203-1410	●		●	●		●
23	08.857 SHUTTER; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98295-682-0	01	1	1411-	●		●	●		●
34	08.856 LINING; BLOWER UNIT	8-98139-426-1	01	1	1203-	●		●	●		●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98139-426-1	01	1	1203-		●			●
37	09.786 LEVER; MODE LEVER HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98165-410-0	01	1	1203-	●	●	●	●	●	●
38	09.787 CLIP; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98139-422-1	01	1	1203-	●	●	●	●	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT	8-98165-409-0	01	1	1203-	●	●	●	●	●	●
42	08.857 FILTER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98139-428-0	01	1	1203-	●		●	●		●
42	08.857 FILTER; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98139-428-0	01	1	1203-		●			●
50	08.857 COVER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98139-429-0	01	1	1203-1212	●		●	●		●
50	08.857 COVER; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98139-429-0	01	1	1203-1212		●			●
50	08.857 COVER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-650-0	01	1	1301-	●		●	●		●
50	08.857 COVER; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-650-0	01	1	1301-		●			●
78	08.857 SCREW; CASE TO CASE 08.852	8-98139-395-1	01	1	1203-	●		●	●		●
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98139-395-1	01	1	1203-		●			●
104	08.855 RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98183-234-0	01	1	1203-	●	●	●	●	●	●
105	08.855 SCREW; RESISTOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98139-395-1	02	1	1203-	●	●	●	●	●	●
141	08.857 CASE ASM; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98193-560-0	01	1	1203-1212	●	●	●	●	●	●
141	08.857 CASE ASM; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98233-651-0	01	1	1301-	●	●	●	●	●	●
141	08.857 CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98193-561-0	01	1	1203-1212	●		●	●		●
141	08.857 CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-652-0	01	1	1301-	●		●	●		●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98193-574-0	01	1	1203-1212	●	●	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-657-0	01	1	1301-	●	●	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM>	8-98193-575-0	01	1	1203-1212	●	●	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM>	8-98233-658-0	01	1	1301-	●	●	●	●	●	●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98193-573-0	01	1	1203-1212	●		●	●		●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-656-0	01	1	1301-	●		●	●		●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM>	8-98193-571-0	01	1	1203-1212	●		●	●		●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM>	8-98233-654-0	01	1	1301-	●		●	●		●

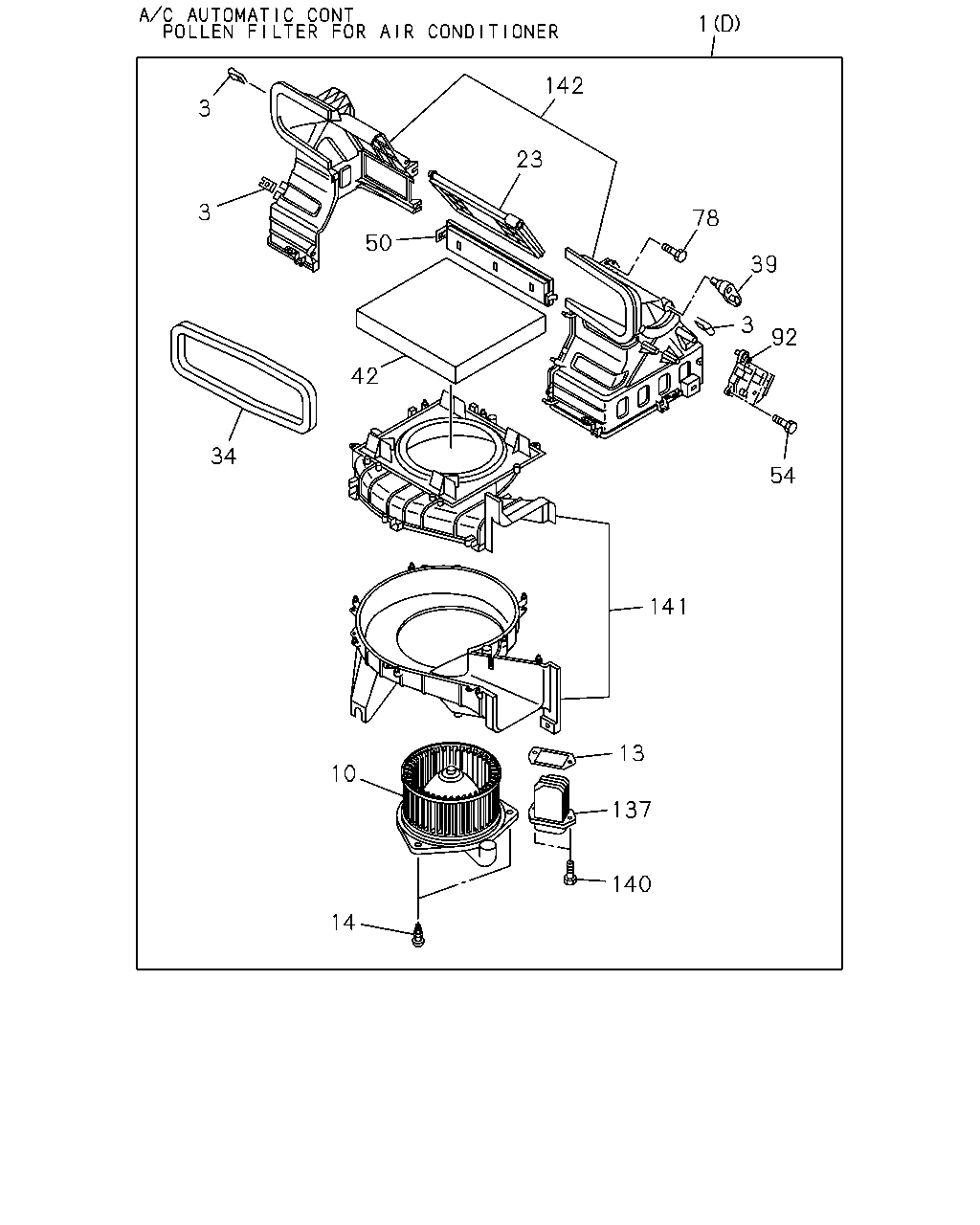

1 142 23 3 3 34 78 39 3 92 54 141 13 137 140 14 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98181-066-0	01	1	1203-1212	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98233-052-1	01	1	1301-	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (A)	8-98181-067-0	01	1	1203-1212	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (A)	8-98233-053-1	01	1	1301-	●	●	●	●	●	●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D)	8-98108-177-2	01	1	1203-1212	●		●	●		●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D)	8-98233-048-1	01	1	1301-	●		●	●		●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (C)	8-98052-633-2	01	1	1203-1212	●		●	●		●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (C)	8-98233-043-1	01	1	1301-	●		●	●		●
3	08.855 NUT; CASE 08.845	8-98139-394-1	03	1	1203-	●		●	●		●
3	08.855 NUT; CASE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.845	8-98139-394-1	03	1	1203-		●			●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT	8-98165-412-0	01	1	1203-	●		●	●		●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98165-412-0	01	1	1203-		●			●
13	08.856 LINING; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98157-116-1	01	1	1203-	●		●	●		●
14	08.857 SCREW; COVER TO CASE 08.852	8-98139-395-1	03	1	1203-	●		●	●		●
14	08.857 SCREW; COVER TO CASE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98139-395-1	03	1	1203-		●			●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98196-273-0	01	1	1203-1410	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98294-588-0	01	1	1411-	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-413-0	01	1	1203-1410	●		●	●		●
23	08.857 SHUTTER; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98295-682-0	01	1	1411-	●		●	●		●
34	08.856 LINING; BLOWER UNIT	8-98139-426-1	01	1	1203-	●		●	●		●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98139-426-1	01	1	1203-		●			●
39	09.786 LEVER; SHUTTER,BLOWER UNIT	8-98165-409-0	01	1	1203-	●	●	●	●	●	●
54	08.856 SCREW; ACTUATOR TO CASE AIR CONDITIONER AUTOMATIC CONT(C61) 08.852	8-98139-395-1	02	1	1203-	●		●	●		●
78	08.857 SCREW; CASE TO CASE 08.852	8-98139-395-1	01	1	1203-	●		●	●		●
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98139-395-1	01	1	1203-		●			●
92	08.857 ACTUATOR; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98165-411-0	01	1	1203-	●		●	●		●
137	08.855 MODULE ASM; BLOWER AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-431-1	01	1	1203-	●		●	●		●
140	08.857 SCREW; MODULE AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-421-0	02	1	1203-	●		●	●		●
141	08.857 CASE ASM; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98193-560-0	01	1	1203-1212	●	●	●	●	●	●
141	08.857 CASE ASM; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98233-651-0	01	1	1301-	●	●	●	●	●	●
141	08.857 CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98193-561-0	01	1	1203-1212	●		●	●		●
141	08.857 CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-652-0	01	1	1301-	●		●	●		●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98193-574-0	01	1	1203-1212	●	●	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-657-0	01	1	1301-	●	●	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM>	8-98193-575-0	01	1	1203-1212	●	●	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM>	8-98233-658-0	01	1	1301-	●	●	●	●	●	●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98193-573-0	01	1	1203-1212	●		●	●		●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-656-0	01	1	1301-	●		●	●		●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM>	8-98193-571-0	01	1	1203-1212	●		●	●		●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM>	8-98233-654-0	01	1	1301-	●		●	●		●

1 142 3 3 50 34 42 23 78 39 3 92 54 141 10 13 137 140 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98181-066-0	01	1	1203-1212	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98233-052-1	01	1	1301-	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (A)	8-98181-067-0	01	1	1203-1212	●	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (A)	8-98233-053-1	01	1	1301-	●	●	●	●	●	●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D)	8-98108-177-2	01	1	1203-1212	●		●	●		●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D)	8-98233-048-1	01	1	1301-	●		●	●		●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (C)	8-98052-633-2	01	1	1203-1212	●		●	●		●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM> (C)	8-98233-043-1	01	1	1301-	●		●	●		●
3	08.855 NUT; CASE 08.845	8-98139-394-1	03	1	1203-	●		●	●		●
3	08.855 NUT; CASE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.845	8-98139-394-1	03	1	1203-		●			●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT	8-98165-412-0	01	1	1203-	●		●	●		●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98165-412-0	01	1	1203-		●			●
13	08.856 LINING; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98157-116-1	01	1	1203-	●		●	●		●
14	08.857 SCREW; COVER TO CASE 08.852	8-98139-395-1	03	1	1203-	●		●	●		●
14	08.857 SCREW; COVER TO CASE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98139-395-1	03	1	1203-		●			●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98196-273-0	01	1	1203-1410	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98294-588-0	01	1	1411-	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-413-0	01	1	1203-1410	●		●	●		●
23	08.857 SHUTTER; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98295-682-0	01	1	1411-	●		●	●		●
34	08.856 LINING; BLOWER UNIT	8-98139-426-1	01	1	1203-	●		●	●		●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98139-426-1	01	1	1203-		●			●
39	09.786 LEVER; SHUTTER,BLOWER UNIT	8-98165-409-0	01	1	1203-	●	●	●	●	●	●
42	08.857 FILTER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98139-428-0	01	1	1203-	●		●	●		●
42	08.857 FILTER; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98139-428-0	01	1	1203-		●			●
50	08.857 COVER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98139-429-0	01	1	1203-1212	●		●	●		●
50	08.857 COVER; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98139-429-0	01	1	1203-1212		●			●
50	08.857 COVER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-650-0	01	1	1301-	●		●	●		●
50	08.857 COVER; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-650-0	01	1	1301-		●			●
54	08.856 SCREW; ACTUATOR TO CASE AIR CONDITIONER AUTOMATIC CONT(C61) 08.852	8-98139-395-1	02	1	1203-	●		●	●		●
78	08.857 SCREW; CASE TO CASE 08.852	8-98139-395-1	01	1	1203-	●		●	●		●
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98139-395-1	01	1	1203-		●			●
92	08.857 ACTUATOR; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98165-411-0	01	1	1203-	●		●	●		●
137	08.855 MODULE ASM; BLOWER AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-431-1	01	1	1203-	●		●	●		●
140	08.857 SCREW; MODULE AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-421-0	02	1	1203-	●		●	●		●
141	08.857 CASE ASM; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98193-560-0	01	1	1203-1212	●	●	●	●	●	●
141	08.857 CASE ASM; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98233-651-0	01	1	1301-	●	●	●	●	●	●
141	08.857 CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98193-561-0	01	1	1203-1212	●		●	●		●
141	08.857 CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-652-0	01	1	1301-	●		●	●		●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98193-574-0	01	1	1203-1212	●	●	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-657-0	01	1	1301-	●	●	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM>	8-98193-575-0	01	1	1203-1212	●	●	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM>	8-98233-658-0	01	1	1301-	●	●	●	●	●	●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98193-573-0	01	1	1203-1212	●		●	●		●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-656-0	01	1	1301-	●		●	●		●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM>	8-98193-571-0	01	1	1203-1212	●		●	●		●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONE R<8CM>	8-98233-654-0	01	1	1301-	●		●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
