8-71 — COMPRESSOR; AIR CONDITIONING (#79576) — 6 parça

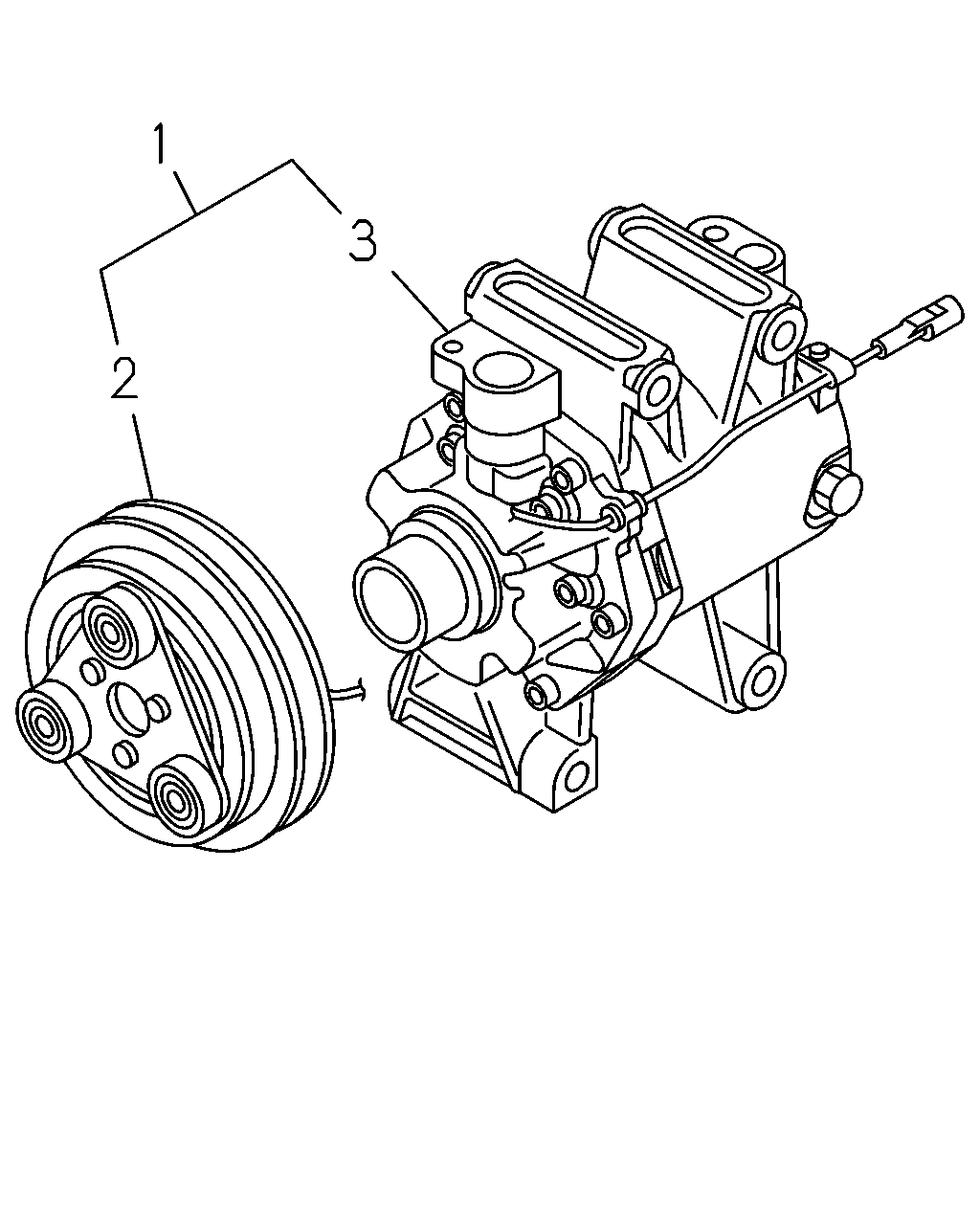

çizim 158368
1 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98102-824-1 01 1 1203- ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98102-824-1 01 1 1203- ● ●
2 09.188 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-936-1 01 1 1203- ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-936-1 01 1 1203- ● ●
3 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-935-1 01 1 1203- ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-935-1 01 1 1203- ● ●
