8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

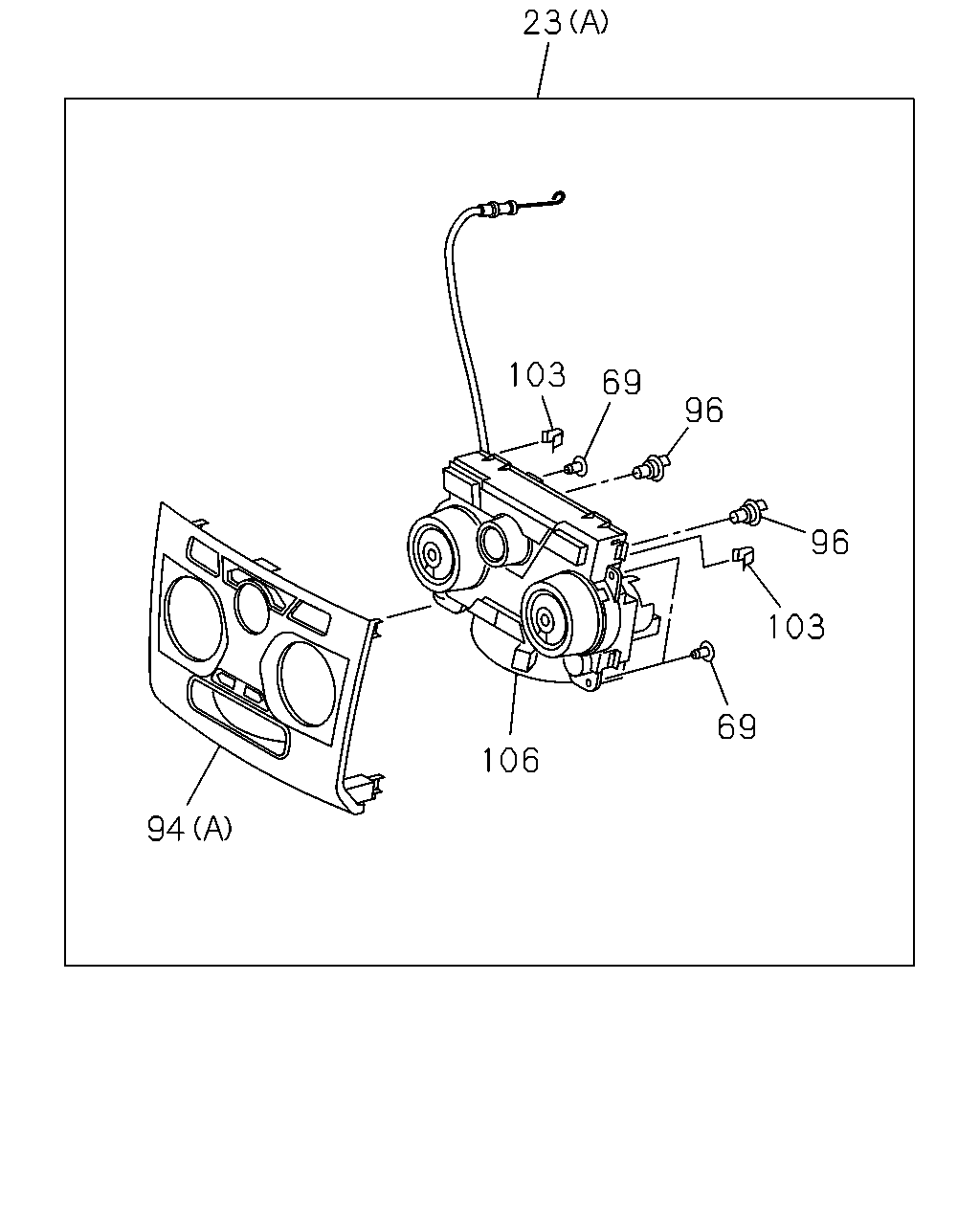

8-65 - CONTROL LEVER; HEATER AND AIR CON
▶
8-65 — CONTROL LEVER; HEATER AND AIR CON
(#79575) — 38 parça
Tümü
A - TFB6CF
B - TFB6WF
C - TFS6CF
D - TFS6WF
E - TFB6SF
F - TFS6SF
◀
[865A] AIR CONDITIONER AUTOMATIC CONT (16 parça)
[865A] EXC.AIR CONDITIONER AUTOMATIC CONT (22 parça)
▶
23
103
69
69
105
103
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
23
08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (A)
8-98120-144-4
01
1
1203-
●
●
●
●
23
08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) (A)
8-98120-146-4
01
1
1203-
●
●
●
●
23
08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9> (A)
8-98120-138-4
01
1
1203-
●
●
●
●
23
08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (A)
8-98120-140-4
01
1
1203-
●
●
●
●
23
08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) (A)
8-98120-135-3
01
1
1203-
●
●
23
08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) (A)
8-98120-137-4
01
1
1203-
●
●
23
08.852 BEZEL; CONT LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (B)
8-98129-548-5
01
1
1203-
●
●
●
●
69
08.852 SCREW; BEZEL BRKT
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) M4X10 TAPPING
8-98164-986-0
04
1
1203-
●
●
●
●
69
08.852 SCREW; BEZEL BRKT
EXC. INTERIOR SILVER BEZEL<BY9> M4X10 TAPPING
8-98164-986-0
04
1
1203-
●
●
●
●
69
08.852 SCREW; BEZEL BRKT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) M4X10 TAPPING
8-98164-986-0
04
1
1203-
●
●
94
08.849 PANEL; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)
8-98164-669-0
01
1
1203-
●
●
●
●
●
●
94
08.849 PANEL; BEZEL
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (B)
8-98141-789-0
01
1
1203-
●
●
●
●
103
08.854 CLIP
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 16.165
8-98164-677-0
04
1
1203-
●
●
●
●
103
08.854 CLIP
EXC. INTERIOR SILVER BEZEL<BY9> 16.165
8-98164-677-0
04
1
1203-
●
●
●
●
103
08.854 CLIP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 16.165
8-98164-677-0
04
1
1203-
●
●
105
08.852 SWITCH ASM; A/C
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9>
8-98164-679-0
01
1
1203-
●
●
●
●
23
103
69
96
96
103
69
106
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
23
08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (A)
8-98120-144-4
01
1
1203-
●
●
●
●
23
08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) (A)
8-98120-146-4
01
1
1203-
●
●
●
●
23
08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9> (A)
8-98120-138-4
01
1
1203-
●
●
●
●
23
08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (A)
8-98120-140-4
01
1
1203-
●
●
●
●
23
08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) (A)
8-98120-135-3
01
1
1203-
●
●
23
08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) (A)
8-98120-137-4
01
1
1203-
●
●
23
08.852 BEZEL; CONT LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (B)
8-98129-548-5
01
1
1203-
●
●
●
●
69
08.852 SCREW; BEZEL BRKT
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) M4X10 TAPPING
8-98164-986-0
04
1
1203-
●
●
●
●
69
08.852 SCREW; BEZEL BRKT
EXC. INTERIOR SILVER BEZEL<BY9> M4X10 TAPPING
8-98164-986-0
04
1
1203-
●
●
●
●
69
08.852 SCREW; BEZEL BRKT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) M4X10 TAPPING
8-98164-986-0
04
1
1203-
●
●
94
08.849 PANEL; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)
8-98164-669-0
01
1
1203-
●
●
●
●
●
●
94
08.849 PANEL; BEZEL
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (B)
8-98141-789-0
01
1
1203-
●
●
●
●
96
08.852 BULB ASM; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)
8-98156-188-0
02
1
1203-
●
●
●
●
●
●
103
08.854 CLIP
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 16.165
8-98164-677-0
04
1
1203-
●
●
●
●
103
08.854 CLIP
EXC. INTERIOR SILVER BEZEL<BY9> 16.165
8-98164-677-0
04
1
1203-
●
●
●
●
103
08.854 CLIP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 16.165
8-98164-677-0
04
1
1203-
●
●
106
08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42)
8-98156-906-0
01
1
1203-
●
●
●
●
106
08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60)
8-98156-908-0
01
1
1203-
●
●
●
●
106
08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>
8-98156-900-0
01
1
1203-
●
●
●
●
106
08.852 CONTROL SUB ASM; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>
8-98156-902-0
01
1
1203-
●
●
●
●
106
08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42)
8-98156-897-0
01
1
1203-
●
●
106
08.852 CONTROL SUB ASM; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60)
8-98156-899-0
01
1
1203-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
