Sayfa 8-60 - Isuzu EPC

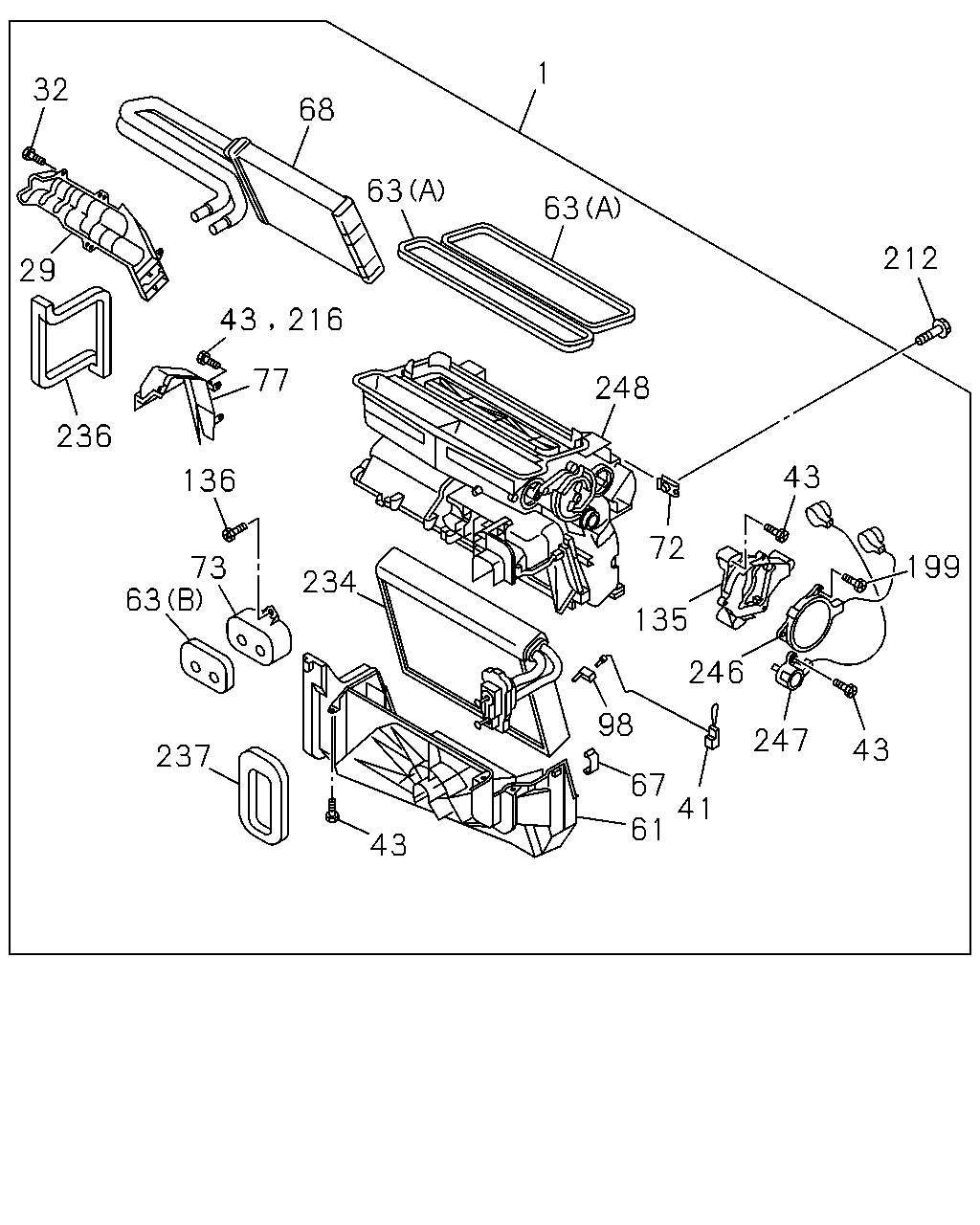

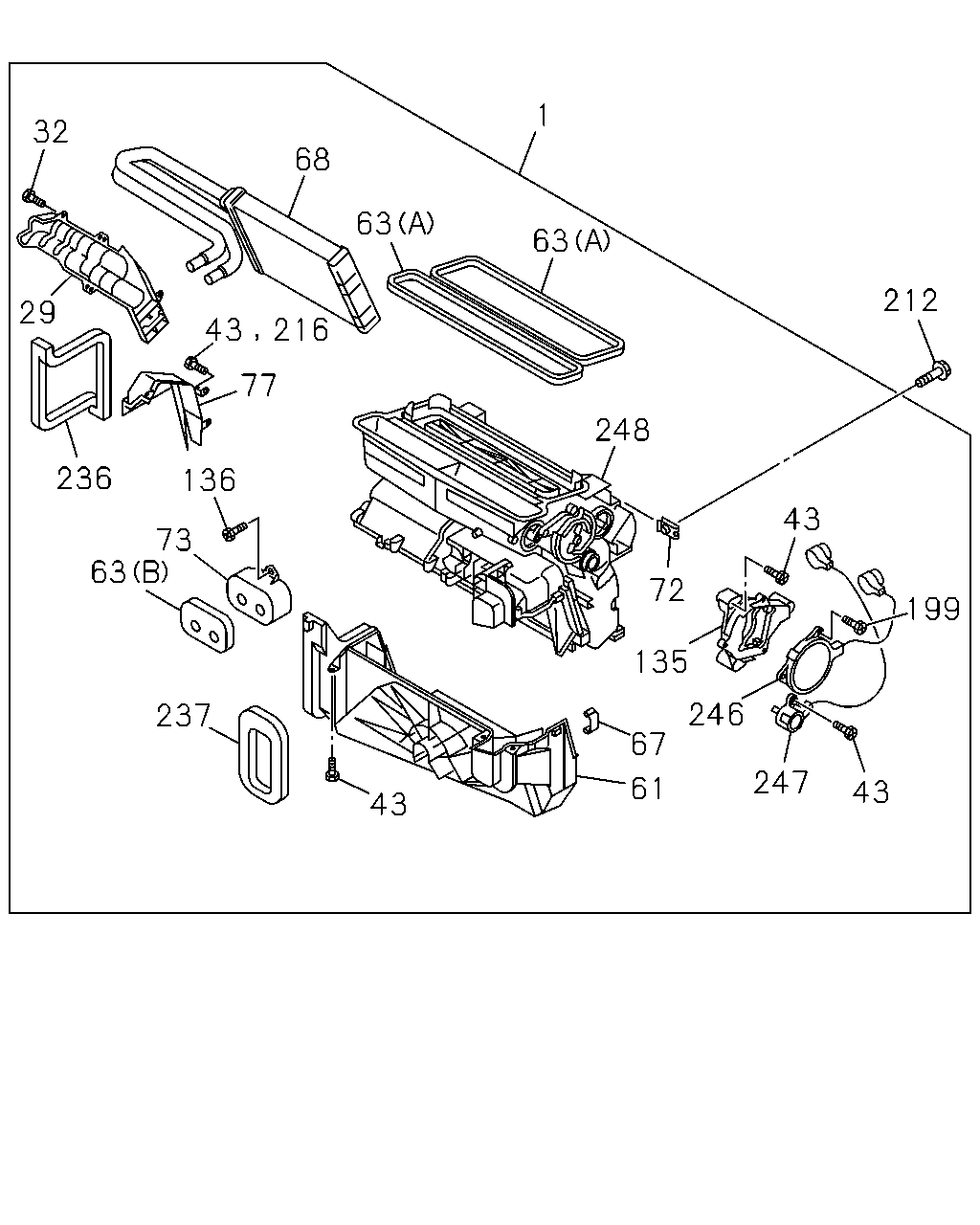

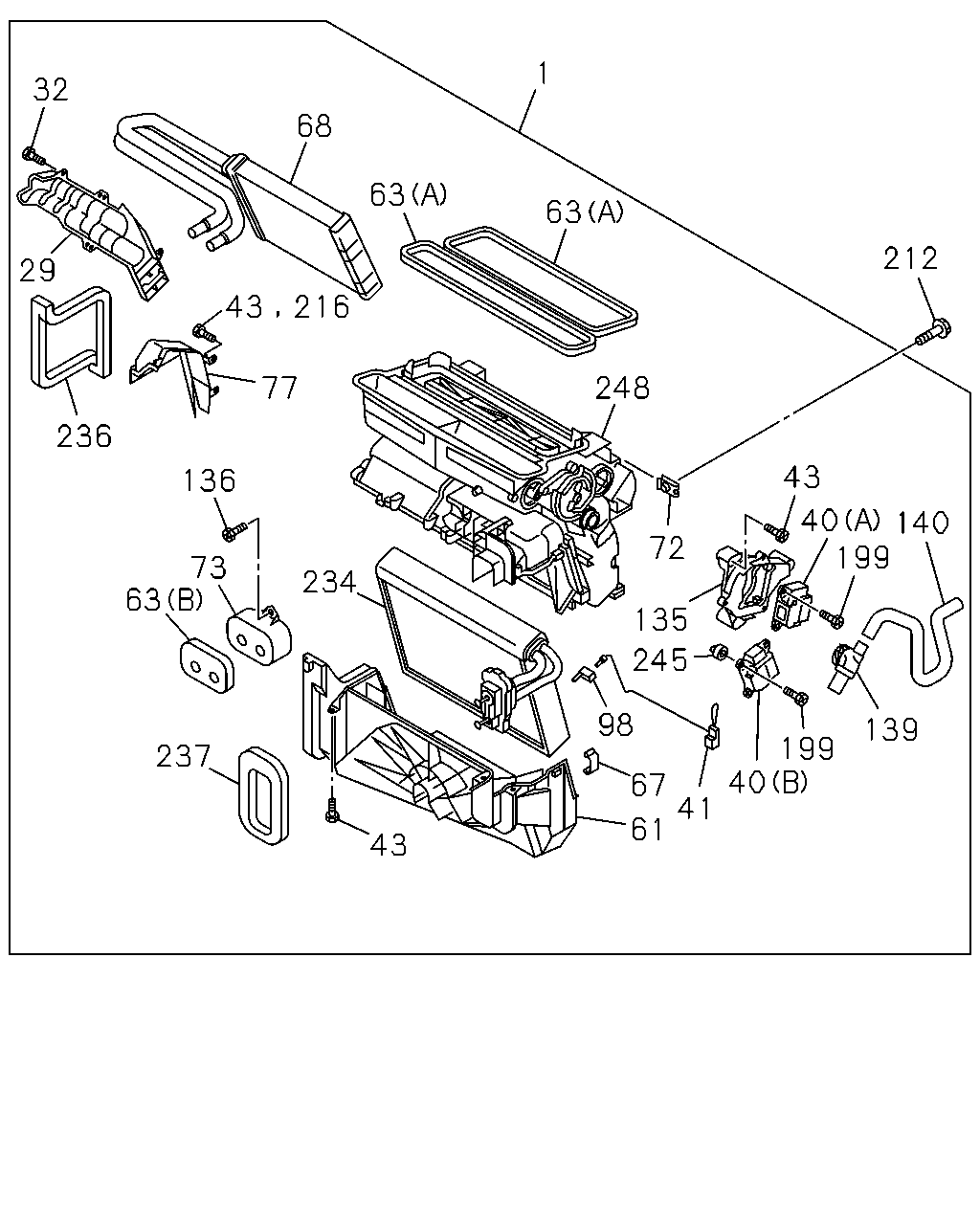

8-60 — HEATER UNIT; FRONT (#79574) — 438 parça

212 63 1 68 32 63 248 43 199 140 40 139 199 40 41 61 43 237 63 136 236 29 43 234 73 77 216 72 135 245 98 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42)	8-98230-202-0	01	1	1210-1212	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>	8-98230-202-0	01	1	1210-1212					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98230-202-0	01	1	1210-1212						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63)	8-98233-030-0	01	1	1301-1303	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>	8-98233-030-0	01	1	1301-1303					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-030-0	01	1	1301-1303						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63)	8-98233-030-0	01	1	1304-	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-030-0	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98230-203-0	01	1	1210-1212	●	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>	8-98230-203-0	01	1	1210-1212					●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98230-203-0	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63)	8-98233-031-1	01	1	1301-1303	●	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>	8-98233-031-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-031-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63)	8-98233-031-1	01	1	1304-	●	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-031-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98230-204-0	01	1	1210-1212	●		●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>	8-98230-204-0	01	1	1210-1212					●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98230-204-0	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63)	8-98233-032-1	01	1	1301-1303	●		●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>	8-98233-032-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-032-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63)	8-98233-032-1	01	1	1304-	●		●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-032-1	01	1	1304-					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C>	8-98230-209-0	01	1	1210-1212					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98230-209-0	01	1	1210-1212						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C>	8-98233-037-0	01	1	1301-1303					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-037-0	01	1	1301-1303						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-037-0	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>	8-98230-210-0	01	1	1210-1212					●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98230-210-0	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C>	8-98233-038-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-038-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-038-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>	8-98230-211-0	01	1	1210-1212					●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98230-211-0	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C>	8-98233-039-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-039-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-039-1	01	1	1304-					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42)	8-98052-627-4	01	1	1203-1209	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>	8-98052-627-4	01	1	1203-1209					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98052-627-4	01	1	1210-1212						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH)	8-98233-014-0	01	1	1301-1303	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>	8-98233-014-0	01	1	1301-1303					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-014-0	01	1	1301-1303						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-014-0	01	1	1301-1303						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH)	8-98233-014-0	01	1	1304-	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-014-0	01	1	1304-					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-014-0	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98052-628-4	01	1	1203-1209	●	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>	8-98052-628-4	01	1	1203-1209					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98052-628-4	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH)	8-98233-015-1	01	1	1301-1303	●	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>	8-98233-015-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-015-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-015-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH)	8-98233-015-1	01	1	1304-	●	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-015-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-015-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98052-629-4	01	1	1203-1209	●		●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>	8-98052-629-4	01	1	1203-1209					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98052-629-4	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH)	8-98233-016-1	01	1	1301-1303	●		●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>	8-98233-016-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-016-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-016-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH)	8-98233-016-1	01	1	1304-	●		●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-016-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-016-1	01	1	1304-					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C>	8-98103-554-4	01	1	1203-1209					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98103-554-4	01	1	1210-1212						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH)	8-98233-021-0	01	1	1301-1303					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-021-0	01	1	1301-1303						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-021-0	01	1	1301-1303						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-021-0	01	1	1304-					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-021-0	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>	8-98103-555-4	01	1	1203-1209					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98103-555-4	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH)	8-98233-022-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-022-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-022-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-022-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-022-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>	8-98103-557-4	01	1	1203-1209					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98103-557-4	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH)	8-98233-023-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-023-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-023-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-023-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-023-1	01	1	1304-					●	●
29	08.857 COVER; HTR UNIT	8-98139-353-0	01	1	1203-1212	●	●	●	●	●	●
29	08.857 COVER; HTR UNIT	8-98233-590-0	01	1	1301-	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT	8-98139-395-0	04	1	1203-1212	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT	8-98233-593-0	04	1	1301-	●	●	●	●	●	●
40	08.854 ACTUATOR; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98139-385-0	01	1	1203-	●		●		●	●
40	08.854 ACTUATOR; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98139-386-0	01	1	1203-	●		●		●	●
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98139-383-0	01	1	1203-	●	●	●	●	●	●
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-382-0	01	1	1203-	●		●		●	●
43	09.786 SCREW; CASE,HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98139-395-0	23	1	1203-1212	●	●	●	●	●	●
43	09.786 SCREW; CASE,HTR UNIT 08.852	8-98233-593-0	18	1	1301-	●	●	●	●	●	●
43	09.786 SCREW; CASE,HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) 08.852	8-98139-395-0	21	1	1203-1212	●		●		●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C42)	8-98165-407-0	01	1	1203-1212	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C42)	8-98233-582-0	01	1	1301-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98165-406-0	01	1	1203-1212	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-581-0	01	1	1301-	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT (A)	8-98139-358-1	02	1	1203-	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT (B)	8-98139-361-1	01	1	1203-	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT	8-98157-123-0	01	1	1203-	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT	8-98139-374-0	01	1	1203-	●	●	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT	8-98139-394-1	03	1	1203-	●	●	●	●	●	●
73	08.845 PLATE; HTR UNIT	8-98139-355-0	01	1	1203-1212	●	●	●	●	●	●
73	08.845 PLATE; HTR UNIT	8-98233-591-0	01	1	1301-	●	●	●	●	●	●
77	08.857 COVER; HTR CASE	8-98165-415-0	01	1	1203-1212	●	●	●	●	●	●
77	08.857 COVER; HTR CASE	8-98233-589-0	01	1	1301-	●	●	●	●	●	●
98	08.854 CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98157-122-0	01	1	1203-	●	●	●	●	●	●
135	08.854 COVER; HTR	8-98139-377-0	01	1	1203-	●	●	●	●	●	●
136	08.850 SCREW; PLATE 08.852	8-98139-395-0	02	1	1203-1212	●	●	●	●	●	●
136	08.850 SCREW; PLATE 08.852	8-98233-593-0	02	1	1301-	●	●	●	●	●	●
139	08.845 ASPIRATOR; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-392-1	01	1	1203-	●		●		●	●
140	08.845 HOSE; AIR AIR CONDITIONER AUTOMATIC CONT(C61)	8-98165-408-0	01	1	1203-	●		●		●	●
199	08.854 SCREW; ACTUATOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98139-395-0	03	1	1203-1212	●	●	●	●	●	●
199	08.854 SCREW; ACTUATOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98233-593-0	05	1	1301-	●	●	●	●	●	●
199	08.854 SCREW; ACTUATOR AIR CONDITIONER AUTOMATIC CONT(C61) 08.852	8-98139-395-0	04	1	1203-1212	●		●		●	●
199	08.854 SCREW; ACTUATOR AIR CONDITIONER AUTOMATIC CONT(C61) 08.852	8-98233-593-0	04	1	1301-	●		●		●	●
212	09.262 BOLT; HTR UNIT 03.162 M6X20 FLANGE	0-28650-620-0	05	1	1203-	●		●		●	●
212	09.262 BOLT; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	05	1	1203-		●		●
216	08.845 SCREW; COVER,HEATER UNIT 08.852	8-98233-593-0	03	1	1301-	●	●	●	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-376-1	01	1	1203-	●	●	●	●	●	●
236	08.855 GASKET; HEATER	8-98139-357-1	01	1	1203-	●	●	●	●	●	●
237	08.855 INSULATOR; EVAPORATOR	8-98139-360-1	01	1	1203-	●	●	●	●	●	●
245	08.854 ADAPTER; HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-390-0	01	1	1203-	●		●		●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42)	8-98193-550-0	01	1	1203-1212	●	●	●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>	8-98193-550-0	01	1	1203-1212					●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42)	8-98233-575-0	01	1	1301-	●	●	●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>	8-98233-575-0	01	1	1301-					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98193-551-0	01	1	1203-1212	●	●	●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>	8-98193-551-0	01	1	1203-1212					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98233-576-0	01	1	1301-	●	●	●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>	8-98233-576-0	01	1	1301-					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98193-552-0	01	1	1203-1212	●		●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>	8-98193-552-0	01	1	1203-1212					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-577-0	01	1	1301-	●		●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>	8-98233-577-0	01	1	1301-					●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C>	8-98193-553-0	01	1	1203-1212					●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C>	8-98233-578-0	01	1	1301-					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>	8-98193-554-0	01	1	1203-1212					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>	8-98233-579-0	01	1	1301-					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>	8-98194-089-0	01	1	1203-1212					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>	8-98233-580-0	01	1	1301-					●	●

1 212 63 63 68 43 216 32 29 248 43 199 43 72 135 246 247 67 41 61 98 77 136 236 63 237 234 43 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42)	8-98230-202-0	01	1	1210-1212	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>	8-98230-202-0	01	1	1210-1212					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98230-202-0	01	1	1210-1212						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63)	8-98233-030-0	01	1	1301-1303	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>	8-98233-030-0	01	1	1301-1303					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-030-0	01	1	1301-1303						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63)	8-98233-030-0	01	1	1304-	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-030-0	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98230-203-0	01	1	1210-1212	●	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>	8-98230-203-0	01	1	1210-1212					●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98230-203-0	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63)	8-98233-031-1	01	1	1301-1303	●	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>	8-98233-031-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-031-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63)	8-98233-031-1	01	1	1304-	●	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-031-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98230-204-0	01	1	1210-1212	●		●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>	8-98230-204-0	01	1	1210-1212					●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98230-204-0	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63)	8-98233-032-1	01	1	1301-1303	●		●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>	8-98233-032-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-032-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63)	8-98233-032-1	01	1	1304-	●		●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-032-1	01	1	1304-					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C>	8-98230-209-0	01	1	1210-1212					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98230-209-0	01	1	1210-1212						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C>	8-98233-037-0	01	1	1301-1303					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-037-0	01	1	1301-1303						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-037-0	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>	8-98230-210-0	01	1	1210-1212					●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98230-210-0	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C>	8-98233-038-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-038-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-038-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>	8-98230-211-0	01	1	1210-1212					●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98230-211-0	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C>	8-98233-039-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-039-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-039-1	01	1	1304-					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42)	8-98052-627-4	01	1	1203-1209	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>	8-98052-627-4	01	1	1203-1209					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98052-627-4	01	1	1210-1212						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH)	8-98233-014-0	01	1	1301-1303	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>	8-98233-014-0	01	1	1301-1303					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-014-0	01	1	1301-1303						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-014-0	01	1	1301-1303						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH)	8-98233-014-0	01	1	1304-	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-014-0	01	1	1304-					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-014-0	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98052-628-4	01	1	1203-1209	●	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>	8-98052-628-4	01	1	1203-1209					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98052-628-4	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH)	8-98233-015-1	01	1	1301-1303	●	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>	8-98233-015-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-015-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-015-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH)	8-98233-015-1	01	1	1304-	●	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-015-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-015-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98052-629-4	01	1	1203-1209	●		●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>	8-98052-629-4	01	1	1203-1209					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98052-629-4	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH)	8-98233-016-1	01	1	1301-1303	●		●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>	8-98233-016-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-016-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-016-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH)	8-98233-016-1	01	1	1304-	●		●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-016-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-016-1	01	1	1304-					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C>	8-98103-554-4	01	1	1203-1209					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98103-554-4	01	1	1210-1212						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH)	8-98233-021-0	01	1	1301-1303					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-021-0	01	1	1301-1303						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-021-0	01	1	1301-1303						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-021-0	01	1	1304-					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-021-0	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>	8-98103-555-4	01	1	1203-1209					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98103-555-4	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH)	8-98233-022-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-022-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-022-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-022-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-022-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>	8-98103-557-4	01	1	1203-1209					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98103-557-4	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH)	8-98233-023-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-023-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-023-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-023-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-023-1	01	1	1304-					●	●
29	08.857 COVER; HTR UNIT	8-98139-353-0	01	1	1203-1212	●	●	●	●	●	●
29	08.857 COVER; HTR UNIT	8-98233-590-0	01	1	1301-	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT	8-98139-395-0	04	1	1203-1212	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT	8-98233-593-0	04	1	1301-	●	●	●	●	●	●
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98139-383-0	01	1	1203-	●	●	●	●	●	●
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-382-0	01	1	1203-	●		●		●	●
43	09.786 SCREW; CASE,HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98139-395-0	23	1	1203-1212	●	●	●	●	●	●
43	09.786 SCREW; CASE,HTR UNIT 08.852	8-98233-593-0	18	1	1301-	●	●	●	●	●	●
43	09.786 SCREW; CASE,HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) 08.852	8-98139-395-0	21	1	1203-1212	●		●		●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C42)	8-98165-407-0	01	1	1203-1212	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C42)	8-98233-582-0	01	1	1301-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98165-406-0	01	1	1203-1212	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-581-0	01	1	1301-	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT (A)	8-98139-358-1	02	1	1203-	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT (B)	8-98139-361-1	01	1	1203-	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT	8-98157-123-0	01	1	1203-	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT	8-98139-374-0	01	1	1203-	●	●	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT	8-98139-394-1	03	1	1203-	●	●	●	●	●	●
73	08.845 PLATE; HTR UNIT	8-98139-355-0	01	1	1203-1212	●	●	●	●	●	●
73	08.845 PLATE; HTR UNIT	8-98233-591-0	01	1	1301-	●	●	●	●	●	●
77	08.857 COVER; HTR CASE	8-98165-415-0	01	1	1203-1212	●	●	●	●	●	●
77	08.857 COVER; HTR CASE	8-98233-589-0	01	1	1301-	●	●	●	●	●	●
98	08.854 CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98157-122-0	01	1	1203-	●	●	●	●	●	●
135	08.854 COVER; HTR	8-98139-377-0	01	1	1203-	●	●	●	●	●	●
136	08.850 SCREW; PLATE 08.852	8-98139-395-0	02	1	1203-1212	●	●	●	●	●	●
136	08.850 SCREW; PLATE 08.852	8-98233-593-0	02	1	1301-	●	●	●	●	●	●
199	08.854 SCREW; ACTUATOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98139-395-0	03	1	1203-1212	●	●	●	●	●	●
199	08.854 SCREW; ACTUATOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98233-593-0	05	1	1301-	●	●	●	●	●	●
199	08.854 SCREW; ACTUATOR AIR CONDITIONER AUTOMATIC CONT(C61) 08.852	8-98139-395-0	04	1	1203-1212	●		●		●	●
199	08.854 SCREW; ACTUATOR AIR CONDITIONER AUTOMATIC CONT(C61) 08.852	8-98233-593-0	04	1	1301-	●		●		●	●
212	09.262 BOLT; HTR UNIT 03.162 M6X20 FLANGE	0-28650-620-0	05	1	1203-	●		●		●	●
212	09.262 BOLT; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	05	1	1203-		●		●
216	08.845 SCREW; COVER,HEATER UNIT 08.852	8-98233-593-0	03	1	1301-	●	●	●	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-376-1	01	1	1203-	●	●	●	●	●	●
236	08.855 GASKET; HEATER	8-98139-357-1	01	1	1203-	●	●	●	●	●	●
237	08.855 INSULATOR; EVAPORATOR	8-98139-360-1	01	1	1203-	●	●	●	●	●	●
246	08.852 ACTUATOR; MODE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98157-124-2	01	1	1203-1212	●	●	●	●	●	●
246	08.852 ACTUATOR; MODE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98157-124-2	01	1	1301-	●	●	●	●	●	●
247	08.852 ACTUATOR; TEMP HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98139-398-1	01	1	1203-1212	●	●	●	●	●	●
247	08.852 ACTUATOR; TEMP HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98139-398-1	01	1	1301-	●	●	●	●	●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42)	8-98193-550-0	01	1	1203-1212	●	●	●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>	8-98193-550-0	01	1	1203-1212					●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42)	8-98233-575-0	01	1	1301-	●	●	●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>	8-98233-575-0	01	1	1301-					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98193-551-0	01	1	1203-1212	●	●	●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>	8-98193-551-0	01	1	1203-1212					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98233-576-0	01	1	1301-	●	●	●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>	8-98233-576-0	01	1	1301-					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98193-552-0	01	1	1203-1212	●		●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>	8-98193-552-0	01	1	1203-1212					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-577-0	01	1	1301-	●		●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>	8-98233-577-0	01	1	1301-					●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C>	8-98193-553-0	01	1	1203-1212					●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C>	8-98233-578-0	01	1	1301-					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>	8-98193-554-0	01	1	1203-1212					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>	8-98233-579-0	01	1	1301-					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>	8-98194-089-0	01	1	1203-1212					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>	8-98233-580-0	01	1	1301-					●	●

32 68 1 63 248 212 43 199 43 247 246 135 72 37 61 43 237 63 73 236 136 77 216 43 26 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42)	8-98230-202-0	01	1	1210-1212	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>	8-98230-202-0	01	1	1210-1212					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98230-202-0	01	1	1210-1212						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63)	8-98233-030-0	01	1	1301-1303	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>	8-98233-030-0	01	1	1301-1303					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-030-0	01	1	1301-1303						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63)	8-98233-030-0	01	1	1304-	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-030-0	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98230-203-0	01	1	1210-1212	●	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>	8-98230-203-0	01	1	1210-1212					●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98230-203-0	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63)	8-98233-031-1	01	1	1301-1303	●	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>	8-98233-031-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-031-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63)	8-98233-031-1	01	1	1304-	●	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-031-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98230-204-0	01	1	1210-1212	●		●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>	8-98230-204-0	01	1	1210-1212					●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98230-204-0	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63)	8-98233-032-1	01	1	1301-1303	●		●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>	8-98233-032-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-032-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63)	8-98233-032-1	01	1	1304-	●		●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-032-1	01	1	1304-					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C>	8-98230-209-0	01	1	1210-1212					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98230-209-0	01	1	1210-1212						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C>	8-98233-037-0	01	1	1301-1303					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-037-0	01	1	1301-1303						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-037-0	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>	8-98230-210-0	01	1	1210-1212					●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98230-210-0	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C>	8-98233-038-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-038-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-038-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>	8-98230-211-0	01	1	1210-1212					●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98230-211-0	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C>	8-98233-039-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-039-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-039-1	01	1	1304-					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42)	8-98052-627-4	01	1	1203-1209	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>	8-98052-627-4	01	1	1203-1209					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98052-627-4	01	1	1210-1212						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH)	8-98233-014-0	01	1	1301-1303	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>	8-98233-014-0	01	1	1301-1303					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-014-0	01	1	1301-1303						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-014-0	01	1	1301-1303						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH)	8-98233-014-0	01	1	1304-	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-014-0	01	1	1304-					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-014-0	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98052-628-4	01	1	1203-1209	●	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>	8-98052-628-4	01	1	1203-1209					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98052-628-4	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH)	8-98233-015-1	01	1	1301-1303	●	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>	8-98233-015-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-015-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-015-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH)	8-98233-015-1	01	1	1304-	●	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-015-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-015-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98052-629-4	01	1	1203-1209	●		●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>	8-98052-629-4	01	1	1203-1209					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98052-629-4	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH)	8-98233-016-1	01	1	1301-1303	●		●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>	8-98233-016-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-016-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-016-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH)	8-98233-016-1	01	1	1304-	●		●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-016-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-016-1	01	1	1304-					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C>	8-98103-554-4	01	1	1203-1209					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98103-554-4	01	1	1210-1212						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH)	8-98233-021-0	01	1	1301-1303					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-021-0	01	1	1301-1303						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-021-0	01	1	1301-1303						●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-021-0	01	1	1304-					●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-021-0	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>	8-98103-555-4	01	1	1203-1209					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98103-555-4	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH)	8-98233-022-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-022-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-022-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-022-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-022-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>	8-98103-557-4	01	1	1203-1209					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98103-557-4	01	1	1210-1212						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH)	8-98233-023-1	01	1	1301-1303					●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-023-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-023-1	01	1	1301-1303						●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-023-1	01	1	1304-					●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-023-1	01	1	1304-					●	●
32	08.852 SCREW; HTR UNIT	8-98139-395-0	04	1	1203-1212	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT	8-98233-593-0	04	1	1301-	●	●	●	●	●	●
43	09.786 SCREW; CASE,HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98139-395-0	23	1	1203-1212	●	●	●	●	●	●
43	09.786 SCREW; CASE,HTR UNIT 08.852	8-98233-593-0	18	1	1301-	●	●	●	●	●	●
43	09.786 SCREW; CASE,HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) 08.852	8-98139-395-0	21	1	1203-1212	●		●		●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C42)	8-98165-407-0	01	1	1203-1212	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C42)	8-98233-582-0	01	1	1301-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98165-406-0	01	1	1203-1212	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-581-0	01	1	1301-	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT (A)	8-98139-358-1	02	1	1203-	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT (B)	8-98139-361-1	01	1	1203-	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT	8-98139-374-0	01	1	1203-	●	●	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT	8-98139-394-1	03	1	1203-	●	●	●	●	●	●
73	08.845 PLATE; HTR UNIT	8-98139-355-0	01	1	1203-1212	●	●	●	●	●	●
73	08.845 PLATE; HTR UNIT	8-98233-591-0	01	1	1301-	●	●	●	●	●	●
77	08.857 COVER; HTR CASE	8-98165-415-0	01	1	1203-1212	●	●	●	●	●	●
77	08.857 COVER; HTR CASE	8-98233-589-0	01	1	1301-	●	●	●	●	●	●
135	08.854 COVER; HTR	8-98139-377-0	01	1	1203-	●	●	●	●	●	●
136	08.850 SCREW; PLATE 08.852	8-98139-395-0	02	1	1203-1212	●	●	●	●	●	●
136	08.850 SCREW; PLATE 08.852	8-98233-593-0	02	1	1301-	●	●	●	●	●	●
199	08.854 SCREW; ACTUATOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98139-395-0	03	1	1203-1212	●	●	●	●	●	●
199	08.854 SCREW; ACTUATOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98233-593-0	05	1	1301-	●	●	●	●	●	●
199	08.854 SCREW; ACTUATOR AIR CONDITIONER AUTOMATIC CONT(C61) 08.852	8-98139-395-0	04	1	1203-1212	●		●		●	●
199	08.854 SCREW; ACTUATOR AIR CONDITIONER AUTOMATIC CONT(C61) 08.852	8-98233-593-0	04	1	1301-	●		●		●	●
212	09.262 BOLT; HTR UNIT 03.162 M6X20 FLANGE	0-28650-620-0	05	1	1203-	●		●		●	●
212	09.262 BOLT; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	05	1	1203-		●		●
216	08.845 SCREW; COVER,HEATER UNIT 08.852	8-98233-593-0	03	1	1301-	●	●	●	●	●	●
236	08.855 GASKET; HEATER	8-98139-357-1	01	1	1203-	●	●	●	●	●	●
237	08.855 INSULATOR; EVAPORATOR	8-98139-360-1	01	1	1203-	●	●	●	●	●	●
246	08.852 ACTUATOR; MODE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98157-124-2	01	1	1203-1212	●	●	●	●	●	●
246	08.852 ACTUATOR; MODE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98157-124-2	01	1	1301-	●	●	●	●	●	●
247	08.852 ACTUATOR; TEMP HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98139-398-1	01	1	1203-1212	●	●	●	●	●	●
247	08.852 ACTUATOR; TEMP HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98139-398-1	01	1	1301-	●	●	●	●	●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42)	8-98193-550-0	01	1	1203-1212	●	●	●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>	8-98193-550-0	01	1	1203-1212					●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42)	8-98233-575-0	01	1	1301-	●	●	●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>	8-98233-575-0	01	1	1301-					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98193-551-0	01	1	1203-1212	●	●	●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>	8-98193-551-0	01	1	1203-1212					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98233-576-0	01	1	1301-	●	●	●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>	8-98233-576-0	01	1	1301-					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98193-552-0	01	1	1203-1212	●		●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>	8-98193-552-0	01	1	1203-1212					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-577-0	01	1	1301-	●		●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>	8-98233-577-0	01	1	1301-					●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C>	8-98193-553-0	01	1	1203-1212					●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C>	8-98233-578-0	01	1	1301-					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>	8-98193-554-0	01	1	1203-1212					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>	8-98233-579-0	01	1	1301-					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>	8-98194-089-0	01	1	1203-1212					●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>	8-98233-580-0	01	1	1301-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
