◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51374 - TFR/TFS(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#79572) — 36 parça
çizim 141265
46 47 47 47 46 46 25 37 47 14 47 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X100 FLANGE 		0-28151-000-0 04 1 1203- ● ● ● ●
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 04 1 1203- ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98130-204-0 01 1 1203- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) 		8-98130-204-0 01 1 1203- ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1445 MITSUBOSHI 		8-97985-121-0 01 1 1203- ● ● ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1445 MITSUBOSHI 		8-97985-121-0 01 1 1203- ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1445 BANDO 		8-97985-122-0 01 1 1203- ● ● ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1445 BANDO 		8-97985-122-0 01 1 1203- ● ●
37 09.173 BOLT; PULLEY BRKT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1203- ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1203- ● ●
46 09.171 BRACKET; CMPR
HEATER & DEFROSTER(C42) (B) 		8-98177-499-0 01 1 1203- ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
HEATER & DEFROSTER(C42) (C) 		8-98187-806-2 01 1 1203- ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98039-618-0 01 1 1203- ● ● ● ●
46 09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98039-618-0 01 1 1203- ● ●
47 09.173 BOLT; BRKT TO BODY
HEATER & DEFROSTER(C42) 00.029 (B) M10X25 FLANGE 		0-28751-025-0 04 1 1203- ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
HEATER & DEFROSTER(C42) (C) 		8-98177-473-0 02 1 1203- ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
HEATER & DEFROSTER(C42) (D) 		8-98177-474-0 02 1 1203- ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1203- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1203- ● ●
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) M8X35 FLANGE 		8-98049-562-0 01 1 1203- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) (B) M8X35 FLANGE 		8-98049-562-0 01 1 1203- ● ●

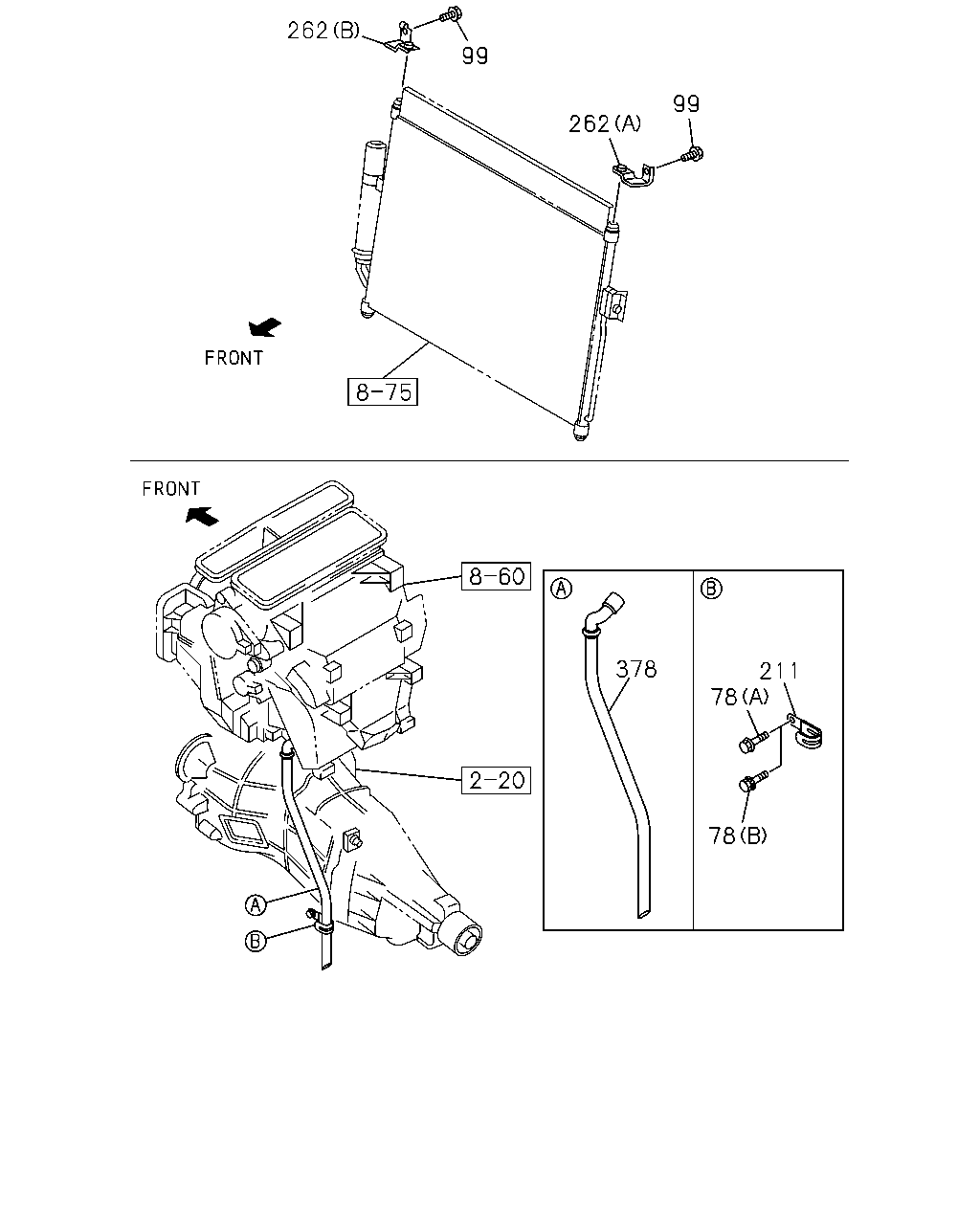

çizim 182862
262 99 99 262 378 211 78 78
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
78 09.211 BOLT; EVAP,A/C
M/T AISIN 6 SPEED(RNU) 08.015 (A) M8X16 		8-98056-122-0 01 1 1203- ● ● ● ●
78 09.211 BOLT; EVAP,A/C
M/T AISIN 6 SPEED(RNU) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.015 (A) M8X16 		8-98056-122-0 01 1 1203- ● ●
78 09.211 BOLT; EVAP,A/C
A/T 5 SPEED-AISIN(MA1) (B) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1203- ● ●
99 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1203- ● ● ● ●
99 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1203- ● ●
211 09.190 CLIP; HOSE
M/T AISIN 6 SPEED(RNU) 02.343 ID=22 L=35 		8-97375-643-0 01 1 1203- ● ●
211 09.190 CLIP; HOSE
M/T AISIN 6 SPEED(RNU) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.343 ID=22 L=35 		8-97375-643-0 01 1 1203- ● ●
211 09.190 CLIP; HOSE
02.343 ID=22 L=35 		8-97375-643-0 01 1 1203- ● ●
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98103-644-0 01 1 1203- ● ● ● ●
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98103-644-0 01 1 1203- ● ●
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98103-645-0 01 1 1203- ● ● ● ●
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98103-645-0 01 1 1203- ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR
M/T AISIN 6 SPEED(RNU) 		8-98163-367-2 01 1 1203- ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR
M/T AISIN 6 SPEED(RNU) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98163-367-2 01 1 1203- ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR 8-98163-367-2 01 1 1203- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
