8-45 — HEATER PIPING (#79571) — 19 parça

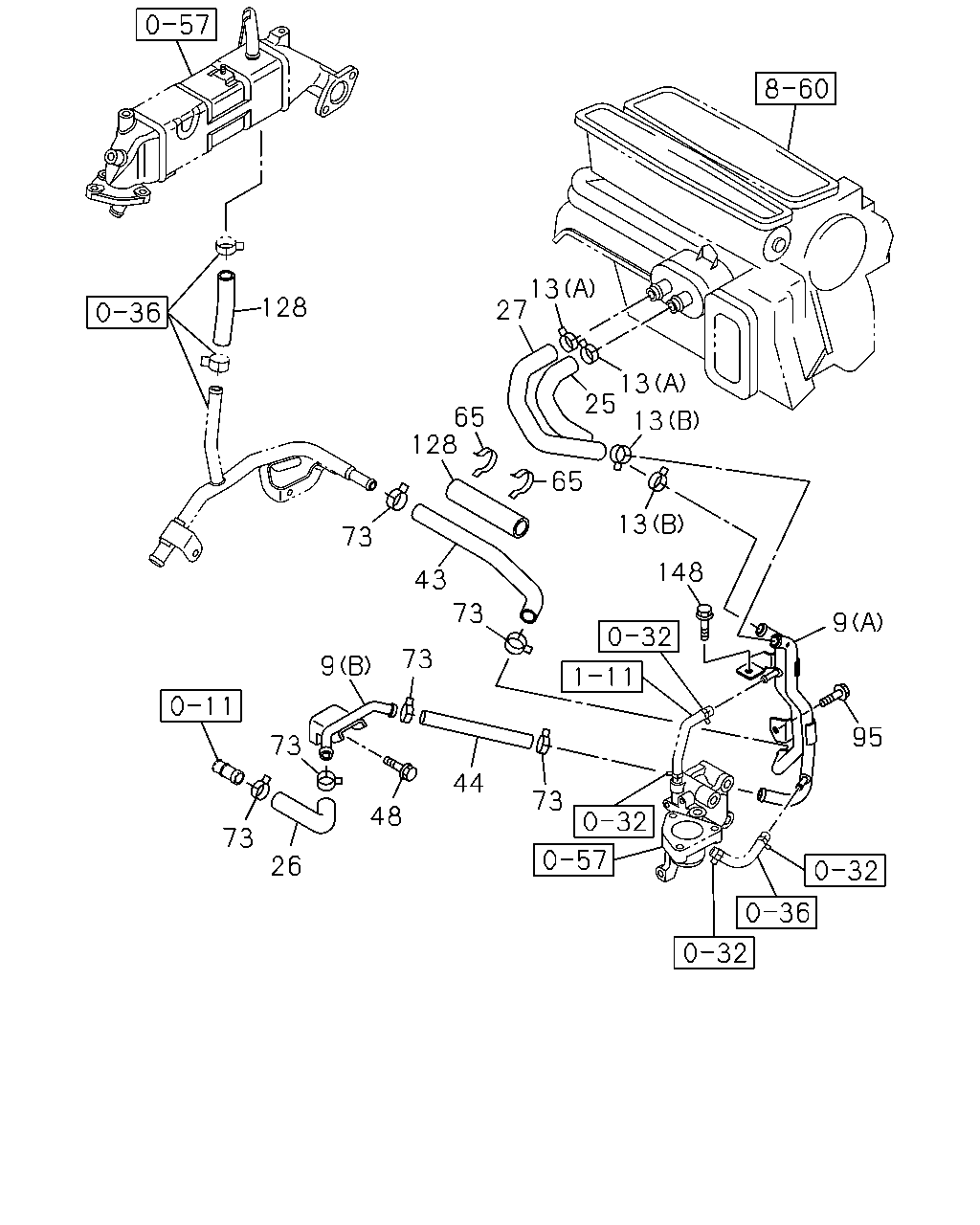

çizim 141291
13 27 128 13 25 65 128 13 65 13 73 148 43 73 9 73 9 73 95 44 73 48 73 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 08.846 PIPE; HTR
(A) 		8-98151-180-1 01 1 1203- ● ● ● ● ● ●
9 08.846 PIPE; HTR
(B) 		8-98163-300-0 01 1 1203- ● ● ● ● ● ●
13 08.846 CLIP; HTR HOSE
03.278 (A) ID=22 		8-97359-141-0 02 1 1203- ● ● ● ●
13 08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (A) ID=22 		8-97359-141-0 02 1 1203- ● ●
13 08.846 CLIP; HTR HOSE
03.417 (B) ID=20.8 		8-98133-607-0 02 1 1203- ● ● ● ●
13 08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.417 (B) ID=20.8 		8-98133-607-0 02 1 1203- ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT 8-98129-341-3 01 1 1203- ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98129-341-3 01 1 1203- ● ●
26 08.846 HOSE; HTR 8-98011-630-0 01 1 1203- ● ● ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI 8-98129-339-3 01 1 1203- ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98129-339-3 01 1 1203- ● ●
43 08.846 HOSE; WATER,OUTLET,HTR 8-98151-181-1 01 1 1203- ● ● ● ● ● ●
44 08.846 HOSE; WATER,HTR,INL
01.540 L=190 SERVICED BY L=3000 		0-03566-300-0 01 1 1203- ● ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1203- ● ● ● ● ● ●
65 08.846 CLIP; MTG RUBBER
01.540 		8-97101-337-0 02 1 1203- ● ● ● ● ● ●
73 08.846 CLIP; HTR HOSE
ID=20.8 		8-97944-127-0 06 1 1203- ● ● ● ● ● ●
95 08.866 BOLT; BYPASS PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1203- ● ● ● ● ● ●
128 08.845 INSULATOR; RR HTR
03.374 		8-98031-884-0 01 1 1203- ● ● ● ● ● ●
148 08.846 STUD; PIPE
00.413 M8X15,M8X17 L=40 		8-98009-913-0 01 1 1203- ● ● ● ● ● ●
