◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51374 - TFR/TFS(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#79567) — 41 parça

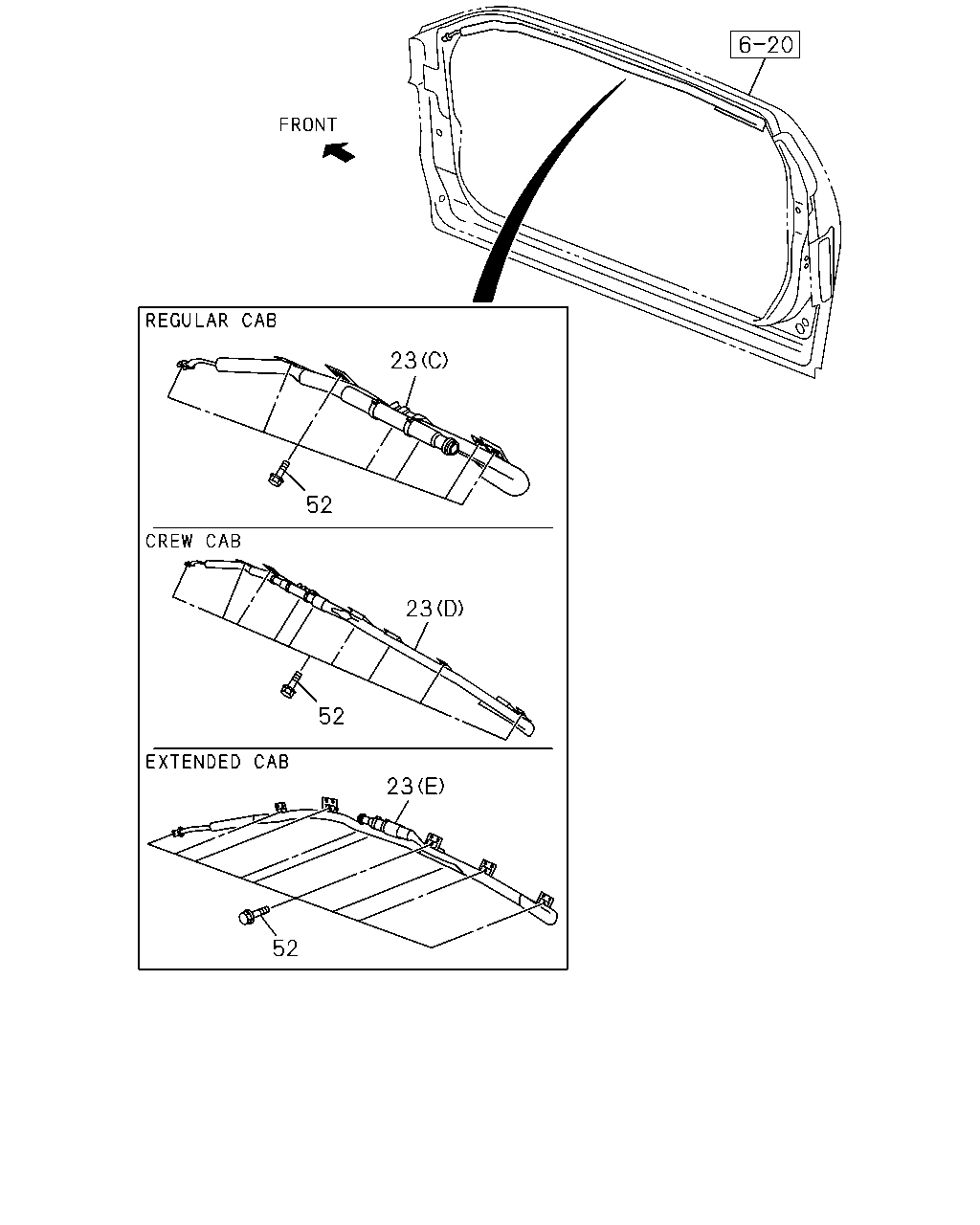

çizim 143804
23 52 23 52 23 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
23 02.559 AIR BAG UNIT
(A) BLACK 		8-97416-641-6 01 1 1203- ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
(B) BLACK 		8-97417-401-7 01 1 1203- ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
(E) 		8-98147-098-6 01 1 1203-1307 ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (E) 		8-98147-098-6 01 1 1308- ●
23 02.559 AIR BAG UNIT
(E) 		8-98147-098-6 01 1 1308- ●
23 02.559 AIR BAG UNIT
(E) 		8-98147-099-6 01 1 1203-1307 ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (E) 		8-98147-099-6 01 1 1308- ●
23 02.559 AIR BAG UNIT
(E) 		8-98147-099-6 01 1 1308- ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (C) 		8-98147-096-5 01 1 1203- ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (C) 		8-98147-097-5 01 1 1203- ● ●
23 02.559 AIR BAG UNIT
(D) 		8-98147-100-6 01 1 1203-1307 ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (D) 		8-98147-100-6 01 1 1308- ● ●
23 02.559 AIR BAG UNIT
(D) 		8-98147-101-6 01 1 1203-1307 ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (D) 		8-98147-101-6 01 1 1308- ● ●
52 02.559 BOLT; AIR BAG
03.162 M6X20 FLANGE 		0-28650-620-0 18 1 1203-1307 ● ●
52 02.559 BOLT; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 03.162 M6X20 FLANGE 		0-28650-620-0 18 1 1308- ●
52 02.559 BOLT; AIR BAG
03.162 M6X20 FLANGE 		0-28650-620-0 18 1 1308- ●
52 02.559 BOLT; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 03.162 M6X20 FLANGE 		0-28650-620-0 14 1 1203- ● ●
52 02.559 BOLT; AIR BAG
03.162 M6X20 FLANGE 		0-28650-620-0 20 1 1203-1307 ● ●
52 02.559 BOLT; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 03.162 M6X20 FLANGE 		0-28650-620-0 20 1 1308- ● ●

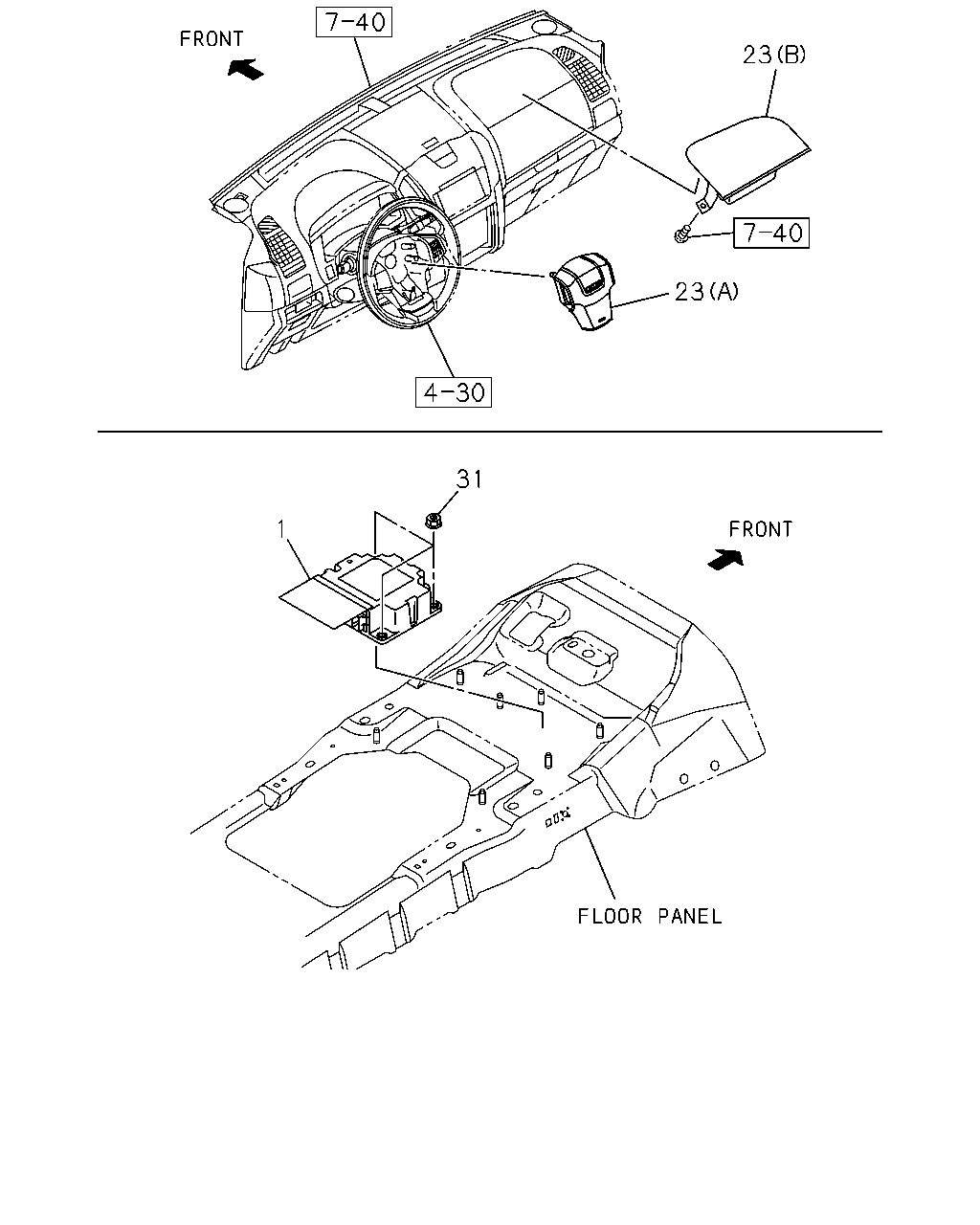

çizim 143805
23 23 31 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.559 CONTROL UNIT; SIR 8-98159-361-1 01 1 1203-1307 ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98159-361-1 01 1 1308- ● ● ●
1 02.559 CONTROL UNIT; SIR 8-98159-361-1 01 1 1308- ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98127-250-2 01 1 1203-1307 ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98127-250-2 01 1 1308- ● ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98159-362-1 01 1 1203- ● ●
23 02.559 AIR BAG UNIT
(A) BLACK 		8-97416-641-6 01 1 1203- ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
(B) BLACK 		8-97417-401-7 01 1 1203- ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
(E) 		8-98147-098-6 01 1 1203-1307 ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (E) 		8-98147-098-6 01 1 1308- ●
23 02.559 AIR BAG UNIT
(E) 		8-98147-098-6 01 1 1308- ●
23 02.559 AIR BAG UNIT
(E) 		8-98147-099-6 01 1 1203-1307 ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (E) 		8-98147-099-6 01 1 1308- ●
23 02.559 AIR BAG UNIT
(E) 		8-98147-099-6 01 1 1308- ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (C) 		8-98147-096-5 01 1 1203- ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (C) 		8-98147-097-5 01 1 1203- ● ●
23 02.559 AIR BAG UNIT
(D) 		8-98147-100-6 01 1 1203-1307 ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (D) 		8-98147-100-6 01 1 1308- ● ●
23 02.559 AIR BAG UNIT
(D) 		8-98147-101-6 01 1 1203-1307 ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (D) 		8-98147-101-6 01 1 1308- ● ●
31 14.865 NUT
01.540 M6 FLANGE 		0-91180-206-0 03 1 1203- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
