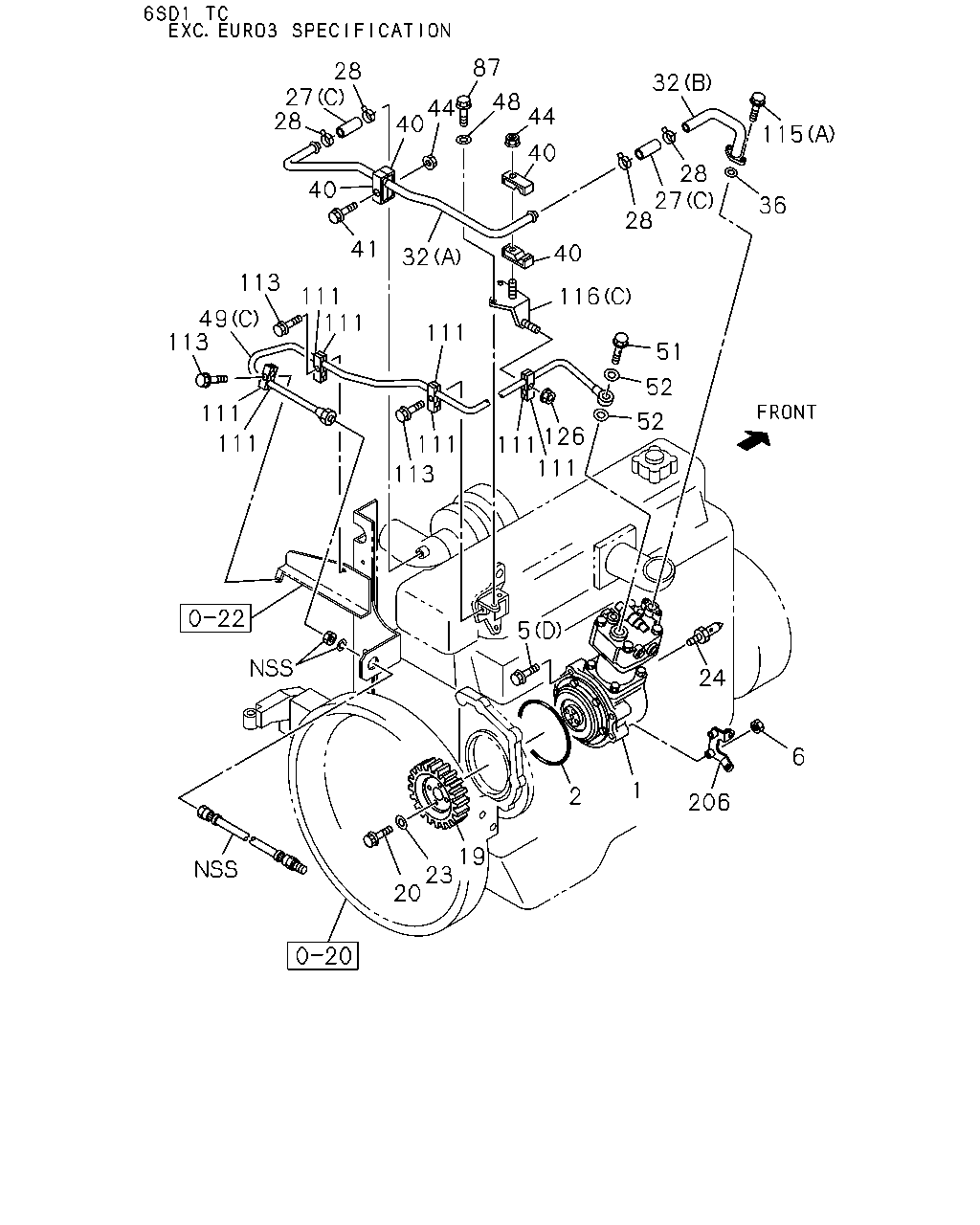

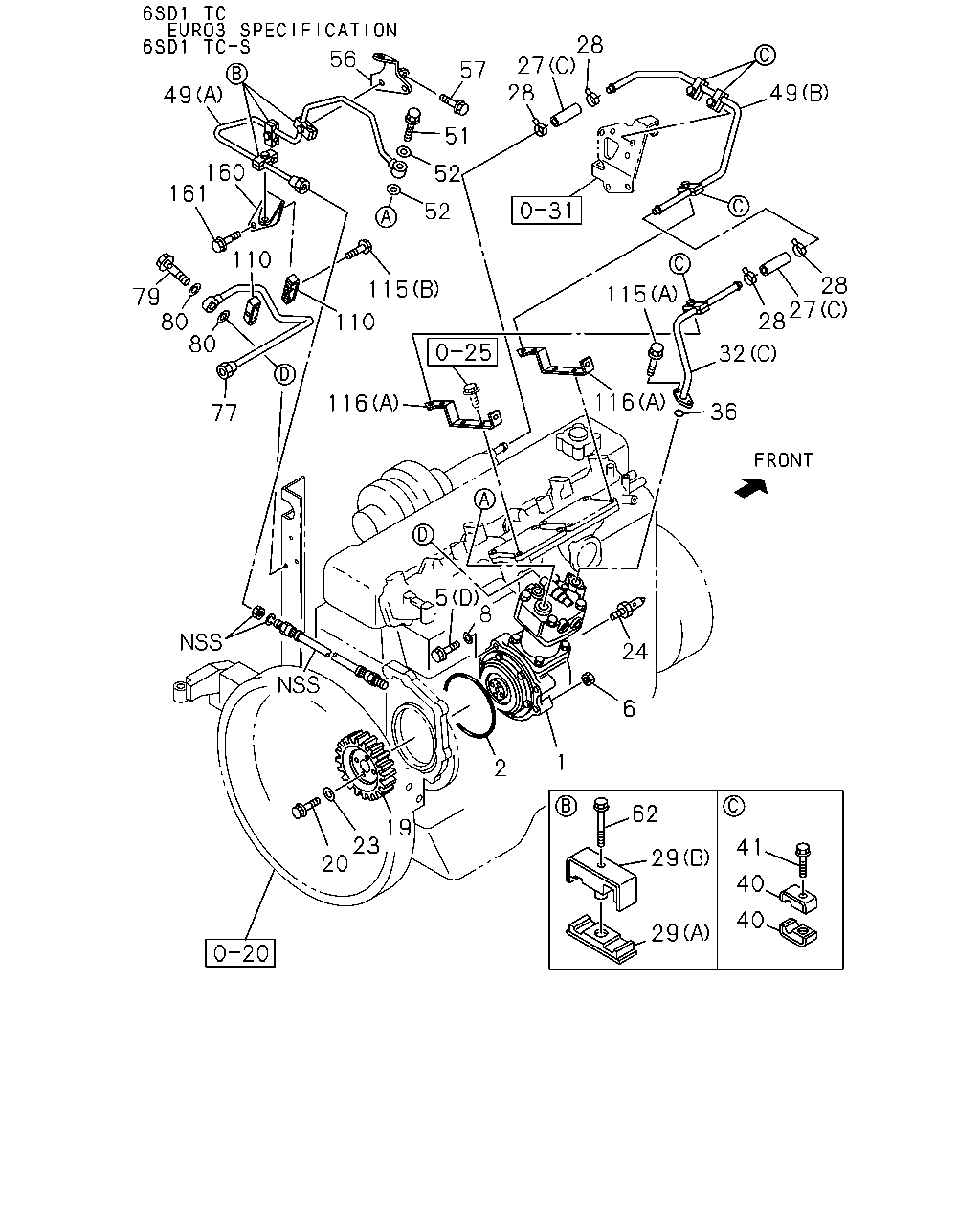

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#7956) — 462 parça

28 27 28 56 57 49 49 51 160 161 52 52 110 28 27 28 115 115 79 80 80 110 32 116 116 36 77 5 8 24 6 1 2 62 19 23 20 41 29 40 40 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-310-1	01	1	0012-0210	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-310-1	01	1	0211-0302	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-327-6	01	1	0303-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-292-4	01	1	0204-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0012-0210	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0211-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0204-			●
5	BOLT; AIR CMPR FIX (D) M12X15	0-28186-215-0	02	1	0012-0512	●
5	BOLT; AIR CMPR FIX (D) M12X15	0-28156-215-0	02	1	0601-	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0204-			●
5	BOLT; AIR CMPR FIX (C) M14X100	9-91666-400-0	01	1	0204-0512			●
5	BOLT; AIR CMPR FIX (C) M14X100	0-16956-400-0	01	1	0601-			●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0204-0512			●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-			●
5	BOLT; AIR CMPR FIX (D) M12X173	1-09020-057-1	02	1	0211-		●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	02	1	0012-0210	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	02	1	0211-0602	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	02	1	0603-	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0204-			●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0204-			●
8	WASHER; PL,AIR CMPR ID=12.2	9-09851-933-0	02	1	0211-		●
19	GEAR; INJ PUMP Z=36	1-12524-098-0	01	1	0012-0210	●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0211-	●	●
19	GEAR; INJ PUMP Z=54	1-12524-164-1	01	1	0204-			●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0012-0210	●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0211-	●	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0204-			●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	0012-0210	●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	0211-	●	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0012-0210	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0211-	●	●
24	POINTER; AIR CMPR	1-11327-040-1	01	1	0204-			●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0012-0210	●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0211-	●	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	01	1	0204-			●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	0204-			●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0012-0210	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0211-	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	04	1	0204-			●
29	CLIP; AIR PIPE EURO3 SPECIFICATION(NJX) (A)	1-09701-272-0	03	1	0107-0210	●
29	CLIP; AIR PIPE EURO3 SPECIFICATION(NJX) (A)	1-09701-272-0	03	1	0211-	●
29	CLIP; AIR PIPE (A)	1-09701-272-0	03	1	0211-		●
29	CLIP; AIR PIPE EURO3 SPECIFICATION(NJX) (B)	8-94393-037-0	03	1	0107-0210	●
29	CLIP; AIR PIPE EURO3 SPECIFICATION(NJX) (B)	8-94393-037-0	03	1	0211-	●
29	CLIP; AIR PIPE (B)	8-94393-037-0	03	1	0211-		●
32	PIPE; AIR,AIR CMPR (A)	1-19193-271-0	01	1	0012-0106	●
32	PIPE; AIR,AIR CMPR EXC. EURO3 SPECIFICATION(NJX) (A)	1-19193-271-0	01	1	0107-	●
32	PIPE; AIR,AIR CMPR (B)	1-19193-367-0	01	1	0012-0106	●
32	PIPE; AIR,AIR CMPR EXC. EURO3 SPECIFICATION(NJX) (B)	1-19193-367-0	01	1	0107-0802	●
32	PIPE; AIR,AIR CMPR EXC. EURO3 SPECIFICATION(NJX) (B)	8-98100-018-0	01	1	0803-	●
32	PIPE; AIR,AIR CMPR EURO3 SPECIFICATION(NJX) (C)	1-19193-359-0	01	1	0107-0210	●
32	PIPE; AIR,AIR CMPR EURO3 SPECIFICATION(NJX) (C)	1-19193-359-0	01	1	0211-0802	●
32	PIPE; AIR,AIR CMPR (C)	1-19193-359-0	01	1	0211-0802		●
32	PIPE; AIR,AIR CMPR EURO3 SPECIFICATION(NJX) (C)	8-98100-017-0	01	1	0803-	●
32	PIPE; AIR,AIR CMPR (C)	8-98100-017-0	01	1	0803-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	0012-0210	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	0211-0802	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	0803-	●	●
40	CLIP; AIR PIPE	1-09701-281-0	04	1	0012-0106	●
40	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION(NJX)	1-09701-281-1	04	1	0107-	●
40	CLIP; AIR PIPE EURO3 SPECIFICATION(NJX)	1-09701-281-0	08	1	0107-0210	●
40	CLIP; AIR PIPE EURO3 SPECIFICATION(NJX)	1-09701-281-1	08	1	0211-	●
40	CLIP; AIR PIPE	1-09701-281-1	08	1	0211-		●
41	BOLT; CLIP M6X40 FLANGE	0-28080-640-0	01	1	0012-0106	●
41	BOLT; CLIP EXC. EURO3 SPECIFICATION(NJX) M6X40 FLANGE	0-28080-640-0	01	1	0107-0512	●
41	BOLT; CLIP EXC. EURO3 SPECIFICATION(NJX) M6X40 FLANGE	0-28050-640-0	01	1	0601-	●
41	BOLT; CLIP EURO3 SPECIFICATION(NJX) M8X50 FLANGE	0-28080-850-0	04	1	0107-0210	●
41	BOLT; CLIP EURO3 SPECIFICATION(NJX) M8X50 FLANGE	0-28080-850-0	04	1	0211-0512	●
41	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	04	1	0211-0512		●
41	BOLT; CLIP EURO3 SPECIFICATION(NJX) M8X50 FLANGE	0-28050-850-0	04	1	0601-	●
41	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	04	1	0601-		●
49	PIPE; AIR,CHARGE (C)	1-19193-366-0	01	1	0012-0106	●
49	PIPE; AIR,CHARGE EXC. EURO3 SPECIFICATION(NJX) (C)	1-19193-366-0	01	1	0107-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION(NJX) (B)	1-19193-357-0	01	1	0107-0210	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION(NJX) (B)	1-19193-357-0	01	1	0211-	●
49	PIPE; AIR,CHARGE (B)	1-19193-357-0	01	1	0211-		●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION(NJX) (A)	1-19193-358-0	01	1	0107-0210	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION(NJX) (A)	1-19193-358-0	01	1	0211-	●
49	PIPE; AIR,CHARGE (A)	1-19193-358-0	01	1	0211-		●
49	PIPE; AIR,CHARGE (E)	1-19193-291-0	01	1	0204-			●
49	PIPE; AIR,CHARGE (D)	9-19119-032-0	01	1	0204-			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0012-0203	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0204-0210	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0211-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0012-0203	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0204-0210	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0211-	●	●	●
56	BRACKET; AIR PIPE FIX EURO3 SPECIFICATION(NJX)	1-19193-353-0	01	1	0107-0210	●
56	BRACKET; AIR PIPE FIX EURO3 SPECIFICATION(NJX)	1-19193-353-0	01	1	0211-	●
56	BRACKET; AIR PIPE FIX	1-19193-353-0	01	1	0211-		●
57	BOLT; BRKT,AIR PIPE EURO3 SPECIFICATION(NJX) M8X16 FLANGE	0-28080-816-0	02	1	0107-0210	●
57	BOLT; BRKT,AIR PIPE EURO3 SPECIFICATION(NJX) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●
57	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0211-0512		●
57	BOLT; BRKT,AIR PIPE EURO3 SPECIFICATION(NJX) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
57	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
62	BOLT; CLIP EURO3 SPECIFICATION(NJX) M6X40 FLANGE	0-28680-640-0	03	1	0107-0210	●
62	BOLT; CLIP EURO3 SPECIFICATION(NJX) M6X40 FLANGE	0-28680-640-0	03	1	0211-0512	●
62	BOLT; CLIP M6X40 FLANGE	0-28680-640-0	03	1	0211-0512		●
62	BOLT; CLIP EURO3 SPECIFICATION(NJX) M6X40 FLANGE	0-28650-640-0	03	1	0601-	●
62	BOLT; CLIP M6X40 FLANGE	0-28650-640-0	03	1	0601-		●
77	PIPE; AIR,GOV EURO3 SPECIFICATION(NJX)	1-19193-154-0	01	1	0107-0210	●
77	PIPE; AIR,GOV EURO3 SPECIFICATION(NJX)	1-19193-154-0	01	1	0211-	●
77	PIPE; AIR,GOV	1-19193-154-0	01	1	0211-		●
79	BOLT; EYE,AIR PIPE TO CMPR EURO3 SPECIFICATION(NJX) M14X27 FLANGE	1-09675-086-0	01	1	0107-0203	●
79	BOLT; EYE,AIR PIPE TO CMPR EURO3 SPECIFICATION(NJX) M14X27 FLANGE	1-09675-086-0	01	1	0204-0210	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0204-0210			●
79	BOLT; EYE,AIR PIPE TO CMPR EURO3 SPECIFICATION(NJX) M14X27 FLANGE	1-09675-086-0	01	1	0211-	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0211-		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-0203	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-		●	●
110	CLIP; AIR PIPE EURO3 SPECIFICATION(NJX)	1-09701-132-0	02	1	0107-0210	●
110	CLIP; AIR PIPE EURO3 SPECIFICATION(NJX)	1-09701-132-1	02	1	0211-	●
110	CLIP; AIR PIPE	1-09701-132-1	02	1	0211-		●
110	CLIP; AIR PIPE	1-09701-208-0	02	1	0204-			●
115	BOLT; AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	0012-0210	●
115	BOLT; AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●	●
115	BOLT; AIR PIPE (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
115	BOLT; AIR PIPE EURO3 SPECIFICATION(NJX) (B) M6X30 FLANGE	0-28680-630-0	01	1	0107-0210	●
115	BOLT; AIR PIPE EURO3 SPECIFICATION(NJX) (B) M6X30 FLANGE	0-28680-630-0	01	1	0211-0512	●
115	BOLT; AIR PIPE (B) M6X30 FLANGE	0-28680-630-0	01	1	0211-0512		●
115	BOLT; AIR PIPE EURO3 SPECIFICATION(NJX) (B) M6X30 FLANGE	0-28650-630-0	01	1	0601-	●
115	BOLT; AIR PIPE (B) M6X30 FLANGE	0-28650-630-0	01	1	0601-		●
115	BOLT; AIR PIPE (D) M8X20 FLANGE	0-28080-820-0	02	1	0204-0512			●
115	BOLT; AIR PIPE (D) M8X20 FLANGE	0-28050-820-0	02	1	0601-			●
115	BOLT; AIR PIPE (C) M10X20 FLANGE	0-28181-020-0	02	1	0204-0512			●
115	BOLT; AIR PIPE (C) M10X20 FLANGE	0-28151-020-0	02	1	0601-			●
116	BRACKET; AIR PIPE (C)	1-19199-357-0	01	1	0012-0106	●
116	BRACKET; AIR PIPE EXC. EURO3 SPECIFICATION(NJX) (C)	1-19199-357-0	01	1	0107-	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX) (A)	1-14119-455-0	02	1	0107-0203	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX) (A)	1-14119-468-0	02	1	0204-0210	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX) (A)	1-14119-468-0	02	1	0211-	●
116	BRACKET; AIR PIPE (A)	1-14119-468-0	02	1	0211-		●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX) (B)	1-19199-383-1	01	1	0107-0210	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX) (B)	1-19199-383-1	01	1	0211-	●
116	BRACKET; AIR PIPE (B)	1-19199-383-1	01	1	0211-		●
116	BRACKET; AIR PIPE (D)	1-19199-212-1	01	1	0204-			●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX)	1-19199-382-0	01	1	0107-0210	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX)	1-19199-382-0	01	1	0211-	●
160	BRACKET; AIR PIPE	1-19199-382-0	01	1	0211-		●
161	BOLT; BRKT,AIR PIPE EURO3 SPECIFICATION(NJX) M8X20 FLANGE	0-28680-820-0	02	1	0107-0210	●
161	BOLT; BRKT,AIR PIPE EURO3 SPECIFICATION(NJX) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●
161	BOLT; BRKT,AIR PIPE M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●
161	BOLT; BRKT,AIR PIPE EURO3 SPECIFICATION(NJX) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
161	BOLT; BRKT,AIR PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-		●

27 28 28 31 115 27 116 28 71 28 34 70 72 115 49 79 49 8 176 5 80 51 87 8 52 5 87 80 3 52 33 211 24 6 212 1 20 8 5 110 2 19 213 68 90 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-310-1	01	1	0012-0210	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-310-1	01	1	0211-0302	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-327-6	01	1	0303-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-292-4	01	1	0204-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0012-0210	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0211-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0204-			●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0204-			●
5	BOLT; AIR CMPR FIX (D) M12X15	0-28186-215-0	02	1	0012-0512	●
5	BOLT; AIR CMPR FIX (D) M12X15	0-28156-215-0	02	1	0601-	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0204-			●
5	BOLT; AIR CMPR FIX (C) M14X100	9-91666-400-0	01	1	0204-0512			●
5	BOLT; AIR CMPR FIX (C) M14X100	0-16956-400-0	01	1	0601-			●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0204-0512			●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-			●
5	BOLT; AIR CMPR FIX (D) M12X173	1-09020-057-1	02	1	0211-		●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	02	1	0012-0210	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	02	1	0211-0602	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	02	1	0603-	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0204-			●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0204-			●
8	WASHER; PL,AIR CMPR ID=12.2	9-09851-933-0	02	1	0211-		●
19	GEAR; INJ PUMP Z=36	1-12524-098-0	01	1	0012-0210	●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0211-	●	●
19	GEAR; INJ PUMP Z=54	1-12524-164-1	01	1	0204-			●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0012-0210	●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0211-	●	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0204-			●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0012-0210	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0211-	●	●
24	POINTER; AIR CMPR	1-11327-040-1	01	1	0204-			●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0012-0210	●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0211-	●	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	01	1	0204-			●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	0204-			●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0012-0210	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0211-	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	04	1	0204-			●
31	PIPE; AIR,AIR CMPR SUCTION	1-19192-991-0	01	1	0204-			●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	0204-0602			●
33	NUT; PIPE FIX M8 FLANGE	0-91180-108-0	02	1	0603-			●
34	NUT; LK SUCTION PIPE	9-09840-254-0	01	1	0204-			●
49	PIPE; AIR,CHARGE (C)	1-19193-366-0	01	1	0012-0106	●
49	PIPE; AIR,CHARGE EXC. EURO3 SPECIFICATION(NJX) (C)	1-19193-366-0	01	1	0107-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION(NJX) (B)	1-19193-357-0	01	1	0107-0210	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION(NJX) (B)	1-19193-357-0	01	1	0211-	●
49	PIPE; AIR,CHARGE (B)	1-19193-357-0	01	1	0211-		●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION(NJX) (A)	1-19193-358-0	01	1	0107-0210	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION(NJX) (A)	1-19193-358-0	01	1	0211-	●
49	PIPE; AIR,CHARGE (A)	1-19193-358-0	01	1	0211-		●
49	PIPE; AIR,CHARGE (E)	1-19193-291-0	01	1	0204-			●
49	PIPE; AIR,CHARGE (D)	9-19119-032-0	01	1	0204-			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0012-0203	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0204-0210	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0211-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0012-0203	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0204-0210	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0211-	●	●	●
68	SLEEVE; RUBBER ID=9 OD=14 L=35	8-94127-043-0	01	1	0204-			●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0204-			●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	0204-0603			●
70	WASHER; LK ID=12.2	0-91510-512-0	01	1	0604-			●
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	0204-			●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	0204-			●
79	BOLT; EYE,AIR PIPE TO CMPR EURO3 SPECIFICATION(NJX) M14X27 FLANGE	1-09675-086-0	01	1	0107-0203	●
79	BOLT; EYE,AIR PIPE TO CMPR EURO3 SPECIFICATION(NJX) M14X27 FLANGE	1-09675-086-0	01	1	0204-0210	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0204-0210			●
79	BOLT; EYE,AIR PIPE TO CMPR EURO3 SPECIFICATION(NJX) M14X27 FLANGE	1-09675-086-0	01	1	0211-	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0211-		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-0203	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-0210			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-		●	●
87	BOLT; BRKT FIX M10X25 FLANGE	0-28081-025-0	02	1	0012-0103	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0104-0106	●
87	BOLT; BRKT FIX EXC. EURO3 SPECIFICATION(NJX) M10X20 FLANGE	0-28081-020-0	02	1	0107-0512	●
87	BOLT; BRKT FIX EXC. EURO3 SPECIFICATION(NJX) M10X20 FLANGE	0-28051-020-0	02	1	0601-	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION(NJX) M8X20 FLANGE	0-28680-820-0	02	1	0107-0210	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION(NJX) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●
87	BOLT; BRKT FIX EURO3 SPECIFICATION(NJX) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	0204-0512			●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28151-020-0	02	1	0601-			●
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	0204-			●
110	CLIP; AIR PIPE EURO3 SPECIFICATION(NJX)	1-09701-132-0	02	1	0107-0210	●
110	CLIP; AIR PIPE EURO3 SPECIFICATION(NJX)	1-09701-132-1	02	1	0211-	●
110	CLIP; AIR PIPE	1-09701-132-1	02	1	0211-		●
110	CLIP; AIR PIPE	1-09701-208-0	02	1	0204-			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0012-0106	●
113	BOLT; CLIP,AIR PIPE EXC. EURO3 SPECIFICATION(NJX) M6X40 FLANGE	0-28080-640-0	01	1	0107-0203	●
113	BOLT; CLIP,AIR PIPE EXC. EURO3 SPECIFICATION(NJX) M6X40 FLANGE	0-28080-640-0	01	1	0204-0512	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0204-0512			●
113	BOLT; CLIP,AIR PIPE EXC. EURO3 SPECIFICATION(NJX) M6X40 FLANGE	0-28050-640-0	01	1	0601-	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-			●
113	BOLT; CLIP,AIR PIPE M6X35 FLANGE	0-28680-635-0	02	1	0012-0106	●
113	BOLT; CLIP,AIR PIPE EXC. EURO3 SPECIFICATION(NJX) M6X35 FLANGE	0-28680-635-0	02	1	0107-0512	●
113	BOLT; CLIP,AIR PIPE EXC. EURO3 SPECIFICATION(NJX) M6X35 FLANGE	0-28650-635-0	02	1	0601-	●
115	BOLT; AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	0012-0210	●
115	BOLT; AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●	●
115	BOLT; AIR PIPE (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
115	BOLT; AIR PIPE EURO3 SPECIFICATION(NJX) (B) M6X30 FLANGE	0-28680-630-0	01	1	0107-0210	●
115	BOLT; AIR PIPE EURO3 SPECIFICATION(NJX) (B) M6X30 FLANGE	0-28680-630-0	01	1	0211-0512	●
115	BOLT; AIR PIPE (B) M6X30 FLANGE	0-28680-630-0	01	1	0211-0512		●
115	BOLT; AIR PIPE EURO3 SPECIFICATION(NJX) (B) M6X30 FLANGE	0-28650-630-0	01	1	0601-	●
115	BOLT; AIR PIPE (B) M6X30 FLANGE	0-28650-630-0	01	1	0601-		●
115	BOLT; AIR PIPE (D) M8X20 FLANGE	0-28080-820-0	02	1	0204-0512			●
115	BOLT; AIR PIPE (D) M8X20 FLANGE	0-28050-820-0	02	1	0601-			●
115	BOLT; AIR PIPE (C) M10X20 FLANGE	0-28181-020-0	02	1	0204-0512			●
115	BOLT; AIR PIPE (C) M10X20 FLANGE	0-28151-020-0	02	1	0601-			●
116	BRACKET; AIR PIPE (C)	1-19199-357-0	01	1	0012-0106	●
116	BRACKET; AIR PIPE EXC. EURO3 SPECIFICATION(NJX) (C)	1-19199-357-0	01	1	0107-	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX) (A)	1-14119-455-0	02	1	0107-0203	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX) (A)	1-14119-468-0	02	1	0204-0210	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX) (A)	1-14119-468-0	02	1	0211-	●
116	BRACKET; AIR PIPE (A)	1-14119-468-0	02	1	0211-		●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX) (B)	1-19199-383-1	01	1	0107-0210	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX) (B)	1-19199-383-1	01	1	0211-	●
116	BRACKET; AIR PIPE (B)	1-19199-383-1	01	1	0211-		●
116	BRACKET; AIR PIPE (D)	1-19199-212-1	01	1	0204-			●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	0204-			●
211	BOLT; POINTER M10X16	0-23801-016-0	02	1	0204-			●
212	WASHER; LK,POINTER ID=10.2	9-09150-510-0	02	1	0204-0603			●
212	WASHER; LK,POINTER ID=10.2	0-91510-510-0	02	1	0604-			●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08160-510-0	01	1	0204-			●

87 28 27 28 32 48 44 44 40 115 40 28 27 28 40 36 41 40 32 113 111 111 116 49 113 111 51 52 111 52 126 111 111 111 111 113 5 24 6 1 2 206 19 23 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-310-1	01	1	0012-0210	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-310-1	01	1	0211-0302	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-327-6	01	1	0303-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-292-4	01	1	0204-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0012-0210	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0211-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0204-			●
5	BOLT; AIR CMPR FIX (D) M12X15	0-28186-215-0	02	1	0012-0512	●
5	BOLT; AIR CMPR FIX (D) M12X15	0-28156-215-0	02	1	0601-	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0204-			●
5	BOLT; AIR CMPR FIX (C) M14X100	9-91666-400-0	01	1	0204-0512			●
5	BOLT; AIR CMPR FIX (C) M14X100	0-16956-400-0	01	1	0601-			●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0204-0512			●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-			●
5	BOLT; AIR CMPR FIX (D) M12X173	1-09020-057-1	02	1	0211-		●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	02	1	0012-0210	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	02	1	0211-0602	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	02	1	0603-	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0204-			●
19	GEAR; INJ PUMP Z=36	1-12524-098-0	01	1	0012-0210	●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0211-	●	●
19	GEAR; INJ PUMP Z=54	1-12524-164-1	01	1	0204-			●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0012-0210	●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0211-	●	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0204-			●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	0012-0210	●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	0211-	●	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0012-0210	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0211-	●	●
24	POINTER; AIR CMPR	1-11327-040-1	01	1	0204-			●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0012-0210	●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0211-	●	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	01	1	0204-			●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	0204-			●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0012-0210	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0211-	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	04	1	0204-			●
32	PIPE; AIR,AIR CMPR (A)	1-19193-271-0	01	1	0012-0106	●
32	PIPE; AIR,AIR CMPR EXC. EURO3 SPECIFICATION(NJX) (A)	1-19193-271-0	01	1	0107-	●
32	PIPE; AIR,AIR CMPR (B)	1-19193-367-0	01	1	0012-0106	●
32	PIPE; AIR,AIR CMPR EXC. EURO3 SPECIFICATION(NJX) (B)	1-19193-367-0	01	1	0107-0802	●
32	PIPE; AIR,AIR CMPR EXC. EURO3 SPECIFICATION(NJX) (B)	8-98100-018-0	01	1	0803-	●
32	PIPE; AIR,AIR CMPR EURO3 SPECIFICATION(NJX) (C)	1-19193-359-0	01	1	0107-0210	●
32	PIPE; AIR,AIR CMPR EURO3 SPECIFICATION(NJX) (C)	1-19193-359-0	01	1	0211-0802	●
32	PIPE; AIR,AIR CMPR (C)	1-19193-359-0	01	1	0211-0802		●
32	PIPE; AIR,AIR CMPR EURO3 SPECIFICATION(NJX) (C)	8-98100-017-0	01	1	0803-	●
32	PIPE; AIR,AIR CMPR (C)	8-98100-017-0	01	1	0803-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	0012-0210	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	0211-0802	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	0803-	●	●
40	CLIP; AIR PIPE	1-09701-281-0	04	1	0012-0106	●
40	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION(NJX)	1-09701-281-1	04	1	0107-	●
40	CLIP; AIR PIPE EURO3 SPECIFICATION(NJX)	1-09701-281-0	08	1	0107-0210	●
40	CLIP; AIR PIPE EURO3 SPECIFICATION(NJX)	1-09701-281-1	08	1	0211-	●
40	CLIP; AIR PIPE	1-09701-281-1	08	1	0211-		●
41	BOLT; CLIP M6X40 FLANGE	0-28080-640-0	01	1	0012-0106	●
41	BOLT; CLIP EXC. EURO3 SPECIFICATION(NJX) M6X40 FLANGE	0-28080-640-0	01	1	0107-0512	●
41	BOLT; CLIP EXC. EURO3 SPECIFICATION(NJX) M6X40 FLANGE	0-28050-640-0	01	1	0601-	●
41	BOLT; CLIP EURO3 SPECIFICATION(NJX) M8X50 FLANGE	0-28080-850-0	04	1	0107-0210	●
41	BOLT; CLIP EURO3 SPECIFICATION(NJX) M8X50 FLANGE	0-28080-850-0	04	1	0211-0512	●
41	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	04	1	0211-0512		●
41	BOLT; CLIP EURO3 SPECIFICATION(NJX) M8X50 FLANGE	0-28050-850-0	04	1	0601-	●
41	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	04	1	0601-		●
44	NUT M6 FLANGE	0-91150-106-0	01	1	0012-0106	●
44	NUT EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91150-106-0	01	1	0107-0602	●
44	NUT EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91180-106-0	01	1	0603-	●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0104-0106	●
48	WASHER; PL,BRKT EXC. EURO3 SPECIFICATION(NJX) ID=10.5 OD=18	9-09160-510-0	02	1	0107-0605	●
48	WASHER; PL,BRKT EXC. EURO3 SPECIFICATION(NJX) ID=10.5	0-91610-510-0	02	1	0606-	●
49	PIPE; AIR,CHARGE (C)	1-19193-366-0	01	1	0012-0106	●
49	PIPE; AIR,CHARGE EXC. EURO3 SPECIFICATION(NJX) (C)	1-19193-366-0	01	1	0107-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION(NJX) (B)	1-19193-357-0	01	1	0107-0210	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION(NJX) (B)	1-19193-357-0	01	1	0211-	●
49	PIPE; AIR,CHARGE (B)	1-19193-357-0	01	1	0211-		●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION(NJX) (A)	1-19193-358-0	01	1	0107-0210	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION(NJX) (A)	1-19193-358-0	01	1	0211-	●
49	PIPE; AIR,CHARGE (A)	1-19193-358-0	01	1	0211-		●
49	PIPE; AIR,CHARGE (E)	1-19193-291-0	01	1	0204-			●
49	PIPE; AIR,CHARGE (D)	9-19119-032-0	01	1	0204-			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0012-0203	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0204-0210	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0211-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0012-0203	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0204-0210	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0211-	●	●	●
87	BOLT; BRKT FIX M10X25 FLANGE	0-28081-025-0	02	1	0012-0103	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0104-0106	●
87	BOLT; BRKT FIX EXC. EURO3 SPECIFICATION(NJX) M10X20 FLANGE	0-28081-020-0	02	1	0107-0512	●
87	BOLT; BRKT FIX EXC. EURO3 SPECIFICATION(NJX) M10X20 FLANGE	0-28051-020-0	02	1	0601-	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION(NJX) M8X20 FLANGE	0-28680-820-0	02	1	0107-0210	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION(NJX) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●
87	BOLT; BRKT FIX EURO3 SPECIFICATION(NJX) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	0204-0512			●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28151-020-0	02	1	0601-			●
111	CLIP; AIR PIPE	1-09701-208-0	08	1	0012-0106	●
111	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION(NJX)	1-09701-208-0	08	1	0107-	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0012-0106	●
113	BOLT; CLIP,AIR PIPE EXC. EURO3 SPECIFICATION(NJX) M6X40 FLANGE	0-28080-640-0	01	1	0107-0203	●
113	BOLT; CLIP,AIR PIPE EXC. EURO3 SPECIFICATION(NJX) M6X40 FLANGE	0-28080-640-0	01	1	0204-0512	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0204-0512			●
113	BOLT; CLIP,AIR PIPE EXC. EURO3 SPECIFICATION(NJX) M6X40 FLANGE	0-28050-640-0	01	1	0601-	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-			●
113	BOLT; CLIP,AIR PIPE M6X35 FLANGE	0-28680-635-0	02	1	0012-0106	●
113	BOLT; CLIP,AIR PIPE EXC. EURO3 SPECIFICATION(NJX) M6X35 FLANGE	0-28680-635-0	02	1	0107-0512	●
113	BOLT; CLIP,AIR PIPE EXC. EURO3 SPECIFICATION(NJX) M6X35 FLANGE	0-28650-635-0	02	1	0601-	●
115	BOLT; AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	0012-0210	●
115	BOLT; AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●	●
115	BOLT; AIR PIPE (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
115	BOLT; AIR PIPE EURO3 SPECIFICATION(NJX) (B) M6X30 FLANGE	0-28680-630-0	01	1	0107-0210	●
115	BOLT; AIR PIPE EURO3 SPECIFICATION(NJX) (B) M6X30 FLANGE	0-28680-630-0	01	1	0211-0512	●
115	BOLT; AIR PIPE (B) M6X30 FLANGE	0-28680-630-0	01	1	0211-0512		●
115	BOLT; AIR PIPE EURO3 SPECIFICATION(NJX) (B) M6X30 FLANGE	0-28650-630-0	01	1	0601-	●
115	BOLT; AIR PIPE (B) M6X30 FLANGE	0-28650-630-0	01	1	0601-		●
115	BOLT; AIR PIPE (D) M8X20 FLANGE	0-28080-820-0	02	1	0204-0512			●
115	BOLT; AIR PIPE (D) M8X20 FLANGE	0-28050-820-0	02	1	0601-			●
115	BOLT; AIR PIPE (C) M10X20 FLANGE	0-28181-020-0	02	1	0204-0512			●
115	BOLT; AIR PIPE (C) M10X20 FLANGE	0-28151-020-0	02	1	0601-			●
116	BRACKET; AIR PIPE (C)	1-19199-357-0	01	1	0012-0106	●
116	BRACKET; AIR PIPE EXC. EURO3 SPECIFICATION(NJX) (C)	1-19199-357-0	01	1	0107-	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX) (A)	1-14119-455-0	02	1	0107-0203	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX) (A)	1-14119-468-0	02	1	0204-0210	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX) (A)	1-14119-468-0	02	1	0211-	●
116	BRACKET; AIR PIPE (A)	1-14119-468-0	02	1	0211-		●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX) (B)	1-19199-383-1	01	1	0107-0210	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX) (B)	1-19199-383-1	01	1	0211-	●
116	BRACKET; AIR PIPE (B)	1-19199-383-1	01	1	0211-		●
116	BRACKET; AIR PIPE (D)	1-19199-212-1	01	1	0204-			●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	0012-0106	●
126	NUT; CLIP FIX EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91150-106-0	01	1	0107-0602	●
126	NUT; CLIP FIX EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE	0-91180-106-0	01	1	0603-	●
206	BRACKET; CLIP,HARNESS	1-19199-385-0	01	1	0012-0106	●
206	BRACKET; CLIP,HARNESS EXC. EURO3 SPECIFICATION(NJX)	1-19199-385-0	01	1	0107-	●

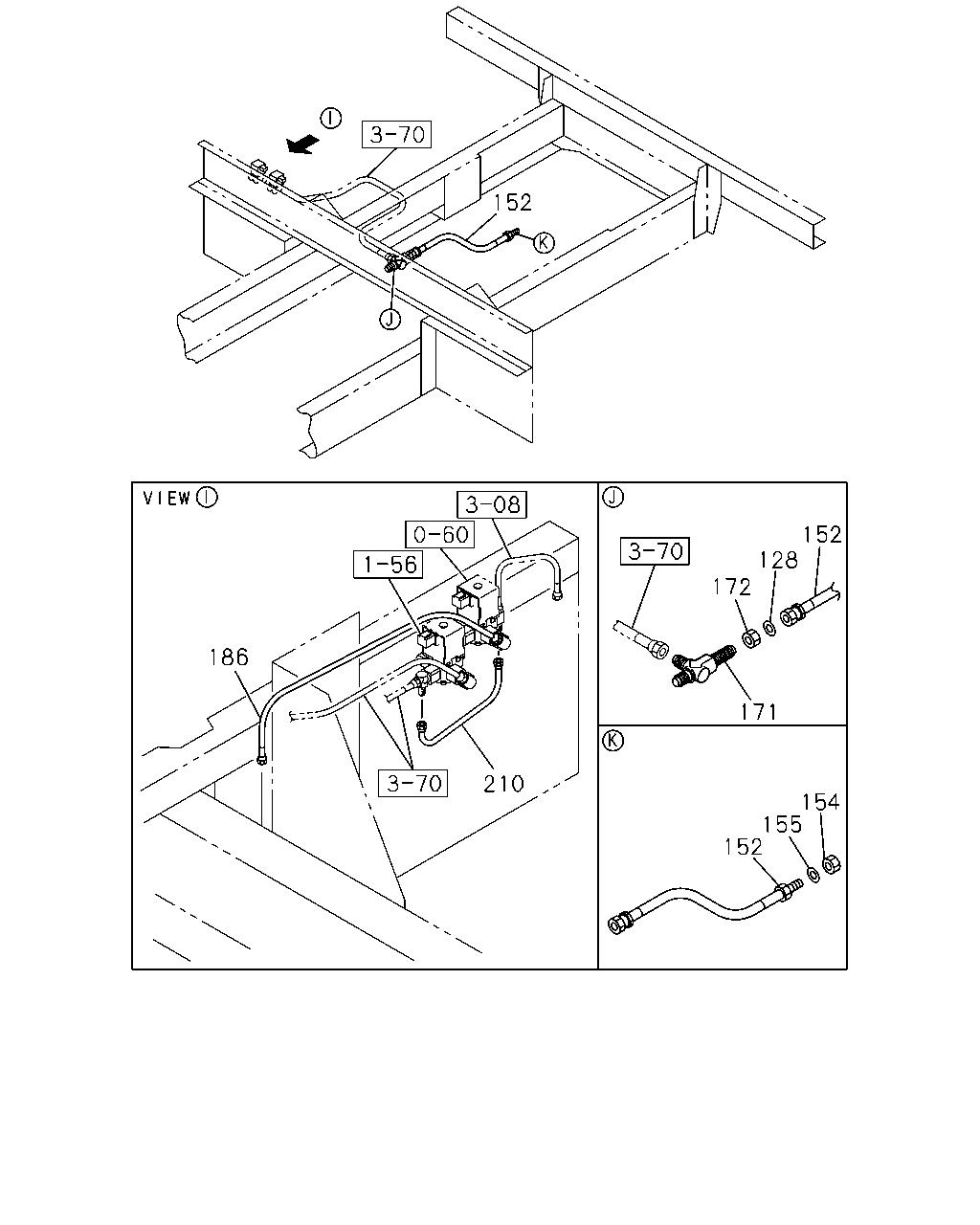

152 152 128 172 186 171 210 154 155 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0204-0603	●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-	●
152	HOSE; FLEX L=300	1-09363-608-0	01	1	0204-	●
154	NUT; FLEX HOSE FIX M12	9-09840-280-0	01	1	0204-	●
155	WASHER; LK,FLEX HOSE FIX ID=12.2	9-09150-512-0	01	1	0204-0603	●
155	WASHER; LK,FLEX HOSE FIX ID=12.2	0-91510-512-0	01	1	0604-	●
171	UNION M12 2WAY	1-09654-059-2	01	1	0204-	●
172	JOINT; EYE,AIR PIPE GOV M12	9-99111-412-0	01	1	0204-0512	●
172	JOINT; EYE,AIR PIPE GOV M12	0-91111-512-0	01	1	0601-	●
186	PIPE; AIR,MAG VLV TO FLEX HOSE	1-49122-610-0	01	1	0204-	●
210	PIPE; AIR,MAG VLV	1-49122-308-0	01	1	0204-	●

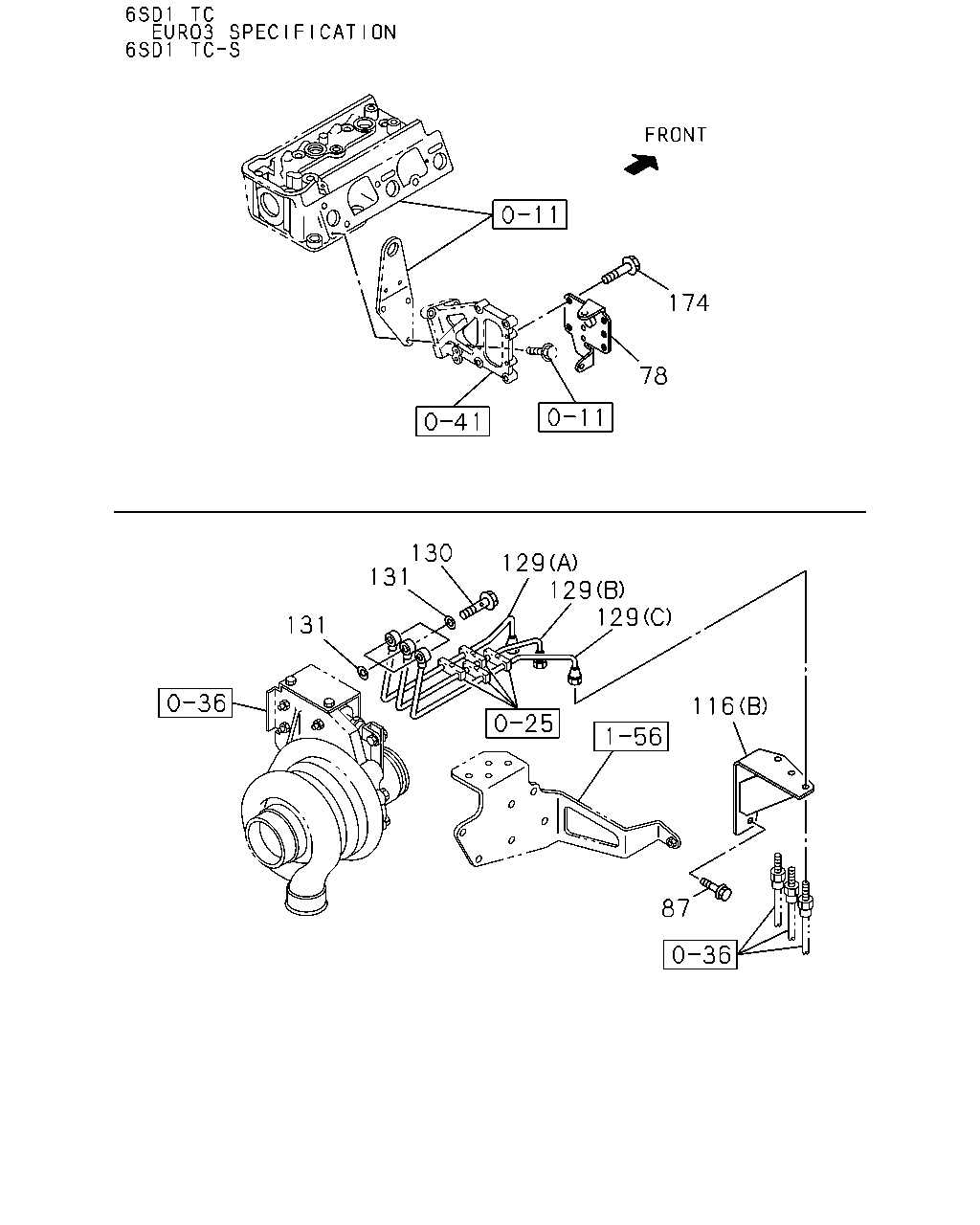

174 78 130 131 129 129 129 131 116 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
78	BRACKET; PIPE,AIR GOV EURO3 SPECIFICATION(NJX)	1-19199-380-0	01	1	0107-0210	●
78	BRACKET; PIPE,AIR GOV EURO3 SPECIFICATION(NJX)	1-19199-380-0	01	1	0211-	●
78	BRACKET; PIPE,AIR GOV	1-19199-380-0	01	1	0211-		●
87	BOLT; BRKT FIX M10X25 FLANGE	0-28081-025-0	02	1	0012-0103	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0104-0106	●
87	BOLT; BRKT FIX EXC. EURO3 SPECIFICATION(NJX) M10X20 FLANGE	0-28081-020-0	02	1	0107-0512	●
87	BOLT; BRKT FIX EXC. EURO3 SPECIFICATION(NJX) M10X20 FLANGE	0-28051-020-0	02	1	0601-	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION(NJX) M8X20 FLANGE	0-28680-820-0	02	1	0107-0210	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION(NJX) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●
87	BOLT; BRKT FIX EURO3 SPECIFICATION(NJX) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	0204-0512			●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28151-020-0	02	1	0601-			●
116	BRACKET; AIR PIPE (C)	1-19199-357-0	01	1	0012-0106	●
116	BRACKET; AIR PIPE EXC. EURO3 SPECIFICATION(NJX) (C)	1-19199-357-0	01	1	0107-	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX) (A)	1-14119-455-0	02	1	0107-0203	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX) (A)	1-14119-468-0	02	1	0204-0210	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX) (A)	1-14119-468-0	02	1	0211-	●
116	BRACKET; AIR PIPE (A)	1-14119-468-0	02	1	0211-		●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX) (B)	1-19199-383-1	01	1	0107-0210	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION(NJX) (B)	1-19199-383-1	01	1	0211-	●
116	BRACKET; AIR PIPE (B)	1-19199-383-1	01	1	0211-		●
116	BRACKET; AIR PIPE (D)	1-19199-212-1	01	1	0204-			●
129	PIPE; AIR,VGS EURO3 SPECIFICATION(NJX) (A)	1-19193-387-1	01	1	0107-0210	●
129	PIPE; AIR,VGS EURO3 SPECIFICATION(NJX) (A)	1-19193-387-1	01	1	0211-	●
129	PIPE; AIR,VGS (A)	1-19193-387-1	01	1	0211-		●
129	PIPE; AIR,VGS EURO3 SPECIFICATION(NJX) (B)	1-19193-388-0	01	1	0107-0210	●
129	PIPE; AIR,VGS EURO3 SPECIFICATION(NJX) (B)	1-19193-388-0	01	1	0211-	●
129	PIPE; AIR,VGS (B)	1-19193-388-0	01	1	0211-		●
129	PIPE; AIR,VGS EURO3 SPECIFICATION(NJX) (C)	1-19193-389-1	01	1	0107-0210	●
129	PIPE; AIR,VGS EURO3 SPECIFICATION(NJX) (C)	1-19193-389-1	01	1	0211-	●
129	PIPE; AIR,VGS (C)	1-19193-389-1	01	1	0211-		●
130	BOLT; EYE,AIR PIPE EURO3 SPECIFICATION(NJX) M10X21 FLANGE	8-94396-711-0	03	1	0107-0210	●
130	BOLT; EYE,AIR PIPE EURO3 SPECIFICATION(NJX) M10X21 FLANGE	8-94396-711-0	03	1	0211-	●
130	BOLT; EYE,AIR PIPE M10X21 FLANGE	8-94396-711-0	03	1	0211-		●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX) ID=10.2 OD=15.2	1-09630-083-0	06	1	0107-0210	●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX). ID=10.2 OD=15.2	1-09630-083-0	06	1	0211-	●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	06	1	0211-		●
174	BOLT; BRKT EURO3 SPECIFICATION(NJX) M8X20 FLANGE	0-28680-820-0	02	1	0107-0210	●
174	BOLT; BRKT EURO3 SPECIFICATION(NJX) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●
174	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●
174	BOLT; BRKT EURO3 SPECIFICATION(NJX) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
174	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
