◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51374 - TFR/TFS(EUROPE)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#79552) — 98 parça

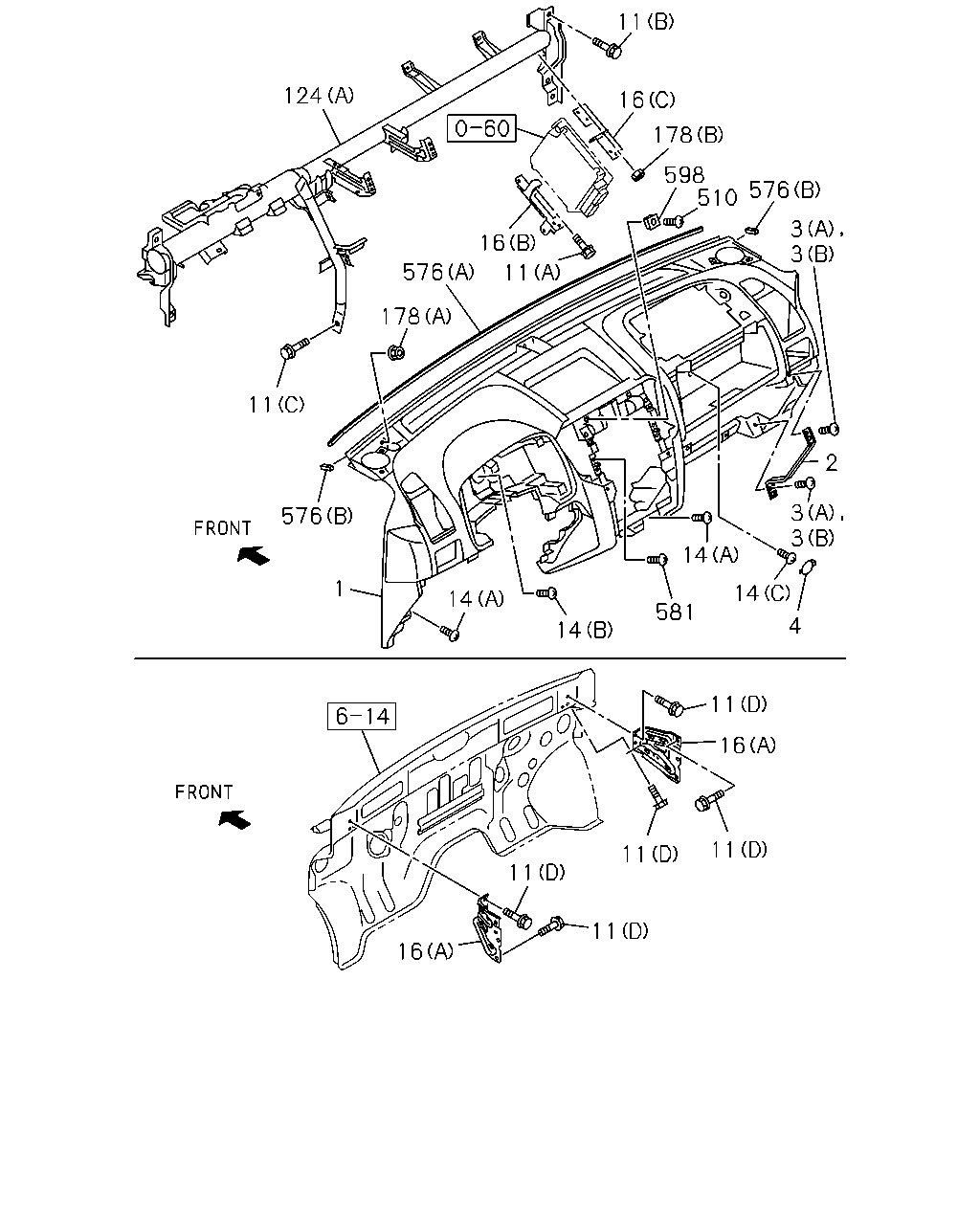

çizim 132713
124 11 16 16 576 11 178 510 598 76 3 3 178 11 576 14 14 581 14 14 4 3 3 2 11 16 11 11 11 11 1 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.080 PANEL; INST
BLACK 		8-97423-083-0 01 1 1203- ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR 8-98232-644-1 01 1 1203- ● ● ● ● ● ●
3 16.081 SCREW; BINDER HD
(B) M5X16 		8-98246-739-0 31 1 1309- ● ● ● ● ● ●
3 16.081 SCREW; BINDER HD
(A) M5X16 		8-98197-847-0 33 1 1203-1308 ● ● ● ● ● ●
3 16.081 SCREW; BINDER HD
(A) M5X16 		8-98197-847-0 02 1 1309- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
16.165 BLACK 		8-97416-610-0 01 1 1203- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
03.162 (A) M6X20 FLANGE 		0-28650-620-0 01 1 1203- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),INST PANEL FOR DIN E SIZE AUDIO(7QL) 08.155 (B) M8X25 FLANGE 		0-28450-825-0 04 1 1203-1211 ● ● ● ●
11 16.090 BOLT; INST PNL
08.155 (B) M8X25 FLANGE 		0-28450-825-0 04 1 1203-1211 ● ●
11 16.090 BOLT; INST PNL
08.155 (B) M8X25 FLANGE 		0-28450-825-0 04 1 1212- ● ● ● ●
11 16.090 BOLT; INST PNL
RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 08.155 (B) M8X25 FLANGE 		0-28450-825-0 04 1 1212- ● ●
11 16.090 BOLT; INST PNL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) M6X30 W/LK&PL WASHER 		8-98057-965-0 01 1 1203-1211 ● ● ● ●
11 16.090 BOLT; INST PNL
(C) M6X30 W/LK&PL WASHER 		8-98057-965-0 01 1 1203-1211 ● ●
11 16.090 BOLT; INST PNL
(C) M6X30 W/LK&PL WASHER 		8-98057-965-0 01 1 1212- ● ● ● ●
11 16.090 BOLT; INST PNL
RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) M6X30 W/LK&PL WASHER 		8-98057-965-0 01 1 1212- ● ●
11 16.090 BOLT; INST PNL
01.540 (D) M8X32.5 W/PL WASHER 		8-98136-077-0 12 1 1203- ● ● ● ● ● ●
14 16.085 SCREW; INST PNL
16.650 (A) M5X16 		8-98167-220-0 03 1 1203- ● ● ● ● ● ●
14 16.085 SCREW; INST PNL
08.083 (B) M5X16 TAPPING 		8-98167-449-0 06 1 1203- ● ● ● ● ● ●
14 16.085 SCREW; INST PNL
16.345 (C) M5X14 TAPPING 		8-98184-363-0 01 1 1203- ● ● ● ● ● ●
14 16.085 SCREW; INST PNL
16.650 (A) M5X16 		8-98167-220-0 04 1 1203- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-98104-144-3 01 1 1203- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-98108-670-2 01 1 1203- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-98119-429-1 01 1 1203- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-98119-432-2 01 1 1203- ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
(B) 		8-98232-645-0 01 1 1212- ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) (A) 		8-98064-648-1 01 1 1203-1211 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),RADIO DELETE(UL5) (A) 		8-98064-648-1 01 1 1212- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5) (A) 		8-98064-648-1 01 1 1212- ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-98064-649-1 01 1 1203-1211 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
(A) 		8-98064-649-1 01 1 1203-1211 ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-98064-649-1 01 1 1212- ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
08.915 (A) M6 FLANGE 		8-98055-704-0 03 1 1203- ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 1203- ● ● ● ● ● ●
510 16.081 SCREW; CENTER CLUSTER
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1203- ● ● ● ● ● ●
576 16.085 CUSHION
(A) 		8-98232-668-0 01 1 1212- ● ● ● ● ● ●
576 16.085 CUSHION
(B) 		8-98232-669-0 02 1 1212- ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1212- ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1212- ● ● ● ● ● ●
598 09.262 GROMMET; SCREW 8-98164-685-0 15 1 1203- ● ● ● ● ● ●

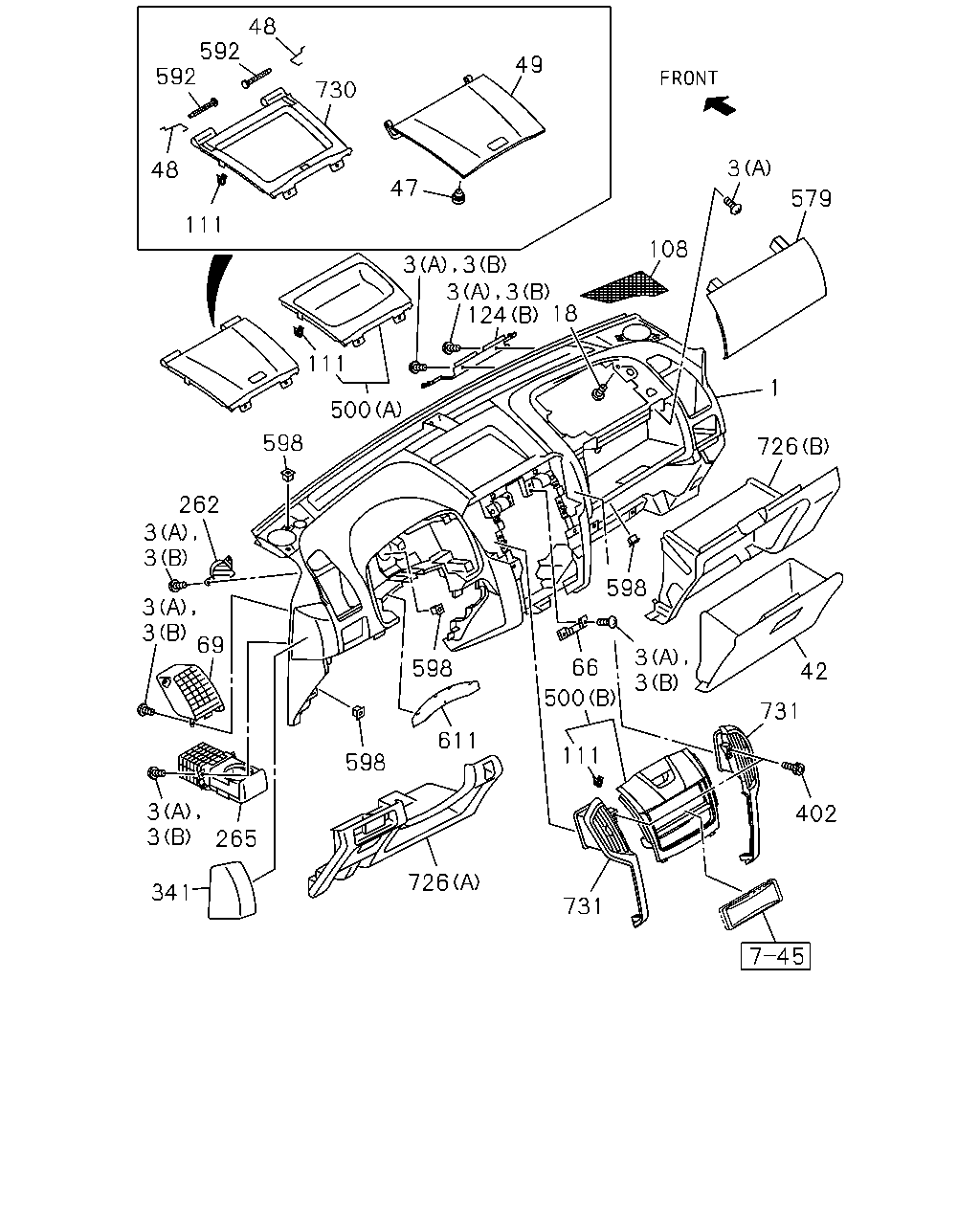

çizim 182852
48 730 47 49 111 48 592 592 111 598 500 262 3 3 3 3 3 124 3 598 598 611 500 731 42 402 731 726 111 3 3 726 1 579 3 108 66 598 265 3 3 3 69 18 3 341
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.080 PANEL; INST
BLACK 		8-97423-083-0 01 1 1203- ● ● ● ● ● ●
3 16.081 SCREW; BINDER HD
(B) M5X16 		8-98246-739-0 31 1 1309- ● ● ● ● ● ●
3 16.081 SCREW; BINDER HD
(A) M5X16 		8-98197-847-0 33 1 1203-1308 ● ● ● ● ● ●
3 16.081 SCREW; BINDER HD
(A) M5X16 		8-98197-847-0 02 1 1309- ● ● ● ● ● ●
18 16.085 BOLT; BRKT
00.685 M8X40 FLANGE 		0-28650-840-0 02 1 1203- ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> BLACK 		8-97416-629-2 01 1 1203- ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
BLACK 		8-97416-629-2 01 1 1203- ● ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> BLACK 		8-97416-631-2 01 1 1203- ● ● ● ●
47 16.100 STOPPER; GLOVE BOX LID
INTERIOR CUSTOM(RBD) 		8-98194-179-1 03 1 1203- ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
INTERIOR CUSTOM(RBD) 		8-98194-177-1 01 1 1203-1411 ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
INTERIOR CUSTOM(RBD) 		8-98298-678-0 01 1 1412- ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
INTERIOR CUSTOM(RBD) 		8-98194-178-1 01 1 1203-1411 ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
INTERIOR CUSTOM(RBD) 		8-98298-679-0 01 1 1412- ● ● ● ●
49 16.110 LID; GLOVE BOX
INTERIOR CUSTOM(RBD) BLACK 		8-97423-320-1 01 1 1203- ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-98187-112-0 01 1 1203- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
BLACK 		8-97423-071-2 01 1 1203- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
BLACK 		8-97423-072-2 01 1 1203- ● ● ● ● ● ●
108 09.264 GRILLE; INST PNL
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> BLACK 		8-97416-627-2 01 1 1203- ● ● ● ●
108 09.264 GRILLE; INST PNL
BLACK 		8-97416-626-2 01 1 1203- ● ● ● ● ● ●
108 09.264 GRILLE; INST PNL
EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> BLACK 		8-97416-625-2 01 1 1203- ● ● ● ●
108 09.264 GRILLE; INST PNL
BLACK 		8-97416-625-2 01 1 1203- ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.165 		8-98164-677-0 04 1 1203-1211 ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
16.165 		8-98164-677-0 04 1 1203-1211 ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.165 		8-98164-677-0 04 1 1212- ● ● ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
16.165 		8-98164-677-0 02 1 1203- ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
(B) 		8-98232-645-0 01 1 1212- ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) (A) 		8-98064-648-1 01 1 1203-1211 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),RADIO DELETE(UL5) (A) 		8-98064-648-1 01 1 1212- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
RADIO DELETE(UL5) (A) 		8-98064-648-1 01 1 1212- ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-98064-649-1 01 1 1203-1211 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
(A) 		8-98064-649-1 01 1 1203-1211 ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-98064-649-1 01 1 1212- ● ● ● ● ● ●
262 09.264 GRILLE; DEFROSTER
BLACK 		8-97423-076-0 01 1 1203- ● ● ● ● ● ●
262 09.264 GRILLE; DEFROSTER
BLACK 		8-97423-077-0 01 1 1203- ● ● ● ● ● ●
265 16.100 HOLDER; CUP
BLACK 		8-97423-073-0 01 1 1203- ● ● ● ● ● ●
265 16.100 HOLDER; CUP
BLACK 		8-97423-074-0 01 1 1203- ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
BLACK 		8-97416-611-3 01 1 1203- ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
BLACK 		8-97416-612-3 01 1 1203- ● ● ● ● ● ●
402 09.264 SCREW; VENT GRILLE,INST
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1203- ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5) (B) BLACK 		8-97416-624-2 01 1 1212- ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR BASIC(RBA) (A) BLACK 		8-97416-622-4 01 1 1203- ● ● ● ●
500 16.081 CLUSTER; INST CENTER
(A) BLACK 		8-97416-622-4 01 1 1203- ● ●
500 16.081 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) BLACK 		8-97416-621-1 01 1 1203-1211 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
(B) BLACK 		8-97416-621-1 01 1 1203-1211 ● ●
500 16.081 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) BLACK 		8-97416-621-1 01 1 1212- ● ● ● ● ● ●
579 16.080 COVER; INST PNL
BLACK 		8-97423-084-3 01 1 1203- ● ● ● ● ● ●
592 16.115 HINGE; LID
INTERIOR CUSTOM(RBD) 		8-98194-176-1 02 1 1203- ● ● ● ●
598 09.262 GROMMET; SCREW 8-98164-685-0 15 1 1203- ● ● ● ● ● ●
611 16.081 SHEET 8-98187-119-0 01 1 1203- ● ● ● ● ● ●
726 16.080 PANEL; INST LW
REAR BODY DELETE(8HH) (A) BLACK 		8-97423-424-0 01 1 1203- ● ● ● ● ● ●
726 16.080 PANEL; INST LW
REAR BODY DBL WALL CTR PULL(E63) (A) BLACK 		8-97417-398-1 01 1 1203- ● ● ● ● ● ●
726 16.080 PANEL; INST LW
(B) BLACK 		8-97417-400-1 01 1 1203- ● ● ● ● ● ●
730 16.115 BEZEL; LID
INTERIOR CUSTOM(RBD) BLACK 		8-97423-319-0 01 1 1203- ● ● ● ●
731 16.085 GRILLE; VENTILATOR
INTERIOR BASIC(RBA) 09.264 BLACK 		8-97416-639-4 01 1 1203- ● ● ● ●
731 16.085 GRILLE; VENTILATOR
09.264 BLACK 		8-97416-639-4 01 1 1203- ● ●
731 16.085 GRILLE; VENTILATOR
INTERIOR BASIC(RBA) 09.264 BLACK 		8-97416-640-4 01 1 1203- ● ● ● ●
731 16.085 GRILLE; VENTILATOR
09.264 BLACK 		8-97416-640-4 01 1 1203- ● ●
731 16.085 GRILLE; VENTILATOR
INTERIOR CUSTOM(RBD) 09.264 SILVER 		8-97416-637-4 01 1 1203- ● ● ● ●
731 16.085 GRILLE; VENTILATOR
INTERIOR CUSTOM(RBD) 09.264 SILVER 		8-97416-638-4 01 1 1203- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
