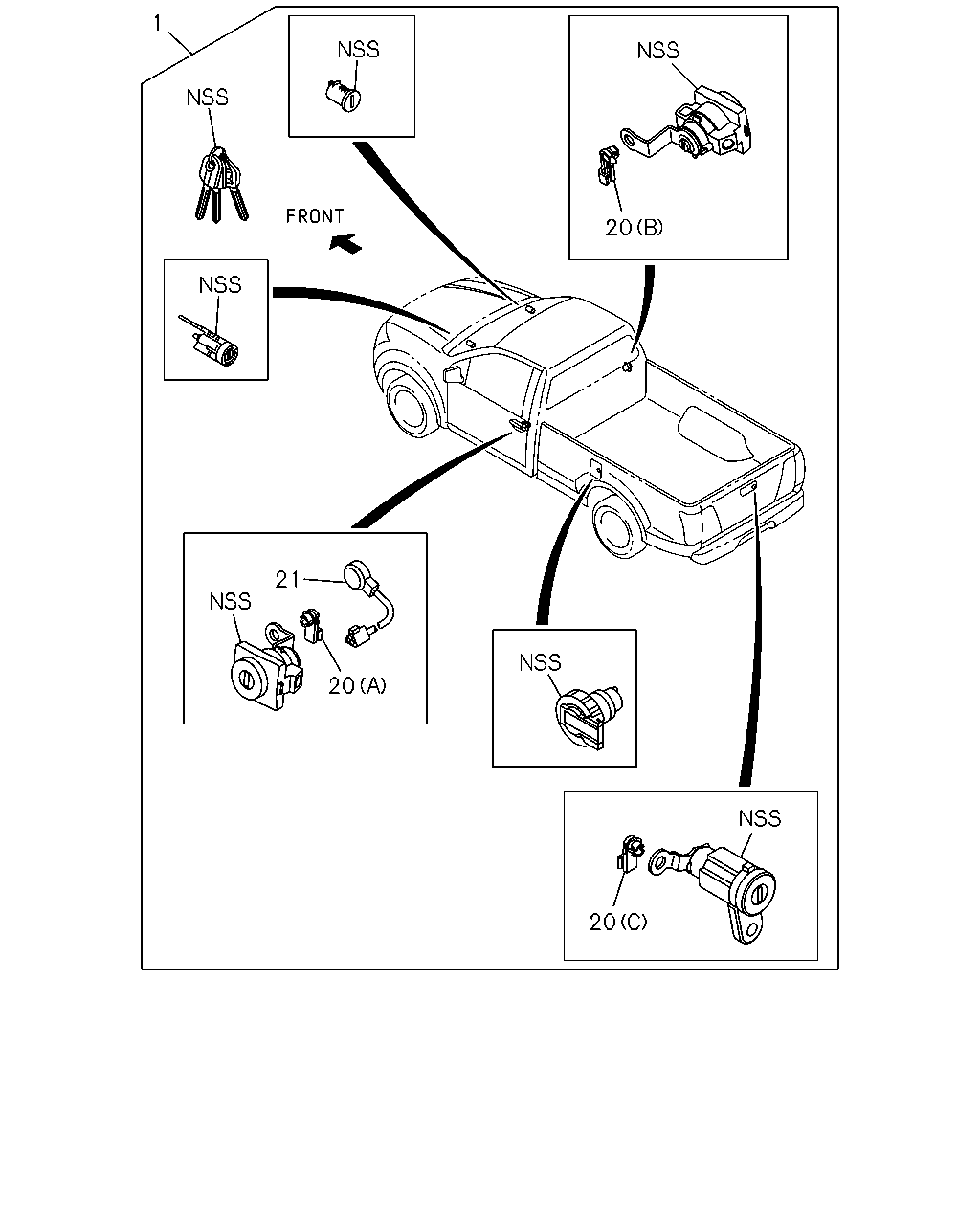

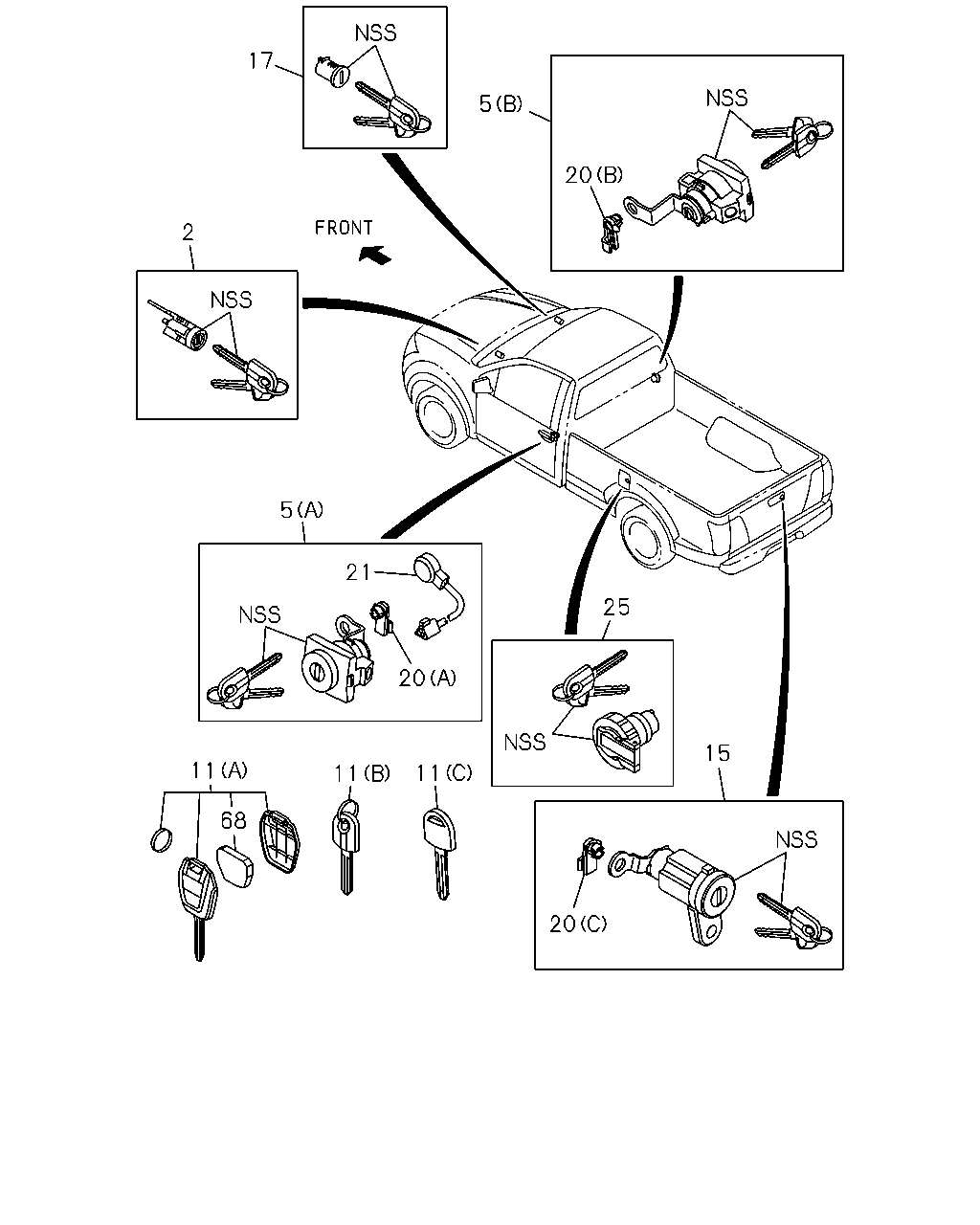

7-30 — LOCK CYLINDER SET (#79551) — 68 parça

1 20 21 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	02.188 CYLINDER SET; CAR LOCK LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUEL TANK CAP W/LOCK<N05>	8-98189-439-0	01	1	1308-1411	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUEL TANK CAP W/LOCK<N05>	8-98274-609-0	01	1	1412-	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUEL TANK CAP W/LOCK<N05>,LOCK END GATE <8CW>	8-98103-076-0	01	1	1308-1411	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>, FUEL TANK CAP W/LOCK<N05>,LOCK END GATE <8CW>	8-98274-573-0	01	1	1412-	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. LOCK END GATE<8CW>	8-98185-827-0	01	1	1203-1411	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. LOCK END GATE<8CW>	8-98274-599-0	01	1	1412-	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05>	8-98103-842-0	01	1	1203-1411	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05>	8-98274-591-0	01	1	1412-	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98103-841-0	01	1	1203-1411	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98274-590-0	01	1	1412-	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK END GATE<8CW>	8-98103-090-0	01	1	1203-1411	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> FUEL TANK CAP W/LOCK<N05>	8-98103-090-0	01	1	1203-1411					●	●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK END GATE<8CW>	8-98274-582-0	01	1	1412-	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> FUEL TANK CAP W/LOCK<N05>	8-98274-582-0	01	1	1412-					●	●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>	8-98103-091-0	01	1	1203-1411	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>	8-98274-583-0	01	1	1412-	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98103-089-0	01	1	1203-1411	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> EXC. FUEL TANK CAP W/LOCK<N05>	8-98103-089-0	01	1	1203-1411					●	●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98274-581-0	01	1	1412-	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> EXC. FUEL TANK CAP W/LOCK<N05>	8-98274-581-0	01	1	1412-					●	●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK END GATE<8CW>	8-98103-083-0	01	1	1203-1411	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. AUTO DOOR LOCK<AU4>	8-98103-083-0	01	1	1203-1411					●	●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK END GATE<8CW>	8-98274-576-0	01	1	1412-	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. AUTO DOOR LOCK<AU4>	8-98274-576-0	01	1	1412-					●	●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>	8-98103-085-0	01	1	1203-1411	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>	8-98274-577-0	01	1	1412-	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98103-082-0	01	1	1203-1411	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK EXC. AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>	8-98103-082-0	01	1	1203-1411					●	●
1	02.188 CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98274-575-0	01	1	1412-	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK EXC. AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>	8-98274-575-0	01	1	1412-					●	●
20	16.328 SNAP; DOOR LOCK CYL LOCK END GATE<8CW> (C)	8-97357-958-0	01	1	1203-	●	●	●	●
20	16.328 SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<AP5> (B) WHITE	8-97350-044-0	01	1	1203-	●	●	●	●
20	16.328 SNAP; DOOR LOCK CYL (B) WHITE	8-97350-044-0	01	1	1203-					●	●
20	16.328 SNAP; DOOR LOCK CYL (A) YELLOW	8-97350-043-0	01	1	1203-	●	●	●	●	●	●
21	16.328 SWITCH ASM; DOOR LOCK CYL AUTO DOOR LOCK<AU4>	8-98162-757-0	01	1	1203-	●	●	●	●	●	●

20 5 17 2 21 5 20 15 25 20 11 11 11 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	02.188 BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK<AP5>	8-98193-734-0	01	1	1203-1411	●	●	●	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK<AP5>	8-98274-647-0	01	1	1412-	●	●	●	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. REMOTE CONT DOOR LOCK<AP5>	8-98193-733-0	01	1	1203-1411	●	●	●	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK	8-98193-733-0	01	1	1203-1411					●	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. REMOTE CONT DOOR LOCK<AP5>	8-98274-646-0	01	1	1412-	●	●	●	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK	8-98274-646-0	01	1	1412-					●	●
5	16.328 CYLINDER ASM; DOOR LOCK AUTO DOOR LOCK<AU4> (A)	8-98193-739-0	01	1	1203-1411	●	●	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK AUTO DOOR LOCK<AU4> (A)	8-98274-652-0	01	1	1412-	●	●	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. AUTO DOOR LOCK<AU4> (A)	8-98193-737-0	01	1	1203-1307	●	●	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (A)	8-98193-737-0	01	1	1308-1411	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. AUTO DOOR LOCK<AU4> (A)	8-98193-737-0	01	1	1308-1411					●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (A)	8-98274-650-0	01	1	1412-	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. AUTO DOOR LOCK<AU4> (A)	8-98274-650-0	01	1	1412-					●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<AP5> (B)	8-98193-736-0	01	1	1203-1411	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK (B)	8-98193-736-0	01	1	1203-1411					●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<AP5> (B)	8-98274-649-0	01	1	1412-	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK (B)	8-98274-649-0	01	1	1412-					●	●
11	02.187 KEY; BLANK (C)	8-97350-352-0	AR	1	1203-	●	●	●	●	●	●
11	02.187 KEY; BLANK REMOTE CONT DOOR LOCK<AP5> (A) REMOTE CONT DOOR LOCK W/IMMOBILIZER	8-98136-339-1	AR	1	1203-1411	●	●	●	●
11	02.187 KEY; BLANK REMOTE CONT DOOR LOCK<AP5> (A) REMOTE CONT DOOR LOCK W/IMMOBILIZER	8-98274-338-0	AR	1	1412-	●	●	●	●
11	02.187 KEY; BLANK (B) IMMOBILIZER	8-98007-939-1	AR	1	1203-1411	●	●	●	●	●	●
11	02.187 KEY; BLANK (B) IMMOBILIZER	8-98274-332-0	AR	1	1412-	●	●	●	●	●	●
15	16.650 CYLINDER ASM; W/KEY,TAIL GATE LO LOCK END GATE<8CW>	8-98193-740-0	01	1	1203-1411	●	●	●	●
15	16.650 CYLINDER ASM; W/KEY,TAIL GATE LO LOCK END GATE<8CW>	8-98274-653-0	01	1	1412-	●	●	●	●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO	8-98193-735-0	01	1	1203-1411	●	●	●	●	●	●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO	8-98274-648-0	01	1	1412-	●	●	●	●	●	●
20	16.328 SNAP; DOOR LOCK CYL LOCK END GATE<8CW> (C)	8-97357-958-0	01	1	1203-	●	●	●	●
20	16.328 SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<AP5> (B) WHITE	8-97350-044-0	01	1	1203-	●	●	●	●
20	16.328 SNAP; DOOR LOCK CYL (B) WHITE	8-97350-044-0	01	1	1203-					●	●
20	16.328 SNAP; DOOR LOCK CYL (A) YELLOW	8-97350-043-0	01	1	1203-	●	●	●	●	●	●
21	16.328 SWITCH ASM; DOOR LOCK CYL AUTO DOOR LOCK<AU4>	8-98162-757-0	01	1	1203-	●	●	●	●	●	●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05>	8-98060-587-0	01	1	1203-	●	●	●	●	●	●
68	02.440 TRANSMITTER; DOOR LOCK REMOTE CONT DOOR LOCK<AP5>	8-98102-844-1	01	1	1203-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
