Sayfa 0-37 - Isuzu EPC

0-37 — TURBOCHARGER (#7955) — 229 parça

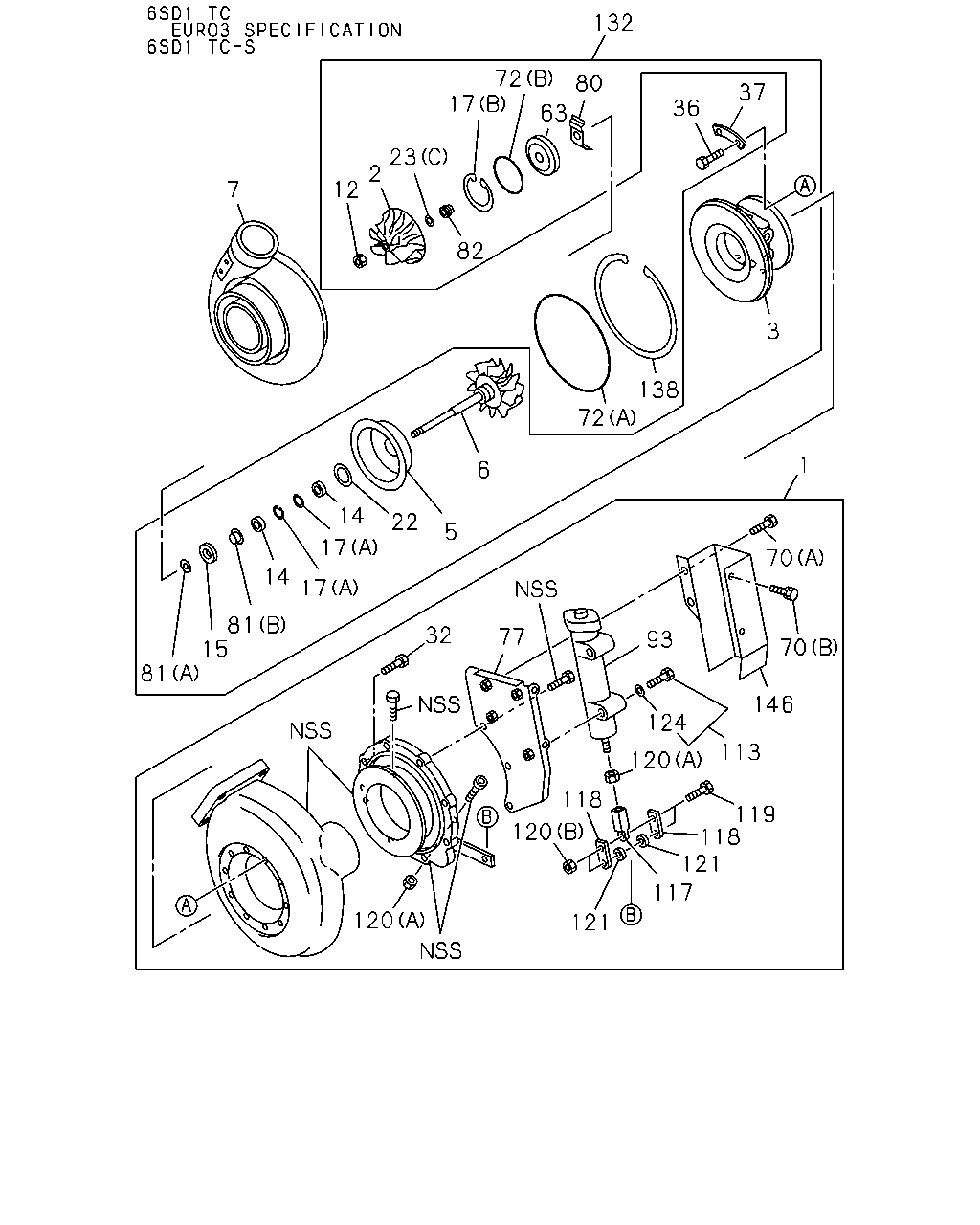

132 72 17 80 37 36 63 23 2 12 7 82 3 138 72 1 6 14 22 5 17 70 14 17 81 15 32 77 93 70 81 146 124 113 120 118 119 18 121 120 117 120 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14415-090-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1	1-14415-102-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: D = 1-14400-366-1	1-14415-118-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: G = 1-14400-441-0	1-14415-120-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14415-129-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: B = 1-14400-339-5	1-14451-054-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: C = 1-14400-356-1	1-14451-058-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14451-059-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14451-070-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: D = 1-14400-366-1	1-14451-071-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: G = 1-14400-441-0	1-14451-087-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14411-044-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14411-056-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14411-069-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14419-166-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14425-017-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14425-027-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14450-038-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1	1-14450-051-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14450-057-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: D = 1-14400-366-1	1-14450-065-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14414-066-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 1-14400-339-5	1-14414-081-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: C = 1-14400-356-1	1-14414-098-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14414-115-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: D = 1-14400-366-1	1-14414-116-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09400-041-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-09400-047-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-057-0	01	1	-
14	BEARING; JOURNAL,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14411-065-0	02	1	-
15	BEARING; THRUST,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14411-060-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (B) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14419-117-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14455-025-0	03	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (D) ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14455-026-0	04	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (A) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-062-0	02	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-09100-015-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09100-016-0	04	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14453-027-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-037-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-063-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (D) ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14453-025-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (E) ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14453-026-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-035-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-036-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (C) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-059-0	01	1	-
32	BOLT; TURBINE HSG COVER,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14379-123-0	08	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-09000-405-0	10	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09000-611-0	08	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14419-165-0	10	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14421-018-0	10	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14421-032-0	05	1	-
63	INSERT; IMPELLER,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14425-040-0	01	1	-
70	BOLT; HEAT PROTECTOR,TURBOCHARGER (A) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14379-103-0	02	1	-
70	BOLT; HEAT PROTECTOR,TURBOCHARGER (B) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14379-112-0	02	1	-
72	GASKET; BRG HSG,TURBOCHARGER (A) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14414-107-0	01	1	-
72	GASKET; BRG HSG,TURBOCHARGER (B) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14419-118-0	01	1	-
77	BRACKET; SUPPORT,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-22196-356-0	01	1	-
80	DEFLECTOR; OIL,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14419-147-0	01	1	-
81	RING; THRUST,TURBOCHARGER (A) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-060-0	01	1	-
81	RING; THRUST,TURBOCHARGER (B) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-061-0	01	1	-
82	SLEEVE; SPACER,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14455-047-0	01	1	-
93	CYLINDER; AIR,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-22190-624-1	01	1	-
113	BOLT; AIR CYL ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14379-105-0	02	1	-
117	JOINT; TURBOCHARGER CONT ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14379-108-0	01	1	-
118	LINK; TURBOCHARGER CONT ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14379-126-0	02	1	-
119	BOLT; CONT LINK ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14379-124-0	02	1	-
120	NUT; CONT LINK (A) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14379-113-0	03	1	-
120	NUT; CONT LINK (B) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14379-125-0	02	1	-
121	COLLAR; CONT LINK ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14379-127-0	02	1	-
124	WASHER; CONT LINK ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14379-104-0	02	1	-
132	CARTRIDGE; TURBO ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14425-039-0	01	1	-
138	RING; SNAP,BLOWER HSG ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-056-0	01	1	-
146	PROTECTOR; HEAT,AIR CYL ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14181-347-0	01	1	-

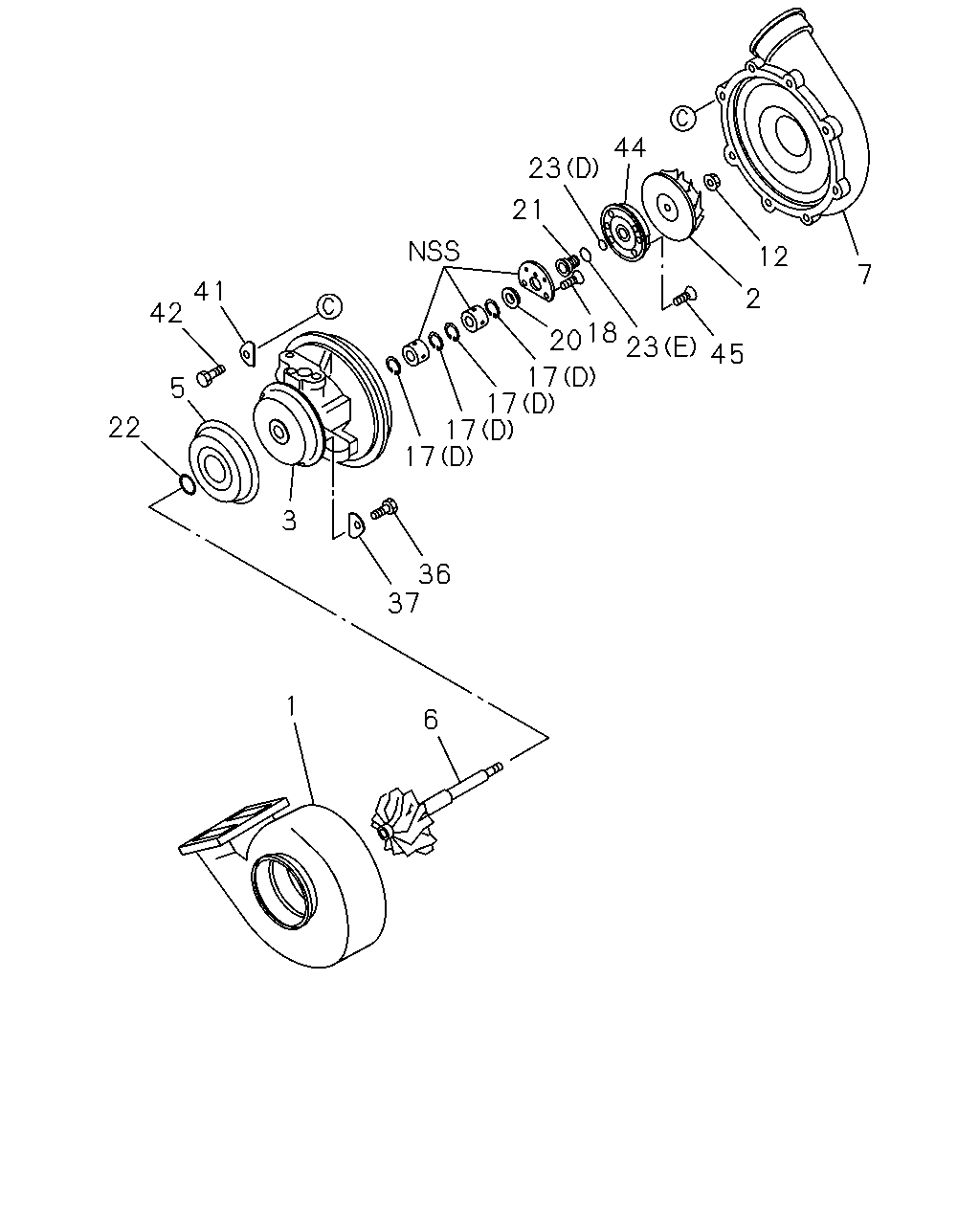

44 23 21 12 7 41 42 2 18 20 23 45 17 17 17 17 5 22 3 36 37 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14415-090-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1	1-14415-102-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: D = 1-14400-366-1	1-14415-118-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: G = 1-14400-441-0	1-14415-120-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14415-129-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: B = 1-14400-339-5	1-14451-054-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: C = 1-14400-356-1	1-14451-058-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14451-059-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14451-070-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: D = 1-14400-366-1	1-14451-071-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: G = 1-14400-441-0	1-14451-087-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14411-044-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14411-056-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14411-069-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14419-166-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14425-017-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14425-027-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14450-038-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1	1-14450-051-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14450-057-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: D = 1-14400-366-1	1-14450-065-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14414-066-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 1-14400-339-5	1-14414-081-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: C = 1-14400-356-1	1-14414-098-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14414-115-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: D = 1-14400-366-1	1-14414-116-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09400-041-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-09400-047-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-057-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (B) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14419-117-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14455-025-0	03	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (D) ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14455-026-0	04	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (A) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-062-0	02	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-09100-015-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09100-016-0	04	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14453-028-0	01	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-073-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14455-027-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14455-037-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14453-027-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-037-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-063-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (D) ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14453-025-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (E) ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14453-026-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-035-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-036-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (C) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-059-0	01	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-09000-405-0	10	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09000-611-0	08	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14419-165-0	10	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14421-018-0	10	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14421-032-0	05	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14421-016-0	06	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14421-016-0	08	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09000-404-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-09000-404-0	08	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14425-007-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14425-026-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-09100-014-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09100-026-0	04	1	-

10 23 18 23 45 17 17 17 17 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	REPAIR KIT; TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14453-041-0	01	1	-
10	REPAIR KIT; TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-082-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (B) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14419-117-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14455-025-0	03	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (D) ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14455-026-0	04	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (A) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-062-0	02	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-09100-015-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09100-016-0	04	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14453-027-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-037-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-063-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (D) ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14453-025-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (E) ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14453-026-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-035-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-036-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (C) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-059-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-09100-014-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09100-026-0	04	1	-

7 41 42 23 21 20 17 17 17 12 2 44 45 23 18 36 3 136 5 22 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14415-090-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1	1-14415-102-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: D = 1-14400-366-1	1-14415-118-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: G = 1-14400-441-0	1-14415-120-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14415-129-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: B = 1-14400-339-5	1-14451-054-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: C = 1-14400-356-1	1-14451-058-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14451-059-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14451-070-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: D = 1-14400-366-1	1-14451-071-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: G = 1-14400-441-0	1-14451-087-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14411-044-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14411-056-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14411-069-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14419-166-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14425-017-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14425-027-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14450-038-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1	1-14450-051-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14450-057-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: D = 1-14400-366-1	1-14450-065-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14414-066-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 1-14400-339-5	1-14414-081-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: C = 1-14400-356-1	1-14414-098-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14414-115-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: D = 1-14400-366-1	1-14414-116-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09400-041-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-09400-047-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-057-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (B) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14419-117-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14455-025-0	03	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (D) ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14455-026-0	04	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (A) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-062-0	02	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-09100-015-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09100-016-0	04	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14453-028-0	01	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-073-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14455-027-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14455-037-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14453-027-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-037-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-063-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (D) ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14453-025-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (E) ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14453-026-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-035-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-036-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (C) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-059-0	01	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-09000-405-0	10	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09000-611-0	08	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14419-165-0	10	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14421-016-0	06	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14421-016-0	08	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09000-404-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-09000-404-0	08	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14425-007-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14425-026-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-09100-014-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09100-026-0	04	1	-
136	GASKET; TURBINE HSG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14412-007-0	01	1	-

114

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	114	REPAIR KIT; AIR CYL ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-85576-135-0	01	1	-

10 23 17 17 17 23 18 45 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	REPAIR KIT; TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14453-041-0	01	1	-
10	REPAIR KIT; TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-082-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (B) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14419-117-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (C) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14455-025-0	03	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (D) ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14455-026-0	04	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (A) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-062-0	02	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-09100-015-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09100-016-0	04	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14453-027-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-037-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-063-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (D) ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14453-025-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (E) ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-14453-026-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-035-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-14453-036-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (C) ASM PART: E = 1-14400-407-4, F = 1-14400-414-3	1-14459-059-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-290-2, G = 1-14400-441-0	1-09100-014-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: B = 1-14400-339-5, C = 1-14400-356-1, D = 1-14400-366-1	1-09100-026-0	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
