6-80 — BACK PANEL (#79543) — 11 parça

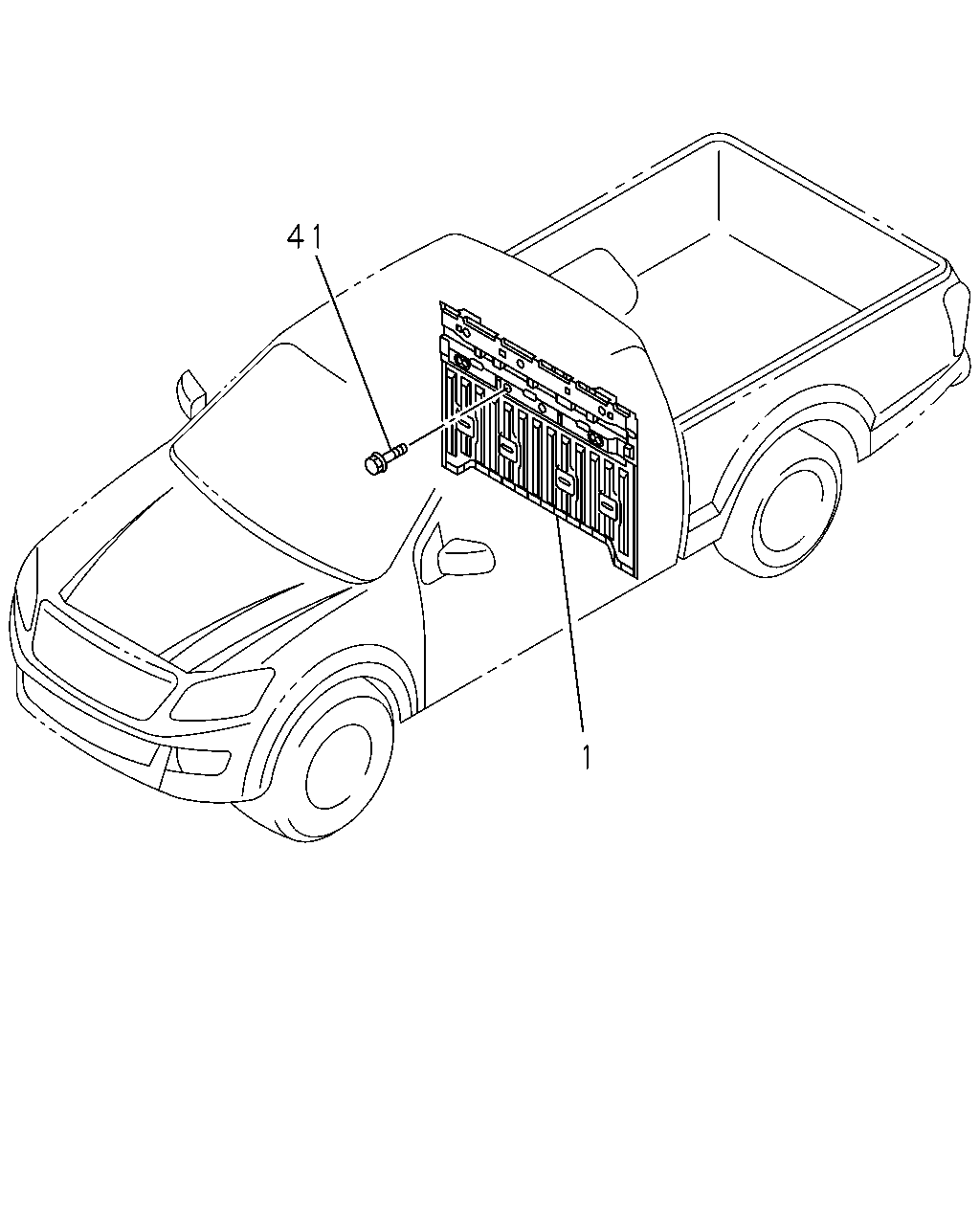

çizim 132382
41 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.587 PANEL; BACK OUTER
INTERIOR BASIC(RBA) 		8-98234-975-1 01 1 1311- ● ●
1 16.587 PANEL; BACK OUTER 8-98103-272-1 01 1 1203- ● ●
1 16.587 PANEL; BACK OUTER 8-98103-271-2 01 1 1203-1310 ● ●
1 16.587 PANEL; BACK OUTER 8-98234-973-0 01 1 1311- ● ●
1 16.587 PANEL; BACK OUTER 8-98103-275-2 01 1 1203-1203 ● ●
1 16.587 PANEL; BACK OUTER 8-98207-117-0 01 1 1204-1310 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) 		8-98207-117-1 01 1 1311- ● ●
41 16.587 BOLT
03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1203-1307 ● ● ● ●
41 16.587 BOLT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1308-1309 ● ● ● ●
41 16.587 BOLT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1310- ●
41 16.587 BOLT
03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1310- ● ● ●
