◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51374 - TFR/TFS(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#79542) — 10 parça

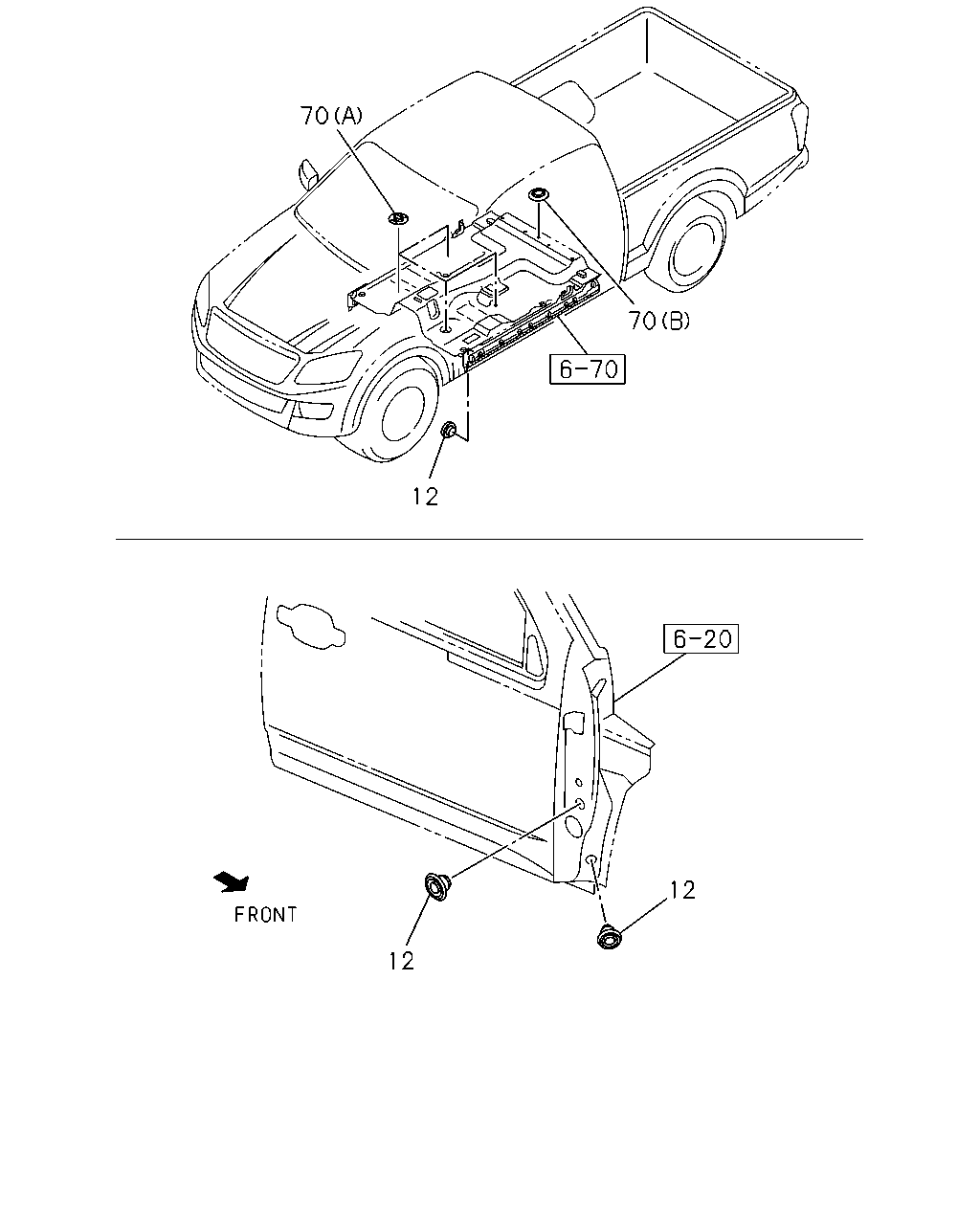

çizim 182843
70 70 12 12 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35 		8-97320-908-0 12 1 1203- ● ● ● ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35 		8-97320-908-0 06 1 1203-1307 ● ● ● ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) OD=35 		8-97320-908-0 06 1 1308- ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35 		8-97320-908-0 06 1 1308- ● ● ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35 		8-97320-908-0 04 1 1203-1307 ● ● ● ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35 		8-97320-908-0 04 1 1308-1309 ● ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) OD=35 		8-97320-908-0 04 1 1308-1309 ● ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35 		8-97320-908-0 04 1 1310- ● ● ● ●
70 09.775 PLUG; METAL,FLOOR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. JUMP SEAT<AJ2> 12.491 (B) OD=24 		8-94119-796-0 01 1 1507- ● ●
70 09.775 PLUG; METAL,FLOOR
(A) 		8-97324-563-0 04 1 1203- ● ● ● ● ● ●
