0-36 — TURBOCHARGER SYSTEM (#7954) — 337 parça

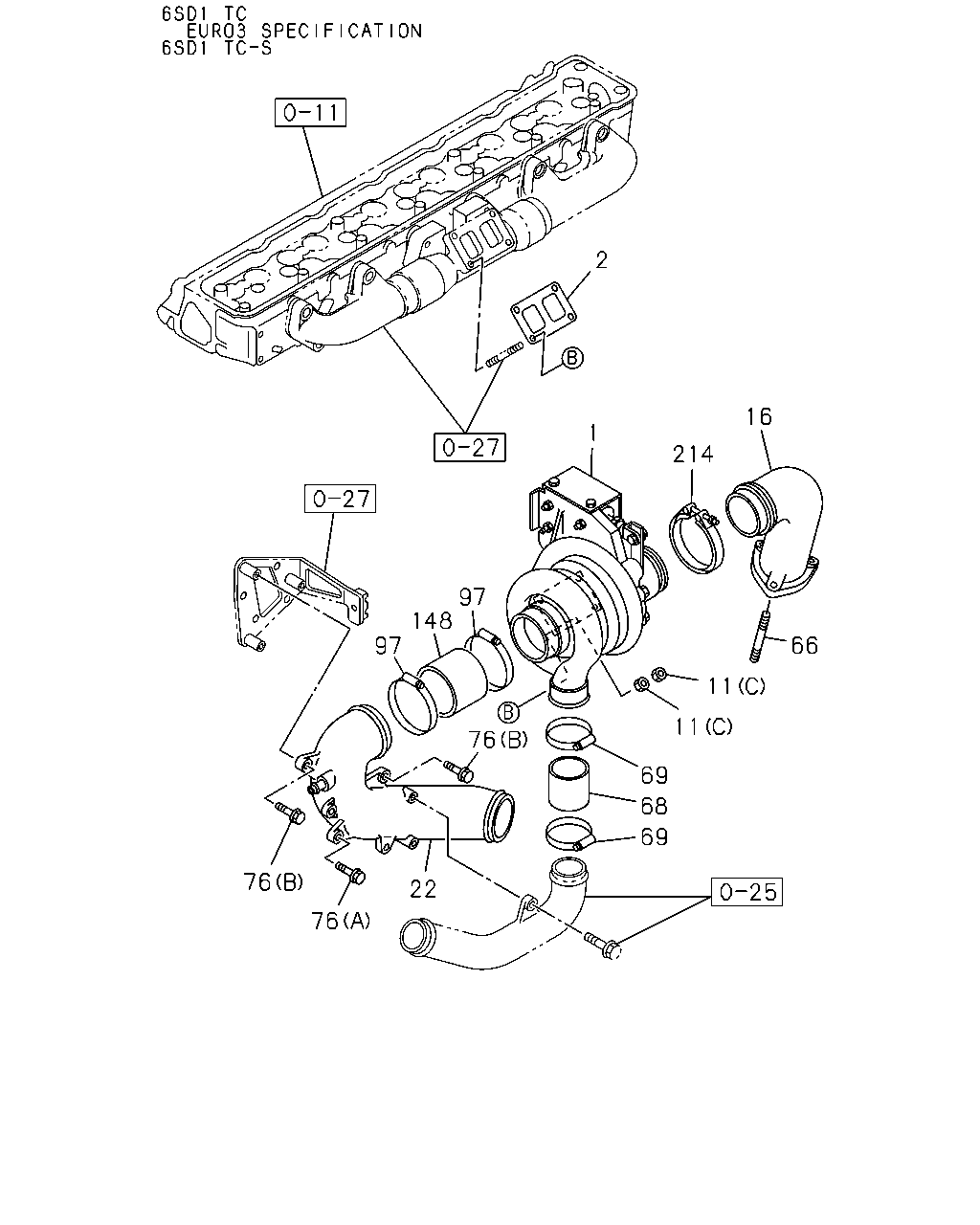

çizim 42134
2 16 1 214 97 148 66 97 11 76 11 69 68 69 76 22 76
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-14400-356-0 01 1 0012-0203 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-14400-356-1 01 1 0204- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN) 		1-14400-356-1 01 1 0204- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) OIL FILTER SETTING DOWNWARD<E7V> INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-14400-366-1 01 1 0012-0203 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) EXC. OIL FILTER SETTING DOWNWARD<E7V>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-14400-366-1 01 1 0012-0203 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) OIL FILTER SETTING DOWNWARD<E7V> INJ PUMP Q SET SPECIAL +5%Q(T1A) ISUZU M/T<X9A> 		1-14400-366-1 01 1 0204- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-14400-366-1 01 1 0204- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NJX) 		1-14400-407-5 01 1 0107- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) 		1-14400-339-5 01 1 0012- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-290-2 01 1 0204-0401 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-441-0 01 1 0402- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-414-4 01 1 0211- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-181-0 01 1 0012-0106 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION(NJX) 		1-14145-181-0 01 1 0107- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) 		1-14145-140-0 01 1 0107-0210 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-140-1 01 1 0211- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-140-1 01 1 0211- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-187-0 01 1 0204- ●
11 NUT; TURBOCHARGER
(A) M10 		1-09420-005-0 01 1 0012-0106 ●
11 NUT; TURBOCHARGER
EXC. EURO3 SPECIFICATION(NJX) (A) M10 		1-09420-005-0 01 1 0107- ●
11 NUT; TURBOCHARGER
(B) M10 P=1.5 H=8 		9-09842-007-0 03 1 0012-0106 ●
11 NUT; TURBOCHARGER
EXC. EURO3 SPECIFICATION(NJX) (B) M10 P=1.5 H=8 		9-09842-007-0 03 1 0107- ●
11 NUT; TURBOCHARGER
EURO3 SPECIFICATION(NJX) (C) M10 		1-09420-005-0 08 1 0107-0210 ●
11 NUT; TURBOCHARGER
EURO3 SPECIFICATION(NJX) (C) M10 		1-09420-005-0 08 1 0211- ●
11 NUT; TURBOCHARGER
(C) M10 		1-09420-005-0 08 1 0211- ●
11 NUT; TURBOCHARGER
(D) M10 		1-09420-005-0 04 1 0204- ●
16 ADAPTER; EXH PIPE
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN) 		1-14144-637-0 01 1 0204- ●
16 ADAPTER; EXH PIPE
EURO3 SPECIFICATION(NJX) 		1-14144-650-0 01 1 0107-0210 ●
16 ADAPTER; EXH PIPE
EURO3 SPECIFICATION(NJX) 		1-14144-650-0 01 1 0211- ●
16 ADAPTER; EXH PIPE 1-14144-650-0 01 1 0211- ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-357-0 01 1 0012-0106 ●
22 DUCT; INL,ACL TO TURBOCHARGER
EXC. EURO3 SPECIFICATION(NJX) 		1-14134-357-0 01 1 0107- ●
22 DUCT; INL,ACL TO TURBOCHARGER
EURO3 SPECIFICATION(NJX) 		1-14134-398-1 01 1 0107-0210 ●
22 DUCT; INL,ACL TO TURBOCHARGER
EURO3 SPECIFICATION(NJX) 		1-14134-398-3 01 1 0211- ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-398-3 01 1 0211- ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-388-0 01 1 0204- ●
66 STUD; EXH PIPE
EURO3 SPECIFICATION(NJX) 		1-09302-165-0 02 1 0107-0210 ●
66 STUD; EXH PIPE
EURO3 SPECIFICATION(NJX) 		1-09302-165-0 02 1 0211-0501 ●
66 STUD; EXH PIPE 1-09302-165-0 02 1 0211-0501 ●
66 STUD; EXH PIPE
EURO3 SPECIFICATION(NJX) M12X90 L=110 		1-09302-035-0 02 1 0502- ●
66 STUD; EXH PIPE
M12X90 L=110 		1-09302-035-0 02 1 0502- ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER
EURO3 SPECIFICATION(NJX) 		1-09360-989-0 01 1 0107-0210 ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER
EURO3 SPECIFICATION(NJX) 		1-09360-989-0 01 1 0211-0212 ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09360-989-0 01 1 0211-0212 ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER
EURO3 SPECIFICATION(NJX) 		1-09361-124-0 01 1 0301- ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-124-0 01 1 0301- ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09360-917-0 01 1 0204- ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
EURO3 SPECIFICATION(NJX) ID=68-85 		8-94320-428-0 02 1 0107-0210 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
EURO3 SPECIFICATION(NJX) ID=68-85 		8-94320-428-0 02 1 0211-0306 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		8-94320-428-0 02 1 0211-0306 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
EURO3 SPECIFICATION(NJX) ID=68-85 		1-09707-202-0 02 1 0307-0808 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		1-09707-202-0 02 1 0307-0808 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
EURO3 SPECIFICATION(NJX) ID=68-85 		8-94320-428-0 02 1 0809- ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		8-94320-428-0 02 1 0809- ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95 		1-09707-114-0 02 1 0204-0306 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95 		1-09707-198-0 04 1 0307-0809 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95 		1-09707-198-0 02 1 0810-0810 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95 		1-09707-114-0 02 1 0811- ●
76 BOLT; AIR DUCT
(C) M10X90 FLANGE 		0-28081-090-0 02 1 0012-0106 ●
76 BOLT; AIR DUCT
EXC. EURO3 SPECIFICATION(NJX) (C) M10X90 FLANGE 		0-28081-090-0 02 1 0107-0512 ●
76 BOLT; AIR DUCT
EXC. EURO3 SPECIFICATION(NJX) (C) M10X90 FLANGE 		0-28051-090-0 02 1 0601- ●
76 BOLT; AIR DUCT
EURO3 SPECIFICATION(NJX) (A) M10X60 FLANGE 		0-28081-060-0 01 1 0107-0210 ●
76 BOLT; AIR DUCT
EURO3 SPECIFICATION(NJX) (A) M10X60 FLANGE 		0-28081-060-0 01 1 0211-0512 ●
76 BOLT; AIR DUCT
(A) M10X60 FLANGE 		0-28081-060-0 01 1 0211-0512 ●
76 BOLT; AIR DUCT
EURO3 SPECIFICATION(NJX) (A) M10X60 FLANGE 		0-28051-060-0 01 1 0601- ●
76 BOLT; AIR DUCT
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0601- ●
76 BOLT; AIR DUCT
EURO3 SPECIFICATION(NJX) (B) M10X80 FLANGE 		0-28081-080-0 02 1 0107-0210 ●
76 BOLT; AIR DUCT
EURO3 SPECIFICATION(NJX) (B) M10X80 FLANGE 		0-28081-080-0 02 1 0211-0512 ●
76 BOLT; AIR DUCT
(B) M10X80 FLANGE 		0-28081-080-0 02 1 0211-0512 ●
76 BOLT; AIR DUCT
EURO3 SPECIFICATION(NJX) (B) M10X80 FLANGE 		0-28051-080-0 02 1 0601- ●
76 BOLT; AIR DUCT
(B) M10X80 FLANGE 		0-28051-080-0 02 1 0601- ●
97 CLIP; HOSE,TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) ID=104-142 		1-09707-155-0 02 1 0809-0810 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-155-0 02 1 0809-0810 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=86 		9-09915-592-0 02 1 0012-0106 ●
97 CLIP; HOSE,TURBOCHARGER,INL
EXC. EURO3 SPECIFICATION(NJX) ID=86 		9-09915-592-0 02 1 0107- ●
97 CLIP; HOSE,TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) ID=104-142 		1-09707-155-0 02 1 0107-0210 ●
97 CLIP; HOSE,TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) ID=104-142 		1-09707-155-0 02 1 0211-0306 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-155-0 02 1 0211-0306 ●
97 CLIP; HOSE,TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) ID=104-139 		1-09707-200-0 04 1 0307-0809 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-139 		1-09707-200-0 04 1 0307-0809 ●
97 CLIP; HOSE,TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) ID=104-139 		1-09707-200-0 02 1 0810-0812 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-139 		1-09707-200-0 02 1 0810-0812 ●
97 CLIP; HOSE,TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) ID=104-142 		1-09707-155-0 02 1 0901- ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-155-0 02 1 0901- ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 		1-09707-144-0 02 1 0204-0306 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-113 		1-09707-199-0 04 1 0307-0809 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-113 		1-09707-199-0 02 1 0810-0811 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 		1-09707-144-0 02 1 0812- ●
148 HOSE; TURBOCHARGER,INL 1-09360-403-1 01 1 0012-0106 ●
148 HOSE; TURBOCHARGER,INL
EXC. EURO3 SPECIFICATION(NJX) 		1-09360-403-1 01 1 0107- ●
148 HOSE; TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) 		1-09360-988-0 01 1 0107-0210 ●
148 HOSE; TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) 		1-09360-988-0 01 1 0211-0304 ●
148 HOSE; TURBOCHARGER,INL 1-09360-988-0 01 1 0211-0304 ●
148 HOSE; TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) 		1-09361-135-0 01 1 0305-0503 ●
148 HOSE; TURBOCHARGER,INL 1-09361-135-0 01 1 0305-0503 ●
148 HOSE; TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) 		1-09360-988-0 01 1 0504- ●
148 HOSE; TURBOCHARGER,INL 1-09360-988-0 01 1 0504- ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE
EURO3 SPECIFICATION(NJX) 		1-09709-094-1 01 1 0107-0203 ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE
EURO3 SPECIFICATION(NJX) 		1-09709-094-1 01 1 0204-0210 ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 1-09709-094-1 01 1 0204-0210 ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE
EURO3 SPECIFICATION(NJX) 		1-09709-094-1 01 1 0211-0609 ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 1-09709-094-1 01 1 0211-0609 ● ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE
EURO3 SPECIFICATION(NJX) 		8-98059-890-0 01 1 0610- ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98059-890-0 01 1 0610- ● ●

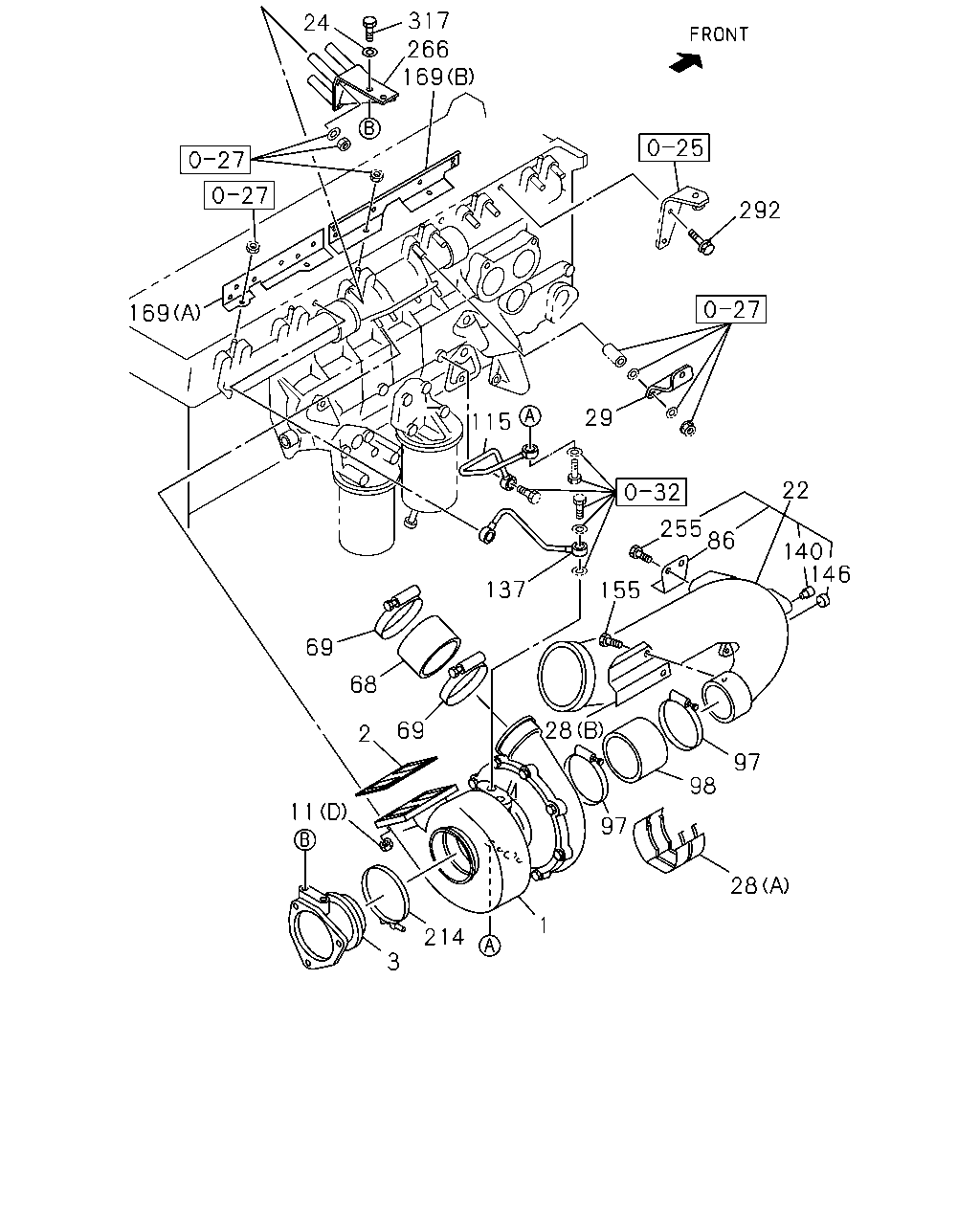

çizim 43493
317 266 169 24 292 169 29 115 22 255 86 140 146 137 155 69 68 28 69 2 97 98 11 97 28 1 214 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-14400-356-0 01 1 0012-0203 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-14400-356-1 01 1 0204- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN) 		1-14400-356-1 01 1 0204- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) OIL FILTER SETTING DOWNWARD<E7V> INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-14400-366-1 01 1 0012-0203 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) EXC. OIL FILTER SETTING DOWNWARD<E7V>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-14400-366-1 01 1 0012-0203 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) OIL FILTER SETTING DOWNWARD<E7V> INJ PUMP Q SET SPECIAL +5%Q(T1A) ISUZU M/T<X9A> 		1-14400-366-1 01 1 0204- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-14400-366-1 01 1 0204- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NJX) 		1-14400-407-5 01 1 0107- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) 		1-14400-339-5 01 1 0012- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-290-2 01 1 0204-0401 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-441-0 01 1 0402- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-414-4 01 1 0211- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-181-0 01 1 0012-0106 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION(NJX) 		1-14145-181-0 01 1 0107- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) 		1-14145-140-0 01 1 0107-0210 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-140-1 01 1 0211- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-140-1 01 1 0211- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-187-0 01 1 0204- ●
3 PIPE; EXH,TURBOCHARGER 1-14144-542-1 01 1 0204- ●
11 NUT; TURBOCHARGER
(A) M10 		1-09420-005-0 01 1 0012-0106 ●
11 NUT; TURBOCHARGER
EXC. EURO3 SPECIFICATION(NJX) (A) M10 		1-09420-005-0 01 1 0107- ●
11 NUT; TURBOCHARGER
(B) M10 P=1.5 H=8 		9-09842-007-0 03 1 0012-0106 ●
11 NUT; TURBOCHARGER
EXC. EURO3 SPECIFICATION(NJX) (B) M10 P=1.5 H=8 		9-09842-007-0 03 1 0107- ●
11 NUT; TURBOCHARGER
EURO3 SPECIFICATION(NJX) (C) M10 		1-09420-005-0 08 1 0107-0210 ●
11 NUT; TURBOCHARGER
EURO3 SPECIFICATION(NJX) (C) M10 		1-09420-005-0 08 1 0211- ●
11 NUT; TURBOCHARGER
(C) M10 		1-09420-005-0 08 1 0211- ●
11 NUT; TURBOCHARGER
(D) M10 		1-09420-005-0 04 1 0204- ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-357-0 01 1 0012-0106 ●
22 DUCT; INL,ACL TO TURBOCHARGER
EXC. EURO3 SPECIFICATION(NJX) 		1-14134-357-0 01 1 0107- ●
22 DUCT; INL,ACL TO TURBOCHARGER
EURO3 SPECIFICATION(NJX) 		1-14134-398-1 01 1 0107-0210 ●
22 DUCT; INL,ACL TO TURBOCHARGER
EURO3 SPECIFICATION(NJX) 		1-14134-398-3 01 1 0211- ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-398-3 01 1 0211- ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-388-0 01 1 0204- ●
24 WASHER; PL,PIPE 1-09500-007-0 02 1 0204- ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(C) 		1-14181-221-0 01 1 0012-0106 ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
EXC. EURO3 SPECIFICATION(NJX) (C) 		1-14181-221-0 01 1 0107- ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(A) 		1-14181-244-0 01 1 0204- ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(B) 		1-14181-272-0 01 1 0204- ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-392-0 01 1 0204- ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER
EURO3 SPECIFICATION(NJX) 		1-09360-989-0 01 1 0107-0210 ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER
EURO3 SPECIFICATION(NJX) 		1-09360-989-0 01 1 0211-0212 ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09360-989-0 01 1 0211-0212 ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER
EURO3 SPECIFICATION(NJX) 		1-09361-124-0 01 1 0301- ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-124-0 01 1 0301- ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09360-917-0 01 1 0204- ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
EURO3 SPECIFICATION(NJX) ID=68-85 		8-94320-428-0 02 1 0107-0210 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
EURO3 SPECIFICATION(NJX) ID=68-85 		8-94320-428-0 02 1 0211-0306 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		8-94320-428-0 02 1 0211-0306 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
EURO3 SPECIFICATION(NJX) ID=68-85 		1-09707-202-0 02 1 0307-0808 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		1-09707-202-0 02 1 0307-0808 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
EURO3 SPECIFICATION(NJX) ID=68-85 		8-94320-428-0 02 1 0809- ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		8-94320-428-0 02 1 0809- ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95 		1-09707-114-0 02 1 0204-0306 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95 		1-09707-198-0 04 1 0307-0809 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95 		1-09707-198-0 02 1 0810-0810 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95 		1-09707-114-0 02 1 0811- ●
86 BRACKET; INL PIPE 1-14119-361-0 01 1 0204- ●
97 CLIP; HOSE,TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) ID=104-142 		1-09707-155-0 02 1 0809-0810 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-155-0 02 1 0809-0810 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=86 		9-09915-592-0 02 1 0012-0106 ●
97 CLIP; HOSE,TURBOCHARGER,INL
EXC. EURO3 SPECIFICATION(NJX) ID=86 		9-09915-592-0 02 1 0107- ●
97 CLIP; HOSE,TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) ID=104-142 		1-09707-155-0 02 1 0107-0210 ●
97 CLIP; HOSE,TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) ID=104-142 		1-09707-155-0 02 1 0211-0306 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-155-0 02 1 0211-0306 ●
97 CLIP; HOSE,TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) ID=104-139 		1-09707-200-0 04 1 0307-0809 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-139 		1-09707-200-0 04 1 0307-0809 ●
97 CLIP; HOSE,TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) ID=104-139 		1-09707-200-0 02 1 0810-0812 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-139 		1-09707-200-0 02 1 0810-0812 ●
97 CLIP; HOSE,TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) ID=104-142 		1-09707-155-0 02 1 0901- ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-155-0 02 1 0901- ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 		1-09707-144-0 02 1 0204-0306 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-113 		1-09707-199-0 04 1 0307-0809 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-113 		1-09707-199-0 02 1 0810-0811 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 		1-09707-144-0 02 1 0812- ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-797-1 01 1 0012-0106 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EXC. EURO3 SPECIFICATION(NJX) 		1-09360-797-1 01 1 0107- ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=89 L=80 		1-09360-356-1 01 1 0204- ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13721-605-0 01 1 0204- ●
137 PIPE; WATER,TURBOCHARGER IN 1-13721-506-2 01 1 0204- ●
140 PIPE; AIR PIPE 9-14119-228-1 01 1 0204- ●
146 PLUG; INL PIPE
OD=25 		1-09600-016-0 01 1 0808- ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 0204-0512 ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
169 PROTECTOR; HEAT,HD COVER
(B) 		1-14181-302-1 01 1 0204- ●
169 PROTECTOR; HEAT,HD COVER
(A) 		1-14181-320-0 01 1 0204- ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE
EURO3 SPECIFICATION(NJX) 		1-09709-094-1 01 1 0107-0203 ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE
EURO3 SPECIFICATION(NJX) 		1-09709-094-1 01 1 0204-0210 ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 1-09709-094-1 01 1 0204-0210 ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE
EURO3 SPECIFICATION(NJX) 		1-09709-094-1 01 1 0211-0609 ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 1-09709-094-1 01 1 0211-0609 ● ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE
EURO3 SPECIFICATION(NJX) 		8-98059-890-0 01 1 0610- ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98059-890-0 01 1 0610- ● ●
255 BOLT; INL PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 0204-0512 ●
255 BOLT; INL PIPE
M10X20 FLANGE 		0-28151-020-0 02 1 0601- ●
266 BRACKET; EXH PIPE 1-14149-195-0 01 1 0204- ●
292 BOLT; BRKT TO CYL HD
M10X16 FLANGE 		0-28181-016-0 04 1 0204-0512 ●
292 BOLT; BRKT TO CYL HD
M10X16 FLANGE 		0-28151-016-0 04 1 0601- ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 0204- ●

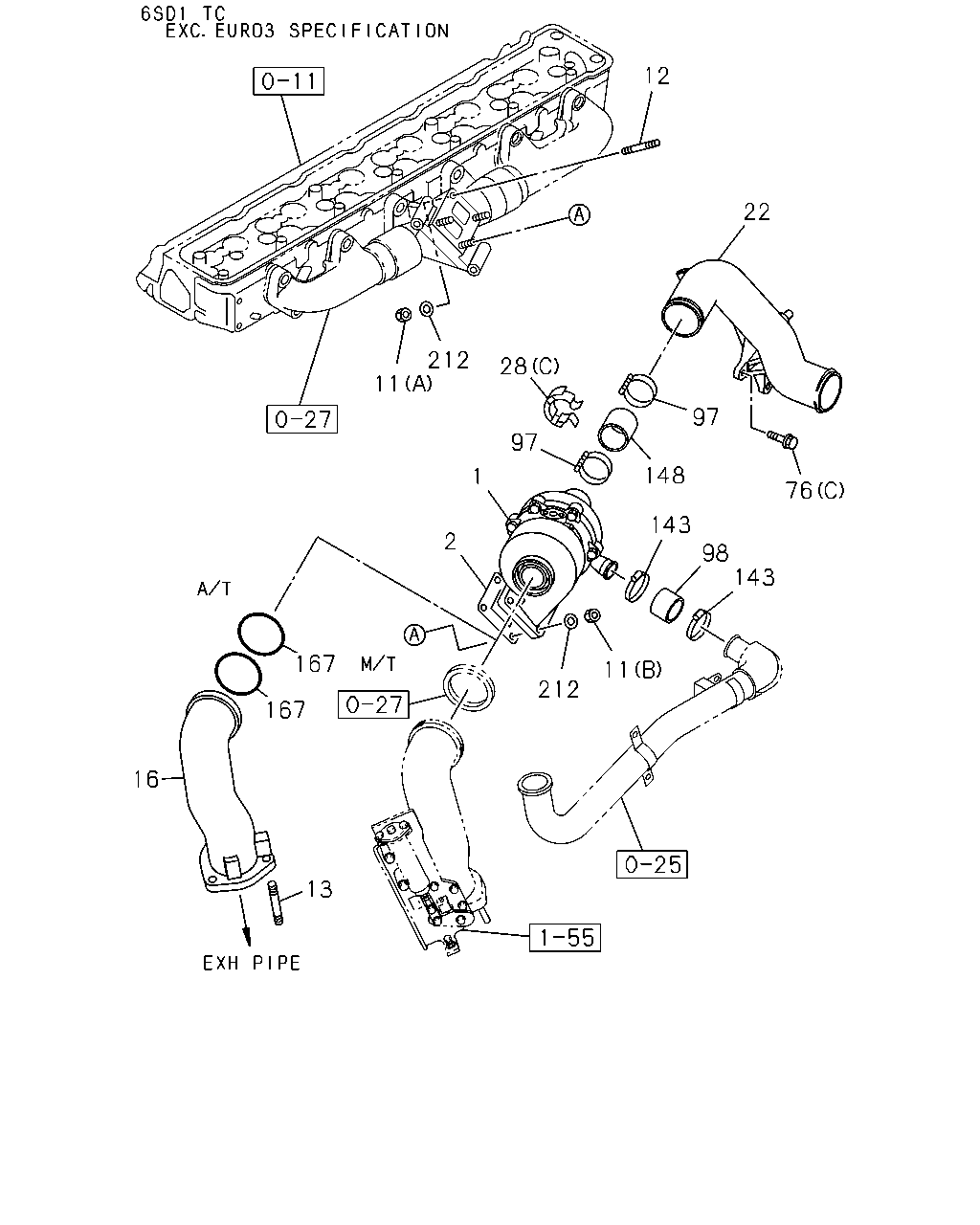

çizim 44124
12 22 212 28 11 97 97 148 1 76 143 2 98 143 167 11 212 167 16 13
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-14400-356-0 01 1 0012-0203 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-14400-356-1 01 1 0204- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN) 		1-14400-356-1 01 1 0204- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) OIL FILTER SETTING DOWNWARD<E7V> INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-14400-366-1 01 1 0012-0203 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) EXC. OIL FILTER SETTING DOWNWARD<E7V>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-14400-366-1 01 1 0012-0203 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) OIL FILTER SETTING DOWNWARD<E7V> INJ PUMP Q SET SPECIAL +5%Q(T1A) ISUZU M/T<X9A> 		1-14400-366-1 01 1 0204- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(THN) ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-14400-366-1 01 1 0204- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NJX) 		1-14400-407-5 01 1 0107- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) 		1-14400-339-5 01 1 0012- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-290-2 01 1 0204-0401 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-441-0 01 1 0402- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-414-4 01 1 0211- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-181-0 01 1 0012-0106 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION(NJX) 		1-14145-181-0 01 1 0107- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) 		1-14145-140-0 01 1 0107-0210 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-140-1 01 1 0211- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-140-1 01 1 0211- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-187-0 01 1 0204- ●
11 NUT; TURBOCHARGER
(A) M10 		1-09420-005-0 01 1 0012-0106 ●
11 NUT; TURBOCHARGER
EXC. EURO3 SPECIFICATION(NJX) (A) M10 		1-09420-005-0 01 1 0107- ●
11 NUT; TURBOCHARGER
(B) M10 P=1.5 H=8 		9-09842-007-0 03 1 0012-0106 ●
11 NUT; TURBOCHARGER
EXC. EURO3 SPECIFICATION(NJX) (B) M10 P=1.5 H=8 		9-09842-007-0 03 1 0107- ●
11 NUT; TURBOCHARGER
EURO3 SPECIFICATION(NJX) (C) M10 		1-09420-005-0 08 1 0107-0210 ●
11 NUT; TURBOCHARGER
EURO3 SPECIFICATION(NJX) (C) M10 		1-09420-005-0 08 1 0211- ●
11 NUT; TURBOCHARGER
(C) M10 		1-09420-005-0 08 1 0211- ●
11 NUT; TURBOCHARGER
(D) M10 		1-09420-005-0 04 1 0204- ●
12 STUD; TURBOCHARGER
M10X30,M10X22.5 L=45 		9-04731-030-0 01 1 0012-0106 ●
12 STUD; TURBOCHARGER
EXC. EURO3 SPECIFICATION(NJX) M10X30,M10X22.5 L=45 		9-04731-030-0 01 1 0107- ●
13 STUD; EXH PIPE
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN) M12X40 L=64 		9-94321-240-0 03 1 0204- ●
16 ADAPTER; EXH PIPE
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN) 		1-14144-637-0 01 1 0204- ●
16 ADAPTER; EXH PIPE
EURO3 SPECIFICATION(NJX) 		1-14144-650-0 01 1 0107-0210 ●
16 ADAPTER; EXH PIPE
EURO3 SPECIFICATION(NJX) 		1-14144-650-0 01 1 0211- ●
16 ADAPTER; EXH PIPE 1-14144-650-0 01 1 0211- ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-357-0 01 1 0012-0106 ●
22 DUCT; INL,ACL TO TURBOCHARGER
EXC. EURO3 SPECIFICATION(NJX) 		1-14134-357-0 01 1 0107- ●
22 DUCT; INL,ACL TO TURBOCHARGER
EURO3 SPECIFICATION(NJX) 		1-14134-398-1 01 1 0107-0210 ●
22 DUCT; INL,ACL TO TURBOCHARGER
EURO3 SPECIFICATION(NJX) 		1-14134-398-3 01 1 0211- ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-398-3 01 1 0211- ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-388-0 01 1 0204- ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(C) 		1-14181-221-0 01 1 0012-0106 ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
EXC. EURO3 SPECIFICATION(NJX) (C) 		1-14181-221-0 01 1 0107- ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(A) 		1-14181-244-0 01 1 0204- ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(B) 		1-14181-272-0 01 1 0204- ●
76 BOLT; AIR DUCT
(C) M10X90 FLANGE 		0-28081-090-0 02 1 0012-0106 ●
76 BOLT; AIR DUCT
EXC. EURO3 SPECIFICATION(NJX) (C) M10X90 FLANGE 		0-28081-090-0 02 1 0107-0512 ●
76 BOLT; AIR DUCT
EXC. EURO3 SPECIFICATION(NJX) (C) M10X90 FLANGE 		0-28051-090-0 02 1 0601- ●
76 BOLT; AIR DUCT
EURO3 SPECIFICATION(NJX) (A) M10X60 FLANGE 		0-28081-060-0 01 1 0107-0210 ●
76 BOLT; AIR DUCT
EURO3 SPECIFICATION(NJX) (A) M10X60 FLANGE 		0-28081-060-0 01 1 0211-0512 ●
76 BOLT; AIR DUCT
(A) M10X60 FLANGE 		0-28081-060-0 01 1 0211-0512 ●
76 BOLT; AIR DUCT
EURO3 SPECIFICATION(NJX) (A) M10X60 FLANGE 		0-28051-060-0 01 1 0601- ●
76 BOLT; AIR DUCT
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0601- ●
76 BOLT; AIR DUCT
EURO3 SPECIFICATION(NJX) (B) M10X80 FLANGE 		0-28081-080-0 02 1 0107-0210 ●
76 BOLT; AIR DUCT
EURO3 SPECIFICATION(NJX) (B) M10X80 FLANGE 		0-28081-080-0 02 1 0211-0512 ●
76 BOLT; AIR DUCT
(B) M10X80 FLANGE 		0-28081-080-0 02 1 0211-0512 ●
76 BOLT; AIR DUCT
EURO3 SPECIFICATION(NJX) (B) M10X80 FLANGE 		0-28051-080-0 02 1 0601- ●
76 BOLT; AIR DUCT
(B) M10X80 FLANGE 		0-28051-080-0 02 1 0601- ●
97 CLIP; HOSE,TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) ID=104-142 		1-09707-155-0 02 1 0809-0810 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-155-0 02 1 0809-0810 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=86 		9-09915-592-0 02 1 0012-0106 ●
97 CLIP; HOSE,TURBOCHARGER,INL
EXC. EURO3 SPECIFICATION(NJX) ID=86 		9-09915-592-0 02 1 0107- ●
97 CLIP; HOSE,TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) ID=104-142 		1-09707-155-0 02 1 0107-0210 ●
97 CLIP; HOSE,TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) ID=104-142 		1-09707-155-0 02 1 0211-0306 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-155-0 02 1 0211-0306 ●
97 CLIP; HOSE,TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) ID=104-139 		1-09707-200-0 04 1 0307-0809 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-139 		1-09707-200-0 04 1 0307-0809 ●
97 CLIP; HOSE,TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) ID=104-139 		1-09707-200-0 02 1 0810-0812 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-139 		1-09707-200-0 02 1 0810-0812 ●
97 CLIP; HOSE,TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) ID=104-142 		1-09707-155-0 02 1 0901- ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-155-0 02 1 0901- ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 		1-09707-144-0 02 1 0204-0306 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-113 		1-09707-199-0 04 1 0307-0809 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-113 		1-09707-199-0 02 1 0810-0811 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 		1-09707-144-0 02 1 0812- ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-797-1 01 1 0012-0106 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EXC. EURO3 SPECIFICATION(NJX) 		1-09360-797-1 01 1 0107- ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=89 L=80 		1-09360-356-1 01 1 0204- ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 		8-94126-771-0 02 1 0012-0106 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. EURO3 SPECIFICATION(NJX) ID=58-79 		8-94126-771-0 02 1 0107-0306 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. EURO3 SPECIFICATION(NJX) ID=58-76 		1-09707-203-0 04 1 0307-0809 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. EURO3 SPECIFICATION(NJX) ID=58-76 		1-09707-203-0 02 1 0810-0811 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. EURO3 SPECIFICATION(NJX) ID=58-79 		8-94126-771-0 02 1 0812- ●
148 HOSE; TURBOCHARGER,INL 1-09360-403-1 01 1 0012-0106 ●
148 HOSE; TURBOCHARGER,INL
EXC. EURO3 SPECIFICATION(NJX) 		1-09360-403-1 01 1 0107- ●
148 HOSE; TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) 		1-09360-988-0 01 1 0107-0210 ●
148 HOSE; TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) 		1-09360-988-0 01 1 0211-0304 ●
148 HOSE; TURBOCHARGER,INL 1-09360-988-0 01 1 0211-0304 ●
148 HOSE; TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) 		1-09361-135-0 01 1 0305-0503 ●
148 HOSE; TURBOCHARGER,INL 1-09361-135-0 01 1 0305-0503 ●
148 HOSE; TURBOCHARGER,INL
EURO3 SPECIFICATION(NJX) 		1-09360-988-0 01 1 0504- ●
148 HOSE; TURBOCHARGER,INL 1-09360-988-0 01 1 0504- ●
167 RING
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN) 		1-14149-207-0 02 1 0204- ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0012-0106 ●
212 WASHER; PL,TURBOCHARGER
EXC. EURO3 SPECIFICATION(NJX) ID=10 		1-09503-033-1 04 1 0107- ●

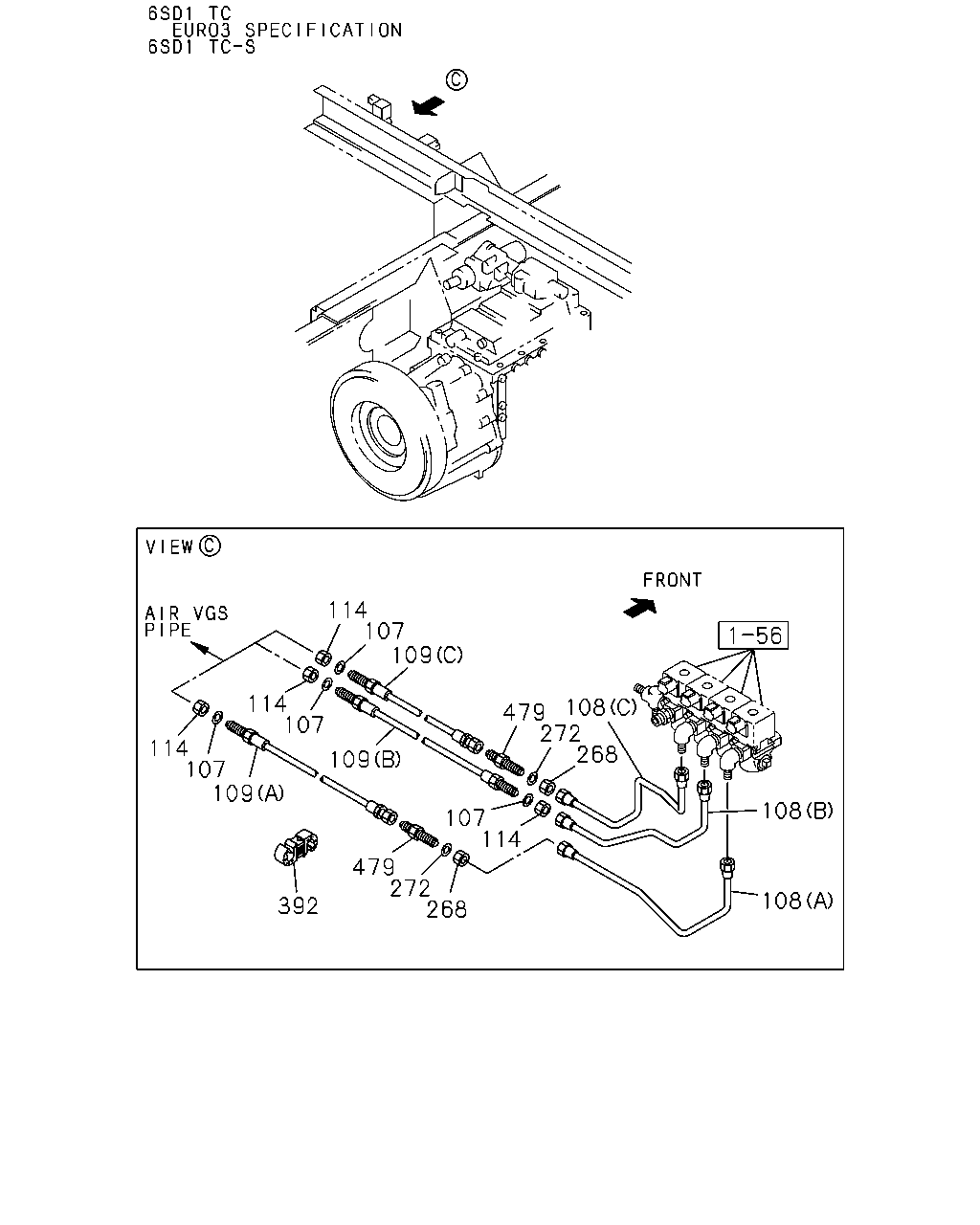

çizim 44284
114 107 109 114 107 108 479 272 268 114 107 109 109 108 107 114 479 272 268 108 392
BalonParca AdiParca NoAdetTipApplied Date A B C
107 WASHER; LK
EURO3 SPECIFICATION(NJX) ID=12.2 		9-09150-512-0 04 1 0107-0210 ●
107 WASHER; LK
EURO3 SPECIFICATION(NJX) ID=12.2 		9-09150-512-0 04 1 0211-0603 ●
107 WASHER; LK
ID=12.2 		9-09150-512-0 04 1 0211-0603 ●
107 WASHER; LK
EURO3 SPECIFICATION(NJX) ID=12.2 		0-91510-512-0 04 1 0604- ●
107 WASHER; LK
ID=12.2 		0-91510-512-0 04 1 0604- ●
108 PIPE ASM; AIR MAG VLV
EURO3 SPECIFICATION(NJX) (A) 		1-49122-969-0 01 1 0107-0210 ●
108 PIPE ASM; AIR MAG VLV
EURO3 SPECIFICATION(NJX) (A) 		1-49122-969-0 01 1 0211- ●
108 PIPE ASM; AIR MAG VLV
(A) 		1-49122-969-0 01 1 0211- ●
108 PIPE ASM; AIR MAG VLV
EURO3 SPECIFICATION(NJX) (B) 		1-49122-970-0 01 1 0107-0210 ●
108 PIPE ASM; AIR MAG VLV
EURO3 SPECIFICATION(NJX) (B) 		1-49122-970-0 01 1 0211- ●
108 PIPE ASM; AIR MAG VLV
(B) 		1-49122-970-0 01 1 0211- ●
108 PIPE ASM; AIR MAG VLV
EURO3 SPECIFICATION(NJX) (C) 		1-49122-971-0 01 1 0107-0210 ●
108 PIPE ASM; AIR MAG VLV
EURO3 SPECIFICATION(NJX) (C) 		1-49122-971-0 01 1 0211- ●
108 PIPE ASM; AIR MAG VLV
(C) 		1-49122-971-0 01 1 0211- ●
109 HOSE; FLEX,MAG VLV
EURO3 SPECIFICATION(NJX) (C) L=500 		1-09363-693-0 01 1 0107-0210 ●
109 HOSE; FLEX,MAG VLV
EURO3 SPECIFICATION(NJX) (C) L=500 		1-09363-693-0 01 1 0211- ●
109 HOSE; FLEX,MAG VLV
(C) L=500 		1-09363-693-0 01 1 0211- ●
109 HOSE; FLEX,MAG VLV
EURO3 SPECIFICATION(NJX) (B) L=480 		1-09363-883-0 01 1 0107-0210 ●
109 HOSE; FLEX,MAG VLV
EURO3 SPECIFICATION(NJX) (B) L=480 		1-09363-883-0 01 1 0211- ●
109 HOSE; FLEX,MAG VLV
(B) L=480 		1-09363-883-0 01 1 0211- ●
109 HOSE; FLEX,MAG VLV
EURO3 SPECIFICATION(NJX) (A) L=380 		1-09363-884-0 01 1 0107-0210 ●
109 HOSE; FLEX,MAG VLV
EURO3 SPECIFICATION(NJX) (A) L=380 		1-09363-884-0 01 1 0211- ●
109 HOSE; FLEX,MAG VLV
(A) L=380 		1-09363-884-0 01 1 0211- ●
114 NUT; FLEX HOSE
EURO3 SPECIFICATION(NJX) M12 		9-09840-280-0 04 1 0107-0210 ●
114 NUT; FLEX HOSE
EURO3 SPECIFICATION(NJX) M12 		9-09840-280-0 04 1 0211- ●
114 NUT; FLEX HOSE
M12 		9-09840-280-0 04 1 0211- ●
268 NUT; FLEX TUBE
EURO3 SPECIFICATION(NJX) M12 		9-09840-280-0 02 1 0107-0210 ●
268 NUT; FLEX TUBE
EURO3 SPECIFICATION(NJX) M12 		9-09840-280-0 02 1 0211- ●
268 NUT; FLEX TUBE
M12 		9-09840-280-0 02 1 0211- ●
272 WASHER; LK,FLEX HOSE
EURO3 SPECIFICATION(NJX) ID=12.2 		9-09150-512-0 02 1 0107-0210 ●
272 WASHER; LK,FLEX HOSE
EURO3 SPECIFICATION(NJX) ID=12.2 		9-09150-512-0 02 1 0211-0603 ●
272 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 0211-0603 ●
272 WASHER; LK,FLEX HOSE
EURO3 SPECIFICATION(NJX) ID=12.2 		0-91510-512-0 02 1 0604- ●
272 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 02 1 0604- ●
392 CLIP; FLEX HOSE
EURO3 SPECIFICATION(NJX) ID=10 & 10 		1-09709-277-1 02 1 0107-0210 ●
392 CLIP; FLEX HOSE
EURO3 SPECIFICATION(NJX) ID=10 & 10 		1-09709-277-1 02 1 0211- ●
392 CLIP; FLEX HOSE
ID=10 & 10 		1-09709-277-1 02 1 0211- ●
479 UNION; FLEX TUBE
EURO3 SPECIFICATION(NJX) M12 L=56.5 		9-09223-106-1 02 1 0107-0210 ●
479 UNION; FLEX TUBE
EURO3 SPECIFICATION(NJX) M12 L=56.5 		9-09223-106-1 02 1 0211-0607 ●
479 UNION; FLEX TUBE
M12 L=56.5 		9-09223-106-1 02 1 0211-0607 ●
479 UNION; FLEX TUBE
EURO3 SPECIFICATION(NJX) M12 L=56.5 		0-92113-106-0 02 1 0608- ●
479 UNION; FLEX TUBE
M12 L=56.5 		0-92113-106-0 02 1 0608- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
