◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51412 - TFR/TFS-RHD ▶ 9 - Tools ▶ 9-30 - REAR BODY ASM AND MOUNTING ▶
9-30 — REAR BODY ASM AND MOUNTING (#79528) — 73 parça

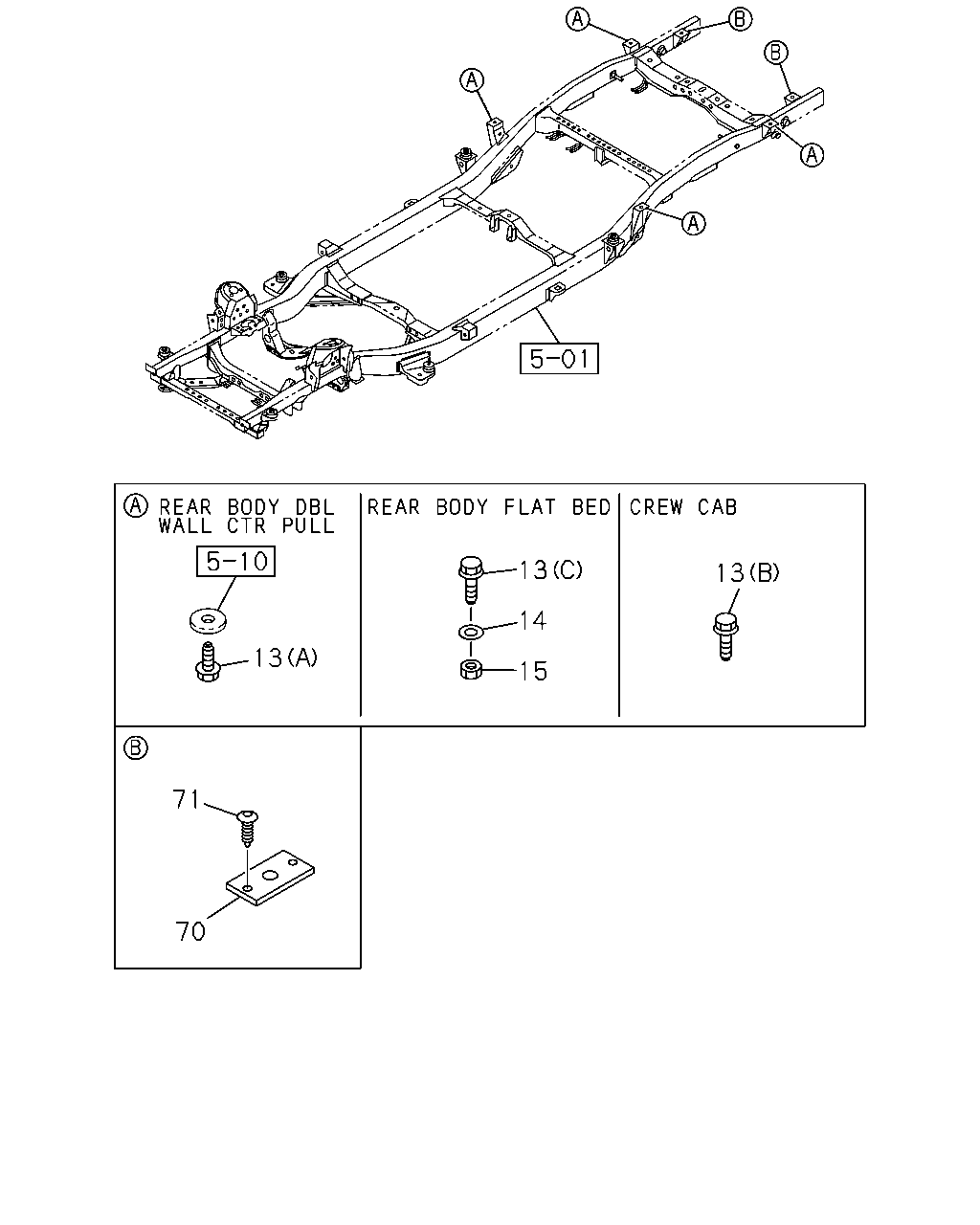

çizim 4509
13 13 14 15 13 71 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 09.008 BOLT; RR BODY MTG
REAR BODY FLAT BED(E39) (C) M12X40 W/PL WASHER 		8-98056-124-0 06 1 1206- ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 09.003 (A) M12X35 FLANGE 		0-28651-235-0 06 1 1205- ● ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 09.003 (A) M12X35 FLANGE 		0-28651-235-0 08 1 1205- ● ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 09.003 (A) M12X35 FLANGE 		0-28651-235-0 04 1 1205- ● ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) M12X35 FLANGE 		8-98176-522-0 02 1 1205- ● ●
14 09.011 WASHER; PL,RR BODY MTG
REAR BODY FLAT BED(E39) 03.023 ID=13 OD=40 T=6 		8-98098-458-0 08 1 1206- ●
15 09.011 NUT; RR BODY MTG
REAR BODY FLAT BED(E39) 05.610 M12 LOCK NUT 		8-98029-927-0 08 1 1206- ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 		8-98090-512-0 04 1 1205- ● ● ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 		8-98090-512-0 02 1 1205- ● ●
71 08.214 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18 		8-94178-705-0 08 1 1205- ● ● ● ●
71 08.214 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18 		8-94178-705-0 04 1 1205- ● ●

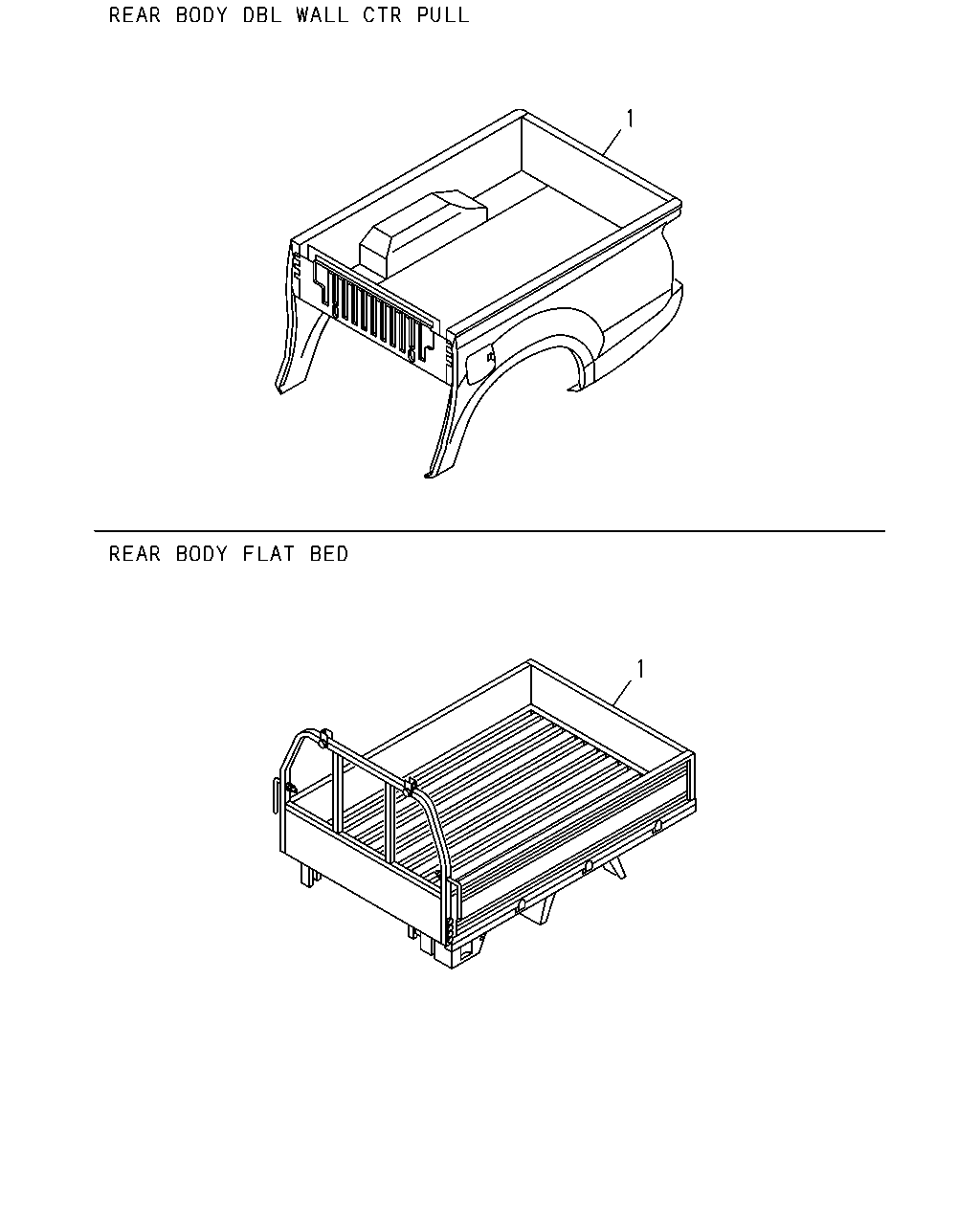

çizim 194405
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 17.090 BODY ASM; REAR
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> 		8-98239-422-0 01 1 1302- ●
1 17.090 BODY ASM; REAR
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98239-422-0 01 1 1302- ●
1 17.090 BODY ASM; REAR
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ>,HIGH RIDE S USPENSION(7YC) 		8-98239-423-0 01 1 1302- ●
1 17.090 BODY ASM; REAR
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98193-772-0 01 1 1206-1301 ●
1 17.090 BODY ASM; REAR
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98193-772-0 01 1 1302- ●
1 17.090 BODY ASM; REAR
BODY COLOR SPLASH WHITE(527) REAR BODY FLAT BED(E39) WHITE 		8-97423-013-6 01 1 1206- ●
1 17.090 BODY ASM; REAR
BODY COLOR TITANIUM SILVER MET(529) REAR BODY FLAT BED(E39) SILVER 		8-97423-014-6 01 1 1206- ●
1 17.090 BODY ASM; REAR
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) HIGH MOUNT STOP LAMP<TS6> GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98193-778-0 01 1 1206- ●
1 17.090 BODY ASM; REAR
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98193-780-0 01 1 1206- ●
1 17.090 BODY ASM; REAR
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> 		8-98193-781-0 01 1 1206-1206 ●
1 17.090 BODY ASM; REAR
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-781-0 01 1 1206-1206 ●
1 17.090 BODY ASM; REAR
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-781-0 01 1 1207- ●
1 17.090 BODY ASM; REAR
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98193-779-0 01 1 1206- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. HIGH MOUNT STOP LAMP<TS6>,HIGH RIDE SUSPENSION(7YC) 		8-98193-789-0 01 1 1206- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. HONG KONG EQUIPMENT(B14),HIGH MOUNT STOP LAMP<TS6>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),SING APORE EQUIPMENT(2G0),HIGH RIDE SUSPENSION(7YC) 		8-98193-789-0 01 1 1206- ●
1 17.090 BODY ASM; REAR
SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98193-773-0 01 1 1206- ●
1 17.090 BODY ASM; REAR
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98193-782-0 01 1 1206- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-786-0 01 1 1205- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-785-0 01 1 1205- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) OUTER ROPE HOOKS<7MZ> 		8-98193-783-0 01 1 1205-1205 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) OUTER ROPE HOOKS<7MZ> 		8-98193-783-0 01 1 1206-1301 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) OUTER ROPE HOOKS<7MZ> EXC. HONG KONG EQUIPMENT(B14),REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROM E(V42),SINGAPORE EQUIPMENT(2G0) 		8-98193-783-0 01 1 1206-1301 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-783-0 01 1 1302- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) OUTER ROPE HOOKS<7MZ> EXC. HONG KONG EQUIPMENT(B14),REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROM E(V42),SINGAPORE EQUIPMENT(2G0),HIGH RIDE SUSPENSION(7YC) 		8-98193-783-0 01 1 1302- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),RADIO DELETE(UL5),INST PANELFOR DIN E SIZE AUDIO(7QL) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-790-0 01 1 1205-1205 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) HIGH MOUNT STOP LAMP<TS6> REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-790-0 01 1 1206- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) HIGH MOUNT STOP LAMP<TS6> GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. HONG KONG EQUIPMENT(B14),REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROM E(V42),SINGAPORE EQUIPMENT(2G0),HIGH RIDE SUSPENSION(7YC) 		8-98193-790-0 01 1 1206- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),RADIO DELETE(UL5),INST PANELFOR DIN E SIZE AUDIO(7QL) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98193-794-0 01 1 1205-1205 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),RADIO DELETE(UL5),INST PANELFOR DIN E SIZE AUDIO(7QL) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-794-0 01 1 1205-1205 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98193-794-0 01 1 1206- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) EXC. HONG KONG EQUIPMENT(B14),REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROM E(V42),SINGAPORE EQUIPMENT(2G0), OUTERROPE HOOKS<7MZ> 		8-98193-794-0 01 1 1206- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-794-0 01 1 1206- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HONG KONG EQUIPMENT(B14),REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROM E(V42),SINGAPORE EQUIPMENT(2G0) 		8-98193-794-0 01 1 1206- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),RADIO DELETE(UL5),INST PANELFOR DIN E SIZE AUDIO(7QL) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98193-792-0 01 1 1205-1205 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98193-792-0 01 1 1206- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. HONG KONG EQUIPMENT(B14),REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROM E(V42),SINGAPORE EQUIPMENT(2G0), OUTERROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION (7YC) 		8-98193-792-0 01 1 1206- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),RADIO DELETE(UL5),INST PANELFOR DIN E SIZE AUDIO(7QL) HIGH RIDE SUSPENSION(7YC) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> 		8-98193-793-0 01 1 1205-1205 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),RADIO DELETE(UL5),INST PANELFOR DIN E SIZE AUDIO(7QL) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-793-0 01 1 1205-1205 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) HIGH RIDE SUSPENSION(7YC) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> 		8-98193-793-0 01 1 1206-1301 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. HONG KONG EQUIPMENT(B14),REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROM E(V42),GUARD FRAME BAR CARGO TIE DOWN<V89>,SINGAPORE EQUIPMENT(2G0),OUTER ROPE HOOKS<7MZ> 		8-98193-793-0 01 1 1206-1301 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. HONG KONG EQUIPMENT(B14),REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROM E(V42),GUARD FRAME BAR CARGO TIE DOWN<V89>,SINGAPORE EQUIPMENT(2G0) 		8-98193-793-0 01 1 1206-1301 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-793-0 01 1 1206-1301 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) HIGH RIDE SUSPENSION(7YC) EXC. CONGO EQUIPMENT(CDF),GUARD FRAMEBAR CARGO TIE DOWN<V89>,OUTER ROPE H OOKS<7MZ> 		8-98193-793-0 01 1 1302- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),REAR STEP BUMPER(VF6),R EAR STEP BUMPER CHROME(V42),GUARD FRAME BAR CARGO TIE DOWN<V89>,SINGAPORE EQUIPMENT(2G0),OUTER ROPE HOOKS<7MZ> 		8-98193-793-0 01 1 1302- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),REAR STEP BUMPER(VF6),R EAR STEP BUMPER CHROME(V42),GUARD FRAME BAR CARGO TIE DOWN<V89>,SINGAPORE EQUIPMENT(2G0) 		8-98193-793-0 01 1 1302- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. CONGO EQUIPMENT(CDF),GUARD FRAMEBAR CARGO TIE DOWN<V89> 		8-98193-793-0 01 1 1302- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),RADIO DELETE(UL5),INST PANELFOR DIN E SIZE AUDIO(7QL) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ>,HIGH RIDE S USPENSION(7YC) 		8-98193-791-0 01 1 1205-1205 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. HONG KONG EQUIPMENT(B14),REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROM E(V42),GUARD FRAME BAR CARGO TIE DOWN<V89>,SINGAPORE EQUIPMENT(2G0),OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98193-791-0 01 1 1206-1301 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ>,HIGH RIDE S USPENSION(7YC) 		8-98193-791-0 01 1 1206-1301 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),REAR STEP BUMPER(VF6),R EAR STEP BUMPER CHROME(V42),GUARD FRAME BAR CARGO TIE DOWN<V89>,SINGAPORE EQUIPMENT(2G0),OUTER ROPE HOOKS<7MZ>, HIGH RIDE SUSPENSION(7YC) 		8-98193-791-0 01 1 1302- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. CONGO EQUIPMENT(CDF),GUARD FRAMEBAR CARGO TIE DOWN<V89>,OUTER ROPE H OOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98193-791-0 01 1 1302- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),RADIO DELETE(UL5),INST PANELFOR DIN E SIZE AUDIO(7QL) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-788-0 01 1 1205-1205 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-788-0 01 1 1206- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),RADIO DELETE(UL5),INST PANELFOR DIN E SIZE AUDIO(7QL) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-787-0 01 1 1205-1205 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-787-0 01 1 1206- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) OUTER ROPE HOOKS<7MZ> 		8-98193-784-0 01 1 1205-1205 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) OUTER ROPE HOOKS<7MZ> 		8-98193-784-0 01 1 1206-1301 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),SINGAPORE EQUIPMENT(2G0) 		8-98193-784-0 01 1 1206-1301 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) 		8-98193-784-0 01 1 1302- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) EXC. HONG KONG EQUIPMENT(B14),REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROM E(V42),SINGAPORE EQUIPMENT(2G0) 		8-98193-784-0 01 1 1302- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) OUTER ROPE HOOKS<7MZ> 		8-98193-784-0 01 1 1302- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),SINGAPORE EQUIPMENT(2G0) 		8-98193-784-0 01 1 1302- ●
