8-90 — RADIO AND TV (#79526) — 75 parça

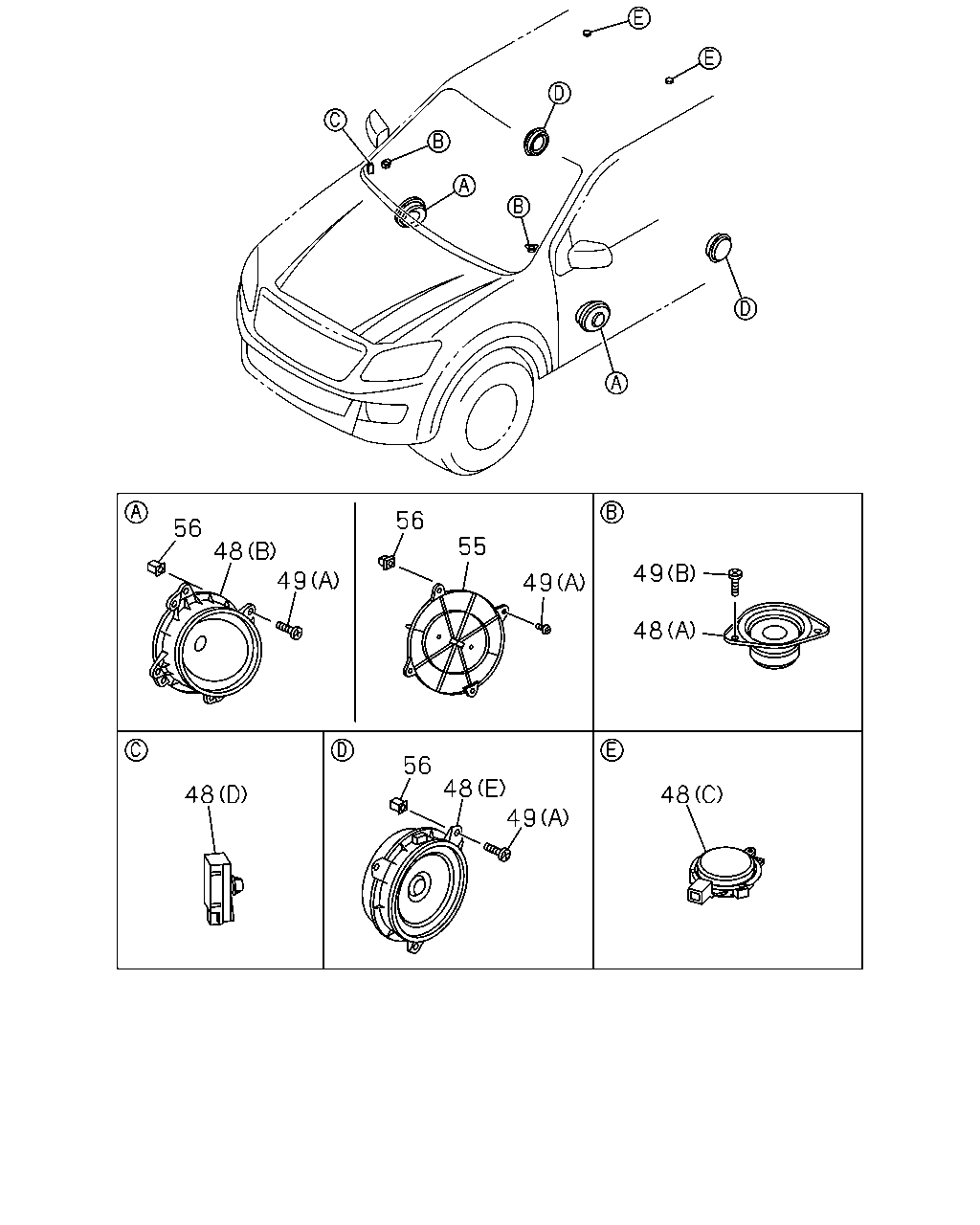

56 48 49 48 56 55 49 49 48 56 48 49 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
48	09.650 SPEAKER; AUDIO (B)	8-98052-937-0	02	1	1205-1205	●
48	09.650 SPEAKER; AUDIO 2-SPEAKER SYSTEM BASE<U95> (B)	8-98052-937-0	02	1	1205-1205		●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> (B)	8-98052-937-0	02	1	1205-1205				●	●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> (B)	8-98052-937-0	02	1	1205-1205						●
48	09.650 SPEAKER; AUDIO (B)	8-98052-937-0	02	1	1206-	●
48	09.650 SPEAKER; AUDIO 2-SPEAKER SYSTEM BASE<U95> (B)	8-98052-937-0	02	1	1206-		●	●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> (B)	8-98052-937-0	02	1	1206-				●	●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> (B)	8-98052-937-0	02	1	1206-						●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (E)	8-98052-941-0	02	1	1205-				●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> (A)	8-98052-940-0	02	1	1205-1205				●	●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> (A)	8-98052-940-0	02	1	1205-1205						●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> (A)	8-98052-940-0	02	1	1206-				●	●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> (A)	8-98052-940-0	02	1	1206-						●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6> (C)	8-98052-942-0	02	1	1205-				●	●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6> (D)	8-98064-704-0	01	1	1205-				●	●	●
49	09.655 SCREW; SPEAKER 16.345 (B) M5X14 TAPPING	8-98184-363-0	08	1	1205-	●	●	●	●	●	●
49	09.655 SCREW; SPEAKER 6-SPEAKER SYSTEM BASE<UW5> 16.345 (B) M5X14 TAPPING	8-98184-363-0	06	1	1205-				●	●
49	09.655 SCREW; SPEAKER 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> 08.083 (A) M5X16 TAPPING	8-98167-449-0	04	1	1205-1205				●	●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> 08.083 (A) M5X16 TAPPING	8-98167-449-0	04	1	1205-1205						●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> 08.083 (A) M5X16 TAPPING	8-98167-449-0	04	1	1206-				●	●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> 08.083 (A) M5X16 TAPPING	8-98167-449-0	04	1	1206-						●
55	09.650 COVER; SPEAKER HOLE EXC. 2-SPEAKER SYSTEM BASE<U95>	8-98102-183-0	02	1	1205-1205		●	●
55	09.650 COVER; SPEAKER HOLE EXC. 6-SPEAKER SYSTEM BASE<UW5>, 6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95>	8-98102-183-0	02	1	1205-1205				●	●
55	09.650 COVER; SPEAKER HOLE EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95>	8-98102-183-0	02	1	1205-1205						●
55	09.650 COVER; SPEAKER HOLE EXC. 2-SPEAKER SYSTEM BASE<U95>	8-98102-183-0	02	1	1206-		●	●
55	09.650 COVER; SPEAKER HOLE EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95>	8-98102-183-0	02	1	1206-				●	●
55	09.650 COVER; SPEAKER HOLE EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95>	8-98102-183-0	02	1	1206-						●
56	09.655 NUT; SPEAKER,RADIO OR STEREO	8-98163-895-0	08	1	1205-	●	●	●	●	●	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 6-SPEAKER SYSTEM BASE<UW5>	8-98163-895-0	06	1	1205-				●	●

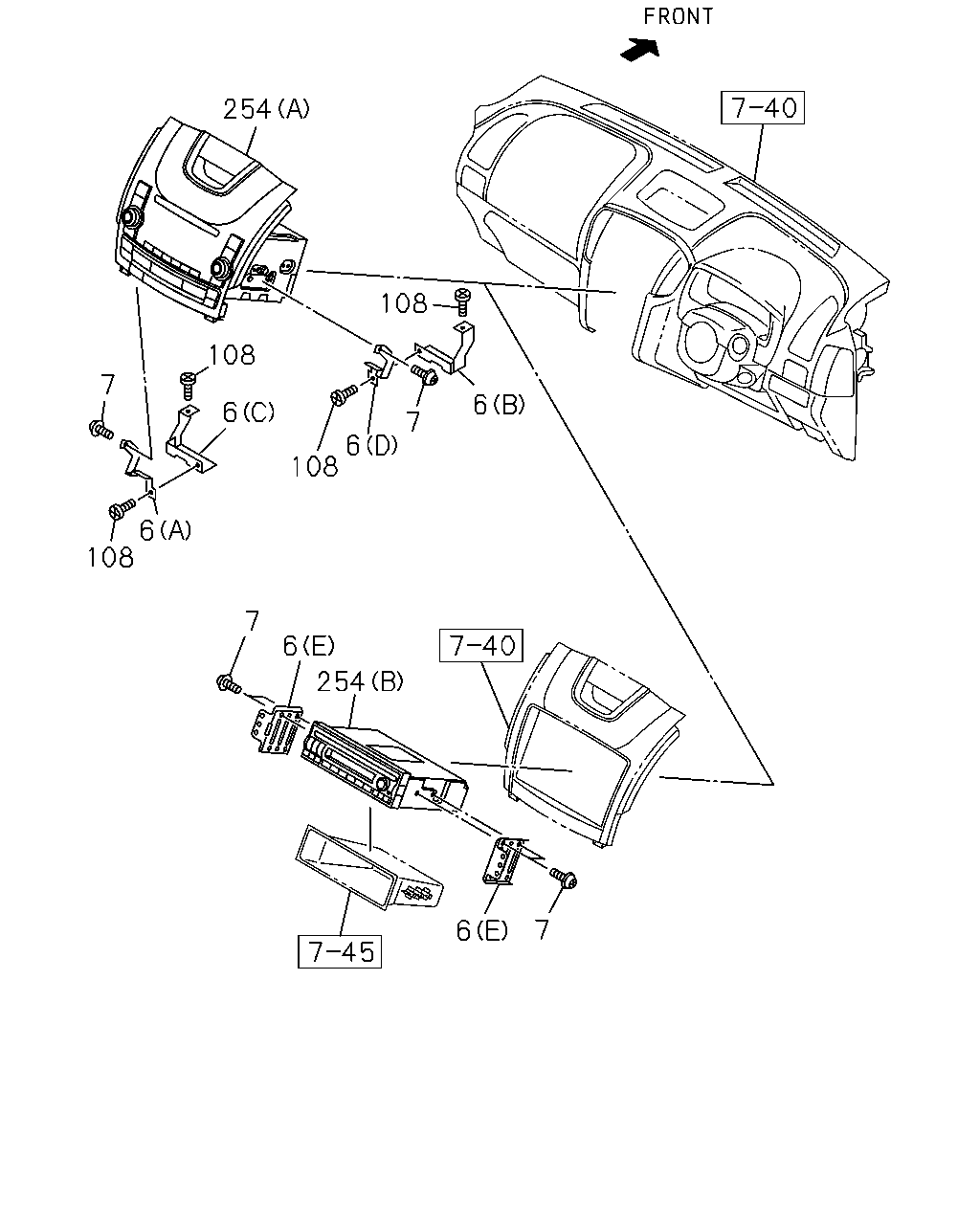

254 108 108 6 7 6 108 6 7 108 6 7 6 254 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE(UL5) (E)	8-98102-188-2	02	1	1205-1205	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE(UL5) (E)	8-98102-188-2	02	1	1206-	●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (E)	8-98102-188-2	02	1	1206-		●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) (A)	8-98102-186-2	01	1	1205-				●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) (B)	8-98102-187-3	01	1	1205-				●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) (C)	8-98106-390-3	01	1	1205-				●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) (D)	8-98109-822-2	01	1	1205-				●	●	●
7	09.650 SCREW; RADIO RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	1206-		●	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	1205-				●	●	●
108	09.645 SCREW; BRKT RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) 08.083 M5X16 TAPPING	8-98167-449-0	04	1	1205-				●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) EXC. AUSTRALIA EQUIPMENT(B13),TUNER BAND LATIN AMERICA<7DM> (A)	8-98052-935-3	01	1	1206-				●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) (B)	8-98052-934-1	01	1	1206-		●	●	●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) TUNER BAND LATIN AMERICA<7DM> (A)	8-98111-454-1	01	1	1206-				●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) (A)	8-98171-481-1	01	1	1205-1205				●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AUSTRALIA EQUIPMENT(B13) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) EXC. TUNER BAND LATIN AMERICA<7DM> (A)	8-98171-481-1	01	1	1206-				●	●	●

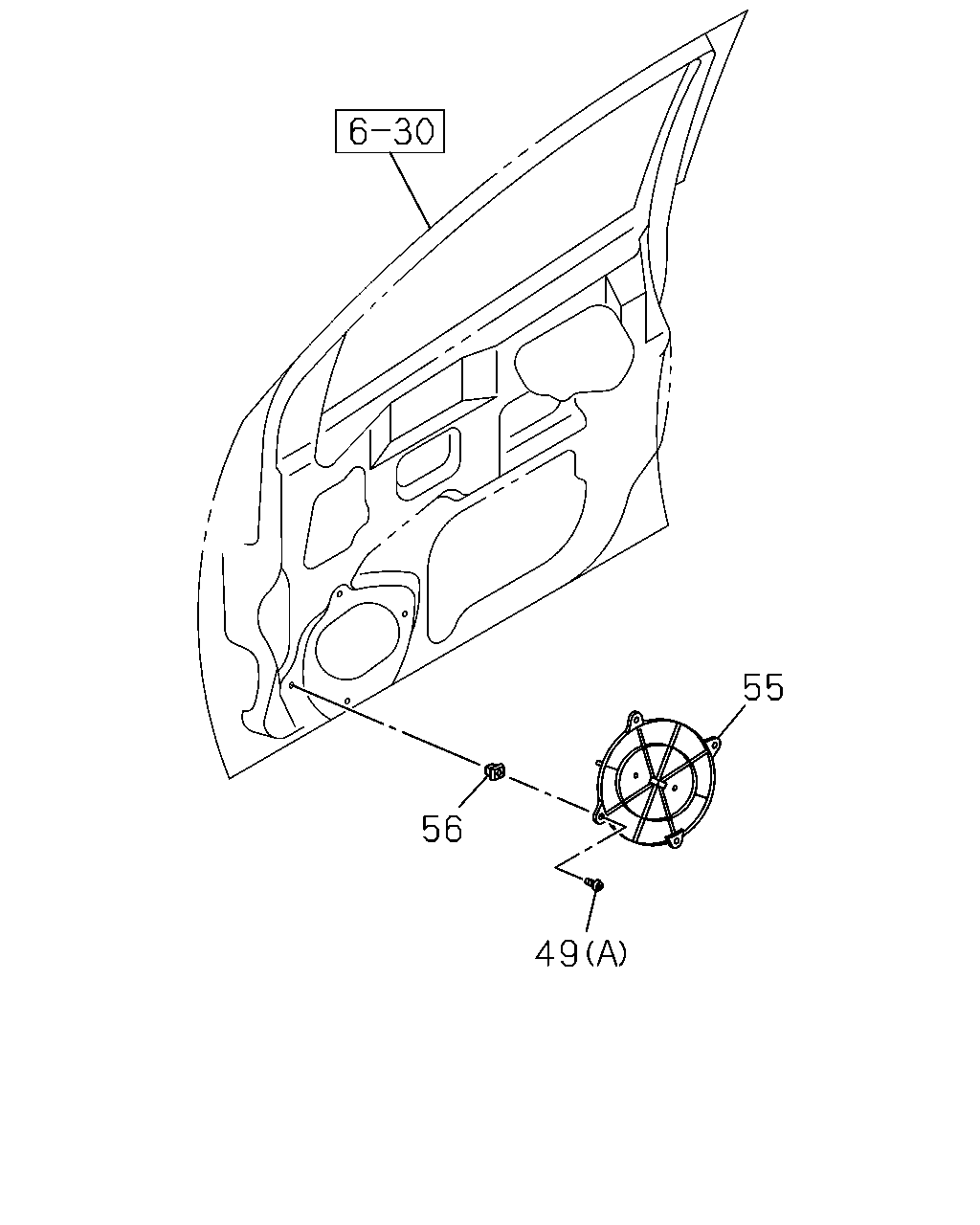

55 49 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
49	09.655 SCREW; SPEAKER 16.345 (B) M5X14 TAPPING	8-98184-363-0	08	1	1205-	●	●	●	●	●	●
49	09.655 SCREW; SPEAKER 6-SPEAKER SYSTEM BASE<UW5> 16.345 (B) M5X14 TAPPING	8-98184-363-0	06	1	1205-				●	●
49	09.655 SCREW; SPEAKER 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> 08.083 (A) M5X16 TAPPING	8-98167-449-0	04	1	1205-1205				●	●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> 08.083 (A) M5X16 TAPPING	8-98167-449-0	04	1	1205-1205						●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> 08.083 (A) M5X16 TAPPING	8-98167-449-0	04	1	1206-				●	●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> 08.083 (A) M5X16 TAPPING	8-98167-449-0	04	1	1206-						●
55	09.650 COVER; SPEAKER HOLE EXC. 2-SPEAKER SYSTEM BASE<U95>	8-98102-183-0	02	1	1205-1205		●	●
55	09.650 COVER; SPEAKER HOLE EXC. 6-SPEAKER SYSTEM BASE<UW5>, 6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95>	8-98102-183-0	02	1	1205-1205				●	●
55	09.650 COVER; SPEAKER HOLE EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95>	8-98102-183-0	02	1	1205-1205						●
55	09.650 COVER; SPEAKER HOLE EXC. 2-SPEAKER SYSTEM BASE<U95>	8-98102-183-0	02	1	1206-		●	●
55	09.650 COVER; SPEAKER HOLE EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95>	8-98102-183-0	02	1	1206-				●	●
55	09.650 COVER; SPEAKER HOLE EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95>	8-98102-183-0	02	1	1206-						●
56	09.655 NUT; SPEAKER,RADIO OR STEREO	8-98163-895-0	08	1	1205-	●	●	●	●	●	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 6-SPEAKER SYSTEM BASE<UW5>	8-98163-895-0	06	1	1205-				●	●

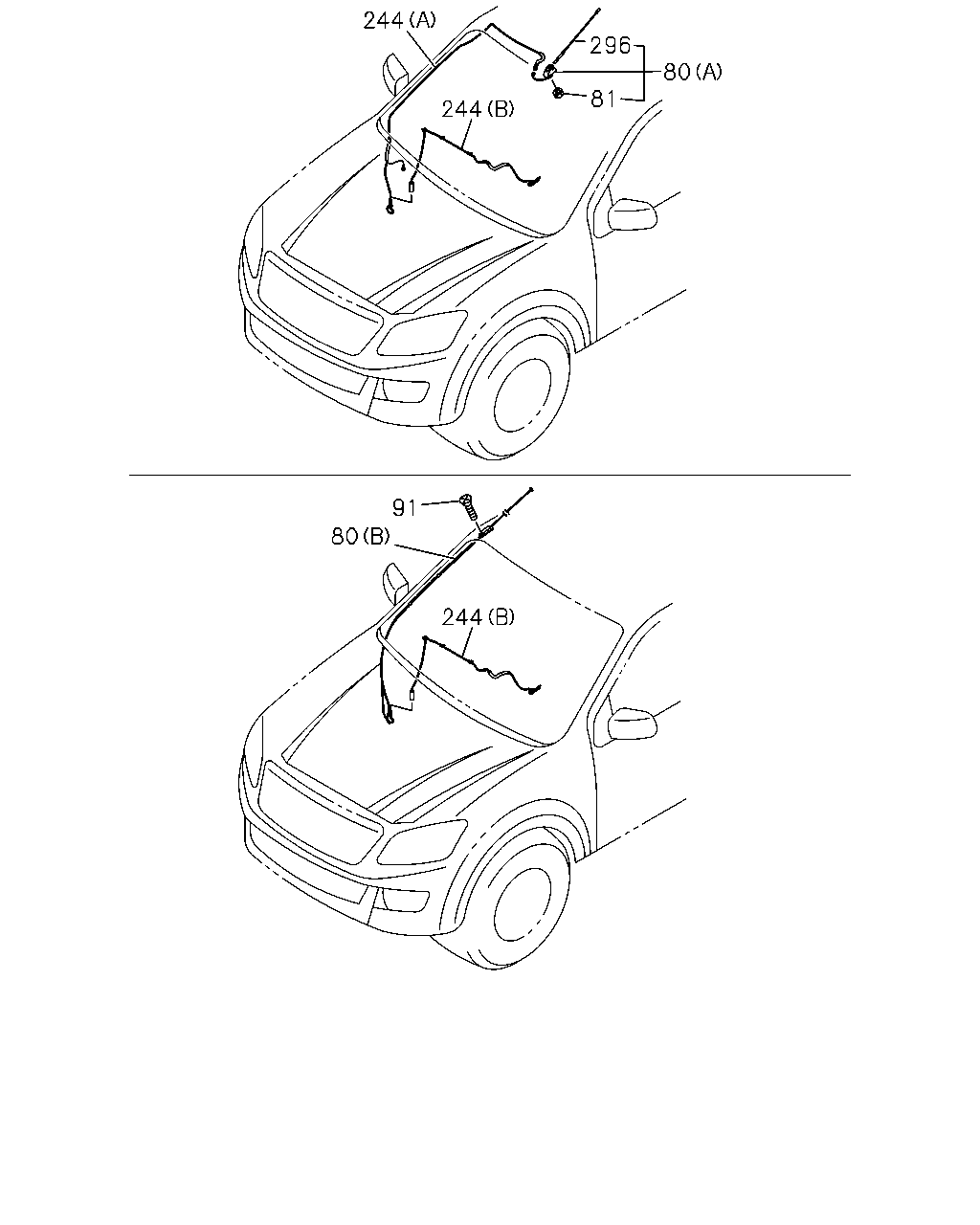

244 244 296 80 81 91 80 244

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
80	09.645 ANTENNA (B)	8-98053-047-2	01	1	1205-1301	●	●	●
80	09.645 ANTENNA EXC. ROOF RADIO ANTENNA<U71> (B)	8-98053-047-2	01	1	1205-1301				●	●	●
80	09.645 ANTENNA (B)	8-98053-047-2	01	1	1302-	●
80	09.645 ANTENNA EXC. CONGO EQUIPMENT(CDF) (B)	8-98053-047-2	01	1	1302-		●	●
80	09.645 ANTENNA EXC. CONGO EQUIPMENT(CDF),ROOF RADIO ANTENNA<U71> (B)	8-98053-047-2	01	1	1302-				●	●
80	09.645 ANTENNA EXC. ROOF RADIO ANTENNA<U71> (B)	8-98053-047-2	01	1	1302-						●
80	09.645 ANTENNA ROOF RADIO ANTENNA<U71> (A)	8-98053-048-0	01	1	1205-				●	●	●
81	09.647 NUT; ANTENNA POLE ROOF RADIO ANTENNA<U71>	8-98165-971-0	01	1	1205-				●	●	●
91	09.663 BOLT; ANTENNA M5X16	8-97375-569-0	02	1	1205-1301	●	●	●
91	09.663 BOLT; ANTENNA EXC. ROOF RADIO ANTENNA<U71> M5X16	8-97375-569-0	02	1	1205-1301				●	●	●
91	09.663 BOLT; ANTENNA M5X16	8-97375-569-0	02	1	1302-	●
91	09.663 BOLT; ANTENNA EXC. CONGO EQUIPMENT(CDF) M5X16	8-97375-569-0	02	1	1302-		●	●
91	09.663 BOLT; ANTENNA EXC. CONGO EQUIPMENT(CDF),ROOF RADIO ANTENNA<U71> M5X16	8-97375-569-0	02	1	1302-				●	●
91	09.663 BOLT; ANTENNA EXC. ROOF RADIO ANTENNA<U71> M5X16	8-97375-569-0	02	1	1302-						●
244	09.647 CABLE; FEEDER (B)	8-98053-051-1	01	1	1205-	●	●	●	●	●	●
244	09.647 CABLE; FEEDER ROOF RADIO ANTENNA<U71> (A)	8-98063-228-0	01	1	1205-				●	●	●
296	09.665 ROD; ANTENNA ROOF RADIO ANTENNA<U71>	8-98165-969-0	01	1	1205-				●	●	●
