Sayfa 8-75 - Isuzu EPC

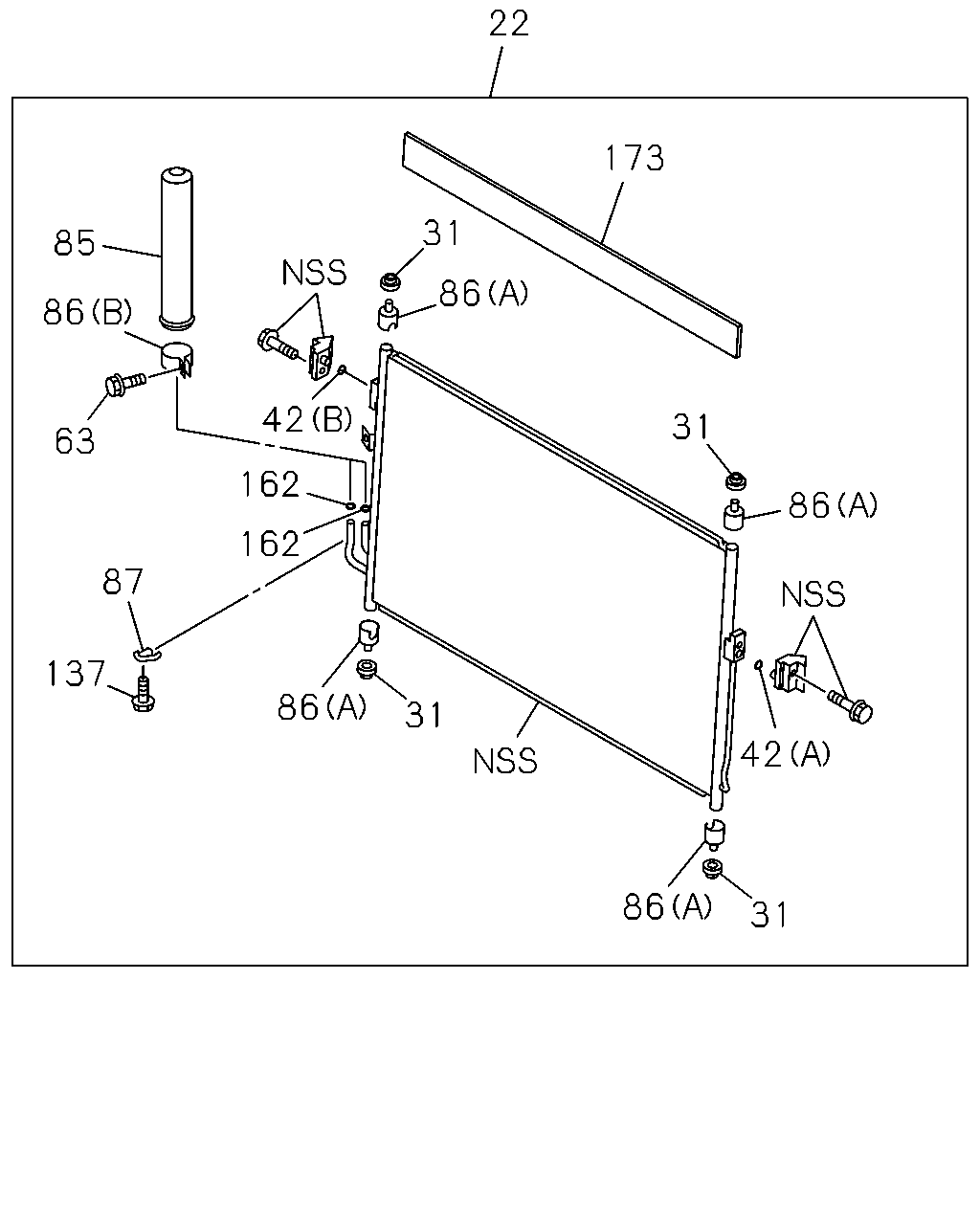

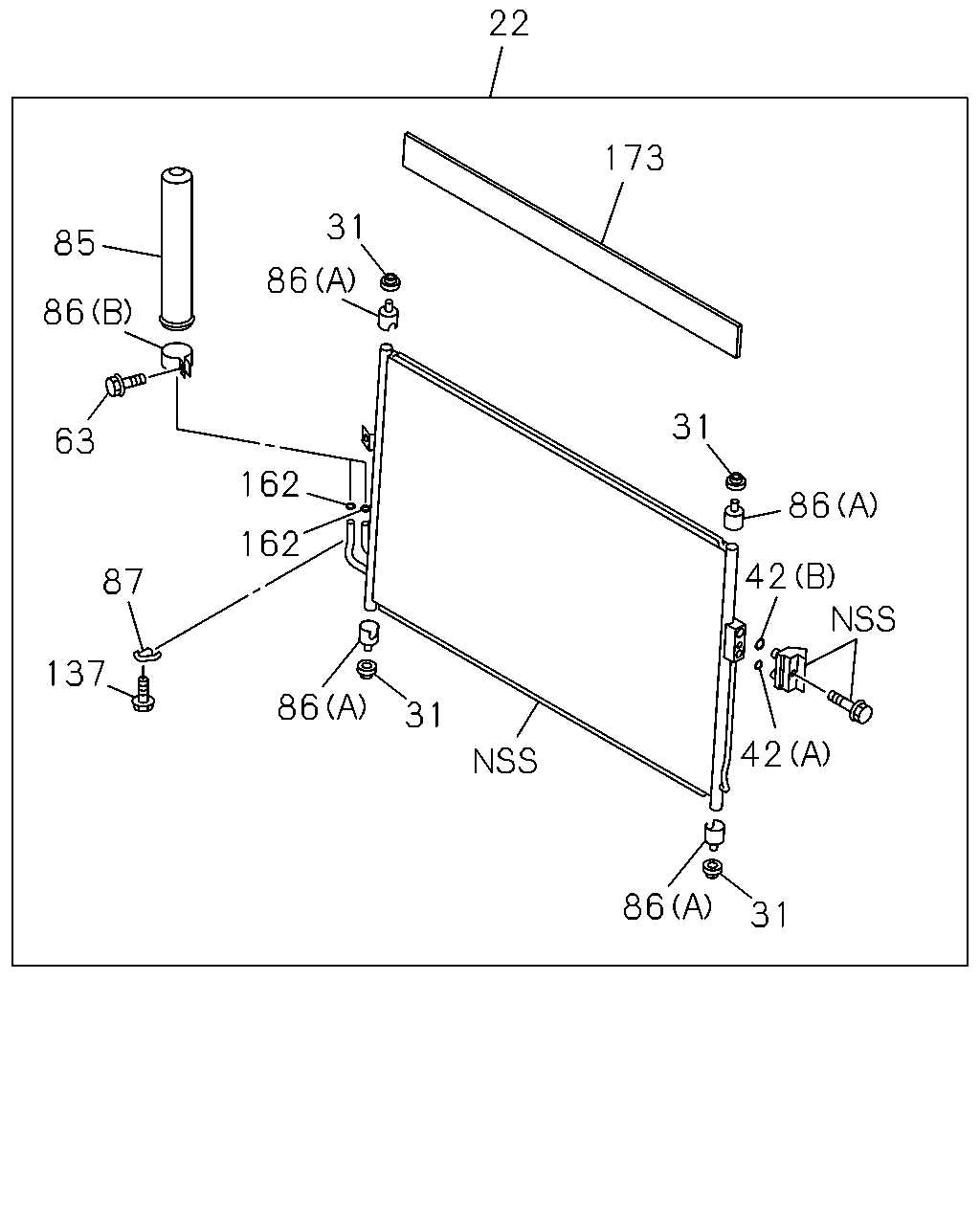

8-75 — CONDENSER (#79524) — 112 parça

31 86 42 42 86 31 31 86 162 162 87 137 63 86 85 86 31 173 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98052-635-3	01	1	1206-1302	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF)	8-98052-635-3	01	1	1303-	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98052-634-3	01	1	1205-1205	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98052-634-3	01	1	1206-1210	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98052-634-3	01	1	1211-1302	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF)	8-98052-634-3	01	1	1303-	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98193-616-0	04	1	1205-1205	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-616-0	04	1	1206-1210	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-616-0	04	1	1211-1302	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF)	8-98193-616-0	04	1	1303-	●	●	●	●	●	●
42	09.190 GASKET; CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) ID=8	8-98193-614-0	01	1	1205-1205	●	●	●	●	●	●
42	09.190 GASKET; CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A) ID=8	8-98193-614-0	01	1	1206-1210	●	●	●	●	●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A) ID=8	8-98193-614-0	01	1	1211-1302	●	●	●	●	●	●
42	09.190 GASKET; CONDENSER AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (A) ID=8	8-98193-614-0	01	1	1303-	●	●	●	●	●	●
42	09.190 GASKET; CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B) ID=12	8-98193-615-0	01	1	1205-1205	●	●	●	●	●	●
42	09.190 GASKET; CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B) ID=12	8-98193-615-0	01	1	1206-1210	●	●	●	●	●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B) ID=12	8-98193-615-0	01	1	1211-1302	●	●	●	●	●	●
42	09.190 GASKET; CONDENSER AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (B) ID=12	8-98193-615-0	01	1	1303-	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M5X16	8-98193-604-0	01	1	1205-1205	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) M5X16	8-98193-604-0	01	1	1206-1210	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) M5X16	8-98193-604-0	01	1	1211-1302	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) M5X16	8-98193-604-0	01	1	1303-	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98233-381-0	01	1	1301-1301	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98233-381-0	01	1	1301-1302	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF)	8-98233-381-0	01	1	1303-	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98193-597-0	01	1	1205-1205	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-597-0	01	1	1206-1210	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-597-0	01	1	1211-1212	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-597-0	01	1	1301-1301	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98193-599-0	01	1	1205-1205	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B)	8-98193-599-0	01	1	1206-1210	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B)	8-98193-599-0	01	1	1211-1302	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (B)	8-98193-599-0	01	1	1303-	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98193-618-0	04	1	1205-1205	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A)	8-98193-618-0	04	1	1206-1210	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A)	8-98193-618-0	04	1	1211-1302	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (A)	8-98193-618-0	04	1	1303-	●	●	●	●	●	●
87	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98193-602-0	01	1	1205-1205	●	●	●	●	●	●
87	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-602-0	01	1	1206-1210	●	●	●	●	●	●
87	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-602-0	01	1	1211-1302	●	●	●	●	●	●
87	09.196 BRACKET; RECEIVER DRYER AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF)	8-98193-602-0	01	1	1303-	●	●	●	●	●	●
137	09.196 BOLT; BRKT,DRYER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X12	8-98193-603-0	01	1	1205-1205	●	●	●	●	●	●
137	09.196 BOLT; BRKT,DRYER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) M6X12	8-98193-603-0	01	1	1206-1210	●	●	●	●	●	●
137	09.196 BOLT; BRKT,DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) M6X12	8-98193-603-0	01	1	1211-1302	●	●	●	●	●	●
137	09.196 BOLT; BRKT,DRYER AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) M6X12	8-98193-603-0	01	1	1303-	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 09.190 ID=8	8-98193-614-0	02	1	1205-1205	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 09.190 ID=8	8-98193-614-0	02	1	1206-1210	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 09.190 ID=8	8-98193-614-0	02	1	1211-1302	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 09.190 ID=8	8-98193-614-0	02	1	1303-	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98233-382-0	01	1	1301-1301	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98233-382-0	01	1	1301-1302	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF)	8-98233-382-0	01	1	1303-	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98193-620-0	01	1	1205-1205	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-620-0	01	1	1206-1210	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-620-0	01	1	1211-1212	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-620-0	01	1	1301-1301	●	●

31 86 42 86 31 31 86 87 137 162 162 42 86 31 173 22 85 86 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98052-635-3	01	1	1206-1302	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF)	8-98052-635-3	01	1	1303-	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98052-634-3	01	1	1205-1205	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98052-634-3	01	1	1206-1210	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98052-634-3	01	1	1211-1302	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF)	8-98052-634-3	01	1	1303-	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98193-616-0	04	1	1205-1205	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-616-0	04	1	1206-1210	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-616-0	04	1	1211-1302	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF)	8-98193-616-0	04	1	1303-	●	●	●	●	●	●
42	09.190 GASKET; CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) ID=8	8-98193-614-0	01	1	1205-1205	●	●	●	●	●	●
42	09.190 GASKET; CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A) ID=8	8-98193-614-0	01	1	1206-1210	●	●	●	●	●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A) ID=8	8-98193-614-0	01	1	1211-1302	●	●	●	●	●	●
42	09.190 GASKET; CONDENSER AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (A) ID=8	8-98193-614-0	01	1	1303-	●	●	●	●	●	●
42	09.190 GASKET; CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B) ID=12	8-98193-615-0	01	1	1205-1205	●	●	●	●	●	●
42	09.190 GASKET; CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B) ID=12	8-98193-615-0	01	1	1206-1210	●	●	●	●	●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B) ID=12	8-98193-615-0	01	1	1211-1302	●	●	●	●	●	●
42	09.190 GASKET; CONDENSER AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (B) ID=12	8-98193-615-0	01	1	1303-	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M5X16	8-98193-604-0	01	1	1205-1205	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) M5X16	8-98193-604-0	01	1	1206-1210	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) M5X16	8-98193-604-0	01	1	1211-1302	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) M5X16	8-98193-604-0	01	1	1303-	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98233-381-0	01	1	1301-1301	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98233-381-0	01	1	1301-1302	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF)	8-98233-381-0	01	1	1303-	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98193-597-0	01	1	1205-1205	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-597-0	01	1	1206-1210	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-597-0	01	1	1211-1212	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-597-0	01	1	1301-1301	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98193-599-0	01	1	1205-1205	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B)	8-98193-599-0	01	1	1206-1210	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B)	8-98193-599-0	01	1	1211-1302	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (B)	8-98193-599-0	01	1	1303-	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98193-618-0	04	1	1205-1205	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A)	8-98193-618-0	04	1	1206-1210	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A)	8-98193-618-0	04	1	1211-1302	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (A)	8-98193-618-0	04	1	1303-	●	●	●	●	●	●
87	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98193-602-0	01	1	1205-1205	●	●	●	●	●	●
87	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-602-0	01	1	1206-1210	●	●	●	●	●	●
87	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-602-0	01	1	1211-1302	●	●	●	●	●	●
87	09.196 BRACKET; RECEIVER DRYER AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF)	8-98193-602-0	01	1	1303-	●	●	●	●	●	●
137	09.196 BOLT; BRKT,DRYER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X12	8-98193-603-0	01	1	1205-1205	●	●	●	●	●	●
137	09.196 BOLT; BRKT,DRYER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) M6X12	8-98193-603-0	01	1	1206-1210	●	●	●	●	●	●
137	09.196 BOLT; BRKT,DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) M6X12	8-98193-603-0	01	1	1211-1302	●	●	●	●	●	●
137	09.196 BOLT; BRKT,DRYER AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) M6X12	8-98193-603-0	01	1	1303-	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 09.190 ID=8	8-98193-614-0	02	1	1205-1205	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 09.190 ID=8	8-98193-614-0	02	1	1206-1210	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 09.190 ID=8	8-98193-614-0	02	1	1211-1302	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 09.190 ID=8	8-98193-614-0	02	1	1303-	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98233-382-0	01	1	1301-1301	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98233-382-0	01	1	1301-1302	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF)	8-98233-382-0	01	1	1303-	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98193-620-0	01	1	1205-1205	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-620-0	01	1	1206-1210	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-620-0	01	1	1211-1212	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-620-0	01	1	1301-1301	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
