Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#79519) — 182 parça

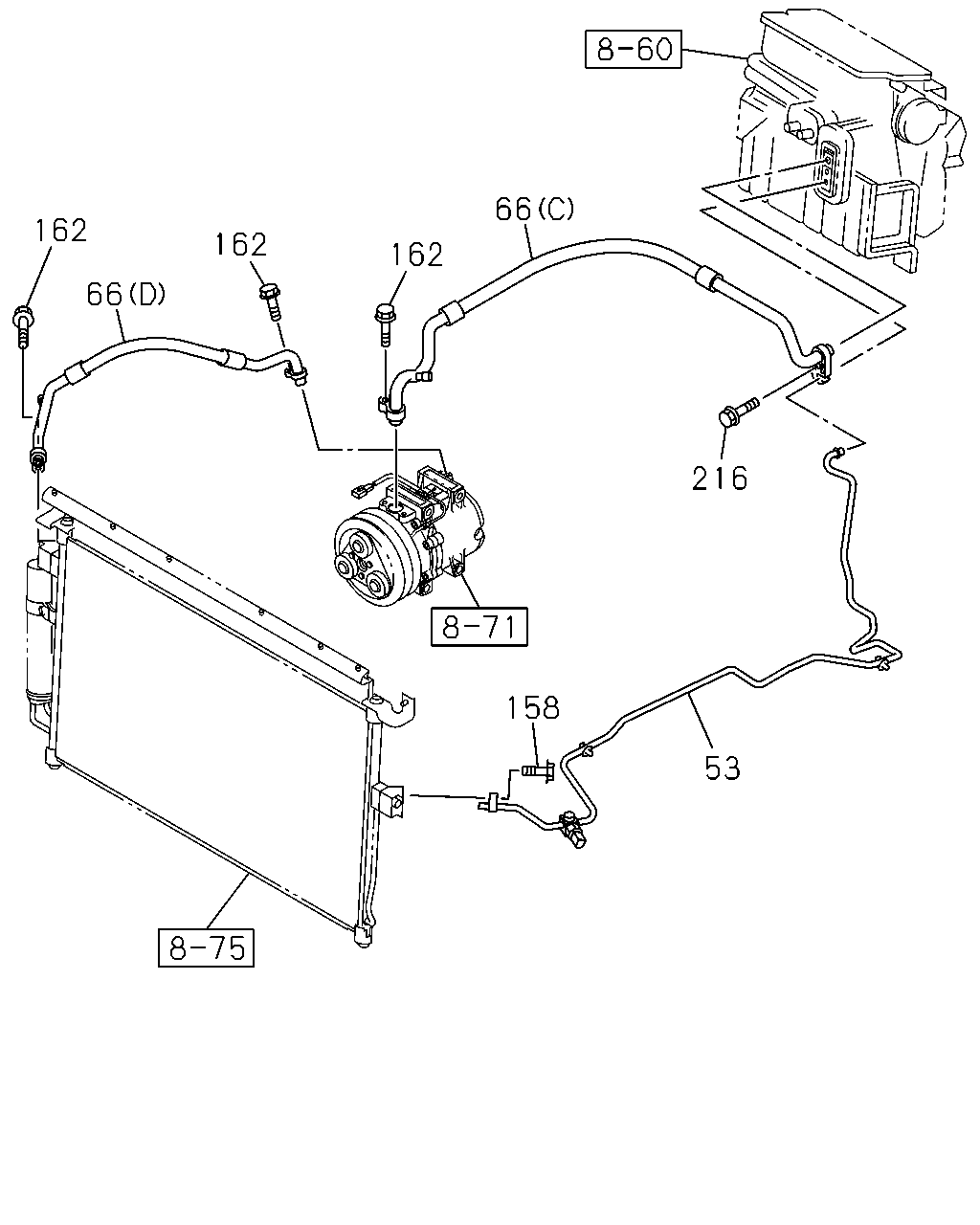

66 162 162 66 162 216 53 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) HIGH PRESSURE	8-98102-232-2	01	1	1206-1302	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) HIGH PRESSURE	8-98102-232-2	01	1	1303-	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98129-150-4	01	1	1205-1205	●	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) HIGH PRESSURE	8-98129-150-4	01	1	1206-1210	●	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) HIGH PRESSURE	8-98129-150-4	01	1	1211-1302	●	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) HIGH PRESSURE	8-98129-150-4	01	1	1303-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65),COOLER WO/FRESH A IR(8NF) (A) LOW PRESSURE	8-98212-092-0	01	1	1206-1302	●				●
66	09.225 HOSE; FLEX,A/C 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65) (A) LOW PRESSURE	8-98212-092-0	01	1	1206-1302		●				●
66	09.225 HOSE; FLEX,A/C 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65),COOLER WO/FRESH A IR(8NF) (A) LOW PRESSURE	8-98212-092-0	01	1	1303-	●				●
66	09.225 HOSE; FLEX,A/C 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65) (A) LOW PRESSURE	8-98212-092-0	01	1	1303-		●				●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE	8-98209-993-0	01	1	1205-1205	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE	8-98209-993-0	01	1	1206-1210	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE	8-98209-993-0	01	1	1211-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) LOW PRESSURE	8-98102-233-3	01	1	1206-1210	●	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) LOW PRESSURE	8-98102-233-3	01	1	1211-1302	●	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) LOW PRESSURE	8-98102-233-3	01	1	1303-	●	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (C) LOW PRESSURE	8-98102-234-2	01	1	1206-1302	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (C) LOW PRESSURE	8-98102-234-2	01	1	1303-	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (D) HIGH PRESSURE	8-98102-236-2	01	1	1206-1302	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (D) HIGH PRESSURE	8-98102-236-2	01	1	1303-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B) HIGH PRESSURE	8-98129-345-1	01	1	1205-1205	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B) HIGH PRESSURE	8-98129-345-1	01	1	1206-1210	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B) HIGH PRESSURE	8-98129-345-1	01	1	1211-1302	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (B) HIGH PRESSURE	8-98129-345-1	01	1	1303-	●	●	●	●	●	●
158	09.220 BOLT; PIPE FIX 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1206-1302	●	●
158	09.220 BOLT; PIPE FIX 4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1303-	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1205-1205	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1206-1302	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1303-	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1205-1205	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1206-1302	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1303-	●	●	●	●	●	●

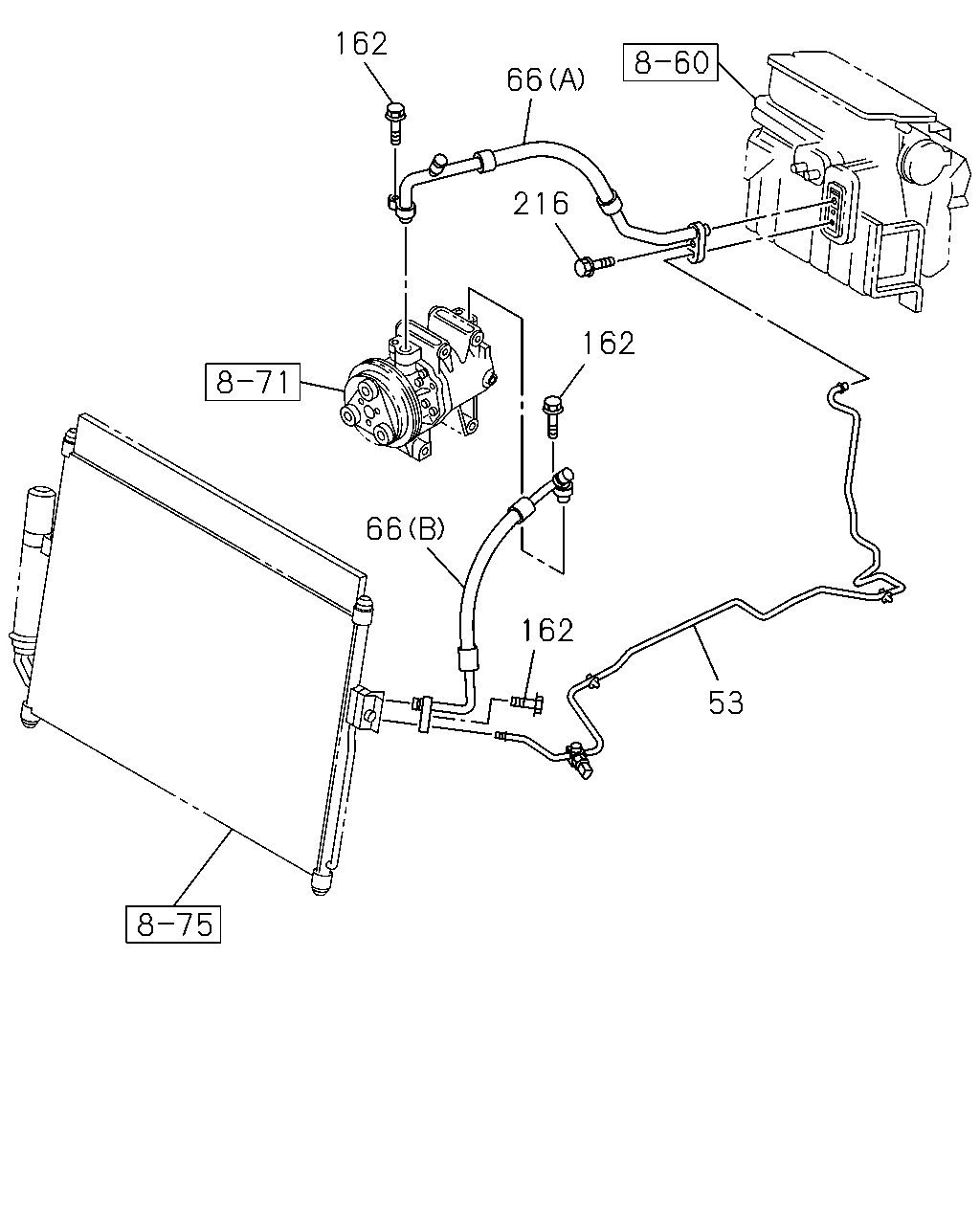

66 162 216 162 66 162 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) HIGH PRESSURE	8-98102-232-2	01	1	1206-1302	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) HIGH PRESSURE	8-98102-232-2	01	1	1303-	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98129-150-4	01	1	1205-1205	●	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) HIGH PRESSURE	8-98129-150-4	01	1	1206-1210	●	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) HIGH PRESSURE	8-98129-150-4	01	1	1211-1302	●	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) HIGH PRESSURE	8-98129-150-4	01	1	1303-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65),COOLER WO/FRESH A IR(8NF) (A) LOW PRESSURE	8-98212-092-0	01	1	1206-1302	●				●
66	09.225 HOSE; FLEX,A/C 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65) (A) LOW PRESSURE	8-98212-092-0	01	1	1206-1302		●				●
66	09.225 HOSE; FLEX,A/C 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65),COOLER WO/FRESH A IR(8NF) (A) LOW PRESSURE	8-98212-092-0	01	1	1303-	●				●
66	09.225 HOSE; FLEX,A/C 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65) (A) LOW PRESSURE	8-98212-092-0	01	1	1303-		●				●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE	8-98209-993-0	01	1	1205-1205	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE	8-98209-993-0	01	1	1206-1210	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE	8-98209-993-0	01	1	1211-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) LOW PRESSURE	8-98102-233-3	01	1	1206-1210	●	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) LOW PRESSURE	8-98102-233-3	01	1	1211-1302	●	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) LOW PRESSURE	8-98102-233-3	01	1	1303-	●	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (C) LOW PRESSURE	8-98102-234-2	01	1	1206-1302	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (C) LOW PRESSURE	8-98102-234-2	01	1	1303-	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (D) HIGH PRESSURE	8-98102-236-2	01	1	1206-1302	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (D) HIGH PRESSURE	8-98102-236-2	01	1	1303-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B) HIGH PRESSURE	8-98129-345-1	01	1	1205-1205	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B) HIGH PRESSURE	8-98129-345-1	01	1	1206-1210	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B) HIGH PRESSURE	8-98129-345-1	01	1	1211-1302	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (B) HIGH PRESSURE	8-98129-345-1	01	1	1303-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1205-1205	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1206-1302	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1303-	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1205-1205	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1206-1302	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1303-	●	●	●	●	●	●

123 146 146 122 202 123 53 66 147 67 67 147 67 67 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) HIGH PRESSURE	8-98102-232-2	01	1	1206-1302	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) HIGH PRESSURE	8-98102-232-2	01	1	1303-	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98129-150-4	01	1	1205-1205	●	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) HIGH PRESSURE	8-98129-150-4	01	1	1206-1210	●	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) HIGH PRESSURE	8-98129-150-4	01	1	1211-1302	●	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) HIGH PRESSURE	8-98129-150-4	01	1	1303-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65),COOLER WO/FRESH A IR(8NF) (A) LOW PRESSURE	8-98212-092-0	01	1	1206-1302	●				●
66	09.225 HOSE; FLEX,A/C 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65) (A) LOW PRESSURE	8-98212-092-0	01	1	1206-1302		●				●
66	09.225 HOSE; FLEX,A/C 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65),COOLER WO/FRESH A IR(8NF) (A) LOW PRESSURE	8-98212-092-0	01	1	1303-	●				●
66	09.225 HOSE; FLEX,A/C 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65) (A) LOW PRESSURE	8-98212-092-0	01	1	1303-		●				●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE	8-98209-993-0	01	1	1205-1205	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE	8-98209-993-0	01	1	1206-1210	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE	8-98209-993-0	01	1	1211-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) LOW PRESSURE	8-98102-233-3	01	1	1206-1210	●	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) LOW PRESSURE	8-98102-233-3	01	1	1211-1302	●	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) LOW PRESSURE	8-98102-233-3	01	1	1303-	●	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (C) LOW PRESSURE	8-98102-234-2	01	1	1206-1302	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (C) LOW PRESSURE	8-98102-234-2	01	1	1303-	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (D) HIGH PRESSURE	8-98102-236-2	01	1	1206-1302	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (D) HIGH PRESSURE	8-98102-236-2	01	1	1303-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B) HIGH PRESSURE	8-98129-345-1	01	1	1205-1205	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B) HIGH PRESSURE	8-98129-345-1	01	1	1206-1210	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B) HIGH PRESSURE	8-98129-345-1	01	1	1211-1302	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (B) HIGH PRESSURE	8-98129-345-1	01	1	1303-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98164-687-0	01	1	1205-1205	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B)	8-98164-687-0	01	1	1206-1210	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B)	8-98164-687-0	01	1	1211-1302	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (B)	8-98164-687-0	01	1	1303-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98164-688-0	01	1	1205-1205	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (C)	8-98164-688-0	01	1	1206-1210	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (C)	8-98164-688-0	01	1	1211-1302	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (C)	8-98164-688-0	01	1	1303-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98193-624-0	02	1	1205-1205	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A)	8-98193-624-0	02	1	1206-1210	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A)	8-98193-624-0	02	1	1211-1302	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (A)	8-98193-624-0	02	1	1303-	●	●	●	●	●	●
122	09.225 GASKET 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98164-690-0	01	1	1205-1205	●	●	●	●	●	●
122	09.225 GASKET 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98164-690-0	01	1	1206-1210	●	●	●	●	●	●
122	09.225 GASKET AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98164-690-0	01	1	1211-1302	●	●	●	●	●	●
122	09.225 GASKET AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF)	8-98164-690-0	01	1	1303-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98164-689-0	02	1	1205-1205	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98164-689-0	02	1	1206-1210	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98164-689-0	02	1	1211-1302	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF)	8-98164-689-0	02	1	1303-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98193-622-0	02	1	1205-1205	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-622-0	02	1	1206-1210	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-622-0	02	1	1211-1302	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF)	8-98193-622-0	02	1	1303-	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98193-623-0	01	1	1205-1205	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A)	8-98193-623-0	01	1	1206-1210	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A)	8-98193-623-0	01	1	1211-1302	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (A)	8-98193-623-0	01	1	1303-	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98193-625-0	01	1	1205-1205	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B)	8-98193-625-0	01	1	1206-1210	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B)	8-98193-625-0	01	1	1211-1302	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (B)	8-98193-625-0	01	1	1303-	●	●	●	●	●	●
202	09.275 SWITCH; PRESSURE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98164-691-0	01	1	1205-1205	●	●	●	●	●	●
202	09.275 SWITCH; PRESSURE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98164-691-0	01	1	1206-1210	●	●	●	●	●	●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98164-691-0	01	1	1211-1302	●	●	●	●	●	●
202	09.275 SWITCH; PRESSURE AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF)	8-98164-691-0	01	1	1303-	●	●	●	●	●	●

123 146 146 122 202 53 66 67 147 67 67 67 147 66 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) HIGH PRESSURE	8-98102-232-2	01	1	1206-1302	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) HIGH PRESSURE	8-98102-232-2	01	1	1303-	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98129-150-4	01	1	1205-1205	●	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) HIGH PRESSURE	8-98129-150-4	01	1	1206-1210	●	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) HIGH PRESSURE	8-98129-150-4	01	1	1211-1302	●	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) HIGH PRESSURE	8-98129-150-4	01	1	1303-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65),COOLER WO/FRESH A IR(8NF) (A) LOW PRESSURE	8-98212-092-0	01	1	1206-1302	●				●
66	09.225 HOSE; FLEX,A/C 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65) (A) LOW PRESSURE	8-98212-092-0	01	1	1206-1302		●				●
66	09.225 HOSE; FLEX,A/C 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60), COOLER W/FRESH AIR(C65),COOLER WO/FRESH A IR(8NF) (A) LOW PRESSURE	8-98212-092-0	01	1	1303-	●				●
66	09.225 HOSE; FLEX,A/C 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65) (A) LOW PRESSURE	8-98212-092-0	01	1	1303-		●				●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE	8-98209-993-0	01	1	1205-1205	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE	8-98209-993-0	01	1	1206-1210	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE	8-98209-993-0	01	1	1211-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) LOW PRESSURE	8-98102-233-3	01	1	1206-1210	●	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) LOW PRESSURE	8-98102-233-3	01	1	1211-1302	●	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) LOW PRESSURE	8-98102-233-3	01	1	1303-	●	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (C) LOW PRESSURE	8-98102-234-2	01	1	1206-1302	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (C) LOW PRESSURE	8-98102-234-2	01	1	1303-	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (D) HIGH PRESSURE	8-98102-236-2	01	1	1206-1302	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (D) HIGH PRESSURE	8-98102-236-2	01	1	1303-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B) HIGH PRESSURE	8-98129-345-1	01	1	1205-1205	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B) HIGH PRESSURE	8-98129-345-1	01	1	1206-1210	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B) HIGH PRESSURE	8-98129-345-1	01	1	1211-1302	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (B) HIGH PRESSURE	8-98129-345-1	01	1	1303-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98164-687-0	01	1	1205-1205	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B)	8-98164-687-0	01	1	1206-1210	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B)	8-98164-687-0	01	1	1211-1302	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (B)	8-98164-687-0	01	1	1303-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98164-688-0	01	1	1205-1205	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (C)	8-98164-688-0	01	1	1206-1210	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (C)	8-98164-688-0	01	1	1211-1302	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (C)	8-98164-688-0	01	1	1303-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98193-624-0	02	1	1205-1205	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A)	8-98193-624-0	02	1	1206-1210	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A)	8-98193-624-0	02	1	1211-1302	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (A)	8-98193-624-0	02	1	1303-	●	●	●	●	●	●
122	09.225 GASKET 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98164-690-0	01	1	1205-1205	●	●	●	●	●	●
122	09.225 GASKET 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98164-690-0	01	1	1206-1210	●	●	●	●	●	●
122	09.225 GASKET AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98164-690-0	01	1	1211-1302	●	●	●	●	●	●
122	09.225 GASKET AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF)	8-98164-690-0	01	1	1303-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98164-689-0	02	1	1205-1205	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98164-689-0	02	1	1206-1210	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98164-689-0	02	1	1211-1302	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF)	8-98164-689-0	02	1	1303-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98193-622-0	02	1	1205-1205	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-622-0	02	1	1206-1210	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-622-0	02	1	1211-1302	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF)	8-98193-622-0	02	1	1303-	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98193-623-0	01	1	1205-1205	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A)	8-98193-623-0	01	1	1206-1210	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A)	8-98193-623-0	01	1	1211-1302	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (A)	8-98193-623-0	01	1	1303-	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98193-625-0	01	1	1205-1205	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B)	8-98193-625-0	01	1	1206-1210	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B)	8-98193-625-0	01	1	1211-1302	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (B)	8-98193-625-0	01	1	1303-	●	●	●	●	●	●
202	09.275 SWITCH; PRESSURE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98164-691-0	01	1	1205-1205	●	●	●	●	●	●
202	09.275 SWITCH; PRESSURE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98164-691-0	01	1	1206-1210	●	●	●	●	●	●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98164-691-0	01	1	1211-1302	●	●	●	●	●	●
202	09.275 SWITCH; PRESSURE AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF)	8-98164-691-0	01	1	1303-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
