◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51412 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#79518) — 68 parça
çizim 141338
262 99 99 262
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
99 09.171 BOLT; BRKT
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1205-1205 ● ● ● ● ● ●
99 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1206-1302 ● ● ● ● ● ●
99 09.171 BOLT; BRKT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1303- ● ● ● ● ● ●
262 09.190 BRACKET; CONDENSER
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98103-644-0 01 1 1205-1205 ● ● ● ● ● ●
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B) 		8-98103-644-0 01 1 1206-1302 ● ● ● ● ● ●
262 09.190 BRACKET; CONDENSER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (B) 		8-98103-644-0 01 1 1303- ● ● ● ● ● ●
262 09.190 BRACKET; CONDENSER
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98103-645-0 01 1 1205-1205 ● ● ● ● ● ●
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A) 		8-98103-645-0 01 1 1206-1302 ● ● ● ● ● ●
262 09.190 BRACKET; CONDENSER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (A) 		8-98103-645-0 01 1 1303- ● ● ● ● ● ●

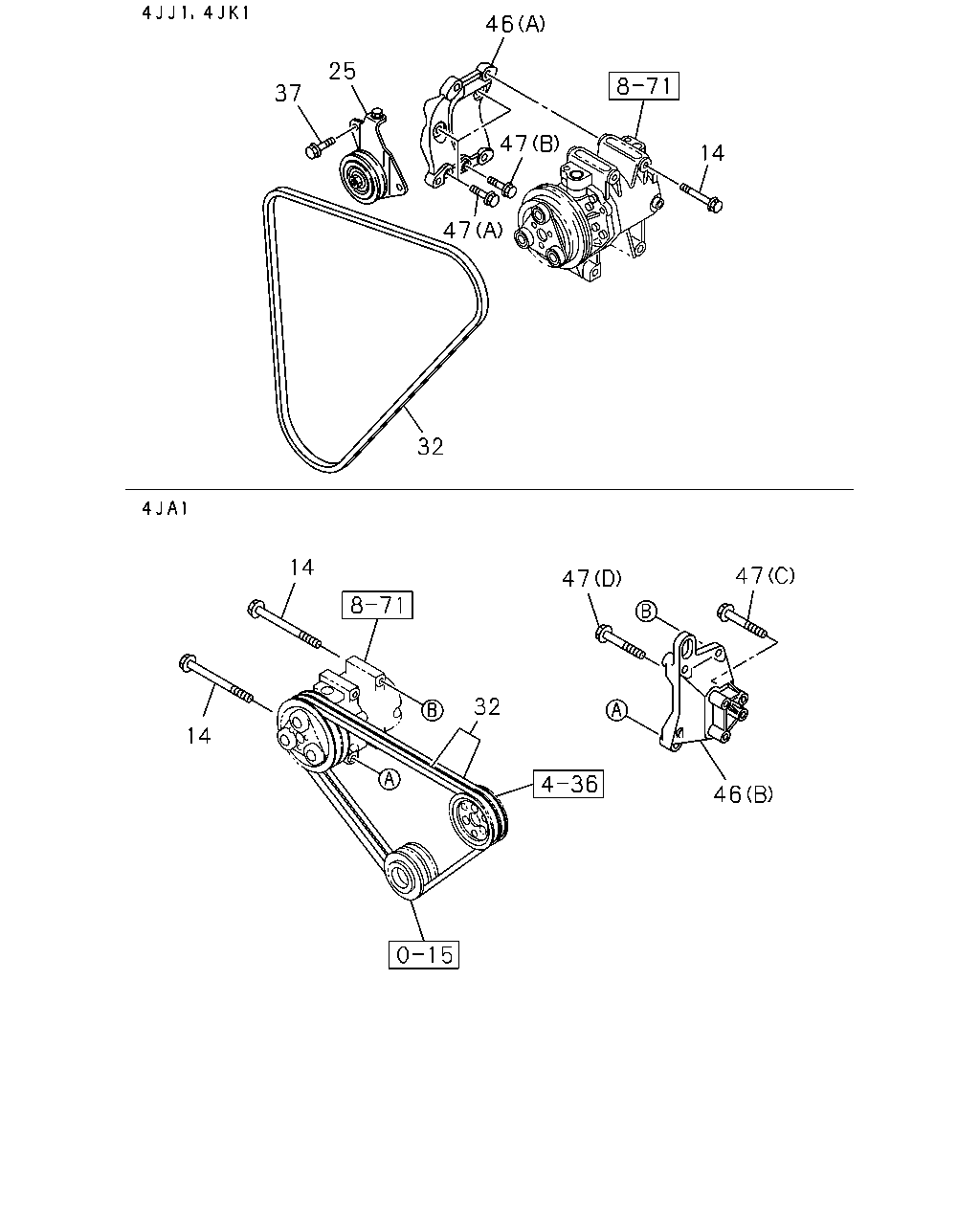

çizim 141368
14 46 47 47 25 37 32 47 47 46 32 14 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 04 1 1205-1205 ● ● ● ● ● ●
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) M10X100 FLANGE 		0-28151-000-0 04 1 1206-1302 ● ● ● ● ● ●
14 09.171 BOLT; CMPR
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) M10X100 FLANGE 		0-28151-000-0 04 1 1303- ● ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 		8-98130-204-0 01 1 1205-1205 ● ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 		8-98130-204-0 01 1 1206-1210 ● ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 		8-98130-204-0 01 1 1211-1302 ● ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 		8-98130-204-0 01 1 1303- ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) L=1510 1 SET=2 PIECE BANDO 		8-97942-726-0 01 1 1206- ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) 1 SET=2 PIECE(8979427270) MITSUBOSHI 		8-97942-728-0 01 1 1206- ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1445 MITSUBOSHI 		8-97985-121-0 01 1 1205-1205 ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) L=1445 MITSUBOSHI 		8-97985-121-0 01 1 1206-1210 ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) L=1445 MITSUBOSHI 		8-97985-121-0 01 1 1211-1302 ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) L=1445 MITSUBOSHI 		8-97985-121-0 01 1 1303- ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1445 BANDO 		8-97985-122-0 01 1 1205-1205 ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) L=1445 BANDO 		8-97985-122-0 01 1 1206-1210 ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) L=1445 BANDO 		8-97985-122-0 01 1 1211-1302 ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) L=1445 BANDO 		8-97985-122-0 01 1 1303- ● ● ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1205-1205 ● ● ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1206-1210 ● ● ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1211-1302 ● ● ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1303- ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A) 		8-97371-258-0 01 1 1206-1302 ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (A) 		8-97371-258-0 01 1 1303- ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B) 		8-97358-563-0 01 1 1206-1302 ● ●
46 09.171 BRACKET; CMPR
4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (B) 		8-97358-563-0 01 1 1303- ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98039-618-0 01 1 1205-1205 ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A) 		8-98039-618-0 01 1 1206-1210 ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A) 		8-98039-618-0 01 1 1211-1302 ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (A) 		8-98039-618-0 01 1 1303- ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) 02.277 (C) M8X40 FLANGE 		0-28050-840-0 02 1 1206- ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) 00.685 (D) M10X45 FLANGE 		0-28051-045-0 02 1 1206- ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1205-1205 ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1206-1210 ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1211-1302 ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1303- ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B) M8X35 FLANGE 		8-98049-562-0 01 1 1205-1205 ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B) M8X35 FLANGE 		8-98049-562-0 01 1 1206-1210 ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B) M8X35 FLANGE 		8-98049-562-0 01 1 1211-1302 ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (B) M8X35 FLANGE 		8-98049-562-0 01 1 1303- ● ● ● ● ● ●

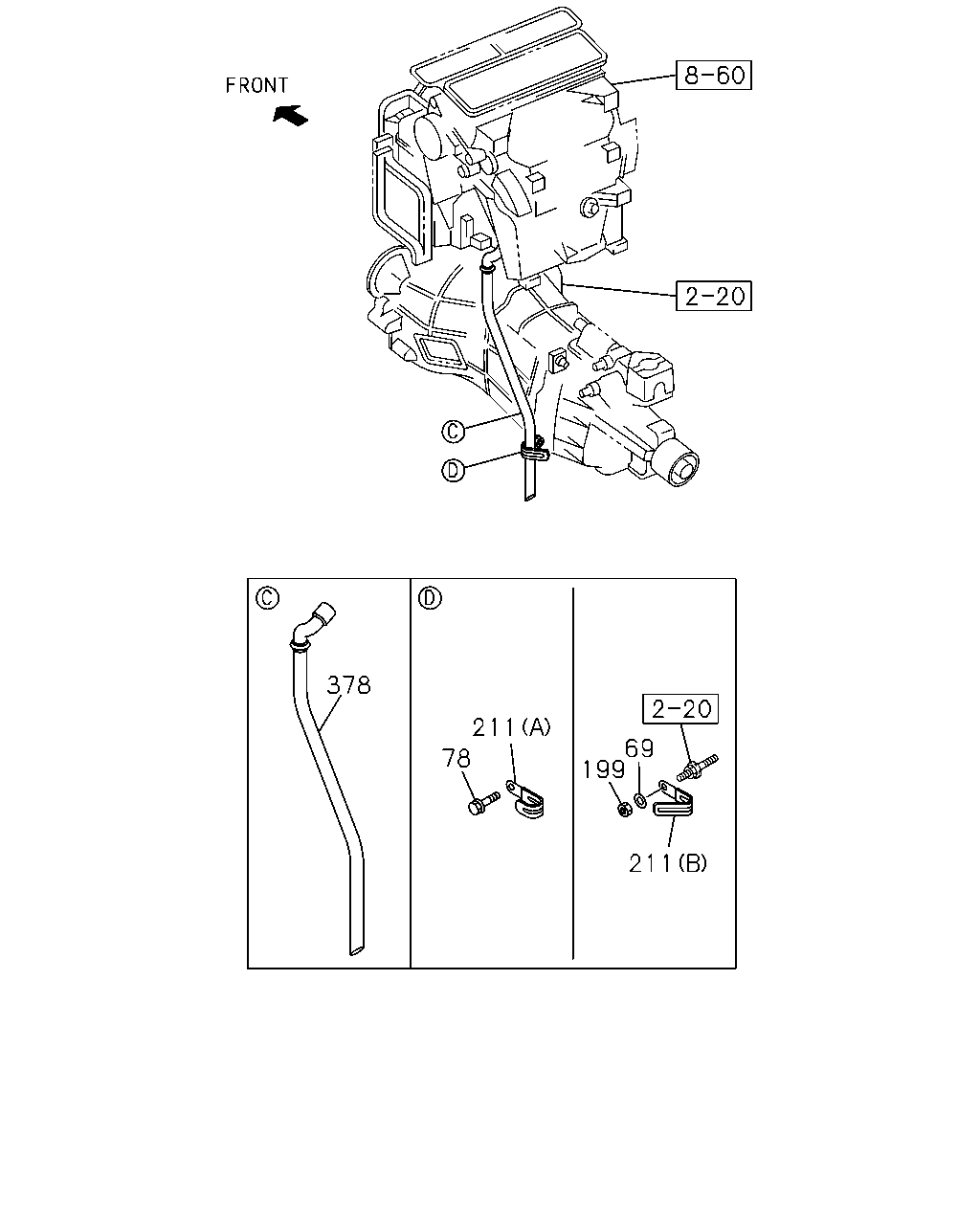

çizim 194399
211 69 199 211 78 378
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
69 09.190 WASHER; PL,EVAP
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1206-1301 ● ● ● ● ●
69 09.190 WASHER; PL,EVAP
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1302-1302 ● ● ● ● ●
69 09.190 WASHER; PL,EVAP
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1303- ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
M/T AISIN 6 SPEED(RNU) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 08.015 M8X16 		8-98056-122-0 01 1 1206-1302 ● ● ● ●
78 09.211 BOLT; EVAP,A/C
M/T AISIN 6 SPEED(RNU) 08.015 M8X16 		8-98056-122-0 01 1 1303- ● ● ● ●
78 09.211 BOLT; EVAP,A/C
M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1205-1205 ● ●
78 09.211 BOLT; EVAP,A/C
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1205-1205 ● ● ● ●
78 09.211 BOLT; EVAP,A/C
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1206-1302 ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1303- ● ● ● ● ● ●
199 09.225 NUT
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1206-1301 ● ● ● ● ●
199 09.225 NUT
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1302-1302 ● ● ● ● ●
199 09.225 NUT
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1303- ● ● ● ● ●
211 09.190 CLIP; HOSE
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (B) 		8-98173-569-0 01 1 1206-1301 ● ● ● ● ●
211 09.190 CLIP; HOSE
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) (B) 		8-98173-569-0 01 1 1302-1302 ● ● ● ● ●
211 09.190 CLIP; HOSE
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (B) 		8-98173-569-0 01 1 1303- ● ● ● ● ●
211 09.190 CLIP; HOSE
M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.343 (A) ID=22 L=35 		8-97375-643-0 01 1 1205-1205 ● ●
211 09.190 CLIP; HOSE
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.343 (A) ID=22 L=35 		8-97375-643-0 01 1 1205-1205 ● ● ● ●
211 09.190 CLIP; HOSE
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65),COOLER WO/FRESH AIR(8NF) 02.343 (A) ID=22 L=35 		8-97375-643-0 01 1 1206-1302 ● ● ● ● ● ●
211 09.190 CLIP; HOSE
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 02.343 (A) ID=22 L=35 		8-97375-643-0 01 1 1303- ● ● ● ● ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR 8-98163-367-2 01 1 1205- ● ● ● ● ● ●
