Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#79517) — 224 parça

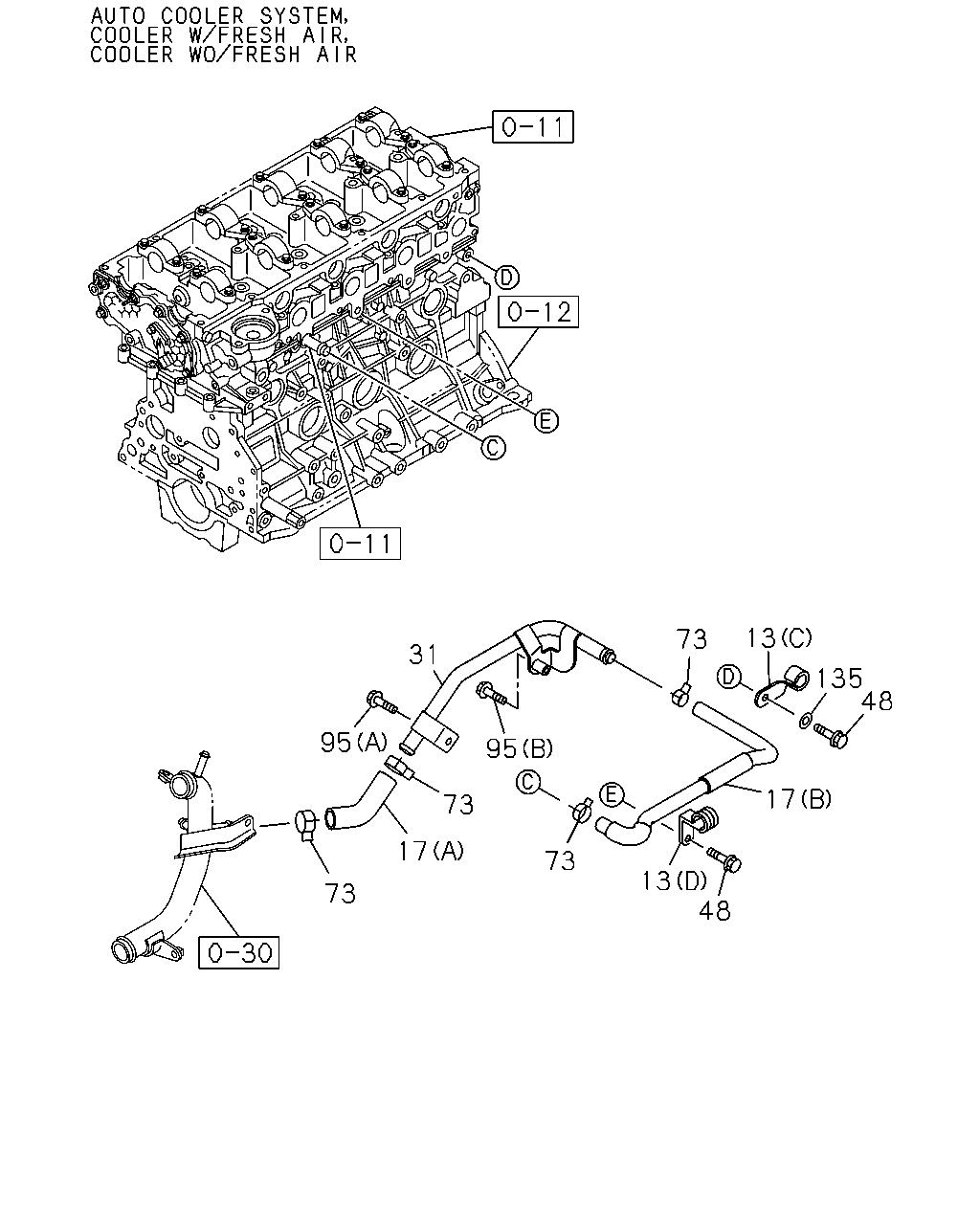

31 95 73 17 73 73 73 13 135 48 17 13 48 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1206-1210	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1211-1302	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1303-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1205-1205	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1206-1210	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1211-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (A) ID=22	8-97359-141-0	02	1	1205-1205	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.278 (A) ID=22	8-97359-141-0	02	1	1206-1210	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.278 (A) ID=22	8-97359-141-0	02	1	1211-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1205-1205	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1206-1210	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1211-	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B)	8-98036-848-0	01	1	1206-1210	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B)	8-98036-848-0	01	1	1211-1302	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B)	8-98036-848-0	01	1	1303-	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCX ENG(LS0) (A)	8-98132-368-0	01	1	1205-1205	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) (A)	8-98132-368-0	01	1	1206-1206	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-98132-368-0	01	1	1206-1210	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98132-368-0	01	1	1211-	●	●	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98131-989-0	01	1	1206-1210	●	●	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98131-989-0	01	1	1211-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1206-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1206-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCX ENG(LS0) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1205-1205	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1206-1210	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1211-1302	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JK1-TCX ENG(LR0) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1211-1302		●		●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1303-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JK1-TCX ENG(LR0) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1303-		●		●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 01.166 ID=20.8	8-94125-862-1	08	1	1211-		●		●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 01.166 ID=20.8	8-94125-862-1	04	1	1211-1302		●		●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 01.166 ID=20.8	8-94125-862-1	04	1	1303-		●		●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	08	1	1206-1210	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	08	1	1211-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) ID=20.8	8-97944-127-0	04	1	1206-1210	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) ID=20.8	8-97944-127-0	04	1	1211-1302	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) ID=20.8	8-97944-127-0	04	1	1303-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) ID=20.8	8-97944-127-0	06	1	1205-1205	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) ID=20.8	8-97944-127-0	06	1	1206-	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1206-1210	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCY ENG(RDX) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1206-1210	●	●		●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1211-	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1211-	●	●		●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1206-1210	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1211-	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCX ENG(LS0) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1205-1205	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1206-1210	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1211-	●	●	●	●	●	●
135	08.846 WASHER; PL 4JJ1-TCX ENG(LS0) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1205-1205	●	●	●	●	●	●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1206-1210	●	●	●	●	●	●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1211-	●	●	●	●	●	●

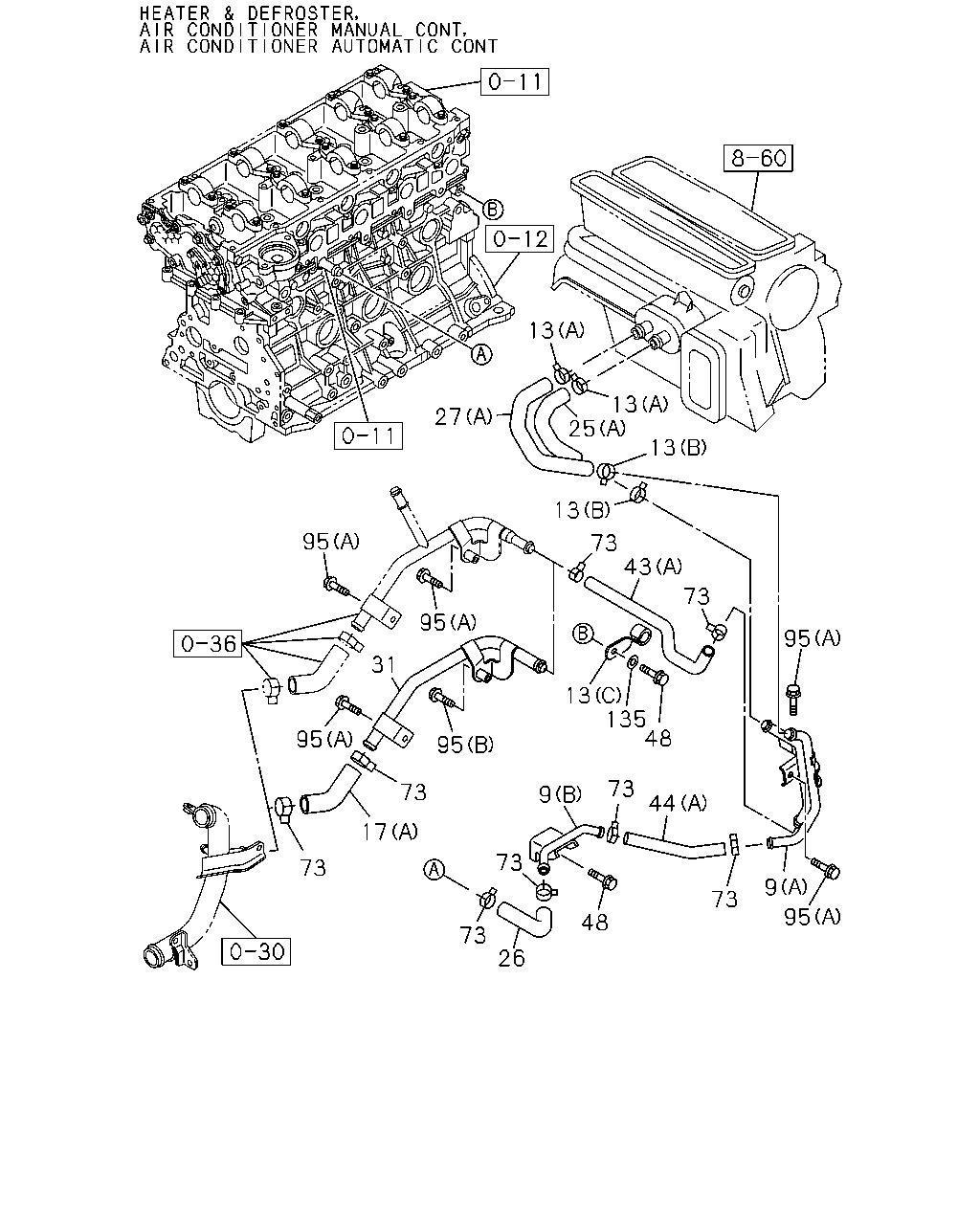

13 13 13 25 27 13 73 43 73 48 135 13 73 44 73 95 9 48 26 73 73 9 95 73 17 73 95 31 95 95 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	08.846 PIPE; HTR 4JK1-TCY ENG(RDX) (C)	8-98151-180-1	01	1	1206-	●	●		●	●
9	08.846 PIPE; HTR 4JJ1-TCX ENG(LS0) (A)	8-98131-991-1	01	1	1205-1205	●	●	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98131-991-1	01	1	1206-1210	●	●	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98131-991-1	01	1	1211-	●	●	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCX ENG(LS0) (B)	8-98163-300-0	01	1	1205-1205	●	●	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98163-300-0	01	1	1206-1210	●	●	●	●	●	●
9	08.846 PIPE; HTR 4JK1-TCY ENG(RDX) (B)	8-98163-300-0	01	1	1206-1210	●	●		●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98163-300-0	01	1	1211-	●	●	●	●	●	●
9	08.846 PIPE; HTR 4JK1-TCY ENG(RDX) (B)	8-98163-300-0	01	1	1211-	●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1206-1210	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1211-1302	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1303-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1205-1205	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1206-1210	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1211-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (A) ID=22	8-97359-141-0	02	1	1205-1205	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.278 (A) ID=22	8-97359-141-0	02	1	1206-1210	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.278 (A) ID=22	8-97359-141-0	02	1	1211-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1205-1205	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1206-1210	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1211-	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B)	8-98036-848-0	01	1	1206-1210	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B)	8-98036-848-0	01	1	1211-1302	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (B)	8-98036-848-0	01	1	1303-	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCX ENG(LS0) (A)	8-98132-368-0	01	1	1205-1205	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) (A)	8-98132-368-0	01	1	1206-1206	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-98132-368-0	01	1	1206-1210	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98132-368-0	01	1	1211-	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98129-342-3	01	1	1206-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98129-341-3	01	1	1205-1205	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1206-1210	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1211-	●	●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCX ENG(LS0)	8-98011-630-0	01	1	1205-1205	●	●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98011-630-0	01	1	1206-1210	●	●	●	●	●	●
26	08.846 HOSE; HTR 4JK1-TCY ENG(RDX)	8-98011-630-0	01	1	1206-1210	●	●		●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98011-630-0	01	1	1211-	●	●	●	●	●	●
26	08.846 HOSE; HTR 4JK1-TCY ENG(RDX)	8-98011-630-0	01	1	1211-	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98129-340-3	01	1	1206-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98129-339-3	01	1	1205-1205	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1206-1210	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1211-	●	●	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98131-989-0	01	1	1206-1210	●	●	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98131-989-0	01	1	1211-	●	●	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JK1-TCY ENG(RDX) (B)	8-98151-181-1	01	1	1206-	●	●		●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JJ1-TCX ENG(LS0) (A)	8-98134-332-0	01	1	1205-1205	●	●	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98134-332-0	01	1	1206-1210	●	●	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98134-332-0	01	1	1211-	●	●	●	●	●	●
44	08.846 HOSE; WATER,HTR,INL 4JK1-TCY ENG(RDX) 01.540 (B) L=190 SERVICED BY L=3000	0-03566-300-0	01	1	1206-	●	●		●	●
44	08.846 HOSE; WATER,HTR,INL 4JJ1-TCX ENG(LS0) 01.540 (A) L=160 SERVICED BY L=3000	0-03566-300-0	01	1	1205-1205	●	●	●	●	●	●
44	08.846 HOSE; WATER,HTR,INL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 01.540 (A) L=160 SERVICED BY L=3000	0-03566-300-0	01	1	1206-1210	●	●	●	●	●	●
44	08.846 HOSE; WATER,HTR,INL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 01.540 (A) L=160 SERVICED BY L=3000	0-03566-300-0	01	1	1211-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1206-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1206-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCX ENG(LS0) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1205-1205	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1206-1210	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1211-1302	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JK1-TCX ENG(LR0) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1211-1302		●		●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1303-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JK1-TCX ENG(LR0) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1303-		●		●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 01.166 ID=20.8	8-94125-862-1	08	1	1211-		●		●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 01.166 ID=20.8	8-94125-862-1	04	1	1211-1302		●		●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 01.166 ID=20.8	8-94125-862-1	04	1	1303-		●		●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	08	1	1206-1210	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	08	1	1211-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) ID=20.8	8-97944-127-0	04	1	1206-1210	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) ID=20.8	8-97944-127-0	04	1	1211-1302	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) ID=20.8	8-97944-127-0	04	1	1303-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) ID=20.8	8-97944-127-0	06	1	1205-1205	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) ID=20.8	8-97944-127-0	06	1	1206-	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1206-1210	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCY ENG(RDX) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1206-1210	●	●		●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1211-	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1211-	●	●		●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1206-1210	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1211-	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCX ENG(LS0) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1205-1205	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1206-1210	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1211-	●	●	●	●	●	●
135	08.846 WASHER; PL 4JJ1-TCX ENG(LS0) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1205-1205	●	●	●	●	●	●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1206-1210	●	●	●	●	●	●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1211-	●	●	●	●	●	●

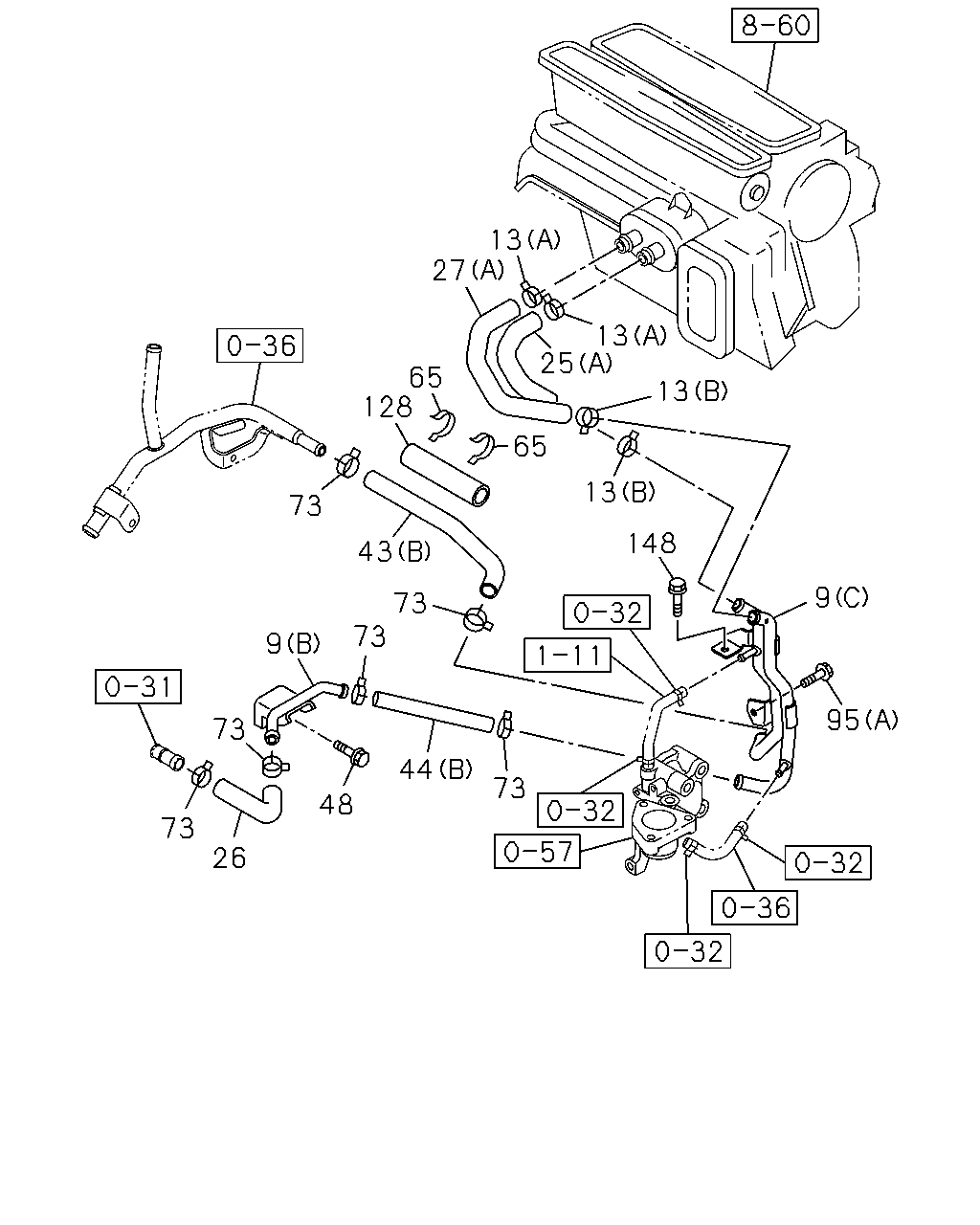

13 27 13 25 13 13 148 9 95 65 65 128 73 43 73 73 9 73 48 44 73 26 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	08.846 PIPE; HTR 4JK1-TCY ENG(RDX) (C)	8-98151-180-1	01	1	1206-	●	●		●	●
9	08.846 PIPE; HTR 4JJ1-TCX ENG(LS0) (A)	8-98131-991-1	01	1	1205-1205	●	●	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98131-991-1	01	1	1206-1210	●	●	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98131-991-1	01	1	1211-	●	●	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCX ENG(LS0) (B)	8-98163-300-0	01	1	1205-1205	●	●	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98163-300-0	01	1	1206-1210	●	●	●	●	●	●
9	08.846 PIPE; HTR 4JK1-TCY ENG(RDX) (B)	8-98163-300-0	01	1	1206-1210	●	●		●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98163-300-0	01	1	1211-	●	●	●	●	●	●
9	08.846 PIPE; HTR 4JK1-TCY ENG(RDX) (B)	8-98163-300-0	01	1	1211-	●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1206-1210	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1211-1302	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1303-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1205-1205	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1206-1210	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1211-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (A) ID=22	8-97359-141-0	02	1	1205-1205	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.278 (A) ID=22	8-97359-141-0	02	1	1206-1210	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.278 (A) ID=22	8-97359-141-0	02	1	1211-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1205-1205	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1206-1210	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1211-	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98129-342-3	01	1	1206-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98129-341-3	01	1	1205-1205	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1206-1210	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1211-	●	●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCX ENG(LS0)	8-98011-630-0	01	1	1205-1205	●	●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98011-630-0	01	1	1206-1210	●	●	●	●	●	●
26	08.846 HOSE; HTR 4JK1-TCY ENG(RDX)	8-98011-630-0	01	1	1206-1210	●	●		●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98011-630-0	01	1	1211-	●	●	●	●	●	●
26	08.846 HOSE; HTR 4JK1-TCY ENG(RDX)	8-98011-630-0	01	1	1211-	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98129-340-3	01	1	1206-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98129-339-3	01	1	1205-1205	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1206-1210	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1211-	●	●	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JK1-TCY ENG(RDX) (B)	8-98151-181-1	01	1	1206-	●	●		●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JJ1-TCX ENG(LS0) (A)	8-98134-332-0	01	1	1205-1205	●	●	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98134-332-0	01	1	1206-1210	●	●	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98134-332-0	01	1	1211-	●	●	●	●	●	●
44	08.846 HOSE; WATER,HTR,INL 4JK1-TCY ENG(RDX) 01.540 (B) L=190 SERVICED BY L=3000	0-03566-300-0	01	1	1206-	●	●		●	●
44	08.846 HOSE; WATER,HTR,INL 4JJ1-TCX ENG(LS0) 01.540 (A) L=160 SERVICED BY L=3000	0-03566-300-0	01	1	1205-1205	●	●	●	●	●	●
44	08.846 HOSE; WATER,HTR,INL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 01.540 (A) L=160 SERVICED BY L=3000	0-03566-300-0	01	1	1206-1210	●	●	●	●	●	●
44	08.846 HOSE; WATER,HTR,INL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 01.540 (A) L=160 SERVICED BY L=3000	0-03566-300-0	01	1	1211-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1206-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1206-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCX ENG(LS0) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1205-1205	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1206-1210	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1211-1302	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JK1-TCX ENG(LR0) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1211-1302		●		●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1303-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JK1-TCX ENG(LR0) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1303-		●		●	●
65	08.846 CLIP; MTG RUBBER 4JK1-TCY ENG(RDX) 01.540	8-97101-337-0	02	1	1206-	●	●		●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 01.166 ID=20.8	8-94125-862-1	08	1	1211-		●		●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 01.166 ID=20.8	8-94125-862-1	04	1	1211-1302		●		●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 01.166 ID=20.8	8-94125-862-1	04	1	1303-		●		●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	08	1	1206-1210	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	08	1	1211-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) ID=20.8	8-97944-127-0	04	1	1206-1210	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) ID=20.8	8-97944-127-0	04	1	1211-1302	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) ID=20.8	8-97944-127-0	04	1	1303-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) ID=20.8	8-97944-127-0	06	1	1205-1205	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) ID=20.8	8-97944-127-0	06	1	1206-	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1206-1210	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCY ENG(RDX) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1206-1210	●	●		●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1211-	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1211-	●	●		●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1206-1210	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1211-	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCX ENG(LS0) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1205-1205	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1206-1210	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1211-	●	●	●	●	●	●
128	08.845 INSULATOR; RR HTR 4JK1-TCY ENG(RDX) 03.374	8-98031-884-0	01	1	1206-	●	●		●	●
148	08.846 STUD; PIPE 4JK1-TCY ENG(RDX) 00.413 M8X15,M8X17 L=40	8-98009-913-0	01	1	1206-	●	●		●	●

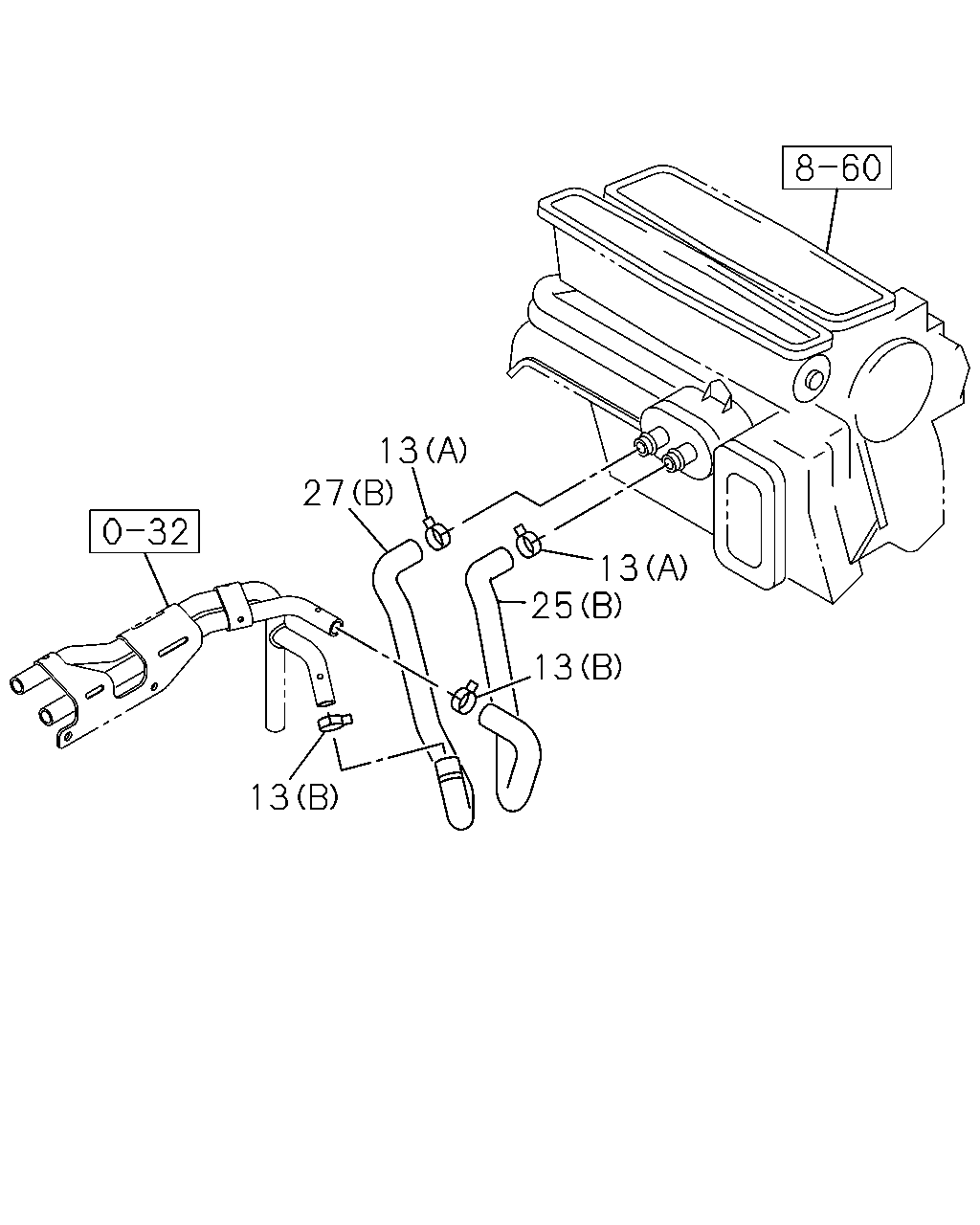

13 27 13 25 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1206-1210	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1211-1302	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1303-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1205-1205	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1206-1210	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1211-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (A) ID=22	8-97359-141-0	02	1	1205-1205	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.278 (A) ID=22	8-97359-141-0	02	1	1206-1210	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.278 (A) ID=22	8-97359-141-0	02	1	1211-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1205-1205	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1206-1210	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1211-	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98129-342-3	01	1	1206-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98129-341-3	01	1	1205-1205	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1206-1210	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1211-	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98129-340-3	01	1	1206-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98129-339-3	01	1	1205-1205	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1206-1210	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1211-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
