Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#7951) — 186 parça

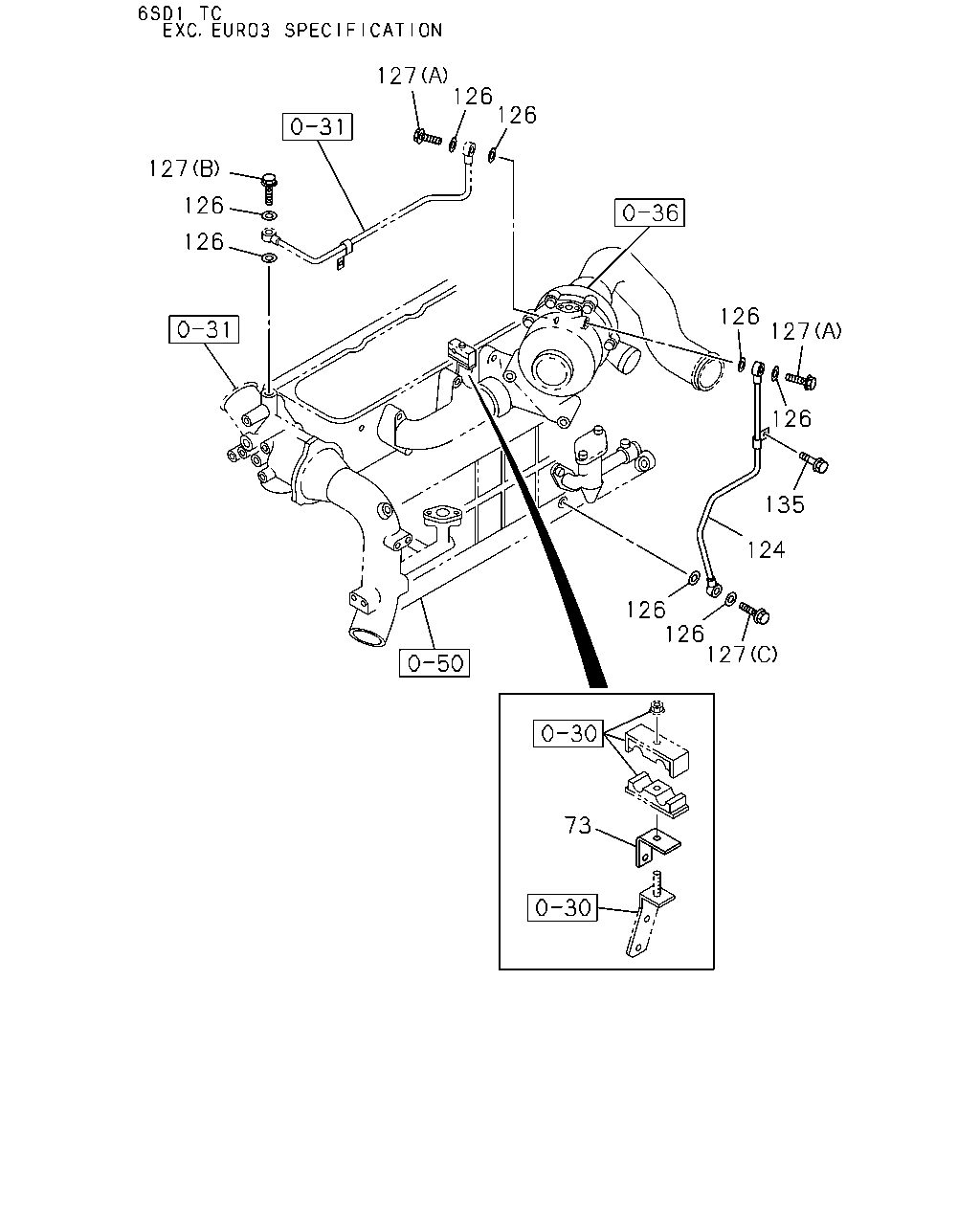

127 126 126 127 126 126 126 127 126 135 124 126 126 127 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
73	PROTECTOR; HEAT,WATER PIPE	1-14181-293-0	01	1	0012-0106	●
73	PROTECTOR; HEAT,WATER PIPE EXC. EURO3 SPECIFICATION(NJX)	1-14181-293-0	01	1	0107-	●
73	PROTECTOR; HEAT,WATER PIPE EURO3 SPECIFICATION(NJX)	1-14181-325-0	01	1	0107-0210	●
73	PROTECTOR; HEAT,WATER PIPE EURO3 SPECIFICATION(NJX)	1-14181-325-0	01	1	0211-	●
73	PROTECTOR; HEAT,WATER PIPE	1-14181-325-0	01	1	0211-		●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	1-13721-738-0	01	1	0012-0106	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG EXC. EURO3 SPECIFICATION(NJX)	1-13721-738-1	01	1	0107-	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG EURO3 SPECIFICATION(NJX)	1-13721-948-0	01	1	0107-0210	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG EURO3 SPECIFICATION(NJX)	1-13721-948-0	01	1	0211-	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	1-13721-948-0	01	1	0211-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0704-			●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	08	1	0012-0210	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	08	1	0211-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	08	1	0204-0703			●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0704-			●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	0012-0106	●
127	BOLT; EYE EXC. EURO3 SPECIFICATION(NJX) (A) M14X31	1-09675-191-0	02	1	0107-	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	0012-0210	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	0211-	●	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	01	1	0012-0106	●
127	BOLT; EYE EXC. EURO3 SPECIFICATION(NJX) (C) M14X27 EYE-BOLT	1-09675-193-0	01	1	0107-	●
127	BOLT; EYE EURO3 SPECIFICATION(NJX) (D) M14X27 EYE-BOLT	1-09675-193-0	03	1	0107-0210	●
127	BOLT; EYE EURO3 SPECIFICATION(NJX) (D) M14X27 EYE-BOLT	1-09675-193-0	03	1	0211-	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	03	1	0211-		●
127	BOLT; EYE (E) M14X27 EYE-BOLT	1-09675-193-0	04	1	0204-			●
135	BOLT; STAY,THERMOSTAT HSG M8X25 FLANGE	0-28080-825-0	01	1	0012-0210	●
135	BOLT; STAY,THERMOSTAT HSG M8X25 FLANGE	0-28080-825-0	01	1	0211-0512	●	●
135	BOLT; STAY,THERMOSTAT HSG M8X25 FLANGE	0-28050-825-0	01	1	0601-	●	●

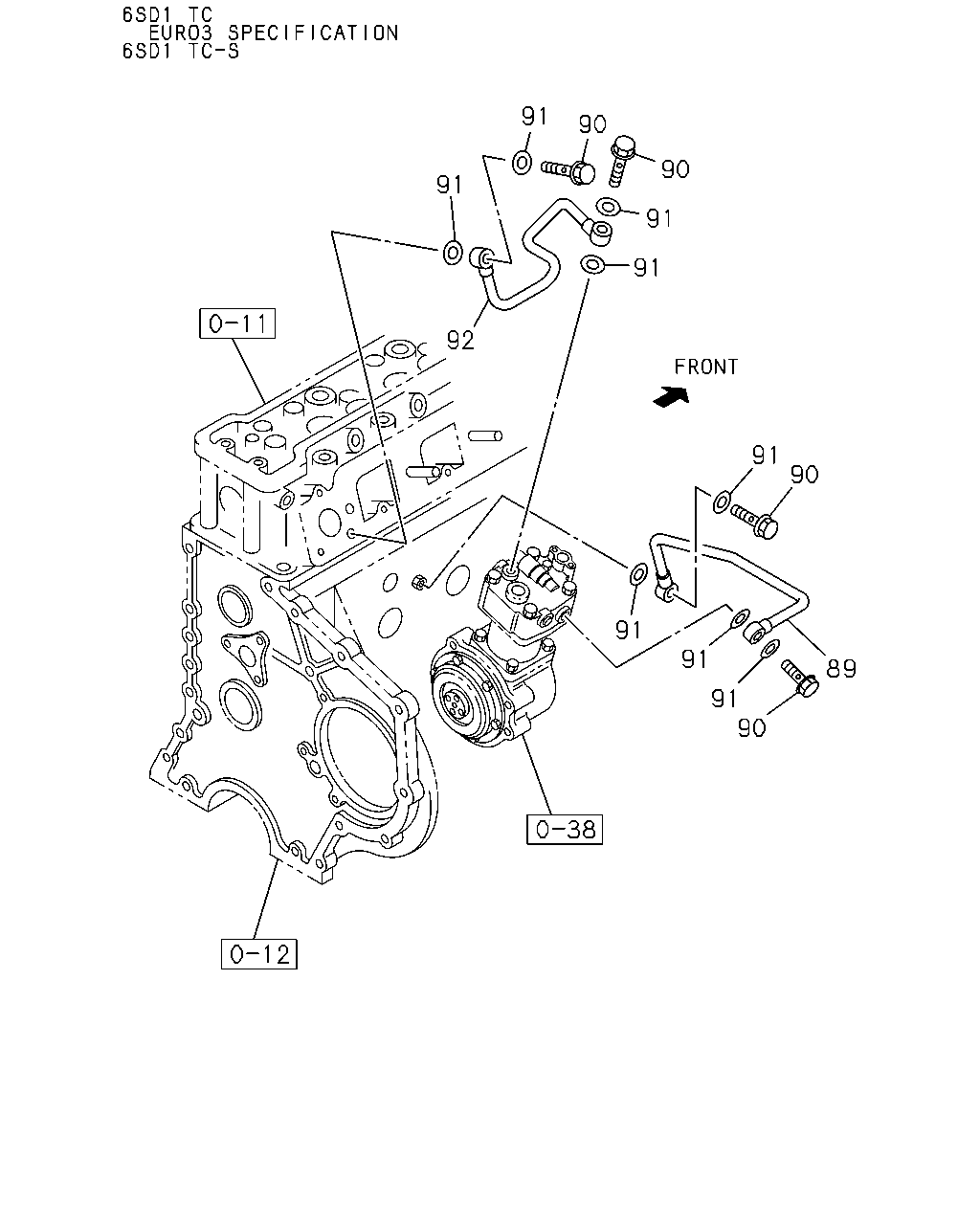

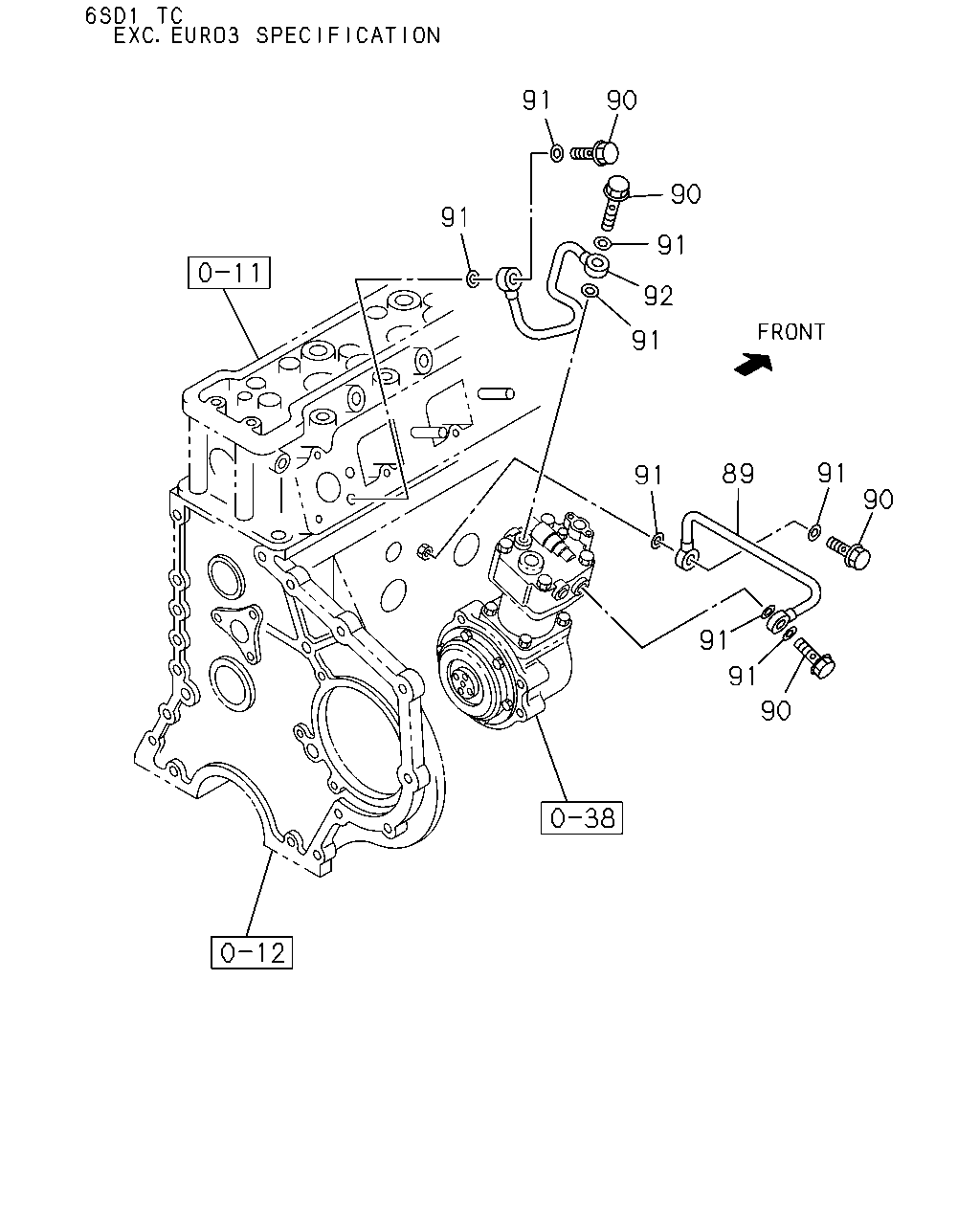

91 90 90 91 91 92 91 91 89 91 90 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
89	PIPE; WATER,AIR CMPR,IN	1-13721-862-0	01	1	0012-0106	●
89	PIPE; WATER,AIR CMPR,IN EXC. EURO3 SPECIFICATION(NJX)	1-13721-862-0	01	1	0107-0203	●
89	PIPE; WATER,AIR CMPR,IN EURO3 SPECIFICATION(NJX)	1-13721-857-0	01	1	0107-0203	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-857-0	01	1	0204-0210	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-857-0	01	1	0211-	●	●
89	PIPE; WATER,AIR CMPR,IN	1-13711-594-1	01	1	0204-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0012-0203	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0204-0210	●		●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0211-	●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	0012-0210	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	0211-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0204-			●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-861-0	01	1	0012-0106	●
92	PIPE; WATER,AIR CMPR,OUT EXC. EURO3 SPECIFICATION(NJX)	1-13721-861-0	01	1	0107-0203	●
92	PIPE; WATER,AIR CMPR,OUT EURO3 SPECIFICATION(NJX)	1-13721-900-0	01	1	0107-0203	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-900-0	01	1	0204-0210	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-900-0	01	1	0211-	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13711-593-1	01	1	0204-			●

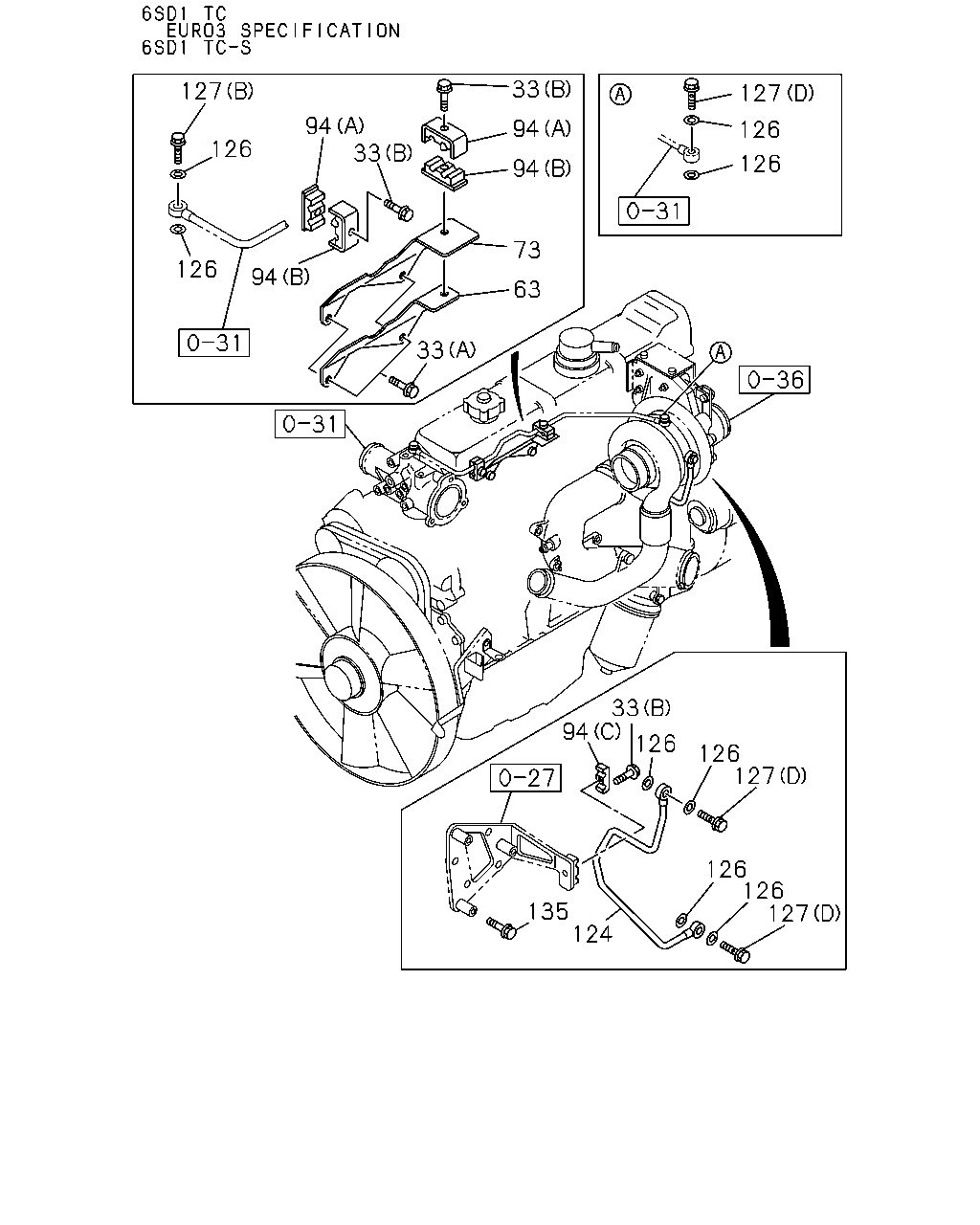

33 127 127 94 33 94 126 126 126 94 73 126 94 63 33 33 94 126 126 127 126 126 127 135 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28080-816-0	02	1	0107-0210	●
33	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●
33	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512		●
33	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
33	BOLT; BRKT EURO3 SPECIFICATION(NJX) (B) M6X40 FLANGE	0-28680-640-0	03	1	0107-0210	●
33	BOLT; BRKT EURO3 SPECIFICATION(NJX) (B) M6X40 FLANGE	0-28680-640-0	03	1	0211-0512	●
33	BOLT; BRKT (B) M6X40 FLANGE	0-28680-640-0	03	1	0211-0512		●
33	BOLT; BRKT EURO3 SPECIFICATION(NJX) (B) M6X40 FLANGE	0-28650-640-0	03	1	0601-	●
33	BOLT; BRKT (B) M6X40 FLANGE	0-28650-640-0	03	1	0601-		●
33	BOLT; BRKT (C) M10X60 FLANGE	0-28181-060-0	01	1	0204-0512			●
33	BOLT; BRKT (C) M10X60 FLANGE	0-28151-060-0	01	1	0601-			●
33	BOLT; BRKT (D) M10X30 FLANGE	0-28781-030-0	01	1	0204-0512			●
33	BOLT; BRKT (D) M10X30 FLANGE	0-28751-030-0	01	1	0601-			●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION(NJX)	1-13319-057-0	01	1	0107-0210	●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION(NJX)	1-13319-057-0	01	1	0211-	●
63	BRACKET; WATER PIPE	1-13319-057-0	01	1	0211-		●
73	PROTECTOR; HEAT,WATER PIPE	1-14181-293-0	01	1	0012-0106	●
73	PROTECTOR; HEAT,WATER PIPE EXC. EURO3 SPECIFICATION(NJX)	1-14181-293-0	01	1	0107-	●
73	PROTECTOR; HEAT,WATER PIPE EURO3 SPECIFICATION(NJX)	1-14181-325-0	01	1	0107-0210	●
73	PROTECTOR; HEAT,WATER PIPE EURO3 SPECIFICATION(NJX)	1-14181-325-0	01	1	0211-	●
73	PROTECTOR; HEAT,WATER PIPE	1-14181-325-0	01	1	0211-		●
94	CLIP; WATER PIPE EURO3 SPECIFICATION(NJX) (A)	1-09701-230-0	02	1	0107-0210	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION(NJX) (A)	1-09701-230-1	02	1	0211-	●
94	CLIP; WATER PIPE (A)	1-09701-230-1	02	1	0211-		●
94	CLIP; WATER PIPE EURO3 SPECIFICATION(NJX) (B)	1-09701-231-0	02	1	0107-0210	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION(NJX) (B)	1-09701-231-1	02	1	0211-	●
94	CLIP; WATER PIPE (B)	1-09701-231-1	02	1	0211-		●
94	CLIP; WATER PIPE EURO3 SPECIFICATION(NJX) (C)	1-09701-265-0	01	1	0107-0210	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION(NJX) (C)	1-09701-265-1	01	1	0211-	●
94	CLIP; WATER PIPE (C)	1-09701-265-1	01	1	0211-		●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	1-13721-738-0	01	1	0012-0106	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG EXC. EURO3 SPECIFICATION(NJX)	1-13721-738-1	01	1	0107-	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG EURO3 SPECIFICATION(NJX)	1-13721-948-0	01	1	0107-0210	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG EURO3 SPECIFICATION(NJX)	1-13721-948-0	01	1	0211-	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	1-13721-948-0	01	1	0211-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0704-			●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	08	1	0012-0210	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	08	1	0211-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	08	1	0204-0703			●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0704-			●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	0012-0106	●
127	BOLT; EYE EXC. EURO3 SPECIFICATION(NJX) (A) M14X31	1-09675-191-0	02	1	0107-	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	0012-0210	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	0211-	●	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	01	1	0012-0106	●
127	BOLT; EYE EXC. EURO3 SPECIFICATION(NJX) (C) M14X27 EYE-BOLT	1-09675-193-0	01	1	0107-	●
127	BOLT; EYE EURO3 SPECIFICATION(NJX) (D) M14X27 EYE-BOLT	1-09675-193-0	03	1	0107-0210	●
127	BOLT; EYE EURO3 SPECIFICATION(NJX) (D) M14X27 EYE-BOLT	1-09675-193-0	03	1	0211-	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	03	1	0211-		●
127	BOLT; EYE (E) M14X27 EYE-BOLT	1-09675-193-0	04	1	0204-			●
135	BOLT; STAY,THERMOSTAT HSG M8X25 FLANGE	0-28080-825-0	01	1	0012-0210	●
135	BOLT; STAY,THERMOSTAT HSG M8X25 FLANGE	0-28080-825-0	01	1	0211-0512	●	●
135	BOLT; STAY,THERMOSTAT HSG M8X25 FLANGE	0-28050-825-0	01	1	0601-	●	●

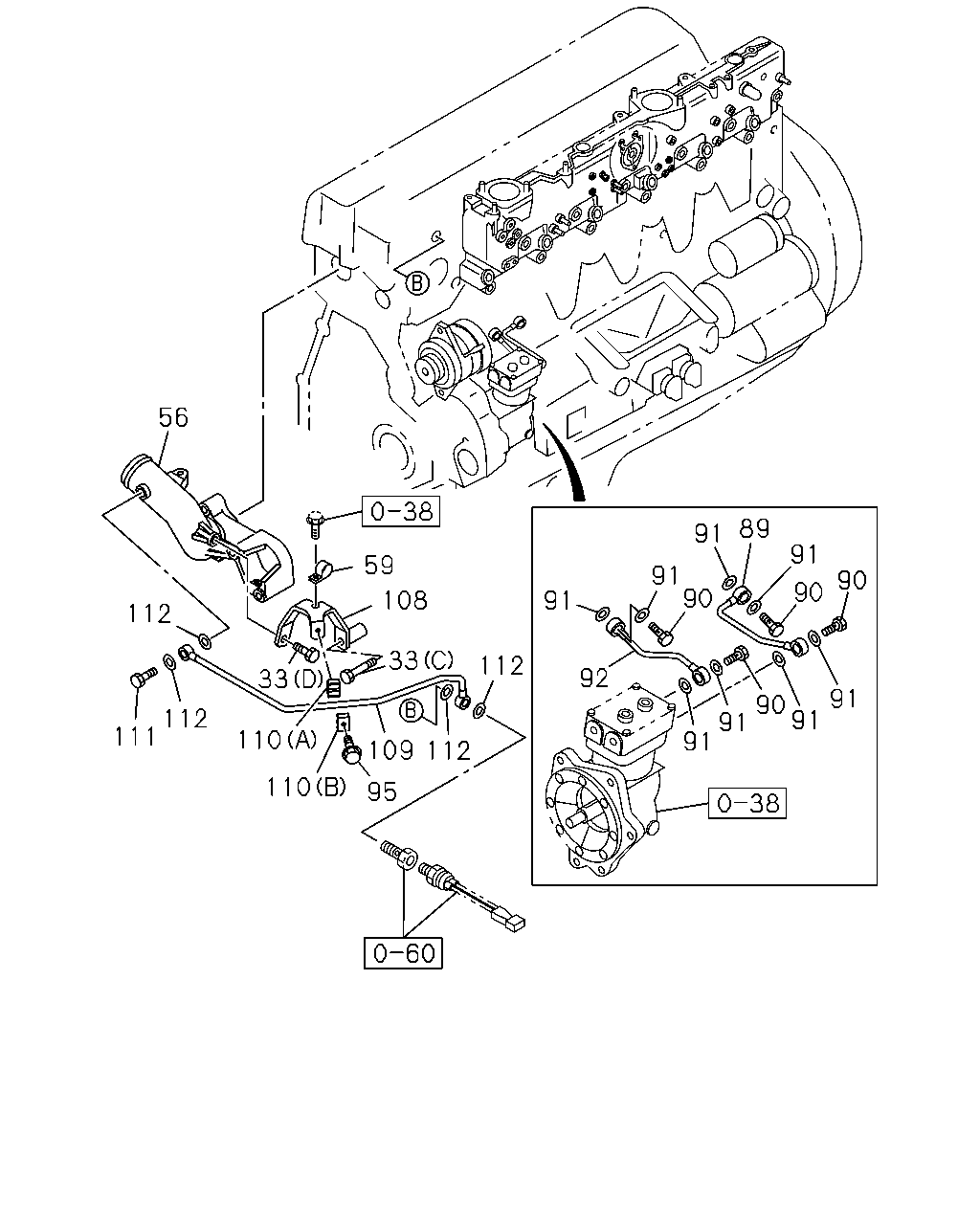

56 89 91 91 59 91 90 90 90 108 91 112 33 33 112 92 91 90 91 112 91 111 110 91 109 112 110 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28080-816-0	02	1	0107-0210	●
33	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●
33	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512		●
33	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
33	BOLT; BRKT EURO3 SPECIFICATION(NJX) (B) M6X40 FLANGE	0-28680-640-0	03	1	0107-0210	●
33	BOLT; BRKT EURO3 SPECIFICATION(NJX) (B) M6X40 FLANGE	0-28680-640-0	03	1	0211-0512	●
33	BOLT; BRKT (B) M6X40 FLANGE	0-28680-640-0	03	1	0211-0512		●
33	BOLT; BRKT EURO3 SPECIFICATION(NJX) (B) M6X40 FLANGE	0-28650-640-0	03	1	0601-	●
33	BOLT; BRKT (B) M6X40 FLANGE	0-28650-640-0	03	1	0601-		●
33	BOLT; BRKT (C) M10X60 FLANGE	0-28181-060-0	01	1	0204-0512			●
33	BOLT; BRKT (C) M10X60 FLANGE	0-28151-060-0	01	1	0601-			●
33	BOLT; BRKT (D) M10X30 FLANGE	0-28781-030-0	01	1	0204-0512			●
33	BOLT; BRKT (D) M10X30 FLANGE	0-28751-030-0	01	1	0601-			●
56	PIPE; WATER OUTLET	1-13721-880-0	01	1	0204-			●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=20	9-09525-035-0	02	1	0204-0606			●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=20	0-95235-035-0	02	1	0607-			●
89	PIPE; WATER,AIR CMPR,IN	1-13721-862-0	01	1	0012-0106	●
89	PIPE; WATER,AIR CMPR,IN EXC. EURO3 SPECIFICATION(NJX)	1-13721-862-0	01	1	0107-0203	●
89	PIPE; WATER,AIR CMPR,IN EURO3 SPECIFICATION(NJX)	1-13721-857-0	01	1	0107-0203	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-857-0	01	1	0204-0210	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-857-0	01	1	0211-	●	●
89	PIPE; WATER,AIR CMPR,IN	1-13711-594-1	01	1	0204-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0012-0203	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0204-0210	●		●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0211-	●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	0012-0210	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	0211-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0204-			●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-861-0	01	1	0012-0106	●
92	PIPE; WATER,AIR CMPR,OUT EXC. EURO3 SPECIFICATION(NJX)	1-13721-861-0	01	1	0107-0203	●
92	PIPE; WATER,AIR CMPR,OUT EURO3 SPECIFICATION(NJX)	1-13721-900-0	01	1	0107-0203	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-900-0	01	1	0204-0210	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-900-0	01	1	0211-	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13711-593-1	01	1	0204-			●
95	BOLT; CLIP M6X30 FLANGE	0-28680-630-0	01	1	0204-0512			●
95	BOLT; CLIP M6X30 FLANGE	0-28650-630-0	01	1	0601-			●
108	BRACKET; WATER CHARGE	1-13719-110-0	01	1	0204-			●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-976-0	01	1	0204-			●
110	CLIP; AIR PIPE (A)	1-09701-180-0	01	1	0204-			●
110	CLIP; AIR PIPE (B) ID=10 & 10 L=25	8-94393-280-3	01	1	0204-			●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	0204-			●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0204-			●

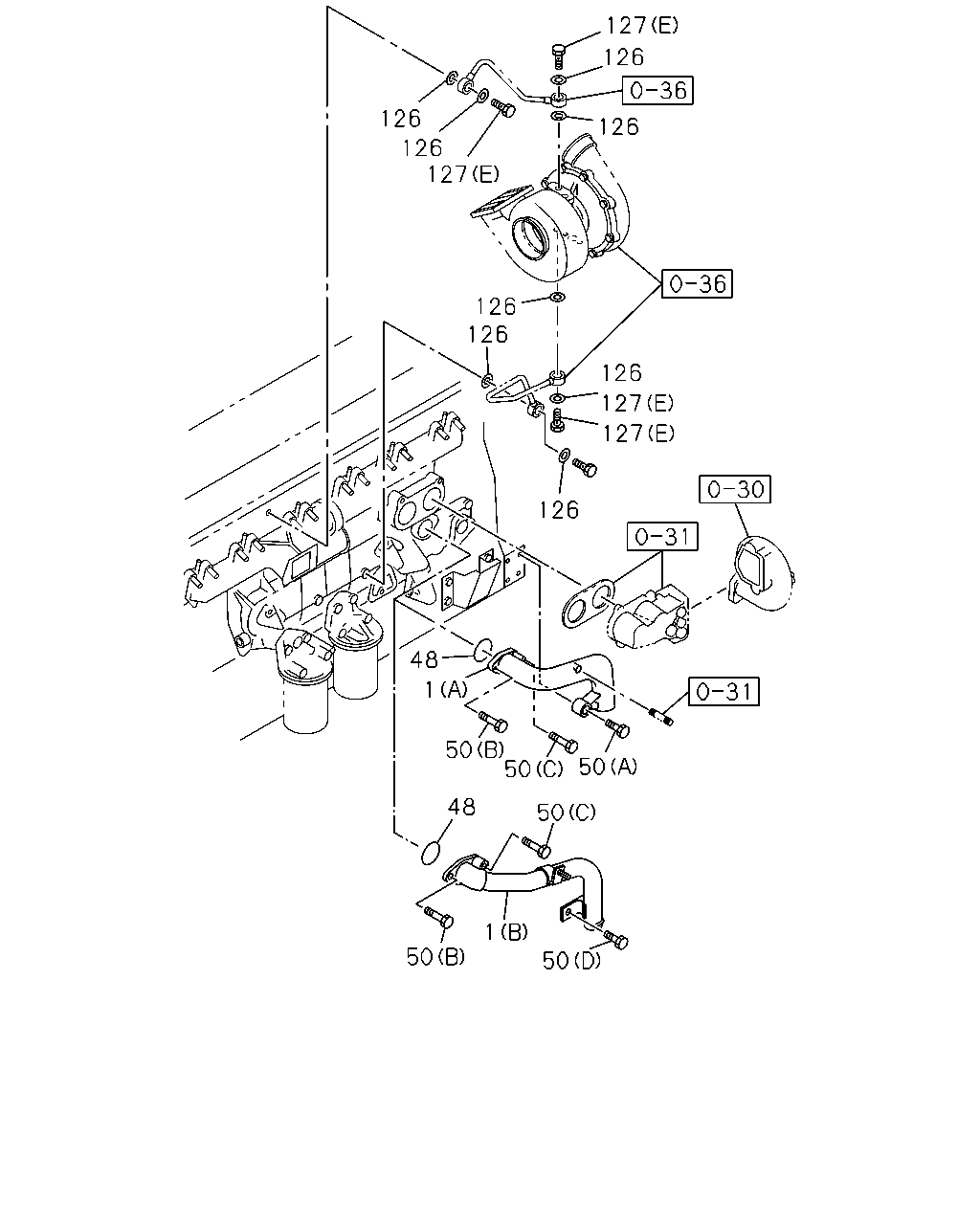

127 126 126 126 126 127 126 126 126 127 127 126 48 1 50 50 50 48 50 1 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; WATER PUMP,INL (A)	1-13711-611-2	01	1	0204-0512			●
1	PIPE; WATER PUMP,INL (B)	8-97606-255-2	01	1	0601-			●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0204-			●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28181-030-0	01	1	0204-0512			●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	0601-			●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28181-080-0	01	1	0204-0512			●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	0601-			●
50	BOLT; WATER PIPE INL (A) M14X50 FLANGE	0-28981-450-0	01	1	0204-0512			●
50	BOLT; WATER PIPE INL (D) M14X25 FLANGE	0-28981-425-0	01	1	0601-0601			●
50	BOLT; WATER PIPE INL (D) M14X25 FLANGE	0-28951-425-0	01	1	0601-			●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0704-			●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	08	1	0012-0210	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	08	1	0211-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	08	1	0204-0703			●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0704-			●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	0012-0106	●
127	BOLT; EYE EXC. EURO3 SPECIFICATION(NJX) (A) M14X31	1-09675-191-0	02	1	0107-	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	0012-0210	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	0211-	●	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	01	1	0012-0106	●
127	BOLT; EYE EXC. EURO3 SPECIFICATION(NJX) (C) M14X27 EYE-BOLT	1-09675-193-0	01	1	0107-	●
127	BOLT; EYE EURO3 SPECIFICATION(NJX) (D) M14X27 EYE-BOLT	1-09675-193-0	03	1	0107-0210	●
127	BOLT; EYE EURO3 SPECIFICATION(NJX) (D) M14X27 EYE-BOLT	1-09675-193-0	03	1	0211-	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	03	1	0211-		●
127	BOLT; EYE (E) M14X27 EYE-BOLT	1-09675-193-0	04	1	0204-			●

91 90 90 91 91 91 92 91 90 91 91 89 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
89	PIPE; WATER,AIR CMPR,IN	1-13721-862-0	01	1	0012-0106	●
89	PIPE; WATER,AIR CMPR,IN EXC. EURO3 SPECIFICATION(NJX)	1-13721-862-0	01	1	0107-0203	●
89	PIPE; WATER,AIR CMPR,IN EURO3 SPECIFICATION(NJX)	1-13721-857-0	01	1	0107-0203	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-857-0	01	1	0204-0210	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-857-0	01	1	0211-	●	●
89	PIPE; WATER,AIR CMPR,IN	1-13711-594-1	01	1	0204-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0012-0203	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0204-0210	●		●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0211-	●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	0012-0210	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	0211-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0204-			●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-861-0	01	1	0012-0106	●
92	PIPE; WATER,AIR CMPR,OUT EXC. EURO3 SPECIFICATION(NJX)	1-13721-861-0	01	1	0107-0203	●
92	PIPE; WATER,AIR CMPR,OUT EURO3 SPECIFICATION(NJX)	1-13721-900-0	01	1	0107-0203	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-900-0	01	1	0204-0210	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-900-0	01	1	0211-	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13711-593-1	01	1	0204-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
