6-32 — FRONT DOOR LOCK AND HANDLE (#79507) — 215 parça

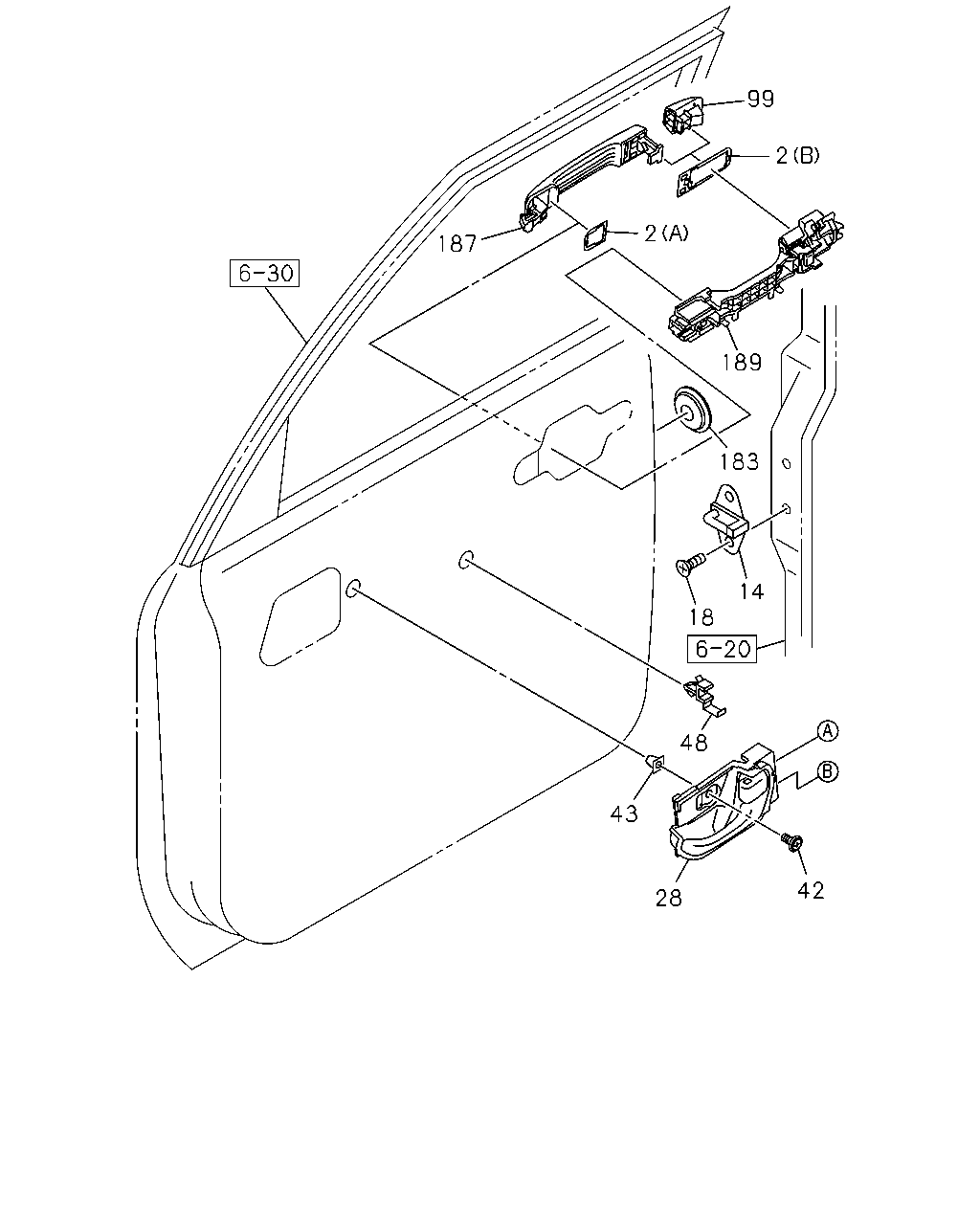

çizim 130891
99 2 2 187 189 183 14 18 48 43 42 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.350 GASKET; OUTSIDE HANDLE,DOOR
(A) 		8-98176-466-0 01 1 1203- ● ● ● ● ● ●
2 16.350 GASKET; OUTSIDE HANDLE,DOOR
(A) 		8-98176-466-0 01 1 1203- ● ● ● ● ● ●
2 16.350 GASKET; OUTSIDE HANDLE,DOOR
16.360 (B) 		8-98176-467-2 01 1 1203- ● ● ● ● ● ●
2 16.350 GASKET; OUTSIDE HANDLE,DOOR
16.360 (B) 		8-98176-467-2 01 1 1203- ● ● ● ● ● ●
14 16.335 STRIKER; FRT DOOR 8-98012-203-0 02 1 1203- ● ● ● ● ● ●
18 16.335 SCREW; DOOR STRIKER
M8X35 		8-98049-360-0 04 1 1203- ● ● ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR BASIC(RBA) BLACK 		8-97416-726-4 01 1 1203- ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
BLACK 		8-97416-726-4 01 1 1203- ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR BASIC(RBA) BLACK 		8-97416-728-4 01 1 1203- ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
BLACK 		8-97416-728-4 01 1 1203- ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR CUSTOM(RBD) BLACK 		8-97416-730-3 01 1 1203- ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR CUSTOM(RBD) BLACK 		8-97416-732-3 01 1 1203- ● ● ● ●
42 16.345 SCREW; TAPPING,INSIDE LEVER
M5X14 TAPPING 		8-98184-363-0 02 1 1203- ● ● ● ● ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
10.565 		8-94152-494-0 02 1 1203- ● ● ● ● ● ●
48 16.345 ANTIRATTLER; DOOR LINK 8-97251-932-0 02 1 1203- ● ● ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> OUTSIDE HANDLE CHROME<E20> PLATED 		8-98176-465-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20> BLACK 		8-98176-463-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
OUTSIDE HANDLE CHROME<E20> EXC. REMOTE CONT DOOR LOCK<AP5> PLATED 		8-98176-462-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
OUTSIDE HANDLE CHROME<E20> PLATED 		8-98176-462-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR NAUTILUS BLUE MICA(521) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> DARK BLUE 		8-97422-452-1 01 1 1203-1303 ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR NAUTILUS BLUE MICA(521) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK BLUE 		8-97422-452-1 01 1 1203-1303 ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR NAUTILUS BLUE MICA(521) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> DARK BLUE 		8-97422-452-1 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR NAUTILUS BLUE MICA(521) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK BLUE 		8-97422-452-1 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR NAUTILUS BLUE MICA(521) HANDLE O/S DOOR BODY COLOR<D75> EXC. REMOTE CONT DOOR LOCK<AP5>, KD-PREPARATORY PACK VAR4<7TV> DARK BLUE 		8-97422-439-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR NAUTILUS BLUE MICA(521) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK BLUE 		8-97422-439-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR COSMIC BLACK MICA(523) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> BLACK 		8-97422-454-1 01 1 1203-1303 ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR COSMIC BLACK MICA(523) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> BLACK 		8-97422-454-1 01 1 1203-1303 ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR COSMIC BLACK MICA(523) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> BLACK 		8-97422-454-1 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR COSMIC BLACK MICA(523) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> BLACK 		8-97422-454-1 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> EXC. REMOTE CONT DOOR LOCK<AP5>, KD-PREPARATORY PACK VAR4<7TV> BLACK 		8-97422-441-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> BLACK 		8-97422-441-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR SPLASH WHITE(527) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> WHITE 		8-97422-463-1 01 1 1203-1303 ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR SPLASH WHITE(527) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> WHITE 		8-97422-463-1 01 1 1203-1303 ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR SPLASH WHITE(527) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> WHITE 		8-97422-463-1 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR SPLASH WHITE(527) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> WHITE 		8-97422-463-1 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> EXC. REMOTE CONT DOOR LOCK<AP5>, KD-PREPARATORY PACK VAR4<7TV> WHITE 		8-97422-450-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> WHITE 		8-97422-450-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR GARNET RED MICA(528) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> DARK RED 		8-97422-458-1 01 1 1203-1303 ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR GARNET RED MICA(528) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK RED 		8-97422-458-1 01 1 1203-1303 ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR GARNET RED MICA(528) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> DARK RED 		8-97422-458-1 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR GARNET RED MICA(528) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK RED 		8-97422-458-1 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR GARNET RED MICA(528) HANDLE O/S DOOR BODY COLOR<D75> EXC. REMOTE CONT DOOR LOCK<AP5>, KD-PREPARATORY PACK VAR4<7TV> DARK RED 		8-97422-445-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR GARNET RED MICA(528) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK RED 		8-97422-445-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR TITANIUM SILVER MET(529) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> SILVER 		8-97422-456-1 01 1 1203-1303 ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR TITANIUM SILVER MET(529) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> SILVER 		8-97422-456-1 01 1 1203-1303 ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR TITANIUM SILVER MET(529) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> SILVER 		8-97422-456-1 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR TITANIUM SILVER MET(529) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> SILVER 		8-97422-456-1 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> EXC. REMOTE CONT DOOR LOCK<AP5>, KD-PREPARATORY PACK VAR4<7TV> SILVER 		8-97422-443-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> SILVER 		8-97422-443-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR MINERAL GRAY MET(530) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> GRAY 		8-97422-455-1 01 1 1203-1303 ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR MINERAL GRAY MET(530) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> GRAY 		8-97422-455-1 01 1 1203-1303 ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR MINERAL GRAY MET(530) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> GRAY 		8-97422-455-1 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR MINERAL GRAY MET(530) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> GRAY 		8-97422-455-1 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR MINERAL GRAY MET(530) HANDLE O/S DOOR BODY COLOR<D75> EXC. REMOTE CONT DOOR LOCK<AP5>, KD-PREPARATORY PACK VAR4<7TV> GRAY 		8-97422-442-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR MINERAL GRAY MET(530) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> GRAY 		8-97422-442-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR SOLEIL ORANGE MICA(532) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> LIGHT ORANGE 		8-97422-459-1 01 1 1203-1303 ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR SOLEIL ORANGE MICA(532) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> LIGHT ORANGE 		8-97422-459-1 01 1 1203-1303 ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR SOLEIL ORANGE MICA(532) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> LIGHT ORANGE 		8-97422-459-1 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR SOLEIL ORANGE MICA(532) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> LIGHT ORANGE 		8-97422-459-1 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR SOLEIL ORANGE MICA(532) HANDLE O/S DOOR BODY COLOR<D75> EXC. REMOTE CONT DOOR LOCK<AP5>, KD-PREPARATORY PACK VAR4<7TV> LIGHT ORANGE 		8-97422-446-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR SOLEIL ORANGE MICA(532) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> LIGHT ORANGE 		8-97422-446-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR TUNDRA GREEN MICA(533) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> DARK GREEN 		8-97422-453-1 01 1 1203-1303 ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR TUNDRA GREEN MICA(533) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GREEN 		8-97422-453-1 01 1 1203-1303 ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR TUNDRA GREEN MICA(533) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> DARK GREEN 		8-97422-453-1 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR TUNDRA GREEN MICA(533) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GREEN 		8-97422-453-1 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR TUNDRA GREEN MICA(533) HANDLE O/S DOOR BODY COLOR<D75> EXC. REMOTE CONT DOOR LOCK<AP5>, KD-PREPARATORY PACK VAR4<7TV> DARK GREEN 		8-97422-440-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR TUNDRA GREEN MICA(533) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GREEN 		8-97422-440-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR ASH BEIGE MET(541) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BEIGE 		8-97422-460-1 01 1 1203-1303 ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR ASH BEIGE MET(541) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> LIGHT BEIGE 		8-97422-460-1 01 1 1203-1303 ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR ASH BEIGE MET(541) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BEIGE 		8-97422-460-1 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR ASH BEIGE MET(541) REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> LIGHT BEIGE 		8-97422-460-1 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR ASH BEIGE MET(541) HANDLE O/S DOOR BODY COLOR<D75> EXC. REMOTE CONT DOOR LOCK<AP5>, KD-PREPARATORY PACK VAR4<7TV> LIGHT BEIGE 		8-97422-447-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR ASH BEIGE MET(541) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> LIGHT BEIGE 		8-97422-447-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> KD-PREPARATORY PACK VAR4<7TV> 		8-98201-401-0 01 1 1203-1303 ●
99 16.270 COVER; HOLE DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> HANDLE O/S DOOR BODY COLOR<D75> KD-PREPARATORY PACK VAR4<7TV> 		8-98201-401-0 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
HANDLE O/S DOOR BODY COLOR<D75> KD-PREPARATORY PACK VAR4<7TV> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98201-400-0 01 1 1203-1303 ●
99 16.270 COVER; HOLE DOOR LOCK
HANDLE O/S DOOR BODY COLOR<D75> KD-PREPARATORY PACK VAR4<7TV> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98201-400-0 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
HANDLE O/S DOOR BODY COLOR<D75> KD-PREPARATORY PACK VAR4<7TV> 		8-98201-400-0 01 1 1203-1303 ●
99 16.270 COVER; HOLE DOOR LOCK
HANDLE O/S DOOR BODY COLOR<D75> KD-PREPARATORY PACK VAR4<7TV> 		8-98201-400-0 01 1 1304- ● ●
99 16.270 COVER; HOLE DOOR LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>, HANDLE O/S DOOR BODY COLOR<D75>,OUTSIDE HANDLE CHROME<E20> 		8-98176-460-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20> 		8-98176-460-1 01 1 1203- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK 8-98176-460-1 01 1 1203- ● ●
99 16.270 COVER; HOLE DOOR LOCK 8-98176-460-1 01 1 1203- ● ●
183 16.445 GROMMET
12.182 OD=26 		8-94141-484-0 02 1 1203- ● ● ● ● ● ●
187 16.330 GRIP; FRT DOOR
OUTSIDE HANDLE CHROME<E20> PLATED 		8-98176-458-0 01 1 1203- ● ● ● ●
187 16.330 GRIP; FRT DOOR
OUTSIDE HANDLE CHROME<E20> PLATED 		8-98176-458-0 01 1 1203- ● ● ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR NAUTILUS BLUE MICA(521) HANDLE O/S DOOR BODY COLOR<D75> DARK BLUE 		8-97422-425-0 01 1 1203-1303 ● ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR NAUTILUS BLUE MICA(521) HANDLE O/S DOOR BODY COLOR<D75> DARK BLUE 		8-97422-425-0 01 1 1203-1303 ● ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR NAUTILUS BLUE MICA(521) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK BLUE 		8-97422-425-0 01 1 1203-1303 ●
187 16.330 GRIP; FRT DOOR
BODY COLOR NAUTILUS BLUE MICA(521) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK BLUE 		8-97422-425-0 01 1 1203-1303 ●
187 16.330 GRIP; FRT DOOR
BODY COLOR NAUTILUS BLUE MICA(521) HANDLE O/S DOOR BODY COLOR<D75> DARK BLUE 		8-97422-425-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR NAUTILUS BLUE MICA(521) HANDLE O/S DOOR BODY COLOR<D75> DARK BLUE 		8-97422-425-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR NAUTILUS BLUE MICA(521) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK BLUE 		8-97422-425-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR NAUTILUS BLUE MICA(521) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK BLUE 		8-97422-425-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> BLACK 		8-97422-427-0 01 1 1203-1303 ● ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> BLACK 		8-97422-427-0 01 1 1203-1303 ● ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> BLACK 		8-97422-427-0 01 1 1203-1303 ●
187 16.330 GRIP; FRT DOOR
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> BLACK 		8-97422-427-0 01 1 1203-1303 ●
187 16.330 GRIP; FRT DOOR
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> BLACK 		8-97422-427-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> BLACK 		8-97422-427-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> BLACK 		8-97422-427-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> BLACK 		8-97422-427-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> WHITE 		8-97422-436-0 01 1 1203-1303 ● ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> WHITE 		8-97422-436-0 01 1 1203-1303 ● ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> WHITE 		8-97422-436-0 01 1 1203-1303 ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> WHITE 		8-97422-436-0 01 1 1203-1303 ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> WHITE 		8-97422-436-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> WHITE 		8-97422-436-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> WHITE 		8-97422-436-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> WHITE 		8-97422-436-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR GARNET RED MICA(528) HANDLE O/S DOOR BODY COLOR<D75> DARK RED 		8-97422-431-0 01 1 1203-1303 ● ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR GARNET RED MICA(528) HANDLE O/S DOOR BODY COLOR<D75> DARK RED 		8-97422-431-0 01 1 1203-1303 ● ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR GARNET RED MICA(528) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK RED 		8-97422-431-0 01 1 1203-1303 ●
187 16.330 GRIP; FRT DOOR
BODY COLOR GARNET RED MICA(528) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK RED 		8-97422-431-0 01 1 1203-1303 ●
187 16.330 GRIP; FRT DOOR
BODY COLOR GARNET RED MICA(528) HANDLE O/S DOOR BODY COLOR<D75> DARK RED 		8-97422-431-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR GARNET RED MICA(528) HANDLE O/S DOOR BODY COLOR<D75> DARK RED 		8-97422-431-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR GARNET RED MICA(528) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK RED 		8-97422-431-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR GARNET RED MICA(528) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK RED 		8-97422-431-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> SILVER 		8-97422-429-0 01 1 1203-1303 ● ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> SILVER 		8-97422-429-0 01 1 1203-1303 ● ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> SILVER 		8-97422-429-0 01 1 1203-1303 ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> SILVER 		8-97422-429-0 01 1 1203-1303 ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> SILVER 		8-97422-429-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> SILVER 		8-97422-429-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> SILVER 		8-97422-429-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> SILVER 		8-97422-429-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR MINERAL GRAY MET(530) HANDLE O/S DOOR BODY COLOR<D75> GRAY 		8-97422-428-0 01 1 1203-1303 ● ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR MINERAL GRAY MET(530) HANDLE O/S DOOR BODY COLOR<D75> GRAY 		8-97422-428-0 01 1 1203-1303 ● ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR MINERAL GRAY MET(530) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> GRAY 		8-97422-428-0 01 1 1203-1303 ●
187 16.330 GRIP; FRT DOOR
BODY COLOR MINERAL GRAY MET(530) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> GRAY 		8-97422-428-0 01 1 1203-1303 ●
187 16.330 GRIP; FRT DOOR
BODY COLOR MINERAL GRAY MET(530) HANDLE O/S DOOR BODY COLOR<D75> GRAY 		8-97422-428-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR MINERAL GRAY MET(530) HANDLE O/S DOOR BODY COLOR<D75> GRAY 		8-97422-428-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR MINERAL GRAY MET(530) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> GRAY 		8-97422-428-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR MINERAL GRAY MET(530) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> GRAY 		8-97422-428-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SOLEIL ORANGE MICA(532) HANDLE O/S DOOR BODY COLOR<D75> LIGHT ORANGE 		8-97422-432-0 01 1 1203-1303 ● ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SOLEIL ORANGE MICA(532) HANDLE O/S DOOR BODY COLOR<D75> LIGHT ORANGE 		8-97422-432-0 01 1 1203-1303 ● ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SOLEIL ORANGE MICA(532) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> LIGHT ORANGE 		8-97422-432-0 01 1 1203-1303 ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SOLEIL ORANGE MICA(532) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> LIGHT ORANGE 		8-97422-432-0 01 1 1203-1303 ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SOLEIL ORANGE MICA(532) HANDLE O/S DOOR BODY COLOR<D75> LIGHT ORANGE 		8-97422-432-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SOLEIL ORANGE MICA(532) HANDLE O/S DOOR BODY COLOR<D75> LIGHT ORANGE 		8-97422-432-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SOLEIL ORANGE MICA(532) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> LIGHT ORANGE 		8-97422-432-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SOLEIL ORANGE MICA(532) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> LIGHT ORANGE 		8-97422-432-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TUNDRA GREEN MICA(533) HANDLE O/S DOOR BODY COLOR<D75> DARK GREEN 		8-97422-426-0 01 1 1203-1303 ● ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TUNDRA GREEN MICA(533) HANDLE O/S DOOR BODY COLOR<D75> DARK GREEN 		8-97422-426-0 01 1 1203-1303 ● ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TUNDRA GREEN MICA(533) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GREEN 		8-97422-426-0 01 1 1203-1303 ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TUNDRA GREEN MICA(533) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GREEN 		8-97422-426-0 01 1 1203-1303 ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TUNDRA GREEN MICA(533) HANDLE O/S DOOR BODY COLOR<D75> DARK GREEN 		8-97422-426-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TUNDRA GREEN MICA(533) HANDLE O/S DOOR BODY COLOR<D75> DARK GREEN 		8-97422-426-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TUNDRA GREEN MICA(533) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GREEN 		8-97422-426-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TUNDRA GREEN MICA(533) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GREEN 		8-97422-426-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR ASH BEIGE MET(541) HANDLE O/S DOOR BODY COLOR<D75> LIGHT BEIGE 		8-97422-433-0 01 1 1203-1303 ● ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR ASH BEIGE MET(541) HANDLE O/S DOOR BODY COLOR<D75> LIGHT BEIGE 		8-97422-433-0 01 1 1203-1303 ● ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR ASH BEIGE MET(541) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> LIGHT BEIGE 		8-97422-433-0 01 1 1203-1303 ●
187 16.330 GRIP; FRT DOOR
BODY COLOR ASH BEIGE MET(541) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> LIGHT BEIGE 		8-97422-433-0 01 1 1203-1303 ●
187 16.330 GRIP; FRT DOOR
BODY COLOR ASH BEIGE MET(541) HANDLE O/S DOOR BODY COLOR<D75> LIGHT BEIGE 		8-97422-433-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR ASH BEIGE MET(541) HANDLE O/S DOOR BODY COLOR<D75> LIGHT BEIGE 		8-97422-433-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR ASH BEIGE MET(541) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> LIGHT BEIGE 		8-97422-433-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR ASH BEIGE MET(541) HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PREPARATORY PACK VAR4<7TV> LIGHT BEIGE 		8-97422-433-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
HANDLE O/S DOOR BODY COLOR<D75> KD-PREPARATORY PACK VAR4<7TV> 		8-98201-399-0 01 1 1203-1303 ●
187 16.330 GRIP; FRT DOOR
HANDLE O/S DOOR BODY COLOR<D75> KD-PREPARATORY PACK VAR4<7TV> 		8-98201-399-0 01 1 1203-1303 ●
187 16.330 GRIP; FRT DOOR
HANDLE O/S DOOR BODY COLOR<D75> KD-PREPARATORY PACK VAR4<7TV> 		8-98201-399-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
HANDLE O/S DOOR BODY COLOR<D75> KD-PREPARATORY PACK VAR4<7TV> 		8-98201-399-0 01 1 1304- ● ●
187 16.330 GRIP; FRT DOOR
EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20> 		8-98176-456-0 01 1 1203- ● ● ● ●
187 16.330 GRIP; FRT DOOR
EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20> 		8-98176-456-0 01 1 1203- ● ● ● ●
187 16.330 GRIP; FRT DOOR 8-98176-456-0 01 1 1203- ● ●
187 16.330 GRIP; FRT DOOR 8-98176-456-0 01 1 1203- ● ●
189 16.330 BRACKET; GRIP,DOOR 8-98176-469-4 01 1 1203- ● ● ● ● ● ●
189 16.330 BRACKET; GRIP,DOOR 8-98176-471-4 01 1 1203- ● ● ● ● ● ●
çizim 131103
8 175 176 36 175 12 12 51 11 79 8 36 175 12 175 51 176
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 16.330 LOCK; DOOR,FRT DOOR
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) 		8-98121-270-4 01 1 1203- ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) 		8-98124-521-4 01 1 1203- ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) 		8-98115-577-4 01 1 1203- ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> (A) 		8-98103-870-4 01 1 1203- ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) 		8-98103-870-4 01 1 1203- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) 		8-98115-578-4 01 1 1203- ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) 		8-98115-578-4 01 1 1203- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (B) 		8-98103-868-3 01 1 1203- ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98103-868-3 01 1 1203- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98103-869-3 01 1 1203- ● ● ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97349-994-0 01 1 1203-1502 ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98292-022-0 01 1 1503- ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97351-086-0 01 1 1203-1502 ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98292-021-0 01 1 1503- ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97351-085-0 01 1 1203-1502 ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-97351-085-0 01 1 1203-1502 ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-97351-085-0 01 1 1203-1502 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98292-011-0 01 1 1503- ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98292-011-0 01 1 1503- ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-98292-011-0 01 1 1503- ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-97349-993-0 01 1 1203-1502 ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-97349-993-0 01 1 1203-1502 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> 		8-98292-012-0 01 1 1503- ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-98292-012-0 01 1 1503- ● ●
12 16.330 SCREW; DOOR LK
(A) M6X14.5 		8-98004-342-0 06 1 1203-1302 ● ● ● ● ● ●
12 16.330 SCREW; DOOR LK
(A) M6X14.5 		8-98004-342-0 06 1 1303- ● ● ● ● ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) 		8-97349-997-0 02 1 1203- ● ● ● ● ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) 		8-97349-997-0 02 1 1203- ● ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98193-693-0 01 1 1203- ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-98193-693-0 01 1 1203- ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-98193-692-0 01 1 1203- ● ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97349-986-0 01 1 1203- ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD 8-97349-986-0 01 1 1203- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD 8-97349-985-0 01 1 1203- ● ● ● ● ● ●
79 16.263 BOLT; DOOR LK ACTUATOR
AUTO DOOR LOCK<AU4> 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1203- ● ● ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98193-691-0 01 1 1203- ● ● ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (A) 		8-98193-690-0 01 1 1203-1502 ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) 		8-98193-690-0 01 1 1203-1502 ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
EXC. AUTO DOOR LOCK<AU4> (A) 		8-98193-690-0 01 1 1203-1502 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98193-690-0 01 1 1503- ● ● ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> (A) 		8-97349-988-0 01 1 1203-1502 ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) 		8-97349-988-0 01 1 1203-1502 ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (A) 		8-97349-988-0 01 1 1203-1502 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98193-688-0 01 1 1203- ● ● ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98193-689-0 01 1 1203- ● ● ● ● ● ●
176 16.270 COVER; DOOR LOCK 8-97349-992-0 01 1 1203- ● ● ● ● ● ●
176 16.270 COVER; DOOR LOCK 8-97349-991-0 01 1 1203- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
