Sayfa 0-31 - Isuzu EPC

0-31 — THERMOSTAT AND HOUSING (#7950) — 261 parça

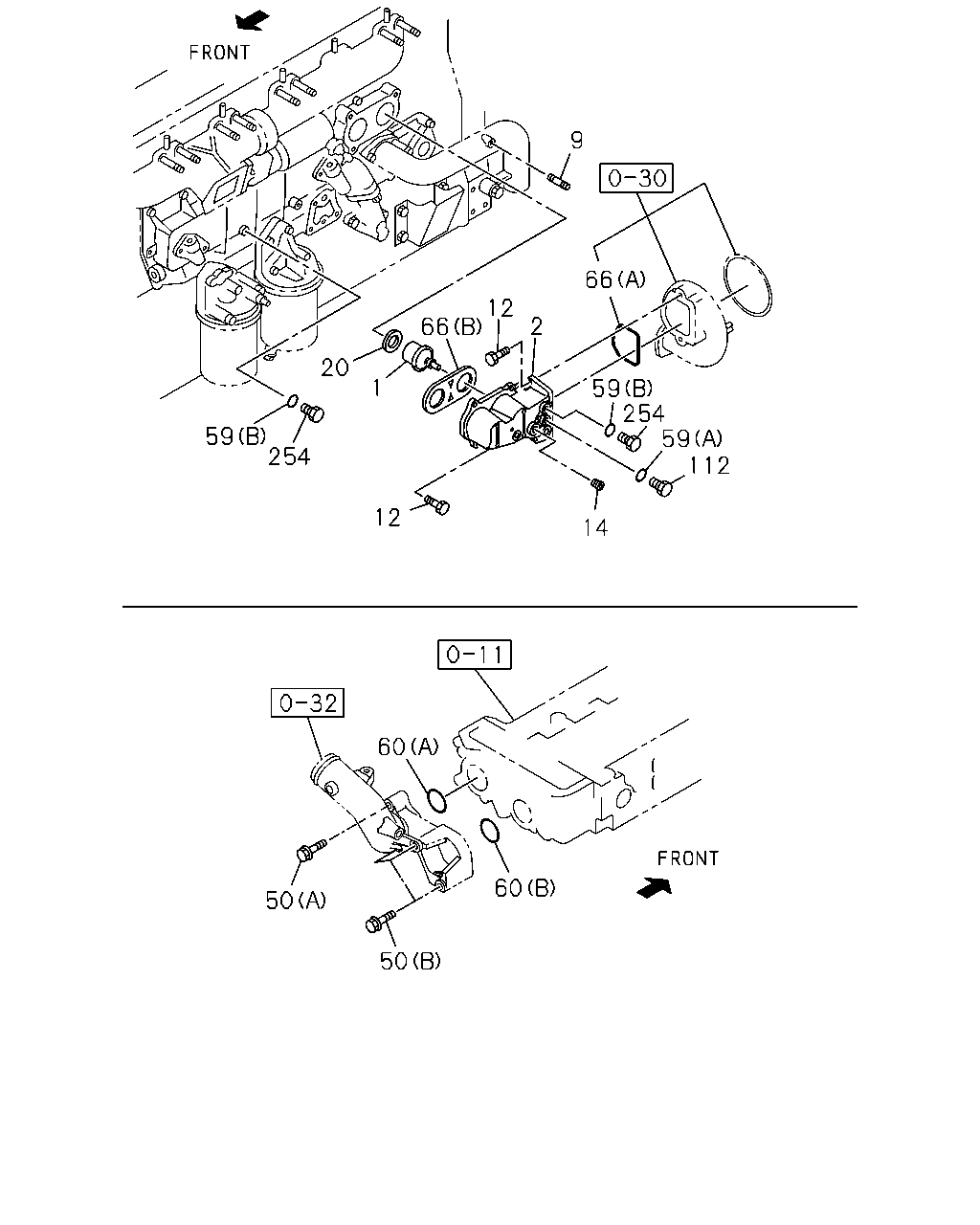

9 66 12 66 2 20 59 254 59 112 1 59 254 12 14 60 60 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	THERMOSTAT 76.5 CELSIUS	1-13770-085-0	01	1	0012-0106	●
1	THERMOSTAT EXC. EURO3 SPECIFICATION(NJX) 76.5 CELSIUS	1-13770-085-0	01	1	0107-0203	●
1	THERMOSTAT ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) 76.5 CELSIUS	1-13770-085-0	01	1	0204-	●
1	THERMOSTAT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN)	1-13779-016-0	01	1	0204-	●
1	THERMOSTAT EURO3 SPECIFICATION(NJX) 79 CELSIUS	1-13770-097-0	01	1	0107-	●
1	THERMOSTAT 79 CELSIUS	1-13770-041-2	02	1	0204-		●
1	THERMOSTAT 76.5 CELSIUS	1-13770-069-1	01	1	0211-			●
2	HOUSING; THERMOSTAT	1-13716-180-0	01	1	0012-	●
2	HOUSING; THERMOSTAT	1-13711-828-2	01	1	0204-1012		●
2	HOUSING; THERMOSTAT	8-98173-672-0	01	1	1101-		●
2	HOUSING; THERMOSTAT	1-13716-197-1	01	1	0211-			●
9	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	01	1	0204-0512		●
12	BOLT; HSG M10X25 FLANGE	0-28181-025-0	05	1	0204-0512		●
12	BOLT; HSG M10X25 FLANGE	0-28151-025-0	05	1	0601-		●
14	PLUG; SW PT3/8 T=8.0	1-09605-066-0	01	1	0301-	●		●
14	PLUG; SW PT1/4	1-09605-019-0	01	1	0012-0210	●
14	PLUG; SW PT1/4	1-09605-019-0	01	1	0211-	●		●
14	PLUG; SW PT3/8	8-94475-259-0	01	1	0204-		●
20	RING; SEAL	1-13779-011-0	02	1	0204-		●
50	BOLT; OUTLET PIPE (C) M8X25 FLANGE	0-28680-825-0	03	1	0301-0512			●
50	BOLT; OUTLET PIPE (C) M8X25 FLANGE	0-28650-825-0	03	1	0601-			●
50	BOLT; OUTLET PIPE (B) M10X50 FLANGE	0-28181-050-0	03	1	0204-0512		●
50	BOLT; OUTLET PIPE (B) M10X50 FLANGE	0-28151-050-0	03	1	0601-		●
50	BOLT; OUTLET PIPE (A) M10X85 FLANGE	8-94397-359-1	01	1	0204-		●
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	01	1	0204-1012		●
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0204-		●
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	01	1	0211-			●
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6	1-09623-452-0	01	1	0204-		●
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6	1-09623-505-0	01	1	0204-		●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6	1-09623-247-0	01	1	0204-		●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-13743-036-1	01	1	0204-		●
112	PLUG M12X9	1-09604-095-0	01	1	0204-0805		●
112	PLUG M12X9	8-98047-054-0	01	1	0806-1012		●
112	PLUG M14X9	9-99202-314-0	01	1	0211-0805			●
112	PLUG M14X9	8-98042-944-0	01	1	0806-			●
254	PLUG; HSG M16X12	9-99202-316-0	02	1	0204-0606		●
254	PLUG; HSG M16X12	0-92002-416-0	02	1	0607-		●

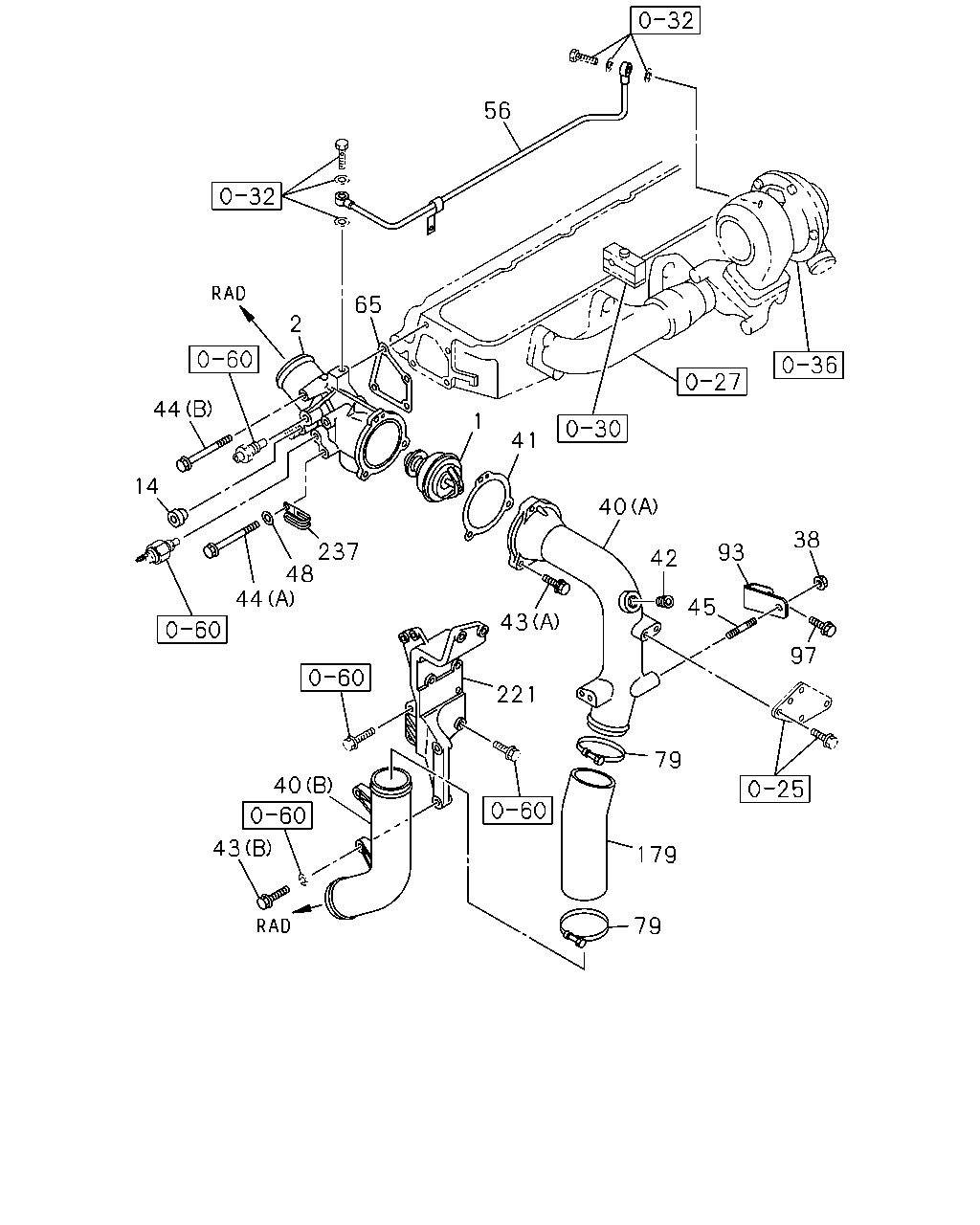

56 65 2 44 1 41 14 40 38 237 48 93 42 44 45 43 97 221 79 40 43 179 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	THERMOSTAT 76.5 CELSIUS	1-13770-085-0	01	1	0012-0106	●
1	THERMOSTAT EXC. EURO3 SPECIFICATION(NJX) 76.5 CELSIUS	1-13770-085-0	01	1	0107-0203	●
1	THERMOSTAT ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) 76.5 CELSIUS	1-13770-085-0	01	1	0204-	●
1	THERMOSTAT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN)	1-13779-016-0	01	1	0204-	●
1	THERMOSTAT EURO3 SPECIFICATION(NJX) 79 CELSIUS	1-13770-097-0	01	1	0107-	●
1	THERMOSTAT 79 CELSIUS	1-13770-041-2	02	1	0204-		●
1	THERMOSTAT 76.5 CELSIUS	1-13770-069-1	01	1	0211-			●
2	HOUSING; THERMOSTAT	1-13716-180-0	01	1	0012-	●
2	HOUSING; THERMOSTAT	1-13711-828-2	01	1	0204-1012		●
2	HOUSING; THERMOSTAT	8-98173-672-0	01	1	1101-		●
2	HOUSING; THERMOSTAT	1-13716-197-1	01	1	0211-			●
14	PLUG; SW PT3/8 T=8.0	1-09605-066-0	01	1	0301-	●		●
14	PLUG; SW PT1/4	1-09605-019-0	01	1	0012-0210	●
14	PLUG; SW PT1/4	1-09605-019-0	01	1	0211-	●		●
14	PLUG; SW PT3/8	8-94475-259-0	01	1	0204-		●
38	NUT; DUCT,SUCTION M10 FLANGE	0-91150-110-0	01	1	0012-0210	●
38	NUT; DUCT,SUCTION M10 FLANGE	0-91150-110-0	01	1	0211-0602	●		●
38	NUT; DUCT,SUCTION M10 FLANGE	0-91180-110-0	01	1	0603-	●		●
40	DUCT; WATER,SUCTION (A)	1-13711-675-0	01	1	0012-	●
40	DUCT; WATER,SUCTION (B)	1-13711-757-0	01	1	0012-	●
40	DUCT; WATER,SUCTION (C)	1-13711-838-0	01	1	0211-			●
41	GASKET; DUCT TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	1-13742-026-0	01	1	0012-	●
42	PLUG; WATER DUCT PT3/4	9-09664-005-0	01	1	0012-	●
43	BOLT; WATER DUCT (B) M10X30 FLANGE	0-28781-030-0	02	1	0012-0210	●
43	BOLT; WATER DUCT (B) M10X30 FLANGE	0-28781-030-0	02	1	0211-0512	●		●
43	BOLT; WATER DUCT (B) M10X30 FLANGE	0-28751-030-0	02	1	0601-	●		●
43	BOLT; WATER DUCT (A) M8X28 W/LK&PL WASHER	0-50140-828-0	03	1	0012-0906	●
43	BOLT; WATER DUCT (A) M8X28 W/LK&PL WASHER	0-50640-828-0	03	1	0907-	●
44	BOLT; HSG TO HD (A) M8X100	0-10805-800-0	02	1	0012-0106	●
44	BOLT; HSG TO HD EXC. EURO3 SPECIFICATION(NJX) (A) M8X100	0-10805-800-0	02	1	0107-0512	●
44	BOLT; HSG TO HD EXC. EURO3 SPECIFICATION(NJX) (A) M8X100	0-10855-800-0	02	1	0601-	●
44	BOLT; HSG TO HD (B) M8X90 FLANGE	0-28080-890-0	02	1	0012-0106	●
44	BOLT; HSG TO HD EXC. EURO3 SPECIFICATION(NJX) (B) M8X90 FLANGE	0-28080-890-0	02	1	0107-0512	●
44	BOLT; HSG TO HD EXC. EURO3 SPECIFICATION(NJX) (B) M8X90 FLANGE	0-28050-890-0	02	1	0601-	●
44	BOLT; HSG TO HD EURO3 SPECIFICATION(NJX) (C) M8X100	0-10805-800-0	04	1	0107-0512	●
44	BOLT; HSG TO HD EURO3 SPECIFICATION(NJX) (C) M8X100	0-10855-800-0	04	1	0601-	●
44	BOLT; HSG TO HD (D) M8X110 FLANGE	0-28085-811-0	04	1	0211-0512			●
44	BOLT; HSG TO HD (D) M8X110 FLANGE	0-28055-811-0	04	1	0601-			●
45	STUD; DUCT M10X20 L=35	9-04411-020-0	01	1	0012-0210	●
45	STUD; DUCT M10X20 L=35	9-04411-020-0	01	1	0211-	●		●
48	WASHER; PL,THERMOSTAT HSG ID=8.4	9-09160-508-0	02	1	0012-0106	●
48	WASHER; PL,THERMOSTAT HSG EXC. EURO3 SPECIFICATION(NJX) ID=8.4	9-09160-508-0	02	1	0107-0605	●
48	WASHER; PL,THERMOSTAT HSG EXC. EURO3 SPECIFICATION(NJX) ID=8.4 OD=16	0-91610-508-0	02	1	0606-	●
48	WASHER; PL,THERMOSTAT HSG EURO3 SPECIFICATION(NJX) ID=8.4	9-09160-508-0	04	1	0107-0605	●
48	WASHER; PL,THERMOSTAT HSG EURO3 SPECIFICATION(NJX) ID=8.4 OD=16	0-91610-508-0	04	1	0606-	●
56	PIPE; WATER,THERMOSTAT HSG	1-13721-628-0	01	1	0012-0106	●
56	PIPE; WATER,THERMOSTAT HSG EXC. EURO3 SPECIFICATION(NJX)	1-13721-628-0	01	1	0107-	●
56	PIPE; WATER,THERMOSTAT HSG EURO3 SPECIFICATION(NJX)	1-13721-949-0	01	1	0107-0210	●
56	PIPE; WATER,THERMOSTAT HSG EURO3 SPECIFICATION(NJX)	1-13721-949-0	01	1	0211-	●
56	PIPE; WATER,THERMOSTAT HSG	1-13721-949-0	01	1	0211-			●
65	GASKET; HSG TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-13743-028-0	01	1	0012-	●
65	GASKET; HSG TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-13743-034-0	01	1	0211-			●
79	CLIP; RUBBER HOSE ID=72	1-09704-068-0	02	1	0012-	●
79	CLIP; RUBBER HOSE ID=81	1-09704-070-0	02	1	0211-			●
93	STAY; WATER PIPE	1-13719-089-0	01	1	0012-0106	●
93	STAY; WATER PIPE EXC. EURO3 SPECIFICATION(NJX)	1-13719-089-0	01	1	0107-	●
93	STAY; WATER PIPE EURO3 SPECIFICATION(NJX)	1-13719-120-0	01	1	0107-0210	●
93	STAY; WATER PIPE EURO3 SPECIFICATION(NJX)	1-13719-120-0	01	1	0211-	●
93	STAY; WATER PIPE	1-13719-120-0	01	1	0211-			●
97	BOLT; PIPE STAY M10X20 FLANGE	0-28181-020-0	02	1	0012-0210	●
97	BOLT; PIPE STAY M10X20 FLANGE	0-28181-020-0	02	1	0211-0512	●		●
97	BOLT; PIPE STAY M10X20 FLANGE	0-28151-020-0	02	1	0601-	●		●
179	HOSE; RUBBER,WATER DUCT	1-21437-670-0	01	1	0012-	●
179	HOSE; RUBBER,WATER DUCT	1-21437-890-0	01	1	0211-			●
221	BRACKET; DUCT	1-19755-171-0	01	1	0012-0210	●
221	BRACKET; DUCT	1-19755-171-0	01	1	0211-	●		●
237	CLIP; ENG HARNESS ID=18 L=44	8-94225-185-0	01	1	0012-0106	●
237	CLIP; ENG HARNESS EXC. EURO3 SPECIFICATION(NJX) ID=18 L=44	8-94225-185-0	01	1	0107-0109	●
237	CLIP; ENG HARNESS ID=18 L=44	8-94225-185-0	01	1	0110-0210	●
237	CLIP; ENG HARNESS ID=18 L=44	8-94225-185-0	01	1	0211-0801	●		●
237	CLIP; ENG HARNESS ID=18 L=44	8-97367-985-1	01	1	0802-	●		●

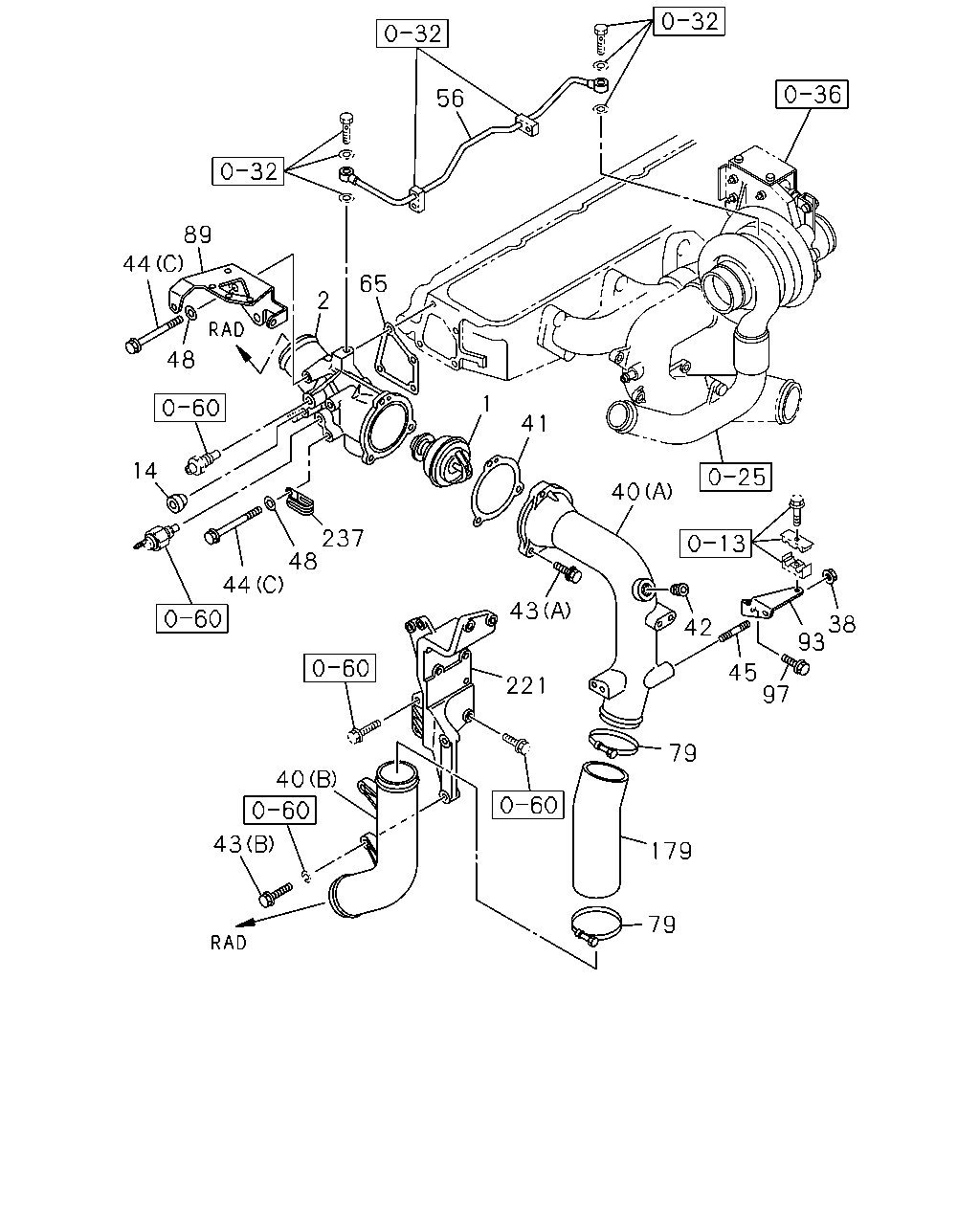

56 89 44 65 2 48 1 41 14 40 237 48 44 43 42 38 93 45 97 221 79 40 43 179 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	THERMOSTAT 76.5 CELSIUS	1-13770-085-0	01	1	0012-0106	●
1	THERMOSTAT EXC. EURO3 SPECIFICATION(NJX) 76.5 CELSIUS	1-13770-085-0	01	1	0107-0203	●
1	THERMOSTAT ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) 76.5 CELSIUS	1-13770-085-0	01	1	0204-	●
1	THERMOSTAT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN)	1-13779-016-0	01	1	0204-	●
1	THERMOSTAT EURO3 SPECIFICATION(NJX) 79 CELSIUS	1-13770-097-0	01	1	0107-	●
1	THERMOSTAT 79 CELSIUS	1-13770-041-2	02	1	0204-		●
1	THERMOSTAT 76.5 CELSIUS	1-13770-069-1	01	1	0211-			●
2	HOUSING; THERMOSTAT	1-13716-180-0	01	1	0012-	●
2	HOUSING; THERMOSTAT	1-13711-828-2	01	1	0204-1012		●
2	HOUSING; THERMOSTAT	8-98173-672-0	01	1	1101-		●
2	HOUSING; THERMOSTAT	1-13716-197-1	01	1	0211-			●
14	PLUG; SW PT3/8 T=8.0	1-09605-066-0	01	1	0301-	●		●
14	PLUG; SW PT1/4	1-09605-019-0	01	1	0012-0210	●
14	PLUG; SW PT1/4	1-09605-019-0	01	1	0211-	●		●
14	PLUG; SW PT3/8	8-94475-259-0	01	1	0204-		●
38	NUT; DUCT,SUCTION M10 FLANGE	0-91150-110-0	01	1	0012-0210	●
38	NUT; DUCT,SUCTION M10 FLANGE	0-91150-110-0	01	1	0211-0602	●		●
38	NUT; DUCT,SUCTION M10 FLANGE	0-91180-110-0	01	1	0603-	●		●
40	DUCT; WATER,SUCTION (A)	1-13711-675-0	01	1	0012-	●
40	DUCT; WATER,SUCTION (B)	1-13711-757-0	01	1	0012-	●
40	DUCT; WATER,SUCTION (C)	1-13711-838-0	01	1	0211-			●
41	GASKET; DUCT TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	1-13742-026-0	01	1	0012-	●
42	PLUG; WATER DUCT PT3/4	9-09664-005-0	01	1	0012-	●
43	BOLT; WATER DUCT (B) M10X30 FLANGE	0-28781-030-0	02	1	0012-0210	●
43	BOLT; WATER DUCT (B) M10X30 FLANGE	0-28781-030-0	02	1	0211-0512	●		●
43	BOLT; WATER DUCT (B) M10X30 FLANGE	0-28751-030-0	02	1	0601-	●		●
43	BOLT; WATER DUCT (A) M8X28 W/LK&PL WASHER	0-50140-828-0	03	1	0012-0906	●
43	BOLT; WATER DUCT (A) M8X28 W/LK&PL WASHER	0-50640-828-0	03	1	0907-	●
44	BOLT; HSG TO HD (A) M8X100	0-10805-800-0	02	1	0012-0106	●
44	BOLT; HSG TO HD EXC. EURO3 SPECIFICATION(NJX) (A) M8X100	0-10805-800-0	02	1	0107-0512	●
44	BOLT; HSG TO HD EXC. EURO3 SPECIFICATION(NJX) (A) M8X100	0-10855-800-0	02	1	0601-	●
44	BOLT; HSG TO HD (B) M8X90 FLANGE	0-28080-890-0	02	1	0012-0106	●
44	BOLT; HSG TO HD EXC. EURO3 SPECIFICATION(NJX) (B) M8X90 FLANGE	0-28080-890-0	02	1	0107-0512	●
44	BOLT; HSG TO HD EXC. EURO3 SPECIFICATION(NJX) (B) M8X90 FLANGE	0-28050-890-0	02	1	0601-	●
44	BOLT; HSG TO HD EURO3 SPECIFICATION(NJX) (C) M8X100	0-10805-800-0	04	1	0107-0512	●
44	BOLT; HSG TO HD EURO3 SPECIFICATION(NJX) (C) M8X100	0-10855-800-0	04	1	0601-	●
44	BOLT; HSG TO HD (D) M8X110 FLANGE	0-28085-811-0	04	1	0211-0512			●
44	BOLT; HSG TO HD (D) M8X110 FLANGE	0-28055-811-0	04	1	0601-			●
45	STUD; DUCT M10X20 L=35	9-04411-020-0	01	1	0012-0210	●
45	STUD; DUCT M10X20 L=35	9-04411-020-0	01	1	0211-	●		●
48	WASHER; PL,THERMOSTAT HSG ID=8.4	9-09160-508-0	02	1	0012-0106	●
48	WASHER; PL,THERMOSTAT HSG EXC. EURO3 SPECIFICATION(NJX) ID=8.4	9-09160-508-0	02	1	0107-0605	●
48	WASHER; PL,THERMOSTAT HSG EXC. EURO3 SPECIFICATION(NJX) ID=8.4 OD=16	0-91610-508-0	02	1	0606-	●
48	WASHER; PL,THERMOSTAT HSG EURO3 SPECIFICATION(NJX) ID=8.4	9-09160-508-0	04	1	0107-0605	●
48	WASHER; PL,THERMOSTAT HSG EURO3 SPECIFICATION(NJX) ID=8.4 OD=16	0-91610-508-0	04	1	0606-	●
56	PIPE; WATER,THERMOSTAT HSG	1-13721-628-0	01	1	0012-0106	●
56	PIPE; WATER,THERMOSTAT HSG EXC. EURO3 SPECIFICATION(NJX)	1-13721-628-0	01	1	0107-	●
56	PIPE; WATER,THERMOSTAT HSG EURO3 SPECIFICATION(NJX)	1-13721-949-0	01	1	0107-0210	●
56	PIPE; WATER,THERMOSTAT HSG EURO3 SPECIFICATION(NJX)	1-13721-949-0	01	1	0211-	●
56	PIPE; WATER,THERMOSTAT HSG	1-13721-949-0	01	1	0211-			●
65	GASKET; HSG TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-13743-028-0	01	1	0012-	●
65	GASKET; HSG TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-13743-034-0	01	1	0211-			●
79	CLIP; RUBBER HOSE ID=72	1-09704-068-0	02	1	0012-	●
79	CLIP; RUBBER HOSE ID=81	1-09704-070-0	02	1	0211-			●
89	BRACKET EURO3 SPECIFICATION(NJX)	1-21559-457-0	01	1	0107-	●
89	BRACKET	1-21559-467-0	01	1	0211-			●
93	STAY; WATER PIPE	1-13719-089-0	01	1	0012-0106	●
93	STAY; WATER PIPE EXC. EURO3 SPECIFICATION(NJX)	1-13719-089-0	01	1	0107-	●
93	STAY; WATER PIPE EURO3 SPECIFICATION(NJX)	1-13719-120-0	01	1	0107-0210	●
93	STAY; WATER PIPE EURO3 SPECIFICATION(NJX)	1-13719-120-0	01	1	0211-	●
93	STAY; WATER PIPE	1-13719-120-0	01	1	0211-			●
97	BOLT; PIPE STAY M10X20 FLANGE	0-28181-020-0	02	1	0012-0210	●
97	BOLT; PIPE STAY M10X20 FLANGE	0-28181-020-0	02	1	0211-0512	●		●
97	BOLT; PIPE STAY M10X20 FLANGE	0-28151-020-0	02	1	0601-	●		●
179	HOSE; RUBBER,WATER DUCT	1-21437-670-0	01	1	0012-	●
179	HOSE; RUBBER,WATER DUCT	1-21437-890-0	01	1	0211-			●
221	BRACKET; DUCT	1-19755-171-0	01	1	0012-0210	●
221	BRACKET; DUCT	1-19755-171-0	01	1	0211-	●		●
237	CLIP; ENG HARNESS ID=18 L=44	8-94225-185-0	01	1	0012-0106	●
237	CLIP; ENG HARNESS EXC. EURO3 SPECIFICATION(NJX) ID=18 L=44	8-94225-185-0	01	1	0107-0109	●
237	CLIP; ENG HARNESS ID=18 L=44	8-94225-185-0	01	1	0110-0210	●
237	CLIP; ENG HARNESS ID=18 L=44	8-94225-185-0	01	1	0211-0801	●		●
237	CLIP; ENG HARNESS ID=18 L=44	8-97367-985-1	01	1	0802-	●		●

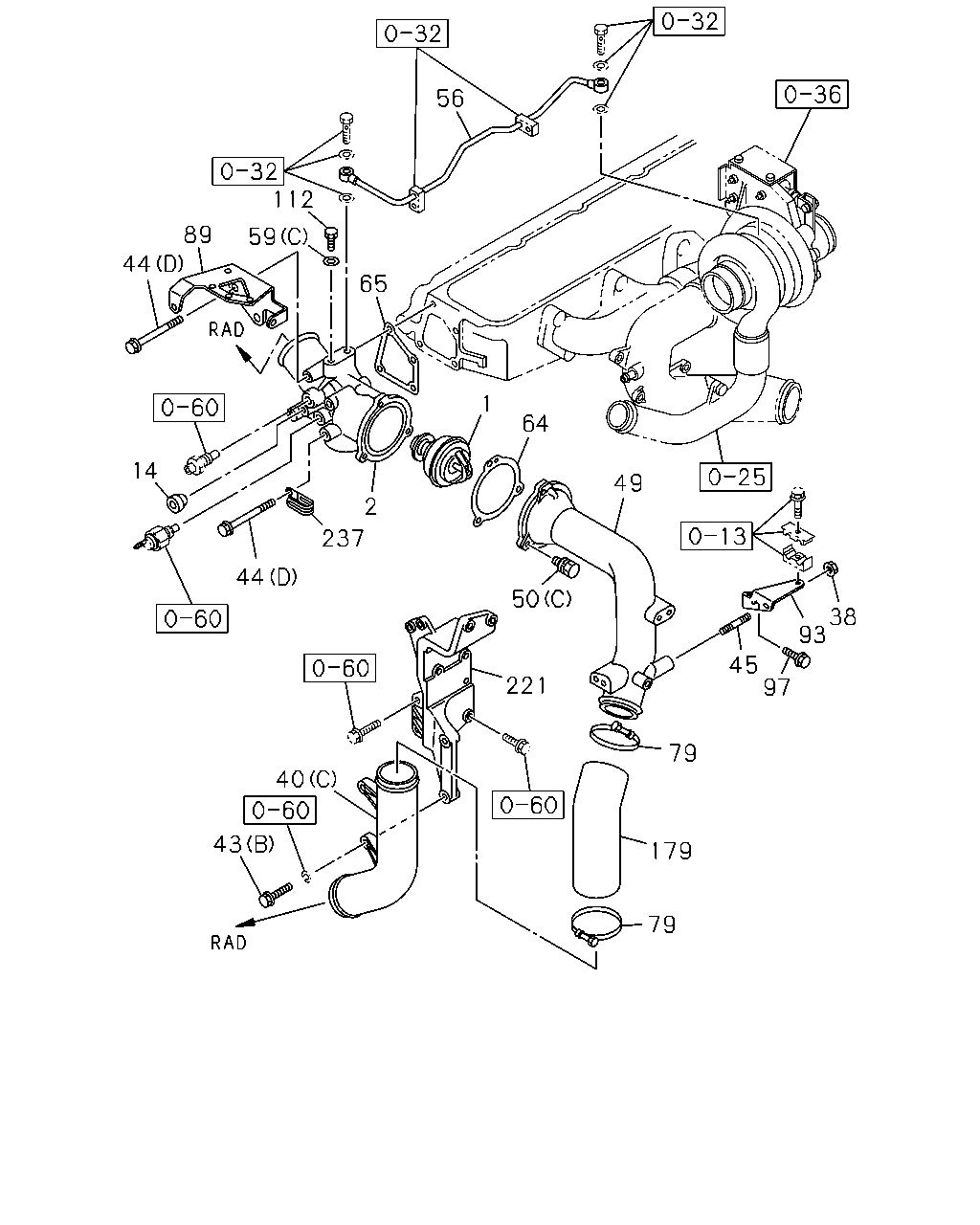

56 112 89 44 59 65 1 64 14 49 2 237 44 50 38 93 45 97 221 79 40 43 179 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	THERMOSTAT 76.5 CELSIUS	1-13770-085-0	01	1	0012-0106	●
1	THERMOSTAT EXC. EURO3 SPECIFICATION(NJX) 76.5 CELSIUS	1-13770-085-0	01	1	0107-0203	●
1	THERMOSTAT ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) 76.5 CELSIUS	1-13770-085-0	01	1	0204-	●
1	THERMOSTAT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN)	1-13779-016-0	01	1	0204-	●
1	THERMOSTAT EURO3 SPECIFICATION(NJX) 79 CELSIUS	1-13770-097-0	01	1	0107-	●
1	THERMOSTAT 79 CELSIUS	1-13770-041-2	02	1	0204-		●
1	THERMOSTAT 76.5 CELSIUS	1-13770-069-1	01	1	0211-			●
2	HOUSING; THERMOSTAT	1-13716-180-0	01	1	0012-	●
2	HOUSING; THERMOSTAT	1-13711-828-2	01	1	0204-1012		●
2	HOUSING; THERMOSTAT	8-98173-672-0	01	1	1101-		●
2	HOUSING; THERMOSTAT	1-13716-197-1	01	1	0211-			●
14	PLUG; SW PT3/8 T=8.0	1-09605-066-0	01	1	0301-	●		●
14	PLUG; SW PT1/4	1-09605-019-0	01	1	0012-0210	●
14	PLUG; SW PT1/4	1-09605-019-0	01	1	0211-	●		●
14	PLUG; SW PT3/8	8-94475-259-0	01	1	0204-		●
38	NUT; DUCT,SUCTION M10 FLANGE	0-91150-110-0	01	1	0012-0210	●
38	NUT; DUCT,SUCTION M10 FLANGE	0-91150-110-0	01	1	0211-0602	●		●
38	NUT; DUCT,SUCTION M10 FLANGE	0-91180-110-0	01	1	0603-	●		●
40	DUCT; WATER,SUCTION (A)	1-13711-675-0	01	1	0012-	●
40	DUCT; WATER,SUCTION (B)	1-13711-757-0	01	1	0012-	●
40	DUCT; WATER,SUCTION (C)	1-13711-838-0	01	1	0211-			●
43	BOLT; WATER DUCT (B) M10X30 FLANGE	0-28781-030-0	02	1	0012-0210	●
43	BOLT; WATER DUCT (B) M10X30 FLANGE	0-28781-030-0	02	1	0211-0512	●		●
43	BOLT; WATER DUCT (B) M10X30 FLANGE	0-28751-030-0	02	1	0601-	●		●
43	BOLT; WATER DUCT (A) M8X28 W/LK&PL WASHER	0-50140-828-0	03	1	0012-0906	●
43	BOLT; WATER DUCT (A) M8X28 W/LK&PL WASHER	0-50640-828-0	03	1	0907-	●
44	BOLT; HSG TO HD (A) M8X100	0-10805-800-0	02	1	0012-0106	●
44	BOLT; HSG TO HD EXC. EURO3 SPECIFICATION(NJX) (A) M8X100	0-10805-800-0	02	1	0107-0512	●
44	BOLT; HSG TO HD EXC. EURO3 SPECIFICATION(NJX) (A) M8X100	0-10855-800-0	02	1	0601-	●
44	BOLT; HSG TO HD (B) M8X90 FLANGE	0-28080-890-0	02	1	0012-0106	●
44	BOLT; HSG TO HD EXC. EURO3 SPECIFICATION(NJX) (B) M8X90 FLANGE	0-28080-890-0	02	1	0107-0512	●
44	BOLT; HSG TO HD EXC. EURO3 SPECIFICATION(NJX) (B) M8X90 FLANGE	0-28050-890-0	02	1	0601-	●
44	BOLT; HSG TO HD EURO3 SPECIFICATION(NJX) (C) M8X100	0-10805-800-0	04	1	0107-0512	●
44	BOLT; HSG TO HD EURO3 SPECIFICATION(NJX) (C) M8X100	0-10855-800-0	04	1	0601-	●
44	BOLT; HSG TO HD (D) M8X110 FLANGE	0-28085-811-0	04	1	0211-0512			●
44	BOLT; HSG TO HD (D) M8X110 FLANGE	0-28055-811-0	04	1	0601-			●
45	STUD; DUCT M10X20 L=35	9-04411-020-0	01	1	0012-0210	●
45	STUD; DUCT M10X20 L=35	9-04411-020-0	01	1	0211-	●		●
49	PIPE; WATER OUTLET	1-13711-839-1	01	1	0211-			●
50	BOLT; OUTLET PIPE (C) M8X25 FLANGE	0-28680-825-0	03	1	0301-0512			●
50	BOLT; OUTLET PIPE (C) M8X25 FLANGE	0-28650-825-0	03	1	0601-			●
50	BOLT; OUTLET PIPE (B) M10X50 FLANGE	0-28181-050-0	03	1	0204-0512		●
50	BOLT; OUTLET PIPE (B) M10X50 FLANGE	0-28151-050-0	03	1	0601-		●
50	BOLT; OUTLET PIPE (A) M10X85 FLANGE	8-94397-359-1	01	1	0204-		●
56	PIPE; WATER,THERMOSTAT HSG	1-13721-628-0	01	1	0012-0106	●
56	PIPE; WATER,THERMOSTAT HSG EXC. EURO3 SPECIFICATION(NJX)	1-13721-628-0	01	1	0107-	●
56	PIPE; WATER,THERMOSTAT HSG EURO3 SPECIFICATION(NJX)	1-13721-949-0	01	1	0107-0210	●
56	PIPE; WATER,THERMOSTAT HSG EURO3 SPECIFICATION(NJX)	1-13721-949-0	01	1	0211-	●
56	PIPE; WATER,THERMOSTAT HSG	1-13721-949-0	01	1	0211-			●
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	01	1	0204-1012		●
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0204-		●
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	01	1	0211-			●
64	GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-13742-020-0	01	1	0211-			●
65	GASKET; HSG TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-13743-028-0	01	1	0012-	●
65	GASKET; HSG TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-13743-034-0	01	1	0211-			●
79	CLIP; RUBBER HOSE ID=72	1-09704-068-0	02	1	0012-	●
79	CLIP; RUBBER HOSE ID=81	1-09704-070-0	02	1	0211-			●
89	BRACKET EURO3 SPECIFICATION(NJX)	1-21559-457-0	01	1	0107-	●
89	BRACKET	1-21559-467-0	01	1	0211-			●
93	STAY; WATER PIPE	1-13719-089-0	01	1	0012-0106	●
93	STAY; WATER PIPE EXC. EURO3 SPECIFICATION(NJX)	1-13719-089-0	01	1	0107-	●
93	STAY; WATER PIPE EURO3 SPECIFICATION(NJX)	1-13719-120-0	01	1	0107-0210	●
93	STAY; WATER PIPE EURO3 SPECIFICATION(NJX)	1-13719-120-0	01	1	0211-	●
93	STAY; WATER PIPE	1-13719-120-0	01	1	0211-			●
97	BOLT; PIPE STAY M10X20 FLANGE	0-28181-020-0	02	1	0012-0210	●
97	BOLT; PIPE STAY M10X20 FLANGE	0-28181-020-0	02	1	0211-0512	●		●
97	BOLT; PIPE STAY M10X20 FLANGE	0-28151-020-0	02	1	0601-	●		●
112	PLUG M12X9	1-09604-095-0	01	1	0204-0805		●
112	PLUG M12X9	8-98047-054-0	01	1	0806-1012		●
112	PLUG M14X9	9-99202-314-0	01	1	0211-0805			●
112	PLUG M14X9	8-98042-944-0	01	1	0806-			●
179	HOSE; RUBBER,WATER DUCT	1-21437-670-0	01	1	0012-	●
179	HOSE; RUBBER,WATER DUCT	1-21437-890-0	01	1	0211-			●
221	BRACKET; DUCT	1-19755-171-0	01	1	0012-0210	●
221	BRACKET; DUCT	1-19755-171-0	01	1	0211-	●		●
237	CLIP; ENG HARNESS ID=18 L=44	8-94225-185-0	01	1	0012-0106	●
237	CLIP; ENG HARNESS EXC. EURO3 SPECIFICATION(NJX) ID=18 L=44	8-94225-185-0	01	1	0107-0109	●
237	CLIP; ENG HARNESS ID=18 L=44	8-94225-185-0	01	1	0110-0210	●
237	CLIP; ENG HARNESS ID=18 L=44	8-94225-185-0	01	1	0211-0801	●		●
237	CLIP; ENG HARNESS ID=18 L=44	8-97367-985-1	01	1	0802-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
