5-01 — FRAME AND OTHER PARTS (#79492) — 221 parça
çizim 125546
485 497 497 497 497
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
485 07.039 NUT; TRANS MTG MBR,FRAME
04.085 M10 FLANGE 		0-91180-210-0 04 1 1203- ● ● ● ● ● ●
497 07.006 BOLT; C/MBR
02.277 (C) M10X120 FLANGE 		0-28066-012-0 04 1 1203- ● ● ● ● ● ●
497 07.006 BOLT; C/MBR
HIGH RIDE SUSPENSION(7YC) 03.023 (B) M10X35 FLANGE 		0-28661-035-0 06 1 1203- ● ●
497 07.006 BOLT; C/MBR
03.023 (B) M10X35 FLANGE 		0-28661-035-0 06 1 1203- ● ● ●
497 07.006 BOLT; C/MBR
07.395 (D) M12X30 FLANGE 		0-28651-230-0 08 1 1203- ● ● ● ● ● ●
497 07.006 BOLT; C/MBR
EXC. SKID PLATE<7WE> 01.267 (A) M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1203- ● ● ●
497 07.006 BOLT; C/MBR
EXC. HIGH RIDE SUSPENSION(7YC) 03.023 (B) M10X35 FLANGE 		0-28661-035-0 04 1 1203- ● ●
497 07.006 BOLT; C/MBR
03.023 (B) M10X35 FLANGE 		0-28661-035-0 04 1 1203- ●

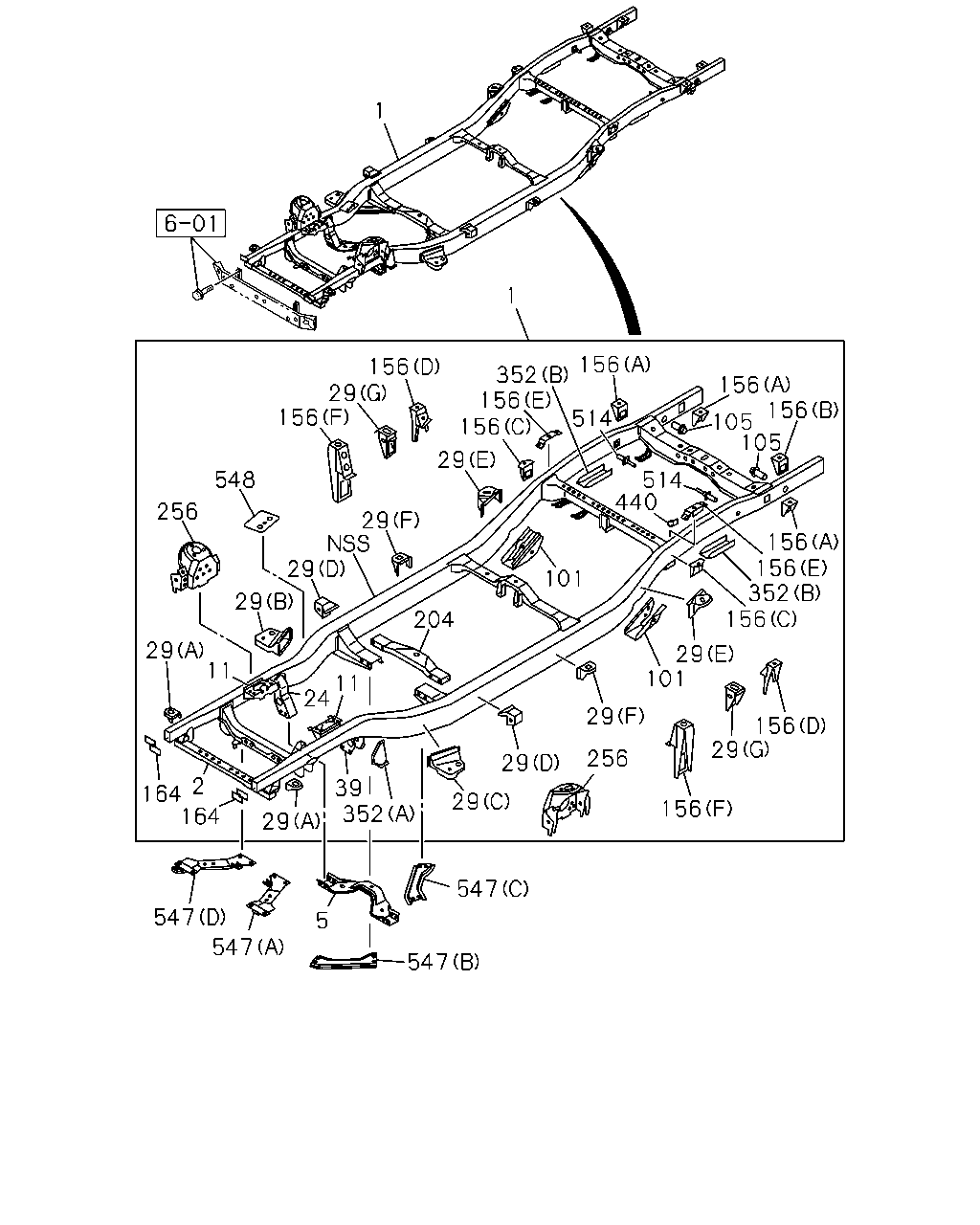

çizim 182829
352 156 514 156 156 156 29 156 548 256 29 29 29 29 11 24 39 352 29 164 164 547 547 547 5 256 29 29 29 101 156 29 156 29 156 352 156 105 105 156 156 1 1 204 11 101 514 440 547 29 156 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) 		8-98155-809-2 01 1 1203- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98155-810-3 01 1 1203- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) 		8-98155-799-3 01 1 1203- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) 		8-98155-803-2 01 1 1203- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98155-804-3 01 1 1203- ●
1 07.003 FRAME ASM
A/T 5 SPEED-AISIN(MA1) 		8-98102-250-3 01 1 1203- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) 		8-98102-276-3 01 1 1203- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) 		8-98193-882-2 01 1 1203- ●
1 07.003 FRAME ASM
A/T 5 SPEED-AISIN(MA1) 		8-98193-876-2 01 1 1203- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) 		8-98193-880-2 01 1 1203- ●
2 07.010 MEMBER; CROSS,1ST 8-98106-701-1 01 1 1203- ● ● ● ● ● ●
5 07.010 MEMBER; CROSS,SUSPENSION
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-736-2 01 1 1203- ● ●
5 07.010 MEMBER; CROSS,SUSPENSION 8-98106-736-2 01 1 1203- ●
5 07.010 MEMBER; CROSS,SUSPENSION
HIGH RIDE SUSPENSION(7YC) 		8-98173-915-1 01 1 1203- ● ●
5 07.010 MEMBER; CROSS,SUSPENSION 8-98173-916-0 01 1 1203-1307 ● ● ●
5 07.010 MEMBER; CROSS,SUSPENSION 8-98229-450-0 01 1 1308- ● ● ●
11 00.029 BRACKET; ENG MTG
HIGH RIDE SUSPENSION(7YC) 		8-98106-794-2 01 1 1203- ● ●
11 00.029 BRACKET; ENG MTG 8-98106-794-2 01 1 1203- ● ● ●
11 00.029 BRACKET; ENG MTG
HIGH RIDE SUSPENSION(7YC) 		8-98106-796-2 01 1 1203- ● ●
11 00.029 BRACKET; ENG MTG 8-98106-796-2 01 1 1203- ● ● ●
11 00.029 BRACKET; ENG MTG
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-793-2 01 1 1203- ● ●
11 00.029 BRACKET; ENG MTG 8-98106-793-2 01 1 1203- ●
11 00.029 BRACKET; ENG MTG
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-795-1 01 1 1203- ● ●
11 00.029 BRACKET; ENG MTG 8-98106-795-1 01 1 1203- ●
24 07.105 BRACKET; FRT SPR,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98106-807-1 01 1 1203- ● ●
24 07.105 BRACKET; FRT SPR,FRT 8-98106-807-1 01 1 1203- ● ● ●
24 07.105 BRACKET; FRT SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-806-3 01 1 1203- ● ●
24 07.105 BRACKET; FRT SPR,FRT 8-98106-806-3 01 1 1203- ●
29 07.330 BRACKET; CAB MTG
(A) 		8-97942-341-3 02 1 1203- ● ● ● ● ● ●
29 07.330 BRACKET; CAB MTG
(D) 		8-98107-534-0 02 1 1203- ● ● ● ● ● ●
29 07.330 BRACKET; CAB MTG
(G) 		8-98106-842-2 01 1 1203- ● ●
29 07.330 BRACKET; CAB MTG
(G) 		8-98106-843-2 01 1 1203- ● ●
29 07.330 BRACKET; CAB MTG
HIGH RIDE SUSPENSION(7YC) (B) 		8-98106-784-3 01 1 1203- ● ●
29 07.330 BRACKET; CAB MTG
(B) 		8-98106-784-3 01 1 1203- ● ● ●
29 07.330 BRACKET; CAB MTG
HIGH RIDE SUSPENSION(7YC) (C) 		8-98106-791-3 01 1 1203- ● ●
29 07.330 BRACKET; CAB MTG
(C) 		8-98106-791-3 01 1 1203- ● ● ●
29 07.330 BRACKET; CAB MTG
EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-98186-495-1 01 1 1203- ● ●
29 07.330 BRACKET; CAB MTG
(H) 		8-98186-495-1 01 1 1203- ●
29 07.330 BRACKET; CAB MTG
EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98186-496-1 01 1 1203- ● ●
29 07.330 BRACKET; CAB MTG
(I) 		8-98186-496-1 01 1 1203- ●
29 07.330 BRACKET; CAB MTG
(F) 		8-98173-497-0 02 1 1203- ● ● ● ●
29 07.330 BRACKET; CAB MTG
(E) 		8-98106-844-2 01 1 1203- ● ●
29 07.330 BRACKET; CAB MTG
(E) 		8-98106-845-2 01 1 1203- ● ●
39 07.112 BRACKET; FRT SPR,RR
HIGH RIDE SUSPENSION(7YC) 		8-98106-809-1 01 1 1203- ● ●
39 07.112 BRACKET; FRT SPR,RR 8-98106-809-1 01 1 1203- ● ● ●
39 07.112 BRACKET; FRT SPR,RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-808-3 01 1 1203- ● ●
39 07.112 BRACKET; FRT SPR,RR 8-98106-808-3 01 1 1203- ●
101 07.112 BRACKET; RR SPR,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98106-868-0 01 1 1203- ● ●
101 07.112 BRACKET; RR SPR,FRT 8-98106-868-0 01 1 1203- ● ● ●
101 07.112 BRACKET; RR SPR,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98106-869-0 01 1 1203- ● ●
101 07.112 BRACKET; RR SPR,FRT 8-98106-869-0 01 1 1203- ● ● ●
101 07.112 BRACKET; RR SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-866-0 01 1 1203- ● ●
101 07.112 BRACKET; RR SPR,FRT 8-98106-866-0 01 1 1203- ●
101 07.112 BRACKET; RR SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-867-0 01 1 1203- ● ●
101 07.112 BRACKET; RR SPR,FRT 8-98106-867-0 01 1 1203- ●
105 07.112 BRACKET; RR SPR,RR
HIGH RIDE SUSPENSION(7YC) 		8-98106-870-0 02 1 1203- ● ●
105 07.112 BRACKET; RR SPR,RR 8-98106-870-0 02 1 1203- ● ● ●
105 07.112 BRACKET; RR SPR,RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97942-294-0 02 1 1203- ● ●
105 07.112 BRACKET; RR SPR,RR 8-97942-294-0 02 1 1203- ●
156 07.330 BRACKET; RR BODY MTG
(C) 		8-98106-863-2 02 1 1203-1203 ● ●
156 07.330 BRACKET; RR BODY MTG
(C) 		8-98214-084-0 02 1 1204- ● ●
156 07.330 BRACKET; RR BODY MTG
(A) 		8-98106-849-0 03 1 1203-1203 ● ● ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(A) 		8-98213-874-0 03 1 1204- ● ● ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(B) 		8-98106-850-0 01 1 1203-1203 ● ● ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(B) 		8-98213-875-0 01 1 1204- ● ● ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(D) 		8-98106-847-1 01 1 1203-1203 ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(D) 		8-98213-872-0 01 1 1204- ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(D) 		8-98106-848-1 01 1 1203-1203 ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(D) 		8-98213-873-0 01 1 1204- ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(E) 		8-98106-864-0 01 1 1203- ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(E) 		8-98106-865-0 01 1 1203- ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(F) 		8-98106-837-2 01 1 1203-1203 ● ●
156 07.330 BRACKET; RR BODY MTG
(F) 		8-98213-870-0 01 1 1204- ● ●
156 07.330 BRACKET; RR BODY MTG
(F) 		8-98106-838-2 01 1 1203-1203 ● ●
156 07.330 BRACKET; RR BODY MTG
(F) 		8-98213-871-0 01 1 1204- ● ●
164 07.112 PLATE; FRT 8-98106-814-0 01 1 1203- ● ● ● ● ● ●
164 07.112 PLATE; FRT 8-98106-815-0 01 1 1203- ● ● ● ● ● ●
204 07.010 MEMBER; CROSS,TRANS MTG 8-98159-796-1 01 1 1203- ● ● ●
204 07.010 MEMBER; CROSS,TRANS MTG
A/T 5 SPEED-AISIN(MA1) 		8-98106-762-4 01 1 1203- ● ●
204 07.010 MEMBER; CROSS,TRANS MTG
M/T AISIN 6 SPEED(RNU) 		8-98106-761-4 01 1 1203- ● ● ●
256 07.395 BRACKET; S/ABS
HIGH RIDE SUSPENSION(7YC) 		8-98106-801-6 01 1 1203- ● ●
256 07.395 BRACKET; S/ABS 8-98106-801-6 01 1 1203- ● ● ●
256 07.395 BRACKET; S/ABS
HIGH RIDE SUSPENSION(7YC) 		8-98106-803-4 01 1 1203- ● ●
256 07.395 BRACKET; S/ABS 8-98106-803-4 01 1 1203- ● ● ●
256 07.395 BRACKET; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-800-2 01 1 1203- ● ●
256 07.395 BRACKET; S/ABS 8-98106-800-2 01 1 1203- ●
256 07.395 BRACKET; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-802-1 01 1 1203- ● ●
256 07.395 BRACKET; S/ABS 8-98106-802-1 01 1 1203- ●
352 07.039 BRACKET; BUMPER RUBBER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98106-835-3 01 1 1203- ● ●
352 07.039 BRACKET; BUMPER RUBBER
(A) 		8-98106-835-3 01 1 1203- ● ● ●
352 07.039 BRACKET; BUMPER RUBBER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98106-836-3 01 1 1203- ● ●
352 07.039 BRACKET; BUMPER RUBBER
(A) 		8-98106-836-3 01 1 1203- ● ● ●
352 07.039 BRACKET; BUMPER RUBBER
HIGH RIDE SUSPENSION(7YC) (B) 		8-98106-871-1 02 1 1203- ● ●
352 07.039 BRACKET; BUMPER RUBBER
(B) 		8-98106-871-1 02 1 1203- ● ● ●
440 07.039 BRACKET; HOSE
HIGH RIDE SUSPENSION(7YC) 		8-98106-873-1 01 1 1203- ● ●
440 07.039 BRACKET; HOSE 8-98106-873-1 01 1 1203- ● ● ●
440 07.039 BRACKET; HOSE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-872-1 01 1 1203- ● ●
440 07.039 BRACKET; HOSE 8-98106-872-1 01 1 1203- ●
514 07.388 PIN; S/ABS 8-97942-395-1 02 1 1203- ● ● ● ● ● ●
547 07.039 BRACE; C/MBR
(D) 		8-98173-909-3 01 1 1203- ● ● ●
547 07.039 BRACE; C/MBR
(C) 		8-98173-914-0 01 1 1203- ● ● ●
547 07.039 BRACE; C/MBR
(A) 		8-98177-569-1 01 1 1203- ● ● ●
547 07.039 BRACE; C/MBR
(B) 		8-98196-640-0 01 1 1203- ● ● ●
547 07.039 BRACE; C/MBR
(D) 		8-98173-907-1 01 1 1203-1307 ● ● ●
547 07.039 BRACE; C/MBR
(D) 		8-98229-465-0 01 1 1308- ● ● ●
547 07.039 BRACE; C/MBR
(A) 		8-98173-908-0 01 1 1203-1307 ● ● ●
547 07.039 BRACE; C/MBR
(A) 		8-98229-466-0 01 1 1308- ● ● ●
547 07.039 BRACE; C/MBR
(B) 		8-98173-911-0 01 1 1203- ● ● ●
547 07.039 BRACE; C/MBR
(C) 		8-98173-912-0 01 1 1203- ● ● ●
548 07.039 BRACKET; DPD,FRT 8-98196-759-0 01 1 1203- ● ● ● ● ● ●

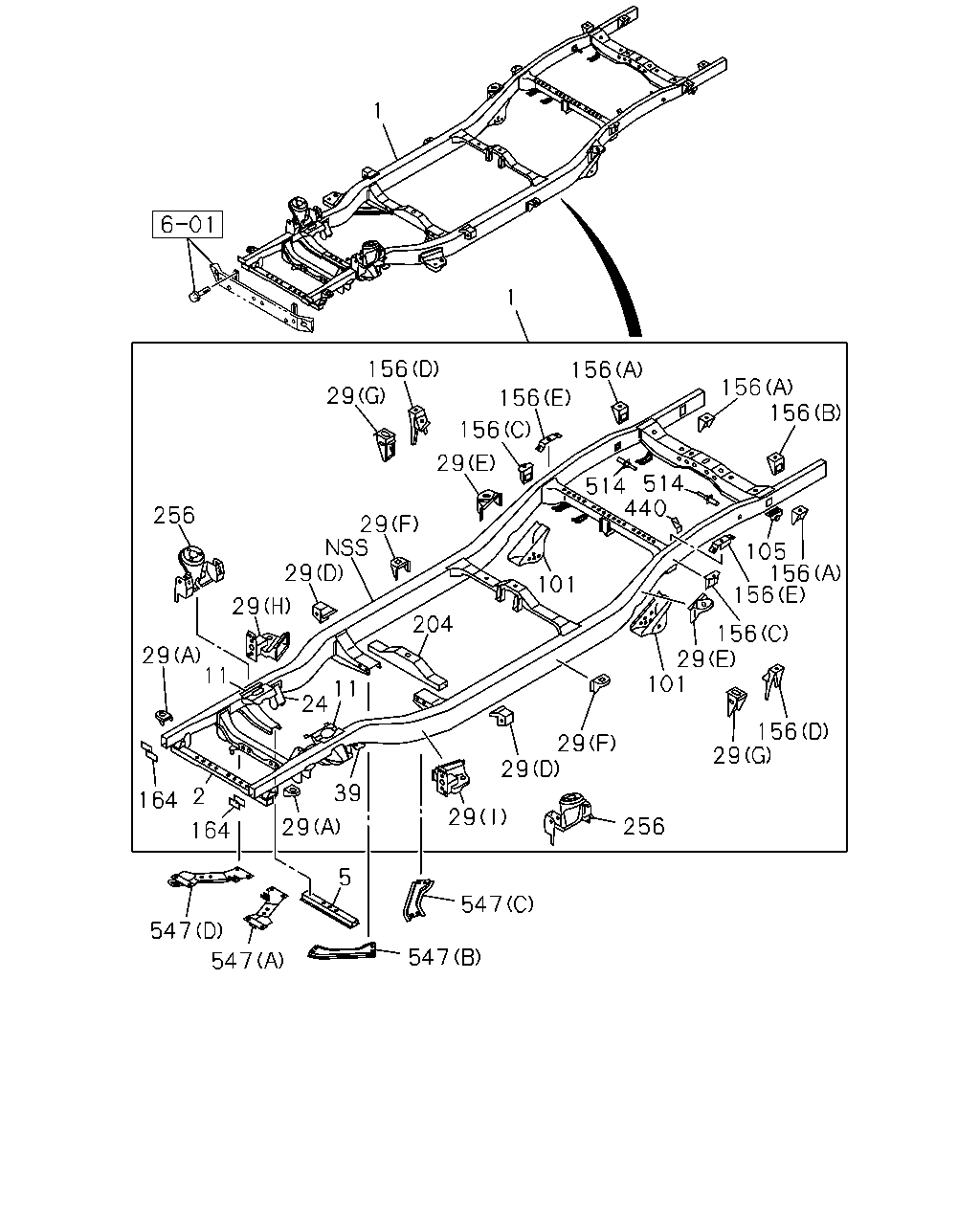

çizim 182835
1 1 156 29 29 156 156 156 156 156 514 514 440 105 156 156 156 29 101 29 156 256 29 29 29 547 547 547 547 164 164 2 29 29 256 29 29 11 24 11 39 29 5 101 204
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) 		8-98155-809-2 01 1 1203- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98155-810-3 01 1 1203- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) 		8-98155-799-3 01 1 1203- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) 		8-98155-803-2 01 1 1203- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98155-804-3 01 1 1203- ●
1 07.003 FRAME ASM
A/T 5 SPEED-AISIN(MA1) 		8-98102-250-3 01 1 1203- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) 		8-98102-276-3 01 1 1203- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) 		8-98193-882-2 01 1 1203- ●
1 07.003 FRAME ASM
A/T 5 SPEED-AISIN(MA1) 		8-98193-876-2 01 1 1203- ●
1 07.003 FRAME ASM
M/T AISIN 6 SPEED(RNU) 		8-98193-880-2 01 1 1203- ●
2 07.010 MEMBER; CROSS,1ST 8-98106-701-1 01 1 1203- ● ● ● ● ● ●
5 07.010 MEMBER; CROSS,SUSPENSION
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-736-2 01 1 1203- ● ●
5 07.010 MEMBER; CROSS,SUSPENSION 8-98106-736-2 01 1 1203- ●
5 07.010 MEMBER; CROSS,SUSPENSION
HIGH RIDE SUSPENSION(7YC) 		8-98173-915-1 01 1 1203- ● ●
5 07.010 MEMBER; CROSS,SUSPENSION 8-98173-916-0 01 1 1203-1307 ● ● ●
5 07.010 MEMBER; CROSS,SUSPENSION 8-98229-450-0 01 1 1308- ● ● ●
11 00.029 BRACKET; ENG MTG
HIGH RIDE SUSPENSION(7YC) 		8-98106-794-2 01 1 1203- ● ●
11 00.029 BRACKET; ENG MTG 8-98106-794-2 01 1 1203- ● ● ●
11 00.029 BRACKET; ENG MTG
HIGH RIDE SUSPENSION(7YC) 		8-98106-796-2 01 1 1203- ● ●
11 00.029 BRACKET; ENG MTG 8-98106-796-2 01 1 1203- ● ● ●
11 00.029 BRACKET; ENG MTG
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-793-2 01 1 1203- ● ●
11 00.029 BRACKET; ENG MTG 8-98106-793-2 01 1 1203- ●
11 00.029 BRACKET; ENG MTG
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-795-1 01 1 1203- ● ●
11 00.029 BRACKET; ENG MTG 8-98106-795-1 01 1 1203- ●
24 07.105 BRACKET; FRT SPR,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98106-807-1 01 1 1203- ● ●
24 07.105 BRACKET; FRT SPR,FRT 8-98106-807-1 01 1 1203- ● ● ●
24 07.105 BRACKET; FRT SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-806-3 01 1 1203- ● ●
24 07.105 BRACKET; FRT SPR,FRT 8-98106-806-3 01 1 1203- ●
29 07.330 BRACKET; CAB MTG
(A) 		8-97942-341-3 02 1 1203- ● ● ● ● ● ●
29 07.330 BRACKET; CAB MTG
(D) 		8-98107-534-0 02 1 1203- ● ● ● ● ● ●
29 07.330 BRACKET; CAB MTG
(G) 		8-98106-842-2 01 1 1203- ● ●
29 07.330 BRACKET; CAB MTG
(G) 		8-98106-843-2 01 1 1203- ● ●
29 07.330 BRACKET; CAB MTG
HIGH RIDE SUSPENSION(7YC) (B) 		8-98106-784-3 01 1 1203- ● ●
29 07.330 BRACKET; CAB MTG
(B) 		8-98106-784-3 01 1 1203- ● ● ●
29 07.330 BRACKET; CAB MTG
HIGH RIDE SUSPENSION(7YC) (C) 		8-98106-791-3 01 1 1203- ● ●
29 07.330 BRACKET; CAB MTG
(C) 		8-98106-791-3 01 1 1203- ● ● ●
29 07.330 BRACKET; CAB MTG
EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-98186-495-1 01 1 1203- ● ●
29 07.330 BRACKET; CAB MTG
(H) 		8-98186-495-1 01 1 1203- ●
29 07.330 BRACKET; CAB MTG
EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98186-496-1 01 1 1203- ● ●
29 07.330 BRACKET; CAB MTG
(I) 		8-98186-496-1 01 1 1203- ●
29 07.330 BRACKET; CAB MTG
(F) 		8-98173-497-0 02 1 1203- ● ● ● ●
29 07.330 BRACKET; CAB MTG
(E) 		8-98106-844-2 01 1 1203- ● ●
29 07.330 BRACKET; CAB MTG
(E) 		8-98106-845-2 01 1 1203- ● ●
39 07.112 BRACKET; FRT SPR,RR
HIGH RIDE SUSPENSION(7YC) 		8-98106-809-1 01 1 1203- ● ●
39 07.112 BRACKET; FRT SPR,RR 8-98106-809-1 01 1 1203- ● ● ●
39 07.112 BRACKET; FRT SPR,RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-808-3 01 1 1203- ● ●
39 07.112 BRACKET; FRT SPR,RR 8-98106-808-3 01 1 1203- ●
101 07.112 BRACKET; RR SPR,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98106-868-0 01 1 1203- ● ●
101 07.112 BRACKET; RR SPR,FRT 8-98106-868-0 01 1 1203- ● ● ●
101 07.112 BRACKET; RR SPR,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98106-869-0 01 1 1203- ● ●
101 07.112 BRACKET; RR SPR,FRT 8-98106-869-0 01 1 1203- ● ● ●
101 07.112 BRACKET; RR SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-866-0 01 1 1203- ● ●
101 07.112 BRACKET; RR SPR,FRT 8-98106-866-0 01 1 1203- ●
101 07.112 BRACKET; RR SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-867-0 01 1 1203- ● ●
101 07.112 BRACKET; RR SPR,FRT 8-98106-867-0 01 1 1203- ●
105 07.112 BRACKET; RR SPR,RR
HIGH RIDE SUSPENSION(7YC) 		8-98106-870-0 02 1 1203- ● ●
105 07.112 BRACKET; RR SPR,RR 8-98106-870-0 02 1 1203- ● ● ●
105 07.112 BRACKET; RR SPR,RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97942-294-0 02 1 1203- ● ●
105 07.112 BRACKET; RR SPR,RR 8-97942-294-0 02 1 1203- ●
156 07.330 BRACKET; RR BODY MTG
(C) 		8-98106-863-2 02 1 1203-1203 ● ●
156 07.330 BRACKET; RR BODY MTG
(C) 		8-98214-084-0 02 1 1204- ● ●
156 07.330 BRACKET; RR BODY MTG
(A) 		8-98106-849-0 03 1 1203-1203 ● ● ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(A) 		8-98213-874-0 03 1 1204- ● ● ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(B) 		8-98106-850-0 01 1 1203-1203 ● ● ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(B) 		8-98213-875-0 01 1 1204- ● ● ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(D) 		8-98106-847-1 01 1 1203-1203 ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(D) 		8-98213-872-0 01 1 1204- ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(D) 		8-98106-848-1 01 1 1203-1203 ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(D) 		8-98213-873-0 01 1 1204- ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(E) 		8-98106-864-0 01 1 1203- ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(E) 		8-98106-865-0 01 1 1203- ● ● ● ●
156 07.330 BRACKET; RR BODY MTG
(F) 		8-98106-837-2 01 1 1203-1203 ● ●
156 07.330 BRACKET; RR BODY MTG
(F) 		8-98213-870-0 01 1 1204- ● ●
156 07.330 BRACKET; RR BODY MTG
(F) 		8-98106-838-2 01 1 1203-1203 ● ●
156 07.330 BRACKET; RR BODY MTG
(F) 		8-98213-871-0 01 1 1204- ● ●
164 07.112 PLATE; FRT 8-98106-814-0 01 1 1203- ● ● ● ● ● ●
164 07.112 PLATE; FRT 8-98106-815-0 01 1 1203- ● ● ● ● ● ●
204 07.010 MEMBER; CROSS,TRANS MTG 8-98159-796-1 01 1 1203- ● ● ●
204 07.010 MEMBER; CROSS,TRANS MTG
A/T 5 SPEED-AISIN(MA1) 		8-98106-762-4 01 1 1203- ● ●
204 07.010 MEMBER; CROSS,TRANS MTG
M/T AISIN 6 SPEED(RNU) 		8-98106-761-4 01 1 1203- ● ● ●
256 07.395 BRACKET; S/ABS
HIGH RIDE SUSPENSION(7YC) 		8-98106-801-6 01 1 1203- ● ●
256 07.395 BRACKET; S/ABS 8-98106-801-6 01 1 1203- ● ● ●
256 07.395 BRACKET; S/ABS
HIGH RIDE SUSPENSION(7YC) 		8-98106-803-4 01 1 1203- ● ●
256 07.395 BRACKET; S/ABS 8-98106-803-4 01 1 1203- ● ● ●
256 07.395 BRACKET; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-800-2 01 1 1203- ● ●
256 07.395 BRACKET; S/ABS 8-98106-800-2 01 1 1203- ●
256 07.395 BRACKET; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-802-1 01 1 1203- ● ●
256 07.395 BRACKET; S/ABS 8-98106-802-1 01 1 1203- ●
440 07.039 BRACKET; HOSE
HIGH RIDE SUSPENSION(7YC) 		8-98106-873-1 01 1 1203- ● ●
440 07.039 BRACKET; HOSE 8-98106-873-1 01 1 1203- ● ● ●
440 07.039 BRACKET; HOSE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-872-1 01 1 1203- ● ●
440 07.039 BRACKET; HOSE 8-98106-872-1 01 1 1203- ●
514 07.388 PIN; S/ABS 8-97942-395-1 02 1 1203- ● ● ● ● ● ●
547 07.039 BRACE; C/MBR
(D) 		8-98173-909-3 01 1 1203- ● ● ●
547 07.039 BRACE; C/MBR
(C) 		8-98173-914-0 01 1 1203- ● ● ●
547 07.039 BRACE; C/MBR
(A) 		8-98177-569-1 01 1 1203- ● ● ●
547 07.039 BRACE; C/MBR
(B) 		8-98196-640-0 01 1 1203- ● ● ●
547 07.039 BRACE; C/MBR
(D) 		8-98173-907-1 01 1 1203-1307 ● ● ●
547 07.039 BRACE; C/MBR
(D) 		8-98229-465-0 01 1 1308- ● ● ●
547 07.039 BRACE; C/MBR
(A) 		8-98173-908-0 01 1 1203-1307 ● ● ●
547 07.039 BRACE; C/MBR
(A) 		8-98229-466-0 01 1 1308- ● ● ●
547 07.039 BRACE; C/MBR
(B) 		8-98173-911-0 01 1 1203- ● ● ●
547 07.039 BRACE; C/MBR
(C) 		8-98173-912-0 01 1 1203- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
