◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10818 - LV123/150/423-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#7949) — 214 parça

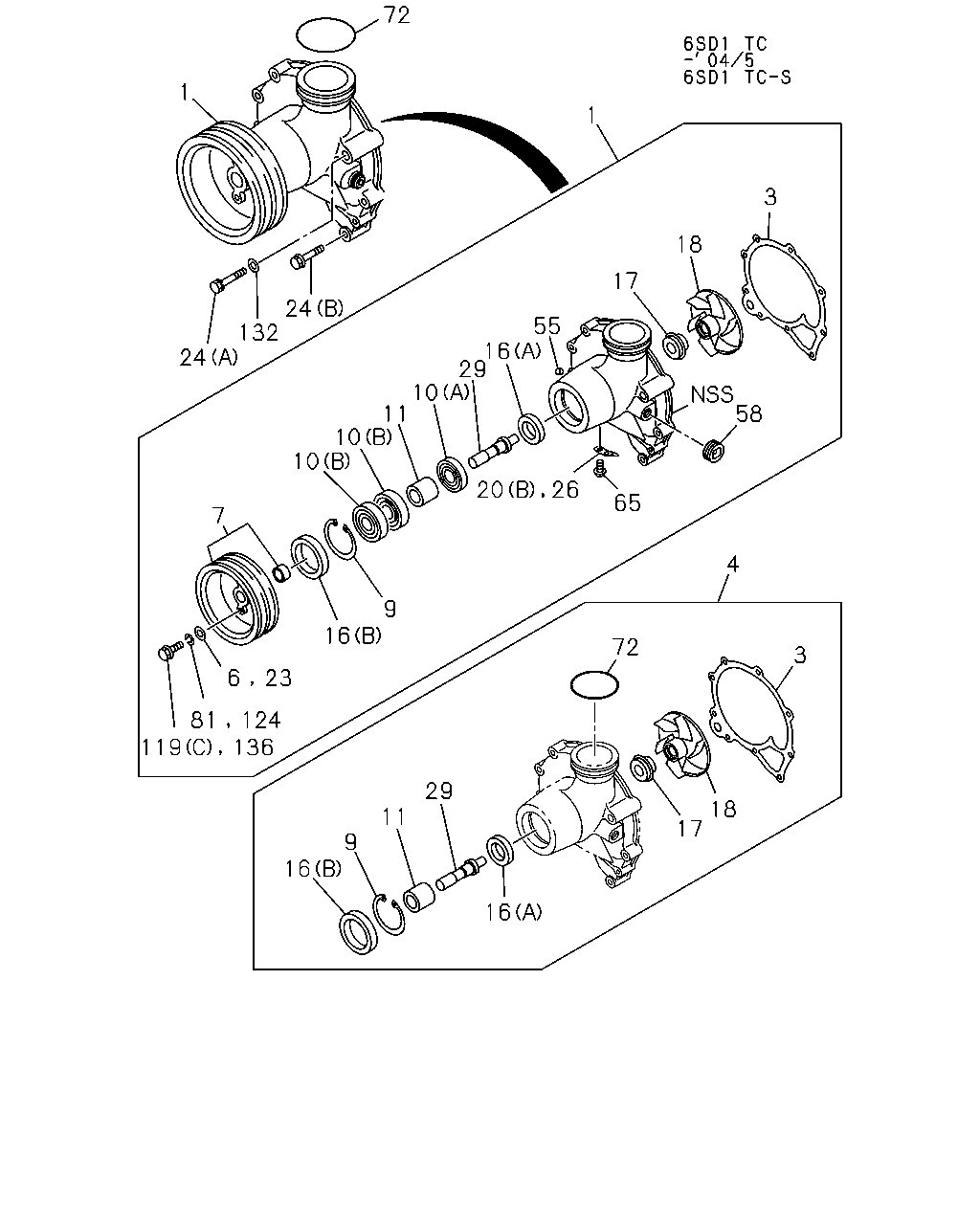

çizim 8153
72 1 1 3 18 17 24 132 55 16 29 10 24 58 11 10 10 65 7 4 9 16 72 3 6 23 81 119 124 136 29 18 11 17 9 16 16 20 26
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; WATER,W/GASKET 1-13650-111-0 01 1 0012- ●
1 PUMP ASM; WATER,W/GASKET 1-13650-160-1 01 1 0204-0303 ●
1 PUMP ASM; WATER,W/GASKET 1-13650-171-0 01 1 0304-0409 ●
1 PUMP ASM; WATER,W/GASKET 8-97606-250-2 01 1 0410-0603 ●
1 PUMP ASM; WATER,W/GASKET 8-97615-906-0 01 1 0604-0902 ●
1 PUMP ASM; WATER,W/GASKET 8-98146-074-0 01 1 0903- ●
1 PUMP ASM; WATER,W/GASKET 1-13650-158-0 01 1 0211-0405 ●
1 PUMP ASM; WATER,W/GASKET 8-97605-169-0 01 1 0406- ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-018-0 01 1 0012-0210 ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-018-1 01 1 0211- ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-586-1 01 1 0204- ●
4 REPAIR KIT; WATER PUMP 1-87812-019-1 01 1 0012- ●
4 REPAIR KIT; WATER PUMP 1-87811-843-0 01 1 0204-0412 ●
4 REPAIR KIT; WATER PUMP 1-87812-921-0 01 1 0501-0603 ●
4 REPAIR KIT; WATER PUMP 1-87813-072-0 01 1 0604-0902 ●
4 REPAIR KIT; WATER PUMP 1-87813-428-0 01 1 0903- ●
4 REPAIR KIT; WATER PUMP 1-87811-884-1 01 1 0211- ●
6 WASHER; PL,PULLEY
ID=10.5 OD=22 		9-09160-610-0 01 1 0012-0605 ●
6 WASHER; PL,PULLEY
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0606- ●
6 WASHER; PL,PULLEY
ID=10.5 OD=22 		9-09160-610-0 02 1 0211-0405 ●
7 PULLEY; WATER PUMP 1-13641-213-0 01 1 0809- ●
7 PULLEY; WATER PUMP 1-13641-200-0 01 1 0012- ●
7 PULLEY; WATER PUMP 1-13641-213-0 01 1 0211-0405 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0012-0210 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0211-0405 ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0406-0808 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0809- ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-155-0 02 1 0012-0210 ●
10 BEARING; WATER PUMP
(B) 		1-09800-155-0 02 1 0211-0405 ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-155-0 02 1 0406-0808 ●
10 BEARING; WATER PUMP
(B) 		1-09800-155-0 02 1 0809- ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-196-0 01 1 0012-0210 ●
10 BEARING; WATER PUMP
(A) 		1-09800-196-0 01 1 0211-0405 ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-196-0 01 1 0406-0808 ●
10 BEARING; WATER PUMP
(A) 		1-09800-196-0 01 1 0809- ● ●
10 BEARING; WATER PUMP
(C) 		1-09800-252-0 01 1 0204- ●
10 BEARING; WATER PUMP
(D) 		1-09800-253-0 01 1 0204- ●
11 SPACER; BRG,WATER PUMP 1-13634-035-0 01 1 0809- ●
11 SPACER; BRG,WATER PUMP 1-13634-029-0 01 1 0012- ●
11 SPACER; BRG,WATER PUMP 1-13634-035-0 01 1 0211-0405 ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-388-0 01 1 0012-0210 ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-388-0 01 1 0211-0405 ● ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-388-0 01 1 0406-0808 ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-388-0 01 1 0809- ● ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-389-0 01 1 0012-0210 ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-389-0 01 1 0211-0405 ● ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-389-0 01 1 0406-0808 ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-389-0 01 1 0809- ● ●
16 SEAL; OIL,WATER PUMP
(C) 		1-09625-551-0 01 1 0204- ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0012-0203 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0204-0210 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0211-0405 ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0406-0808 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0809- ● ● ●
18 IMPELLER; WATER PUMP 1-13621-056-0 01 1 0809- ●
18 IMPELLER; WATER PUMP 1-13621-052-0 01 1 0012- ●
18 IMPELLER; WATER PUMP 1-13621-049-0 01 1 0204-0603 ●
18 IMPELLER; WATER PUMP 8-97608-970-0 01 1 0604- ●
18 IMPELLER; WATER PUMP 1-13621-056-0 01 1 0211-0405 ●
20 COVER; WATER PUMP
(B) 		1-13612-049-0 01 1 0809- ●
20 COVER; WATER PUMP
(A) 		1-13612-038-1 01 1 0204-0303 ●
20 COVER; WATER PUMP
(A) 		1-13612-055-1 01 1 0304-0603 ●
20 COVER; WATER PUMP
(A) 		8-97611-134-0 01 1 0604- ●
23 WASHER; PL,WATER PUMP
ID=10.5 OD=22 		9-09160-610-0 02 1 0809- ●
24 BOLT; WATER PUMP
(A) M10X70 		0-16806-070-0 02 1 0012-0512 ●
24 BOLT; WATER PUMP
(A) M10X70 		0-16856-070-0 02 1 0601- ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50140-845-0 07 1 0012-0906 ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50640-845-0 07 1 0907- ●
24 BOLT; WATER PUMP
(C) M10X25 FLANGE 		0-28181-025-0 02 1 0204-0512 ●
24 BOLT; WATER PUMP
(C) M10X25 FLANGE 		0-28151-025-0 02 1 0601- ●
24 BOLT; WATER PUMP
(A) M10X95 		0-16806-095-0 02 1 0211- ●
24 BOLT; WATER PUMP
(B) M8X35 W/LK&PL WASHER 		0-50140-835-0 01 1 0211-0512 ●
24 BOLT; WATER PUMP
(B) M8X35 W/LK&PL WASHER 		0-50640-835-0 01 1 0601- ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50140-845-0 06 1 0211-0906 ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50640-845-0 06 1 0907- ●
26 COVER; DUST,WATER PUMP 1-13612-049-0 01 1 0012-0210 ●
26 COVER; DUST,WATER PUMP 1-13612-049-0 01 1 0211-0405 ● ●
26 COVER; DUST,WATER PUMP 1-13612-049-0 01 1 0406- ●
29 SHAFT; WATER PUMP 1-13631-081-0 01 1 0809- ●
29 SHAFT; WATER PUMP 1-13631-079-0 01 1 0012- ●
29 SHAFT; WATER PUMP 1-13631-078-1 01 1 0204-0902 ●
29 SHAFT; WATER PUMP 8-98141-463-0 01 1 0903- ●
29 SHAFT; WATER PUMP 1-13631-081-0 01 1 0211-0405 ●
55 NOZZLE; OIL FEED,WATER PUMP 1-13619-046-0 01 1 0012-0210 ●
55 NOZZLE; OIL FEED,WATER PUMP 1-13619-046-0 01 1 0211-0405 ● ●
55 NOZZLE; OIL FEED,WATER PUMP 1-13619-046-0 01 1 0406-0808 ●
55 NOZZLE; OIL FEED,WATER PUMP 1-13619-046-0 01 1 0809- ● ●
58 PLUG; HTR
PT3/8 T=8.0 		1-09605-066-0 01 1 0012-0405 ●
58 PLUG; HTR
PT3/8 T=8.0 		1-09605-066-0 01 1 0406- ● ●
58 PLUG; HTR
PT3/8 		5-09605-005-0 01 1 0204-0303 ●
58 PLUG; HTR
PT3/8 		5-09605-005-0 02 1 0304-0603 ●
58 PLUG; HTR
PT3/8 		5-09605-005-0 03 1 0604- ●
58 PLUG; HTR
PT3/4 		9-09204-526-0 01 1 0211-0212 ●
58 PLUG; HTR
PT3/4 		9-09204-526-0 02 1 0301-0405 ●
58 PLUG; HTR
PT3/4 		9-09204-526-0 01 1 0406- ●
65 SCREW; COVER,WATER PUMP
M4X8 W/LK WASHER 		9-03910-408-0 02 1 0012-0210 ●
65 SCREW; COVER,WATER PUMP
M4X8 W/LK WASHER 		9-03910-408-0 02 1 0211-0405 ● ●
65 SCREW; COVER,WATER PUMP
M4X8 W/LK WASHER 		9-03910-408-0 02 1 0406-0604 ●
65 SCREW; COVER,WATER PUMP
M4X8 W/LK WASHER 		0-36220-408-0 02 1 0605-0808 ●
65 SCREW; COVER,WATER PUMP
M4X8 W/LK WASHER 		0-36220-408-0 02 1 0809- ● ●
72 GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-307-0 01 1 0012- ●
72 GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-342-0 01 1 0211- ●
81 WASHER; LK
ID=10.2 		9-09150-510-0 02 1 0809- ●
119 BOLT; PUMP COVER
(C) M10X16 		0-23801-016-0 02 1 0809- ●
119 BOLT; PUMP COVER
(B) M10X20 		0-23801-020-0 01 1 0204-0303 ●
119 BOLT; PUMP COVER
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0304-0512 ●
119 BOLT; PUMP COVER
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28080-840-0 04 1 0204-0512 ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28050-840-0 04 1 0601- ●
124 WASHER; PULLEY
ID=10.2 		9-09150-510-0 01 1 0012-0603 ●
124 WASHER; PULLEY
ID=10.2 		0-91510-510-0 01 1 0604- ●
124 WASHER; PULLEY
ID=10.2 		9-09150-510-0 02 1 0211-0405 ●
132 WASHER; PL,WATER PUMP
ID=10.5 OD=18 		9-09160-510-0 02 1 0012-0210 ●
132 WASHER; PL,WATER PUMP
ID=10.5 OD=18 		9-09160-510-0 02 1 0211-0605 ● ●
132 WASHER; PL,WATER PUMP
ID=10.5 		0-91610-510-0 02 1 0606- ● ●
136 BOLT; PULLEY
M10X16 		0-23801-016-0 01 1 0012- ●
136 BOLT; PULLEY
M10X16 		0-23801-016-0 02 1 0211-0405 ●

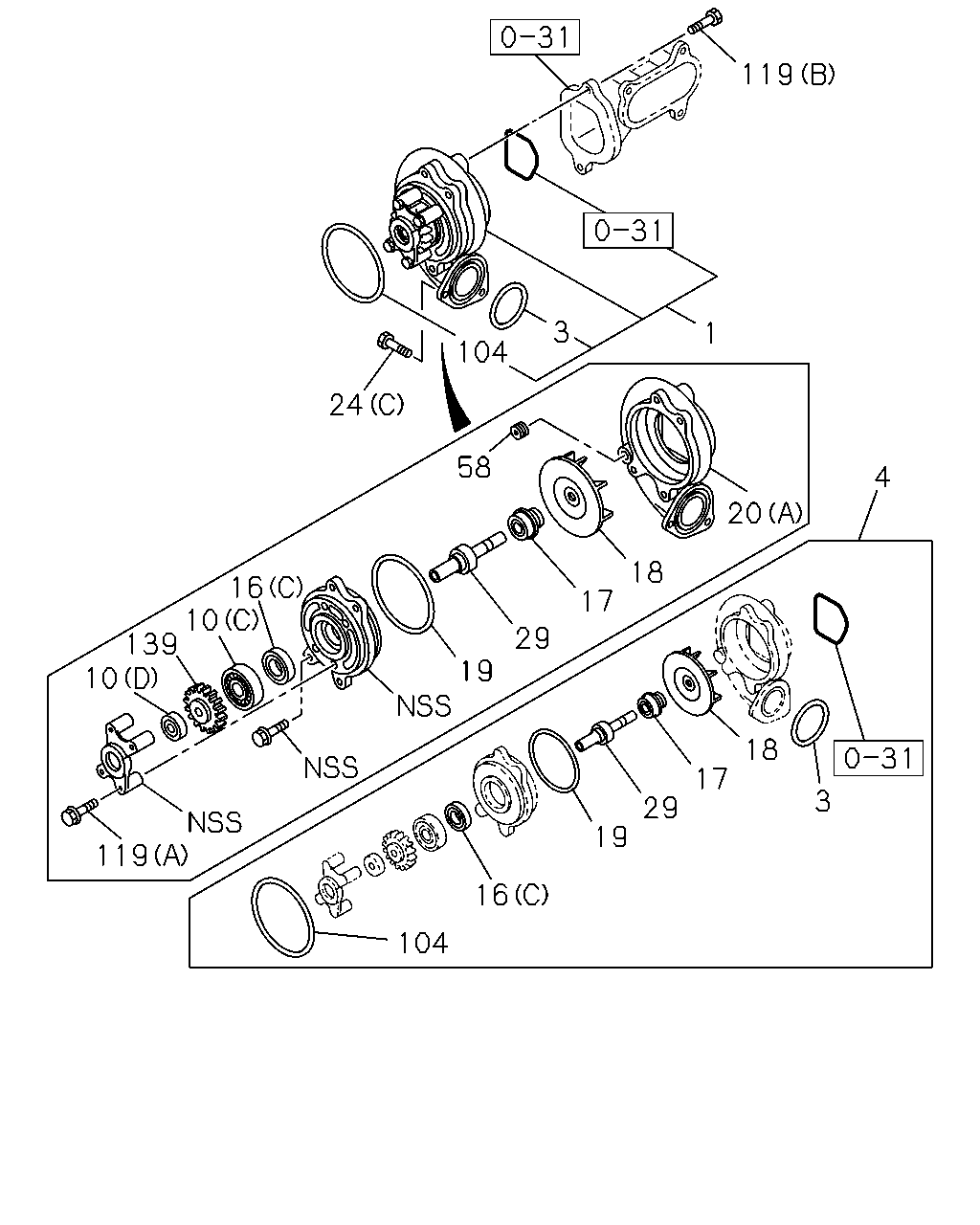

çizim 43820
119 3 1 104 24 58 4 20 18 16 10 139 10 17 29 19 18 17 3 29 19 119 16 104
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; WATER,W/GASKET 1-13650-111-0 01 1 0012- ●
1 PUMP ASM; WATER,W/GASKET 1-13650-160-1 01 1 0204-0303 ●
1 PUMP ASM; WATER,W/GASKET 1-13650-171-0 01 1 0304-0409 ●
1 PUMP ASM; WATER,W/GASKET 8-97606-250-2 01 1 0410-0603 ●
1 PUMP ASM; WATER,W/GASKET 8-97615-906-0 01 1 0604-0902 ●
1 PUMP ASM; WATER,W/GASKET 8-98146-074-0 01 1 0903- ●
1 PUMP ASM; WATER,W/GASKET 1-13650-158-0 01 1 0211-0405 ●
1 PUMP ASM; WATER,W/GASKET 8-97605-169-0 01 1 0406- ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-018-0 01 1 0012-0210 ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-018-1 01 1 0211- ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-586-1 01 1 0204- ●
4 REPAIR KIT; WATER PUMP 1-87812-019-1 01 1 0012- ●
4 REPAIR KIT; WATER PUMP 1-87811-843-0 01 1 0204-0412 ●
4 REPAIR KIT; WATER PUMP 1-87812-921-0 01 1 0501-0603 ●
4 REPAIR KIT; WATER PUMP 1-87813-072-0 01 1 0604-0902 ●
4 REPAIR KIT; WATER PUMP 1-87813-428-0 01 1 0903- ●
4 REPAIR KIT; WATER PUMP 1-87811-884-1 01 1 0211- ●
10 BEARING; WATER PUMP
(B) 		1-09800-155-0 02 1 0012-0210 ●
10 BEARING; WATER PUMP
(B) 		1-09800-155-0 02 1 0211-0405 ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-155-0 02 1 0406-0808 ●
10 BEARING; WATER PUMP
(B) 		1-09800-155-0 02 1 0809- ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-196-0 01 1 0012-0210 ●
10 BEARING; WATER PUMP
(A) 		1-09800-196-0 01 1 0211-0405 ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-196-0 01 1 0406-0808 ●
10 BEARING; WATER PUMP
(A) 		1-09800-196-0 01 1 0809- ● ●
10 BEARING; WATER PUMP
(C) 		1-09800-252-0 01 1 0204- ●
10 BEARING; WATER PUMP
(D) 		1-09800-253-0 01 1 0204- ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-388-0 01 1 0012-0210 ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-388-0 01 1 0211-0405 ● ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-388-0 01 1 0406-0808 ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-388-0 01 1 0809- ● ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-389-0 01 1 0012-0210 ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-389-0 01 1 0211-0405 ● ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-389-0 01 1 0406-0808 ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-389-0 01 1 0809- ● ●
16 SEAL; OIL,WATER PUMP
(C) 		1-09625-551-0 01 1 0204- ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0012-0203 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0204-0210 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0211-0405 ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0406-0808 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0809- ● ● ●
18 IMPELLER; WATER PUMP 1-13621-056-0 01 1 0809- ●
18 IMPELLER; WATER PUMP 1-13621-052-0 01 1 0012- ●
18 IMPELLER; WATER PUMP 1-13621-049-0 01 1 0204-0603 ●
18 IMPELLER; WATER PUMP 8-97608-970-0 01 1 0604- ●
18 IMPELLER; WATER PUMP 1-13621-056-0 01 1 0211-0405 ●
19 GASKET; COVER TO BODY 1-09623-587-0 01 1 0204-0501 ●
19 GASKET; COVER TO BODY 8-97606-729-0 01 1 0502- ●
20 COVER; WATER PUMP
(B) 		1-13612-049-0 01 1 0809- ●
20 COVER; WATER PUMP
(A) 		1-13612-038-1 01 1 0204-0303 ●
20 COVER; WATER PUMP
(A) 		1-13612-055-1 01 1 0304-0603 ●
20 COVER; WATER PUMP
(A) 		8-97611-134-0 01 1 0604- ●
24 BOLT; WATER PUMP
(A) M10X70 		0-16806-070-0 02 1 0012-0512 ●
24 BOLT; WATER PUMP
(A) M10X70 		0-16856-070-0 02 1 0601- ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50140-845-0 07 1 0012-0906 ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50640-845-0 07 1 0907- ●
24 BOLT; WATER PUMP
(C) M10X25 FLANGE 		0-28181-025-0 02 1 0204-0512 ●
24 BOLT; WATER PUMP
(C) M10X25 FLANGE 		0-28151-025-0 02 1 0601- ●
24 BOLT; WATER PUMP
(A) M10X95 		0-16806-095-0 02 1 0211- ●
24 BOLT; WATER PUMP
(B) M8X35 W/LK&PL WASHER 		0-50140-835-0 01 1 0211-0512 ●
24 BOLT; WATER PUMP
(B) M8X35 W/LK&PL WASHER 		0-50640-835-0 01 1 0601- ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50140-845-0 06 1 0211-0906 ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50640-845-0 06 1 0907- ●
29 SHAFT; WATER PUMP 1-13631-081-0 01 1 0809- ●
29 SHAFT; WATER PUMP 1-13631-079-0 01 1 0012- ●
29 SHAFT; WATER PUMP 1-13631-078-1 01 1 0204-0902 ●
29 SHAFT; WATER PUMP 8-98141-463-0 01 1 0903- ●
29 SHAFT; WATER PUMP 1-13631-081-0 01 1 0211-0405 ●
58 PLUG; HTR
PT3/8 T=8.0 		1-09605-066-0 01 1 0012-0405 ●
58 PLUG; HTR
PT3/8 T=8.0 		1-09605-066-0 01 1 0406- ● ●
58 PLUG; HTR
PT3/8 		5-09605-005-0 01 1 0204-0303 ●
58 PLUG; HTR
PT3/8 		5-09605-005-0 02 1 0304-0603 ●
58 PLUG; HTR
PT3/8 		5-09605-005-0 03 1 0604- ●
58 PLUG; HTR
PT3/4 		9-09204-526-0 01 1 0211-0212 ●
58 PLUG; HTR
PT3/4 		9-09204-526-0 02 1 0301-0405 ●
58 PLUG; HTR
PT3/4 		9-09204-526-0 01 1 0406- ●
104 GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-494-0 01 1 0204- ●
119 BOLT; PUMP COVER
(C) M10X16 		0-23801-016-0 02 1 0809- ●
119 BOLT; PUMP COVER
(B) M10X20 		0-23801-020-0 01 1 0204-0303 ●
119 BOLT; PUMP COVER
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0304-0512 ●
119 BOLT; PUMP COVER
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28080-840-0 04 1 0204-0512 ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28050-840-0 04 1 0601- ●
139 GEAR; WATER PUMP,DRIVE 1-13641-216-0 01 1 0204-0409 ●
139 GEAR; WATER PUMP,DRIVE 8-97606-219-0 01 1 0410- ●

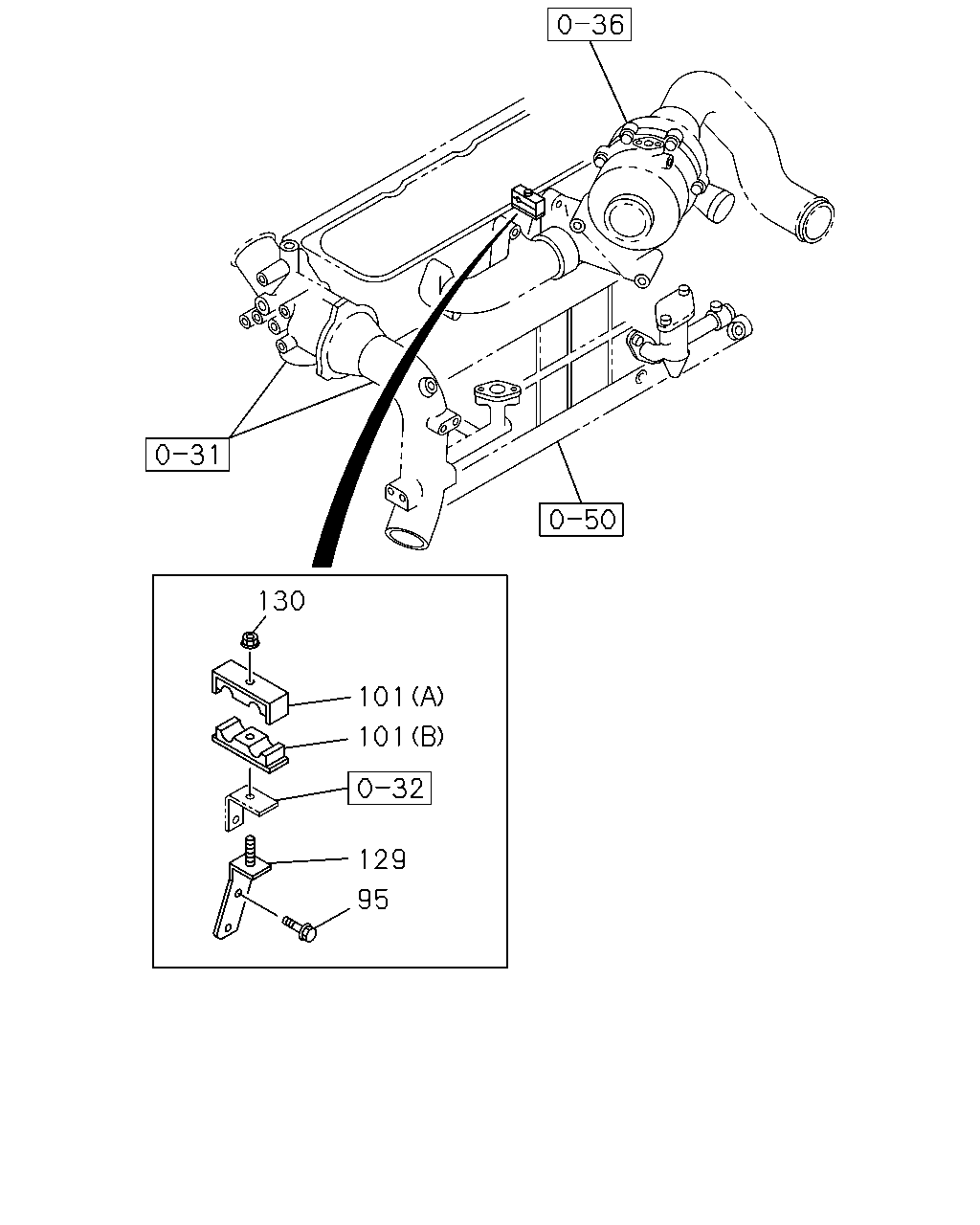

çizim 45189
130 101 101 129 95
BalonParca AdiParca NoAdetTipApplied Date A B C
95 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 0012-0106 ●
95 BOLT; BRKT
EXC. EURO3 SPECIFICATION(NJX) M8X16 FLANGE 		0-28080-816-0 02 1 0107-0512 ●
95 BOLT; BRKT
EXC. EURO3 SPECIFICATION(NJX) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
101 CLIP; WATER PIPE
(A) 		1-09701-230-0 01 1 0012-0106 ●
101 CLIP; WATER PIPE
EXC. EURO3 SPECIFICATION(NJX) (A) 		1-09701-230-1 01 1 0107- ●
101 CLIP; WATER PIPE
(B) 		1-09701-231-0 01 1 0012-0106 ●
101 CLIP; WATER PIPE
EXC. EURO3 SPECIFICATION(NJX) (B) 		1-09701-231-1 01 1 0107- ●
129 BRACKET; CLIP 1-13319-038-0 01 1 0012-0106 ●
129 BRACKET; CLIP
EXC. EURO3 SPECIFICATION(NJX) 		1-13319-038-0 01 1 0107- ●
130 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 0012-0106 ●
130 NUT; CLIP
EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE 		0-91150-106-0 01 1 0107-0602 ●
130 NUT; CLIP
EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE 		0-91180-106-0 01 1 0603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
