Isuzu WW
▶
BUSES
▶
LV
▶
10818 - LV123/150/423-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶
0-28 — VENTILATION SYSTEM
(#7948) — 34 parça
Tümü
A - 6WA1 TC-C
B - 6SD1 TC-S
C - 6SD1 TC
◀
[028A] 6WA1 (11 parça)
[028A] 6SD1 (23 parça)
▶
91
10
1
9
59
106
11
10
106
10
90
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
BREATHER; AIR
1-11740-181-1
01
1
0204-
●
9
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6
1-09623-565-0
01
1
0204-
●
10
CLIP; AIR BREATHER
(B) ID=31 L=30
1-09700-969-0
02
1
0204-
●
10
CLIP; AIR BREATHER
(A) ID=28.5
1-09707-150-0
01
1
0204-
●
11
HOSE; RUBBER,AIR
1-11742-073-3
01
1
0204-
●
59
CLIP; HOSE
ID=33.6
8-94362-518-0
01
1
0204-
●
90
CLIP; RUBBER HOSE
L=250
5-09707-030-1
02
1
0204-
●
91
BOLT; AIR BREATHER
M10X20 FLANGE
0-28181-020-0
02
1
0204-0512
●
91
BOLT; AIR BREATHER
M10X20 FLANGE
0-28151-020-0
02
1
0601-
●
106
BOLT; DRAIN PIPE
M8X12 FLANGE
0-28080-812-0
02
1
0204-0512
●
106
BOLT; DRAIN PIPE
M8X12 FLANGE
0-28050-812-0
02
1
0601-
●

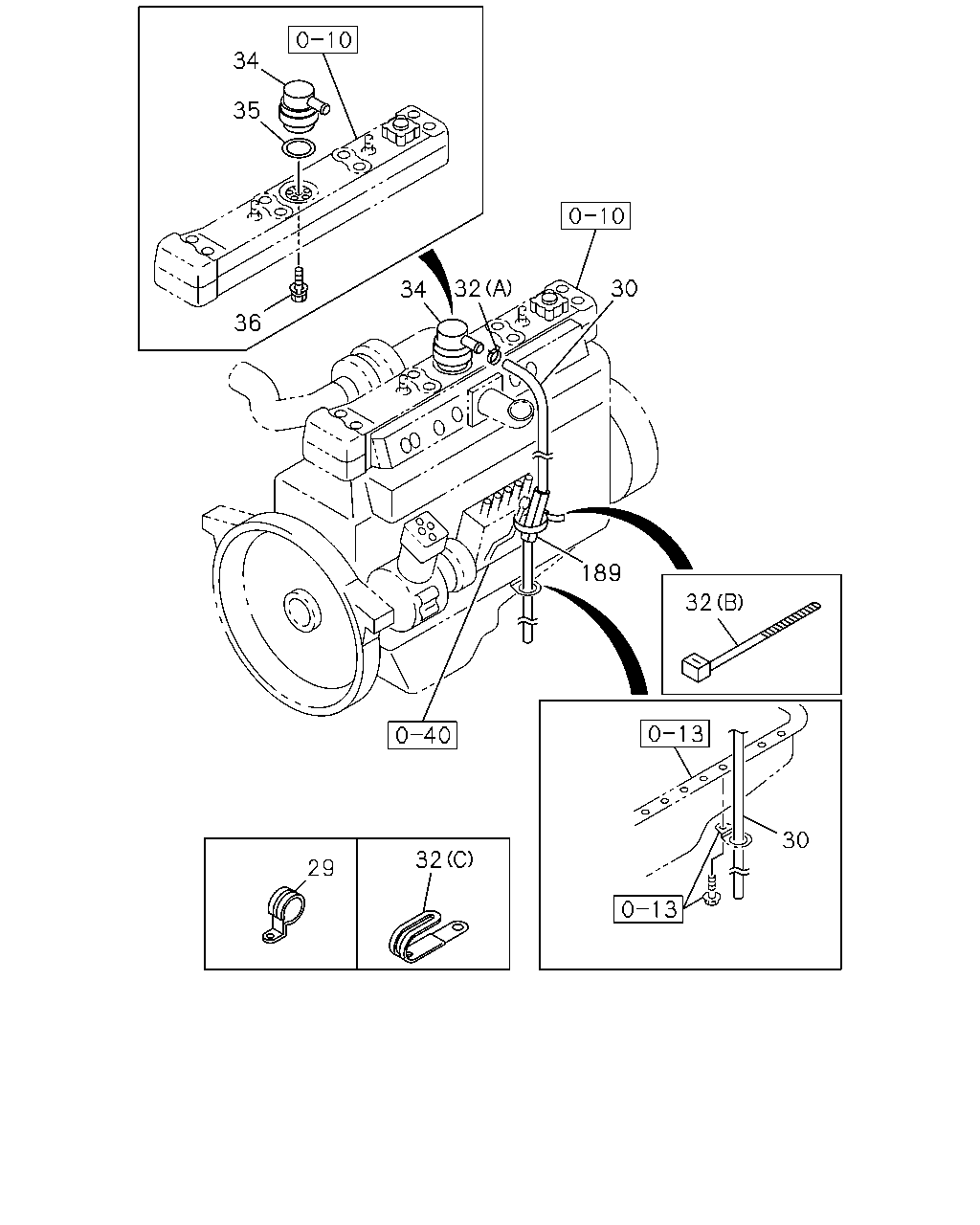

34
35
32
30
34
36
189
32
30
32
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
29
CLIP; RUBBER HOSE,BREATHER
RR ENG AIR SUSP(LVD5FB) ID=35 H=45 L=33
1-09700-947-0
01
1
0211-
●
30
HOSE; VENTILATOR,CYL HD COVER
1-09360-730-0
01
1
0012-0210
●
30
HOSE; VENTILATOR,CYL HD COVER
1-09360-730-1
01
1
0211-
●
●
32
CLIP; VENT HOSE
(A) ID=20
1-09707-084-1
01
1
0012-0210
●
32
CLIP; VENT HOSE
(A) ID=20
1-09707-084-1
01
1
0211-
●
●
32
CLIP; VENT HOSE
(B) L=140
5-09707-031-1
03
1
0012-0106
●
32
CLIP; VENT HOSE
EXC. EURO3 SPECIFICATION(NJX) (B) L=140
5-09707-031-1
02
1
0107-
●
32
CLIP; VENT HOSE
EURO3 SPECIFICATION(NJX) (B) L=250
5-09707-030-1
01
1
0107-
●
32
CLIP; VENT HOSE
EURO3 SPECIFICATION(NJX) (B) L=140
5-09707-031-1
01
1
0107-0210
●
32
CLIP; VENT HOSE
EURO3 SPECIFICATION(NJX) (B) L=140
5-09707-031-1
01
1
0211-
●
32
CLIP; VENT HOSE
(B) L=140
5-09707-031-1
01
1
0211-
●
32
CLIP; VENT HOSE
(C) ID=21 L=47.5
8-94178-108-0
01
1
0211-
●
34
VENTILATOR
1-11740-172-2
01
1
0012-0210
●
34
VENTILATOR
1-11740-172-2
01
1
0211-
●
●
35
GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09623-209-0
01
1
0012-0210
●
35
GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09623-209-0
01
1
0211-
●
●
36
BOLT; VENTILATOR
M10X25 W/LK WASHER
0-50051-025-0
01
1
0012-0210
●
36
BOLT; VENTILATOR
M10X25 W/LK WASHER
0-50051-025-0
01
1
0211-0906
●
●
36
BOLT; VENTILATOR
M10X25 W/LK WASHER
0-50551-025-0
01
1
0907-
●
●
189
SLEEVE; RUBBER
EURO3 SPECIFICATION(NJX) ID=10 OD=14 L=30
9-09956-682-0
01
1
0107-0210
●
189
SLEEVE; RUBBER
EURO3 SPECIFICATION(NJX) ID=10 OD=14 L=30
9-09956-682-0
01
1
0211-
●
189
SLEEVE; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
01
1
0211-
●
189
SLEEVE; RUBBER
EXC. EURO3 SPECIFICATION(NJX) ID=10 OD=14 L=30
9-09956-682-0
02
1
0107-
●
