4-20 — REAR AXLE CASE AND SHAFT (#79478) — 37 parça

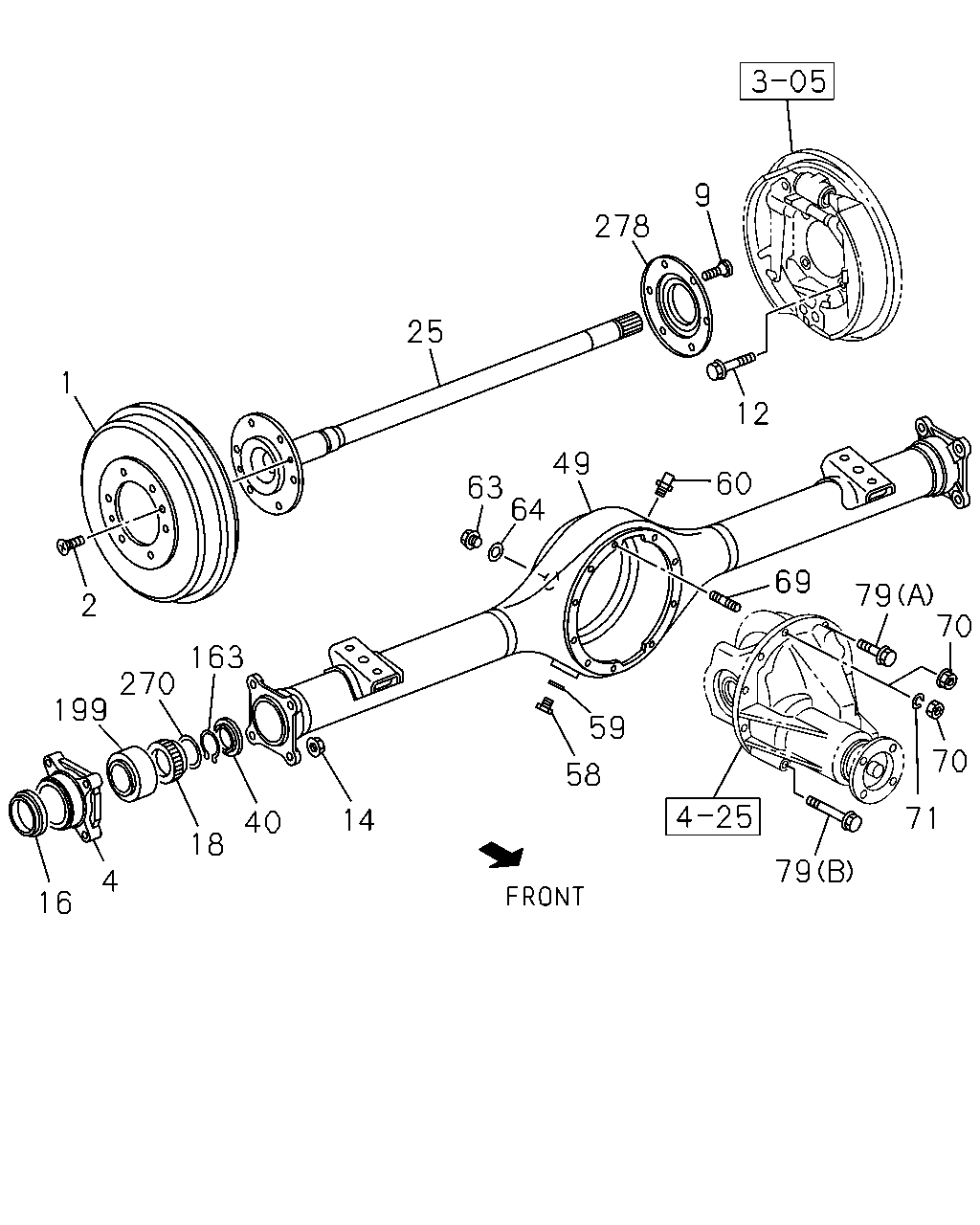

çizim 123266
70 70 71 79 79 69 60 59 58 64 49 63 12 9 278 25 1 163 14 40 18 4 199 2 270 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 05.809 DRUM; BRK,RR
AISIN TAKAOKA 		8-97948-038-1 02 1 1403- ● ● ● ● ● ●
1 05.809 DRUM; BRK,RR
SOMBOON 		8-98061-813-1 02 1 1203- ● ● ● ● ● ●
2 05.812 BOLT; BRK DRUM
M6X16 CK-HEAD 		0-36410-616-0 02 1 1203- ● ● ● ● ● ●
4 05.816 HOLDER; BRG,AXLE SHAFT 8-98103-450-3 02 1 1203- ● ● ● ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD 		8-97944-831-1 12 1 1203- ● ● ● ● ● ●
12 05.816 BOLT; BRG HOLDER TO CASE
M12X59 FLANGE 		8-98107-914-2 08 1 1203- ● ● ● ● ● ●
14 05.816 NUT; BRG HOLDER TO CASE
M12 FLANGE 		0-91180-212-0 08 1 1203- ● ● ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER 8-98134-394-0 02 1 1203- ● ● ● ● ● ●
18 05.822 RETAINER; RR AXLE 8-98009-341-0 02 1 1203- ● ● ● ● ● ●
25 05.420 SHAFT; AXLE,RR
HIGH RIDE SUSPENSION(7YC) 		8-98080-678-2 02 1 1203- ● ●
25 05.420 SHAFT; AXLE,RR 8-98080-678-2 02 1 1203- ● ● ●
25 05.420 SHAFT; AXLE,RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98080-677-2 02 1 1203- ● ●
25 05.420 SHAFT; AXLE,RR 8-98080-677-2 02 1 1203- ●
40 05.387 SEAL; OIL,REAR AXLE 8-97323-297-0 02 1 1203- ● ● ● ● ● ●
49 05.387 CASE; RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-98080-423-2 01 1 1203- ● ●
49 05.387 CASE; RR AXLE
M/T AISIN 6 SPEED(RNU) 		8-98080-423-2 01 1 1203- ● ● ●
49 05.387 CASE; RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98157-092-1 01 1 1203- ● ●
49 05.387 CASE; RR AXLE 8-98157-092-1 01 1 1203- ●
49 05.387 CASE; RR AXLE
A/T 5 SPEED-AISIN(MA1) 		8-98173-633-0 01 1 1203- ● ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 1203- ● ● ● ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 1203- ● ● ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 1203- ● ● ● ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE 8-97307-059-1 01 1 1203- ● ● ● ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 1203- ● ● ● ● ● ●
69 05.387 STUD; AXLE CASE
M10X31 L=43 		8-98022-413-0 02 1 1203- ● ● ● ● ● ●
70 05.387 NUT; CARRIER
00.833 M10 		0-91110-510-0 02 1 1203-1509 ● ● ● ● ● ●
70 05.387 NUT; CARRIER
04.085 M10 FLANGE 		0-91180-210-0 02 1 1510- ● ● ● ● ● ●
71 05.389 WASHER; LK,FINAL DRIVE SETTING
02.277 ID=10.2 		0-91510-810-0 02 1 1203-1509 ● ● ● ● ● ●
79 05.387 BOLT; COVER TO CASE
(A) M10X30 W/LK WASHER 		0-50561-030-0 07 1 1203-1509 ● ● ● ● ● ●
79 05.387 BOLT; COVER TO CASE
04.085 (A) M10X30 FLANGE 		0-28061-030-0 07 1 1510- ● ● ● ● ● ●
79 05.387 BOLT; COVER TO CASE
(B) M10X90 W/LK WASHER 		0-50561-090-0 01 1 1203-1509 ● ● ● ● ● ●
79 05.387 BOLT; COVER TO CASE
(B) M10X90 		0-28061-090-0 01 1 1510- ● ● ● ● ● ●
163 05.422 RING; SNAP,AXLE SHAFT
ID=38.5 T=1.75 		9-09180-042-0 AR 1 1203- ● ● ● ● ● ●
163 05.422 RING; SNAP,AXLE SHAFT
ID=38.5 T=2.00 		9-09952-253-0 AR 1 1203- ● ● ● ● ● ●
199 05.855 BEARING; RR AXLE 8-97216-797-2 02 1 1203- ● ● ● ● ● ●
270 05.855 SHIM; RETAINER
05.537 T=0.24 		9-41519-109-0 AR 1 1203- ● ● ● ● ● ●
278 05.822 CATCHER; OIL 8-98103-447-2 02 1 1203- ● ● ● ● ● ●
