Sayfa 0-27 - Isuzu EPC

0-27 — EXHAUST MANIFOLD (#7947) — 206 parça

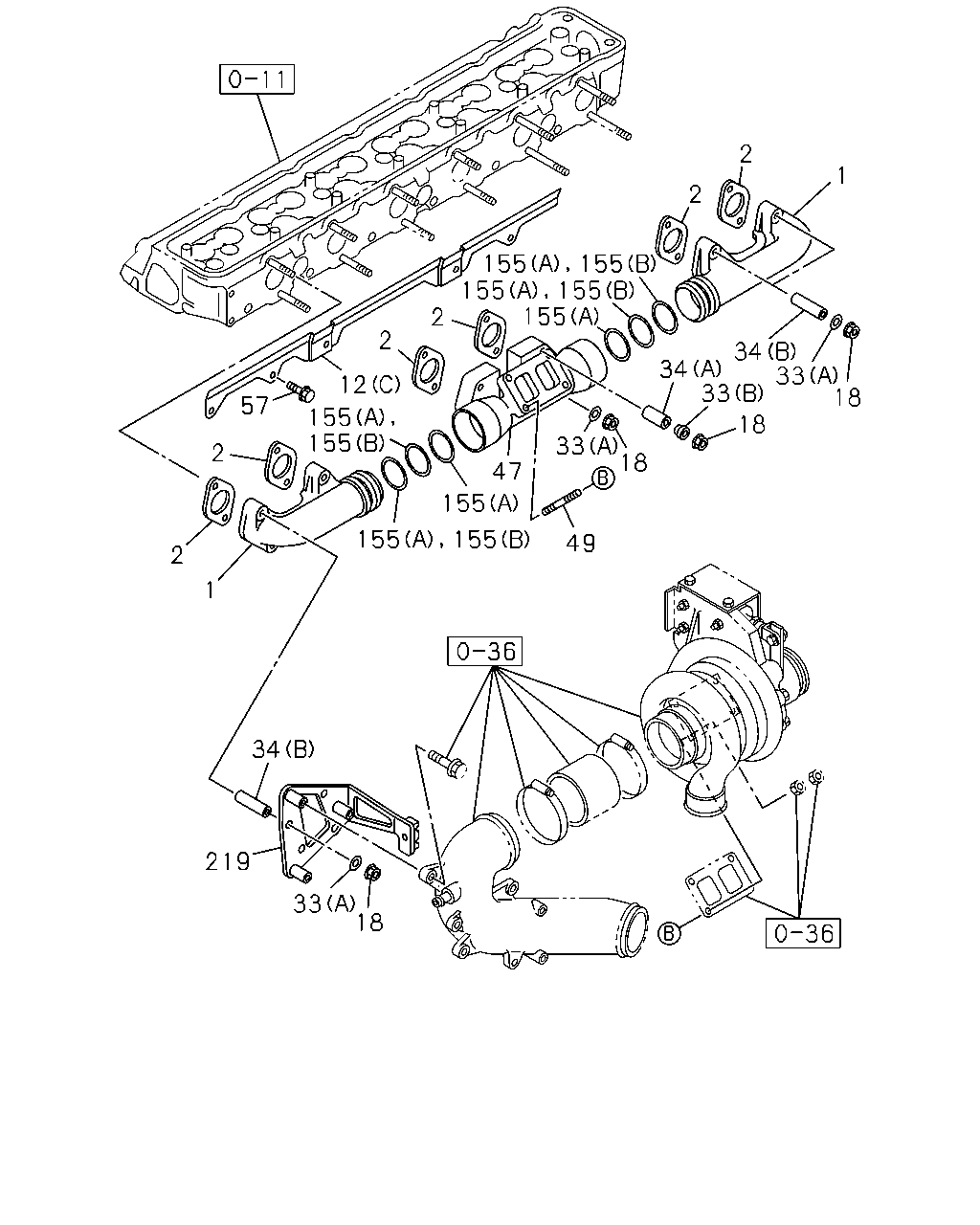

2 1 2 155 155 155 155 155 2 2 34 33 34 33 18 12 57 155 155 18 18 33 2 47 155 155 155 49 2 1 34 219 33 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	MANIFOLD; EXHAUST	1-14141-685-4	02	1	0012-0210	●
1	MANIFOLD; EXHAUST	1-14141-685-4	02	1	0211-	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-0	06	1	0012-0210	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	0211-	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-182-2	06	1	0204-			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14119-396-0	01	1	0012-0106	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO3 SPECIFICATION(NJX) (A)	1-14119-396-0	01	1	0107-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14181-234-0	01	1	0012-0106	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO3 SPECIFICATION(NJX) (B)	1-14181-234-0	01	1	0107-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO3 SPECIFICATION(NJX) (C)	1-14181-236-0	01	1	0107-0210	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO3 SPECIFICATION(NJX) (C)	1-14181-236-0	01	1	0211-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	1-14181-236-0	01	1	0211-		●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	0012-0210	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	0211-0602	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91180-210-0	12	1	0603-	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	18	1	0204-0602			●
18	NUT; EXH MANIF M10 FLANGE	0-91180-210-0	18	1	0603-			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0012-0210	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0211-	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	0012-0106	●
33	WASHER; EXH MANIF EXC. EURO3 SPECIFICATION(NJX) (B) T=5.5	1-14149-042-0	08	1	0107-	●
33	WASHER; EXH MANIF EURO3 SPECIFICATION(NJX) (B) T=5.5	1-14149-042-0	03	1	0107-0210	●
33	WASHER; EXH MANIF EURO3 SPECIFICATION(NJX) (B) T=5.5	1-14149-042-0	03	1	0211-	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	03	1	0211-		●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	18	1	0204-			●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	13	1	0204-0301			●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	08	1	0012-0106	●
34	COLLAR; DIST,EXH MANIF EXC. EURO3 SPECIFICATION(NJX) (A) L=43	1-14149-048-1	08	1	0107-	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	04	1	0012-0106	●
34	COLLAR; DIST,EXH MANIF EXC. EURO3 SPECIFICATION(NJX) (B) L=83	1-14149-134-0	04	1	0107-	●
34	COLLAR; DIST,EXH MANIF EURO3 SPECIFICATION(NJX) (A) L=43	1-14149-048-1	03	1	0107-0210	●
34	COLLAR; DIST,EXH MANIF EURO3 SPECIFICATION(NJX) (A) L=43	1-14149-048-1	03	1	0211-	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	03	1	0211-		●
34	COLLAR; DIST,EXH MANIF EURO3 SPECIFICATION(NJX) (B) L=83	1-14149-134-0	08	1	0107-0210	●
34	COLLAR; DIST,EXH MANIF EURO3 SPECIFICATION(NJX) (B) L=83	1-14149-134-0	08	1	0211-	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	08	1	0211-		●
34	COLLAR; DIST,EXH MANIF (C) L=43	8-94396-406-0	13	1	0204-0301			●
34	COLLAR; DIST,EXH MANIF (C) L=47	1-14149-263-0	13	1	0302-			●
47	MANIFOLD; EXH,CENTER	1-14141-880-0	01	1	0012-0106	●
47	MANIFOLD; EXH,CENTER EXC. EURO3 SPECIFICATION(NJX)	1-14141-880-0	01	1	0107-	●
47	MANIFOLD; EXH,CENTER EURO3 SPECIFICATION(NJX)	1-14141-994-0	01	1	0107-0210	●
47	MANIFOLD; EXH,CENTER EURO3 SPECIFICATION(NJX)	1-14141-994-0	01	1	0211-	●
47	MANIFOLD; EXH,CENTER	1-14141-994-0	01	1	0211-		●
47	MANIFOLD; EXH,CENTER	1-14141-802-3	01	1	0204-			●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=40	9-04731-025-0	03	1	0012-0106	●
49	STUD; CENTER MANIF TO TURBOCHARGER EXC. EURO3 SPECIFICATION(NJX) M10X25 L=40	9-04731-025-0	03	1	0107-	●
49	STUD; CENTER MANIF TO TURBOCHARGER EURO3 SPECIFICATION(NJX) M10X25 L=47	1-09302-167-1	04	1	0107-0210	●
49	STUD; CENTER MANIF TO TURBOCHARGER EURO3 SPECIFICATION(NJX) M10X25 L=47	1-09302-167-1	04	1	0211-0408	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	1-09302-167-1	04	1	0211-0408		●
49	STUD; CENTER MANIF TO TURBOCHARGER EURO3 SPECIFICATION(NJX) M10X25 L=47	8-97378-071-0	04	1	0409-	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	8-97378-071-0	04	1	0409-		●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	04	1	0204-			●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO3 SPECIFICATION(NJX) M10X16 FLANGE	0-28181-016-0	01	1	0107-0210	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO3 SPECIFICATION(NJX) M10X16 FLANGE	0-28181-016-0	01	1	0211-0512	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M10X16 FLANGE	0-28181-016-0	01	1	0211-0512		●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO3 SPECIFICATION(NJX) M10X16 FLANGE	0-28151-016-0	01	1	0601-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M10X16 FLANGE	0-28151-016-0	01	1	0601-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO3 SPECIFICATION(NJX) M8X16 FLANGE	0-28080-816-0	02	1	0107-0210	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO3 SPECIFICATION(NJX) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X16 FLANGE	0-28080-816-0	02	1	0211-0512		●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO3 SPECIFICATION(NJX) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. EURO3 SPECIFICATION(NJX) M8X12 FLANGE	0-28080-812-0	01	1	0107-0512	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. EURO3 SPECIFICATION(NJX) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X12 FLANGE	0-28080-812-0	01	1	0012-0106	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	04	1	0502-	●	●	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0012-0203	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0204-0210	●		●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0211-0501	●	●	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	02	1	0502-	●	●	●
219	BRACKET; DUCT EURO3 SPECIFICATION(NJX)	1-14149-244-0	01	1	0107-0210	●
219	BRACKET; DUCT EURO3 SPECIFICATION(NJX)	1-14149-244-0	01	1	0211-	●
219	BRACKET; DUCT	1-14149-244-0	01	1	0211-		●

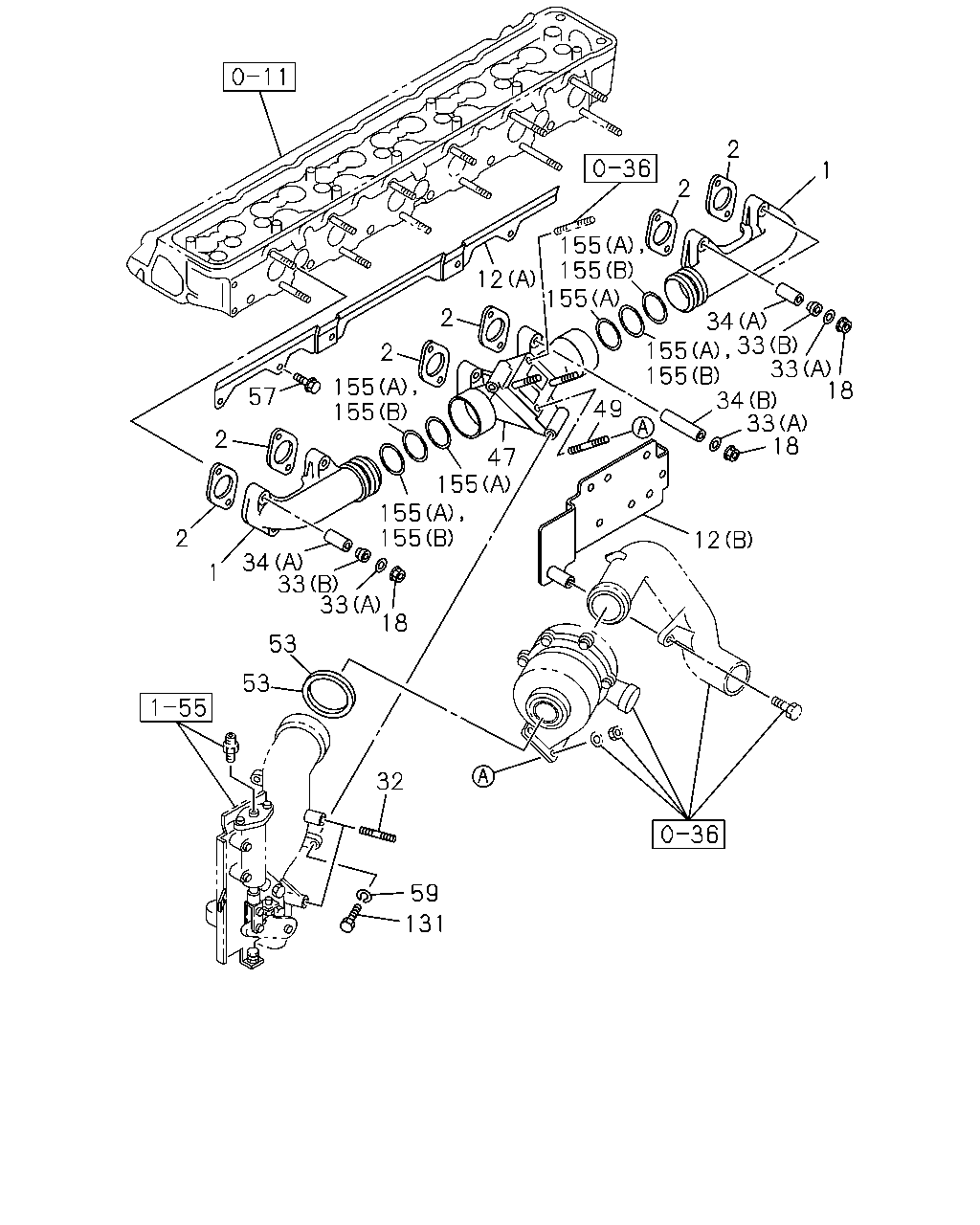

2 1 2 155 155 155 12 2 34 33 155 33 155 34 33 18 2 18 155 155 57 49 2 47 155 155 155 2 12 34 33 33 1 18 53 53 32 59 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	MANIFOLD; EXHAUST	1-14141-685-4	02	1	0012-0210	●
1	MANIFOLD; EXHAUST	1-14141-685-4	02	1	0211-	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-0	06	1	0012-0210	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	0211-	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-182-2	06	1	0204-			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14119-396-0	01	1	0012-0106	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO3 SPECIFICATION(NJX) (A)	1-14119-396-0	01	1	0107-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14181-234-0	01	1	0012-0106	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO3 SPECIFICATION(NJX) (B)	1-14181-234-0	01	1	0107-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO3 SPECIFICATION(NJX) (C)	1-14181-236-0	01	1	0107-0210	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO3 SPECIFICATION(NJX) (C)	1-14181-236-0	01	1	0211-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	1-14181-236-0	01	1	0211-		●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	0012-0210	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	0211-0602	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91180-210-0	12	1	0603-	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	18	1	0204-0602			●
18	NUT; EXH MANIF M10 FLANGE	0-91180-210-0	18	1	0603-			●
32	STUD; EXH PIPE M10X60 L=75	9-04411-060-0	02	1	0012-0106	●
32	STUD; EXH PIPE EXC. EURO3 SPECIFICATION(NJX) M10X60 L=75	9-04411-060-0	02	1	0107-0604	●
32	STUD; EXH PIPE EXC. EURO3 SPECIFICATION(NJX) M10X60 L=75	0-44011-060-0	02	1	0605-	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0012-0210	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0211-	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	0012-0106	●
33	WASHER; EXH MANIF EXC. EURO3 SPECIFICATION(NJX) (B) T=5.5	1-14149-042-0	08	1	0107-	●
33	WASHER; EXH MANIF EURO3 SPECIFICATION(NJX) (B) T=5.5	1-14149-042-0	03	1	0107-0210	●
33	WASHER; EXH MANIF EURO3 SPECIFICATION(NJX) (B) T=5.5	1-14149-042-0	03	1	0211-	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	03	1	0211-		●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	18	1	0204-			●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	13	1	0204-0301			●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	08	1	0012-0106	●
34	COLLAR; DIST,EXH MANIF EXC. EURO3 SPECIFICATION(NJX) (A) L=43	1-14149-048-1	08	1	0107-	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	04	1	0012-0106	●
34	COLLAR; DIST,EXH MANIF EXC. EURO3 SPECIFICATION(NJX) (B) L=83	1-14149-134-0	04	1	0107-	●
34	COLLAR; DIST,EXH MANIF EURO3 SPECIFICATION(NJX) (A) L=43	1-14149-048-1	03	1	0107-0210	●
34	COLLAR; DIST,EXH MANIF EURO3 SPECIFICATION(NJX) (A) L=43	1-14149-048-1	03	1	0211-	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	03	1	0211-		●
34	COLLAR; DIST,EXH MANIF EURO3 SPECIFICATION(NJX) (B) L=83	1-14149-134-0	08	1	0107-0210	●
34	COLLAR; DIST,EXH MANIF EURO3 SPECIFICATION(NJX) (B) L=83	1-14149-134-0	08	1	0211-	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	08	1	0211-		●
34	COLLAR; DIST,EXH MANIF (C) L=43	8-94396-406-0	13	1	0204-0301			●
34	COLLAR; DIST,EXH MANIF (C) L=47	1-14149-263-0	13	1	0302-			●
47	MANIFOLD; EXH,CENTER	1-14141-880-0	01	1	0012-0106	●
47	MANIFOLD; EXH,CENTER EXC. EURO3 SPECIFICATION(NJX)	1-14141-880-0	01	1	0107-	●
47	MANIFOLD; EXH,CENTER EURO3 SPECIFICATION(NJX)	1-14141-994-0	01	1	0107-0210	●
47	MANIFOLD; EXH,CENTER EURO3 SPECIFICATION(NJX)	1-14141-994-0	01	1	0211-	●
47	MANIFOLD; EXH,CENTER	1-14141-994-0	01	1	0211-		●
47	MANIFOLD; EXH,CENTER	1-14141-802-3	01	1	0204-			●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=40	9-04731-025-0	03	1	0012-0106	●
49	STUD; CENTER MANIF TO TURBOCHARGER EXC. EURO3 SPECIFICATION(NJX) M10X25 L=40	9-04731-025-0	03	1	0107-	●
49	STUD; CENTER MANIF TO TURBOCHARGER EURO3 SPECIFICATION(NJX) M10X25 L=47	1-09302-167-1	04	1	0107-0210	●
49	STUD; CENTER MANIF TO TURBOCHARGER EURO3 SPECIFICATION(NJX) M10X25 L=47	1-09302-167-1	04	1	0211-0408	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	1-09302-167-1	04	1	0211-0408		●
49	STUD; CENTER MANIF TO TURBOCHARGER EURO3 SPECIFICATION(NJX) M10X25 L=47	8-97378-071-0	04	1	0409-	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	8-97378-071-0	04	1	0409-		●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	04	1	0204-			●
53	RING; SEAL	1-14149-207-0	02	1	0012-0106	●
53	RING; SEAL EXC. EURO3 SPECIFICATION(NJX)	1-14149-207-0	02	1	0107-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO3 SPECIFICATION(NJX) M10X16 FLANGE	0-28181-016-0	01	1	0107-0210	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO3 SPECIFICATION(NJX) M10X16 FLANGE	0-28181-016-0	01	1	0211-0512	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M10X16 FLANGE	0-28181-016-0	01	1	0211-0512		●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO3 SPECIFICATION(NJX) M10X16 FLANGE	0-28151-016-0	01	1	0601-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M10X16 FLANGE	0-28151-016-0	01	1	0601-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO3 SPECIFICATION(NJX) M8X16 FLANGE	0-28080-816-0	02	1	0107-0210	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO3 SPECIFICATION(NJX) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X16 FLANGE	0-28080-816-0	02	1	0211-0512		●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO3 SPECIFICATION(NJX) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. EURO3 SPECIFICATION(NJX) M8X12 FLANGE	0-28080-812-0	01	1	0107-0512	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. EURO3 SPECIFICATION(NJX) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X12 FLANGE	0-28080-812-0	01	1	0012-0106	●
59	WASHER; LK,EXH PIPE ID=10	1-09503-033-1	02	1	0012-0106	●
59	WASHER; LK,EXH PIPE EXC. EURO3 SPECIFICATION(NJX) ID=10	1-09503-033-1	02	1	0107-	●
131	BOLT; MTG	9-09804-206-0	02	1	0012-0106	●
131	BOLT; MTG EXC. EURO3 SPECIFICATION(NJX)	9-09804-206-0	02	1	0107-	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	04	1	0502-	●	●	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0012-0203	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0204-0210	●		●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0211-0501	●	●	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	02	1	0502-	●	●	●

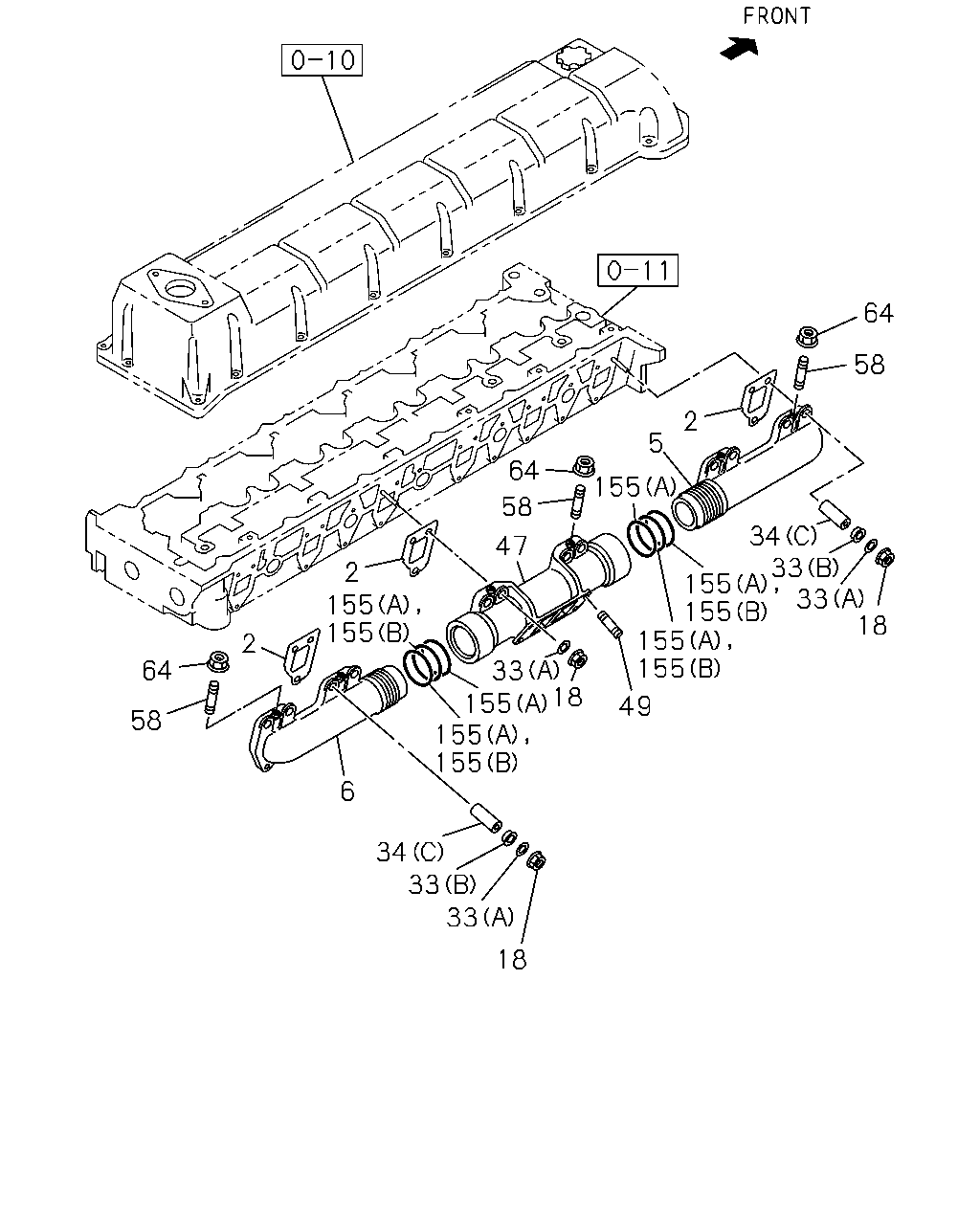

64 58 2 5 155 64 58 34 33 155 33 155 155 155 47 2 155 155 18 2 18 64 33 155 155 155 49 58 6 34 33 33 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-0	06	1	0012-0210	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	0211-	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-182-2	06	1	0204-			●
5	MANIFOLD; EXH,FRT	1-14141-801-2	01	1	0204-			●
6	MANIFOLD; EXH,RR	1-14141-803-2	01	1	0204-			●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	0012-0210	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	0211-0602	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91180-210-0	12	1	0603-	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	18	1	0204-0602			●
18	NUT; EXH MANIF M10 FLANGE	0-91180-210-0	18	1	0603-			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0012-0210	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0211-	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	0012-0106	●
33	WASHER; EXH MANIF EXC. EURO3 SPECIFICATION(NJX) (B) T=5.5	1-14149-042-0	08	1	0107-	●
33	WASHER; EXH MANIF EURO3 SPECIFICATION(NJX) (B) T=5.5	1-14149-042-0	03	1	0107-0210	●
33	WASHER; EXH MANIF EURO3 SPECIFICATION(NJX) (B) T=5.5	1-14149-042-0	03	1	0211-	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	03	1	0211-		●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	18	1	0204-			●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	13	1	0204-0301			●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	08	1	0012-0106	●
34	COLLAR; DIST,EXH MANIF EXC. EURO3 SPECIFICATION(NJX) (A) L=43	1-14149-048-1	08	1	0107-	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	04	1	0012-0106	●
34	COLLAR; DIST,EXH MANIF EXC. EURO3 SPECIFICATION(NJX) (B) L=83	1-14149-134-0	04	1	0107-	●
34	COLLAR; DIST,EXH MANIF EURO3 SPECIFICATION(NJX) (A) L=43	1-14149-048-1	03	1	0107-0210	●
34	COLLAR; DIST,EXH MANIF EURO3 SPECIFICATION(NJX) (A) L=43	1-14149-048-1	03	1	0211-	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	03	1	0211-		●
34	COLLAR; DIST,EXH MANIF EURO3 SPECIFICATION(NJX) (B) L=83	1-14149-134-0	08	1	0107-0210	●
34	COLLAR; DIST,EXH MANIF EURO3 SPECIFICATION(NJX) (B) L=83	1-14149-134-0	08	1	0211-	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	08	1	0211-		●
34	COLLAR; DIST,EXH MANIF (C) L=43	8-94396-406-0	13	1	0204-0301			●
34	COLLAR; DIST,EXH MANIF (C) L=47	1-14149-263-0	13	1	0302-			●
47	MANIFOLD; EXH,CENTER	1-14141-880-0	01	1	0012-0106	●
47	MANIFOLD; EXH,CENTER EXC. EURO3 SPECIFICATION(NJX)	1-14141-880-0	01	1	0107-	●
47	MANIFOLD; EXH,CENTER EURO3 SPECIFICATION(NJX)	1-14141-994-0	01	1	0107-0210	●
47	MANIFOLD; EXH,CENTER EURO3 SPECIFICATION(NJX)	1-14141-994-0	01	1	0211-	●
47	MANIFOLD; EXH,CENTER	1-14141-994-0	01	1	0211-		●
47	MANIFOLD; EXH,CENTER	1-14141-802-3	01	1	0204-			●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=40	9-04731-025-0	03	1	0012-0106	●
49	STUD; CENTER MANIF TO TURBOCHARGER EXC. EURO3 SPECIFICATION(NJX) M10X25 L=40	9-04731-025-0	03	1	0107-	●
49	STUD; CENTER MANIF TO TURBOCHARGER EURO3 SPECIFICATION(NJX) M10X25 L=47	1-09302-167-1	04	1	0107-0210	●
49	STUD; CENTER MANIF TO TURBOCHARGER EURO3 SPECIFICATION(NJX) M10X25 L=47	1-09302-167-1	04	1	0211-0408	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	1-09302-167-1	04	1	0211-0408		●
49	STUD; CENTER MANIF TO TURBOCHARGER EURO3 SPECIFICATION(NJX) M10X25 L=47	8-97378-071-0	04	1	0409-	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	8-97378-071-0	04	1	0409-		●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	04	1	0204-			●
58	STUD; HEAT PROTECTOR M8X20 L=32	9-04110-820-0	06	1	0204-0604			●
58	STUD; HEAT PROTECTOR M8X20 L=32	0-41010-820-0	06	1	0605-			●
64	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	03	1	0204-0602			●
64	NUT; HEAT PROTECTOR M8 FLANGE	0-91180-108-0	03	1	0603-			●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	04	1	0502-	●	●	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0012-0203	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0204-0210	●		●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0211-0501	●	●	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	02	1	0502-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
